Transmission Controls - 6F35

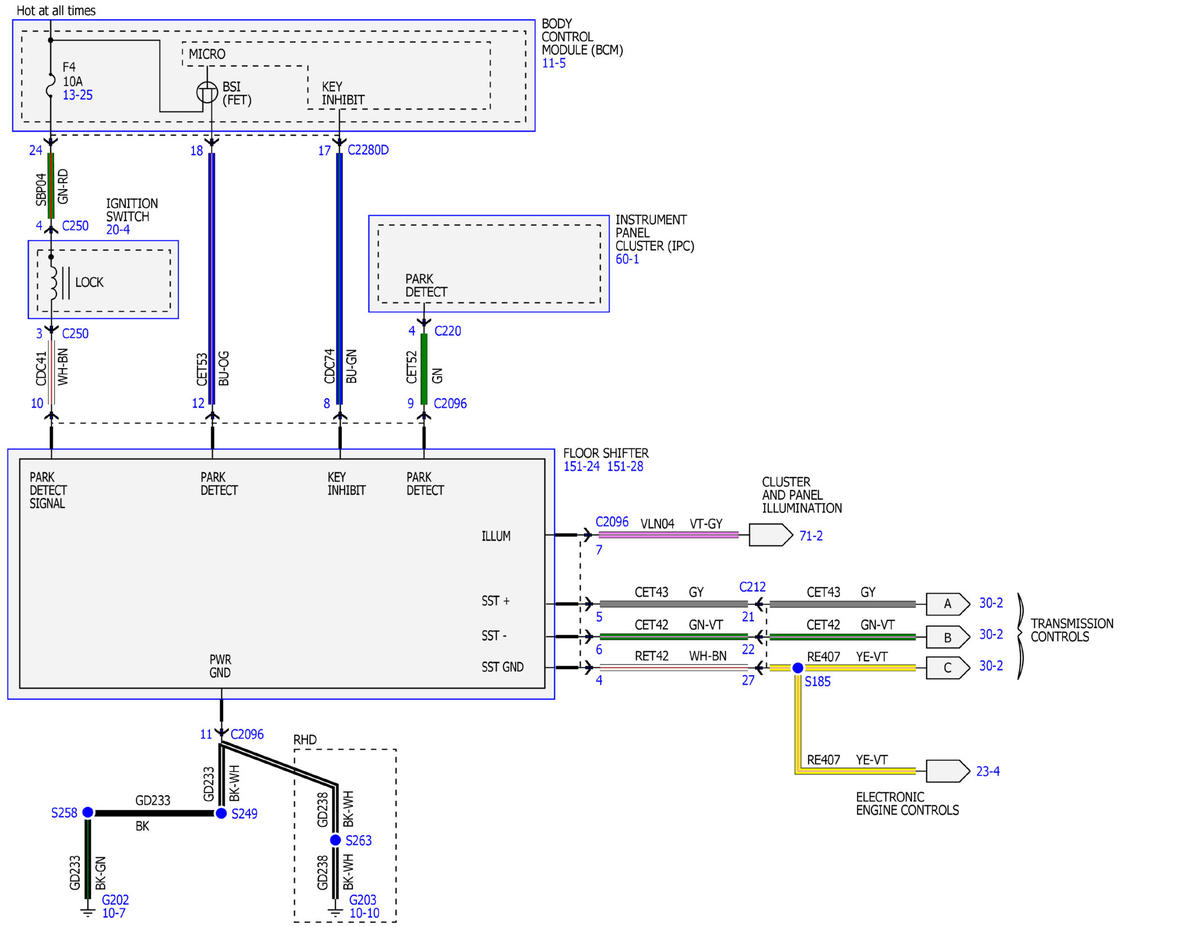

Fig 1: Identifying Transmission Controls - 6F35 Wiring Diagram (1 Of 2)
GFDWR130376Courtesy of FORD MOTOR COMPANY

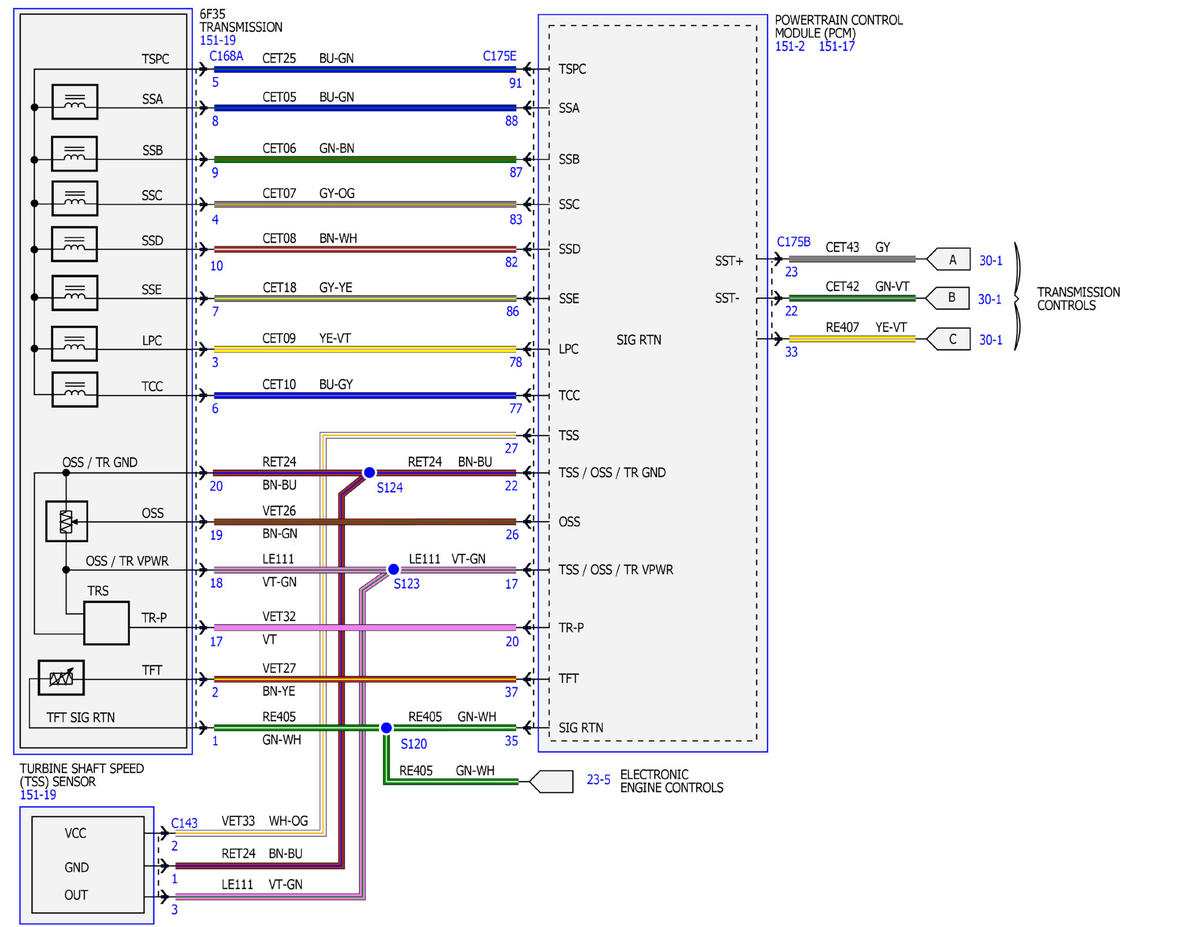

Fig 2: Identifying Transmission Controls - 6F35 Wiring Diagram (2 Of 2)
GFDWR130377Courtesy of FORD MOTOR COMPANY
