2022
>>
Transit Connect Titanium, Gas/Ethanol
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Trailer/Camper Adapter
Trailer/Camper Adapter

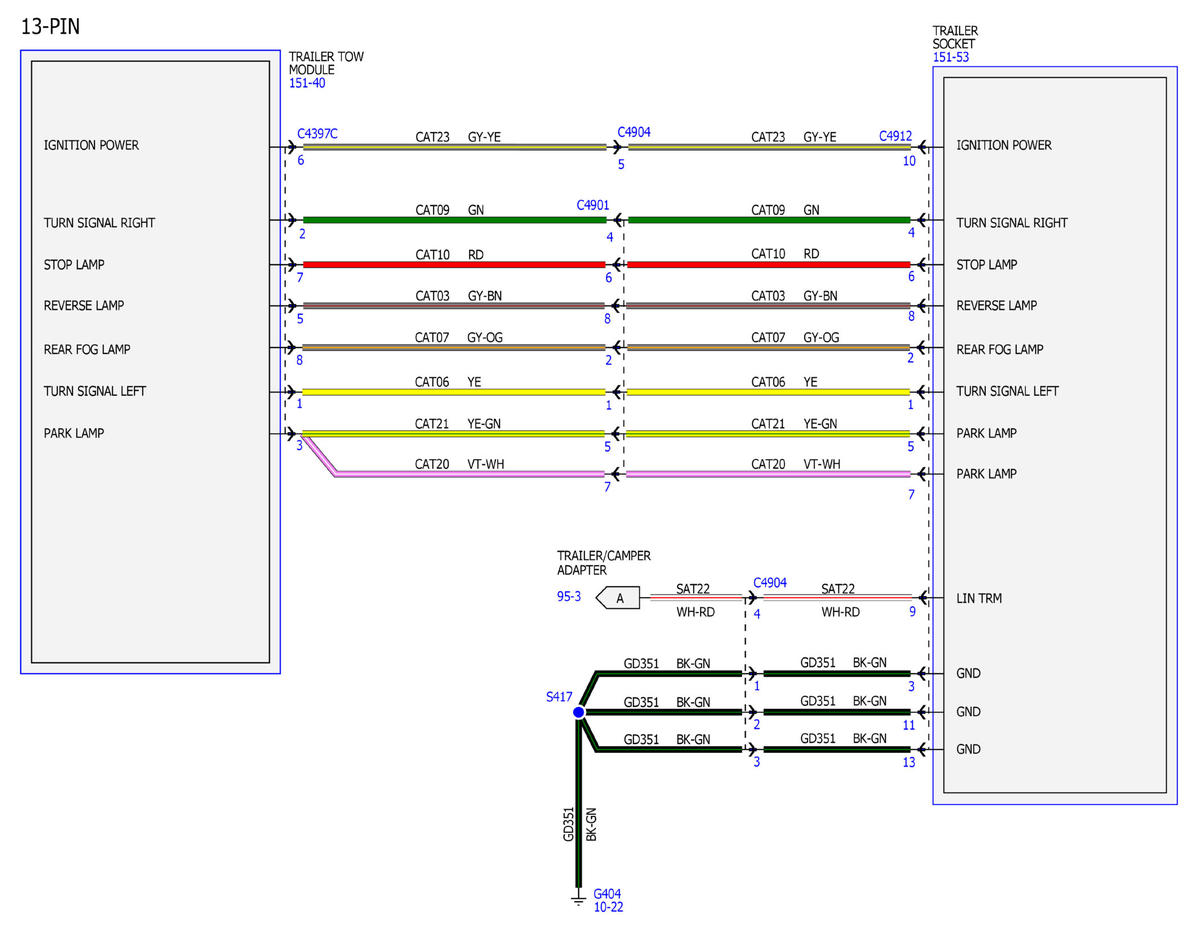

Fig 1: Identifying Trailer/Camper Adapter Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR COMPANY

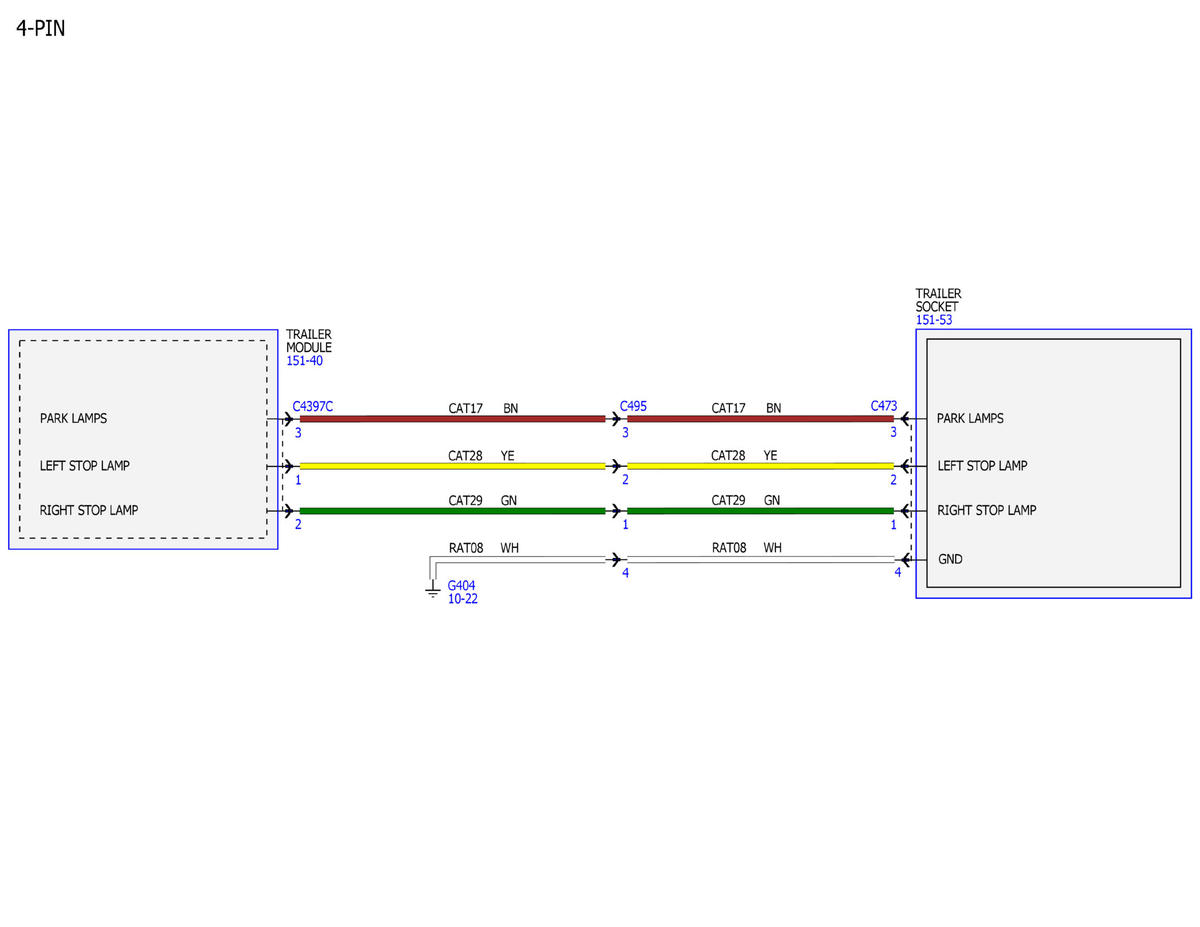

Fig 2: Identifying Trailer/Camper Adapter Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR COMPANY

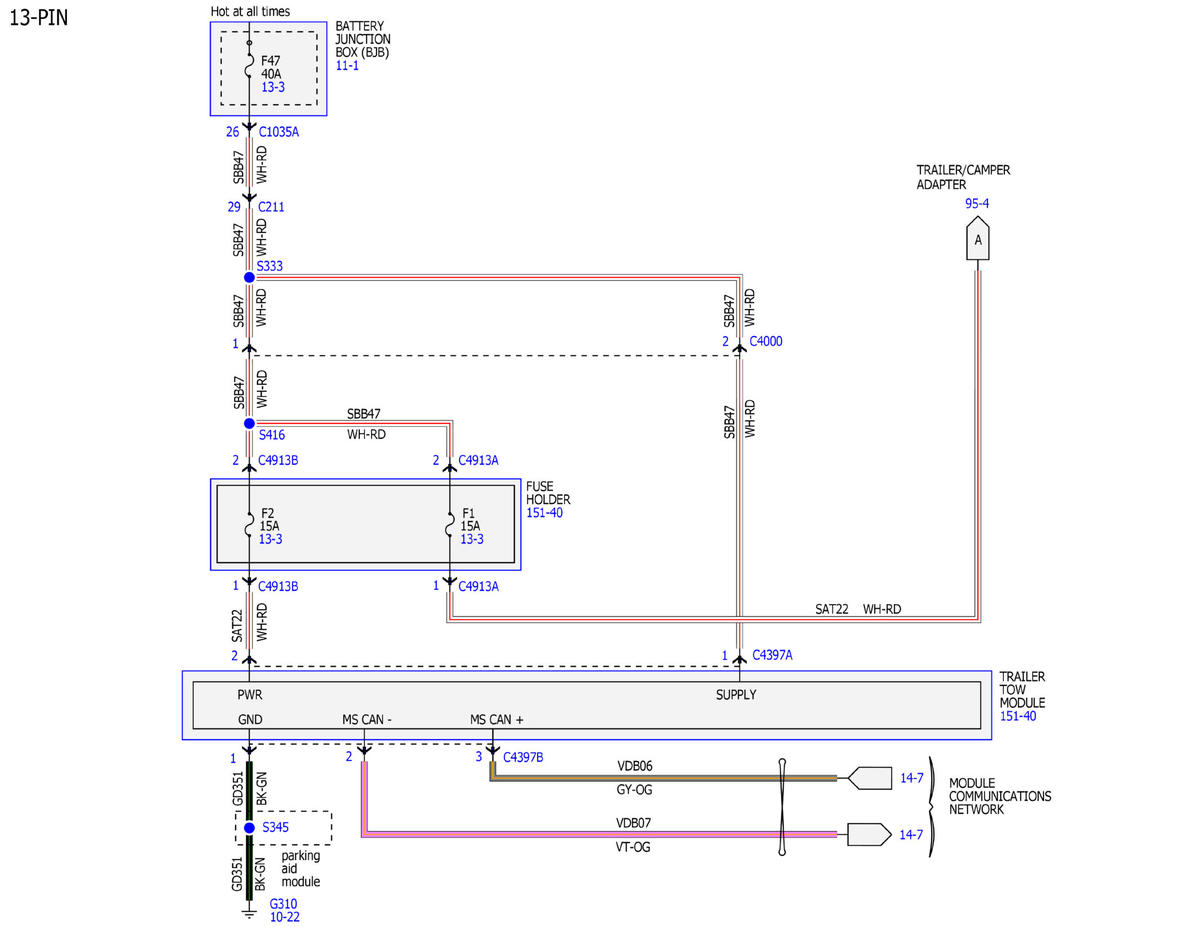

Fig 3: Identifying Trailer/Camper Adapter Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR COMPANY

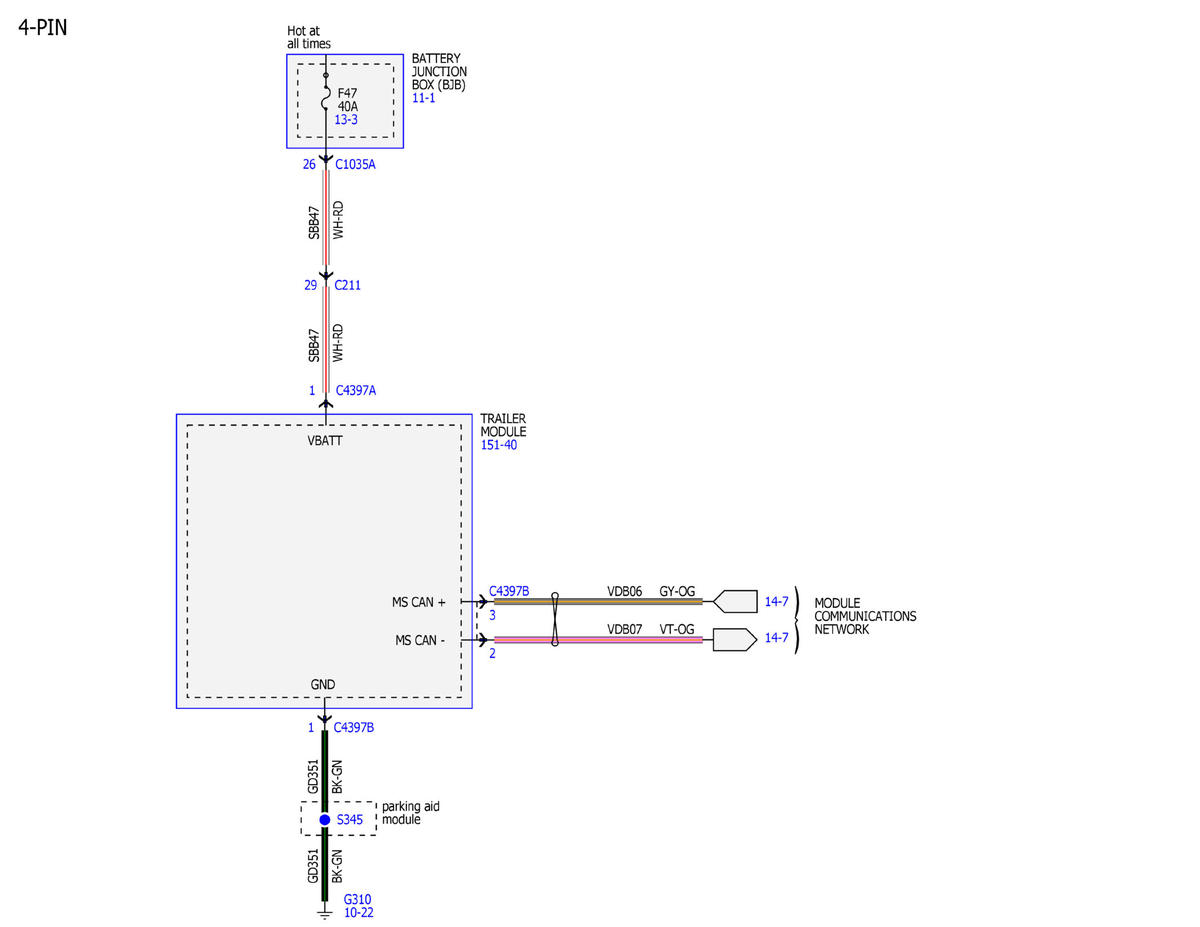

Fig 4: Identifying Trailer/Camper Adapter Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
