Supplemental Restraint System

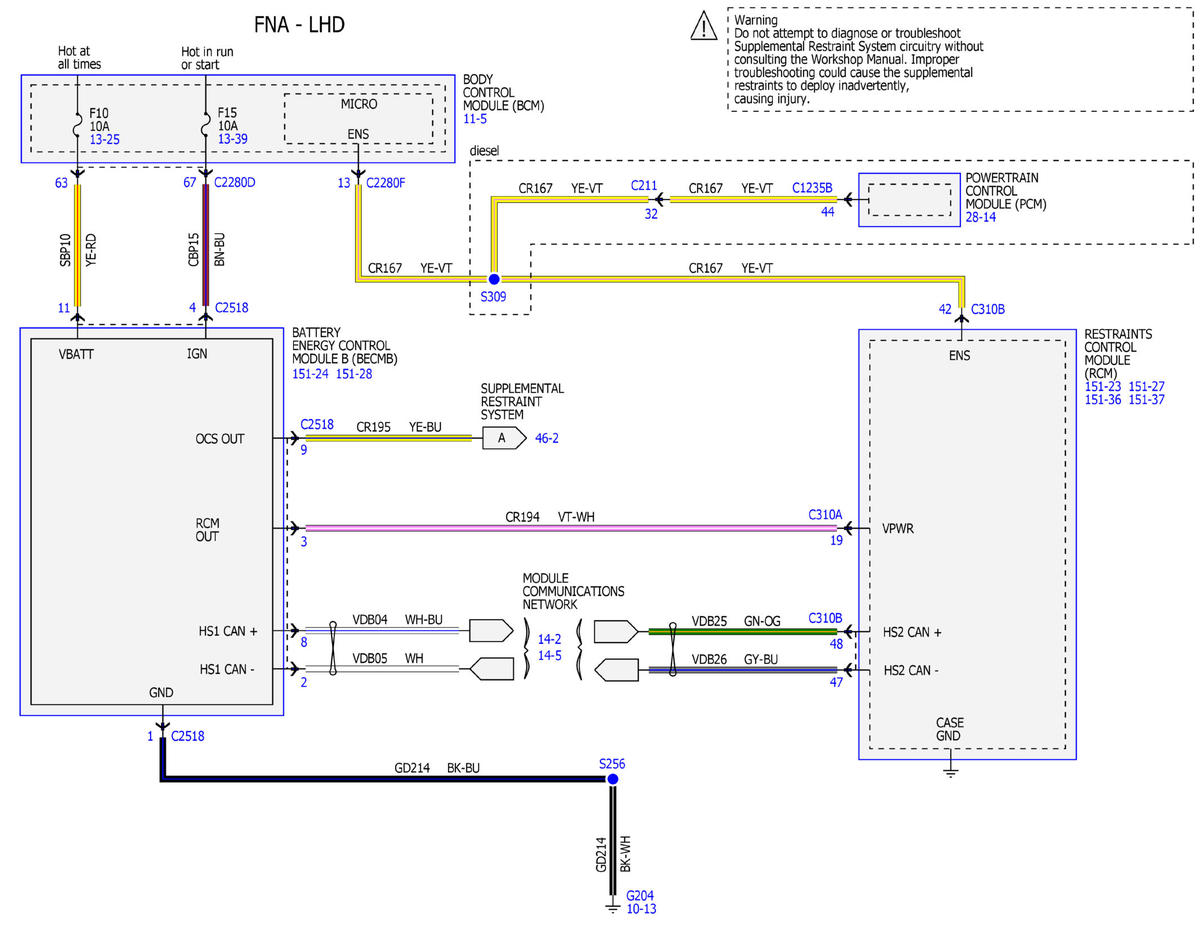

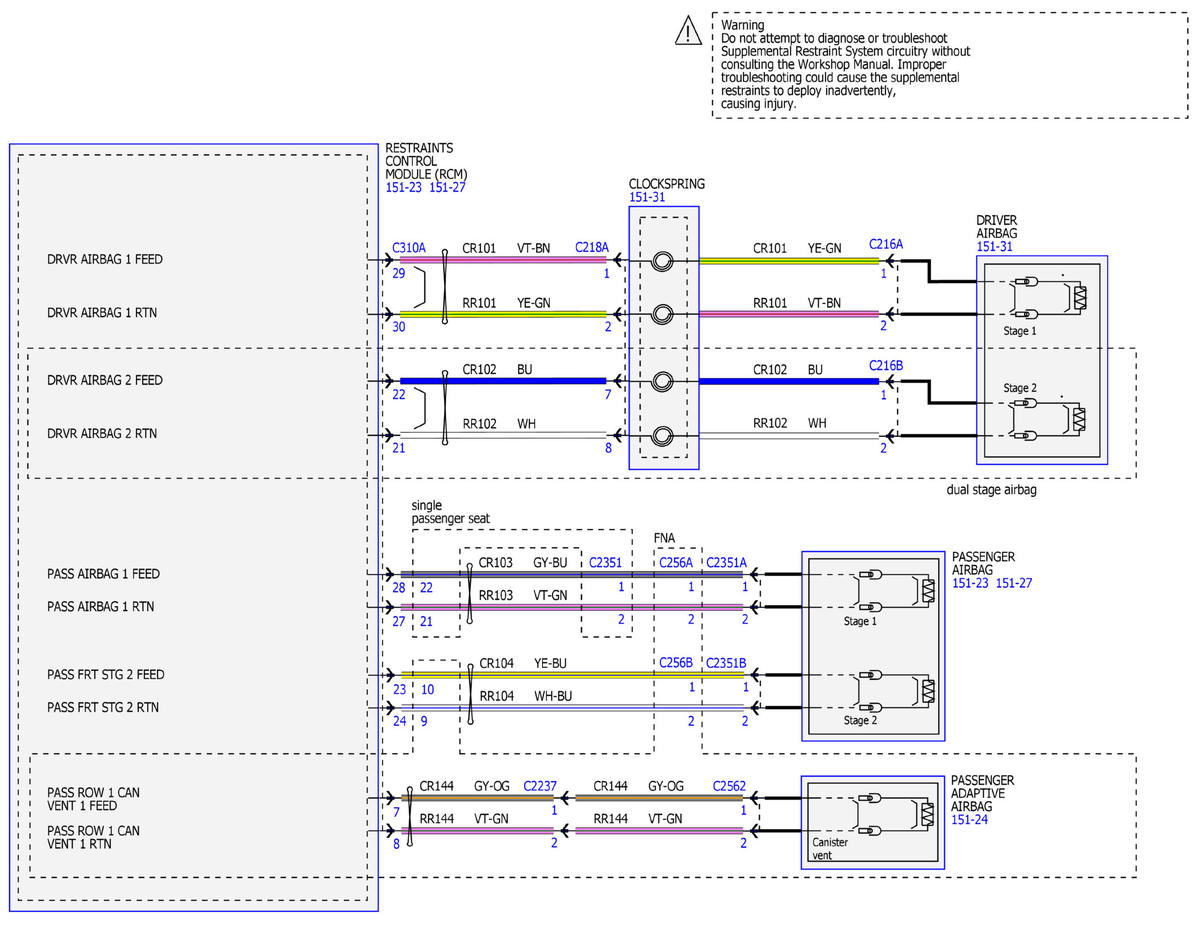

Fig 1: Identifying Supplemental Restraint System Wiring Diagram (1 Of 10)
GFDWR130361Courtesy of FORD MOTOR COMPANY

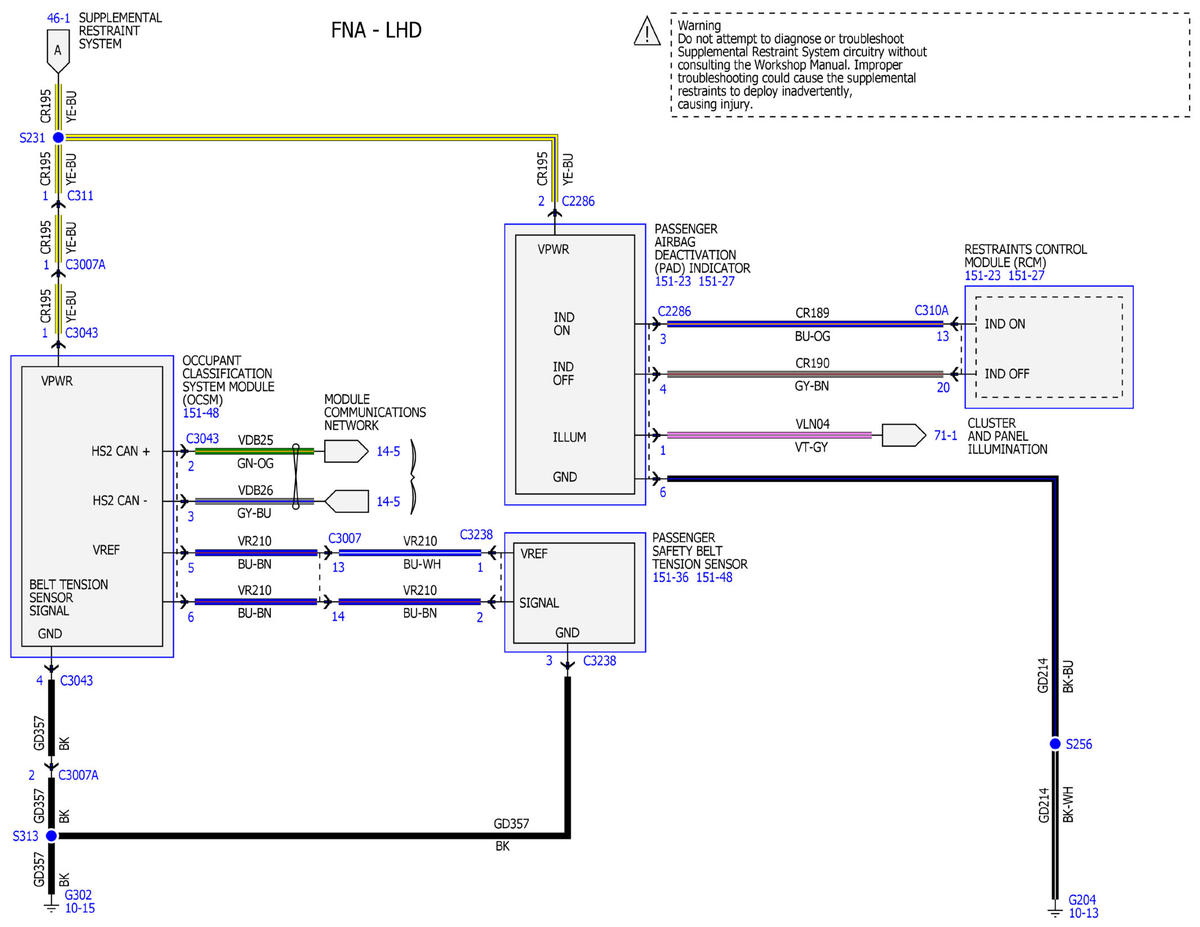

Fig 2: Identifying Supplemental Restraint System Wiring Diagram (2 Of 10)
GFDWR130363Courtesy of FORD MOTOR COMPANY

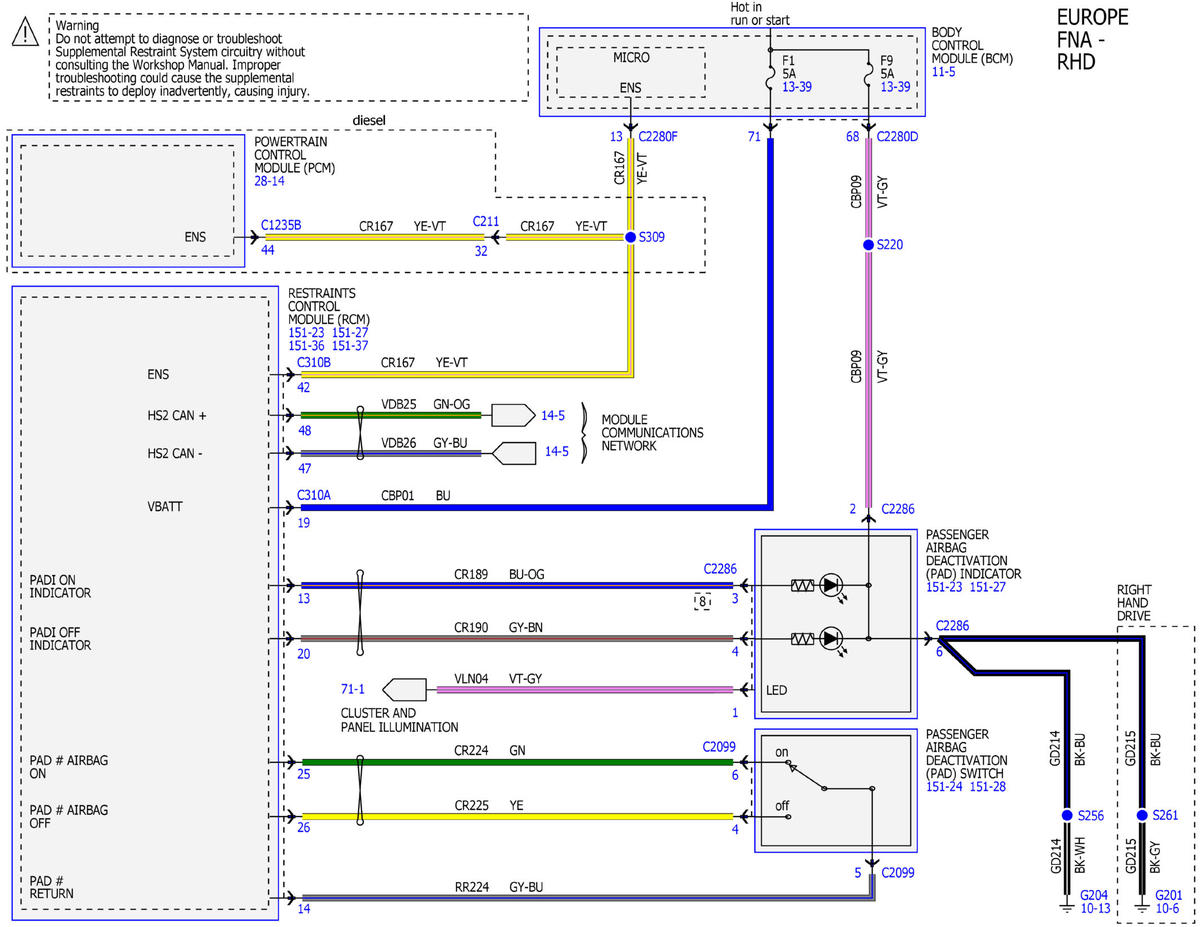

Fig 3: Identifying Supplemental Restraint System Wiring Diagram (3 Of 10)
GFDWR130364Courtesy of FORD MOTOR COMPANY
Fig 4: Identifying Supplemental Restraint System Wiring Diagram (4 Of 10)
GFDWR130365Courtesy of FORD MOTOR COMPANY

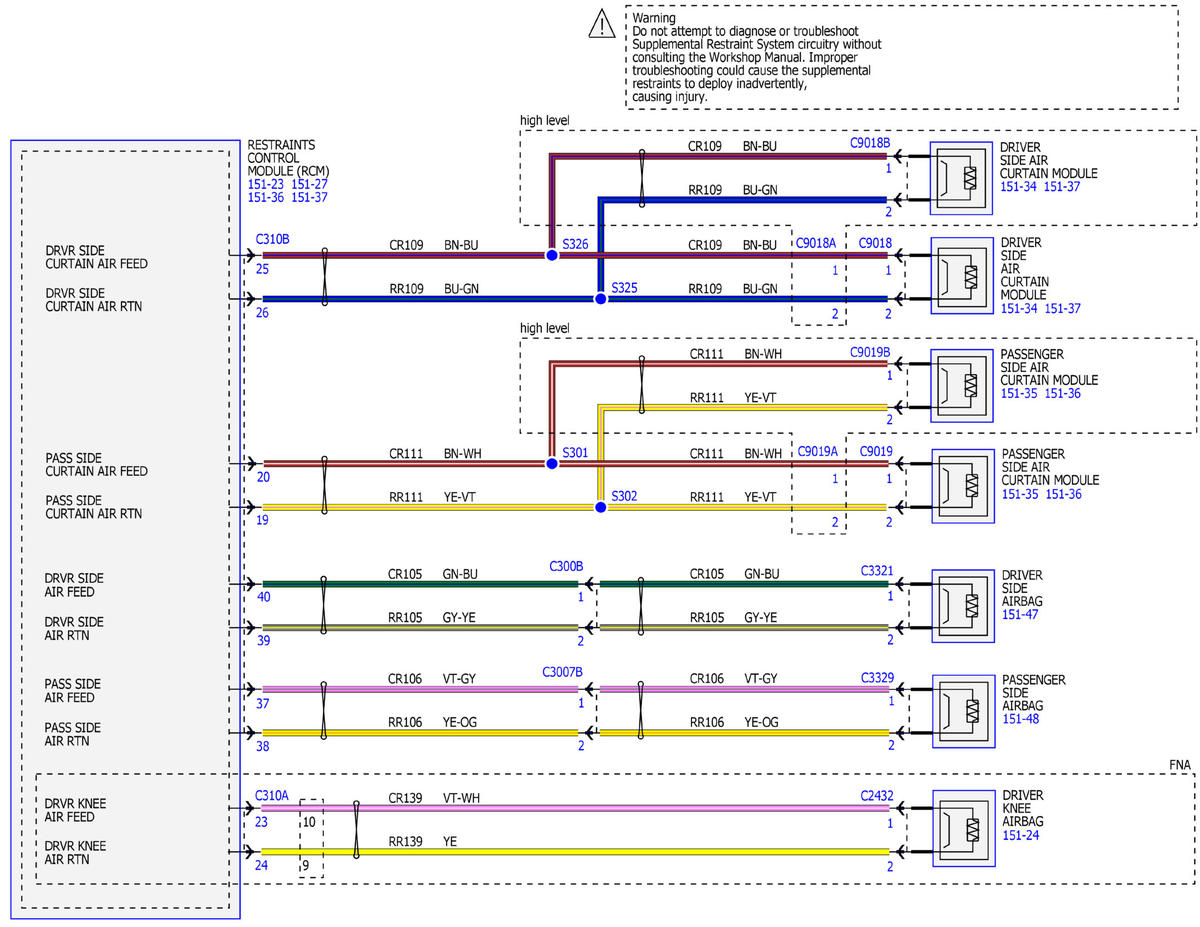

Fig 5: Identifying Supplemental Restraint System Wiring Diagram (5 Of 10)
GFDWR130366Courtesy of FORD MOTOR COMPANY

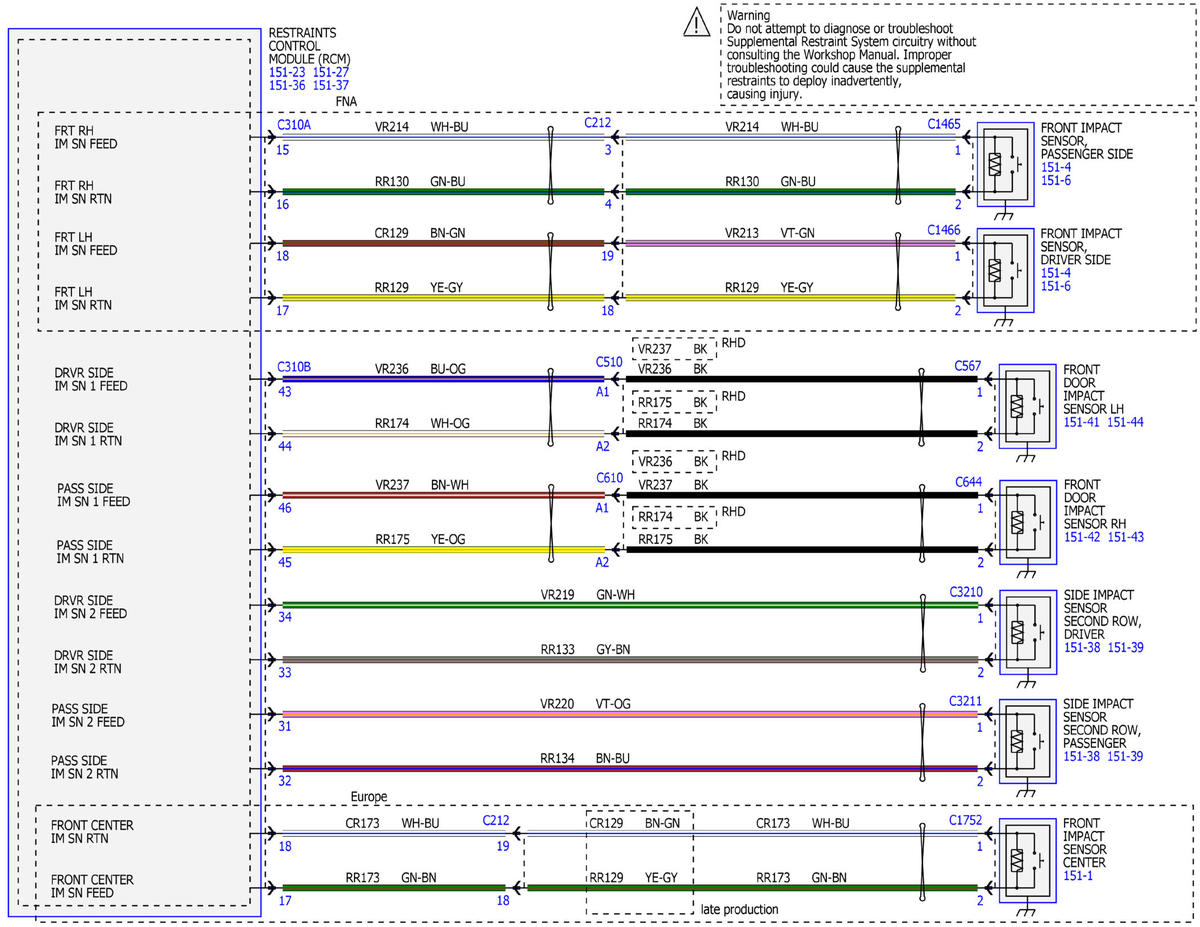

Fig 6: Identifying Supplemental Restraint System Wiring Diagram (6 Of 10)
GFDWR130367Courtesy of FORD MOTOR COMPANY

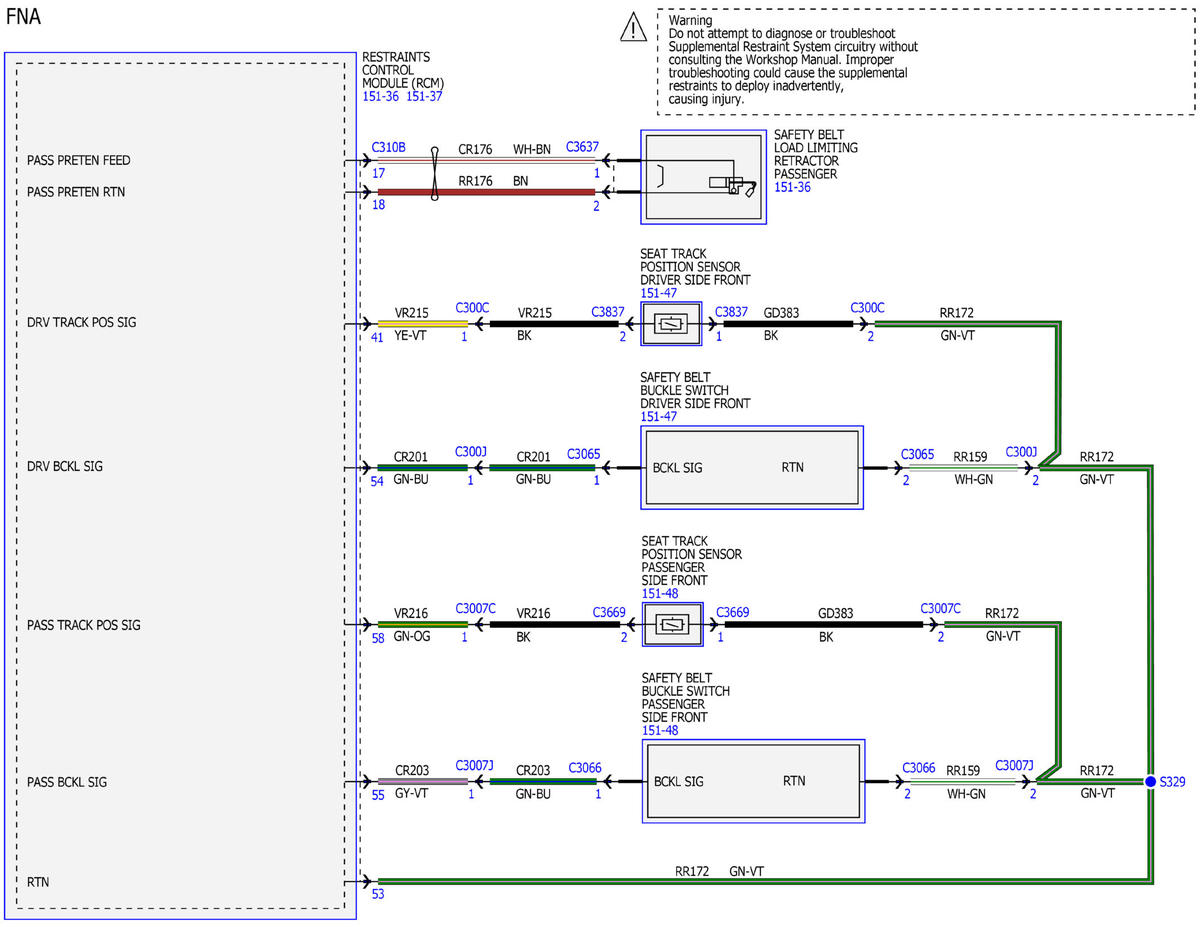

Fig 7: Identifying Supplemental Restraint System Wiring Diagram (7 Of 10)
GFDWR130368Courtesy of FORD MOTOR COMPANY

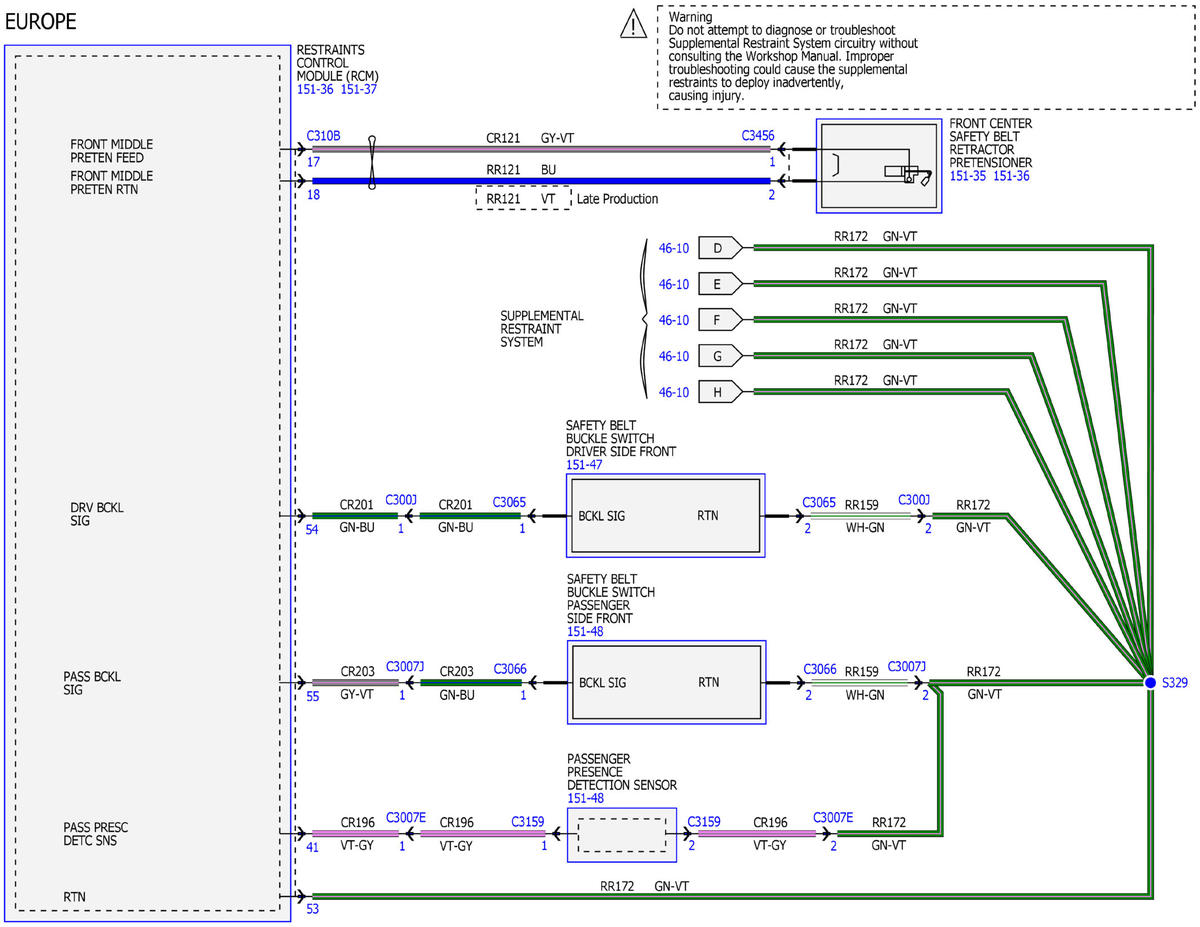

Fig 8: Identifying Supplemental Restraint System Wiring Diagram (8 Of 10)
GFDWR130369Courtesy of FORD MOTOR COMPANY

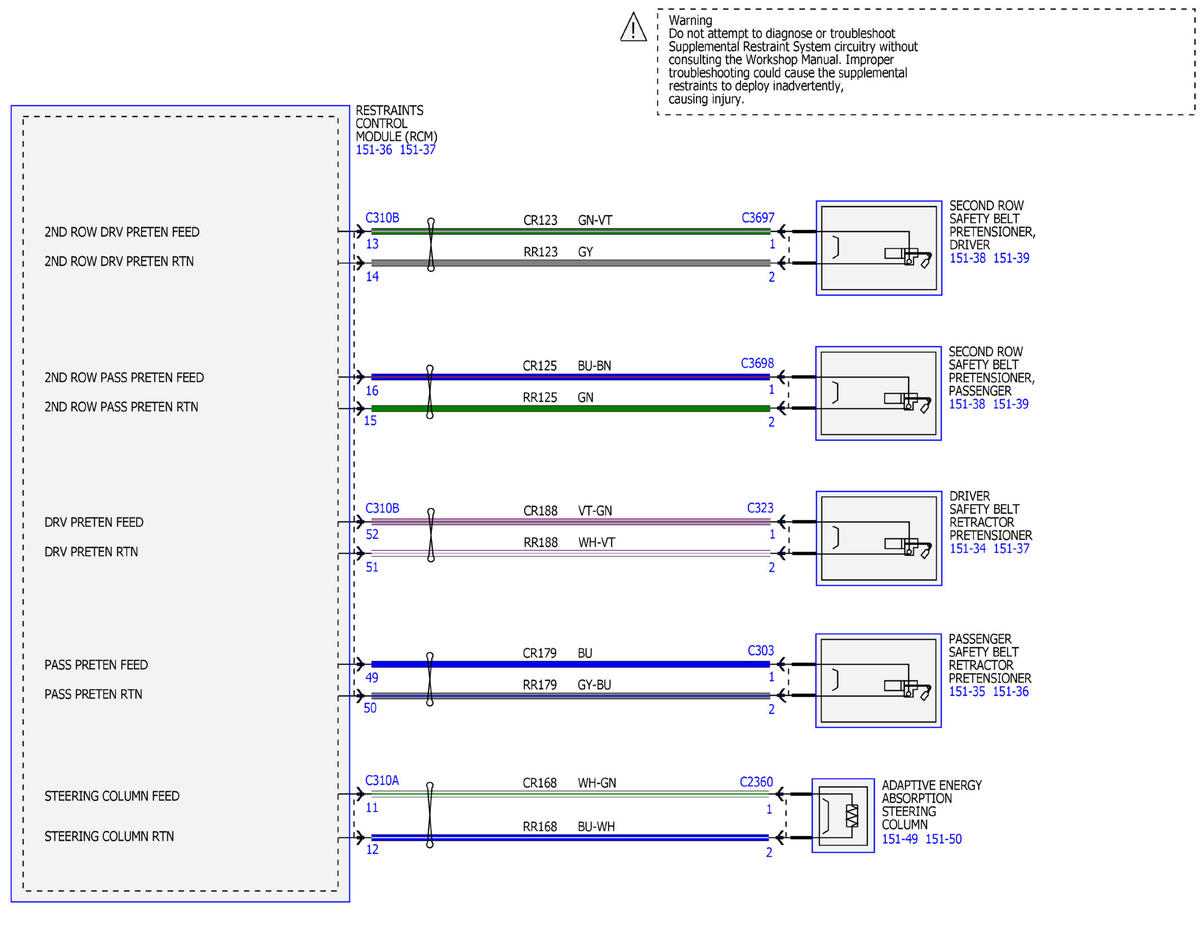

Fig 9: Identifying Supplemental Restraint System Wiring Diagram (9 Of 10)
GFDWR130370Courtesy of FORD MOTOR COMPANY

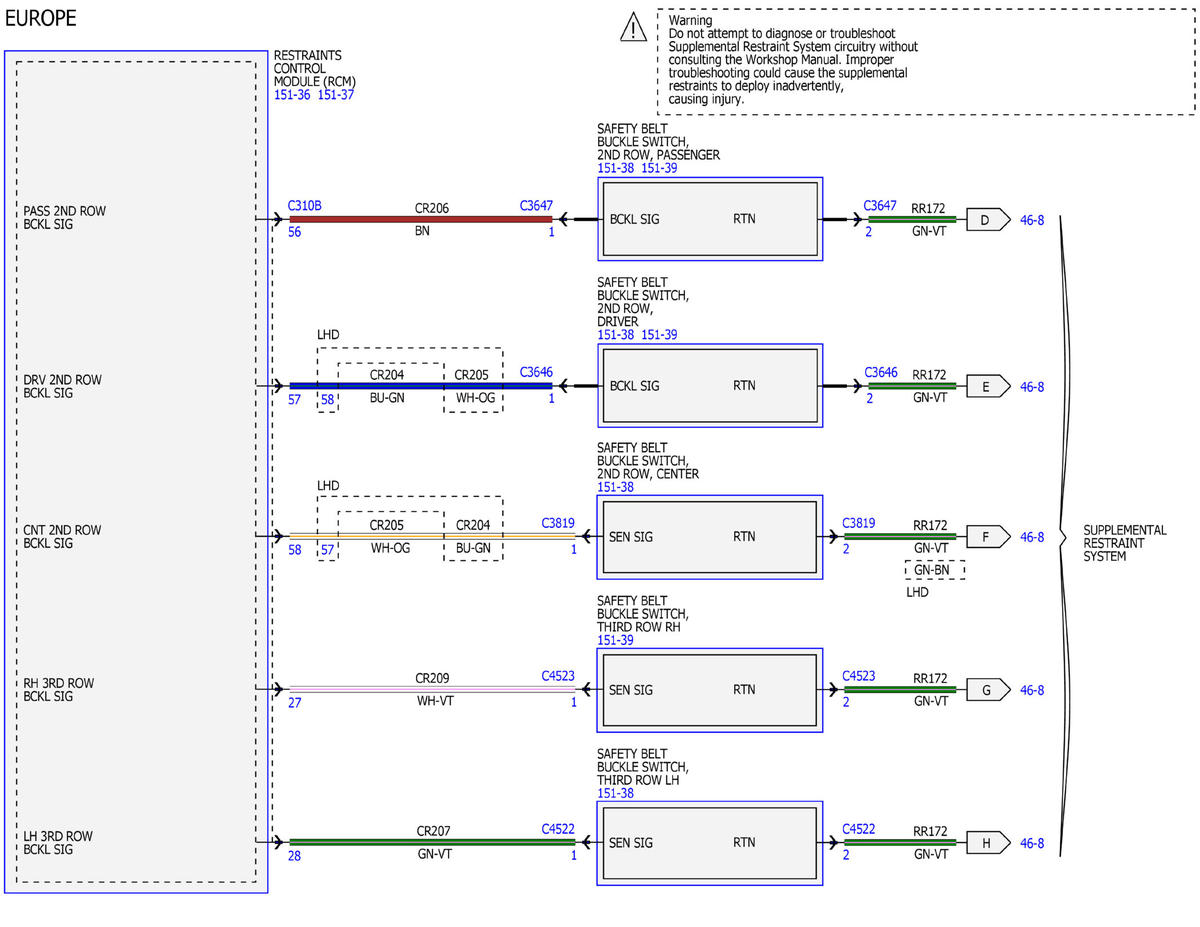

Fig 10: Identifying Supplemental Restraint System Wiring Diagram (10 Of 10)
GFDWR130362Courtesy of FORD MOTOR COMPANY
