Remote Keyless Entry and Alarm

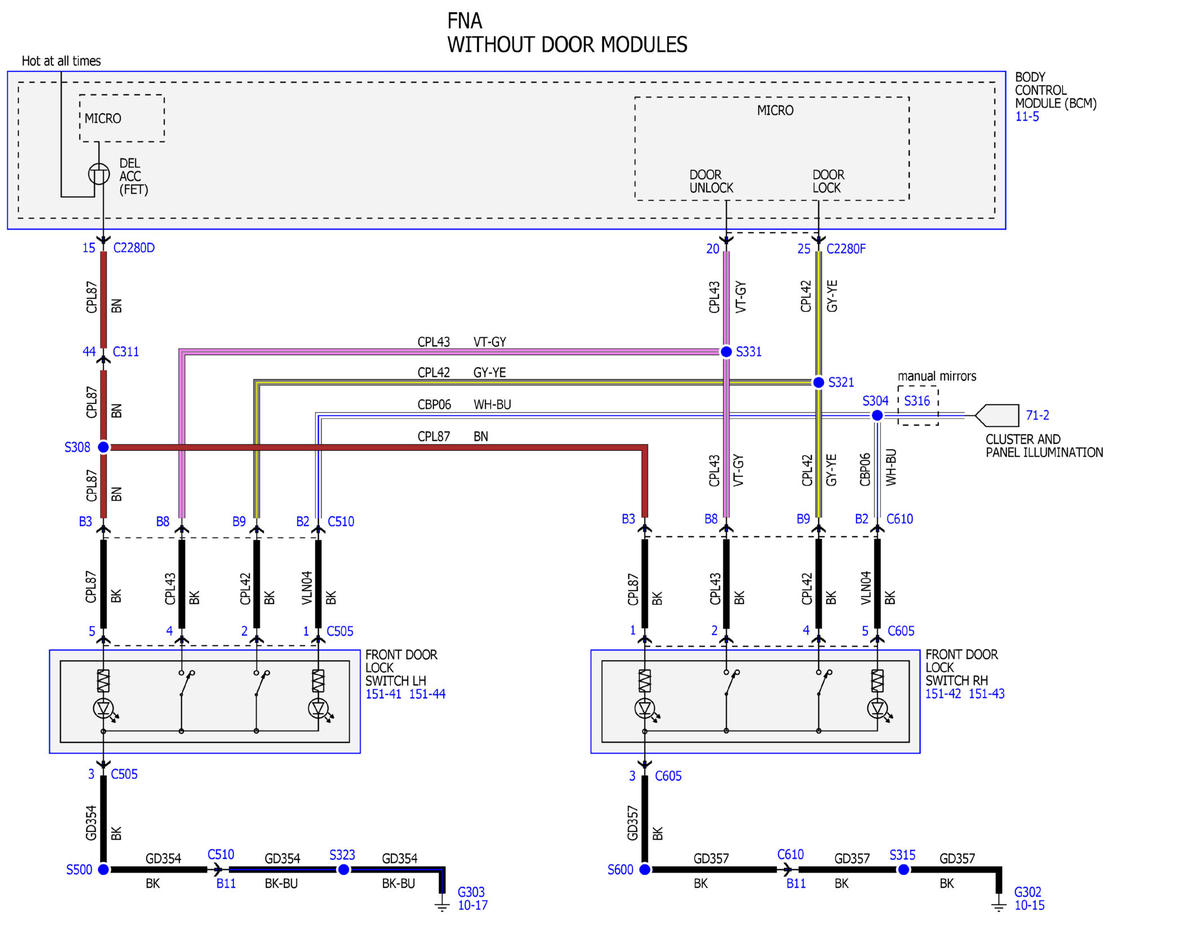

Fig 1: Identifying Remote Keyless Entry and Alarm Wiring Diagram (1 Of 24)

GFDWR130329

Courtesy of FORD MOTOR COMPANY

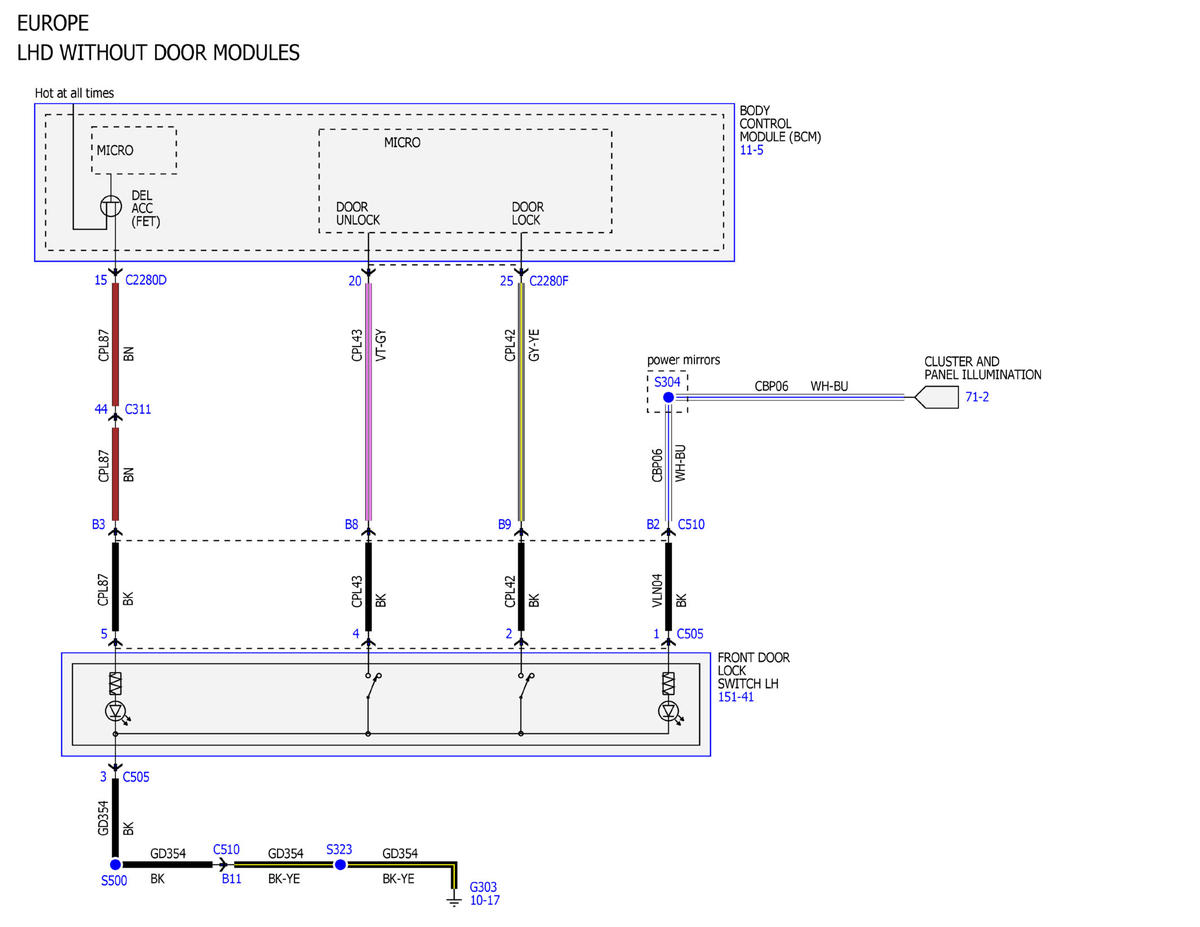

Fig 2: Identifying Remote Keyless Entry and Alarm Wiring Diagram (2 Of 24)

GFDWR130340

Courtesy of FORD MOTOR COMPANY

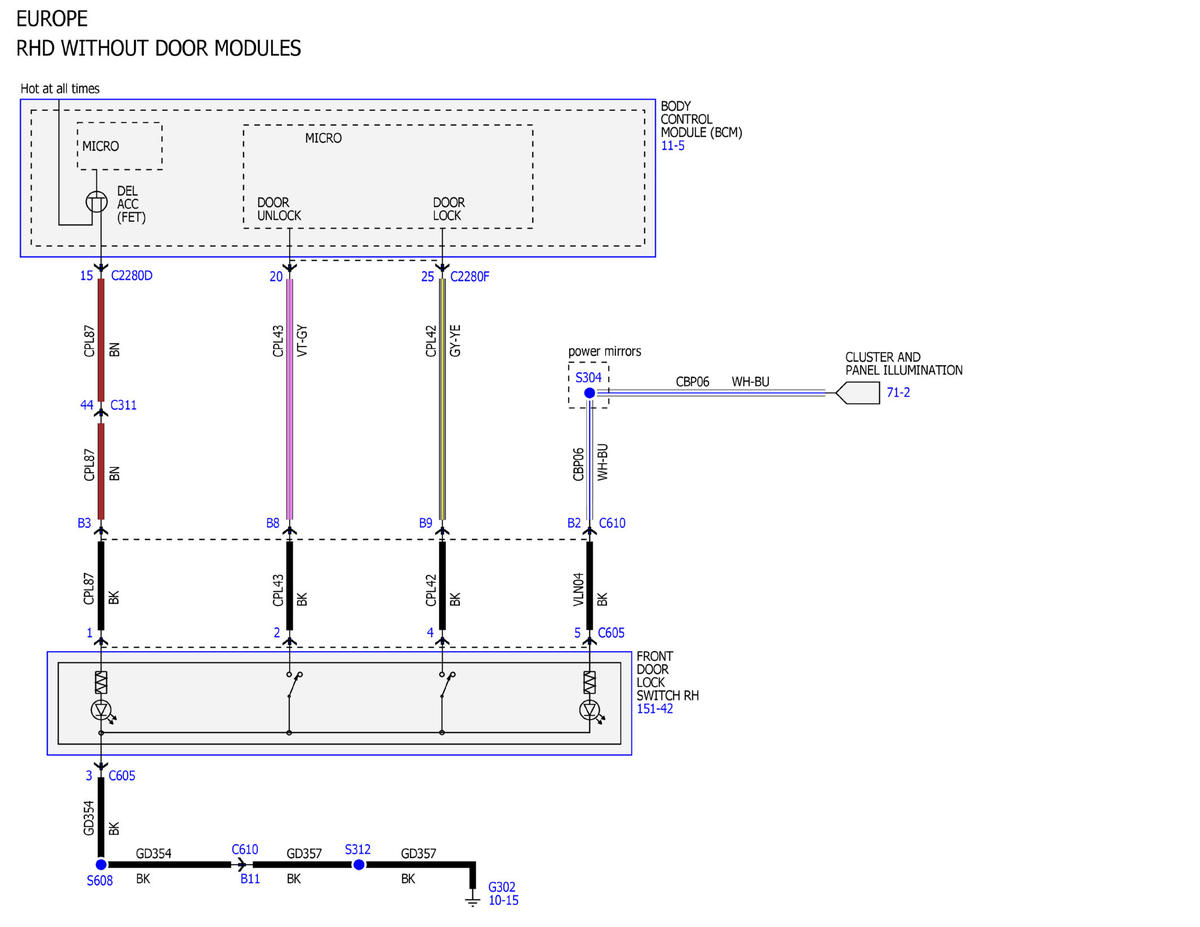

Fig 3: Identifying Remote Keyless Entry and Alarm Wiring Diagram (3 Of 24)

GFDWR130346

Courtesy of FORD MOTOR COMPANY

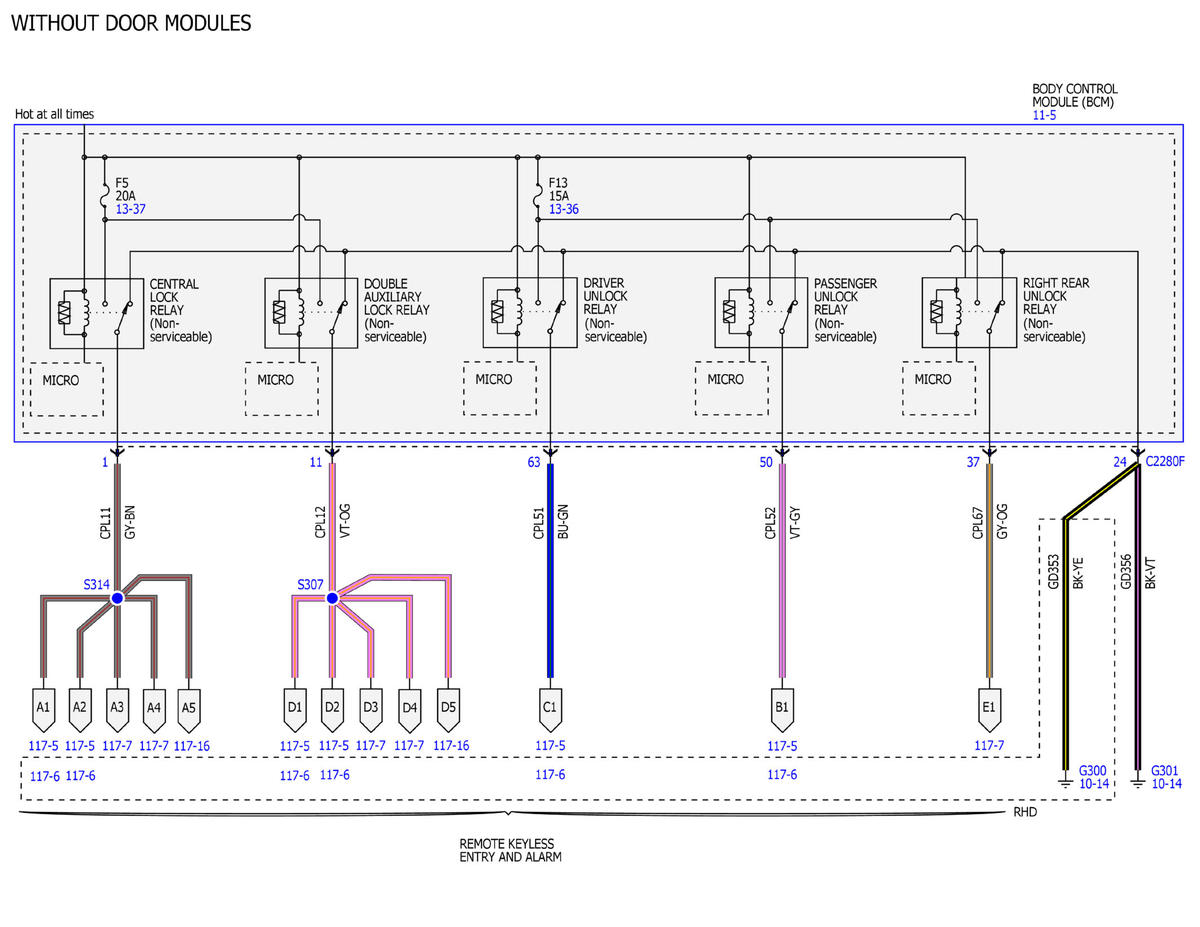

Fig 4: Identifying Remote Keyless Entry and Alarm Wiring Diagram (4 Of 24)

GFDWR130347

Courtesy of FORD MOTOR COMPANY

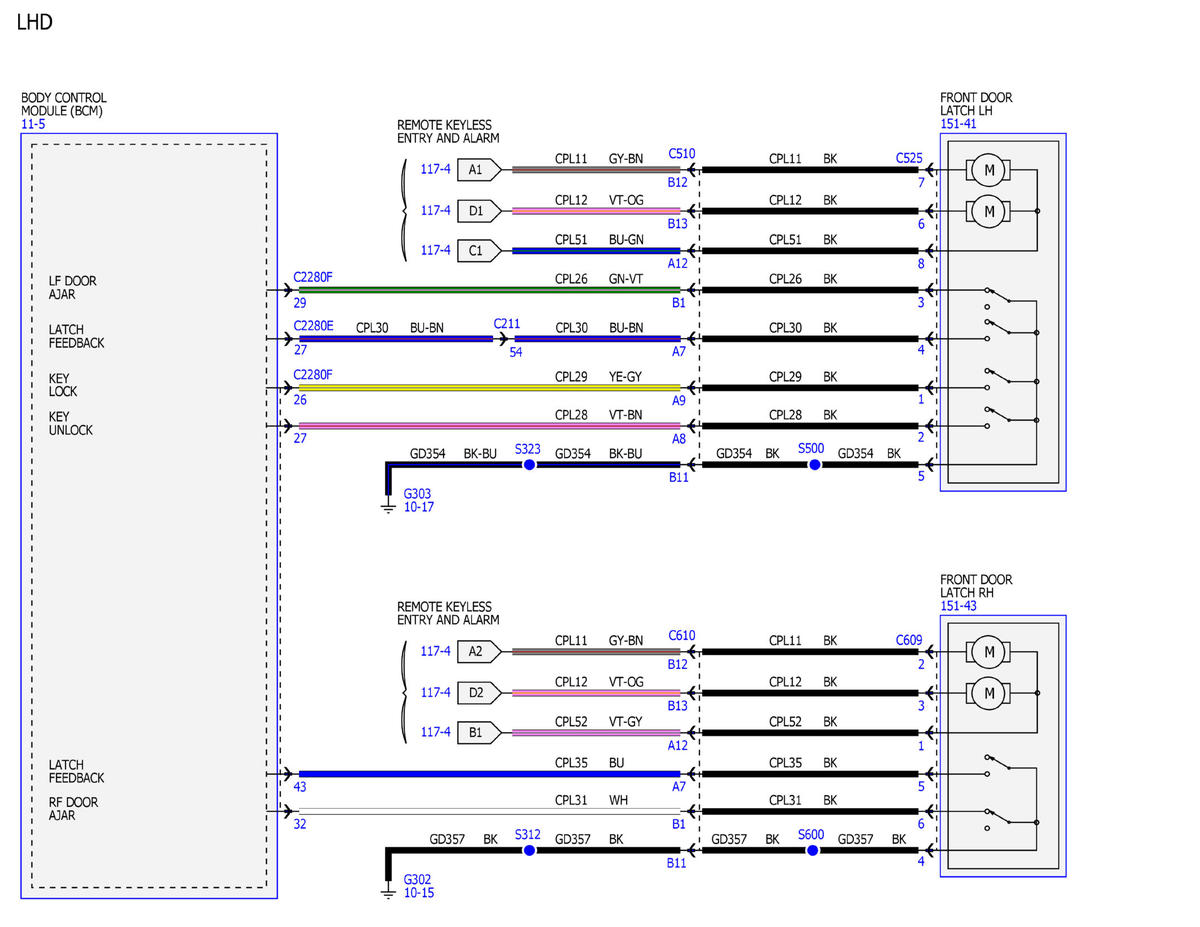

Fig 5: Identifying Remote Keyless Entry and Alarm Wiring Diagram (5 Of 24)

GFDWR130348

Courtesy of FORD MOTOR COMPANY

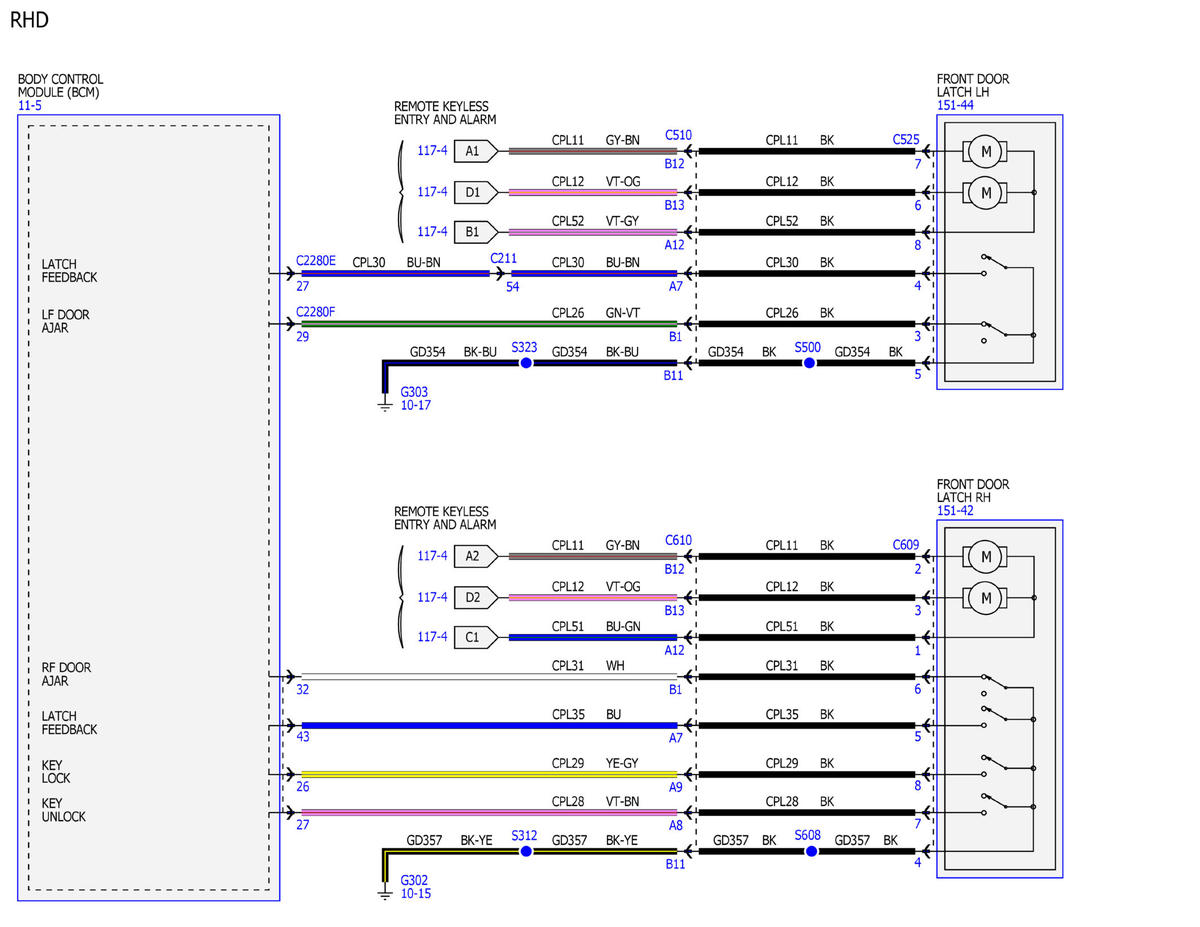

Fig 6: Identifying Remote Keyless Entry and Alarm Wiring Diagram (6 Of 24)

GFDWR130349

Courtesy of FORD MOTOR COMPANY

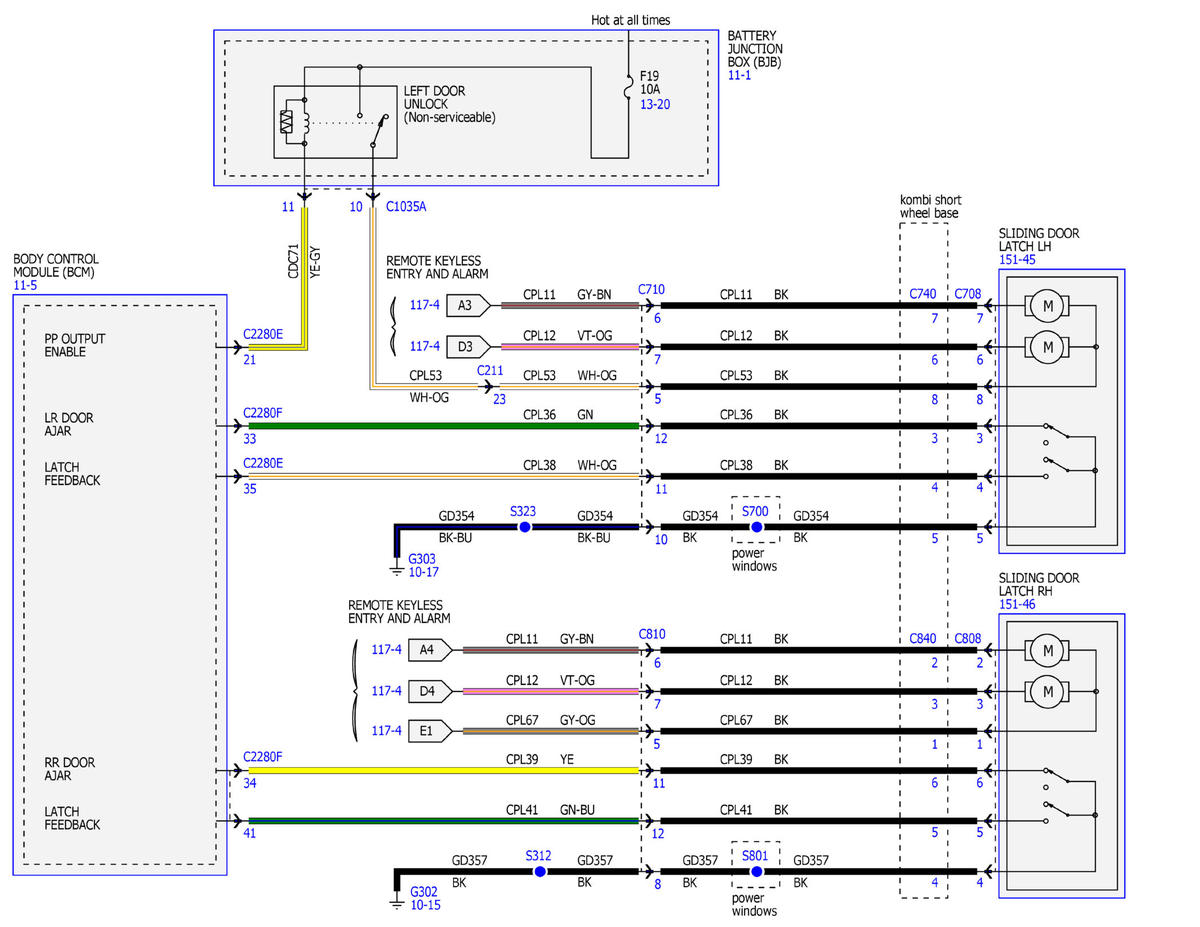

Fig 7: Identifying Remote Keyless Entry and Alarm Wiring Diagram (7 Of 24)

GFDWR130350

Courtesy of FORD MOTOR COMPANY

Fig 8: Identifying Remote Keyless Entry and Alarm Wiring Diagram (8 Of 24)

GFDWR130351

Courtesy of FORD MOTOR COMPANY

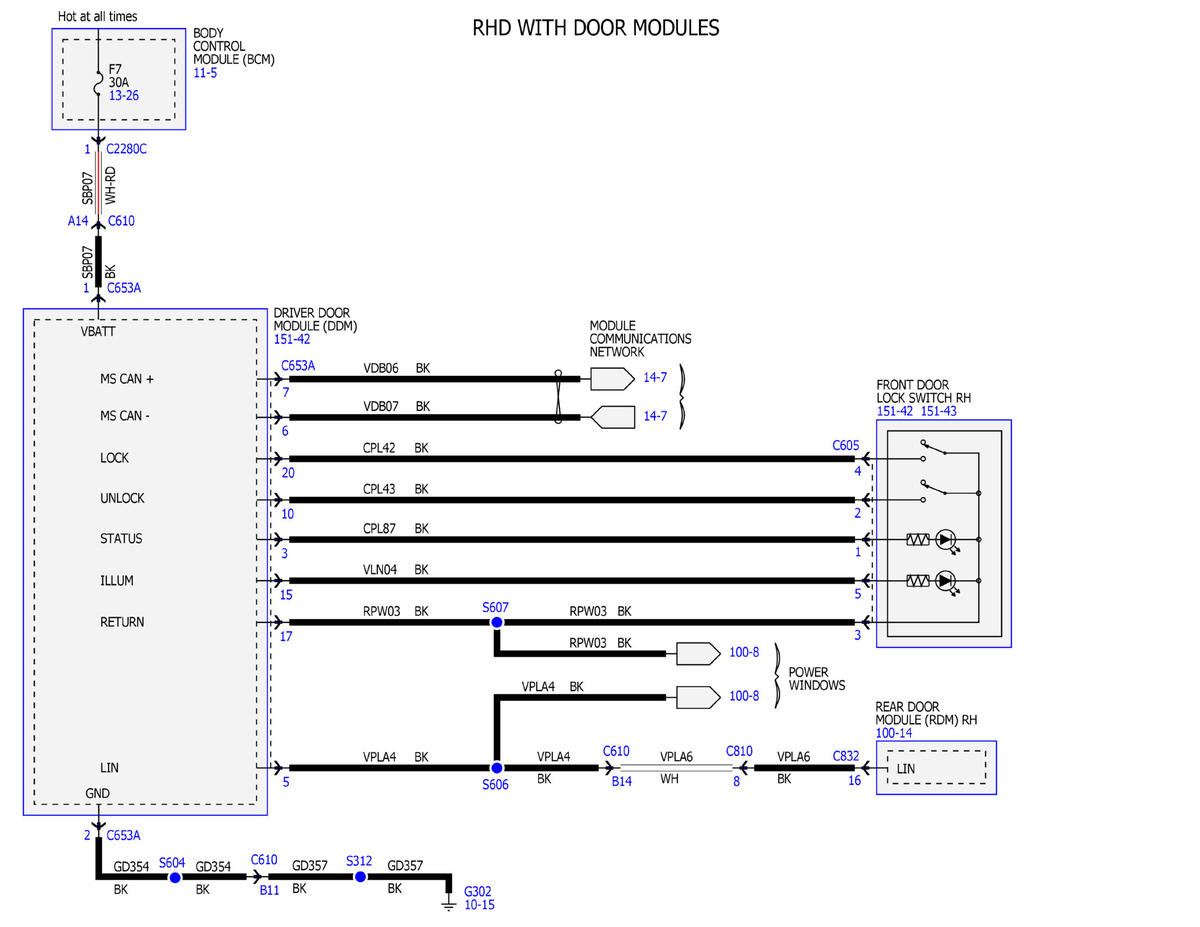

Fig 9: Identifying Remote Keyless Entry and Alarm Wiring Diagram (9 Of 24)

GFDWR130352

Courtesy of FORD MOTOR COMPANY

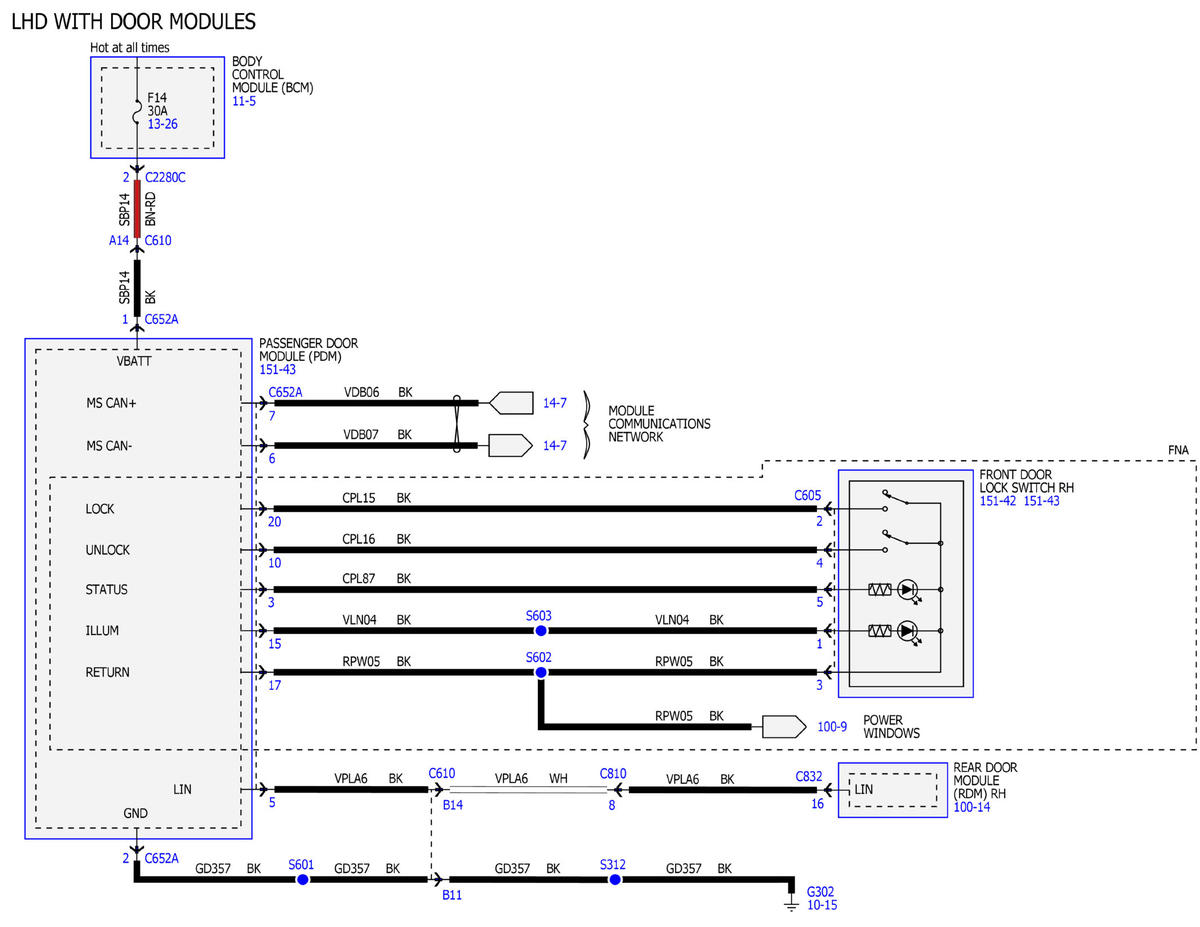

Fig 10: Identifying Remote Keyless Entry and Alarm Wiring Diagram (10 Of 24)

GFDWR130330

Courtesy of FORD MOTOR COMPANY

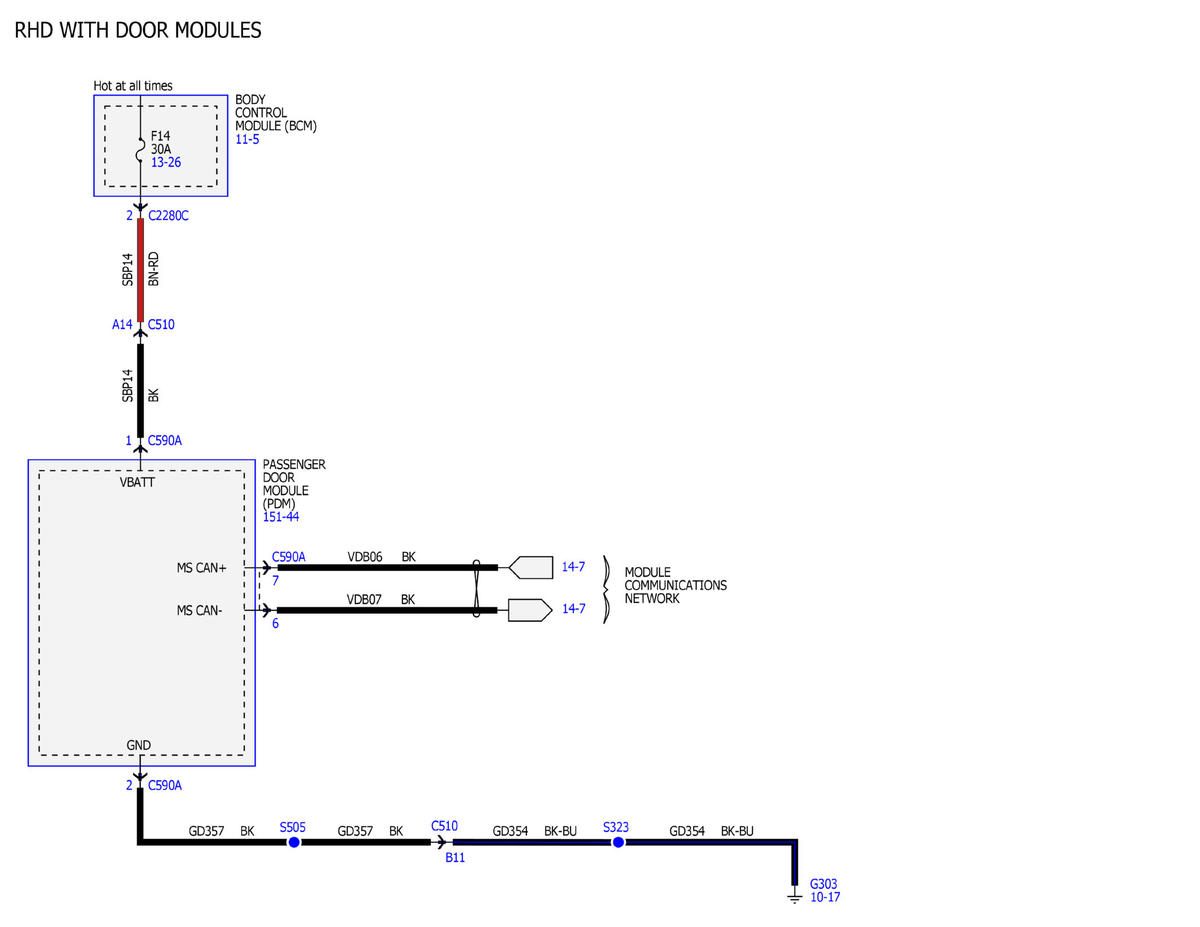

Fig 11: Identifying Remote Keyless Entry and Alarm Wiring Diagram (11 Of 24)

GFDWR130331

Courtesy of FORD MOTOR COMPANY

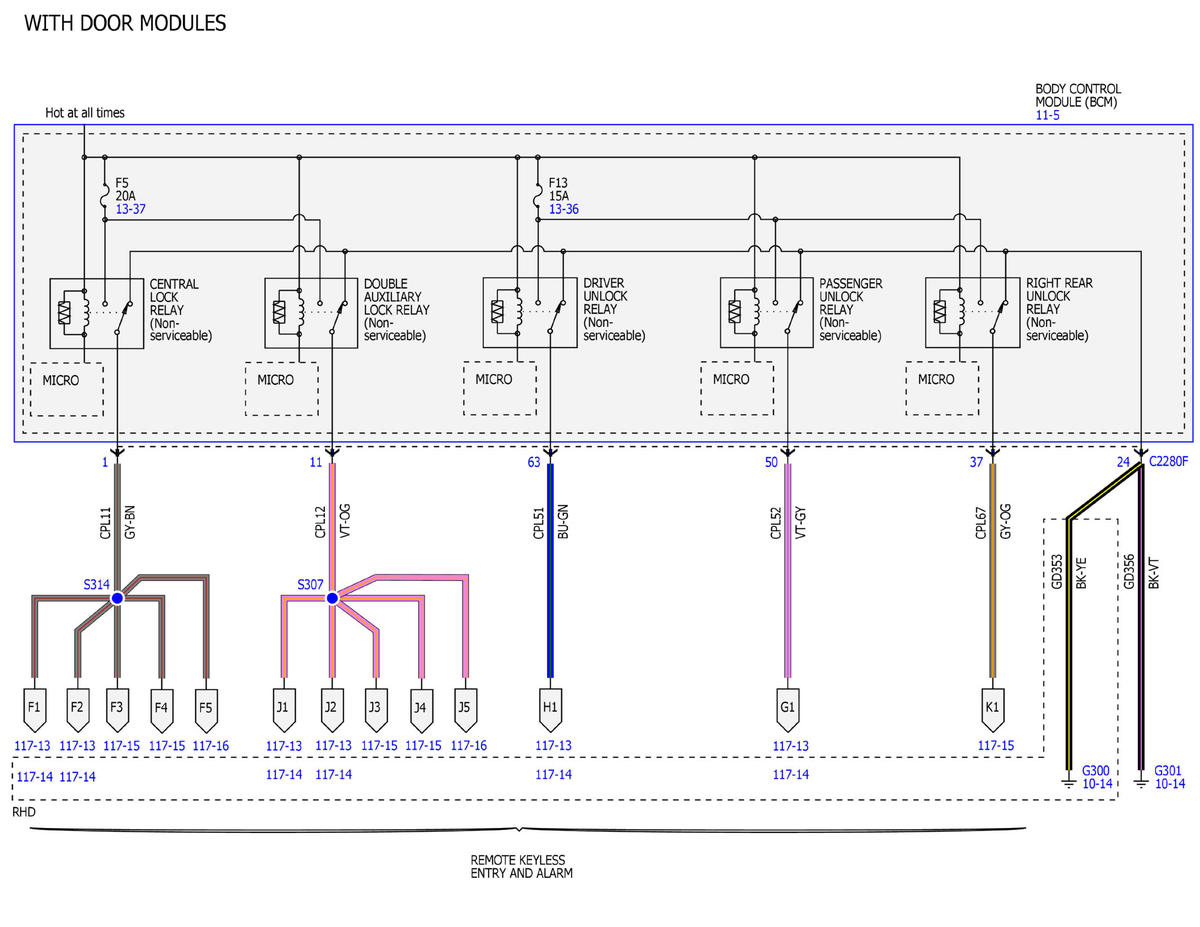

Fig 12: Identifying Remote Keyless Entry and Alarm Wiring Diagram (12 Of 24)

GFDWR130332

Courtesy of FORD MOTOR COMPANY

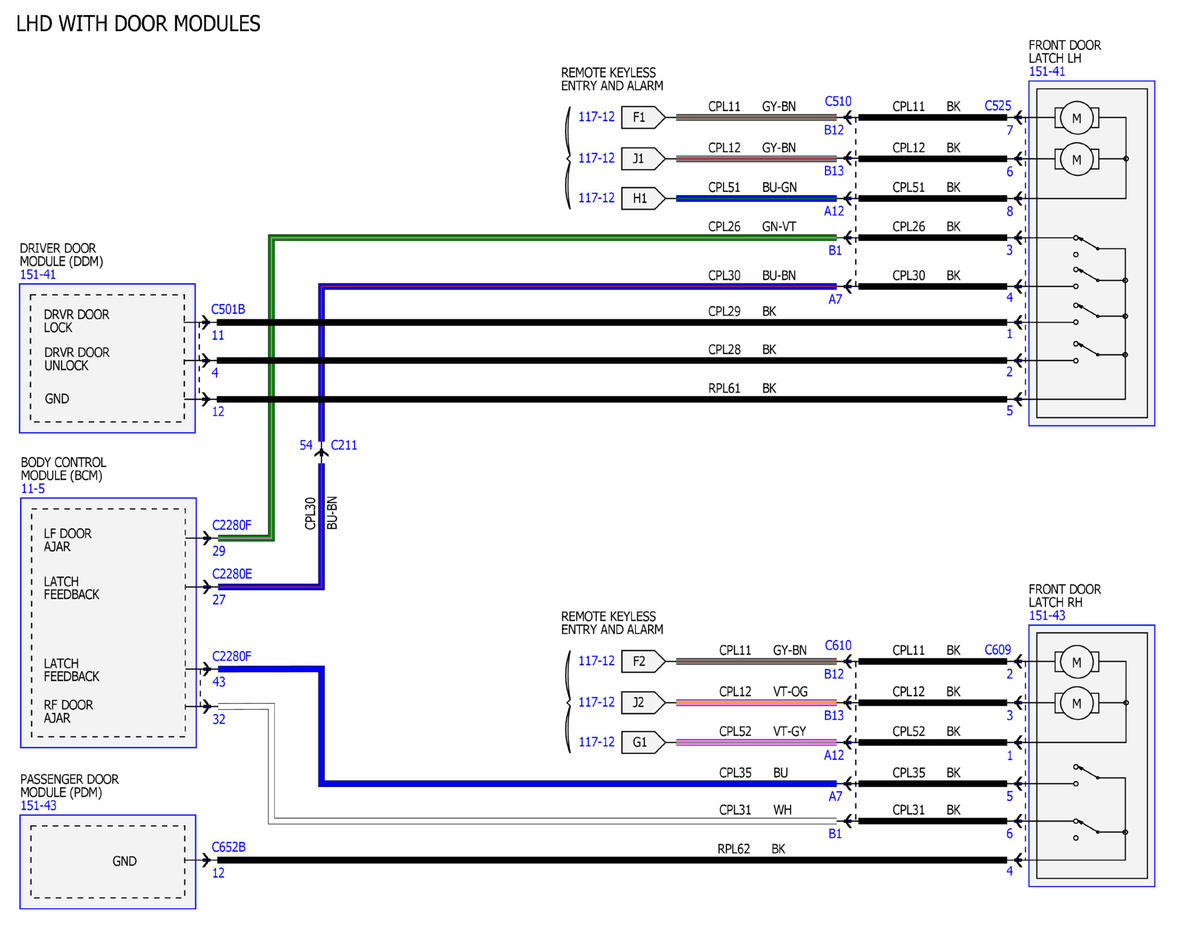

Fig 13: Identifying Remote Keyless Entry and Alarm Wiring Diagram (13 Of 24)

GFDWR130333

Courtesy of FORD MOTOR COMPANY

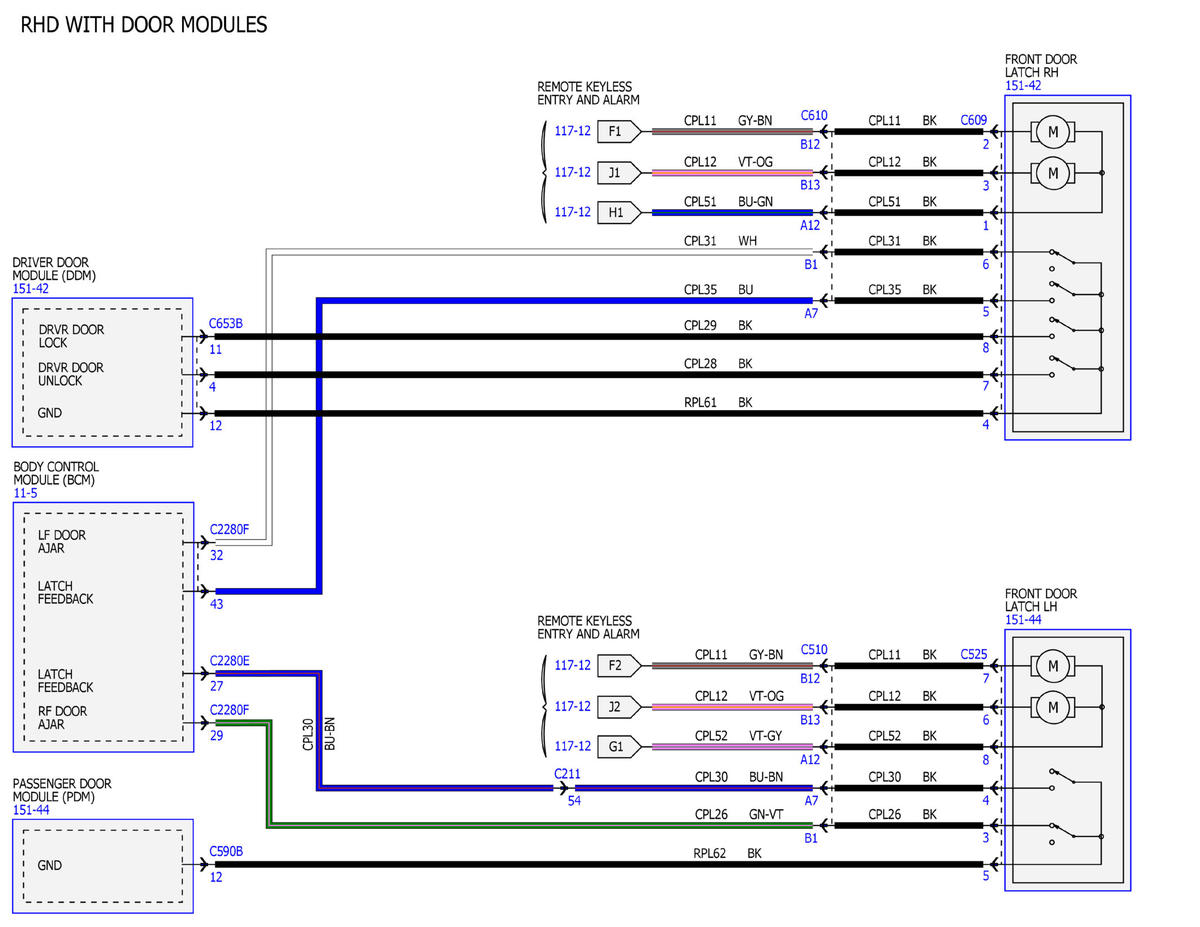

Fig 14: Identifying Remote Keyless Entry and Alarm Wiring Diagram (14 Of 24)

GFDWR130334

Courtesy of FORD MOTOR COMPANY

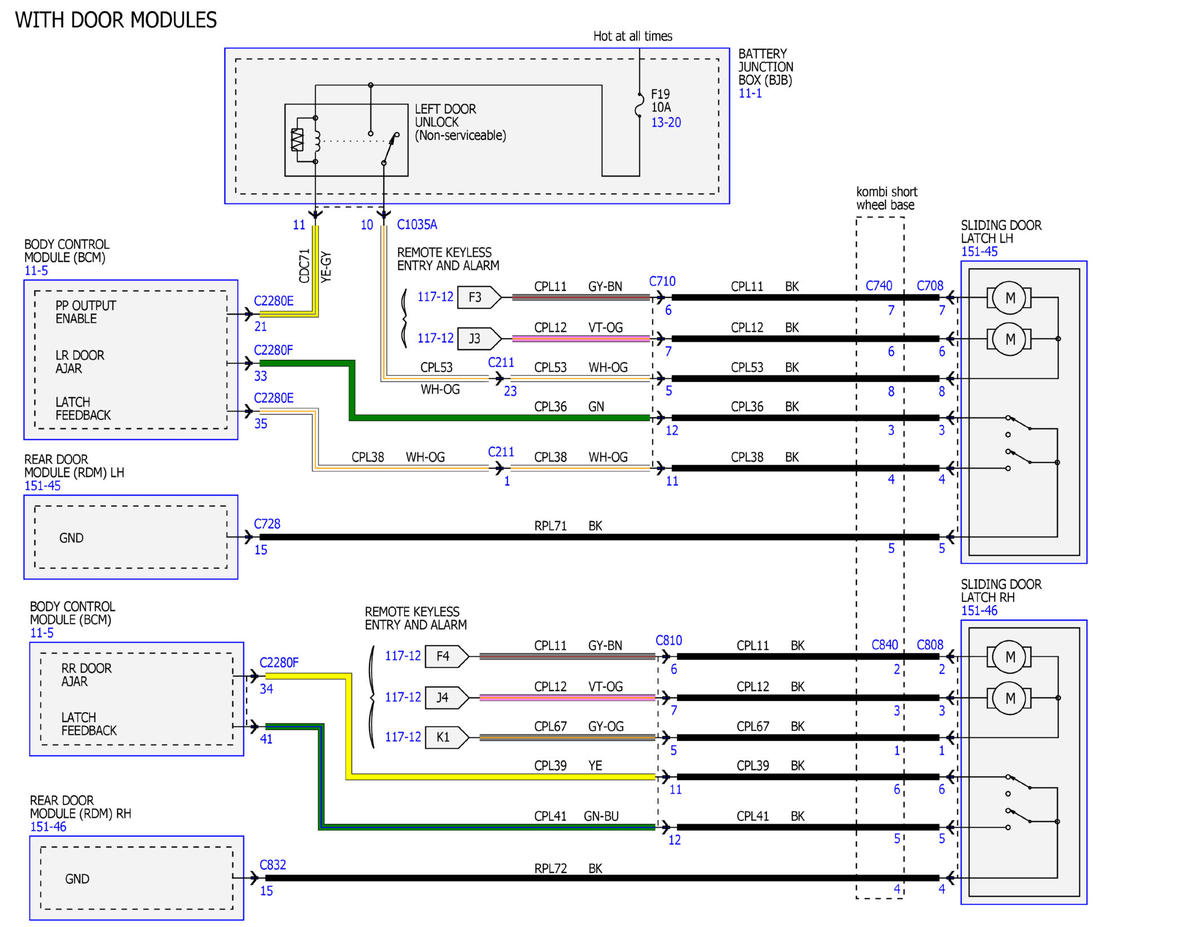

Fig 15: Identifying Remote Keyless Entry and Alarm Wiring Diagram (15 Of 24)

GFDWR130335

Courtesy of FORD MOTOR COMPANY

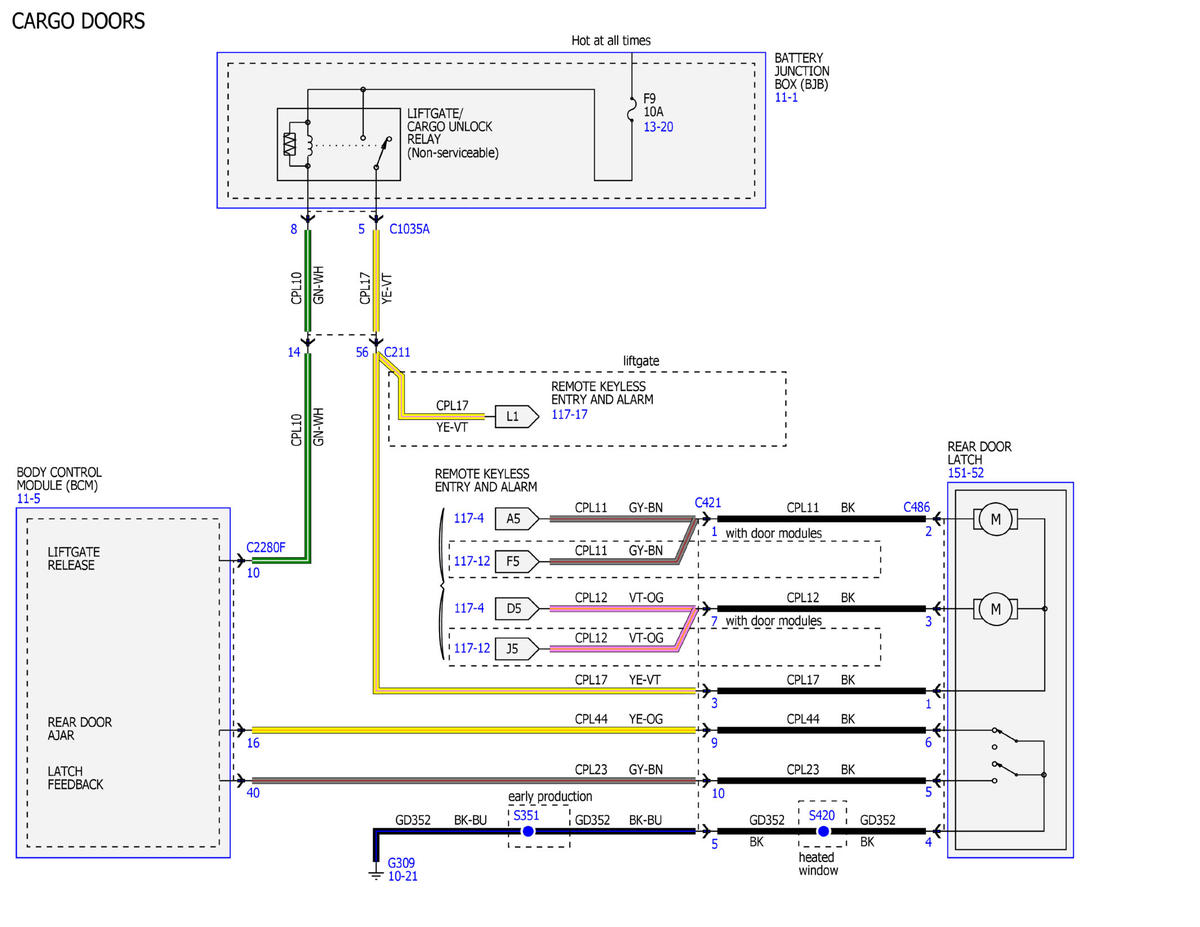

Fig 16: Identifying Remote Keyless Entry and Alarm Wiring Diagram (16 Of 24)

GFDWR130336

Courtesy of FORD MOTOR COMPANY

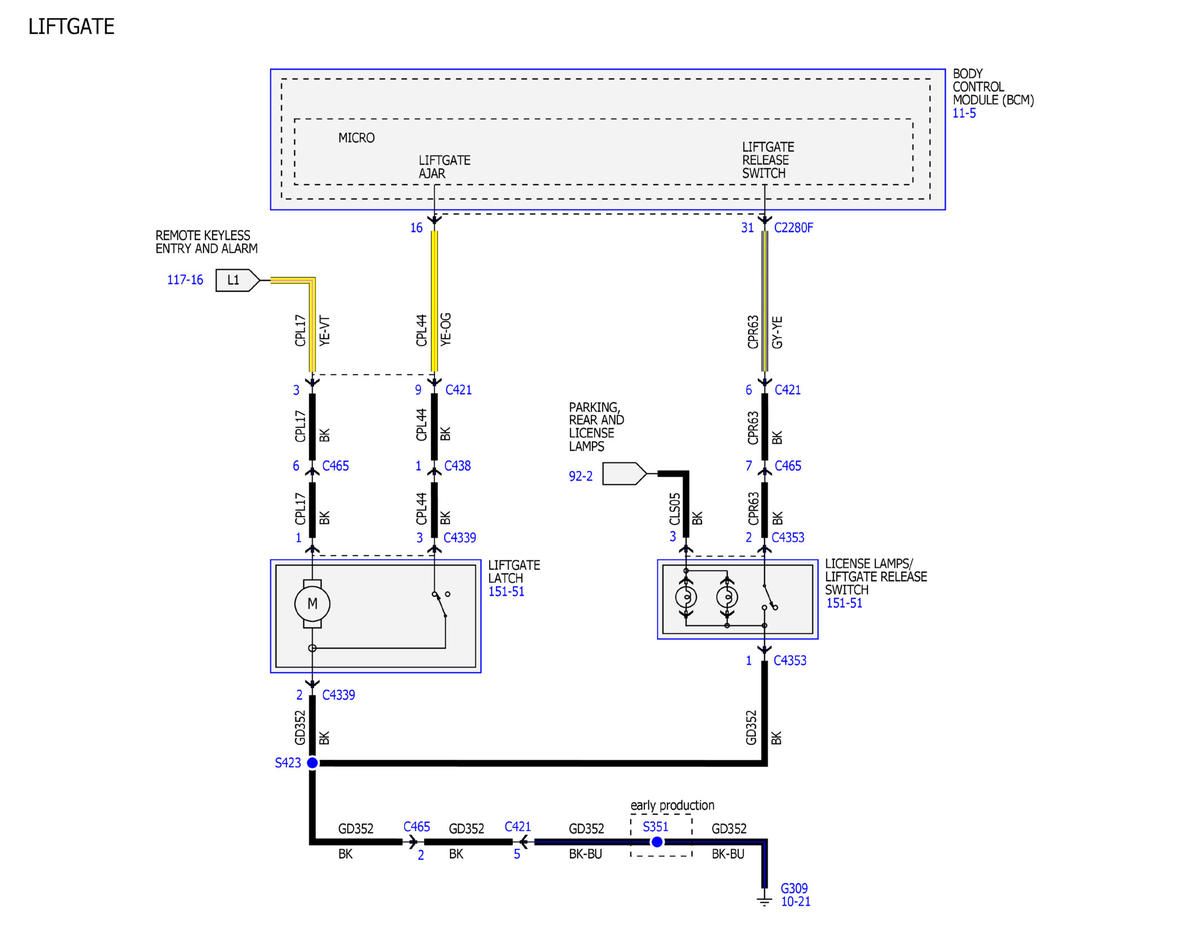

Fig 17: Identifying Remote Keyless Entry and Alarm Wiring Diagram (17 Of 24)

GFDWR130337

Courtesy of FORD MOTOR COMPANY

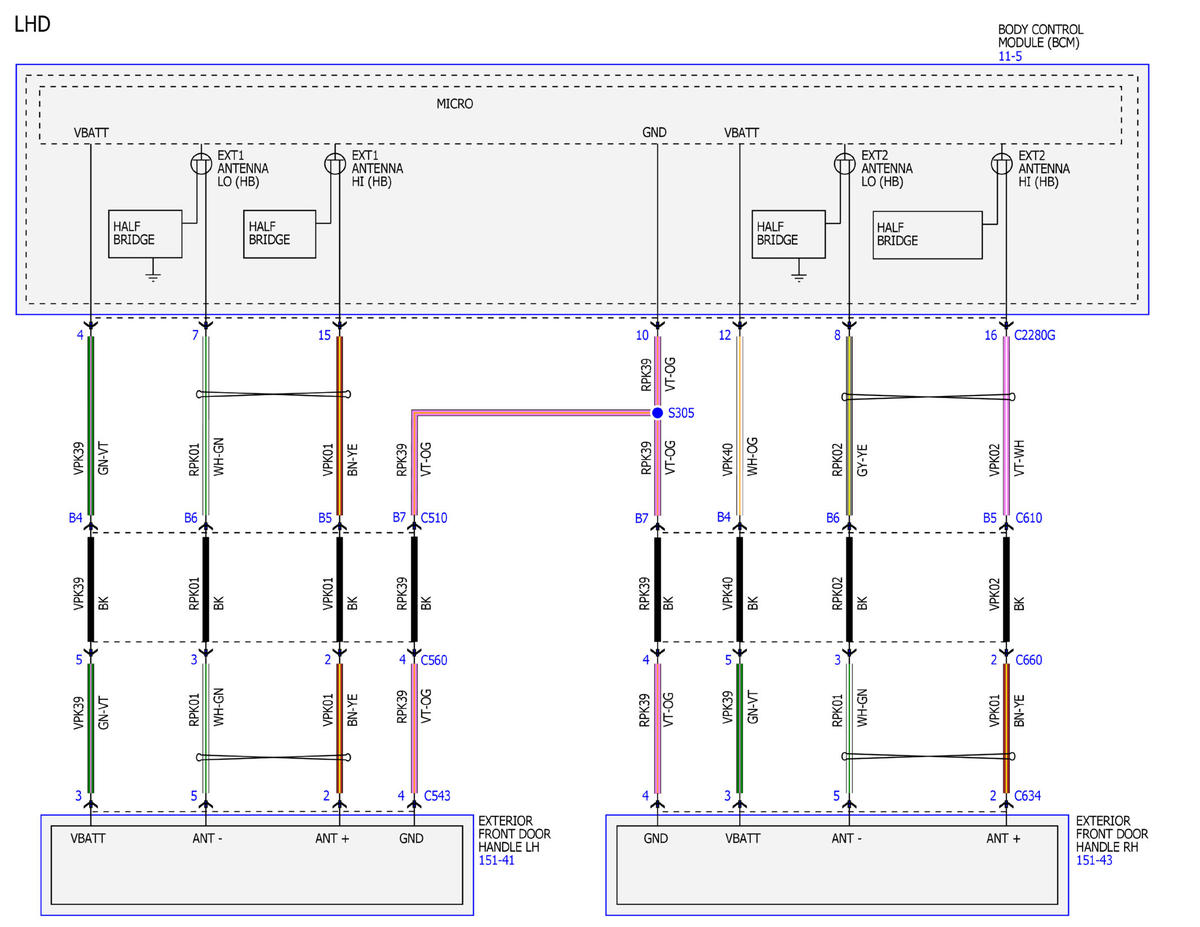

Fig 18: Identifying Remote Keyless Entry and Alarm Wiring Diagram (18 Of 24)

GFDWR130338

Courtesy of FORD MOTOR COMPANY

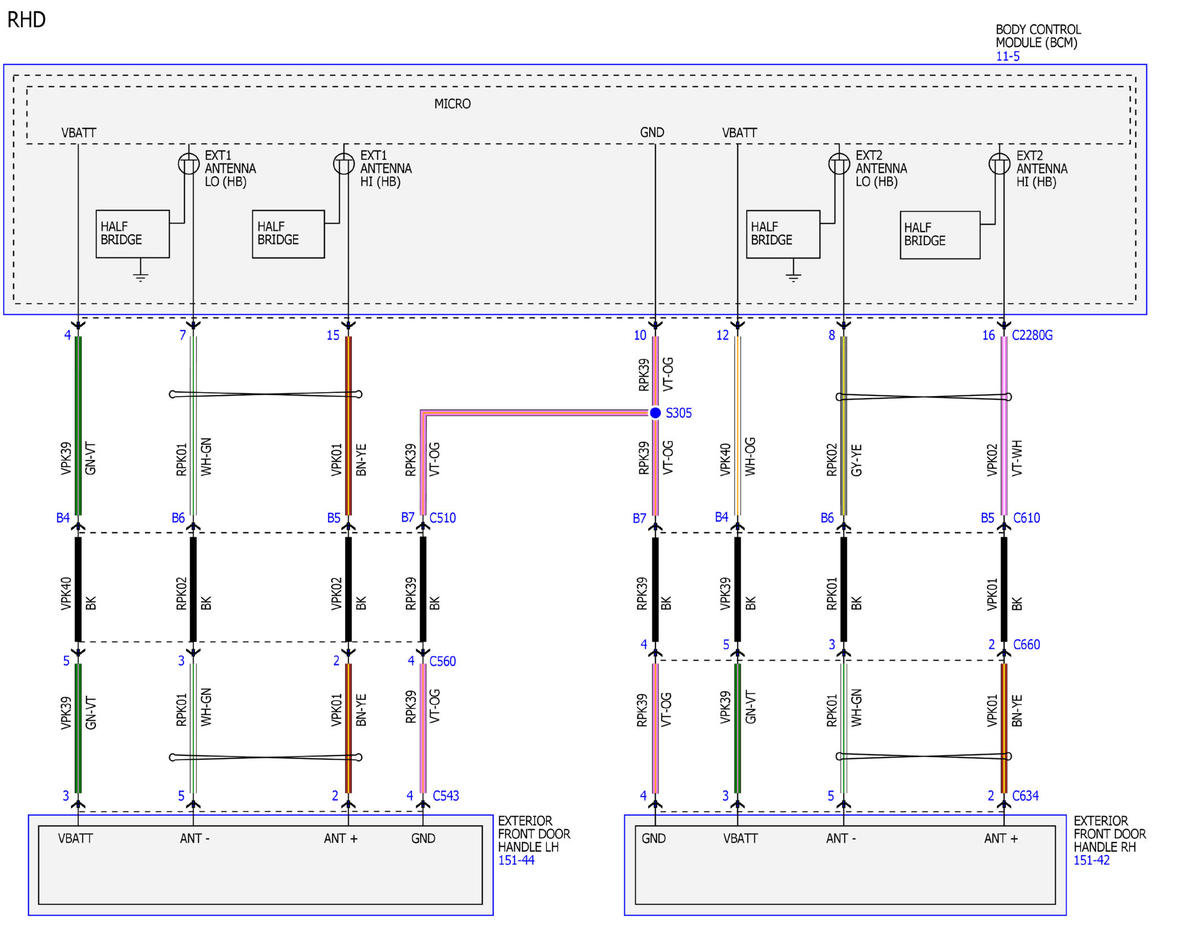

Fig 19: Identifying Remote Keyless Entry and Alarm Wiring Diagram (19 Of 24)

GFDWR130339

Courtesy of FORD MOTOR COMPANY

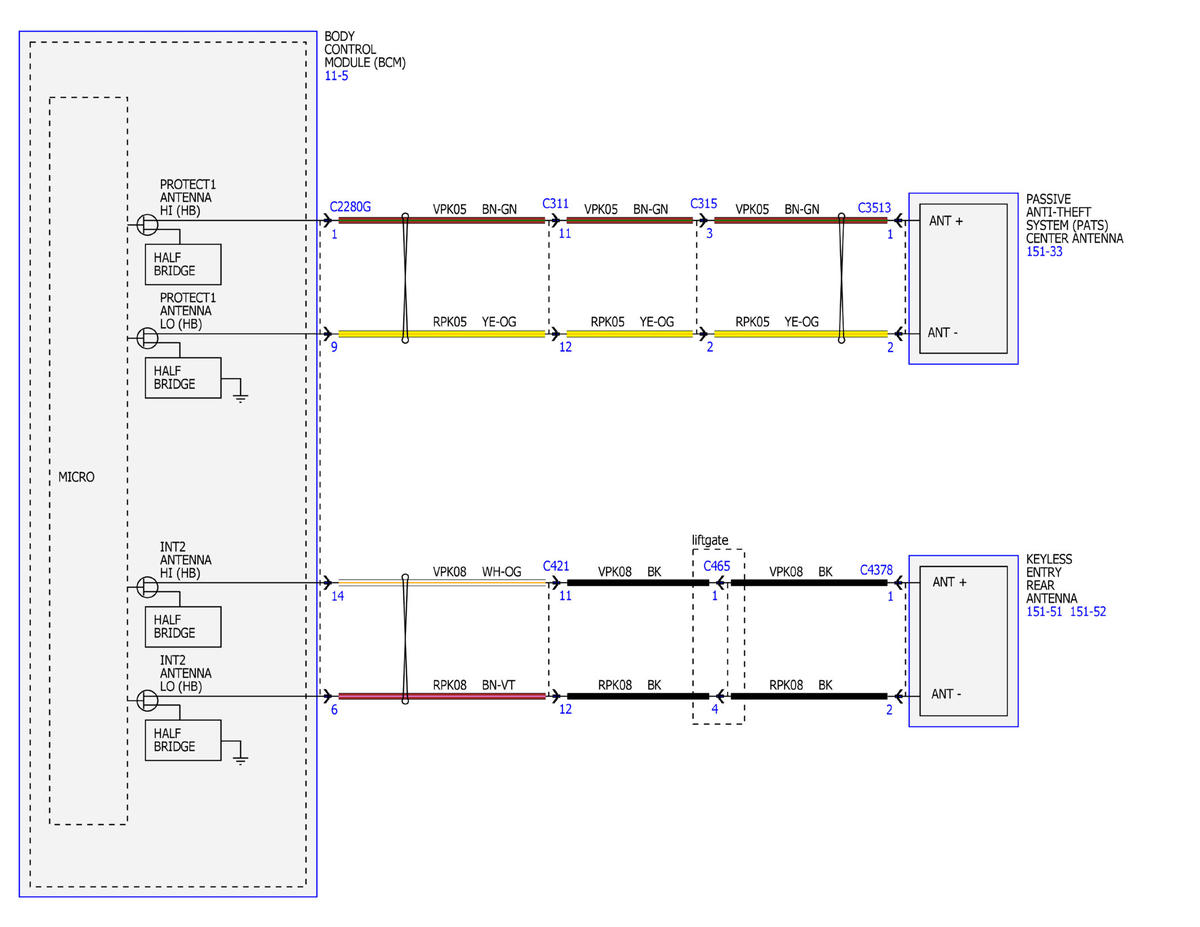

Fig 20: Identifying Remote Keyless Entry and Alarm Wiring Diagram (20 Of 24)

GFDWR130341

Courtesy of FORD MOTOR COMPANY

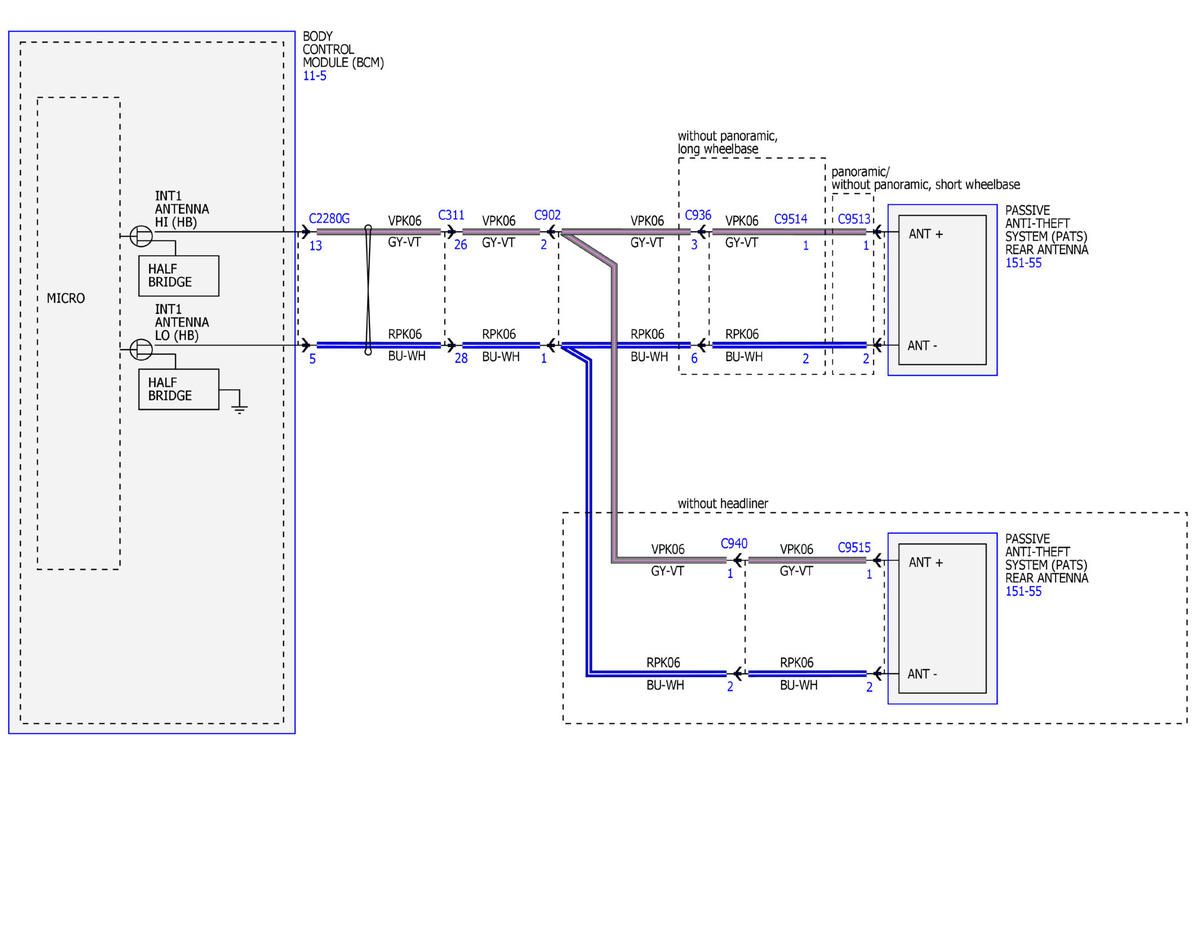

Fig 21: Identifying Remote Keyless Entry and Alarm Wiring Diagram (21 Of 24)

GFDWR130342

Courtesy of FORD MOTOR COMPANY

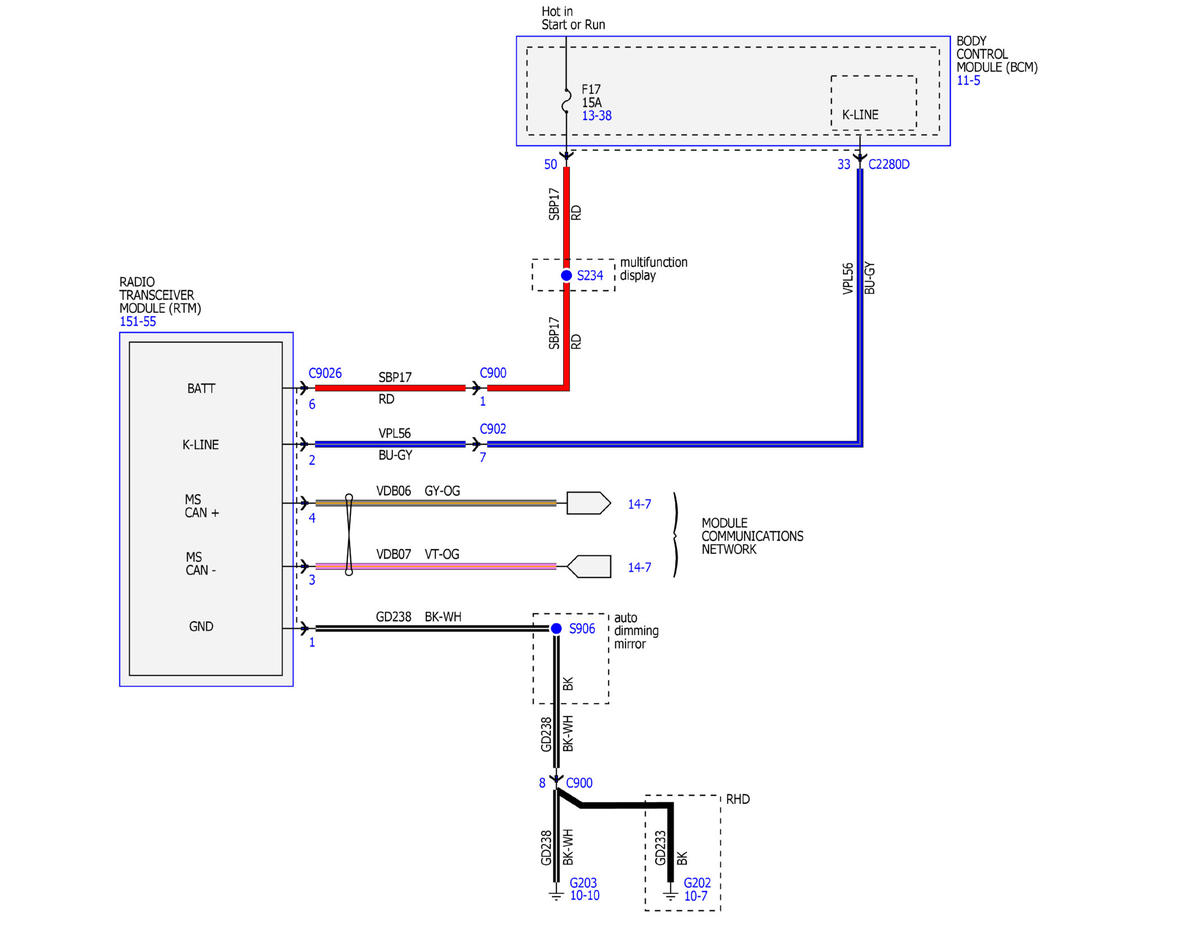

Fig 22: Identifying Remote Keyless Entry and Alarm Wiring Diagram (22 Of 24)

GFDWR130343

Courtesy of FORD MOTOR COMPANY

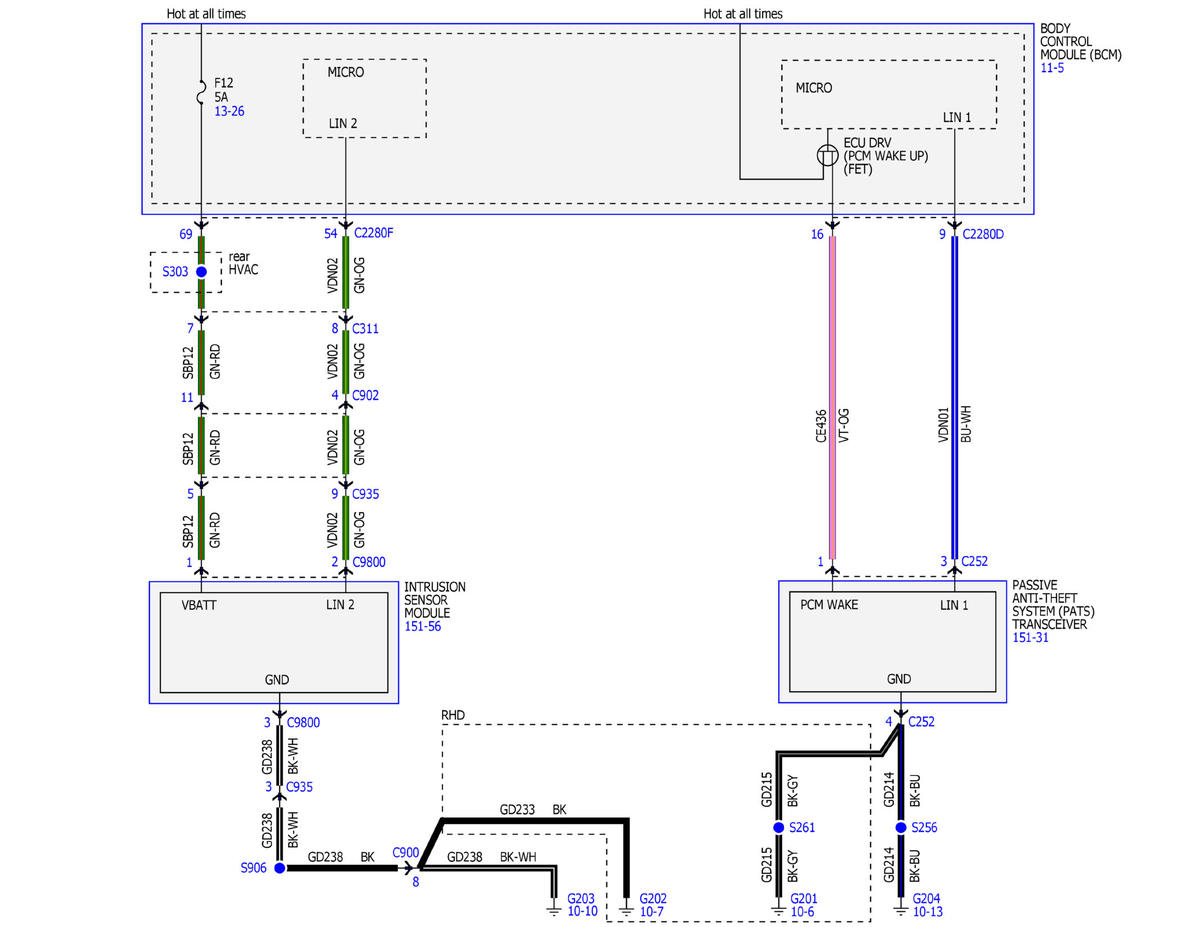

Fig 23: Identifying Remote Keyless Entry and Alarm Wiring Diagram (23 Of 24)

GFDWR130344

Courtesy of FORD MOTOR COMPANY

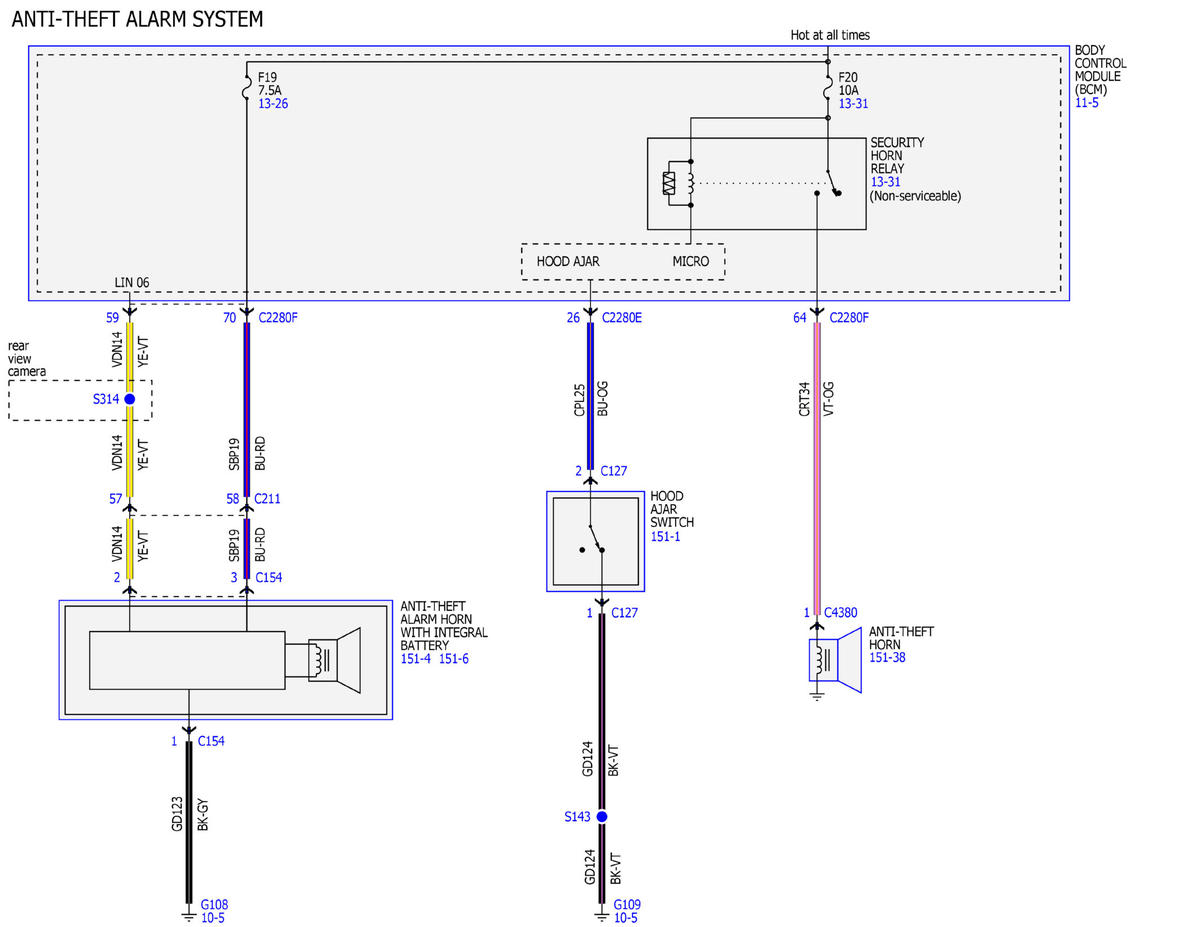

Fig 24: Identifying Remote Keyless Entry and Alarm Wiring Diagram (24 Of 24)

GFDWR130345

Courtesy of FORD MOTOR COMPANY
