Power Seats

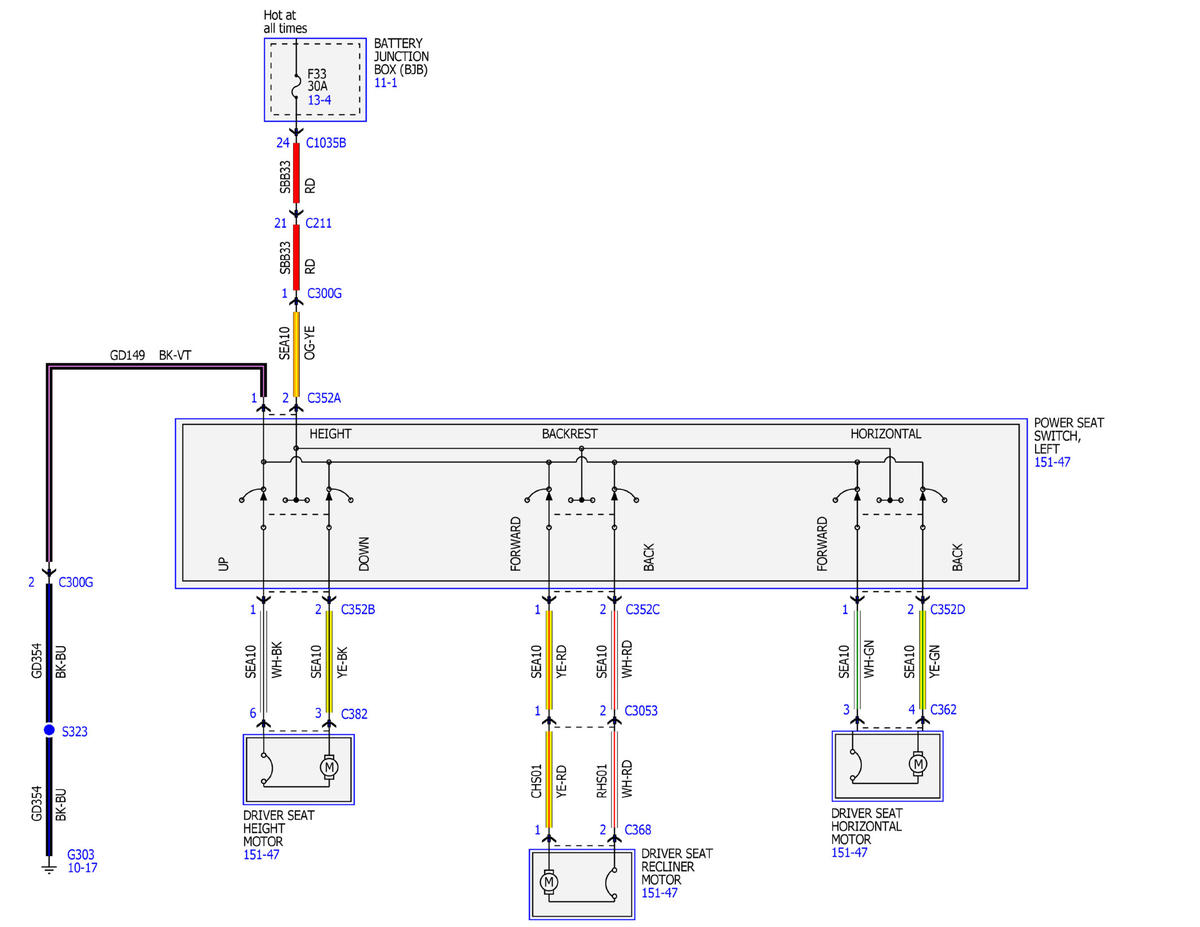

Fig 1: Identifying Power Seats Wiring Diagram

GFDWR130311

Courtesy of FORD MOTOR COMPANY
