Power Mirrors

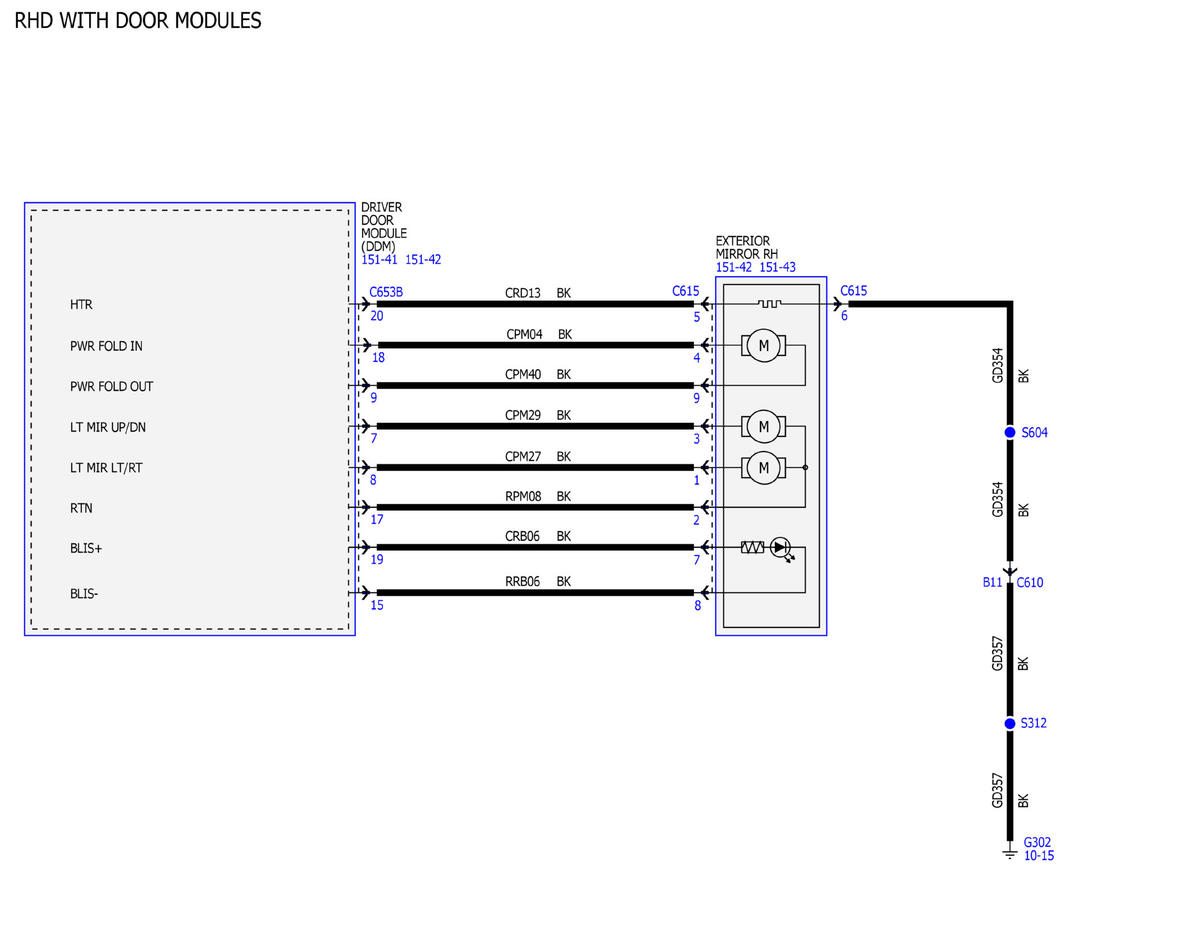

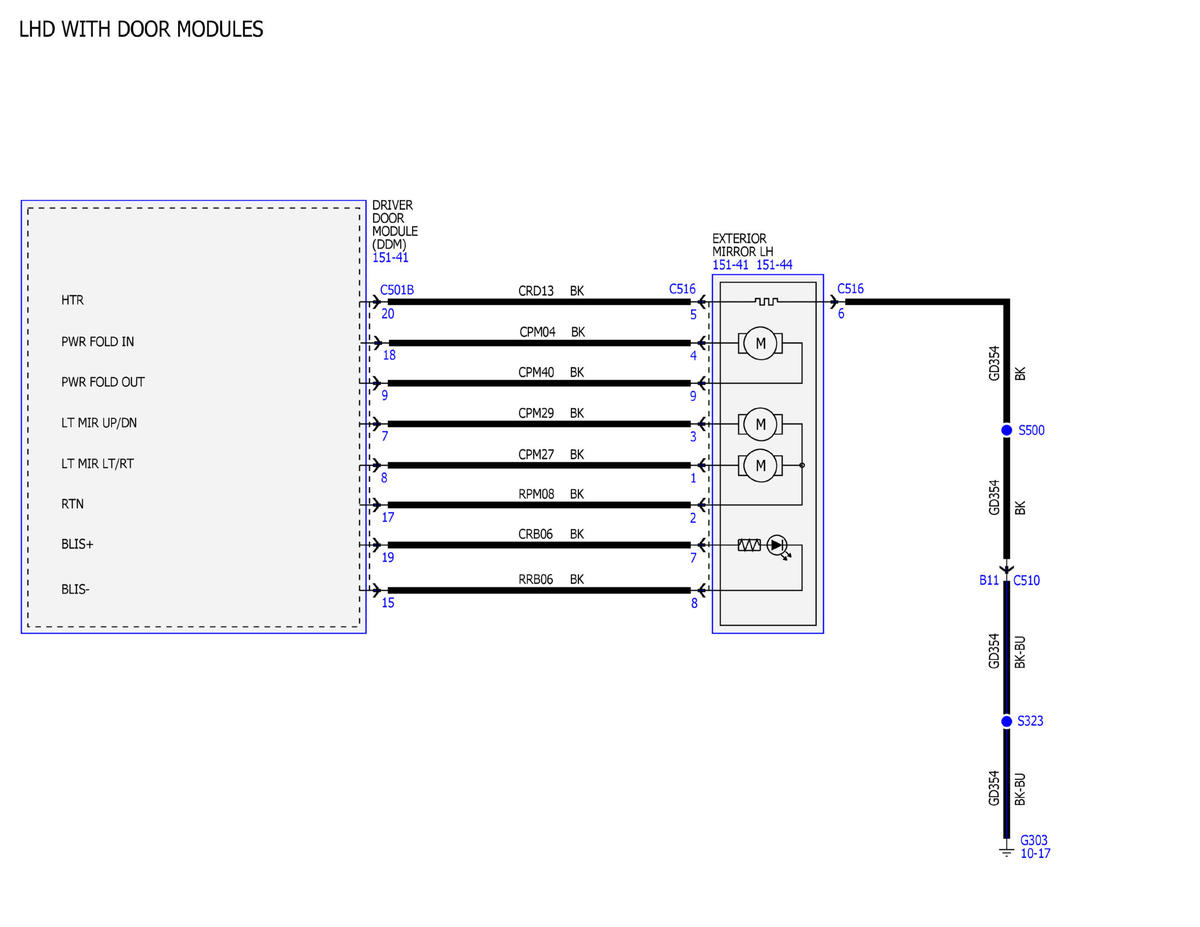

Fig 1: Identifying Power Mirrors Wiring Diagram (1 Of 12)

Courtesy of FORD MOTOR COMPANY

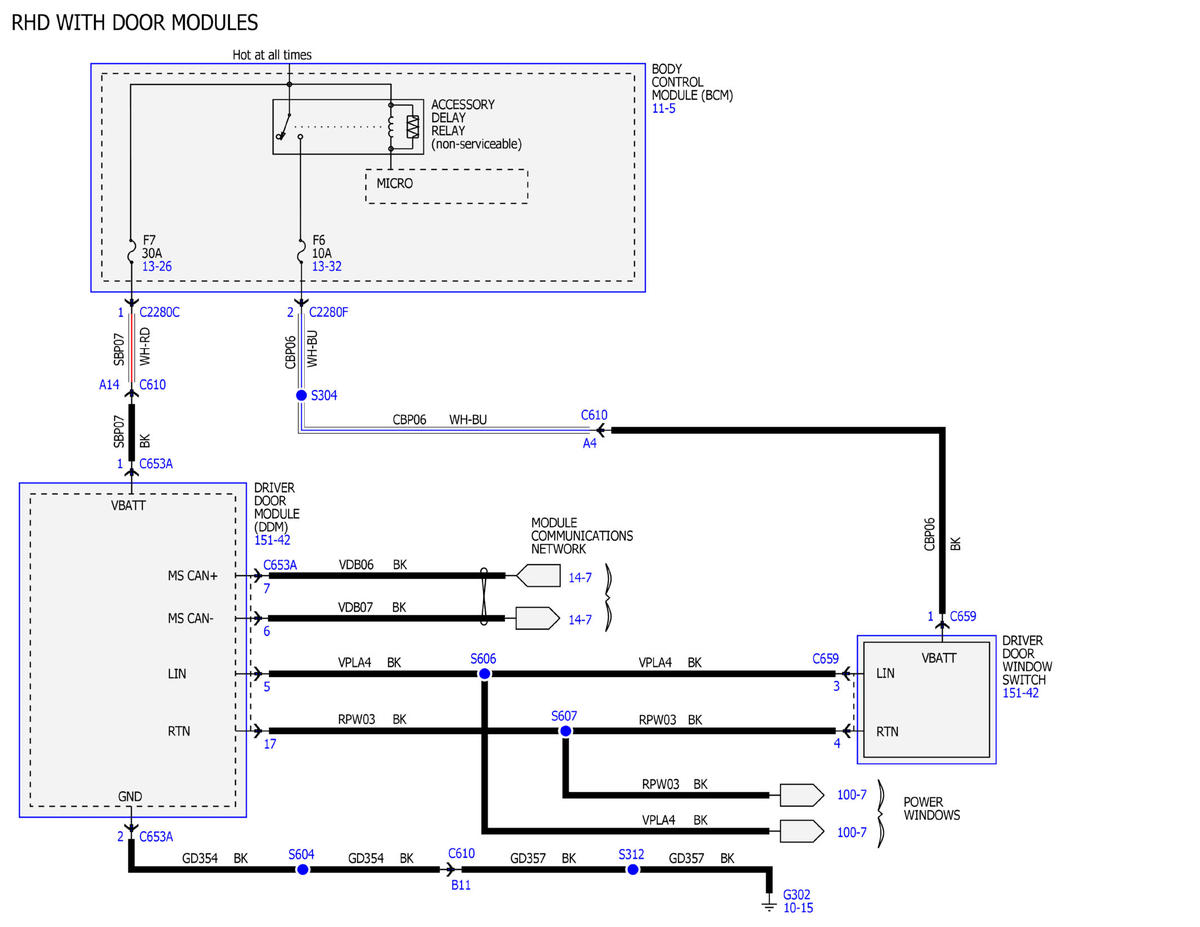

Fig 2: Identifying Power Mirrors Wiring Diagram (2 Of 12)

Courtesy of FORD MOTOR COMPANY

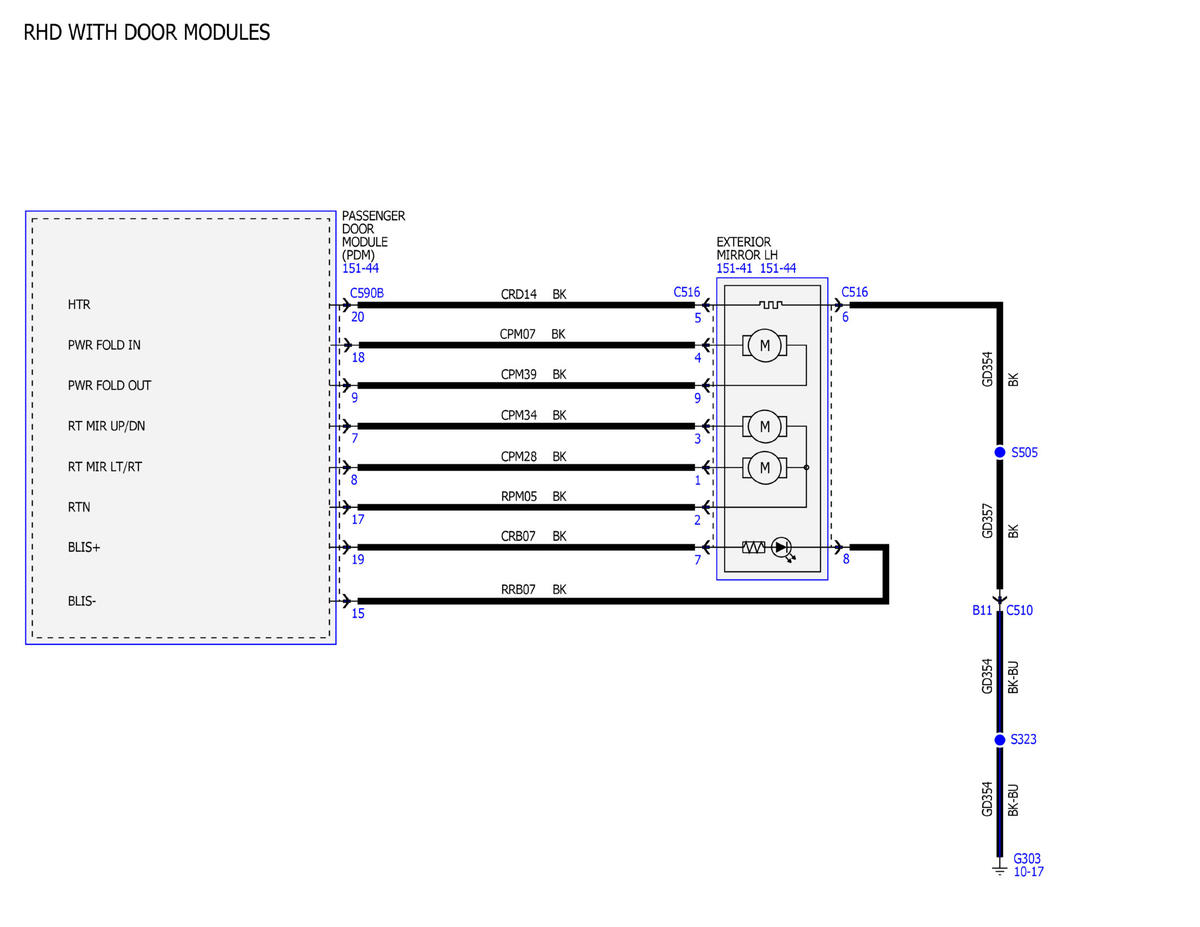

Fig 3: Identifying Power Mirrors Wiring Diagram (3 Of 12)

Courtesy of FORD MOTOR COMPANY

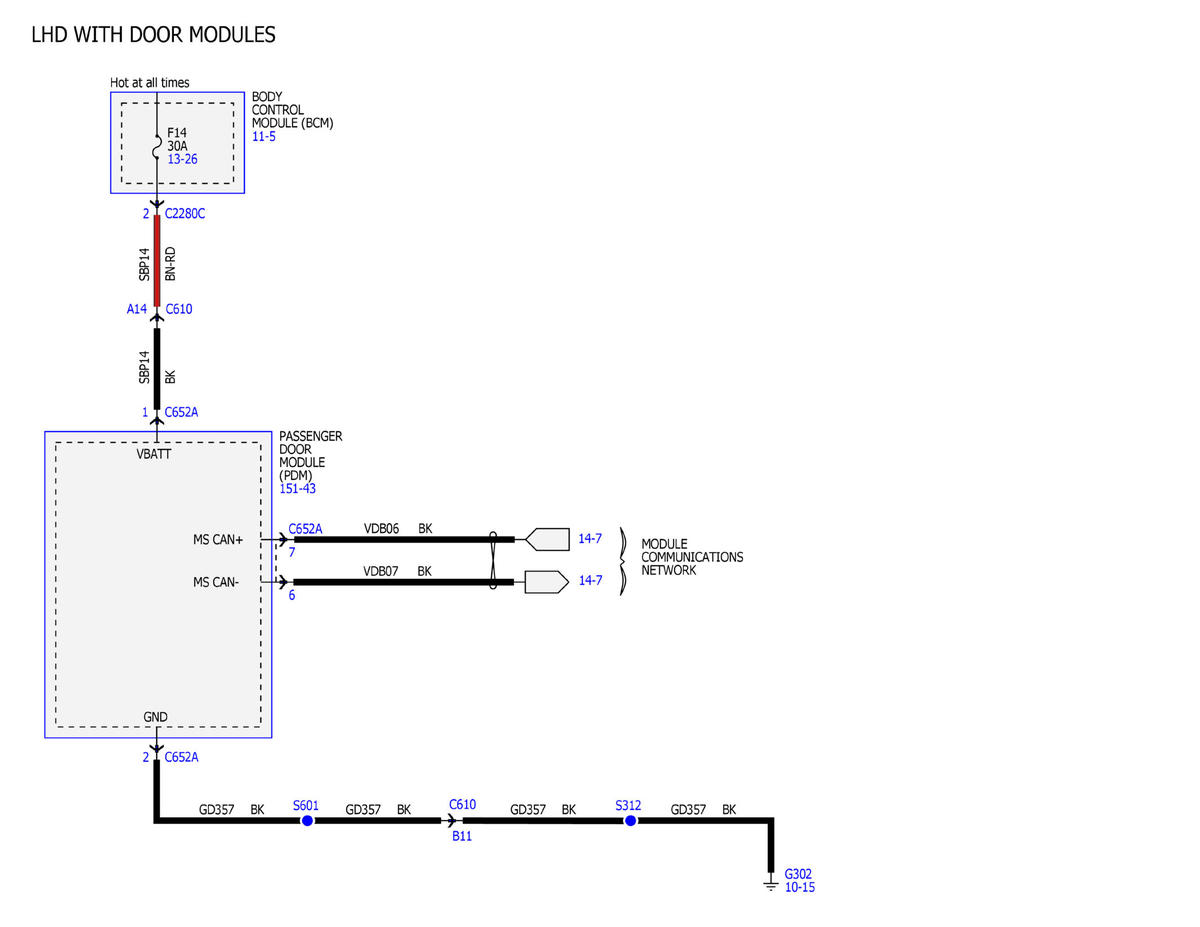

Fig 4: Identifying Power Mirrors Wiring Diagram (4 Of 12)

Courtesy of FORD MOTOR COMPANY

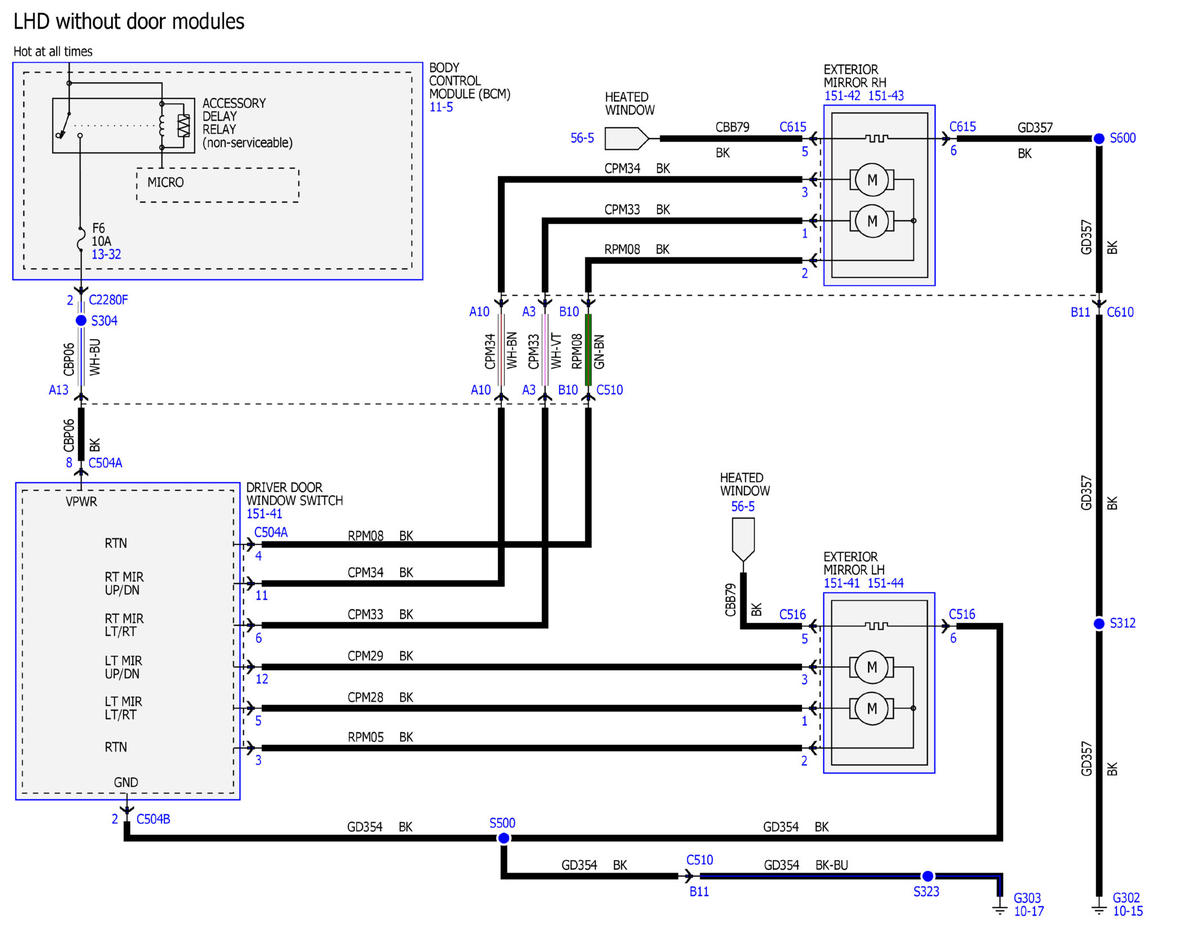

Fig 5: Identifying Power Mirrors Wiring Diagram (5 Of 12)

Courtesy of FORD MOTOR COMPANY

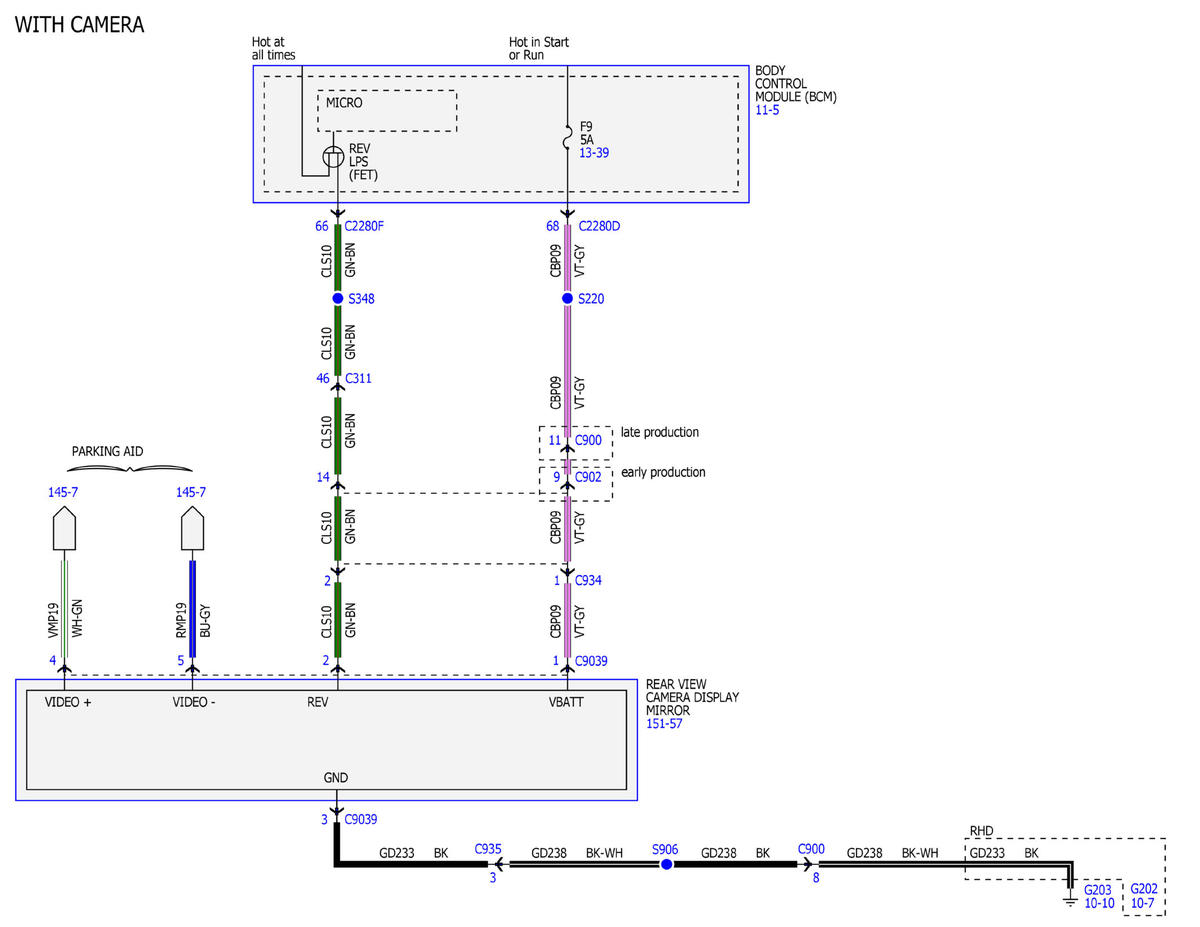

Fig 6: Identifying Power Mirrors Wiring Diagram (6 Of 12)

Courtesy of FORD MOTOR COMPANY

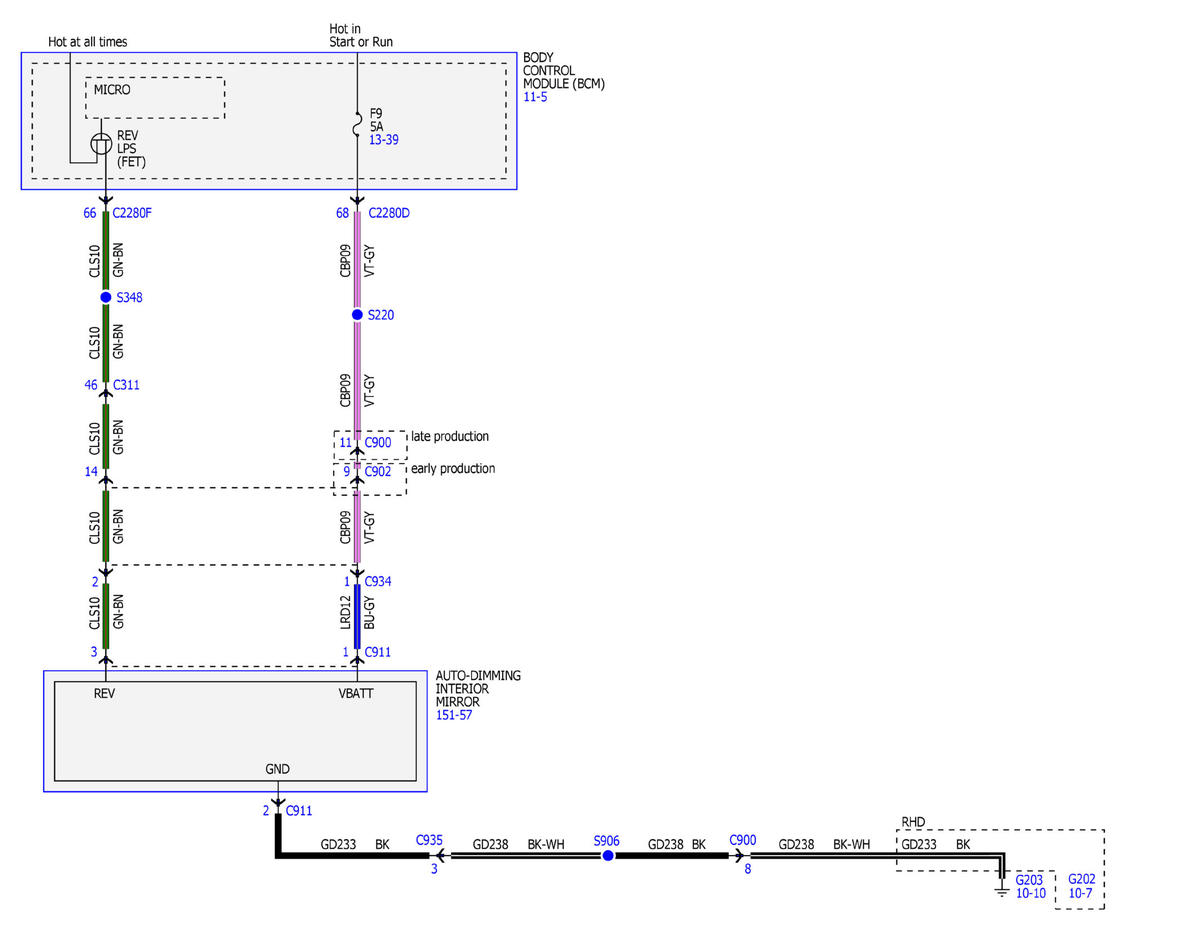

Fig 7: Identifying Power Mirrors Wiring Diagram (7 Of 12)

Courtesy of FORD MOTOR COMPANY

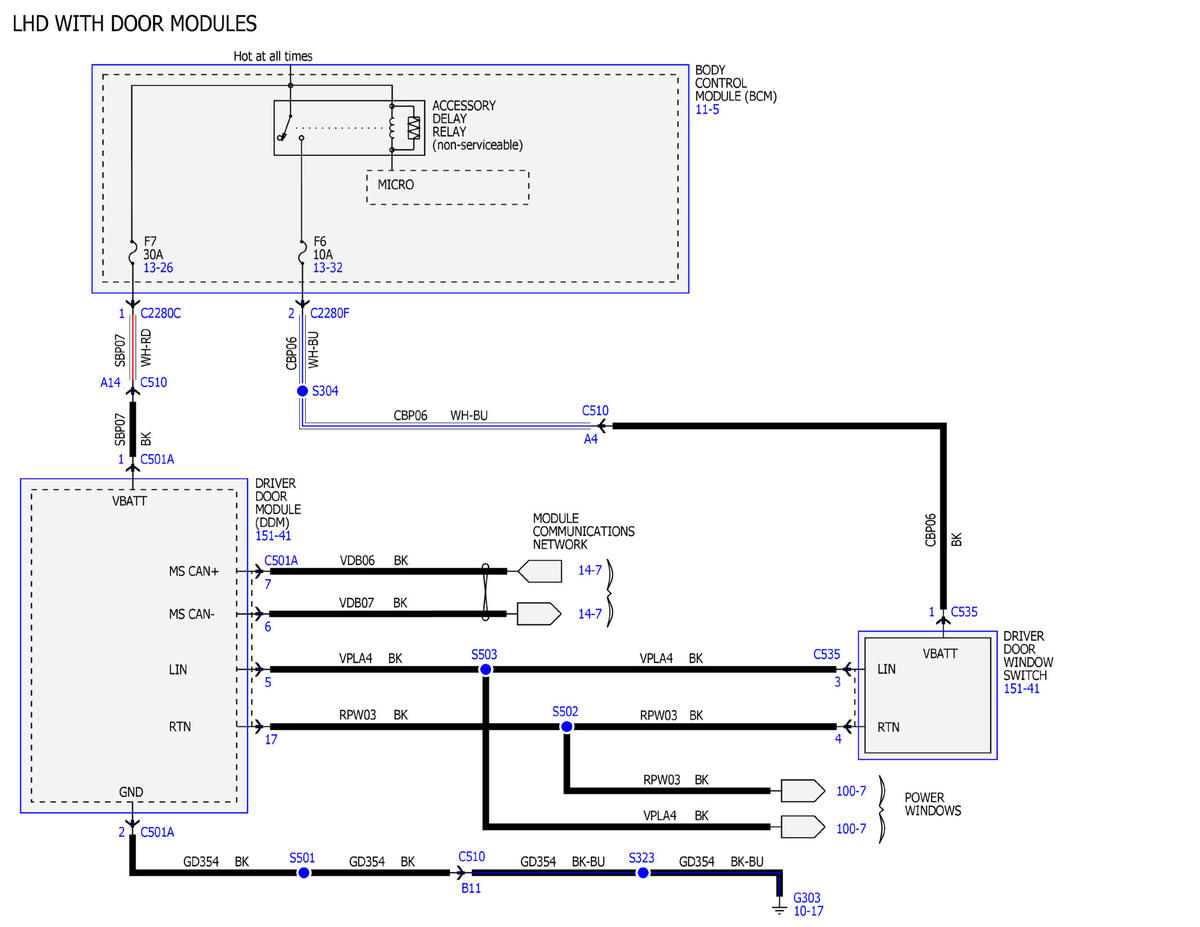

Fig 8: Identifying Power Mirrors Wiring Diagram (8 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Identifying Power Mirrors Wiring Diagram (9 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Identifying Power Mirrors Wiring Diagram (10 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Identifying Power Mirrors Wiring Diagram (11 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Identifying Power Mirrors Wiring Diagram (12 Of 12)

Courtesy of FORD MOTOR COMPANY
