Power Distribution/BCM

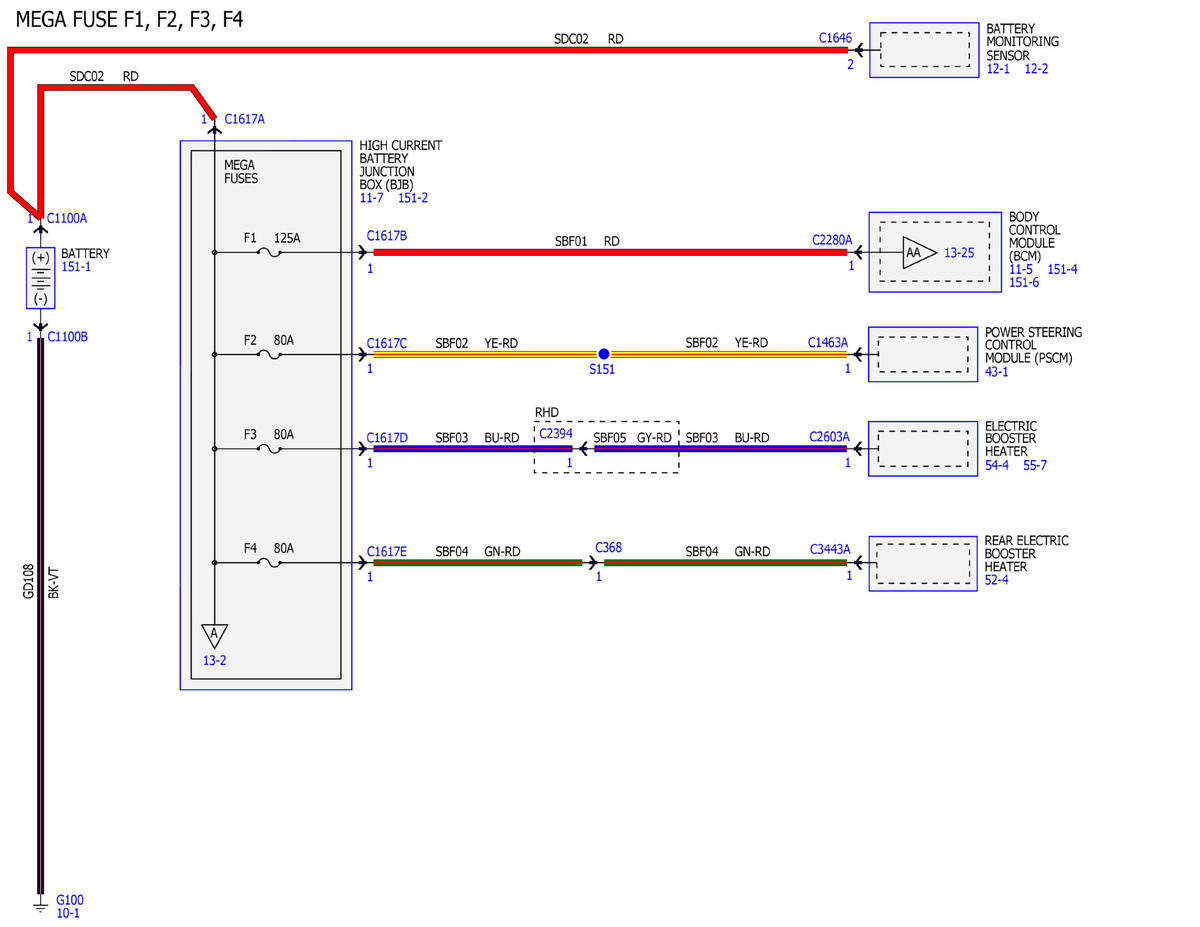

Fig 1: Identifying Power Distribution/BCM Wiring Diagram (1 Of 46)

GFDWR130253

Courtesy of FORD MOTOR COMPANY

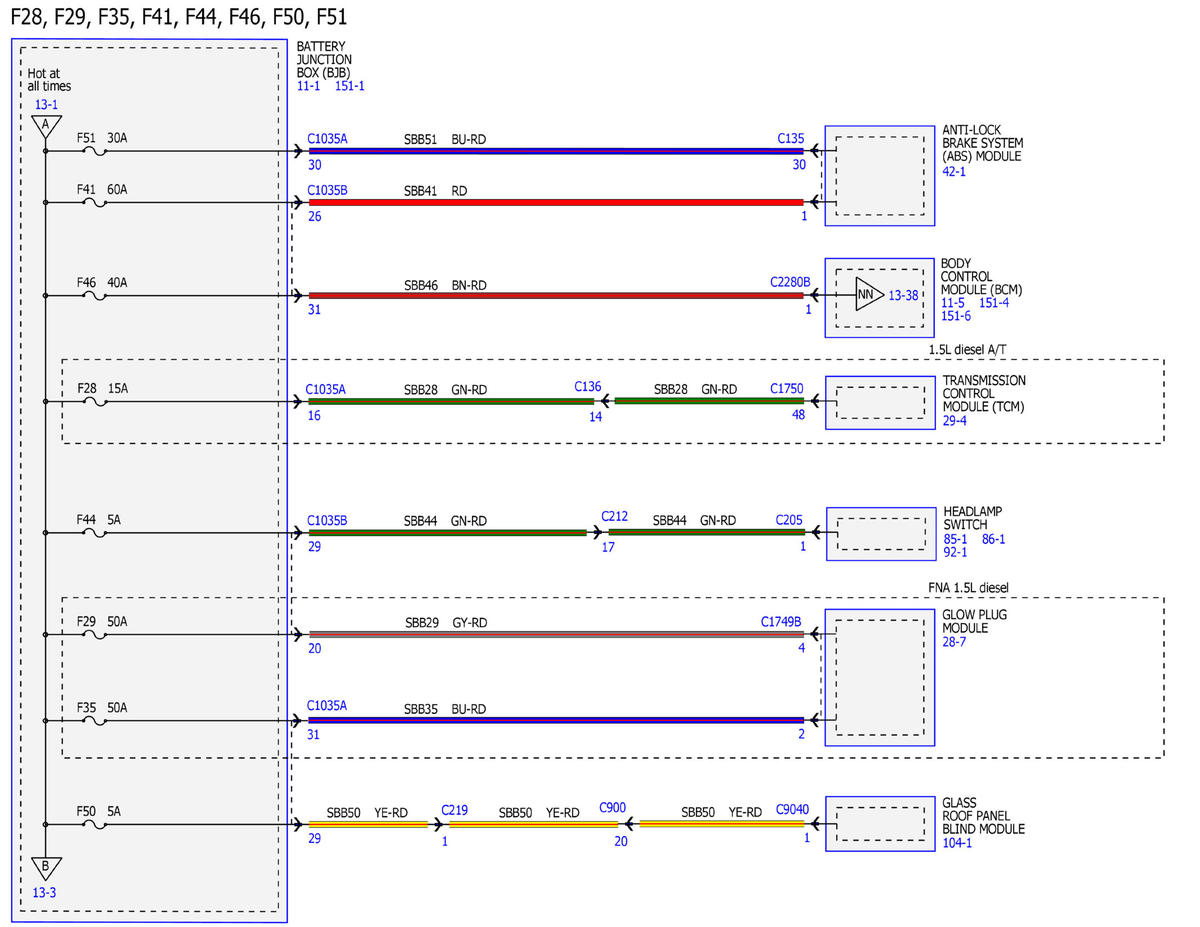

Fig 2: Identifying Power Distribution/BCM Wiring Diagram (2 Of 46)

GFDWR130264

Courtesy of FORD MOTOR COMPANY

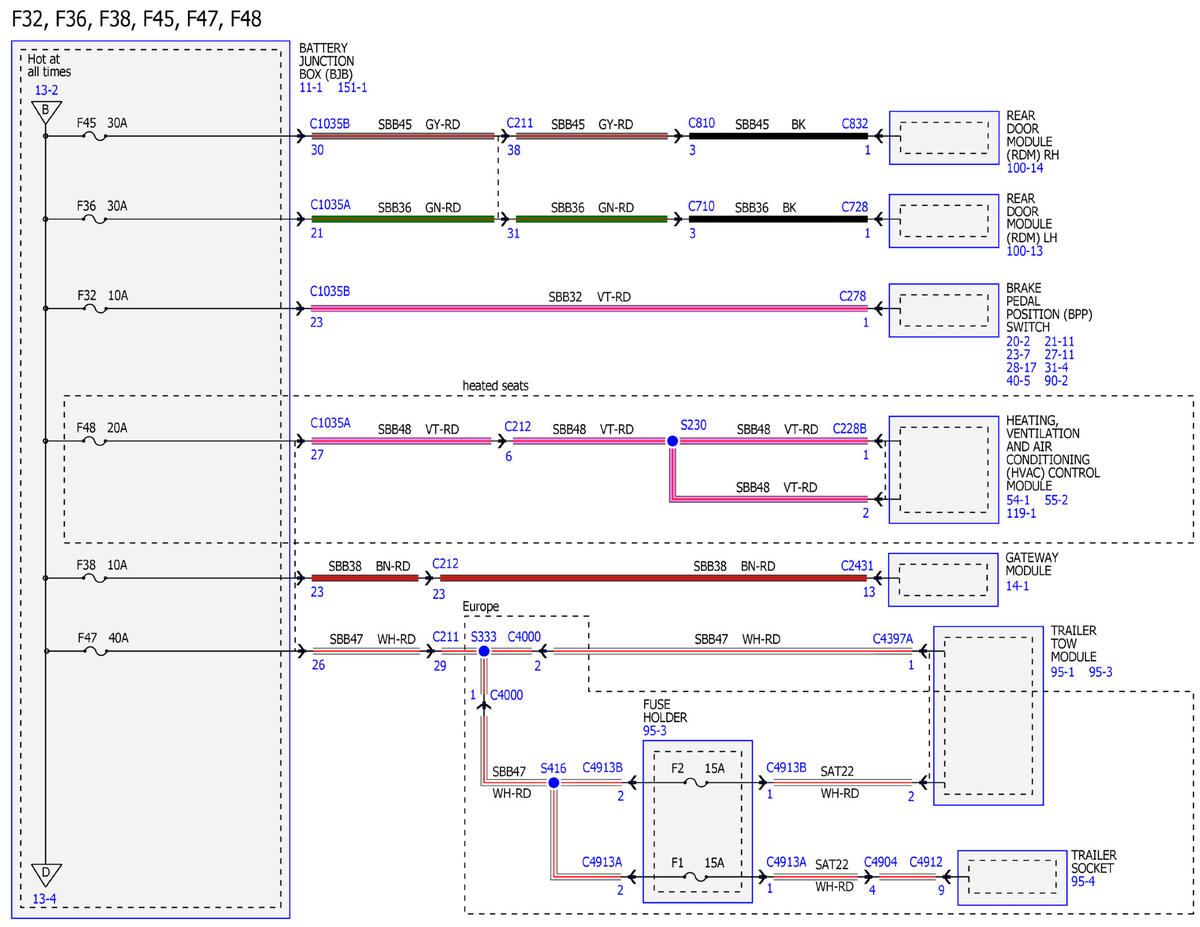

Fig 3: Identifying Power Distribution/BCM Wiring Diagram (3 Of 46)

GFDWR130275

Courtesy of FORD MOTOR COMPANY

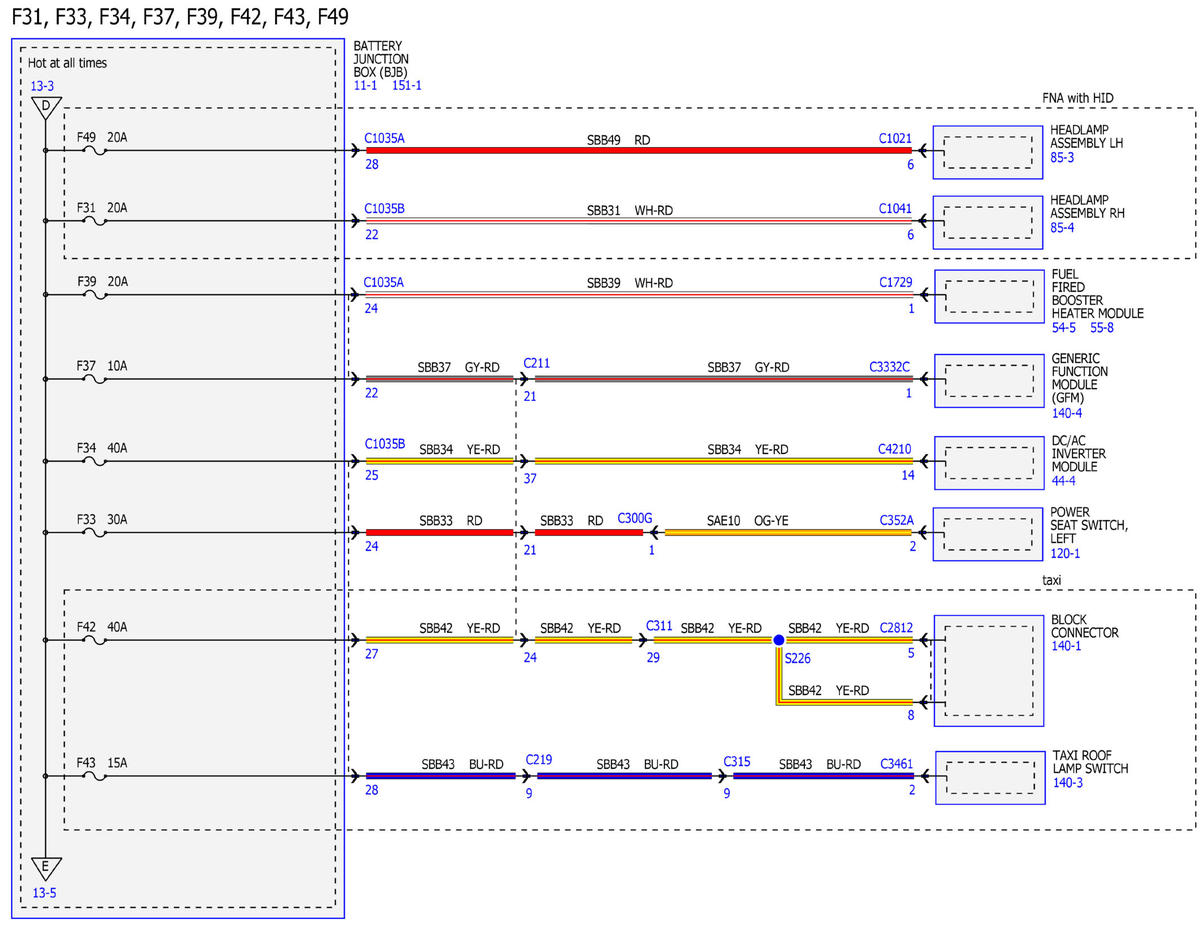

Fig 4: Identifying Power Distribution/BCM Wiring Diagram (4 Of 46)

GFDWR130286

Courtesy of FORD MOTOR COMPANY

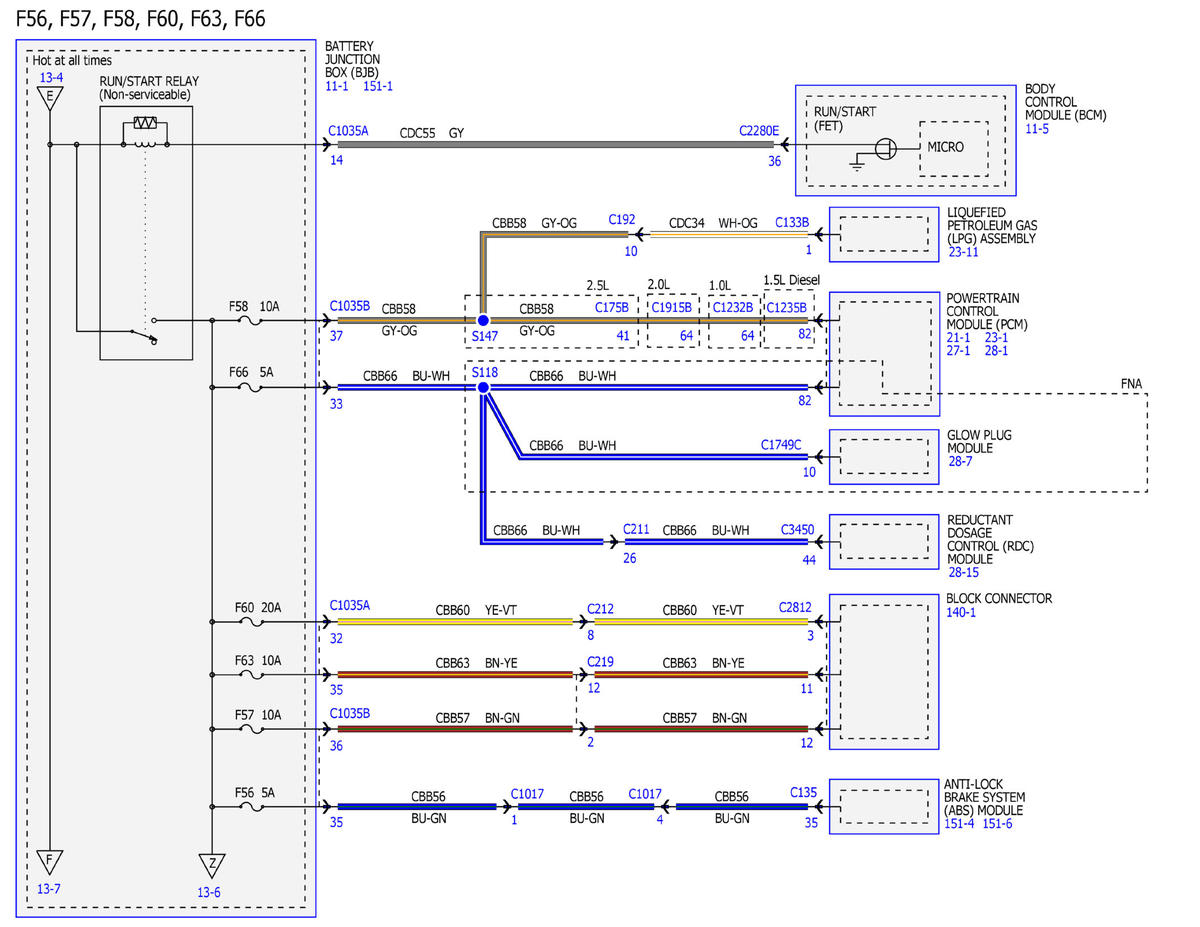

Fig 5: Identifying Power Distribution/BCM Wiring Diagram (5 Of 46)

GFDWR130294

Courtesy of FORD MOTOR COMPANY

Fig 6: Identifying Power Distribution/BCM Wiring Diagram (6 Of 46)

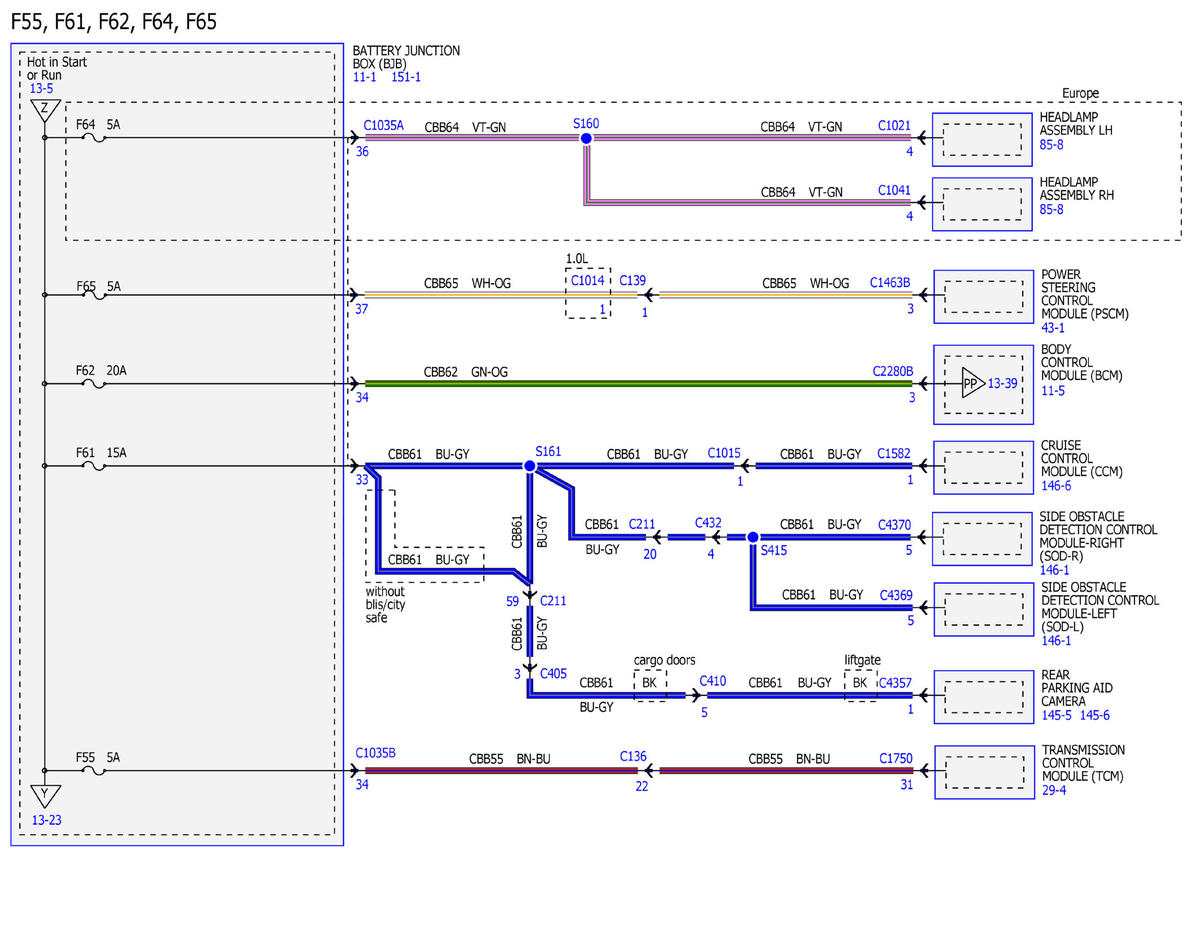

GFDWR130295

Courtesy of FORD MOTOR COMPANY

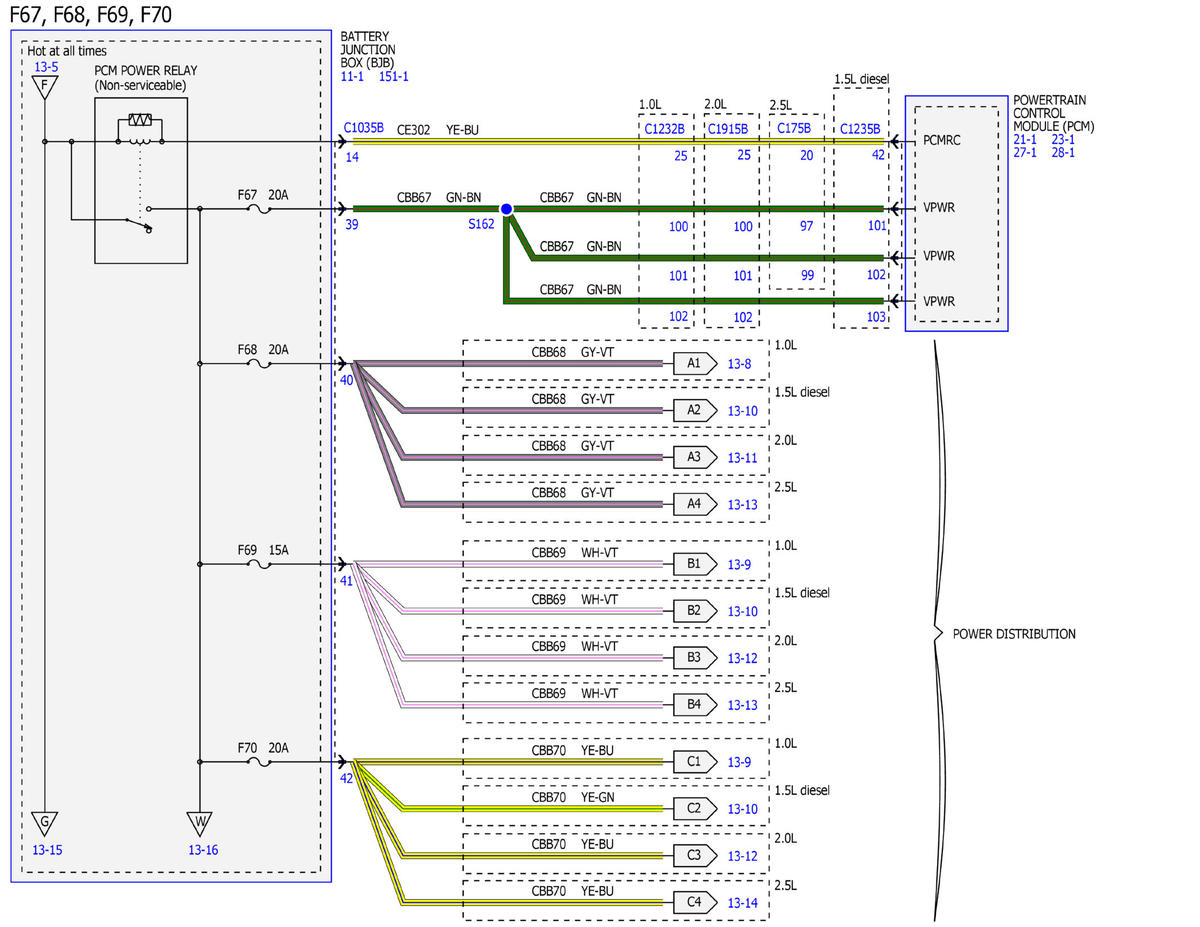

Fig 7: Identifying Power Distribution/BCM Wiring Diagram (7 Of 46)

GFDWR130296

Courtesy of FORD MOTOR COMPANY

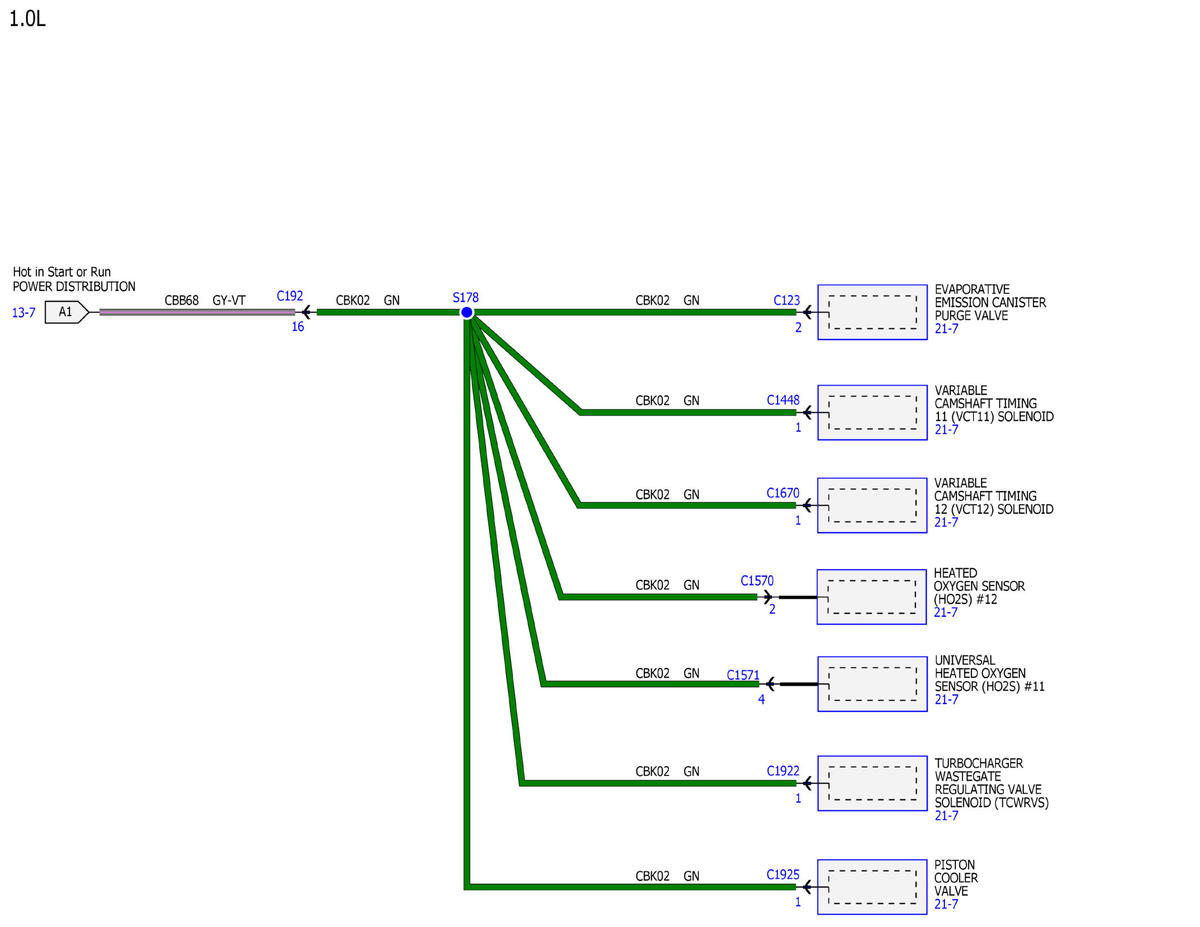

Fig 8: Identifying Power Distribution/BCM Wiring Diagram (8 Of 46)

GFDWR130297

Courtesy of FORD MOTOR COMPANY

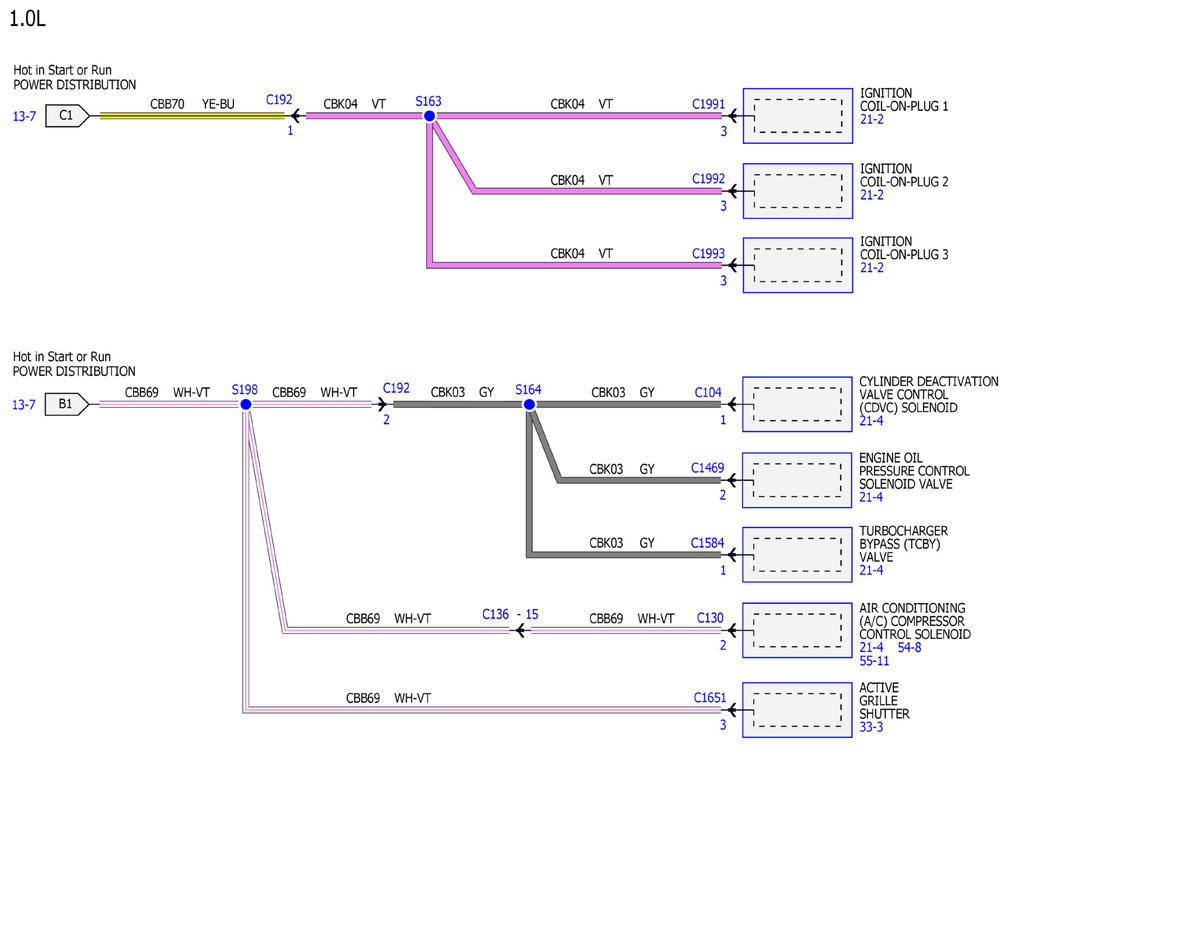

Fig 9: Identifying Power Distribution/BCM Wiring Diagram (9 Of 46)

GFDWR130298

Courtesy of FORD MOTOR COMPANY

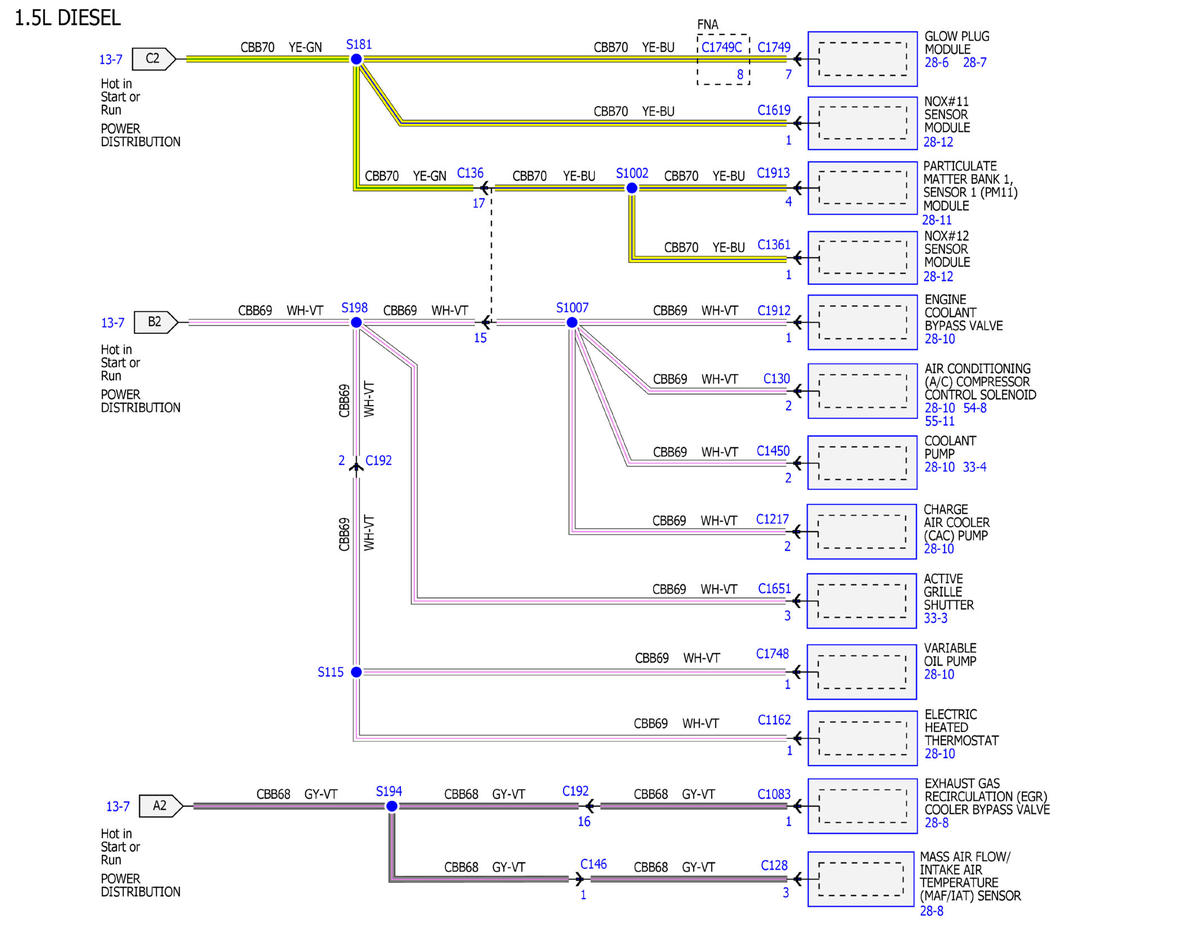

Fig 10: Identifying Power Distribution/BCM Wiring Diagram (10 Of 46)

GFDWR130254

Courtesy of FORD MOTOR COMPANY

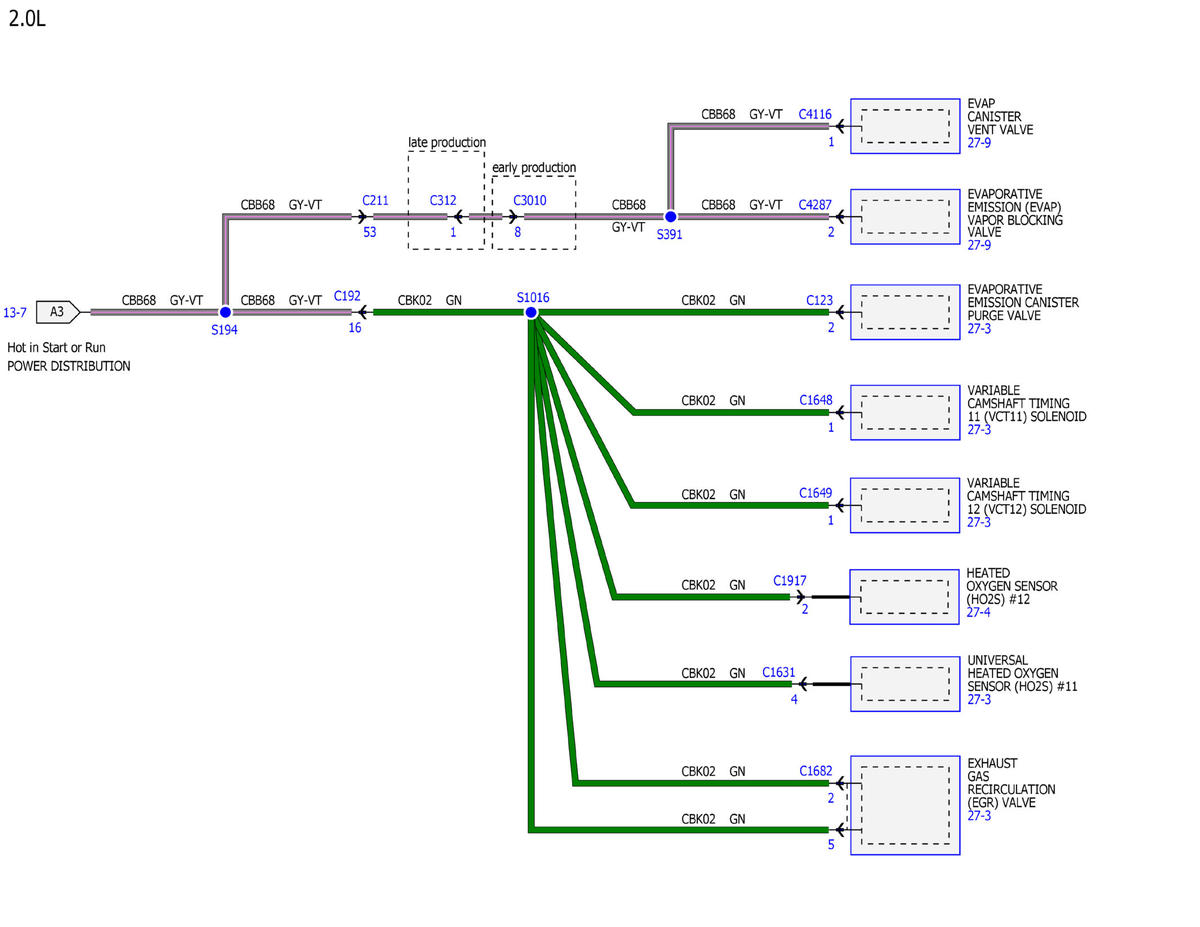

Fig 11: Identifying Power Distribution/BCM Wiring Diagram (11 Of 46)

GFDWR130255

Courtesy of FORD MOTOR COMPANY

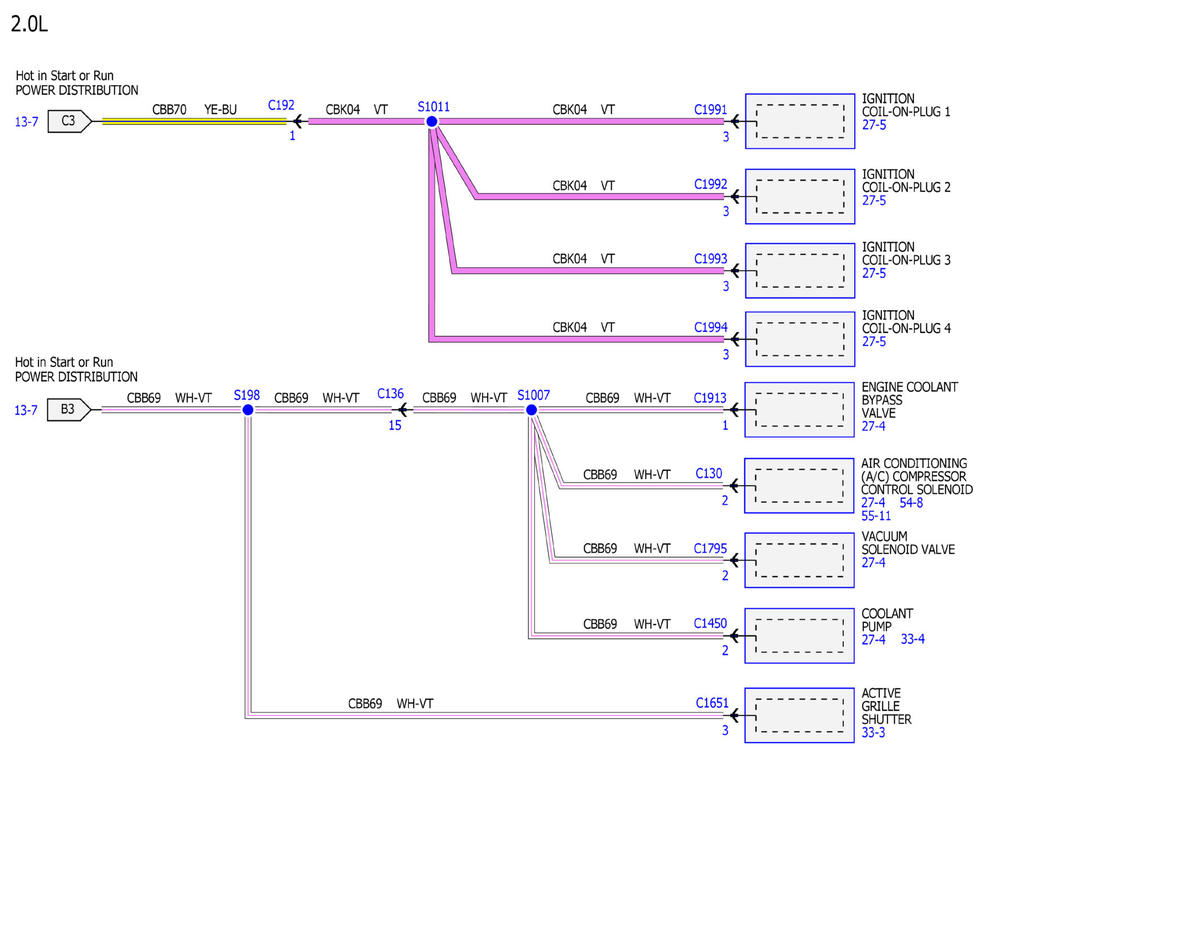

Fig 12: Identifying Power Distribution/BCM Wiring Diagram (12 Of 46)

GFDWR130256

Courtesy of FORD MOTOR COMPANY

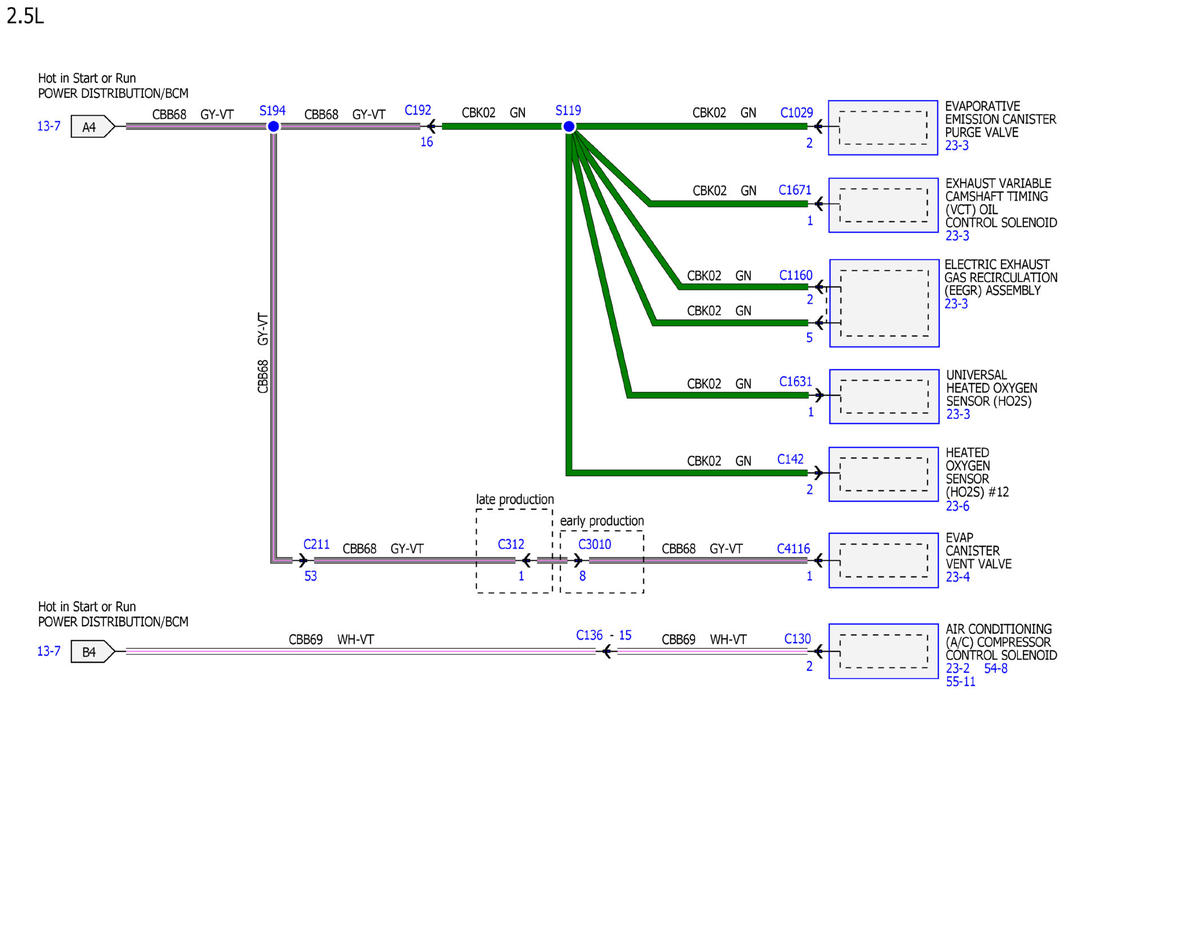

Fig 13: Identifying Power Distribution/BCM Wiring Diagram (13 Of 46)

GFDWR130257

Courtesy of FORD MOTOR COMPANY

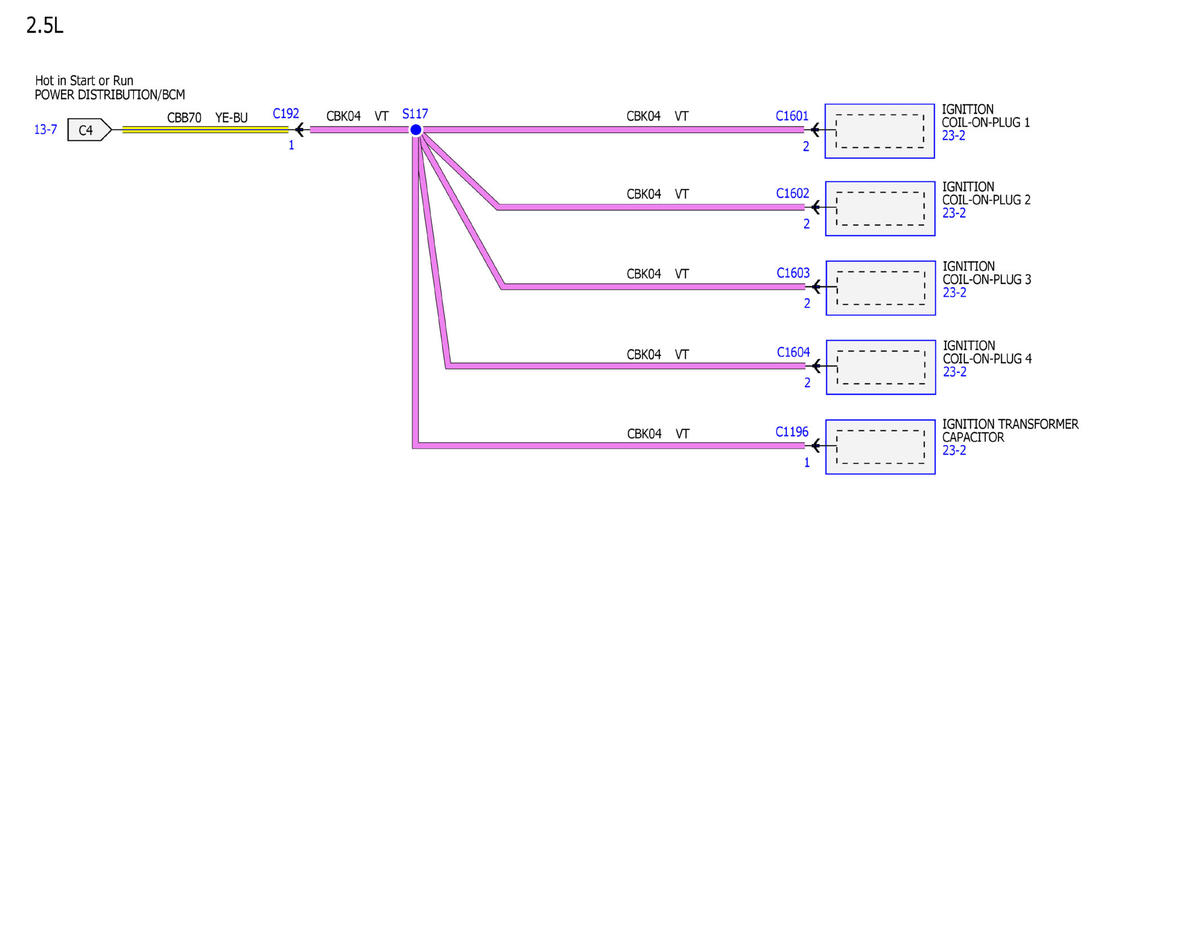

Fig 14: Identifying Power Distribution/BCM Wiring Diagram (14 Of 46)

GFDWR130258

Courtesy of FORD MOTOR COMPANY

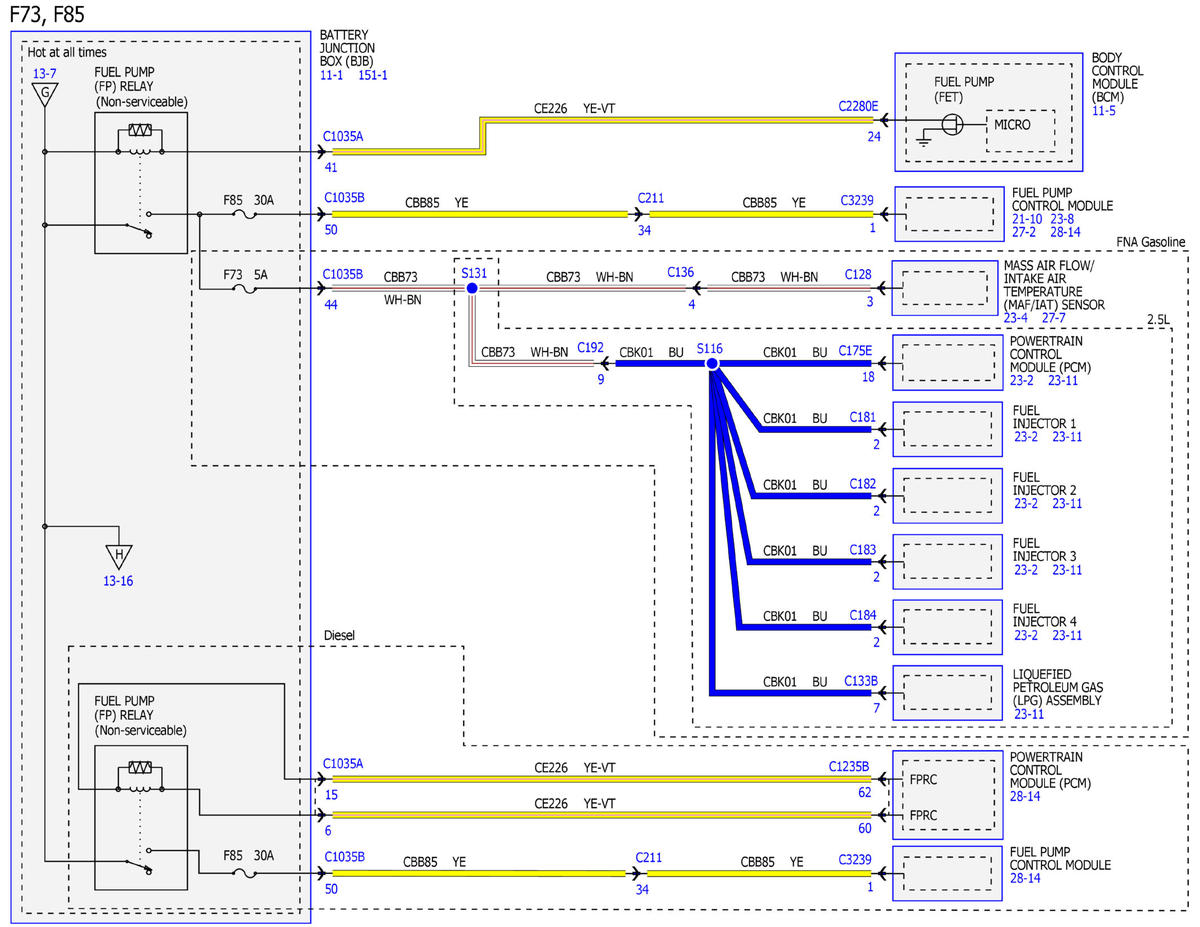

Fig 15: Identifying Power Distribution/BCM Wiring Diagram (15 Of 46)

GFDWR130259

Courtesy of FORD MOTOR COMPANY

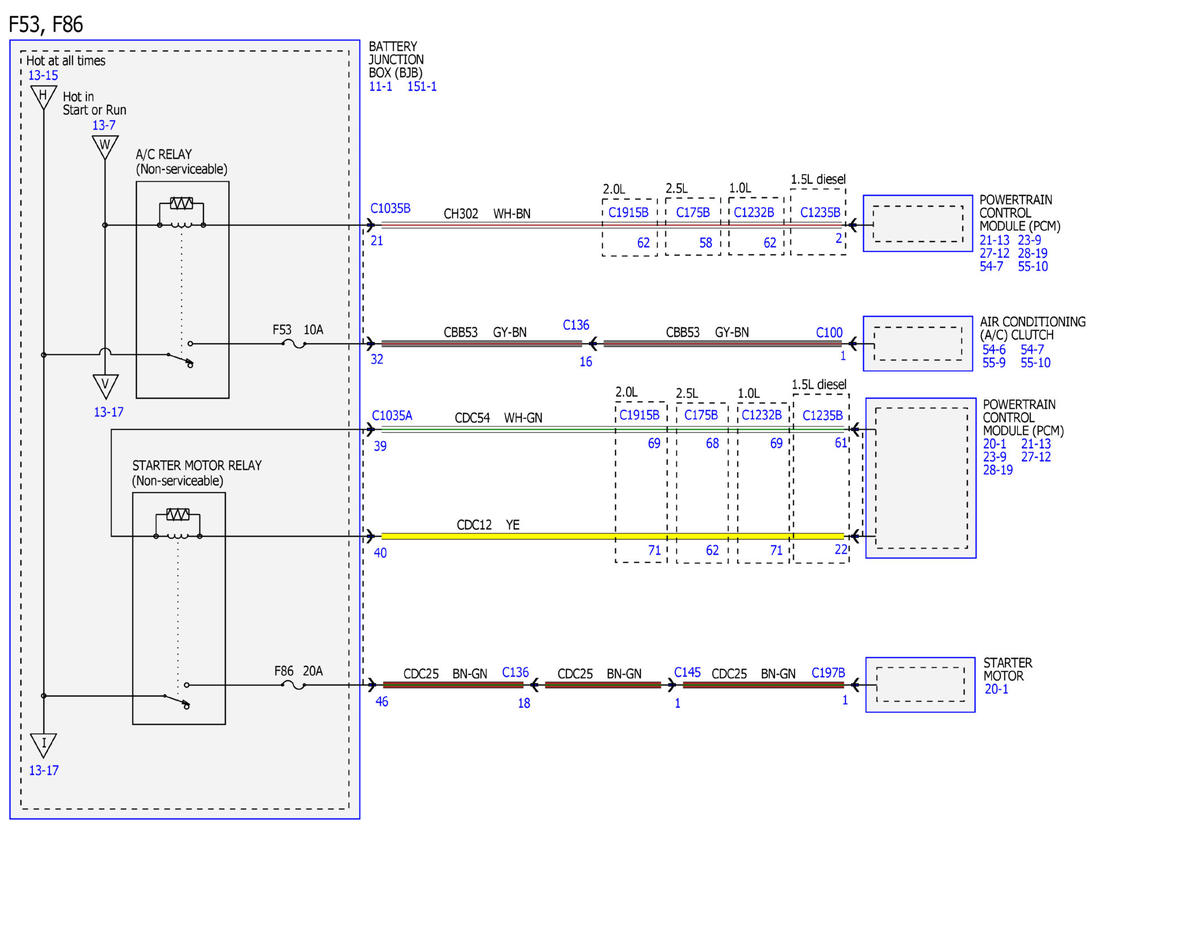

Fig 16: Identifying Power Distribution/BCM Wiring Diagram (16 Of 46)

GFDWR130260

Courtesy of FORD MOTOR COMPANY

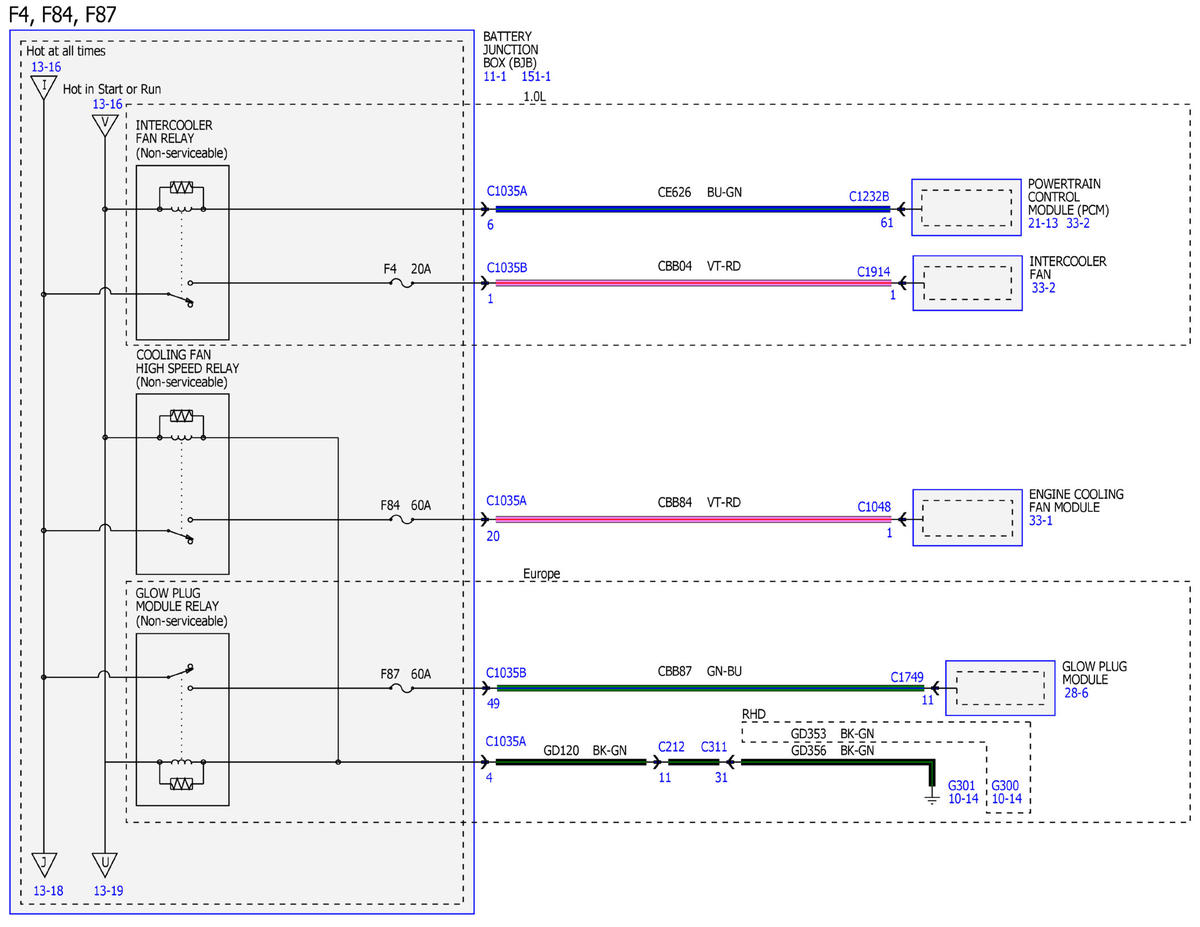

Fig 17: Identifying Power Distribution/BCM Wiring Diagram (17 Of 46)

GFDWR130261

Courtesy of FORD MOTOR COMPANY

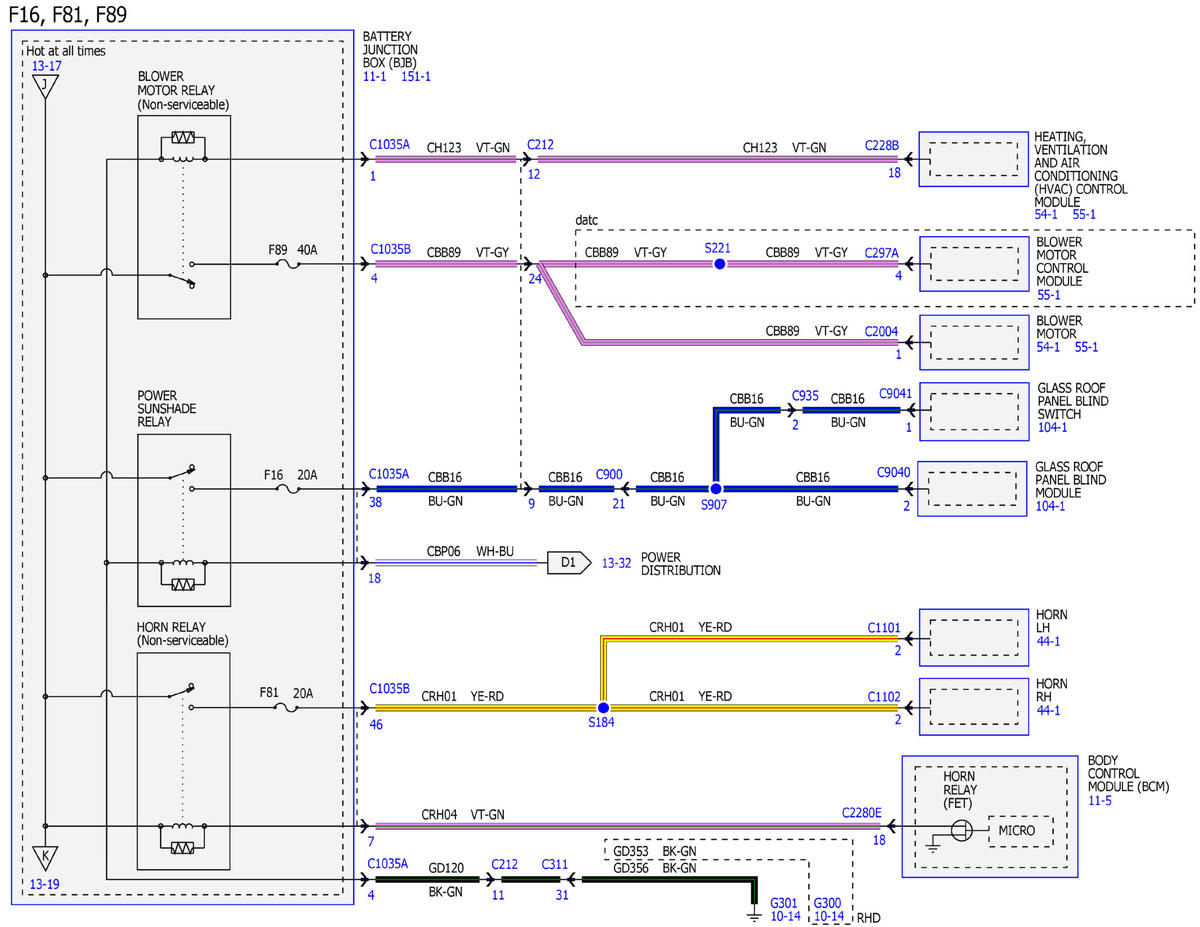

Fig 18: Identifying Power Distribution/BCM Wiring Diagram (18 Of 46)

GFDWR130262

Courtesy of FORD MOTOR COMPANY

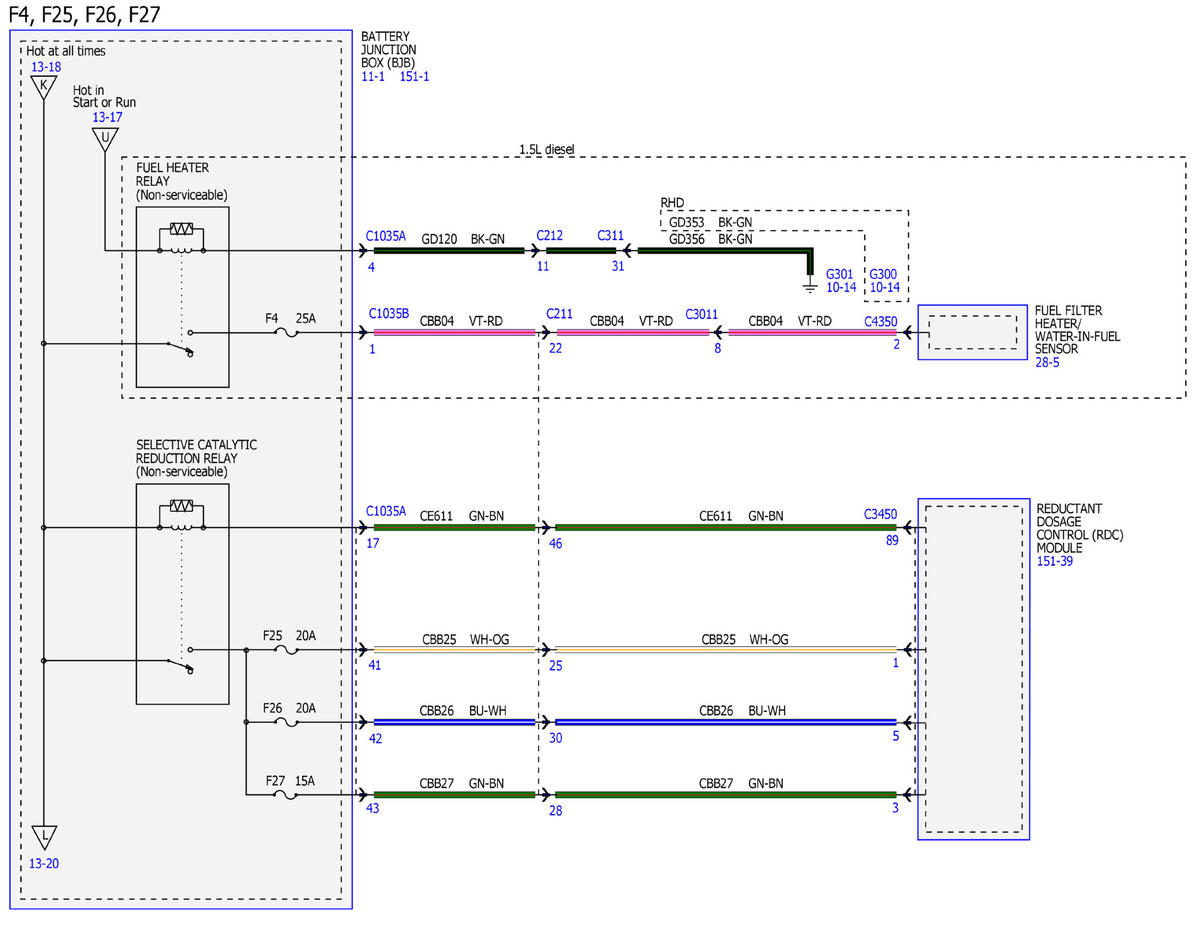

Fig 19: Identifying Power Distribution/BCM Wiring Diagram (19 Of 46)

GFDWR130263

Courtesy of FORD MOTOR COMPANY

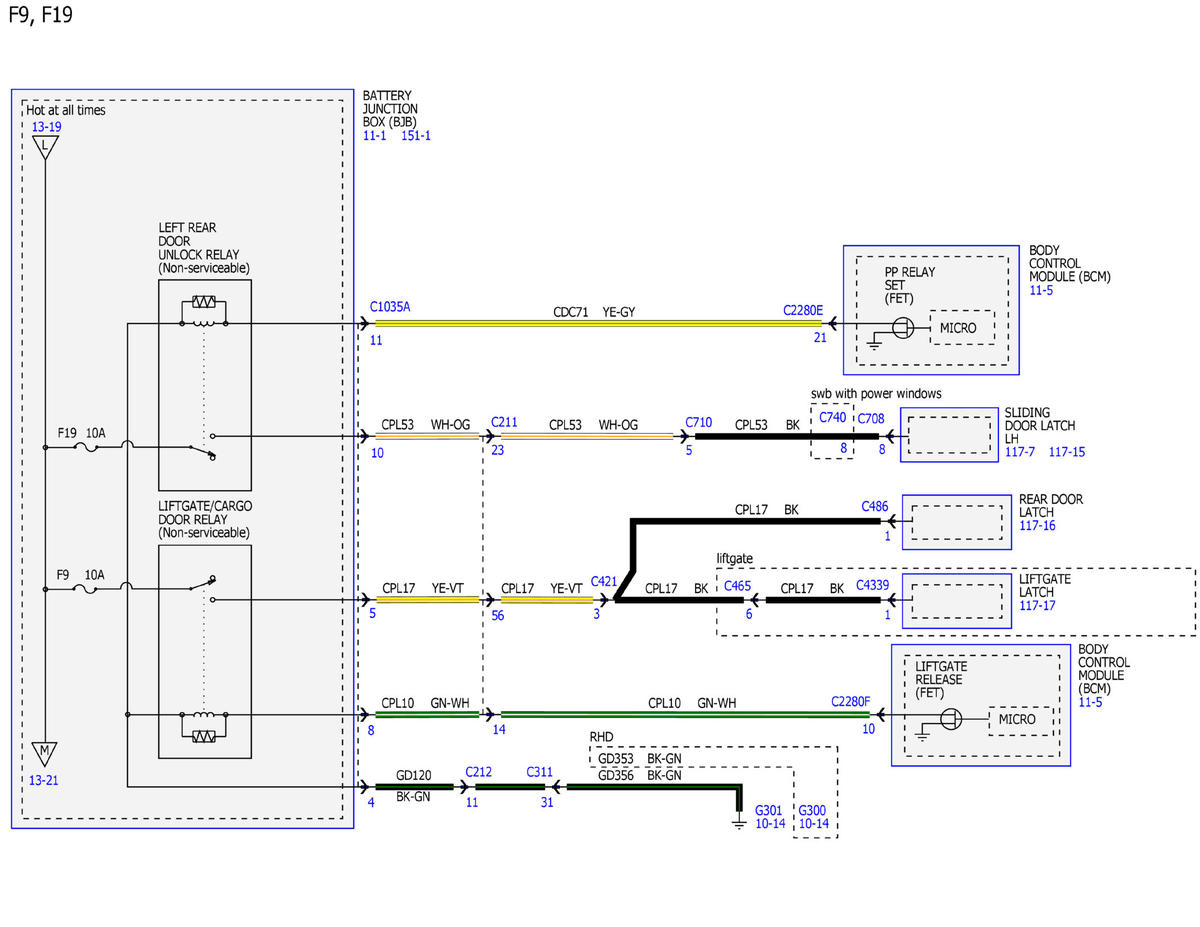

Fig 20: Identifying Power Distribution/BCM Wiring Diagram (20 Of 46)

GFDWR130265

Courtesy of FORD MOTOR COMPANY

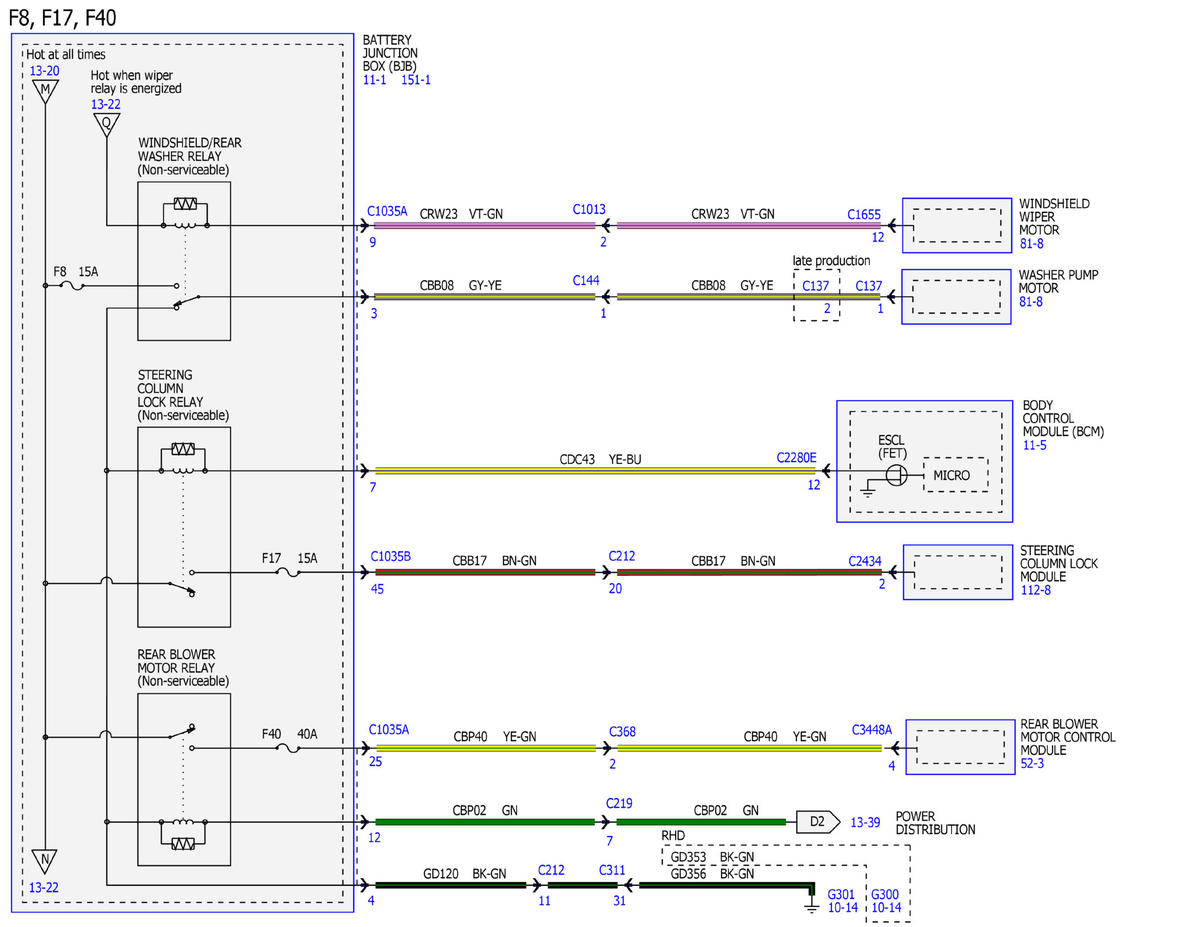

Fig 21: Identifying Power Distribution/BCM Wiring Diagram (21 Of 46)

GFDWR130266

Courtesy of FORD MOTOR COMPANY

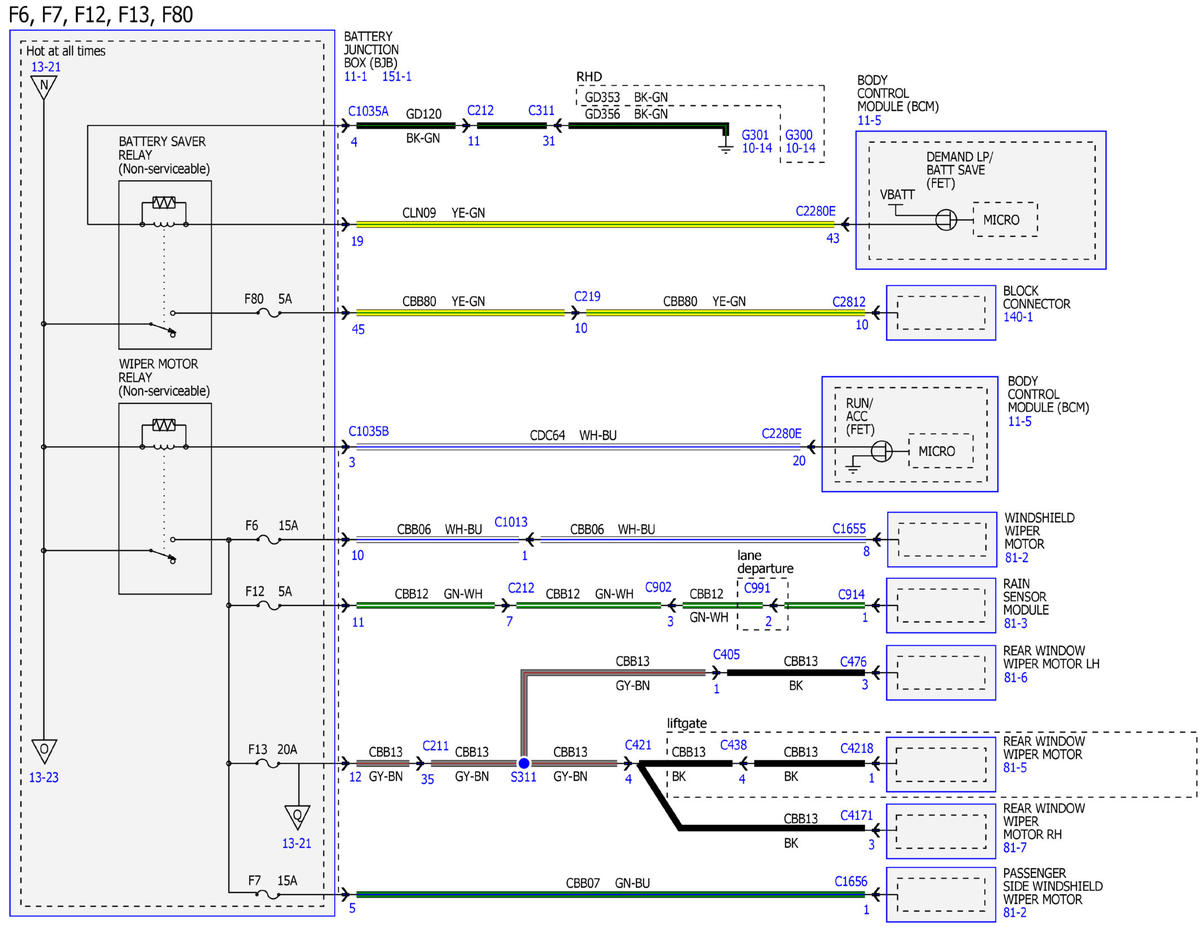

Fig 22: Identifying Power Distribution/BCM Wiring Diagram (222 Of 46)

GFDWR130267

Courtesy of FORD MOTOR COMPANY

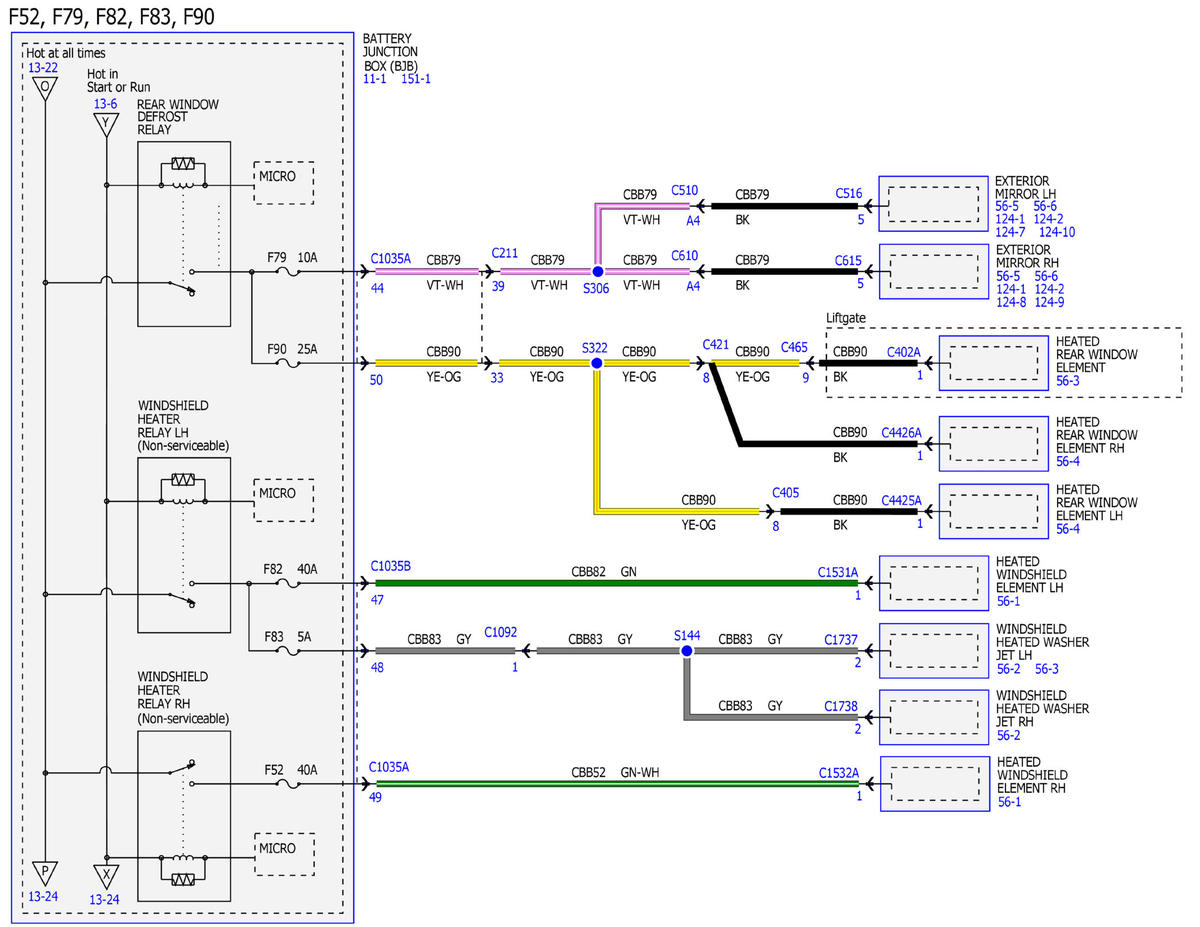

Fig 23: Identifying Power Distribution/BCM Wiring Diagram (23 Of 46)

GFDWR130268

Courtesy of FORD MOTOR COMPANY

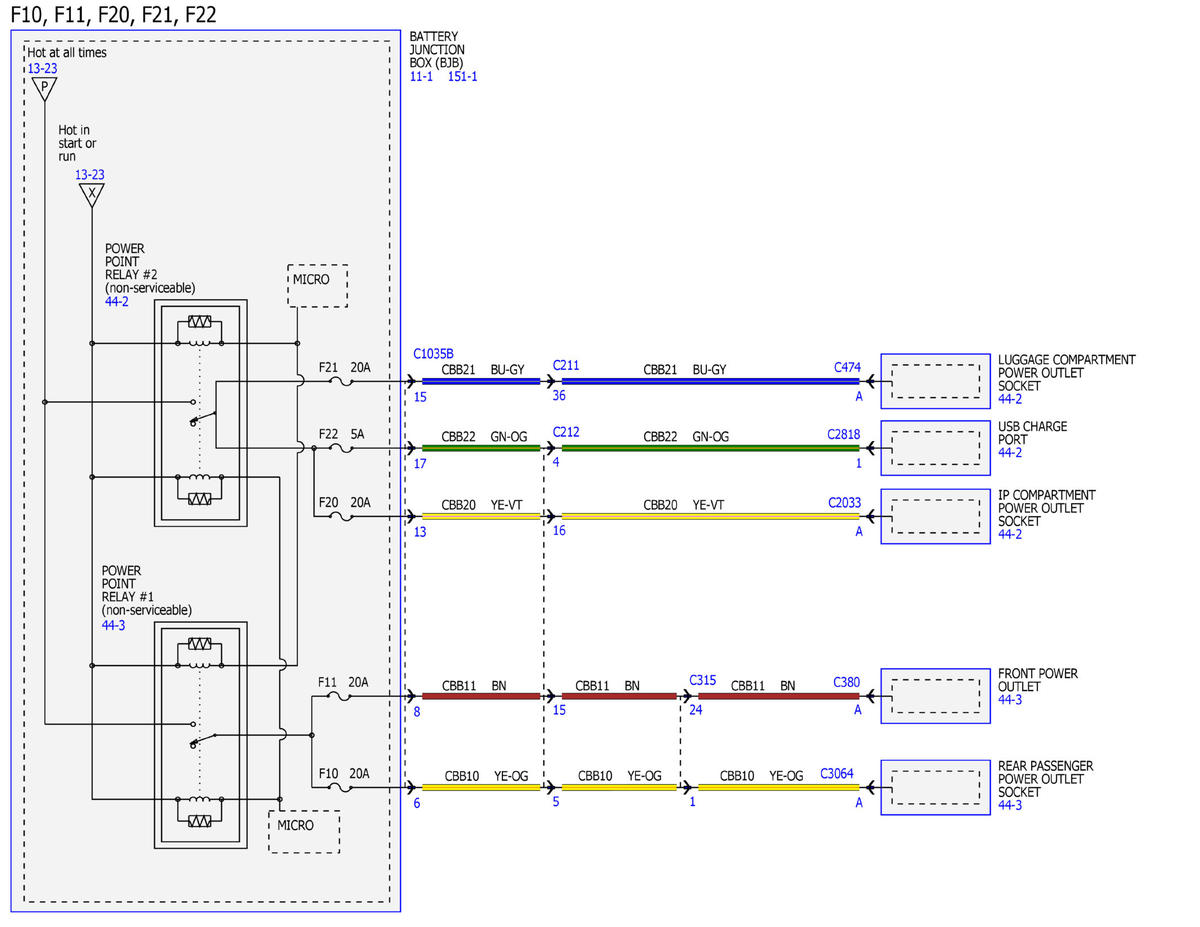

Fig 24: Identifying Power Distribution/BCM Wiring Diagram (24 Of 46)

GFDWR130269

Courtesy of FORD MOTOR COMPANY

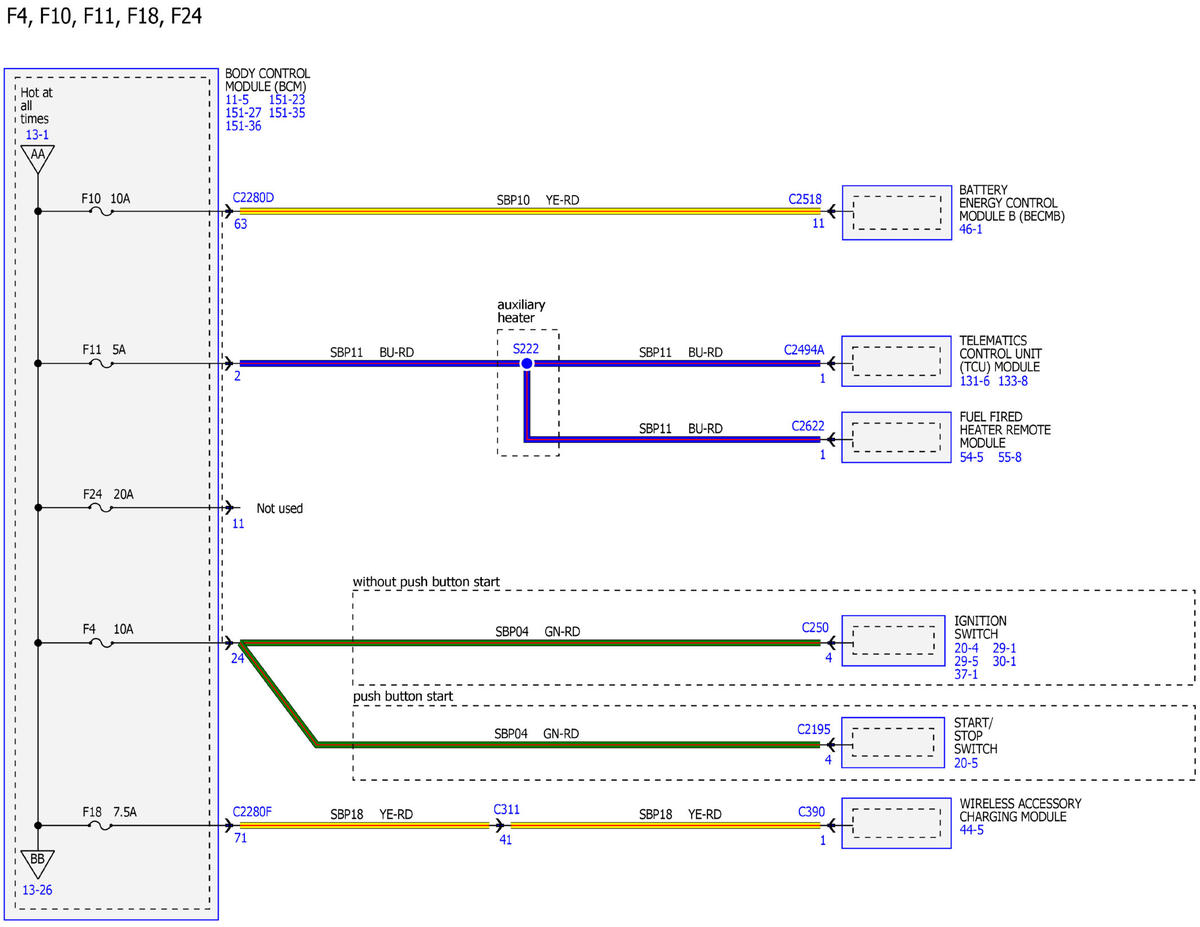

Fig 25: Identifying Power Distribution/BCM Wiring Diagram (25 Of 46)

GFDWR130270

Courtesy of FORD MOTOR COMPANY

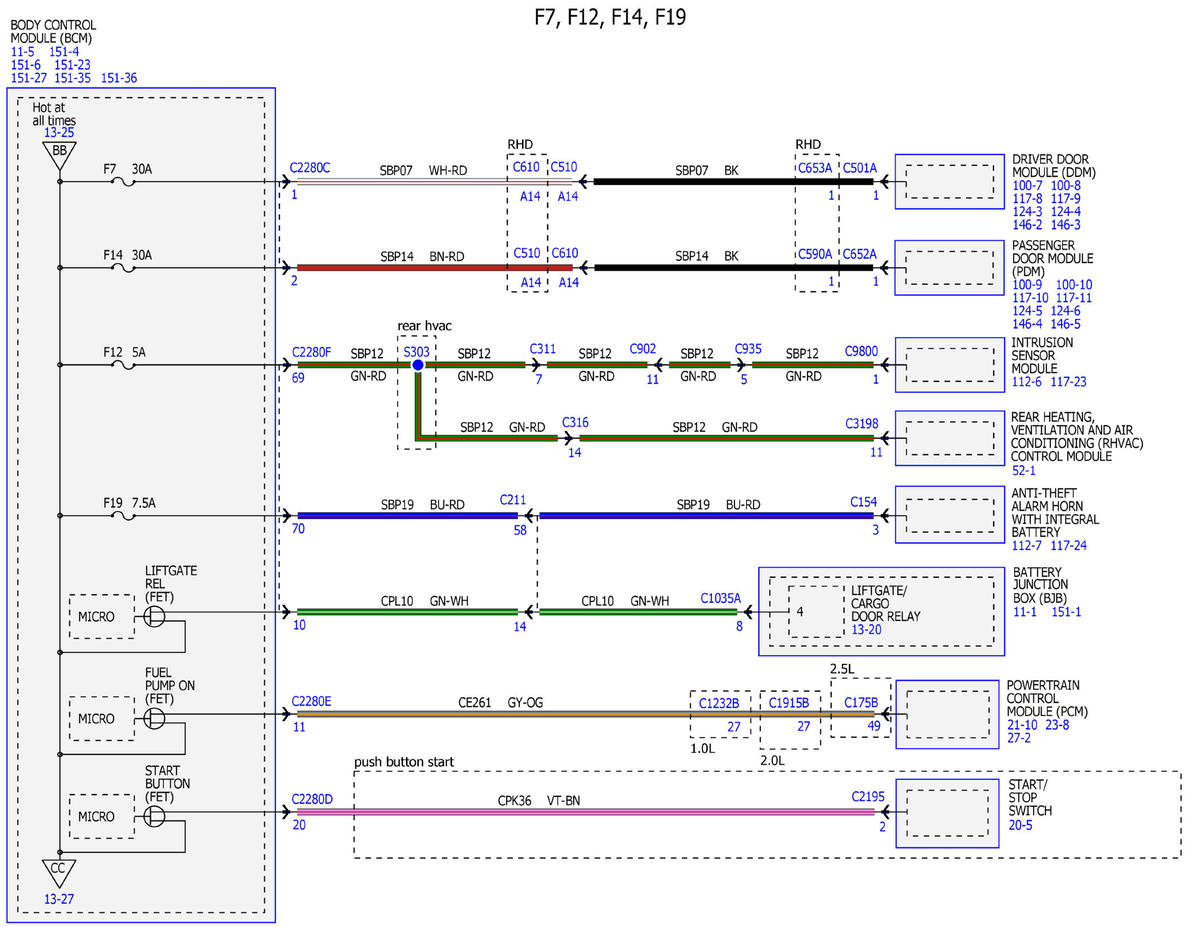

Fig 26: Identifying Power Distribution/BCM Wiring Diagram (26 Of 46)

GFDWR130271

Courtesy of FORD MOTOR COMPANY

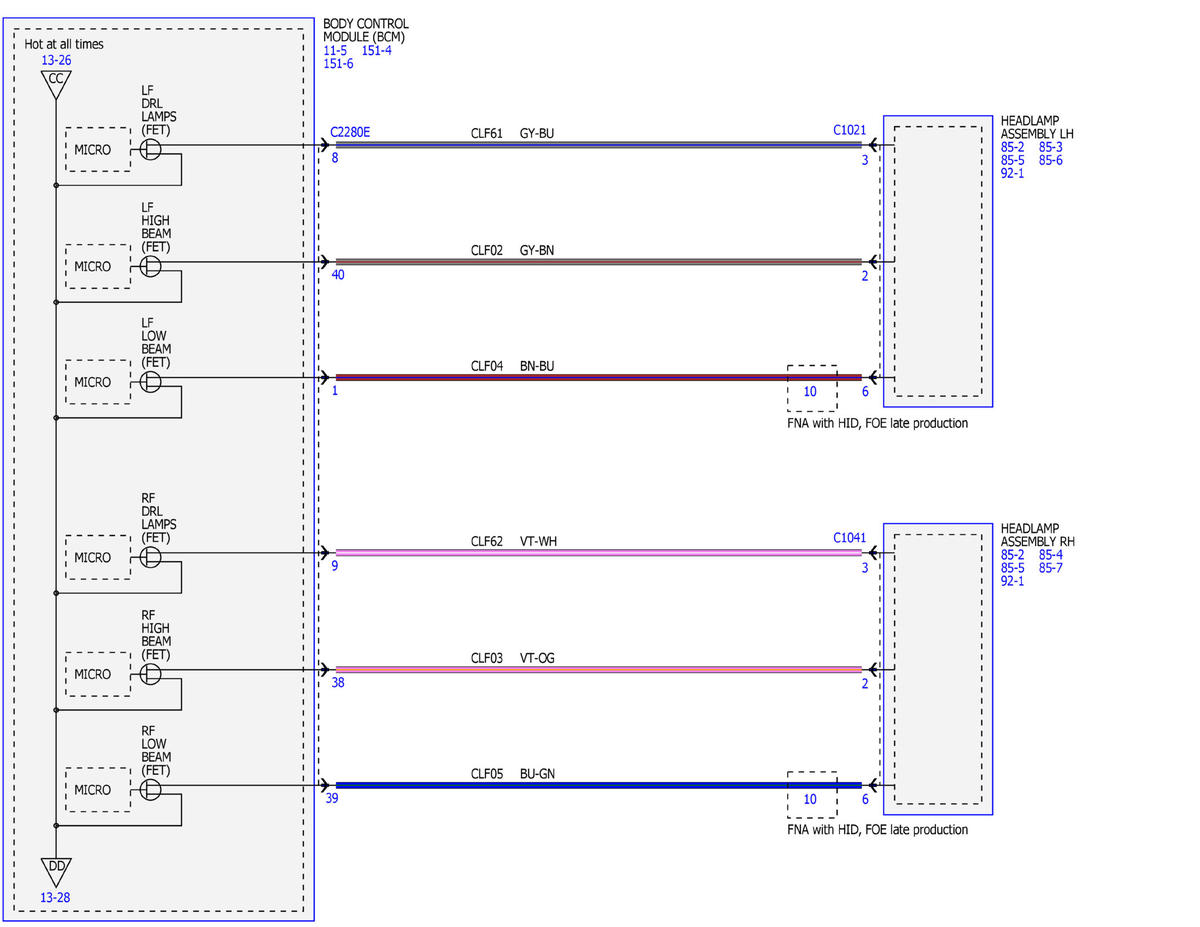

Fig 27: Identifying Power Distribution/BCM Wiring Diagram (27 Of 46)

GFDWR130272

Courtesy of FORD MOTOR COMPANY

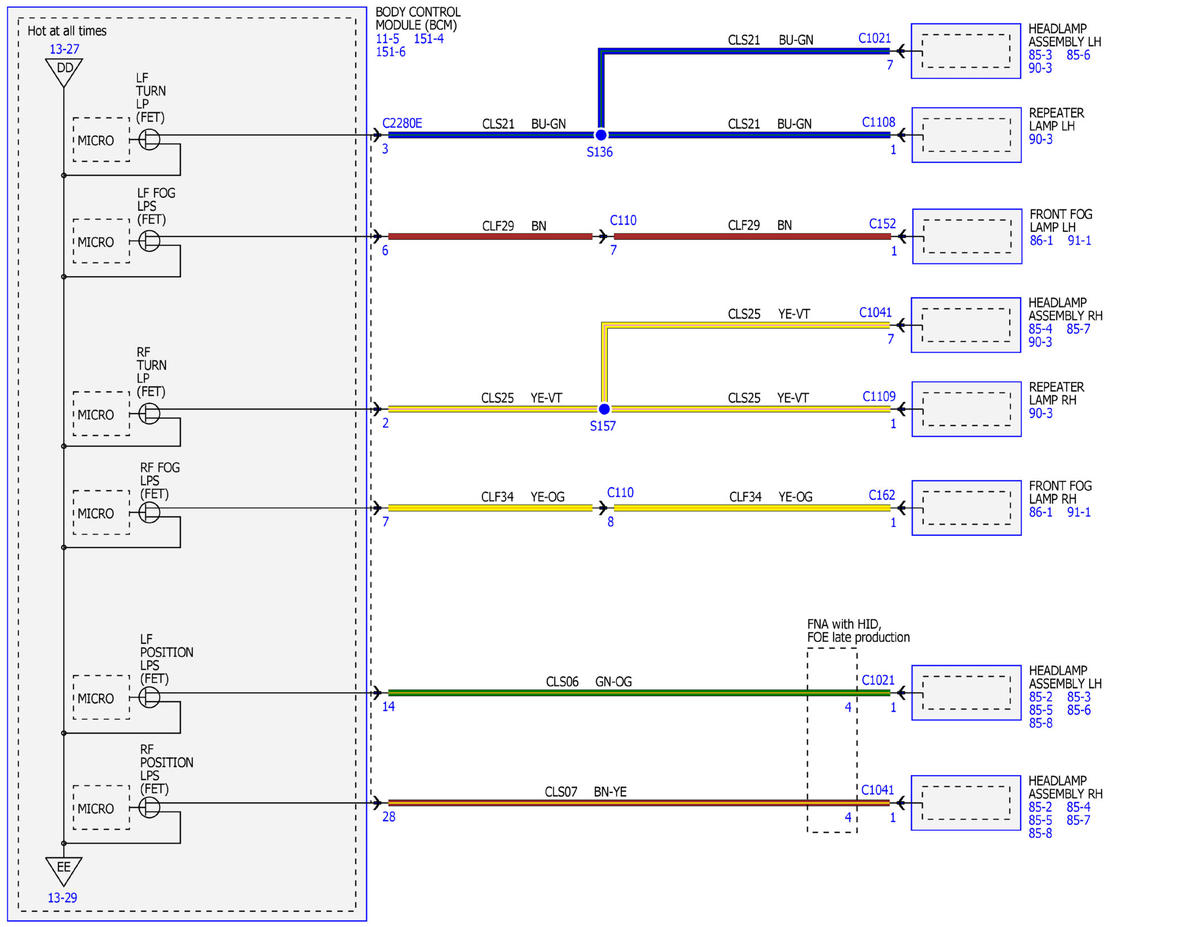

Fig 28: Identifying Power Distribution/BCM Wiring Diagram (28 Of 46)

GFDWR130273

Courtesy of FORD MOTOR COMPANY

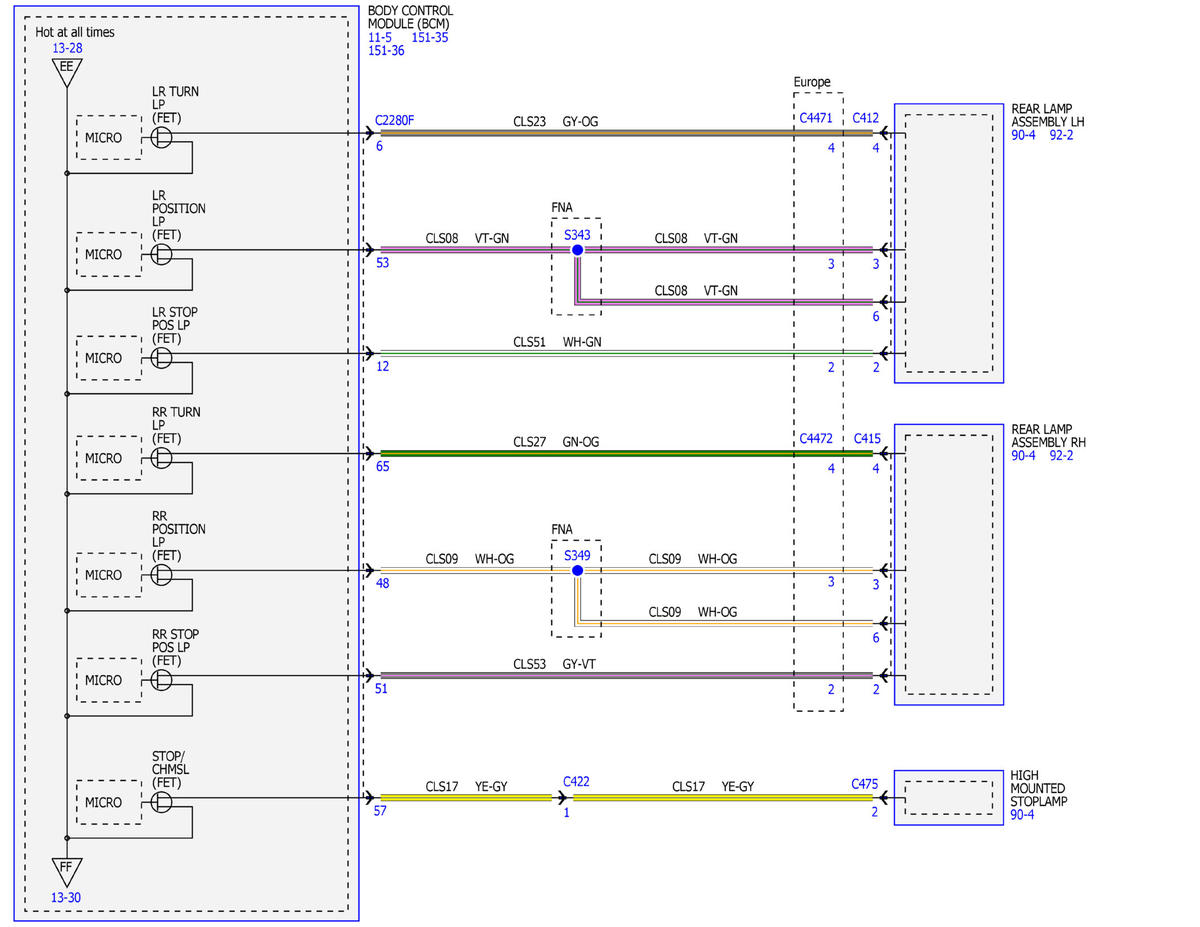

Fig 29: Identifying Power Distribution/BCM Wiring Diagram (29 Of 46)

GFDWR130274

Courtesy of FORD MOTOR COMPANY

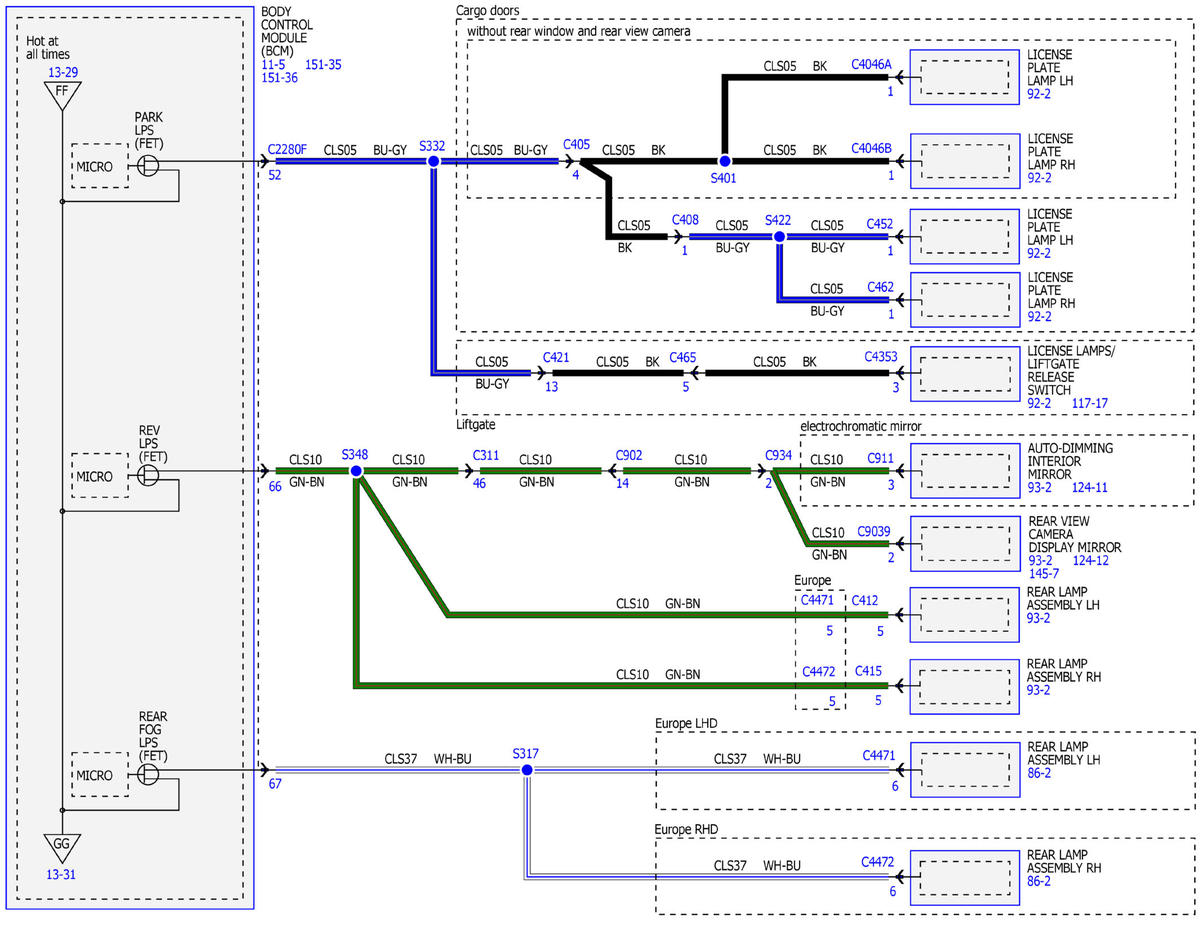

Fig 30: Identifying Power Distribution/BCM Wiring Diagram (30 Of 46)

GFDWR130276

Courtesy of FORD MOTOR COMPANY

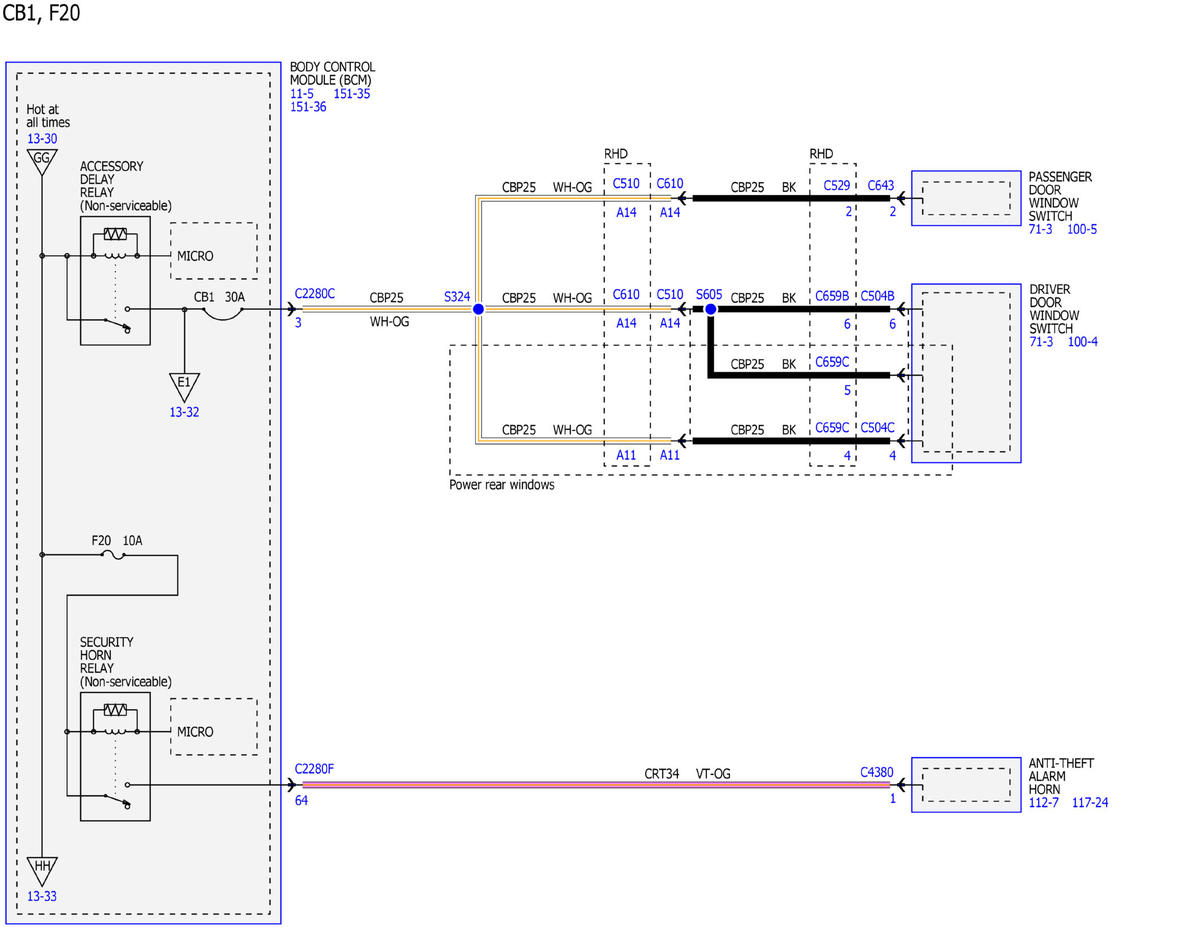

Fig 31: Identifying Power Distribution/BCM Wiring Diagram (31 Of 46)

GFDWR130277

Courtesy of FORD MOTOR COMPANY

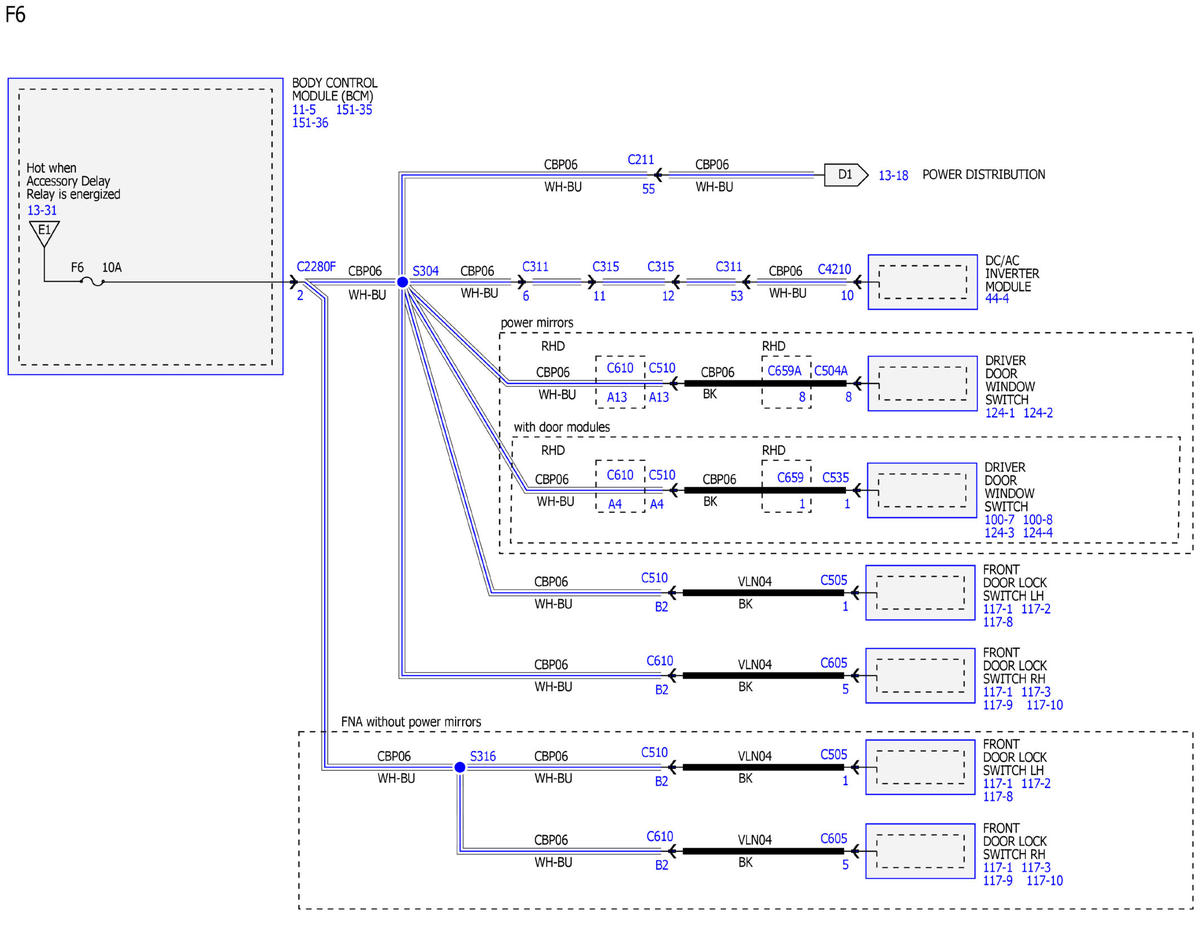

Fig 32: Identifying Power Distribution/BCM Wiring Diagram (32 Of 46)

GFDWR130278

Courtesy of FORD MOTOR COMPANY

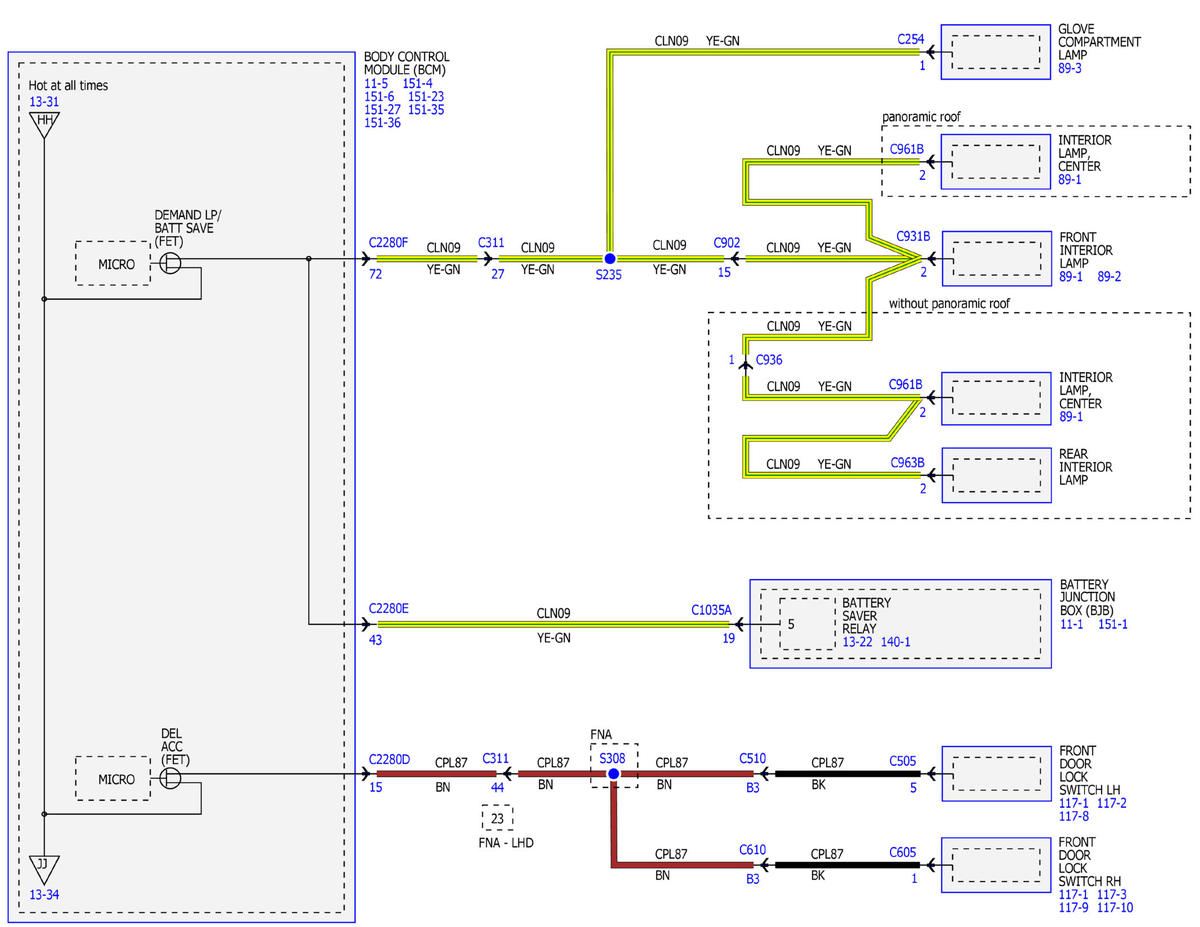

Fig 33: Identifying Power Distribution/BCM Wiring Diagram (33 Of 46)

GFDWR130279

Courtesy of FORD MOTOR COMPANY

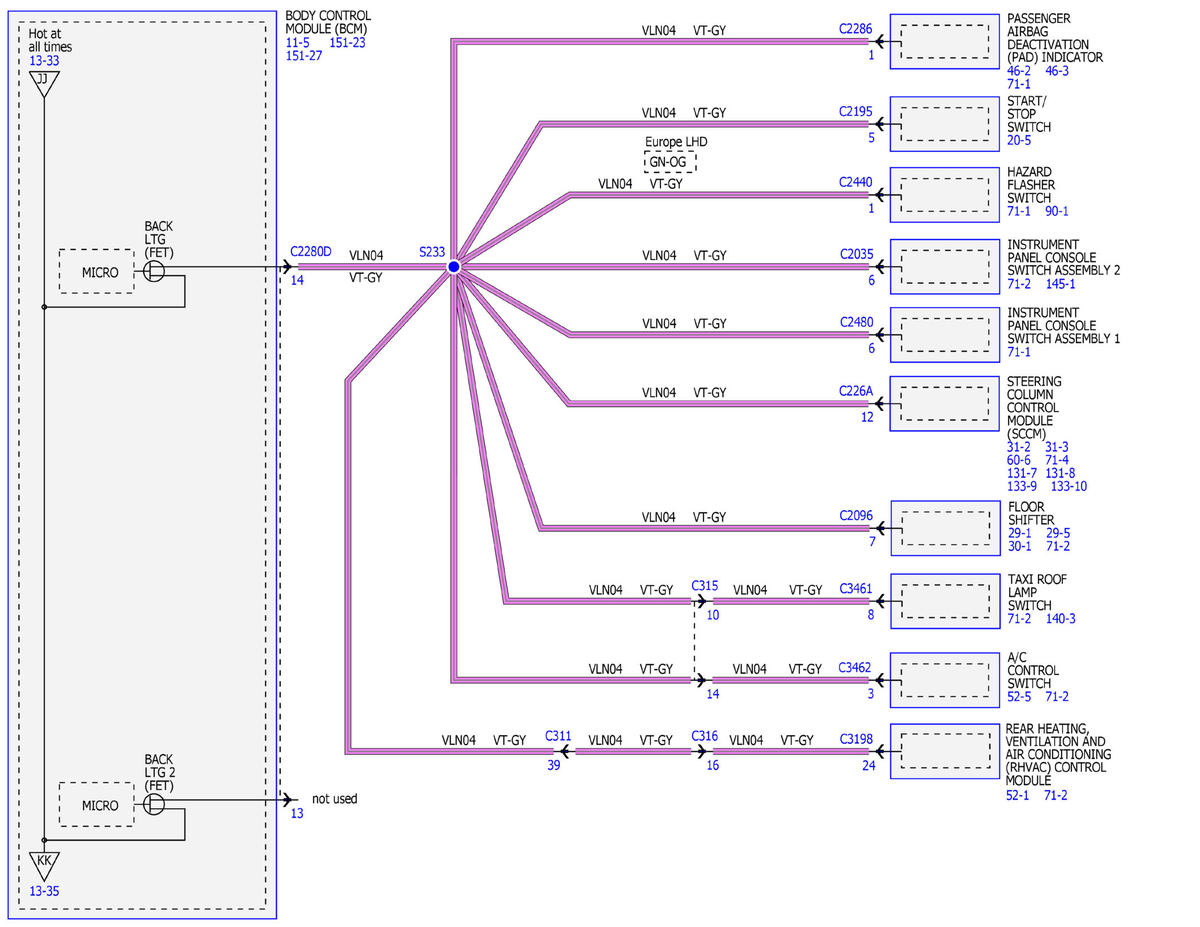

Fig 34: Identifying Power Distribution/BCM Wiring Diagram (34 Of 46)

GFDWR130280

Courtesy of FORD MOTOR COMPANY

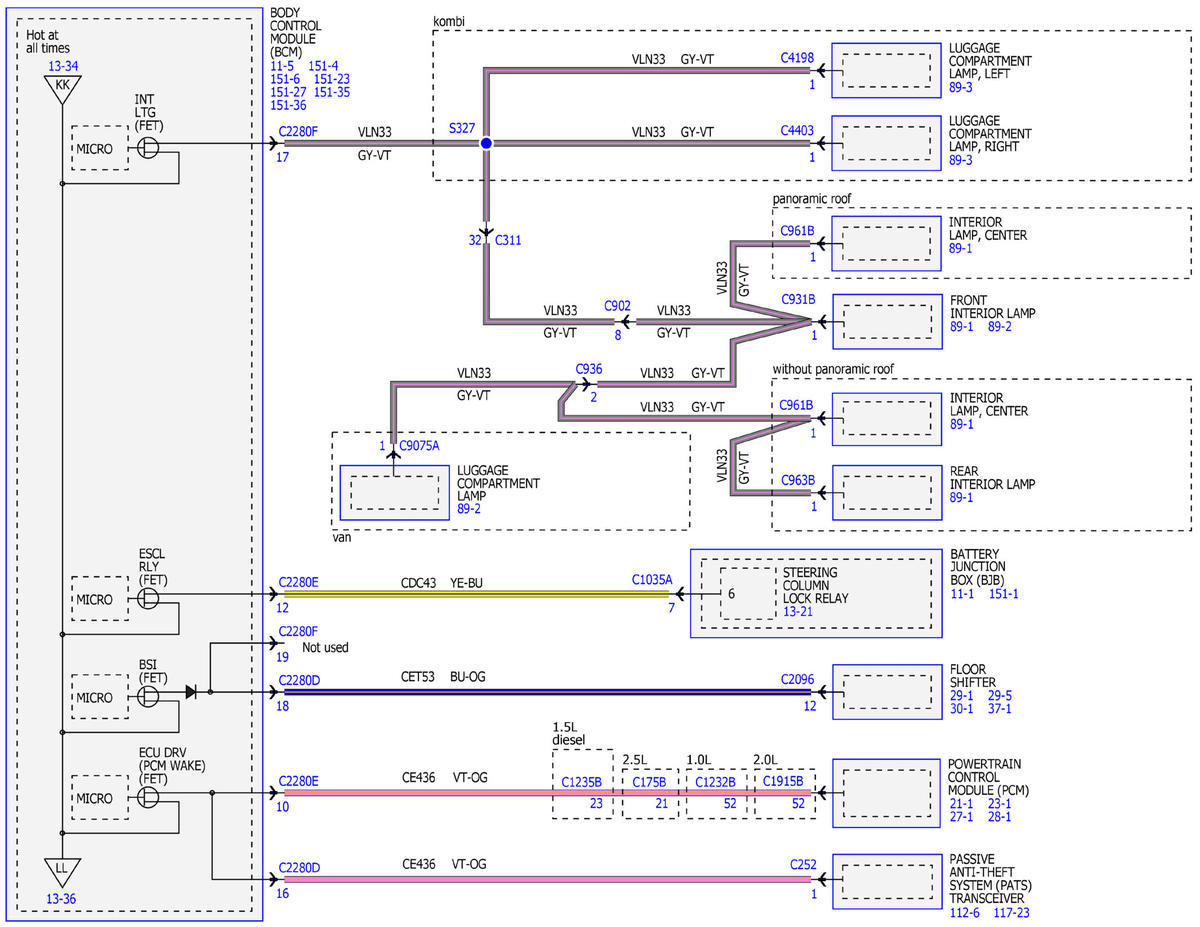

Fig 35: Identifying Power Distribution/BCM Wiring Diagram (35 Of 46)

GFDWR130281

Courtesy of FORD MOTOR COMPANY

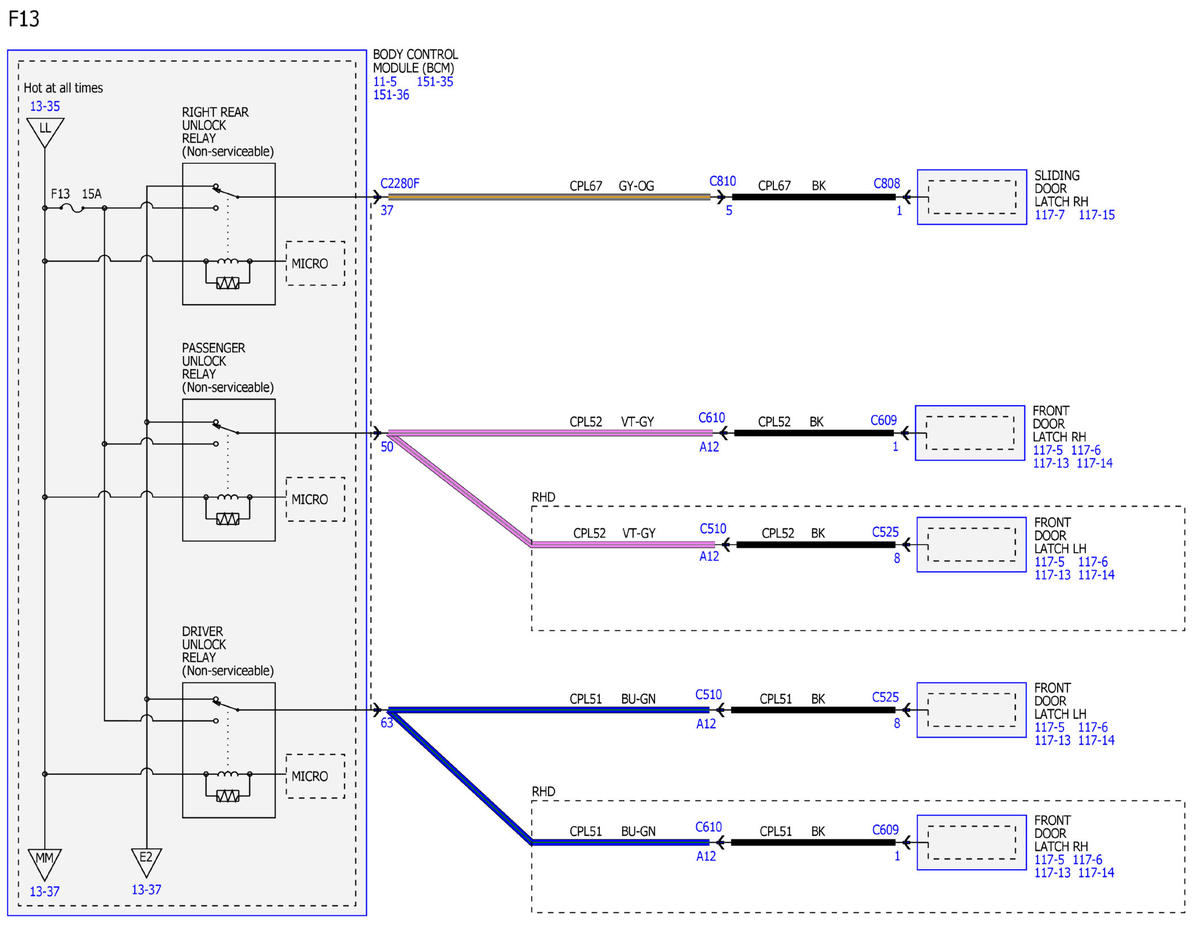

Fig 36: Identifying Power Distribution/BCM Wiring Diagram (36 Of 46)

GFDWR130282

Courtesy of FORD MOTOR COMPANY

Fig 37: Identifying Power Distribution/BCM Wiring Diagram (37 Of 46)

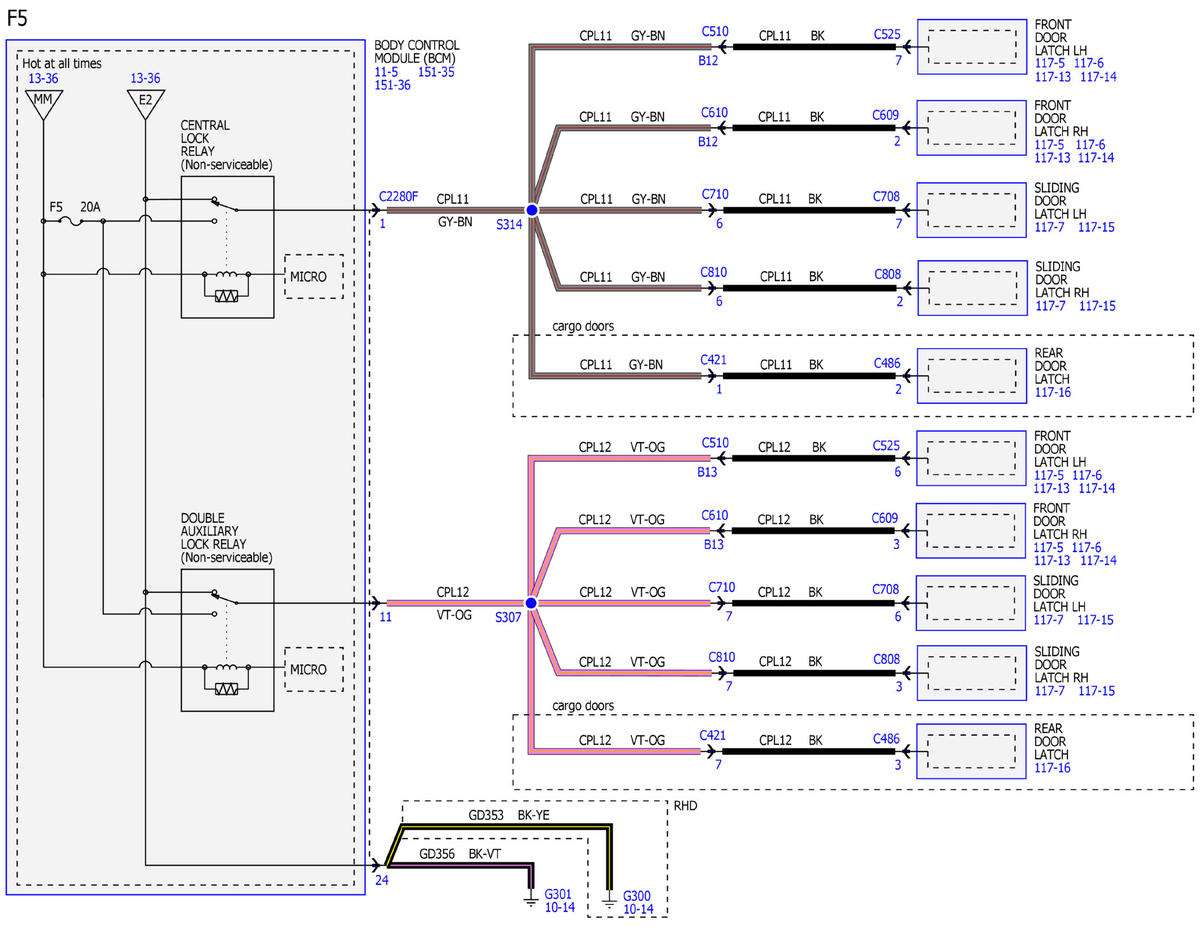

GFDWR130283

Courtesy of FORD MOTOR COMPANY

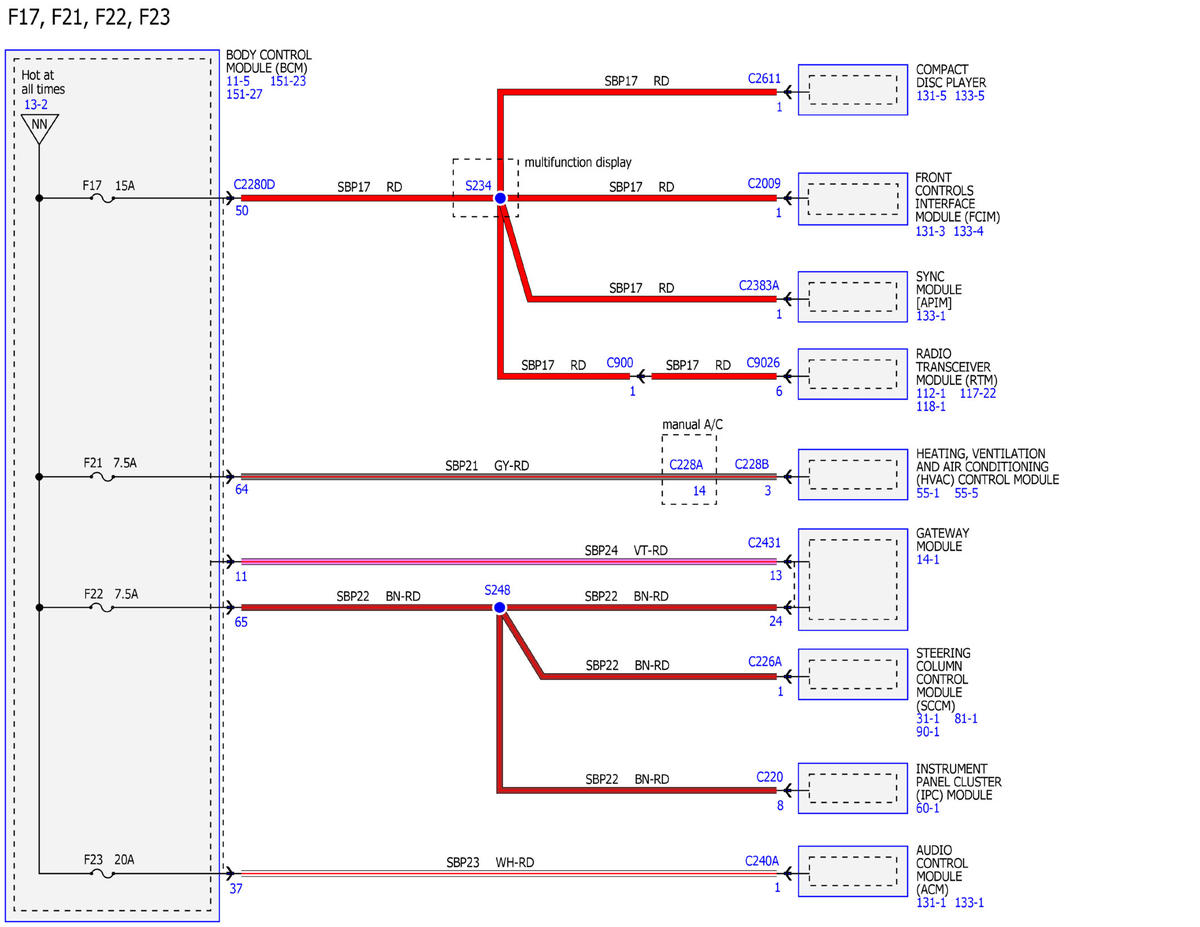

Fig 38: Identifying Power Distribution/BCM Wiring Diagram (38 Of 46)

GFDWR130284

Courtesy of FORD MOTOR COMPANY

Fig 39: Identifying Power Distribution/BCM Wiring Diagram (39 Of 46)

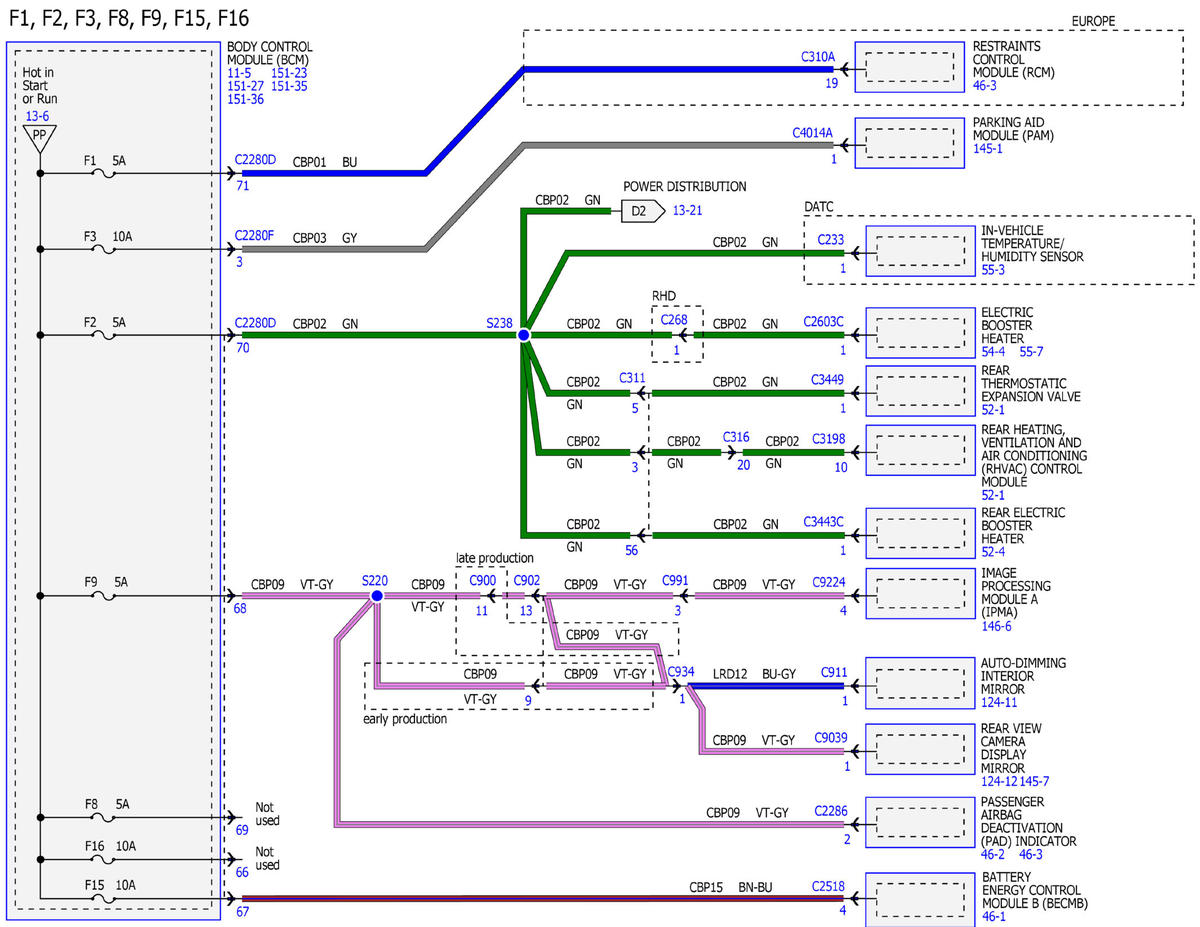

GFDWR130285

Courtesy of FORD MOTOR COMPANY

Fig 40: Identifying Power Distribution/BCM Wiring Diagram (40 Of 46)

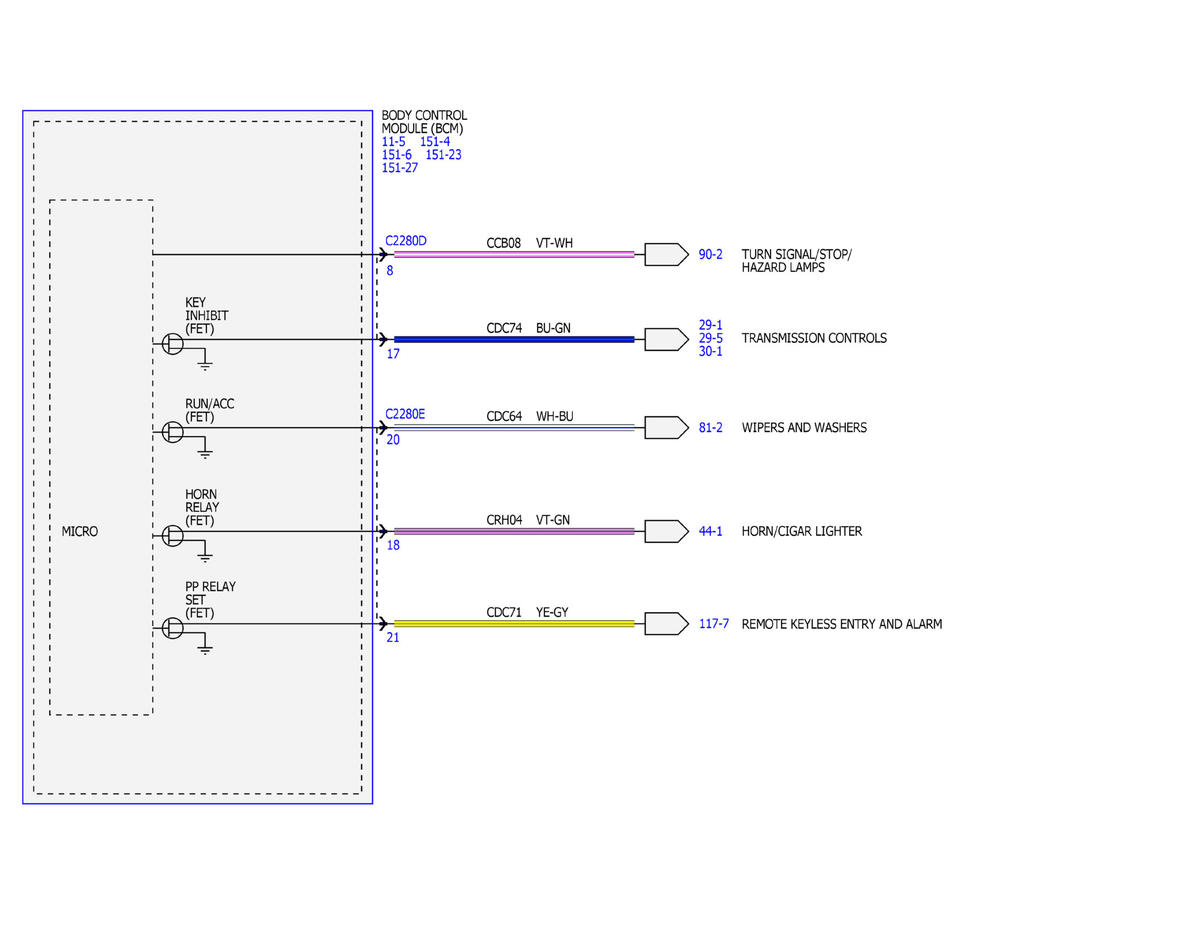

GFDWR130287

Courtesy of FORD MOTOR COMPANY

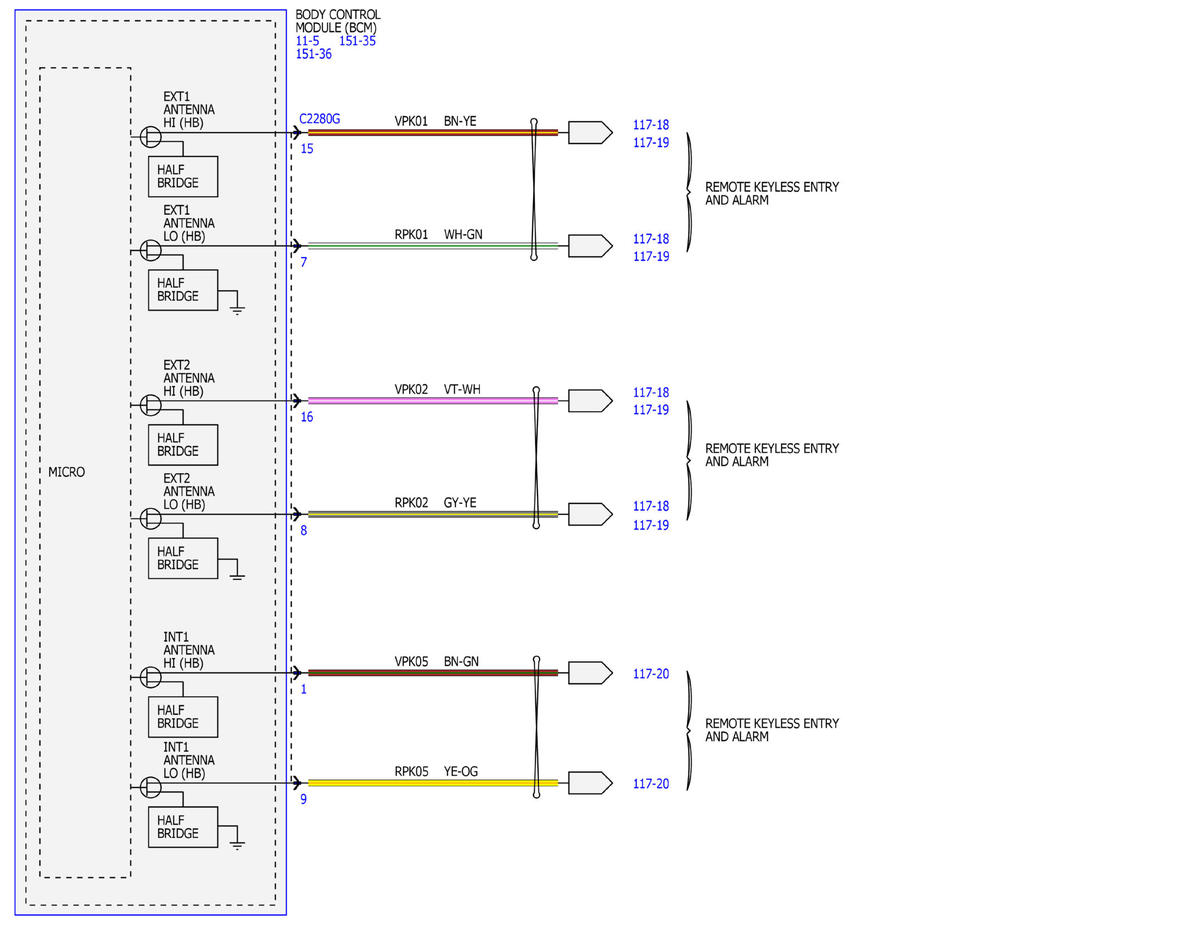

Fig 41: Identifying Power Distribution/BCM Wiring Diagram (41 Of 46)

GFDWR130288

Courtesy of FORD MOTOR COMPANY

Fig 42: Identifying Power Distribution/BCM Wiring Diagram (42 Of 46)

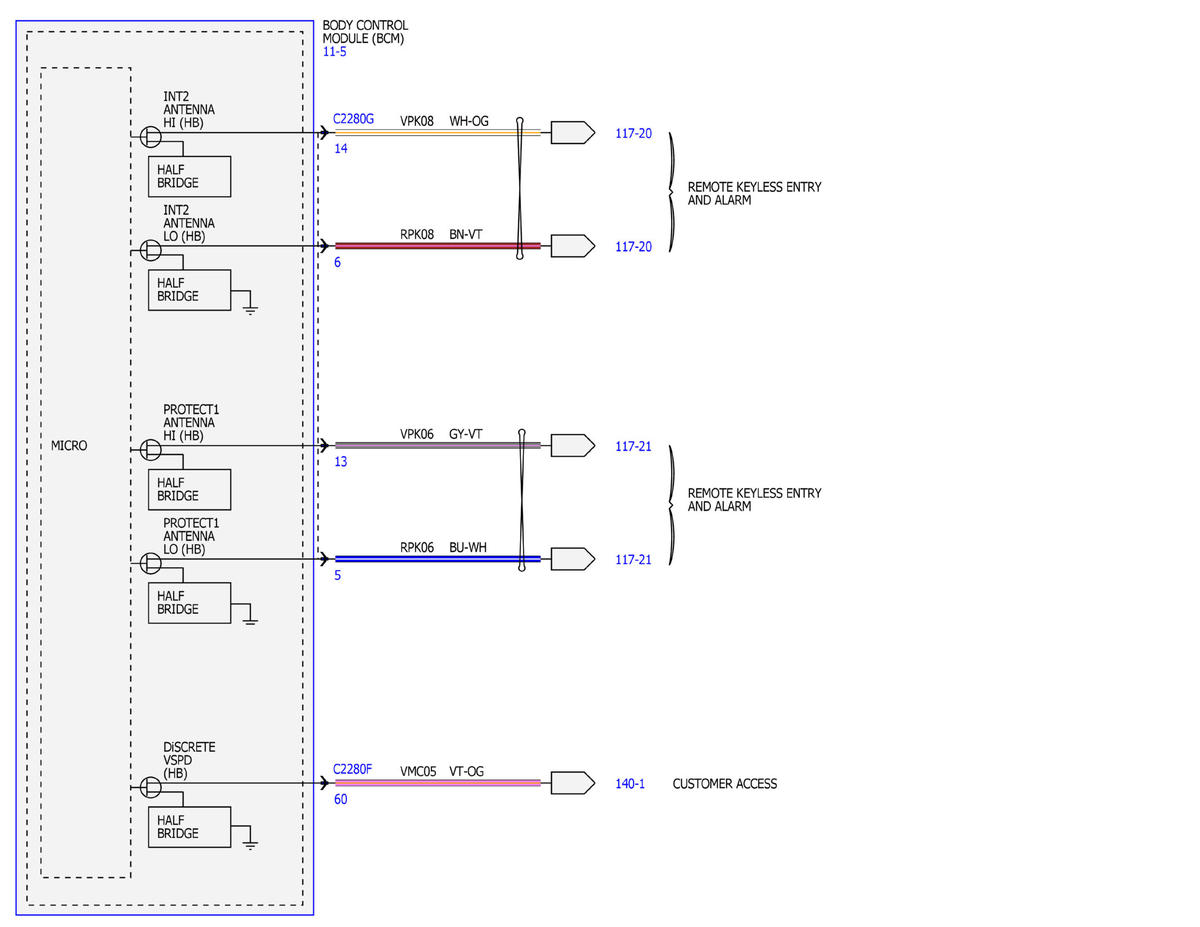

GFDWR130289

Courtesy of FORD MOTOR COMPANY

Fig 43: Identifying Power Distribution/BCM Wiring Diagram (43 Of 46)

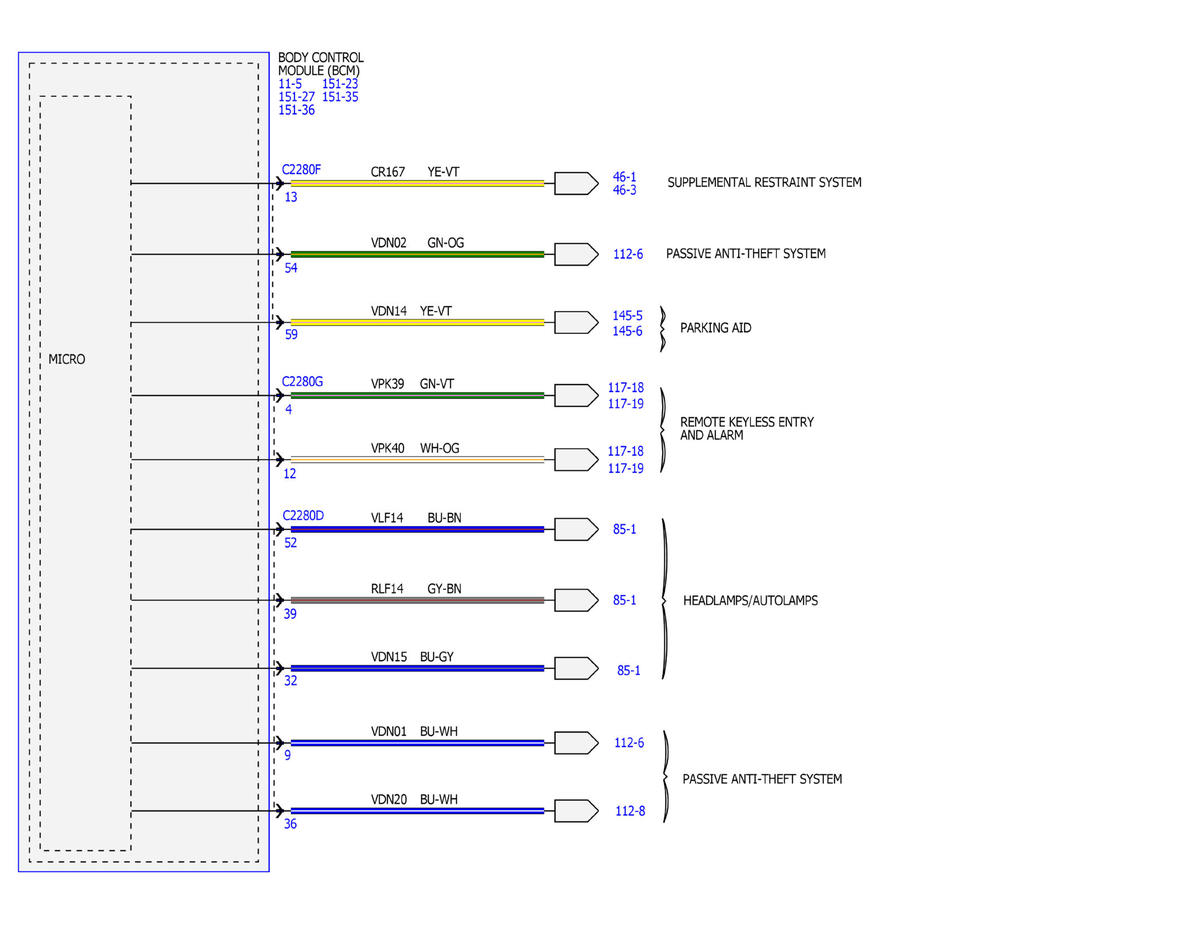

GFDWR130290

Courtesy of FORD MOTOR COMPANY

Fig 44: Identifying Power Distribution/BCM Wiring Diagram (44 Of 46)

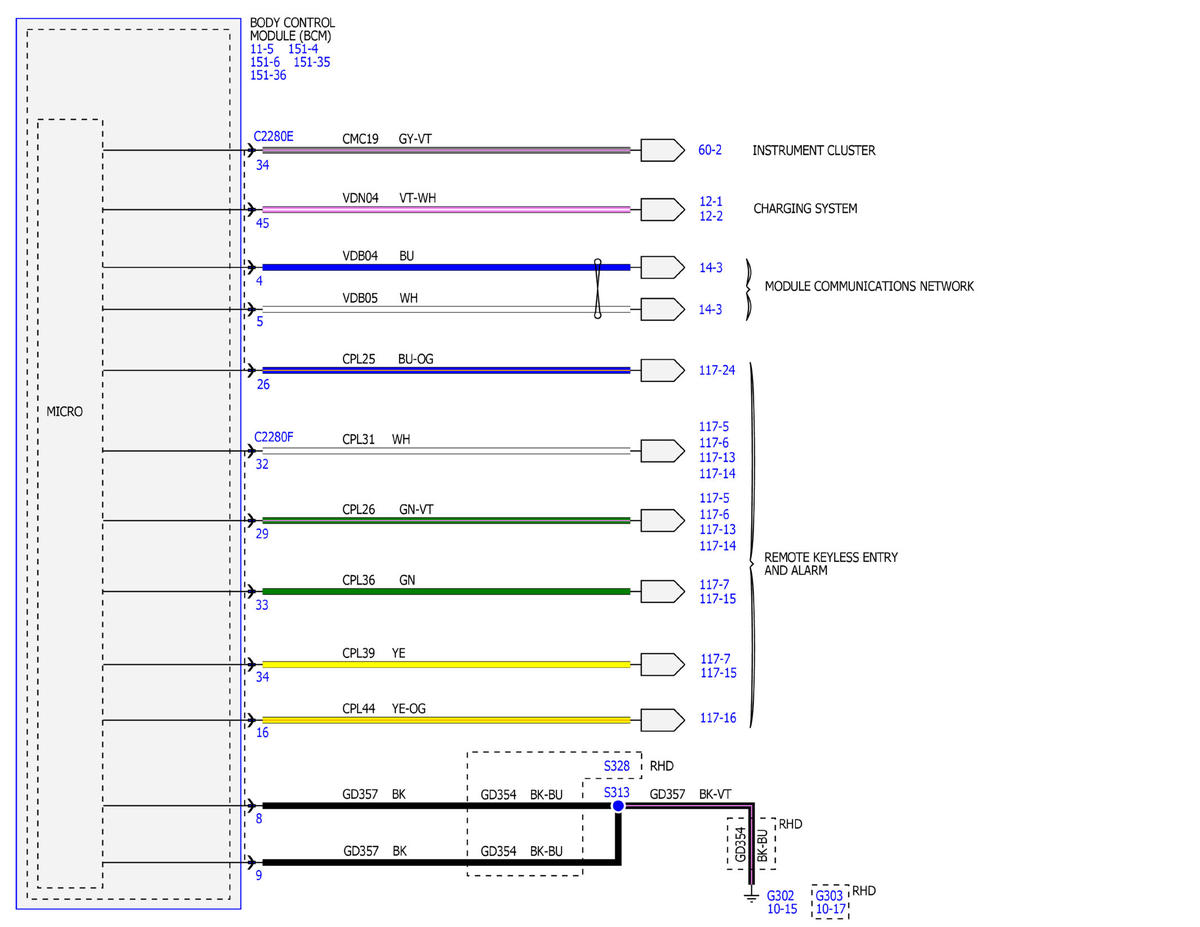

GFDWR130291

Courtesy of FORD MOTOR COMPANY

Fig 45: Identifying Power Distribution/BCM Wiring Diagram (45 Of 46)

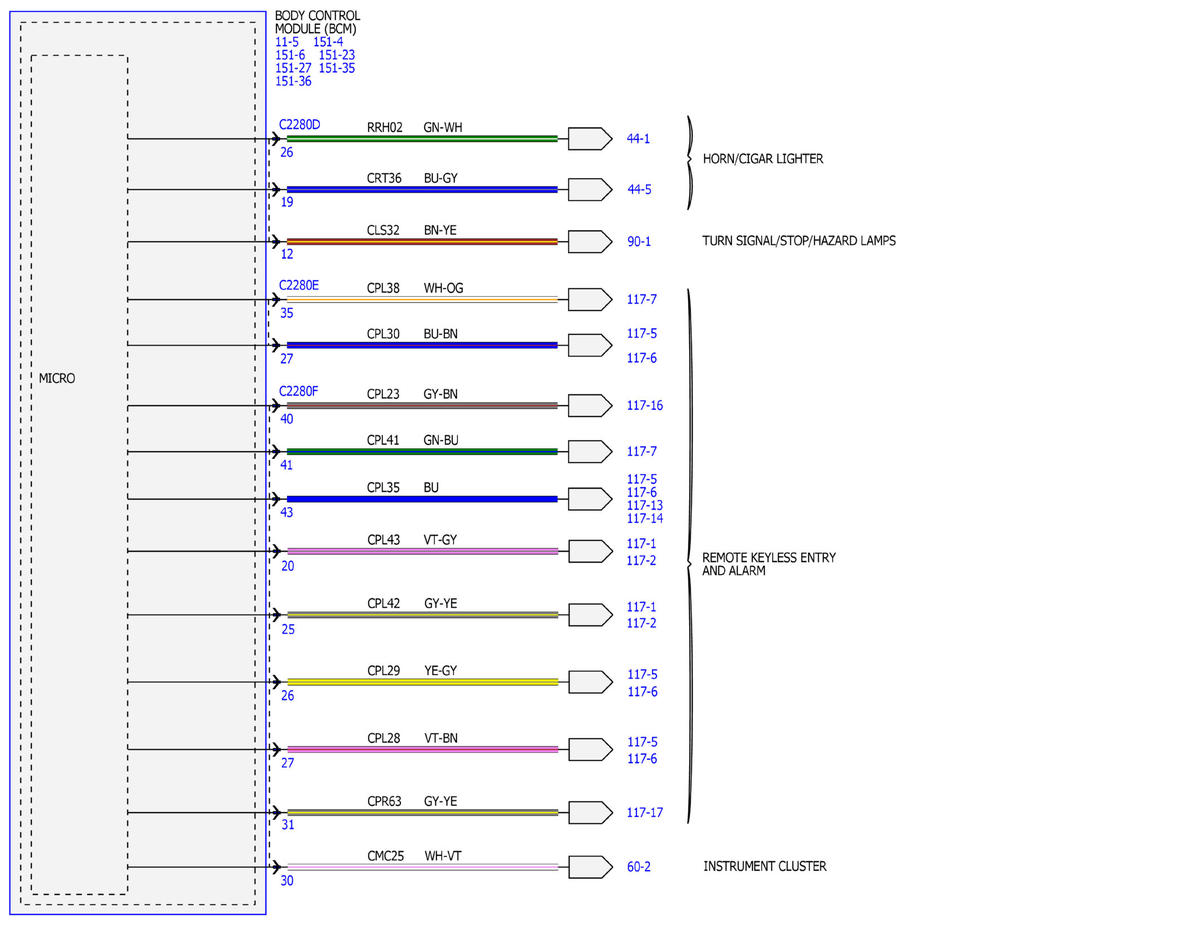

GFDWR130292

Courtesy of FORD MOTOR COMPANY

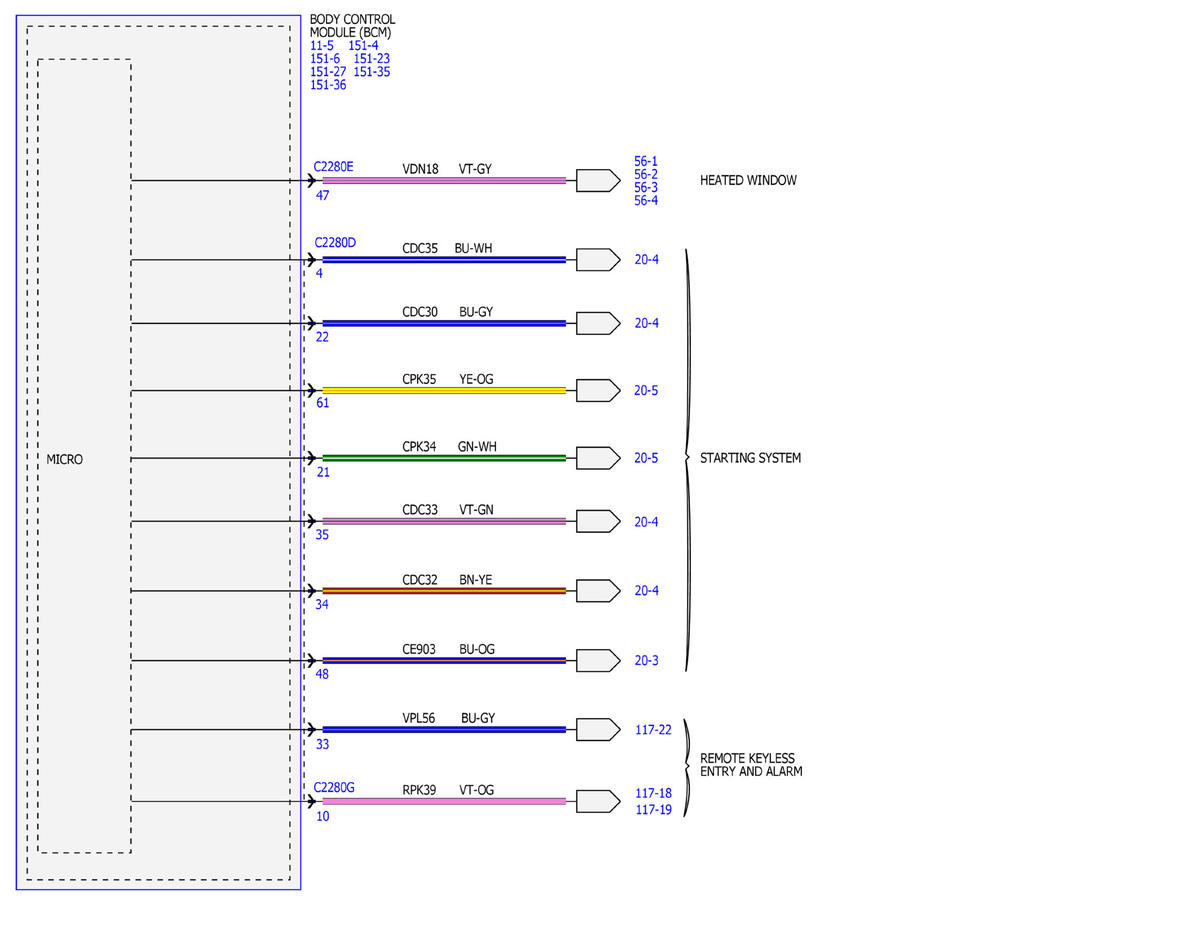

Fig 46: Identifying Power Distribution/BCM Wiring Diagram (46 Of 46)

GFDWR130293

Courtesy of FORD MOTOR COMPANY
