Passive Anti-Theft System

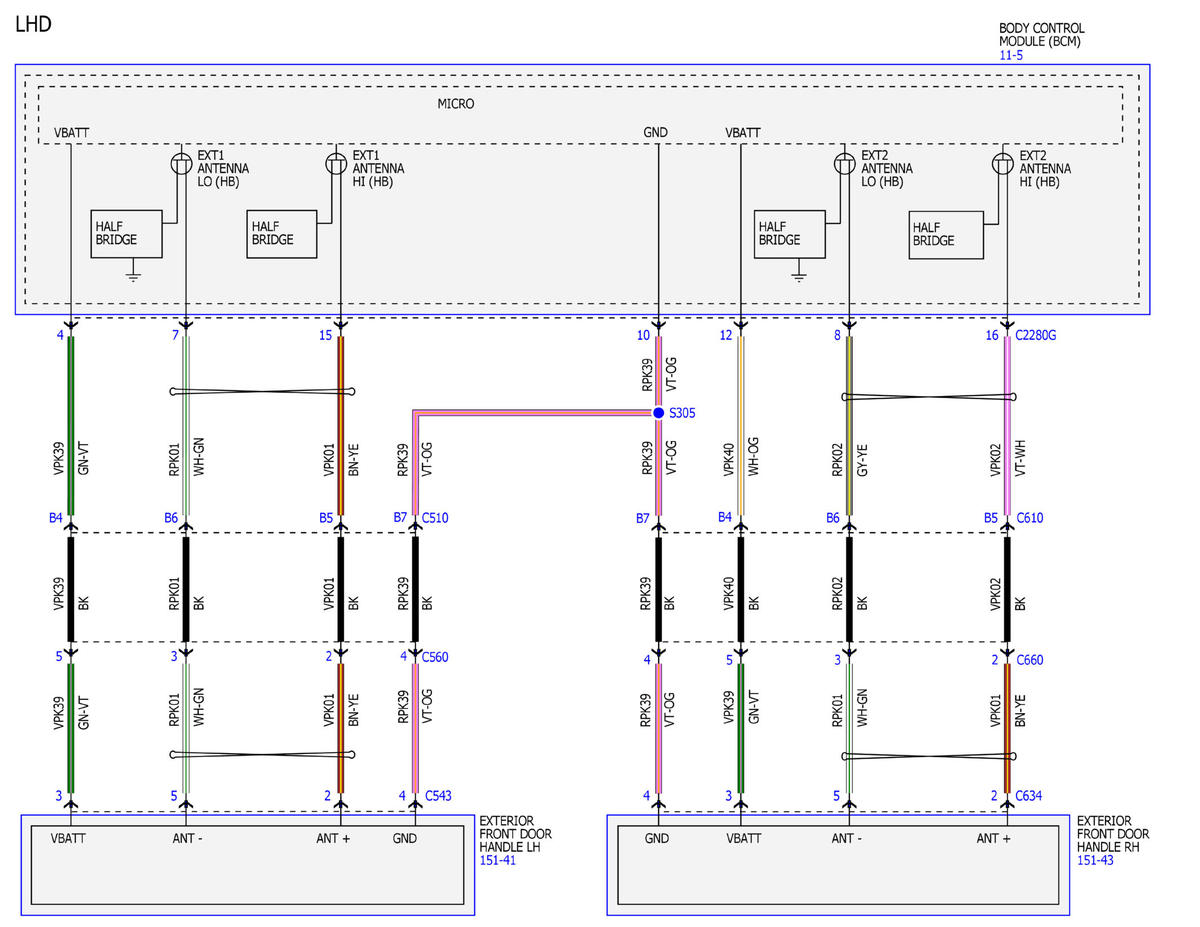

Fig 1: Identifying Passive Anti-Theft System Wiring Diagram (1 Of 8)

Courtesy of FORD MOTOR COMPANY

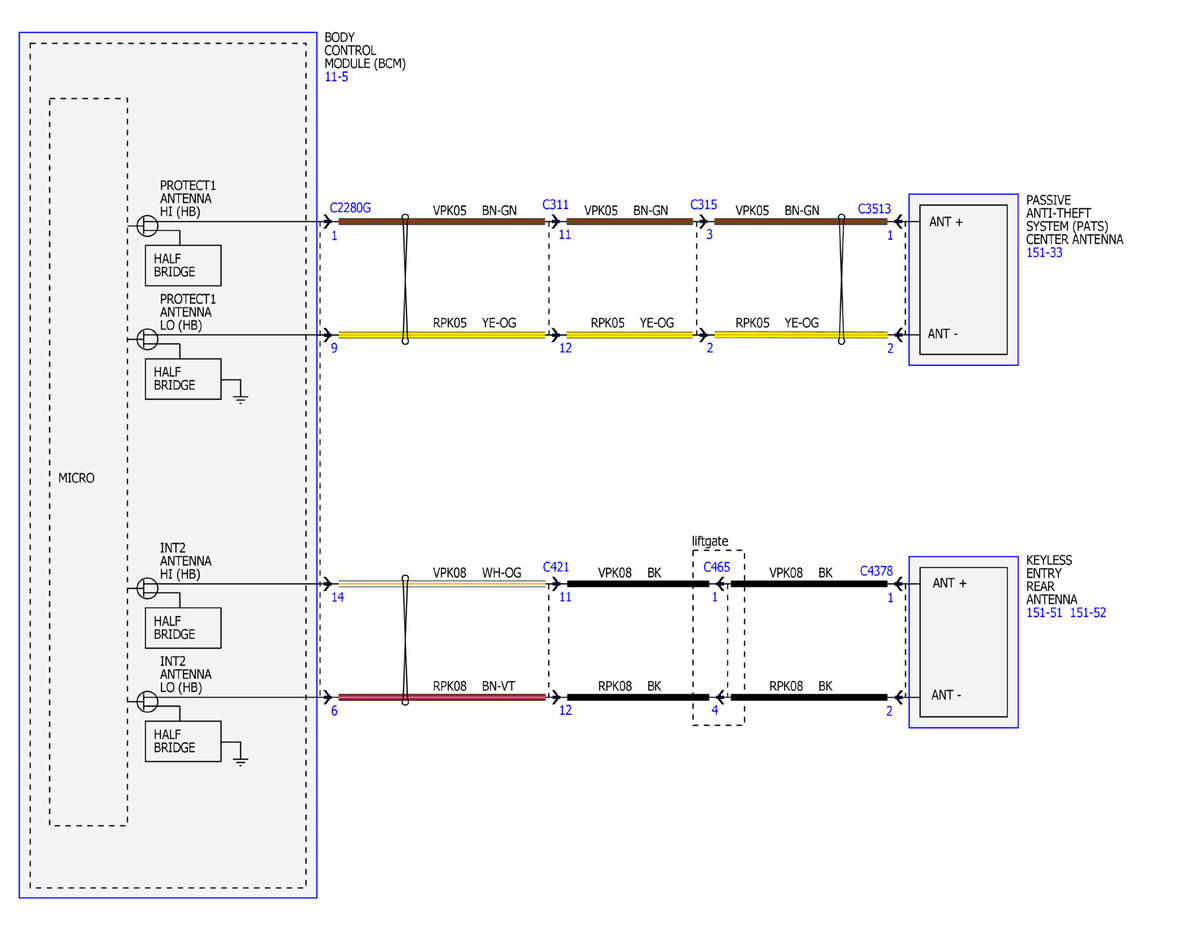

Fig 2: Identifying Passive Anti-Theft System Wiring Diagram (2 Of 8)

Courtesy of FORD MOTOR COMPANY

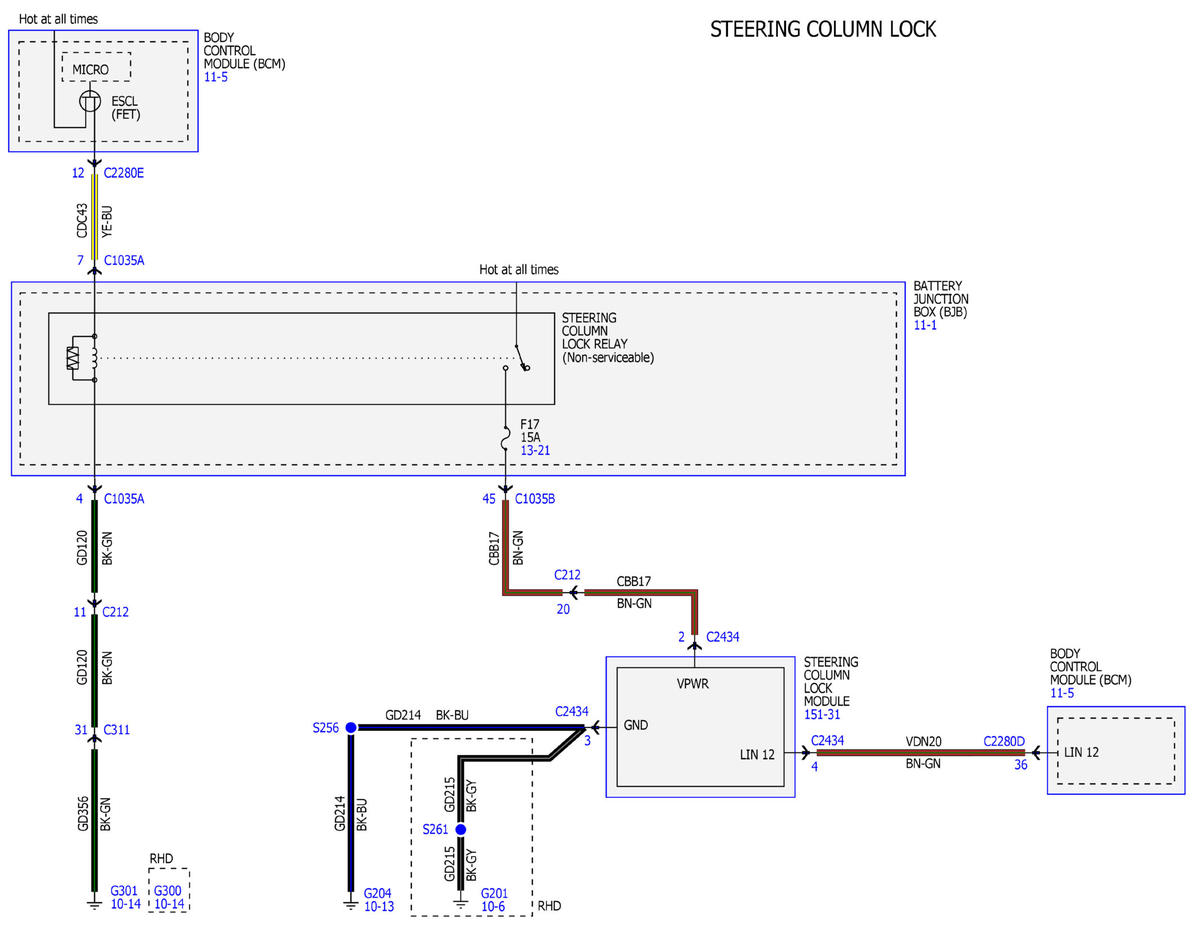

Fig 3: Identifying Passive Anti-Theft System Wiring Diagram (3 Of 8)

Courtesy of FORD MOTOR COMPANY

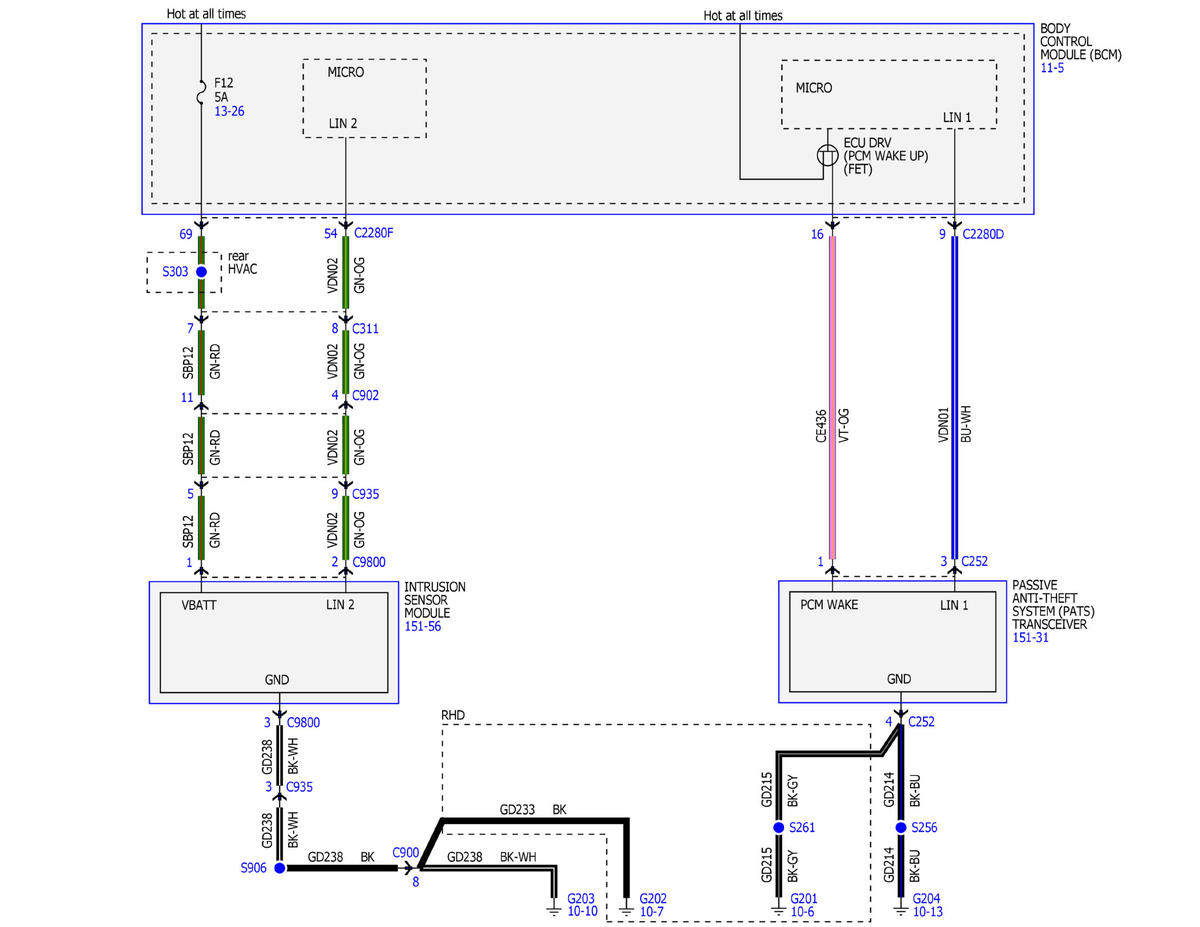

Fig 4: Identifying Passive Anti-Theft System Wiring Diagram (4 Of 8)

Courtesy of FORD MOTOR COMPANY

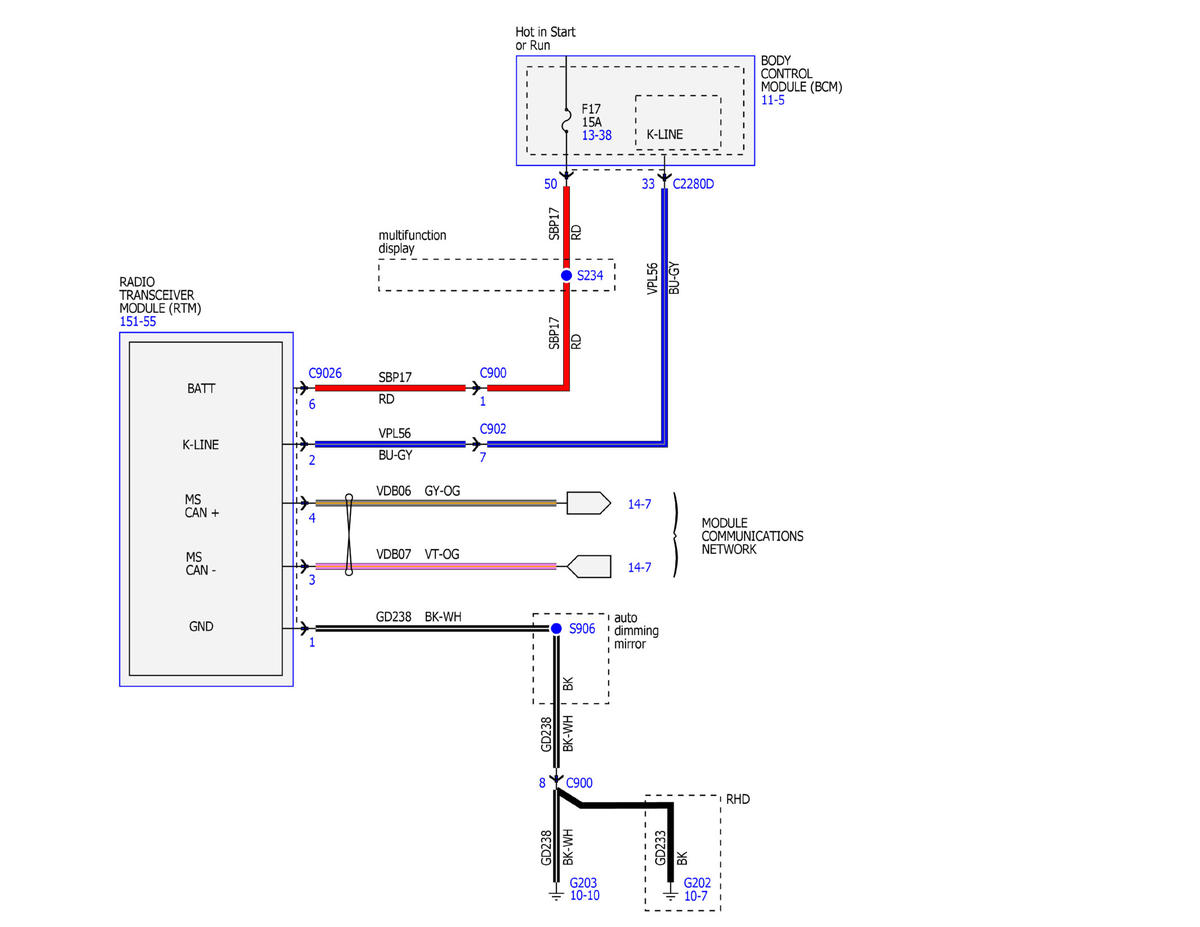

Fig 5: Identifying Passive Anti-Theft System Wiring Diagram (5 Of 8)

Courtesy of FORD MOTOR COMPANY

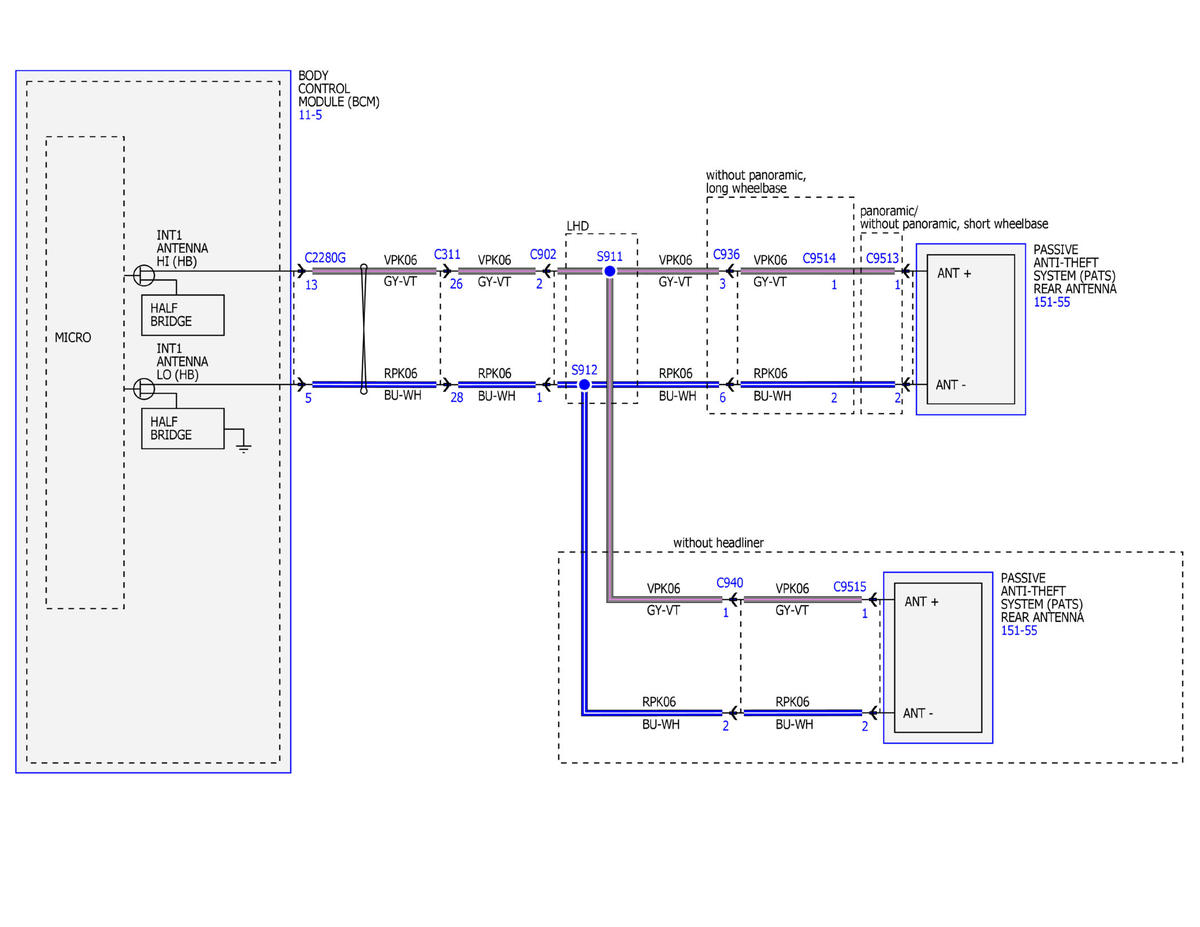

Fig 6: Identifying Passive Anti-Theft System Wiring Diagram (6 Of 8)

Courtesy of FORD MOTOR COMPANY

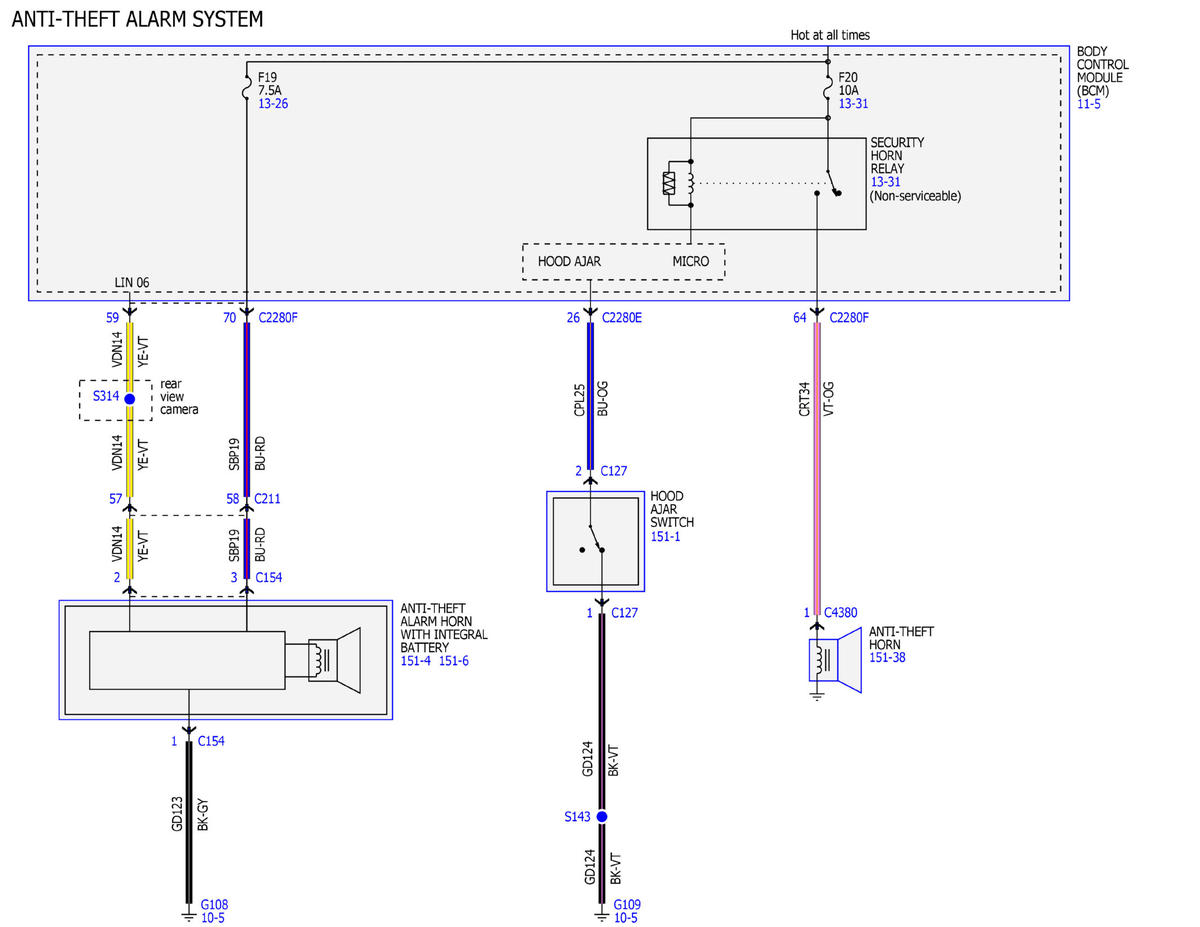

Fig 7: Identifying Passive Anti-Theft System Wiring Diagram (7 Of 8)

Courtesy of FORD MOTOR COMPANY

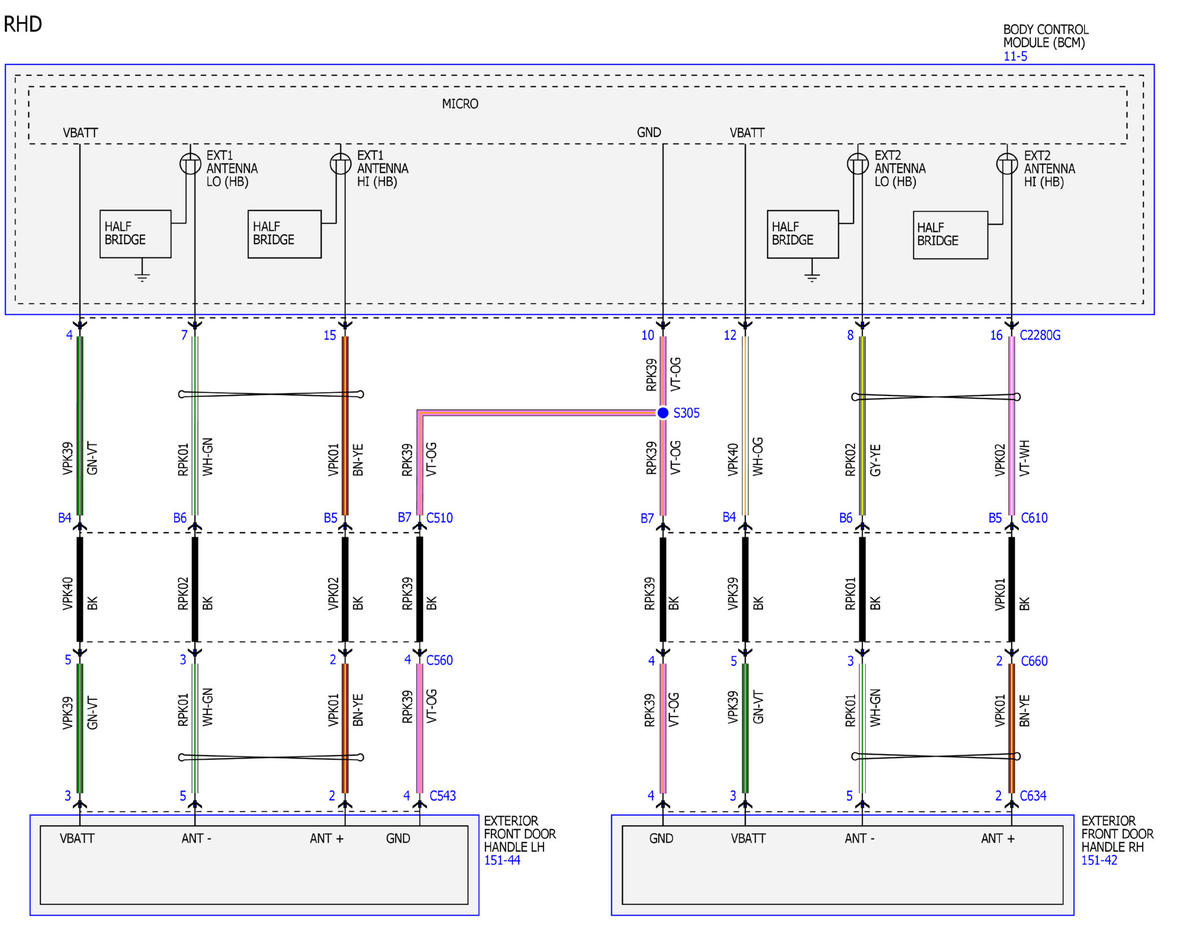

Fig 8: Identifying Passive Anti-Theft System Wiring Diagram (8 Of 8)

Courtesy of FORD MOTOR COMPANY
