Transit Connect Titanium, Gas/Ethanol
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Parking Aid
Parking Aid

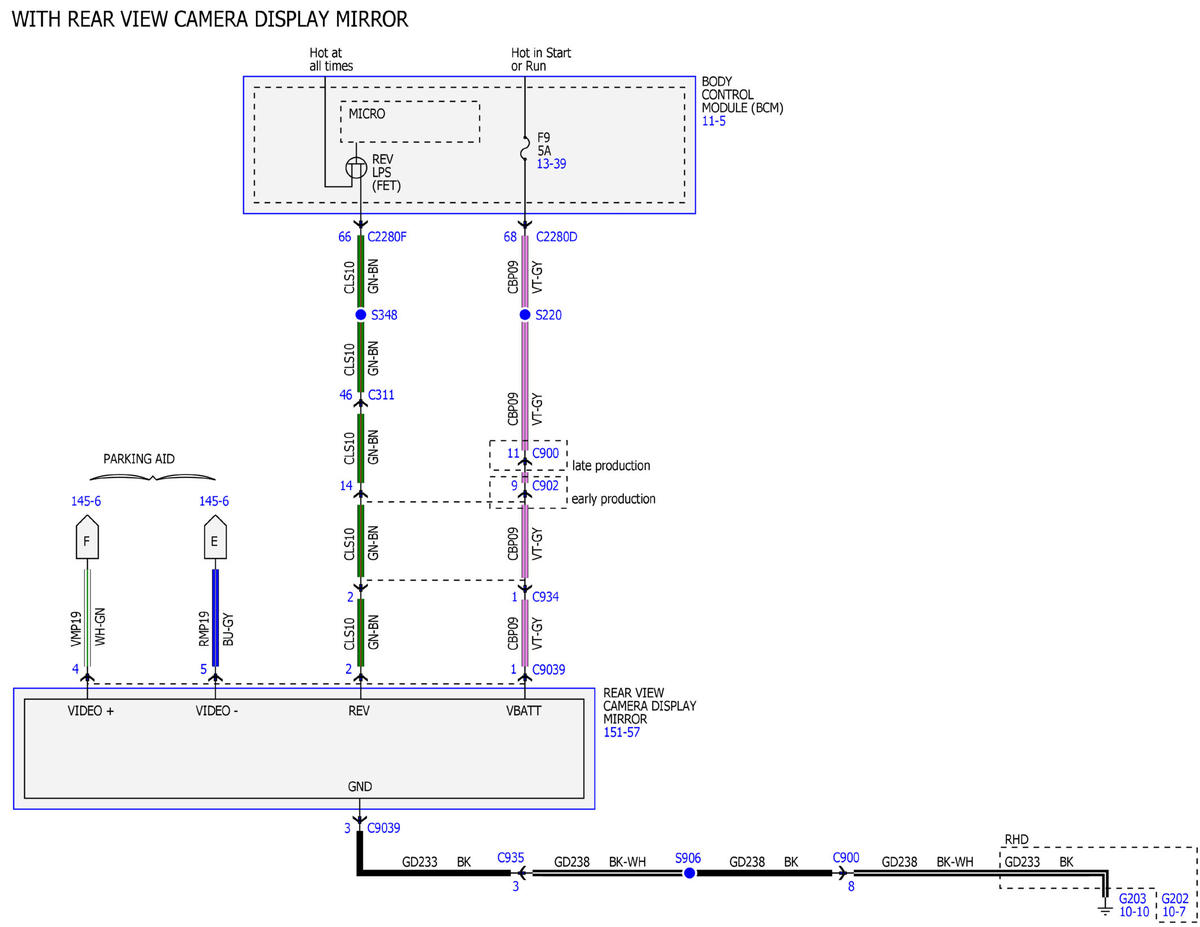

Fig 1: Identifying Parking Aid Wiring Diagram (1 Of 7)
Courtesy of FORD MOTOR COMPANY

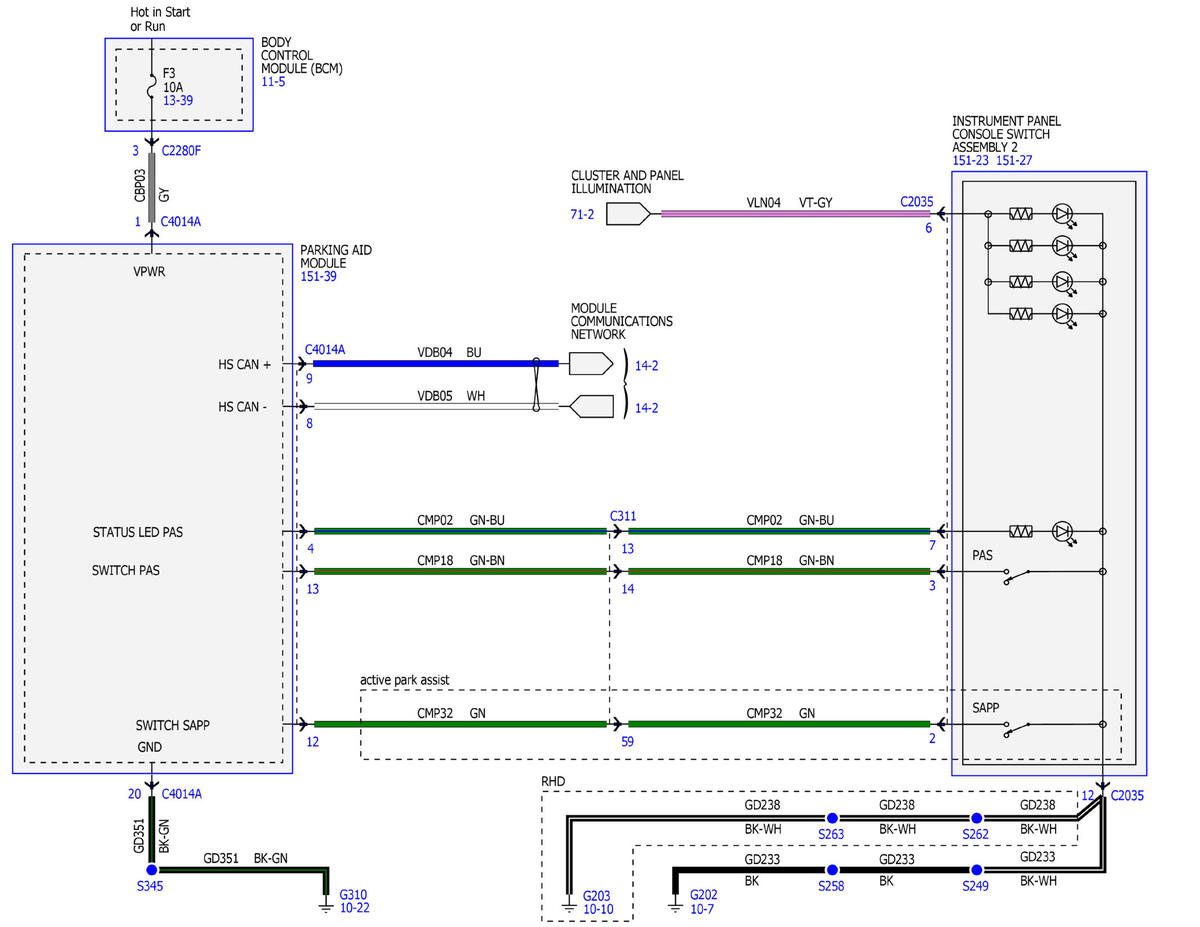

Fig 2: Identifying Parking Aid Wiring Diagram (2 Of 7)
Courtesy of FORD MOTOR COMPANY

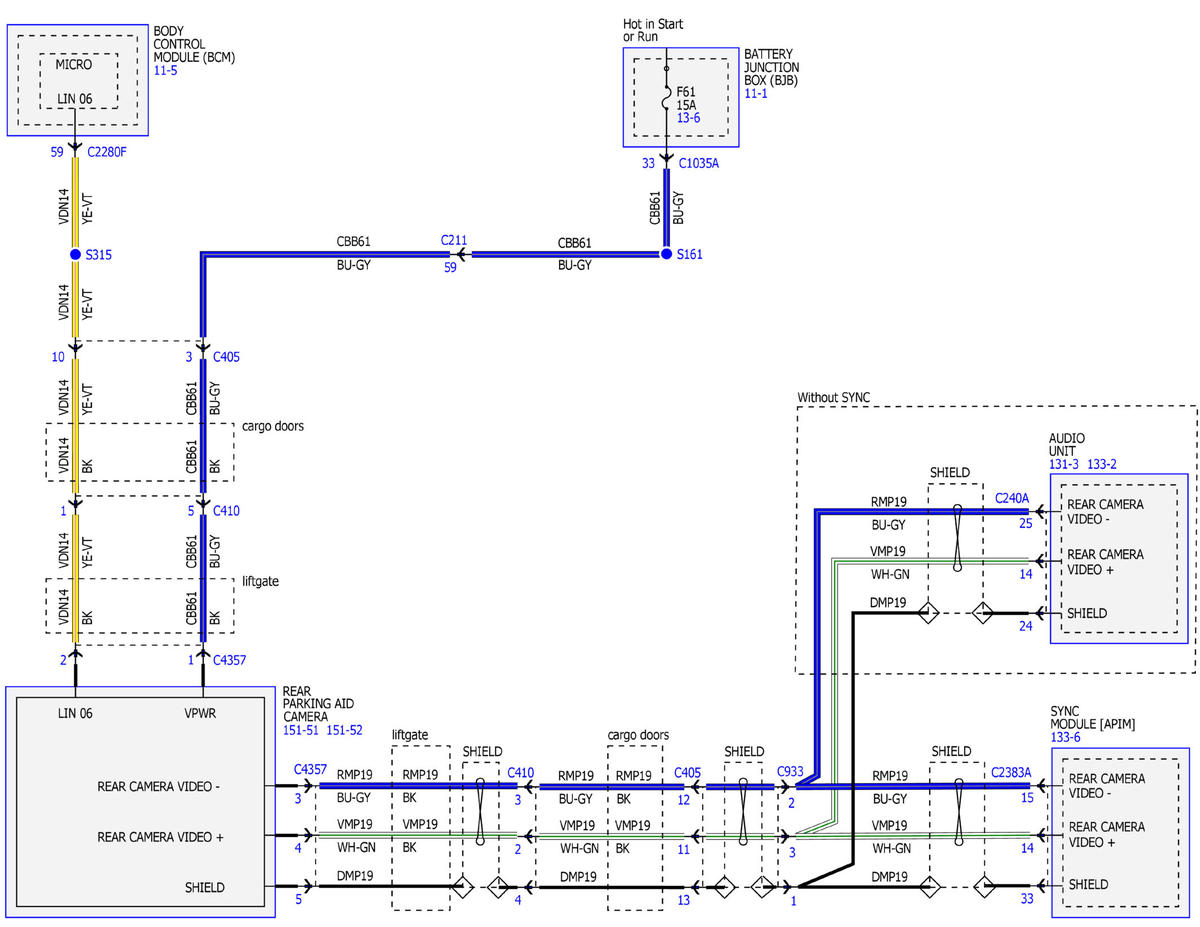

Fig 3: Identifying Parking Aid Wiring Diagram (3 Of 7)
Courtesy of FORD MOTOR COMPANY

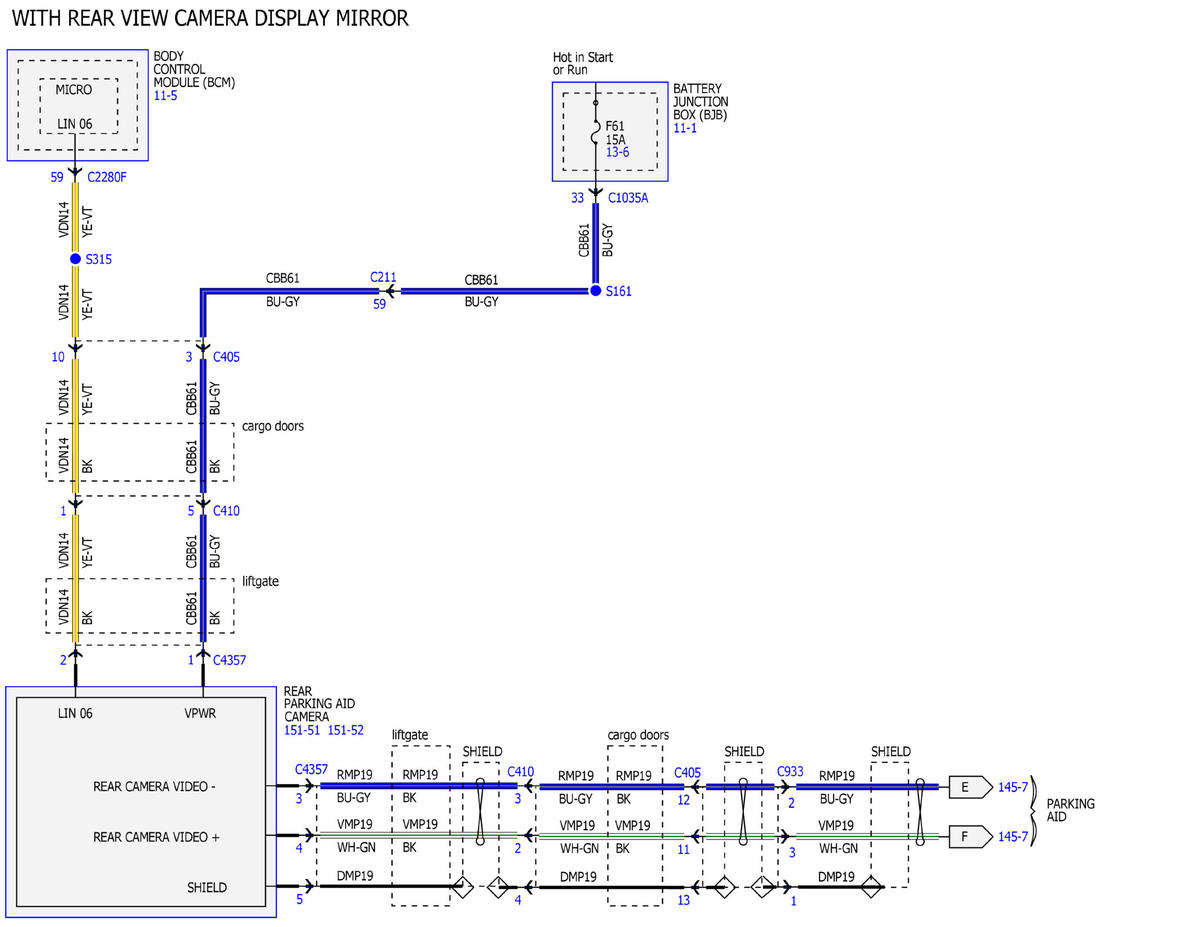

Fig 4: Identifying Parking Aid Wiring Diagram (4 Of 7)
Courtesy of FORD MOTOR COMPANY

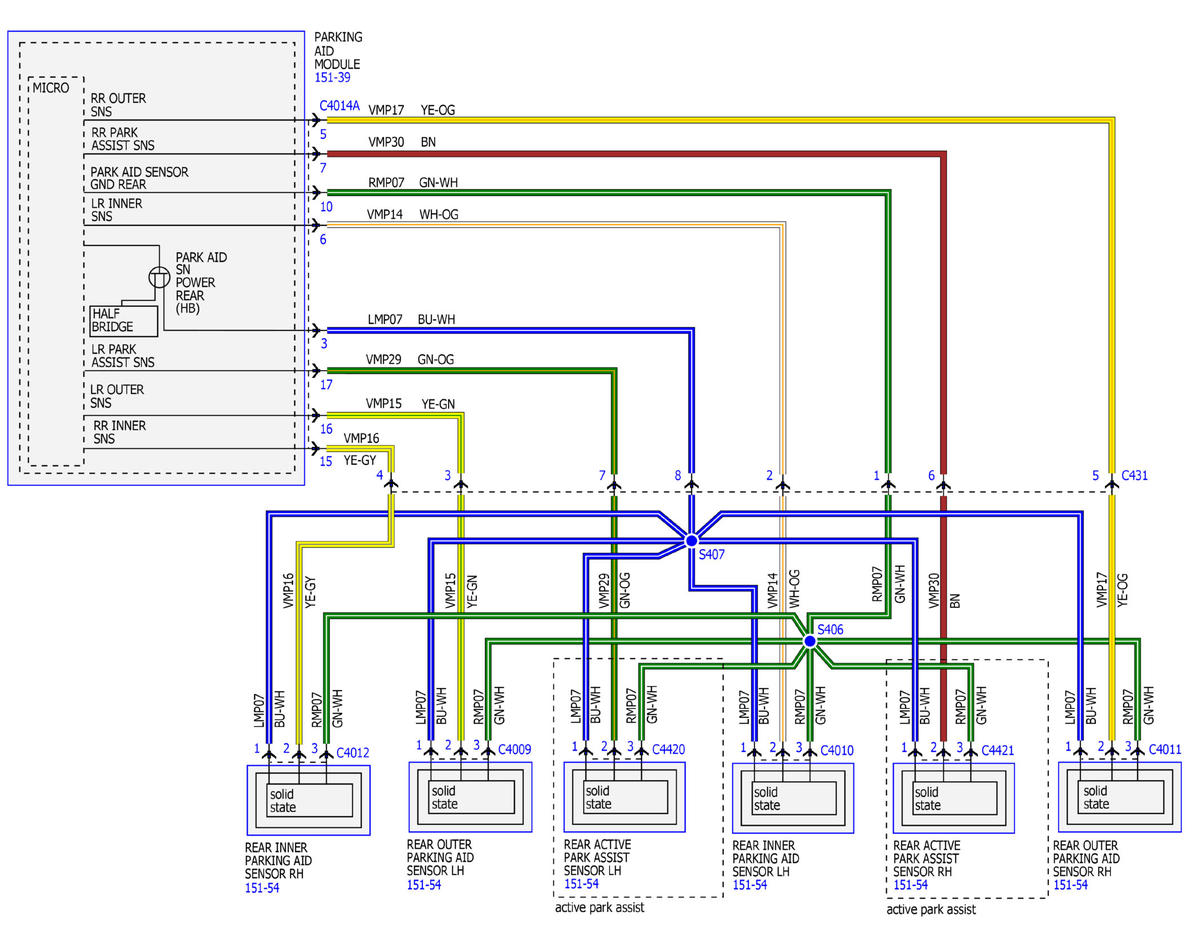

Fig 5: Identifying Parking Aid Wiring Diagram (5 Of 7)
Courtesy of FORD MOTOR COMPANY

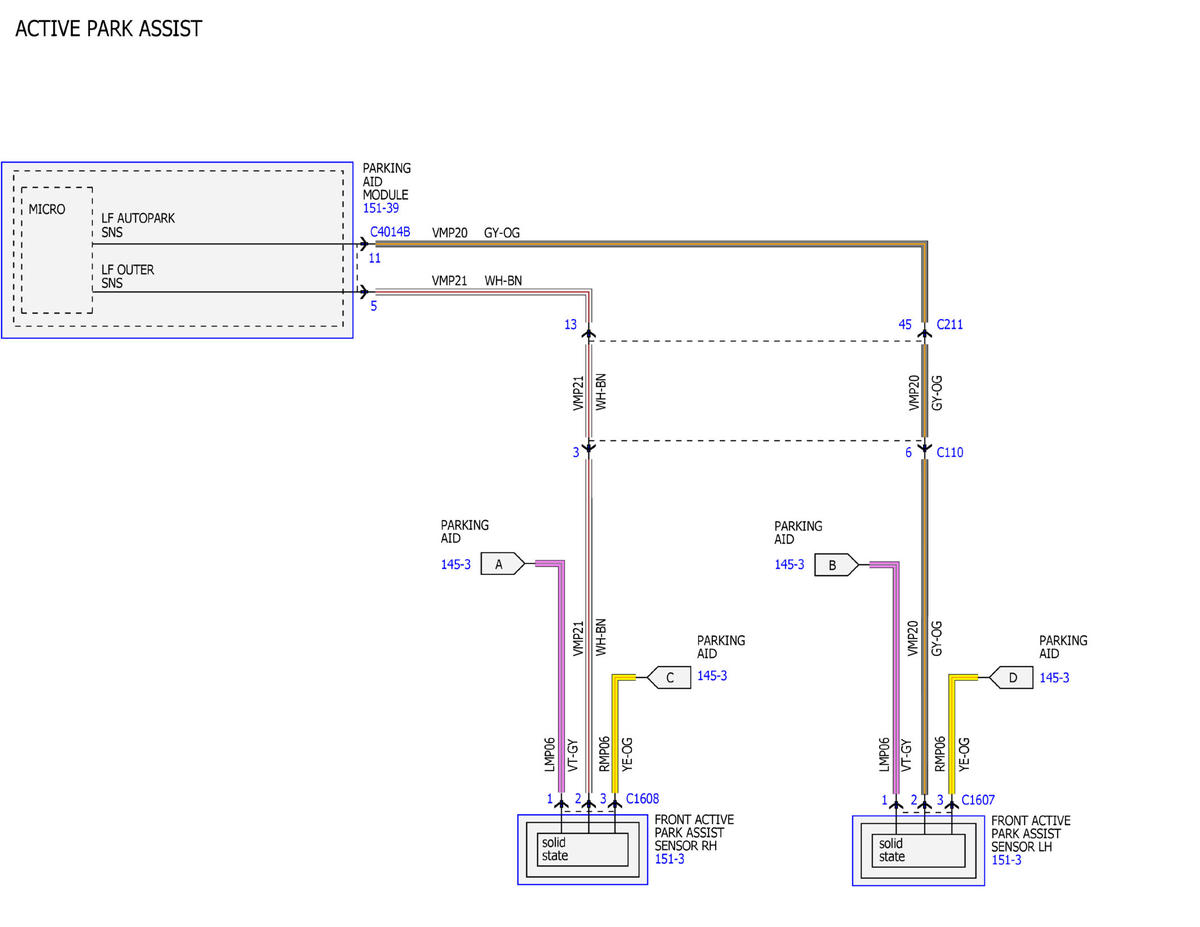

Fig 6: Identifying Parking Aid Wiring Diagram (6 Of 7)
Courtesy of FORD MOTOR COMPANY

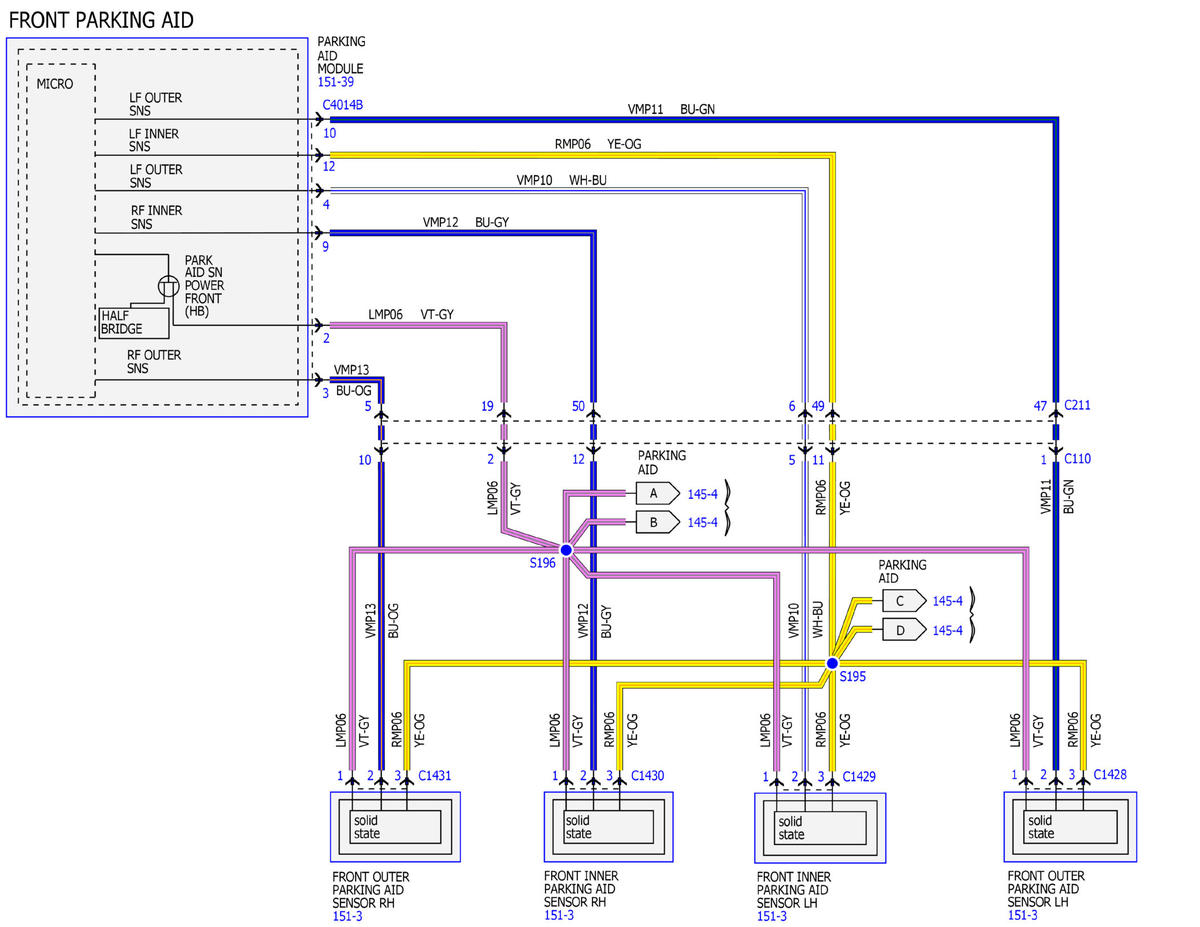

Fig 7: Identifying Parking Aid Wiring Diagram (7 Of 7)
Courtesy of FORD MOTOR COMPANY
