Manual Climate Control System

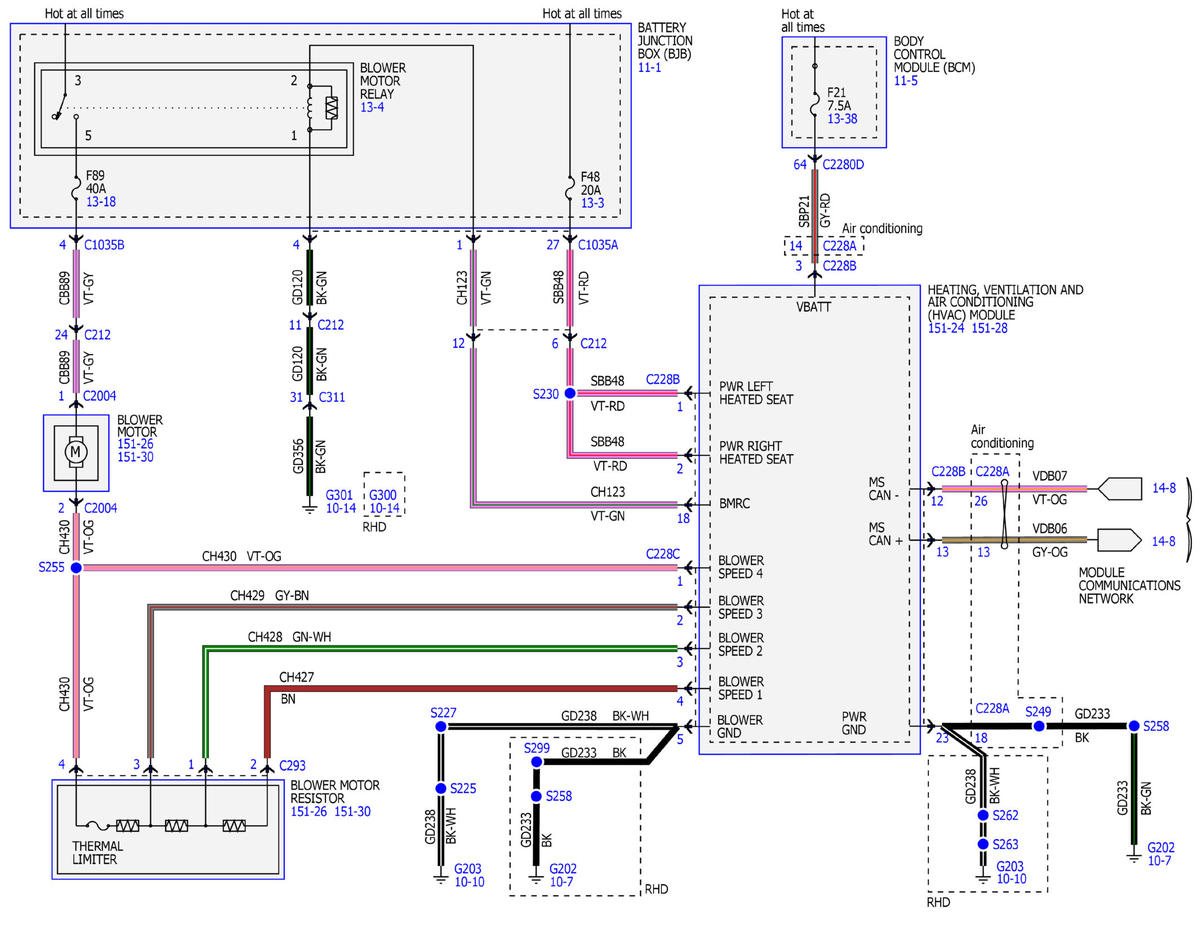

Fig 1: Identifying Manual Climate Control System Wiring Diagram (1 Of 9)
GFDWR130217Courtesy of FORD MOTOR COMPANY

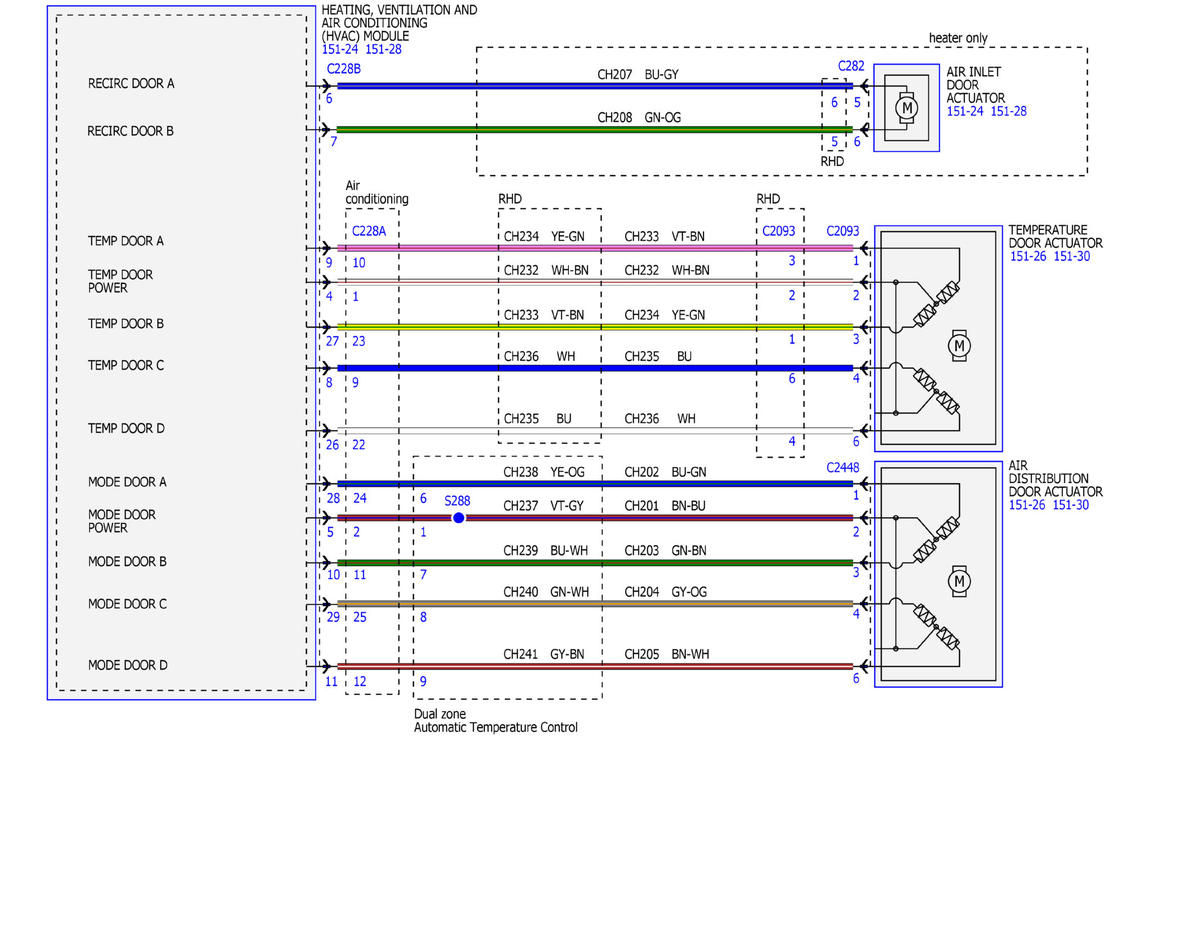

Fig 2: Identifying Manual Climate Control System Wiring Diagram (2 Of 9)
GFDWR130218Courtesy of FORD MOTOR COMPANY

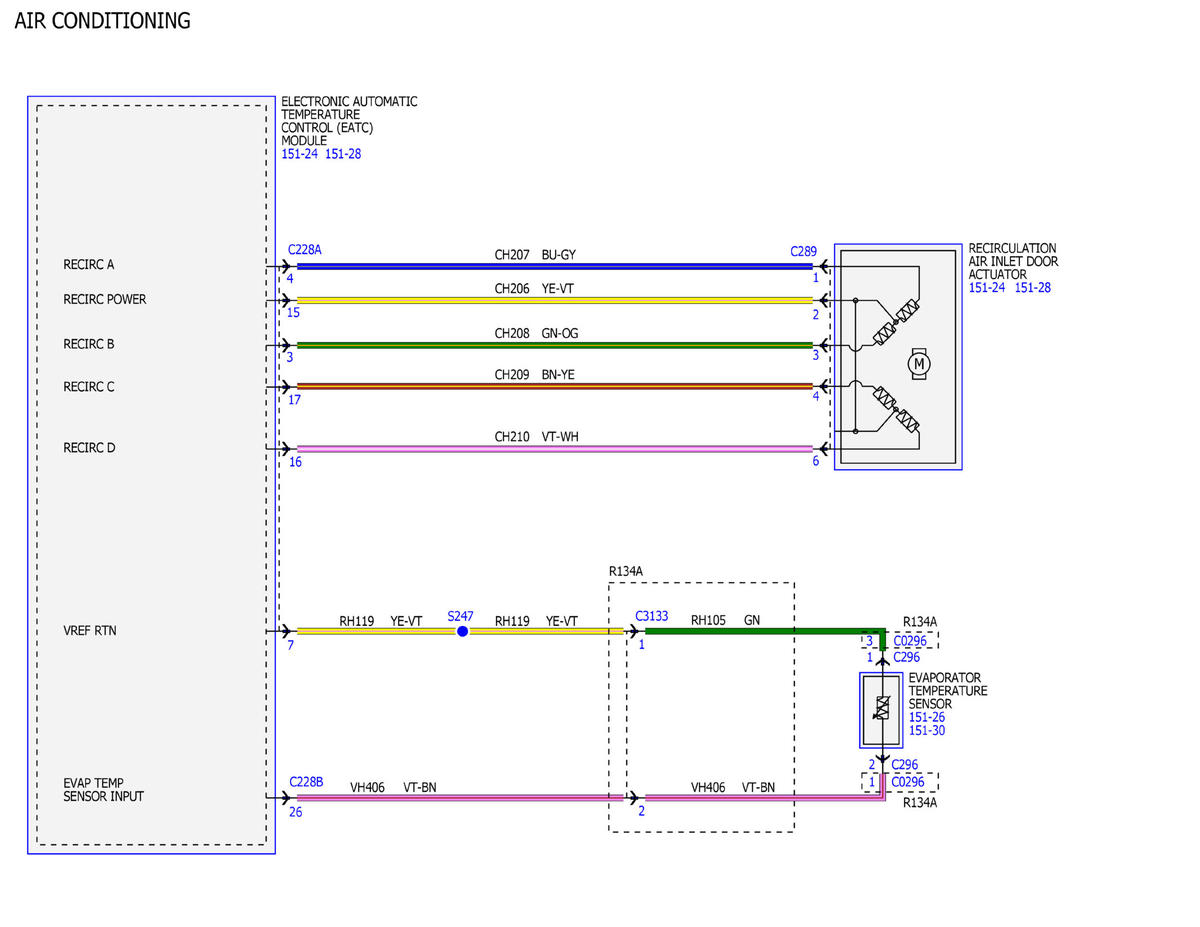

Fig 3: Identifying Manual Climate Control System Wiring Diagram (3 Of 9)
GFDWR130219Courtesy of FORD MOTOR COMPANY

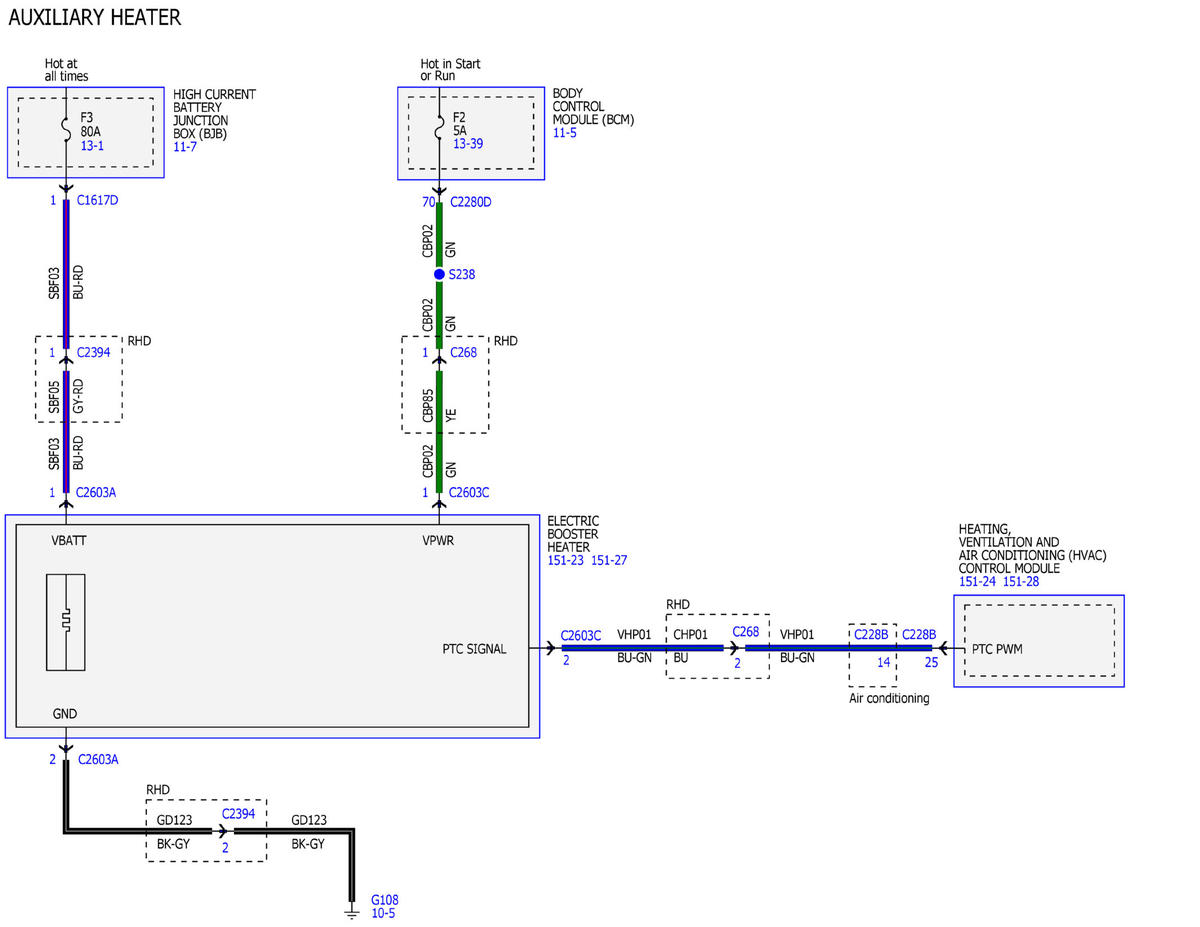

Fig 4: Identifying Manual Climate Control System Wiring Diagram (4 Of 9)
GFDWR130220Courtesy of FORD MOTOR COMPANY

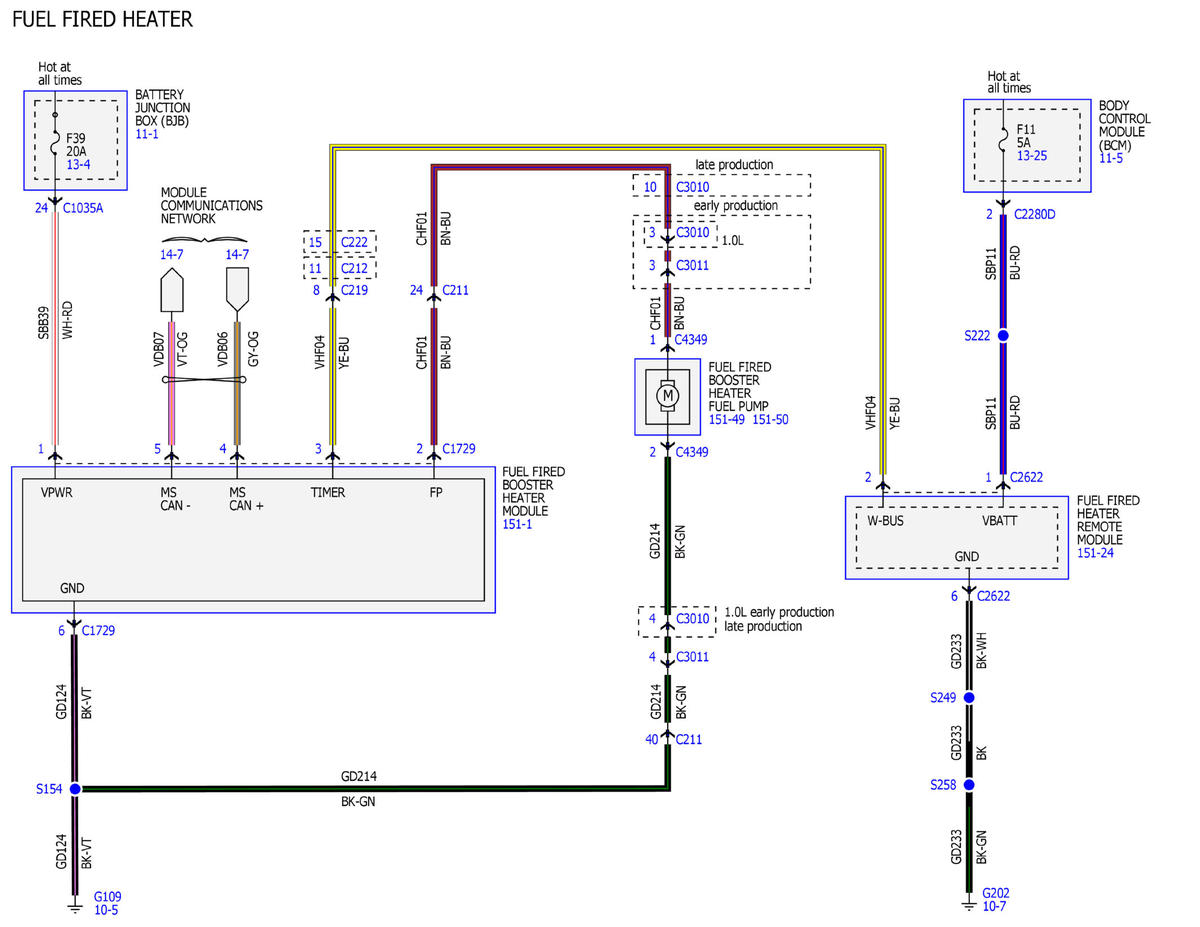

Fig 5: Identifying Manual Climate Control System Wiring Diagram (5 Of 9)
GFDWR130221Courtesy of FORD MOTOR COMPANY

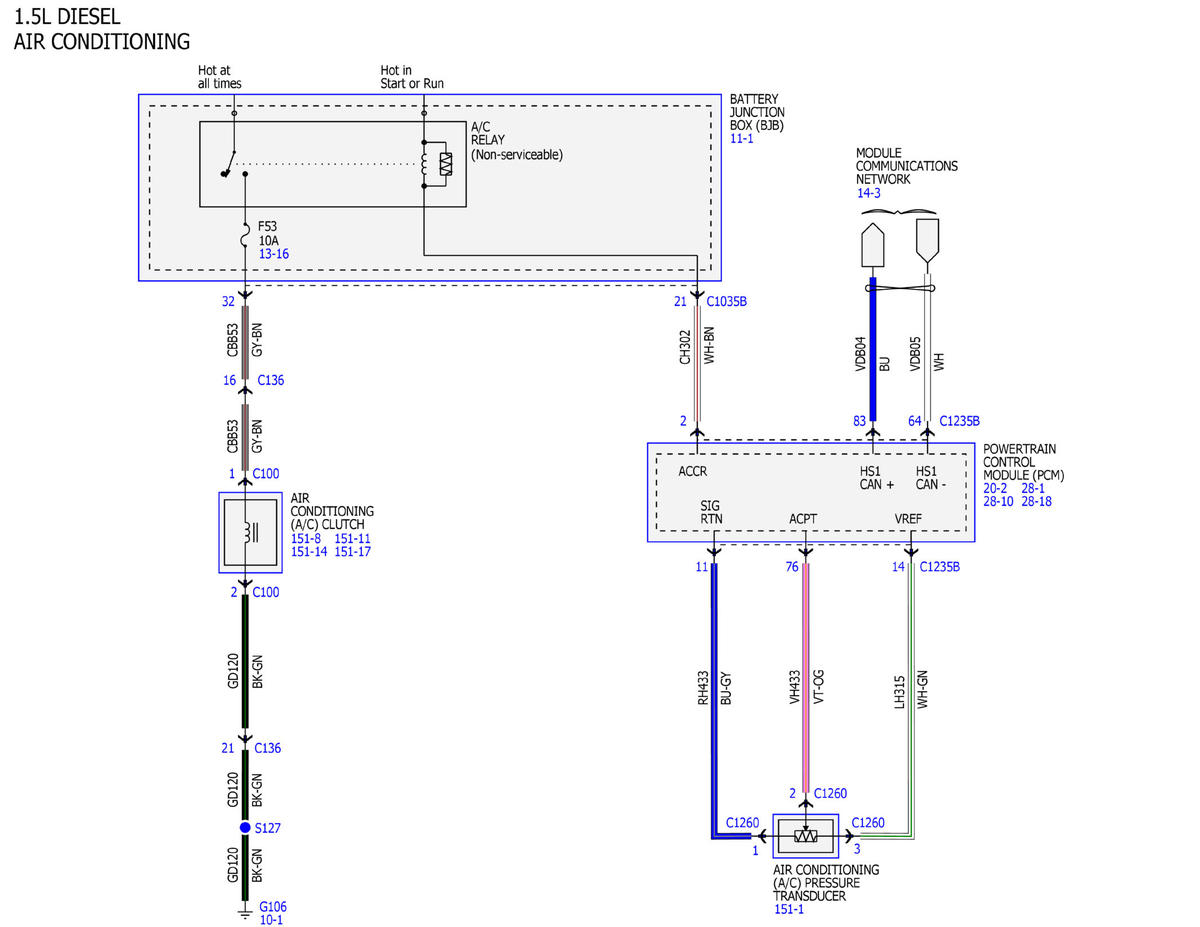

Fig 6: Identifying Manual Climate Control System Wiring Diagram (6 Of 9)
GFDWR130222Courtesy of FORD MOTOR COMPANY

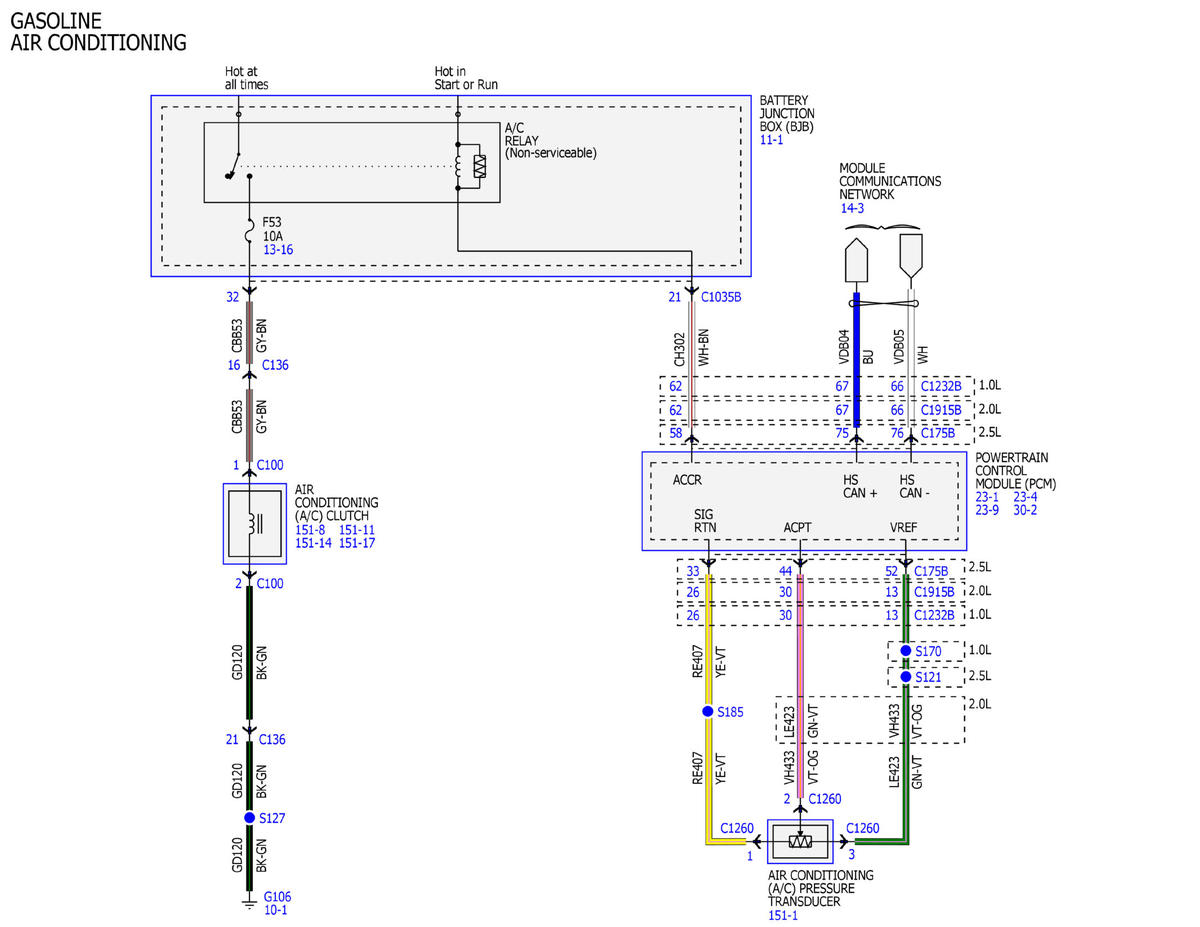

Fig 7: Identifying Manual Climate Control System Wiring Diagram (7 Of 9)
GFDWR130223Courtesy of FORD MOTOR COMPANY

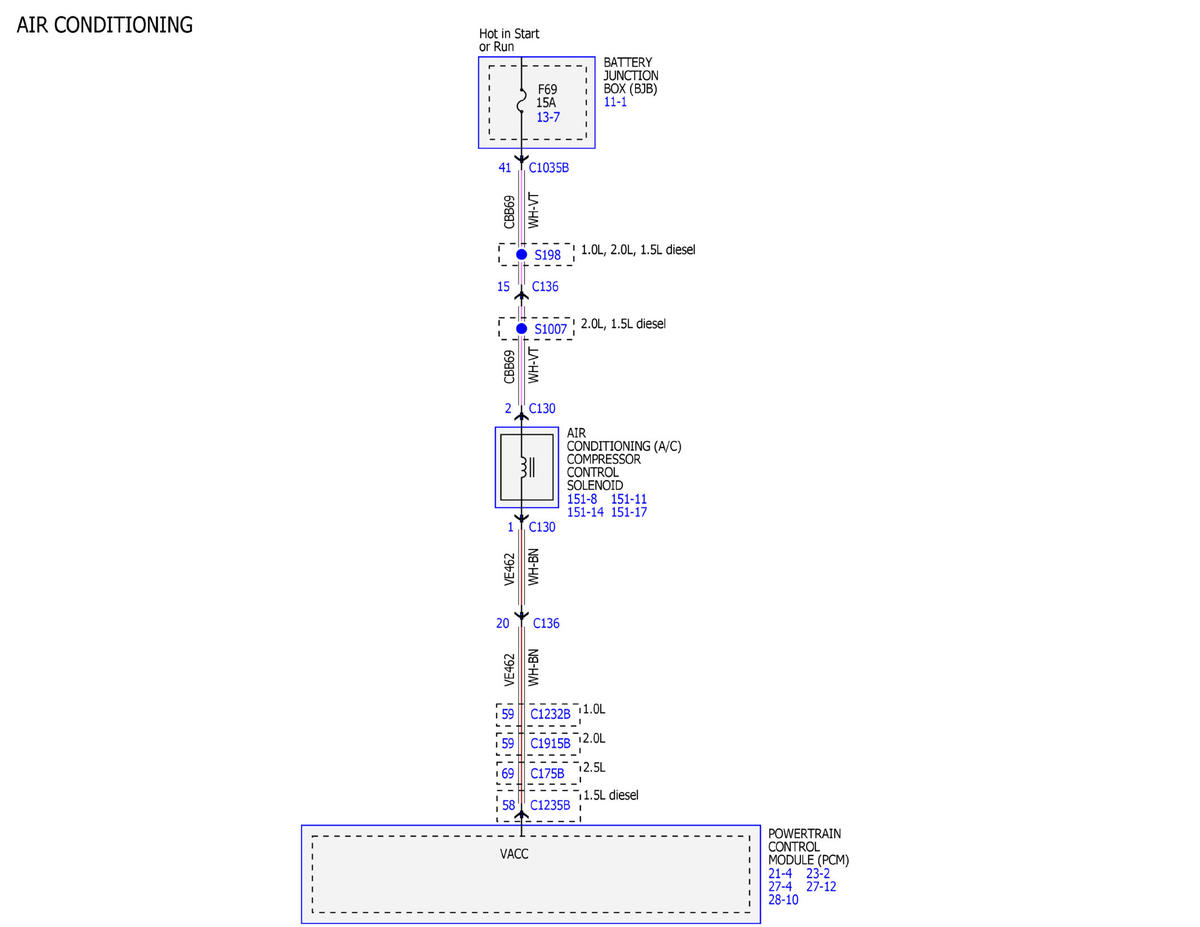

Fig 8: Identifying Manual Climate Control System Wiring Diagram (8 Of 9)
GFDWR130224Courtesy of FORD MOTOR COMPANY

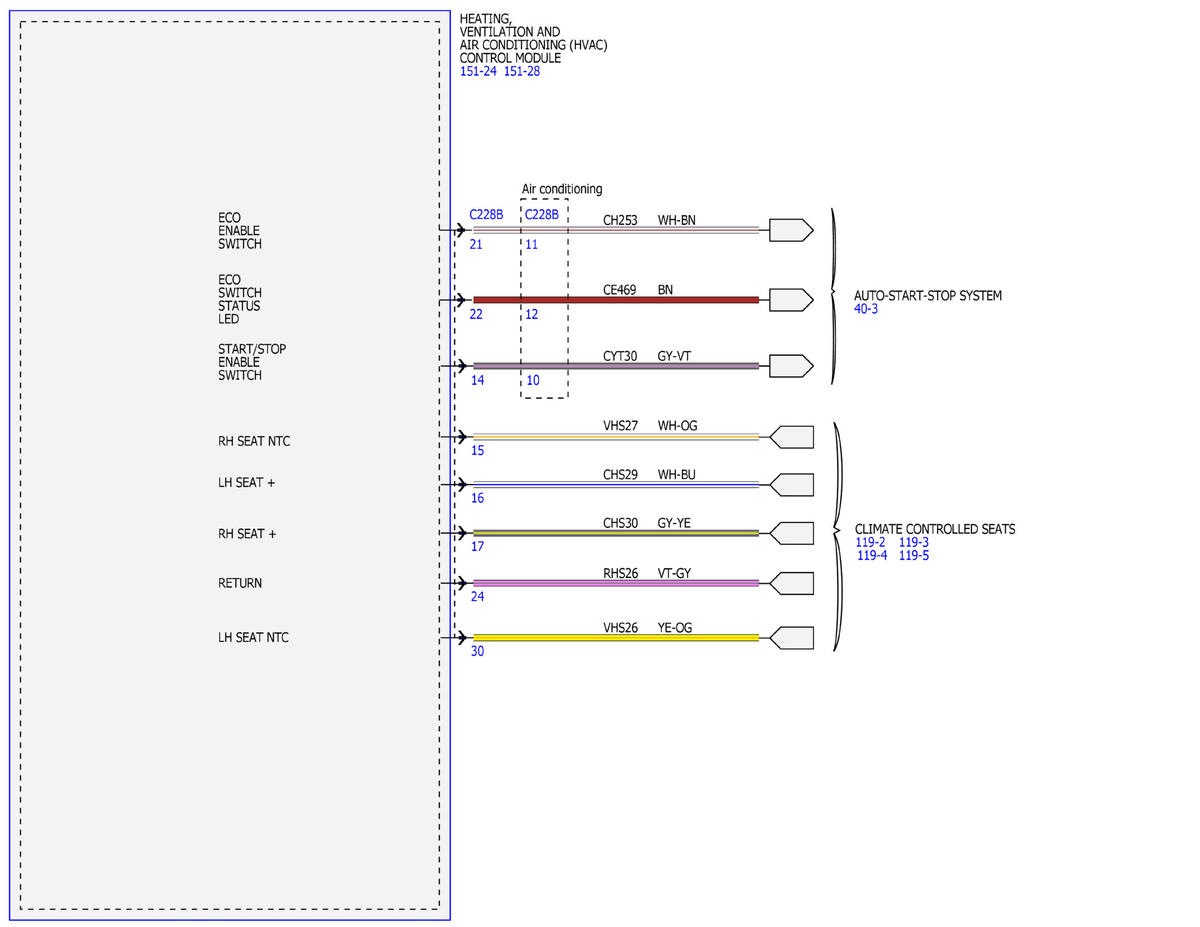

Fig 9: Identifying Manual Climate Control System Wiring Diagram (9 Of 9)
GFDWR130225Courtesy of FORD MOTOR COMPANY
