Transit Connect Titanium, Gas/Ethanol
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Interior Lamps
Interior Lamps

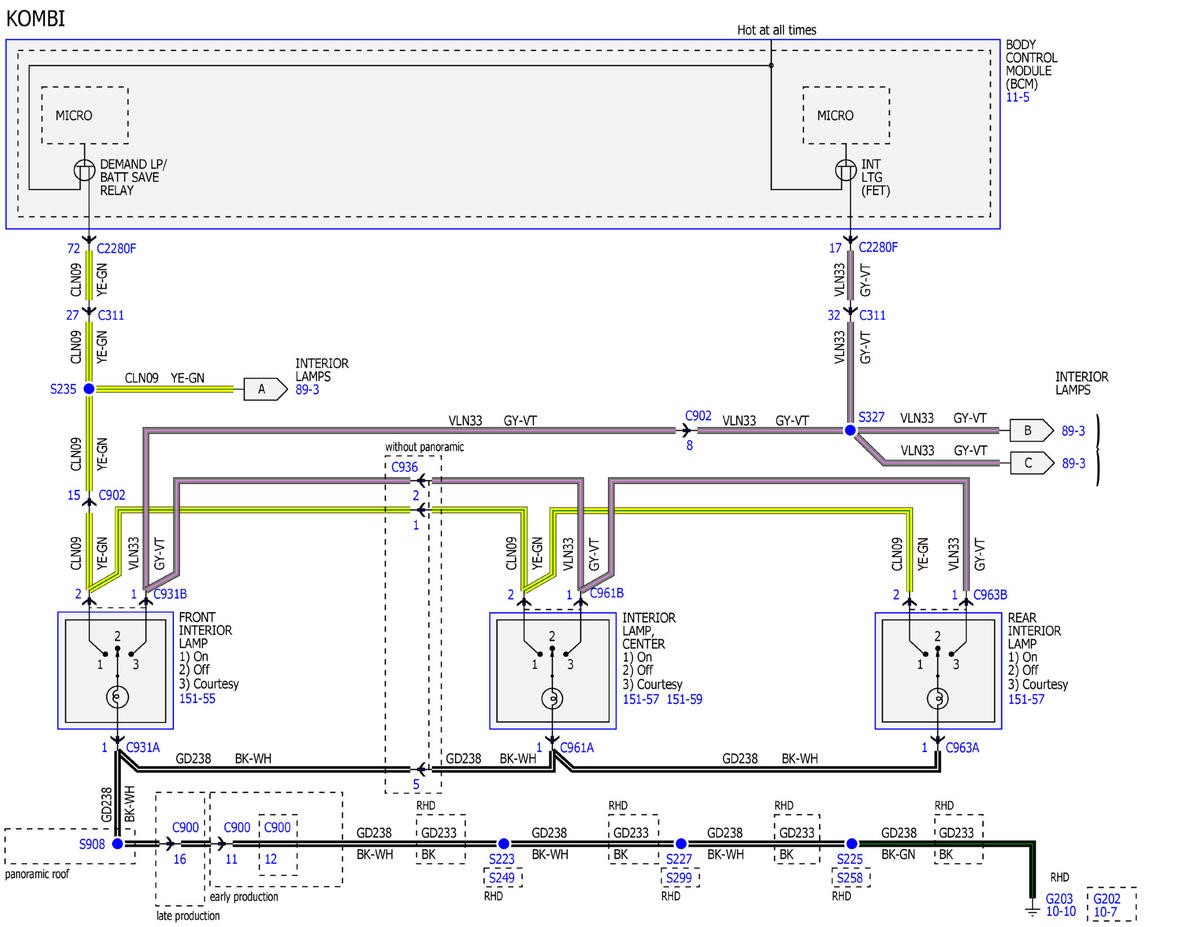

Fig 1: Identifying Interior Lamps Wiring Diagram (1 Of 7)
Courtesy of FORD MOTOR COMPANY

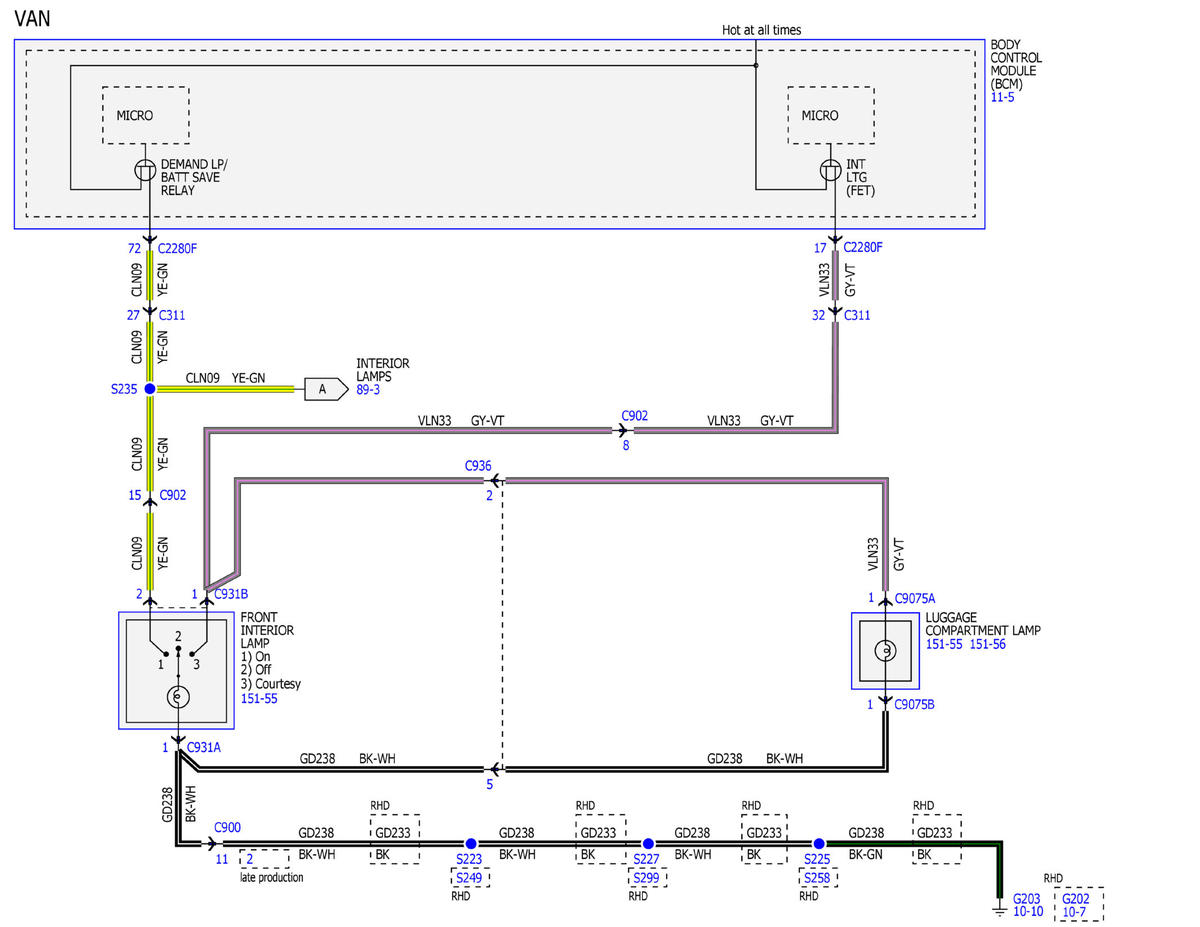

Fig 2: Identifying Interior Lamps Wiring Diagram (2 Of 7)
Courtesy of FORD MOTOR COMPANY

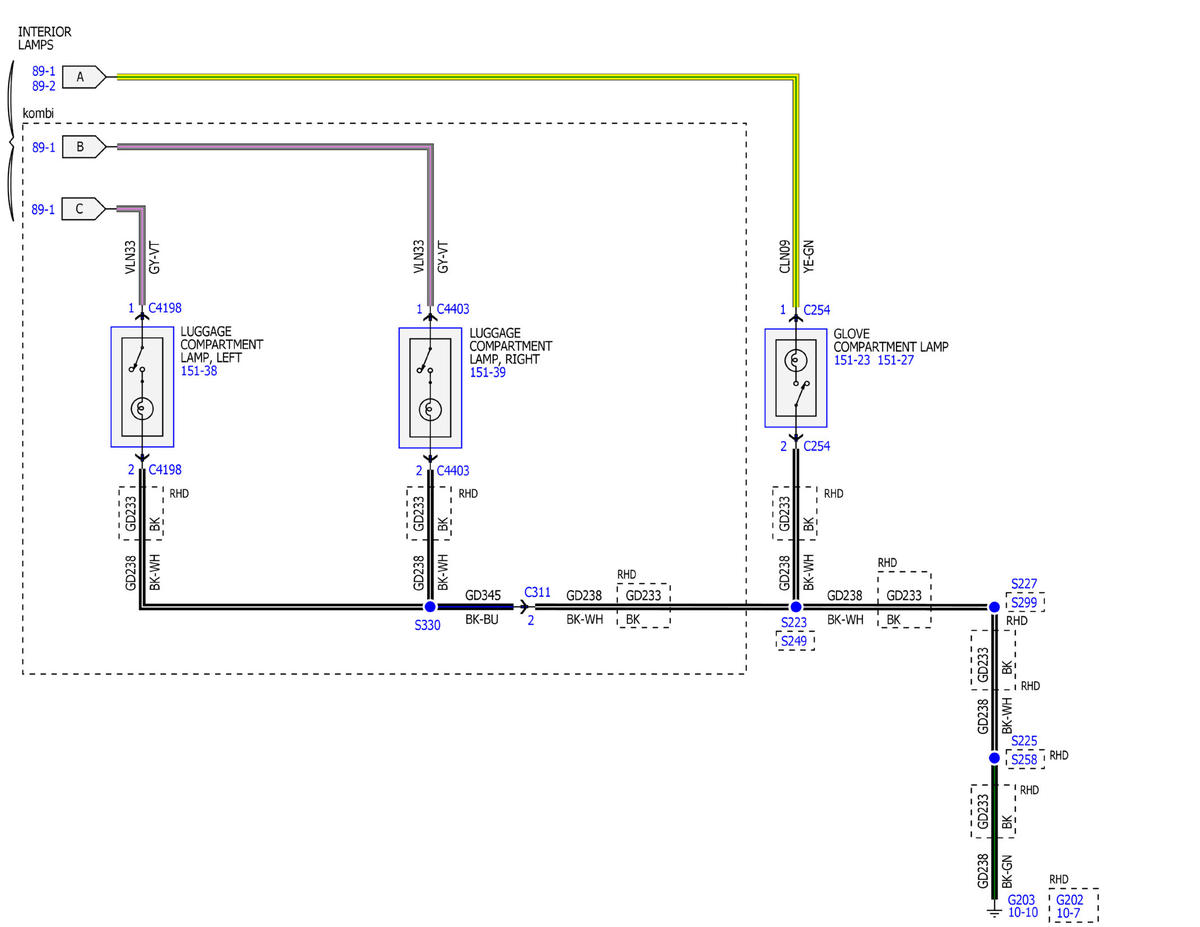

Fig 3: Identifying Interior Lamps Wiring Diagram (3 Of 7)
Courtesy of FORD MOTOR COMPANY

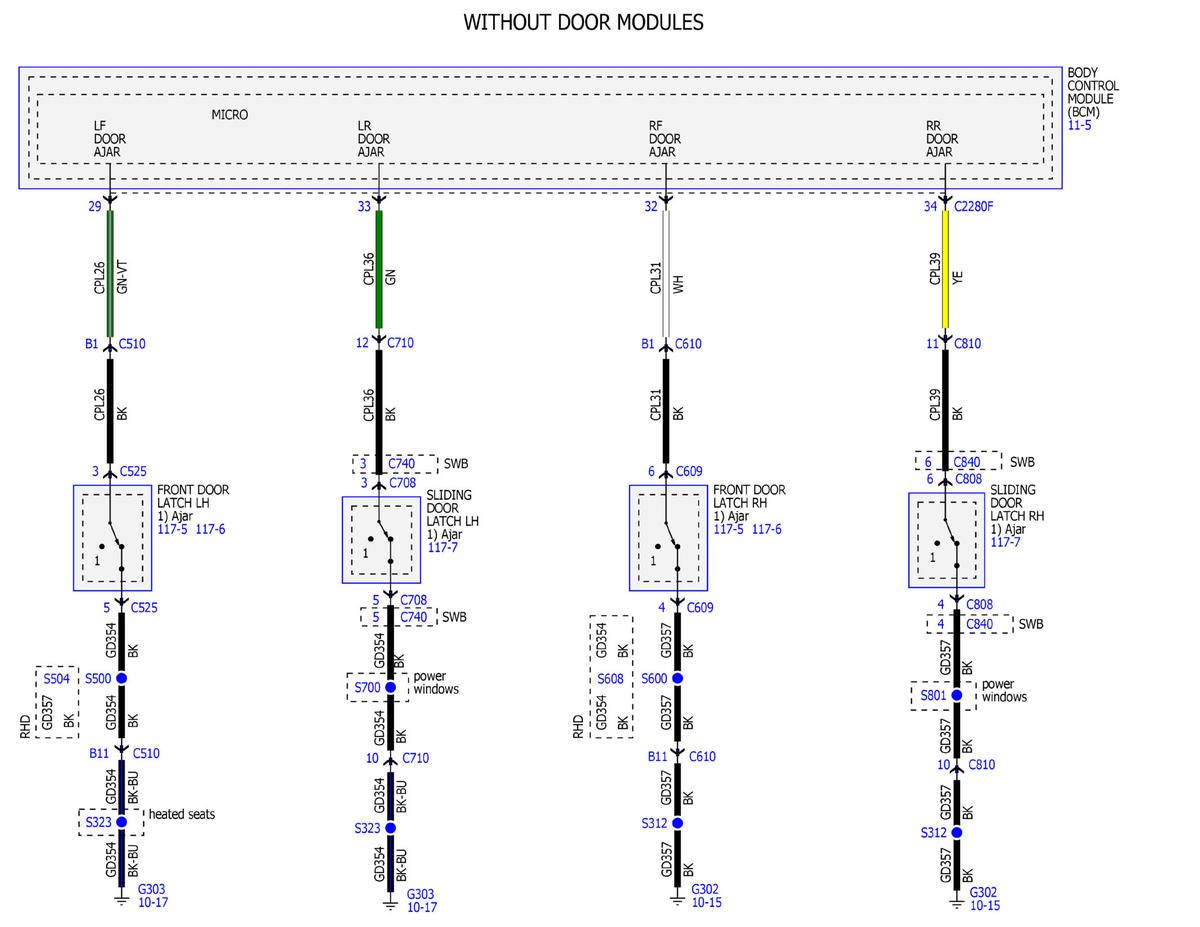

Fig 4: Identifying Interior Lamps Wiring Diagram (4 Of 7)
Courtesy of FORD MOTOR COMPANY

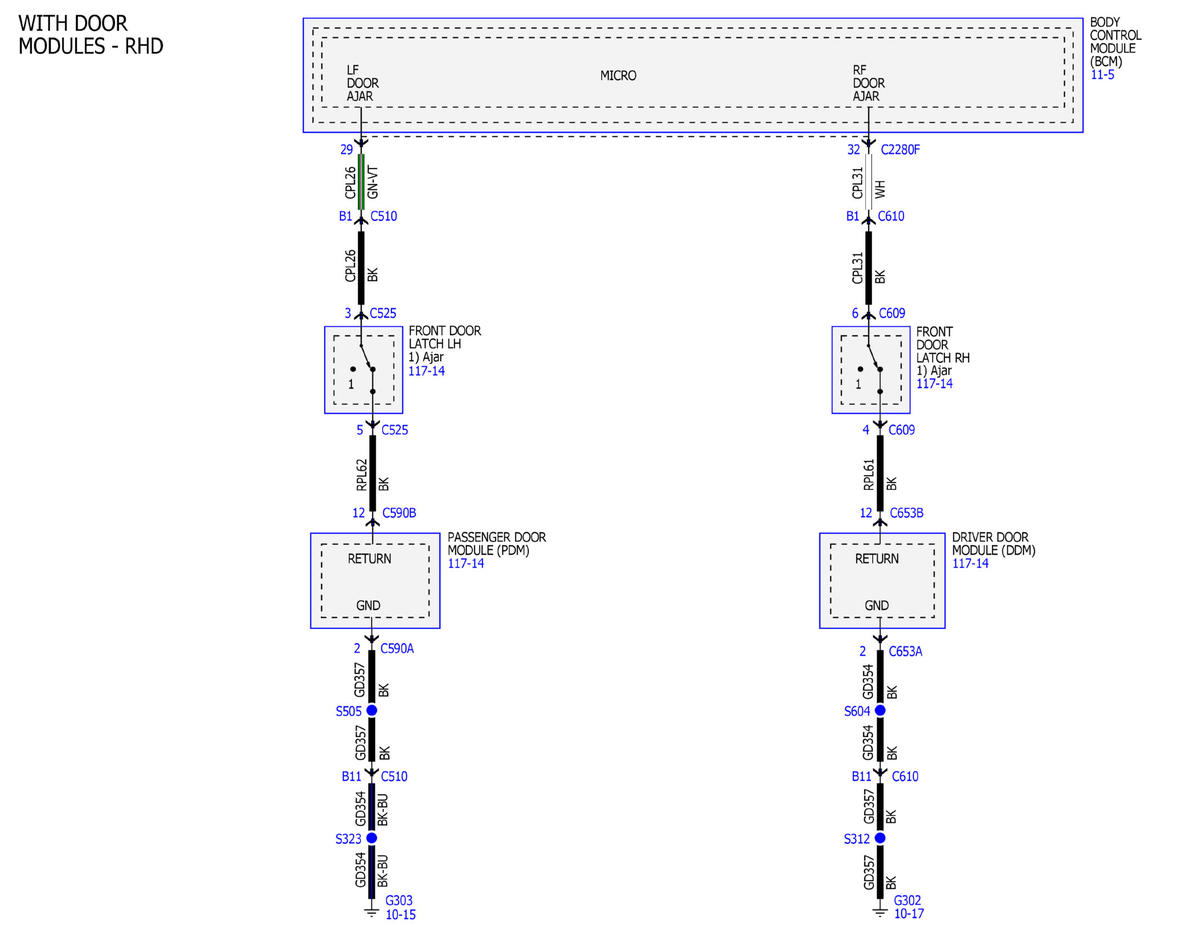

Fig 5: Identifying Interior Lamps Wiring Diagram (5 Of 7)
Courtesy of FORD MOTOR COMPANY

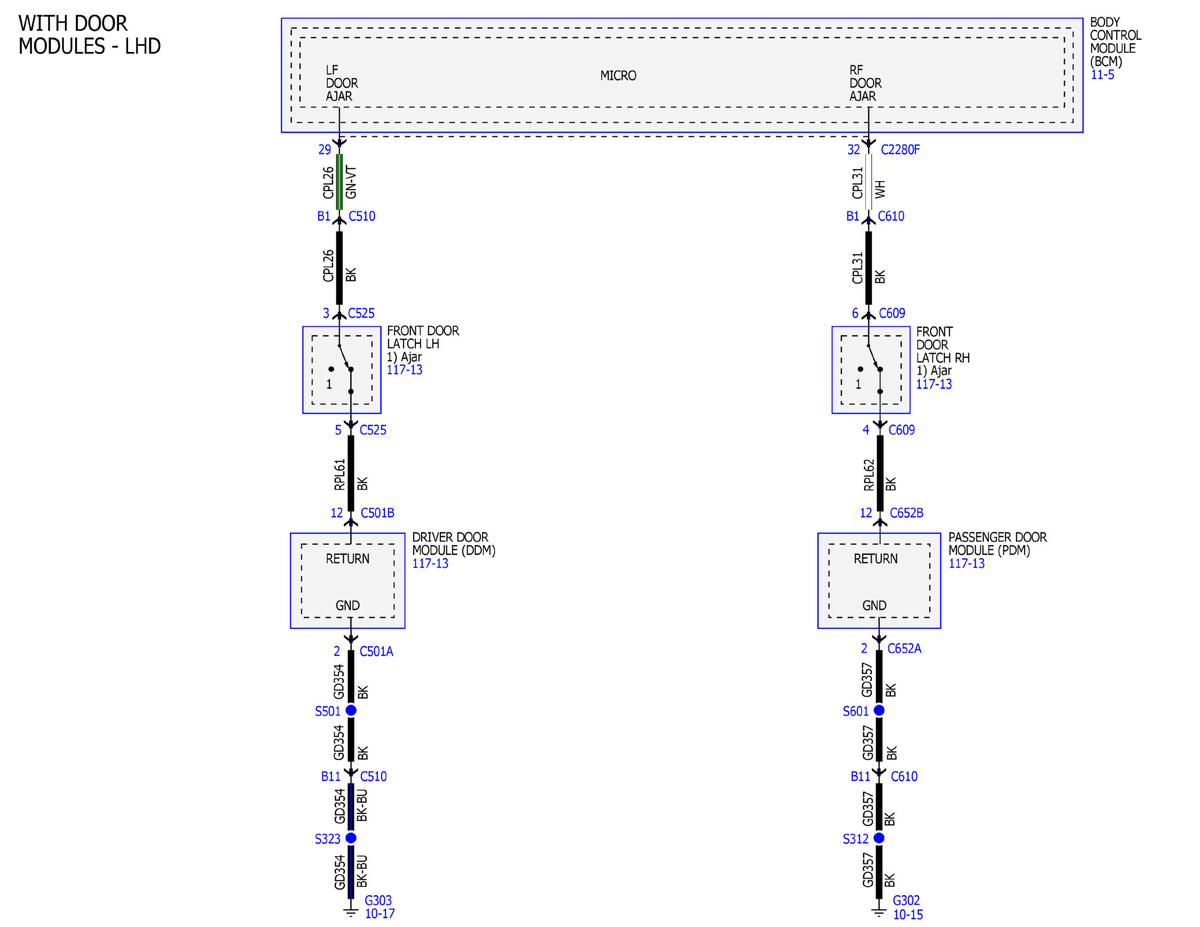

Fig 6: Identifying Interior Lamps Wiring Diagram (6 Of 7)
Courtesy of FORD MOTOR COMPANY

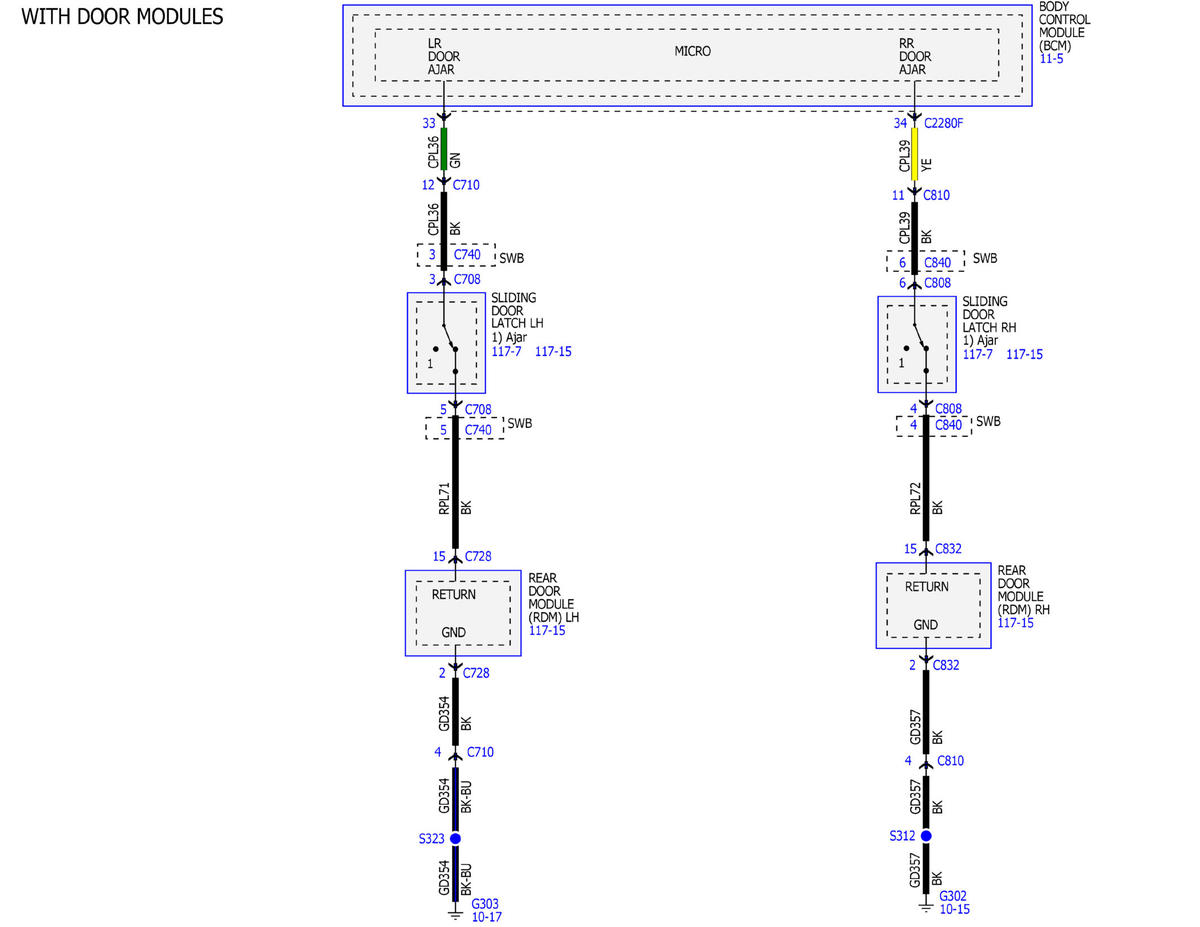

Fig 7: Identifying Interior Lamps Wiring Diagram (7 Of 7)
Courtesy of FORD MOTOR COMPANY
