Transit Connect Titanium, Gas/Ethanol
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Instrument Cluster
Instrument Cluster

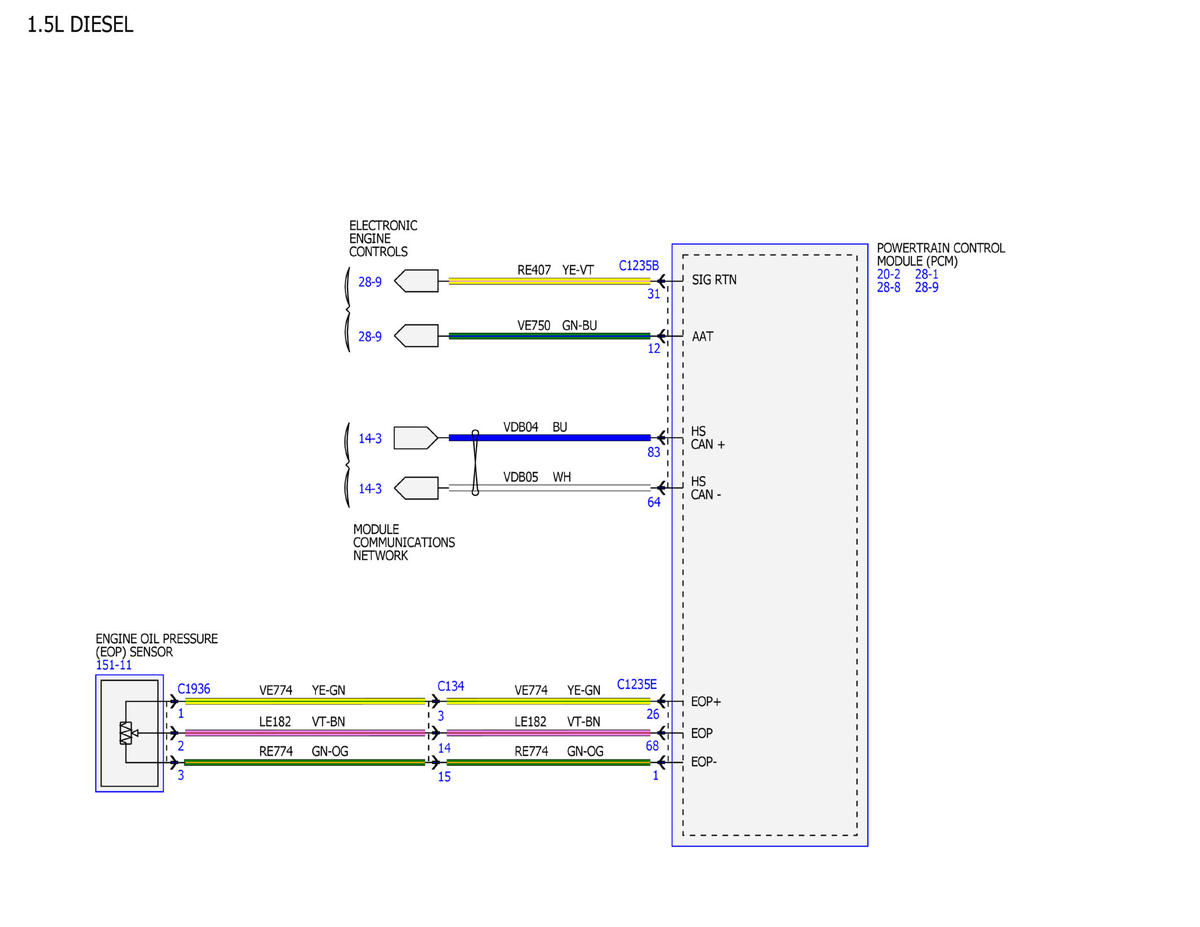

Fig 1: Identifying Instrument Cluster Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR COMPANY

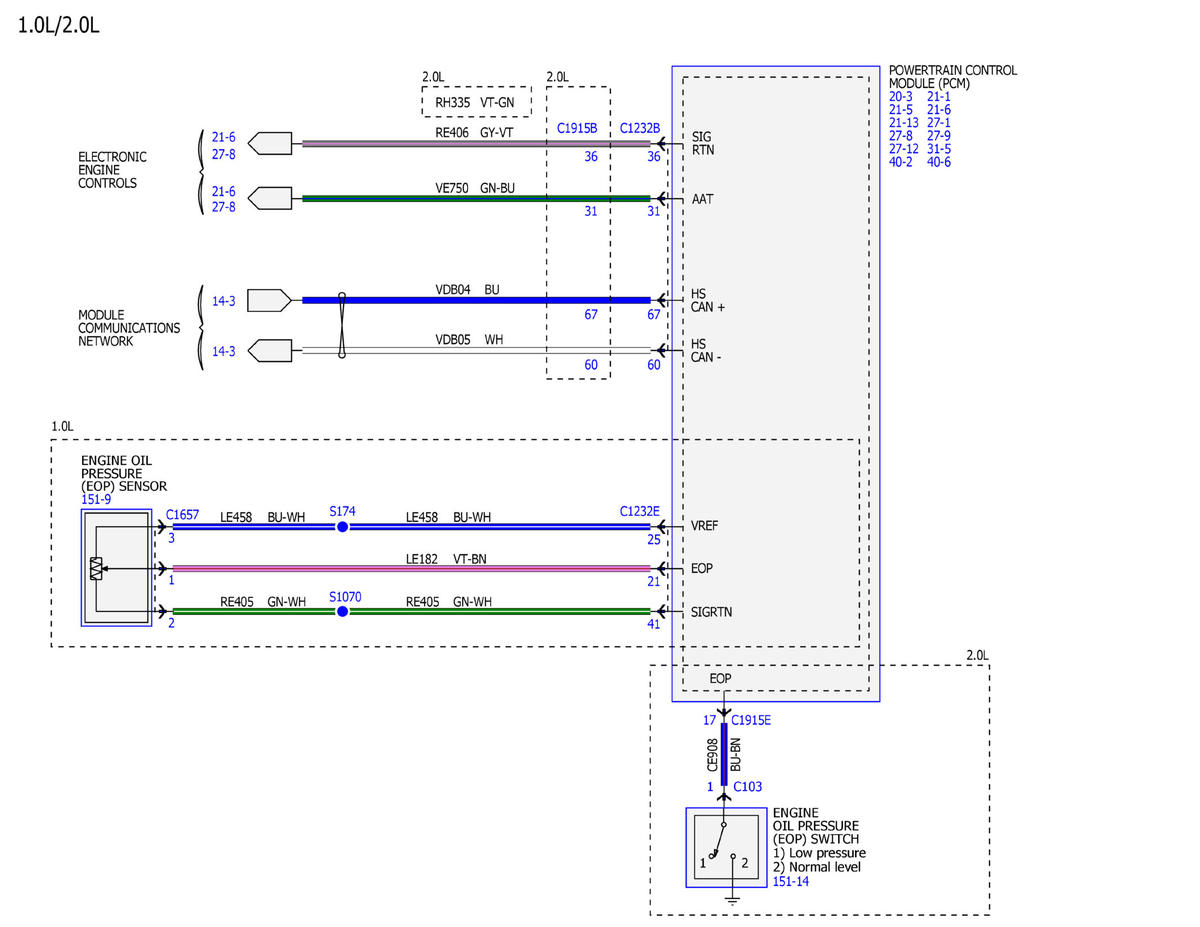

Fig 2: Identifying Instrument Cluster Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR COMPANY

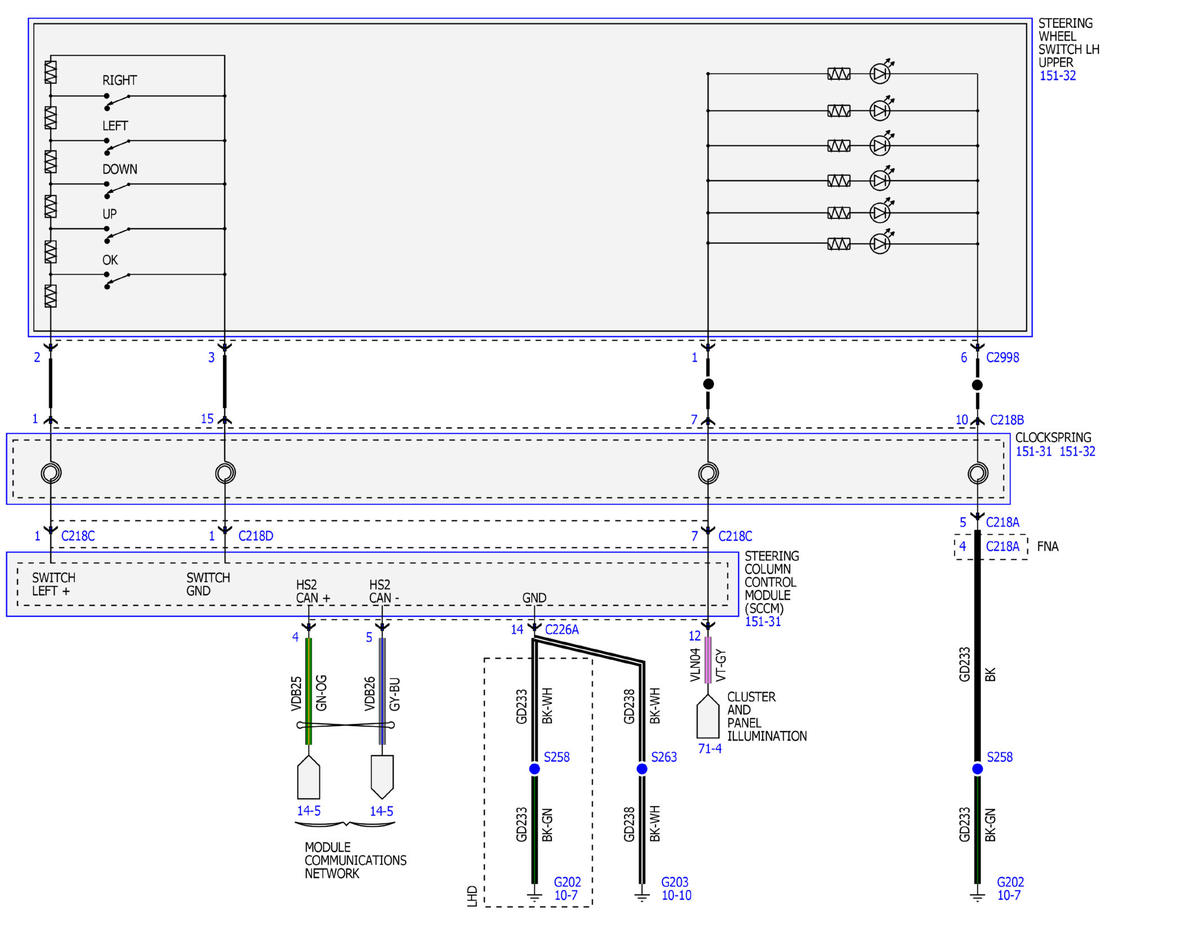

Fig 3: Identifying Instrument Cluster Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR COMPANY

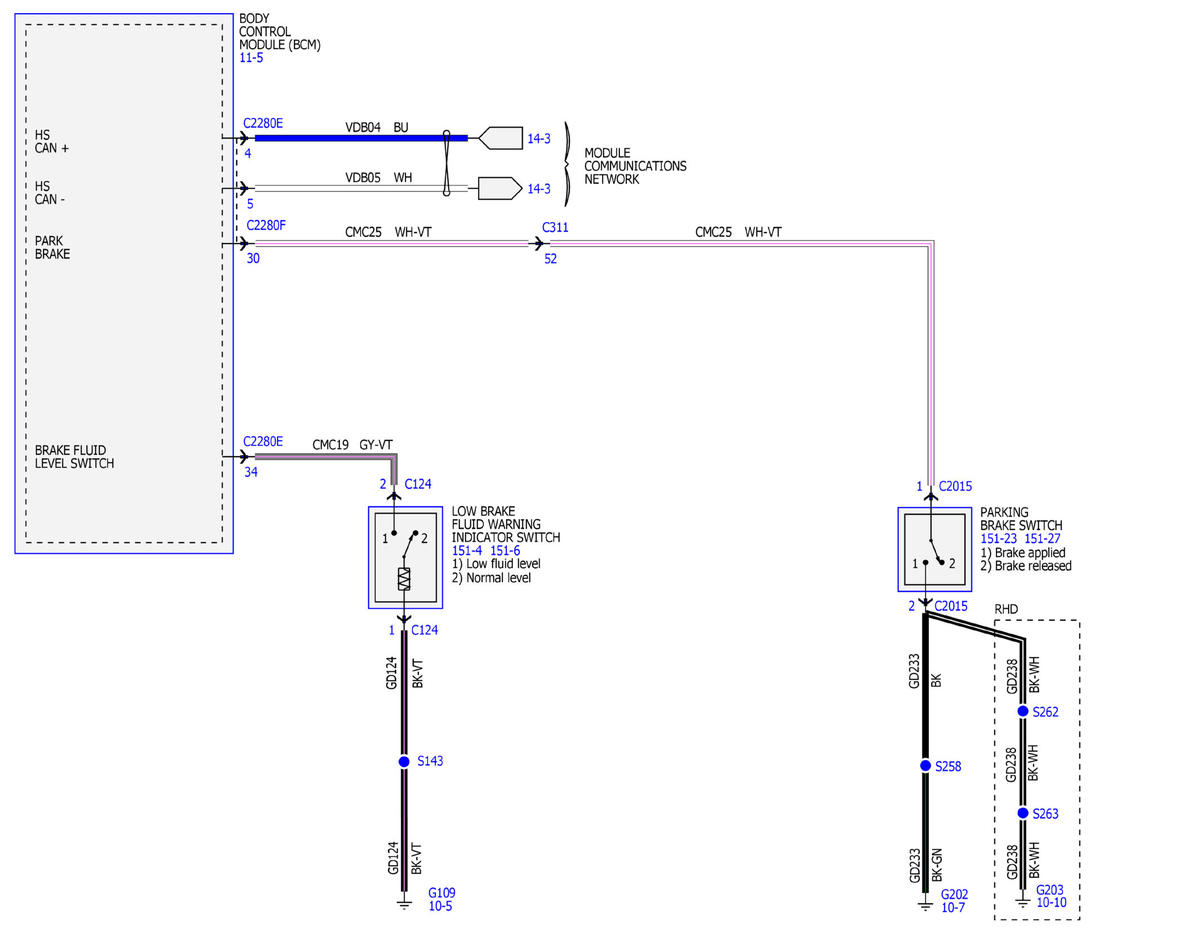

Fig 4: Identifying Instrument Cluster Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR COMPANY

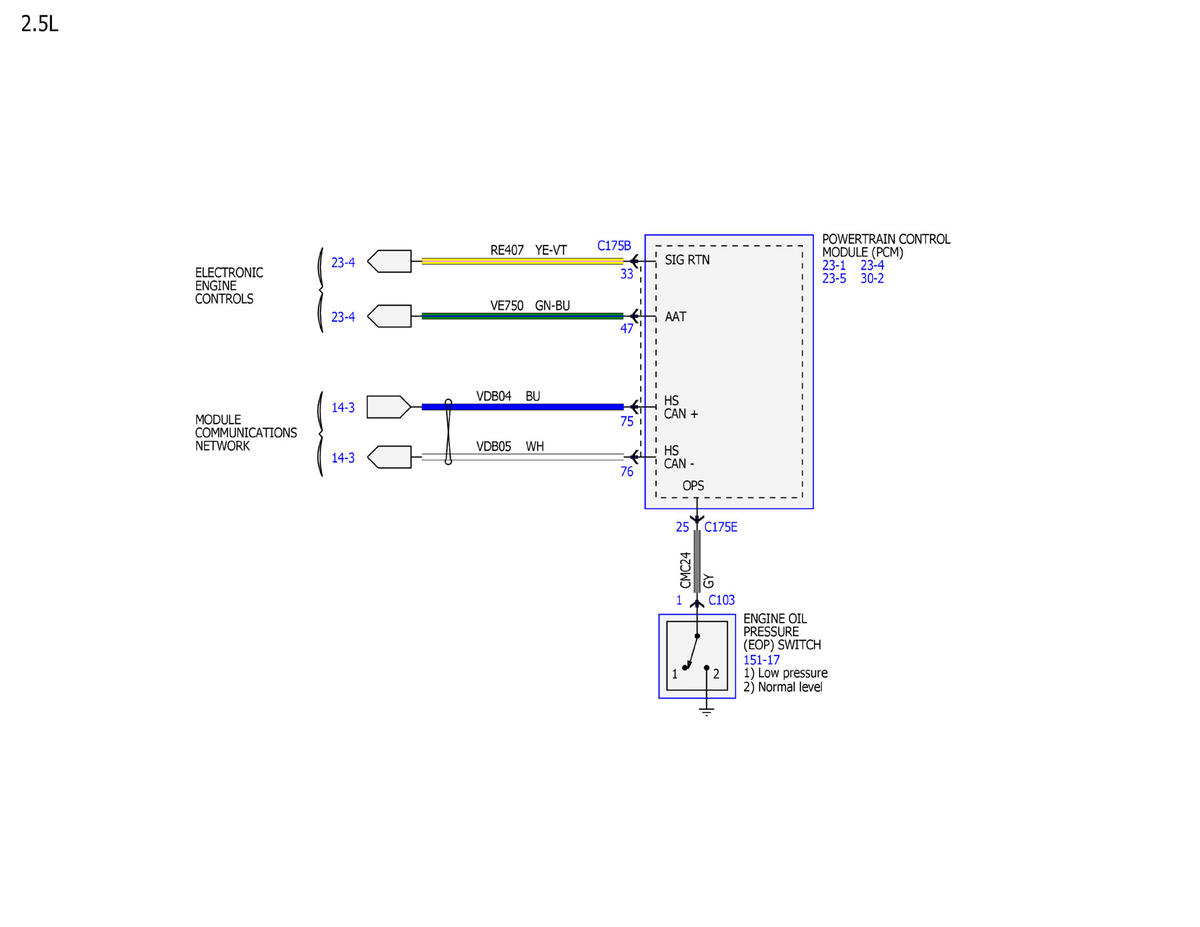

Fig 5: Identifying Instrument Cluster Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR COMPANY

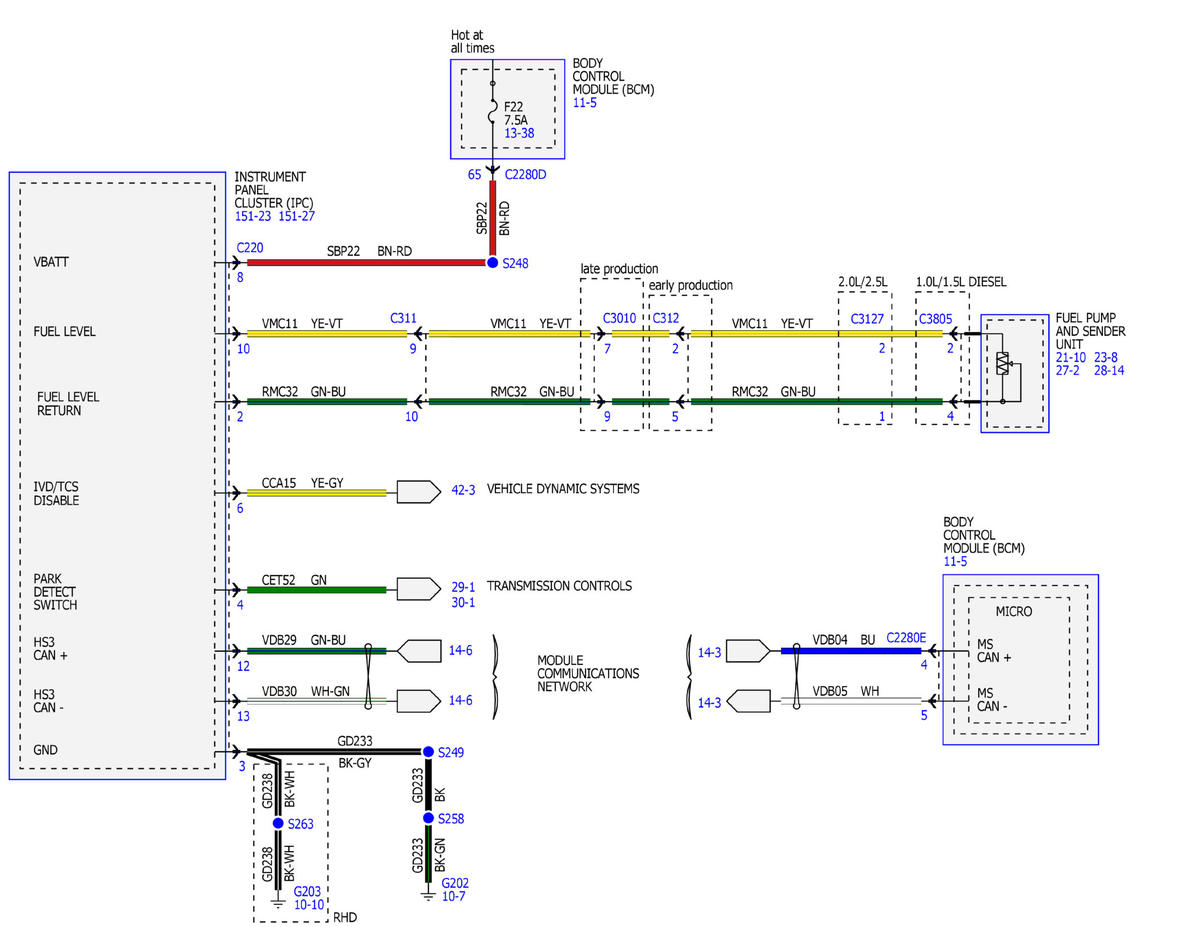

Fig 6: Identifying Instrument Cluster Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR COMPANY
