Horn/Cigar Lighter

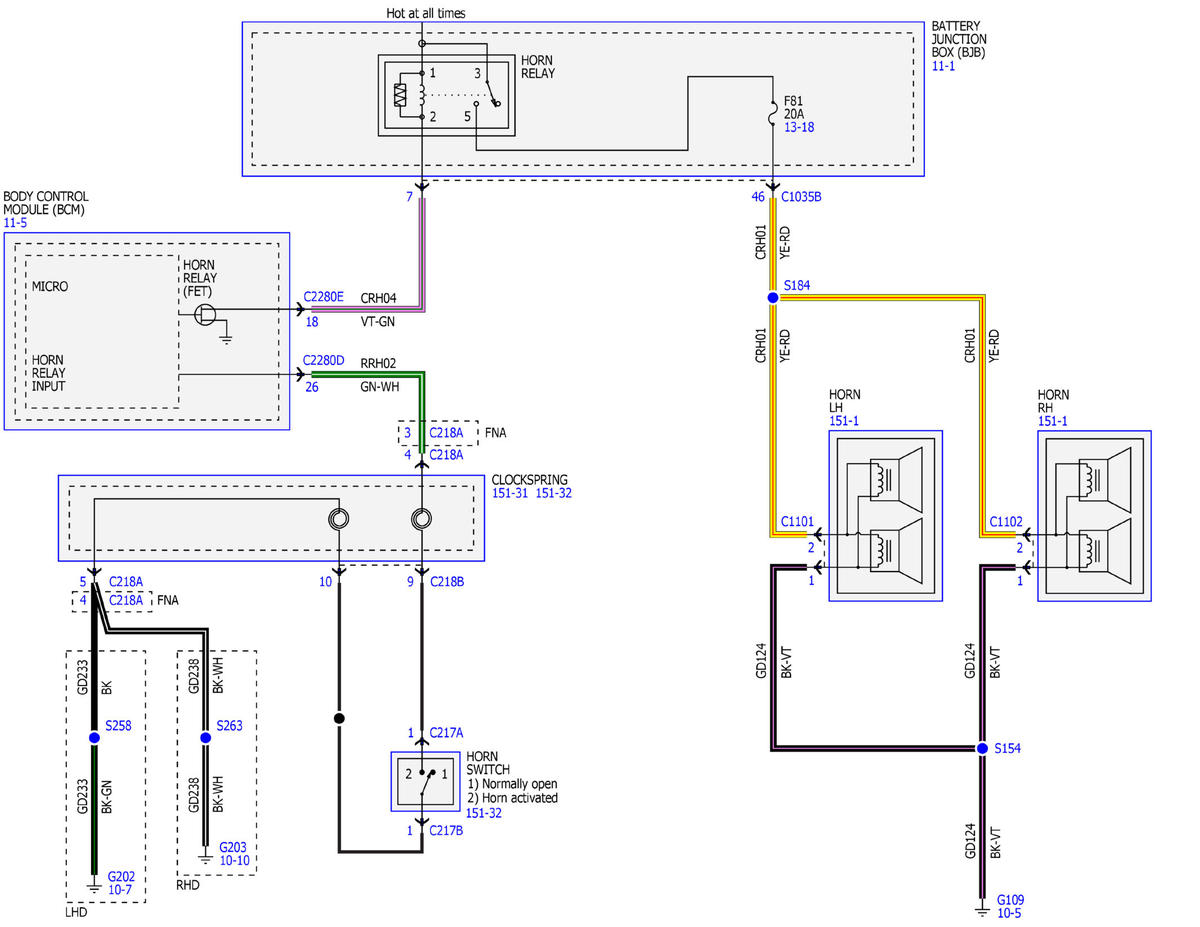

Fig 1: Identifying Horn/Cigar Lighter Wiring Diagram (1 Of 5)
GFDWR130199Courtesy of FORD MOTOR COMPANY

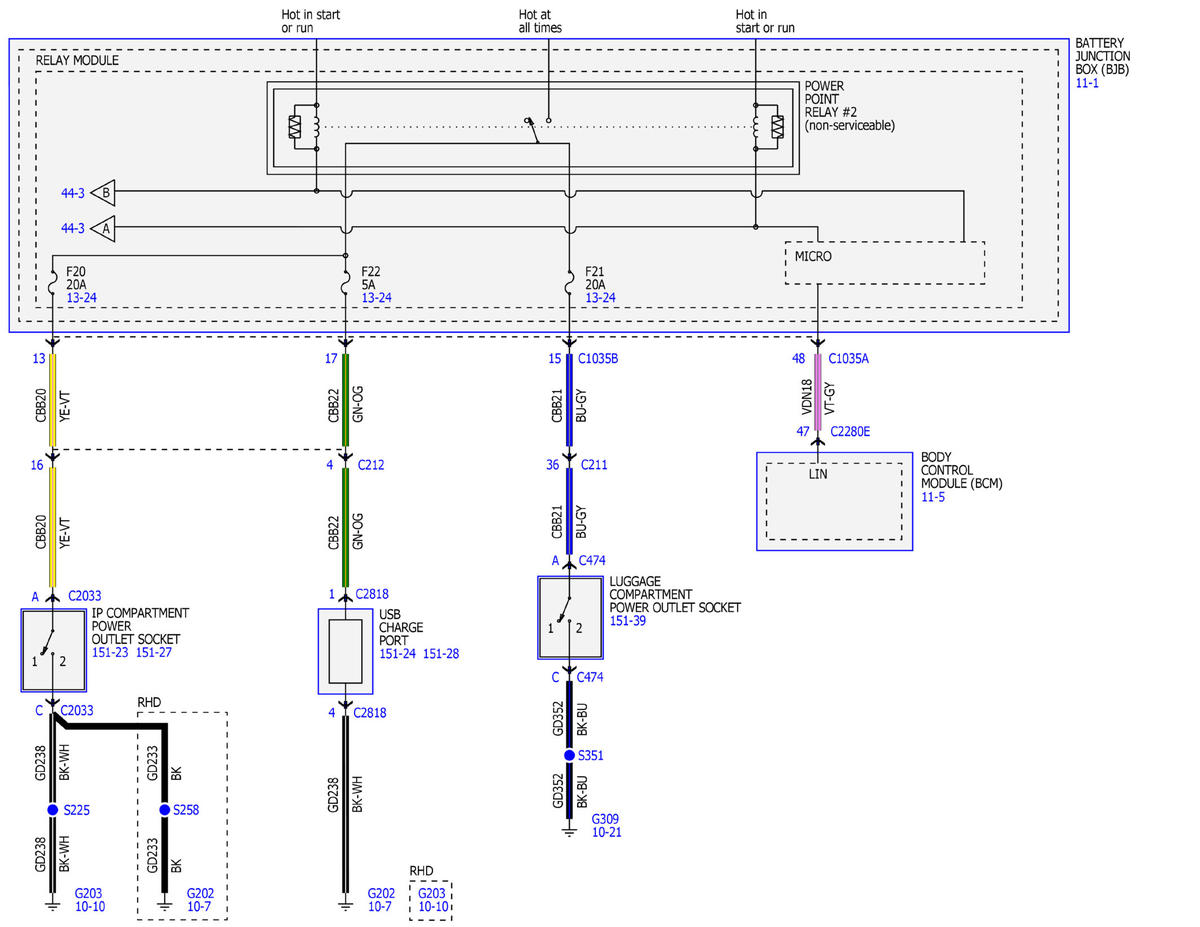

Fig 2: Identifying Horn/Cigar Lighter Wiring Diagram (2 Of 5)
GFDWR130200Courtesy of FORD MOTOR COMPANY

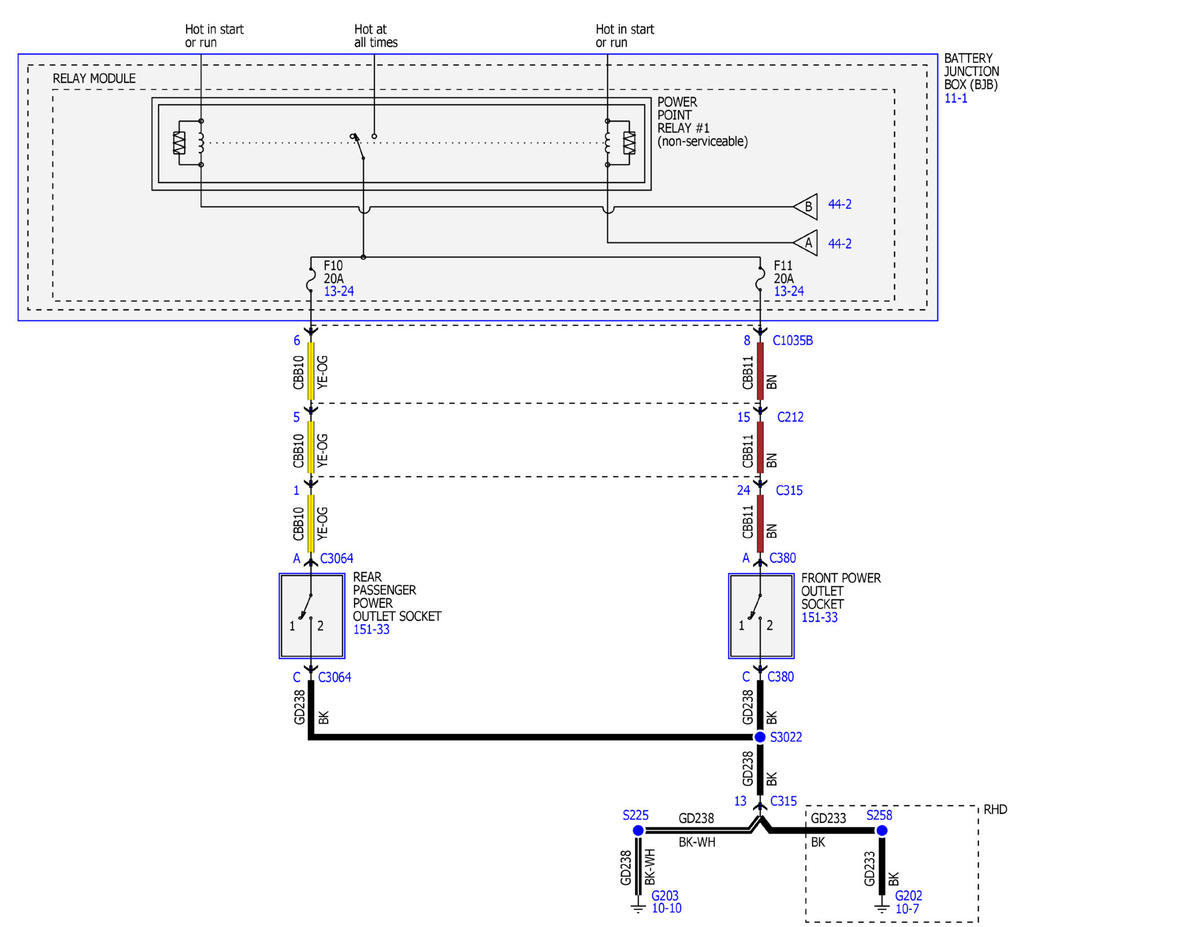

Fig 3: Identifying Horn/Cigar Lighter Wiring Diagram (3 Of 5)
GFDWR130201Courtesy of FORD MOTOR COMPANY

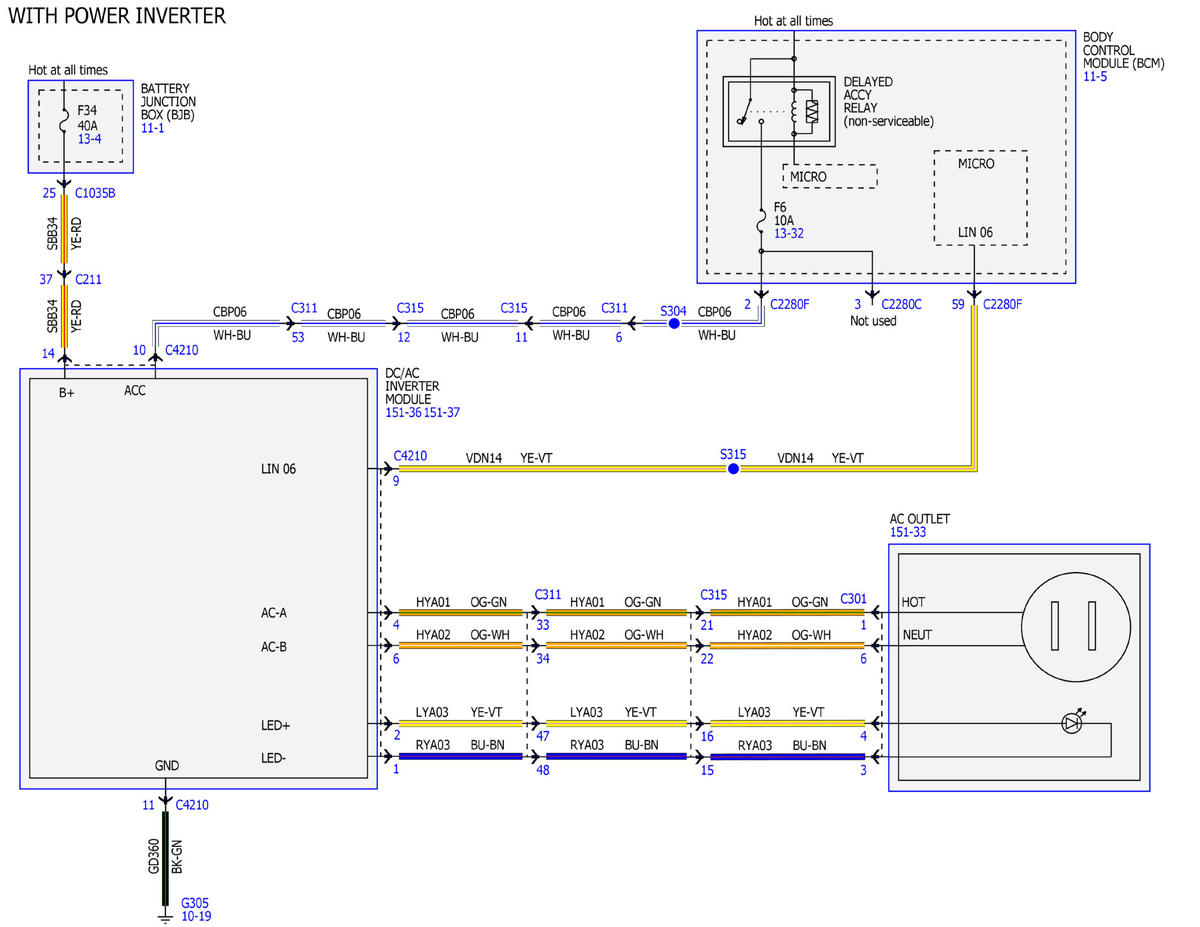

Fig 4: Identifying Horn/Cigar Lighter Wiring Diagram (4 Of 5)
GFDWR130202Courtesy of FORD MOTOR COMPANY

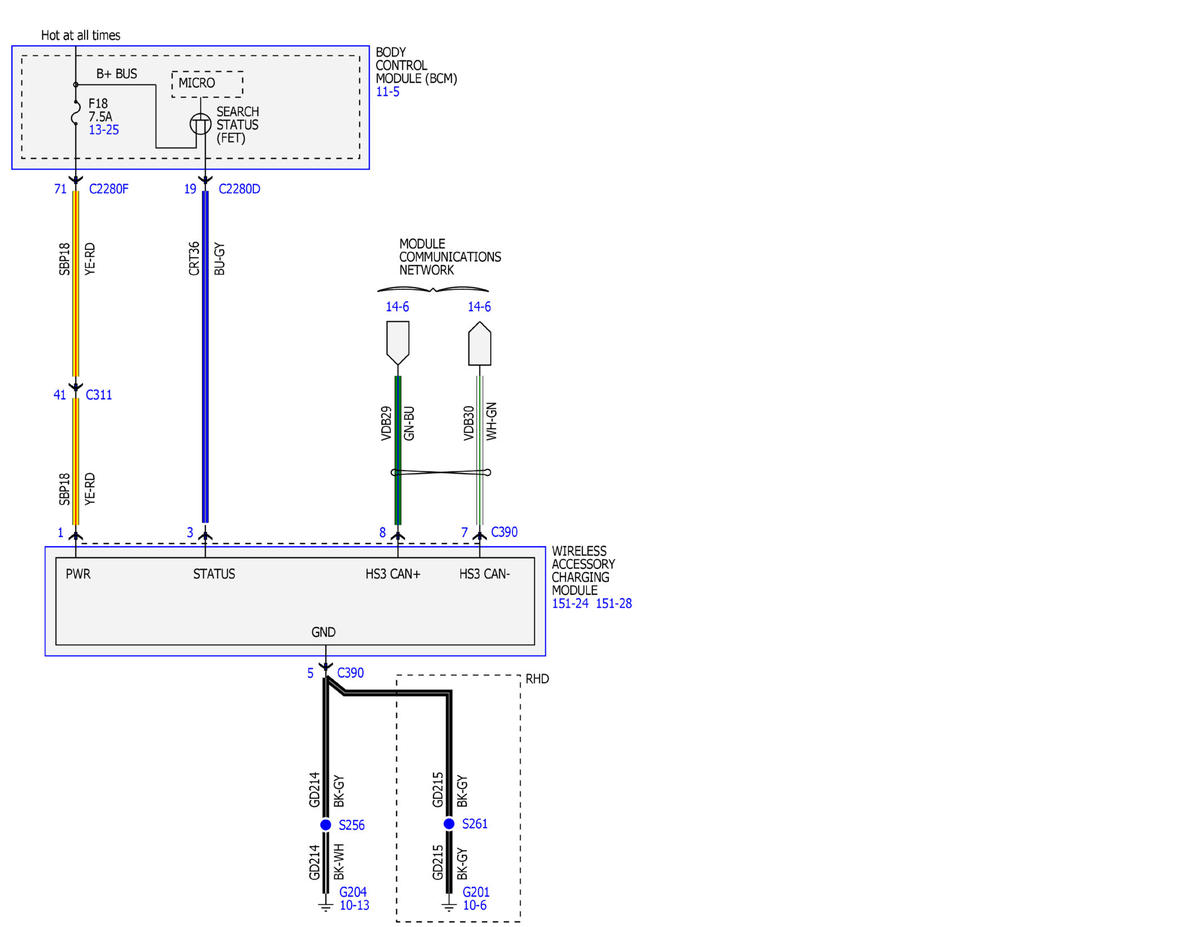

Fig 5: Identifying Horn/Cigar Lighter Wiring Diagram (5 Of 5)
GFDWR130203Courtesy of FORD MOTOR COMPANY
