Heated Window

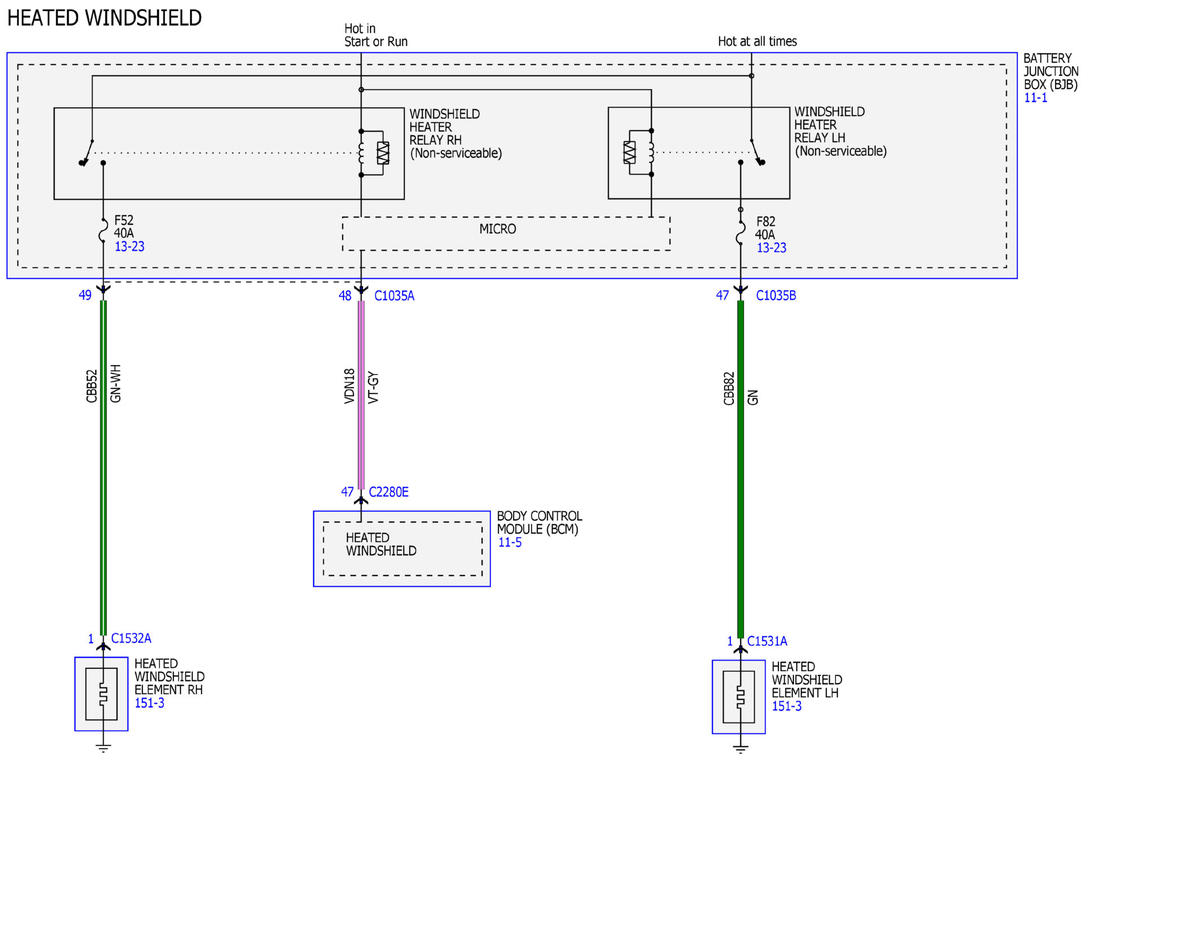

Fig 1: Identifying Heated Window Wiring Diagram (1 Of 6)
GFDWR130193Courtesy of FORD MOTOR COMPANY

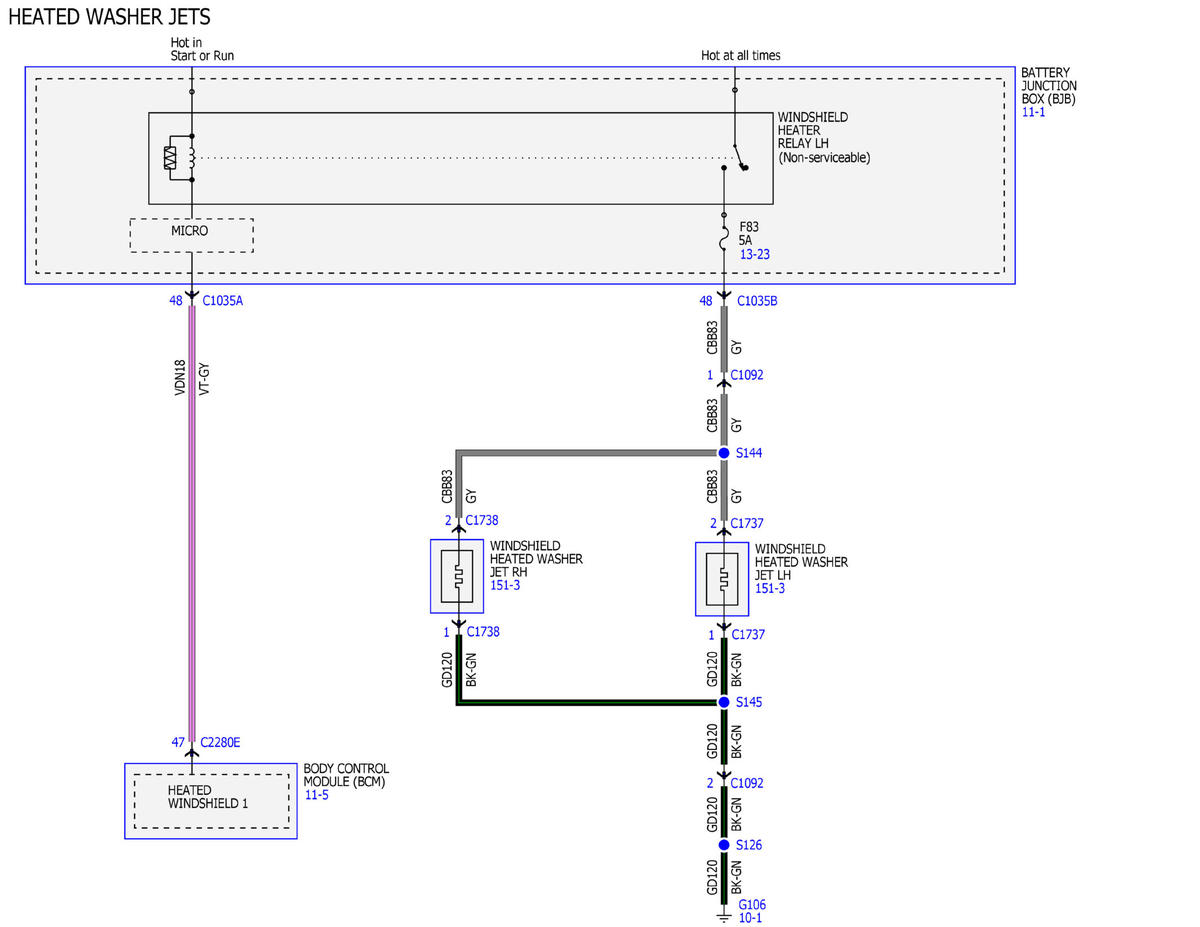

Fig 2: Identifying Heated Window Wiring Diagram (2 Of 6)
GFDWR130194Courtesy of FORD MOTOR COMPANY

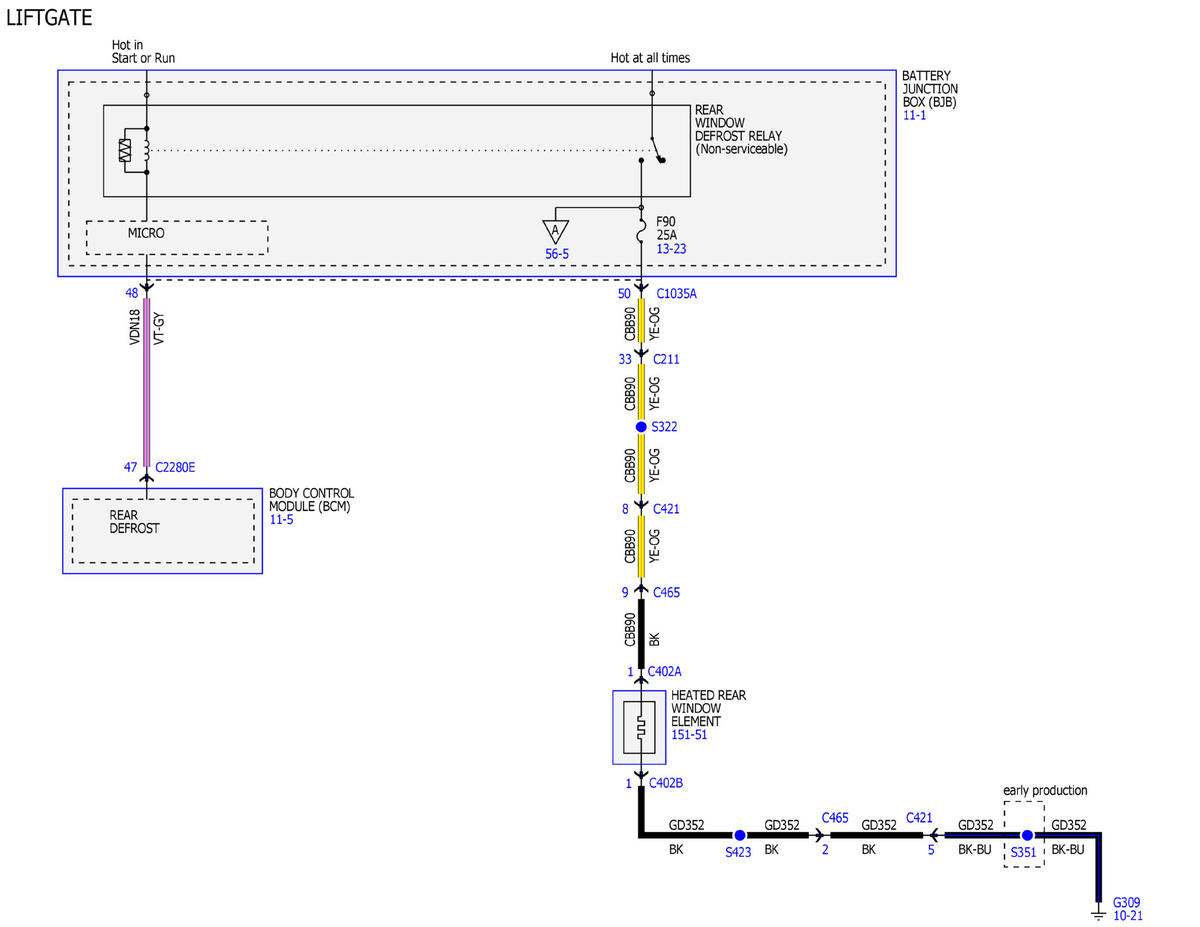

Fig 3: Identifying Heated Window Wiring Diagram (3 Of 6)
GFDWR130195Courtesy of FORD MOTOR COMPANY

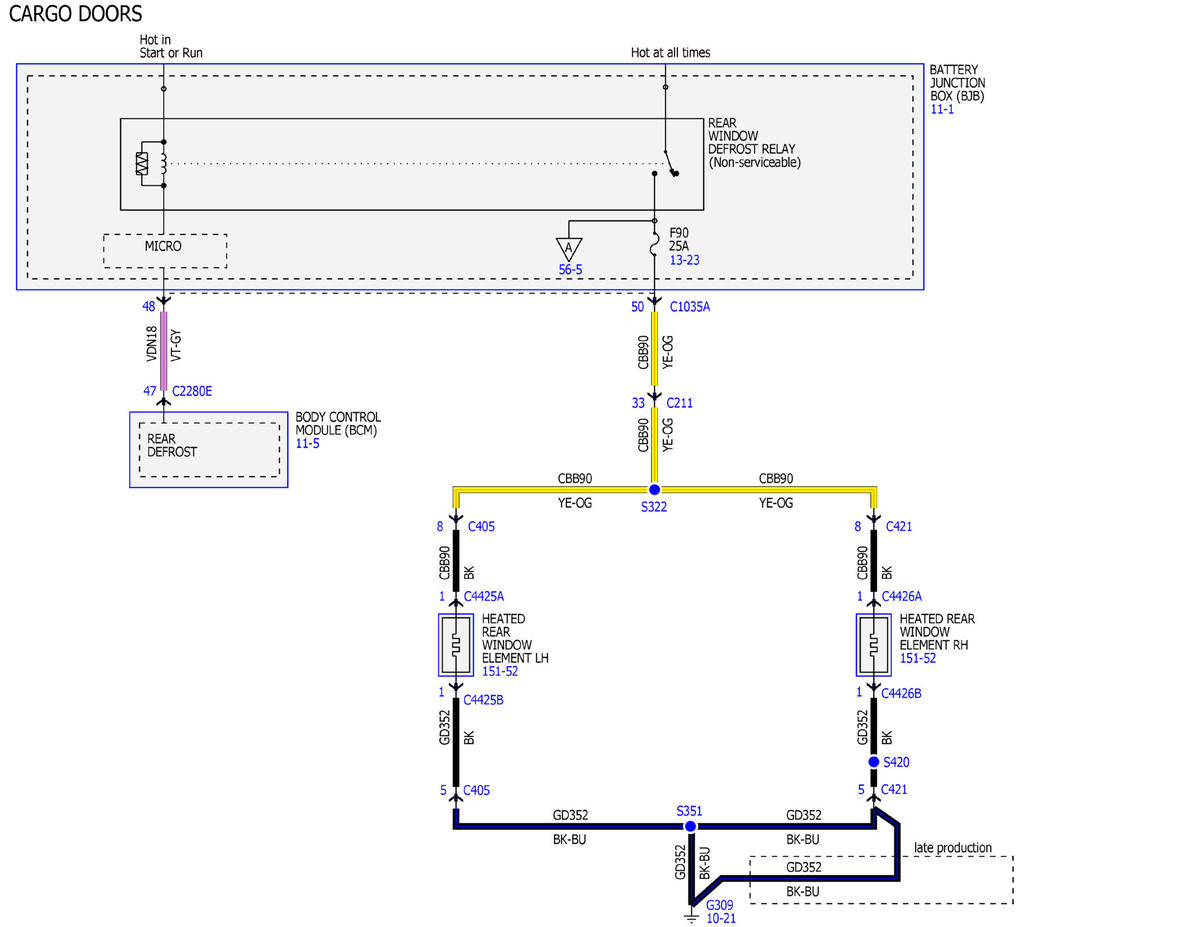

Fig 4: Identifying Heated Window Wiring Diagram (4 Of 6)
GFDWR130196Courtesy of FORD MOTOR COMPANY

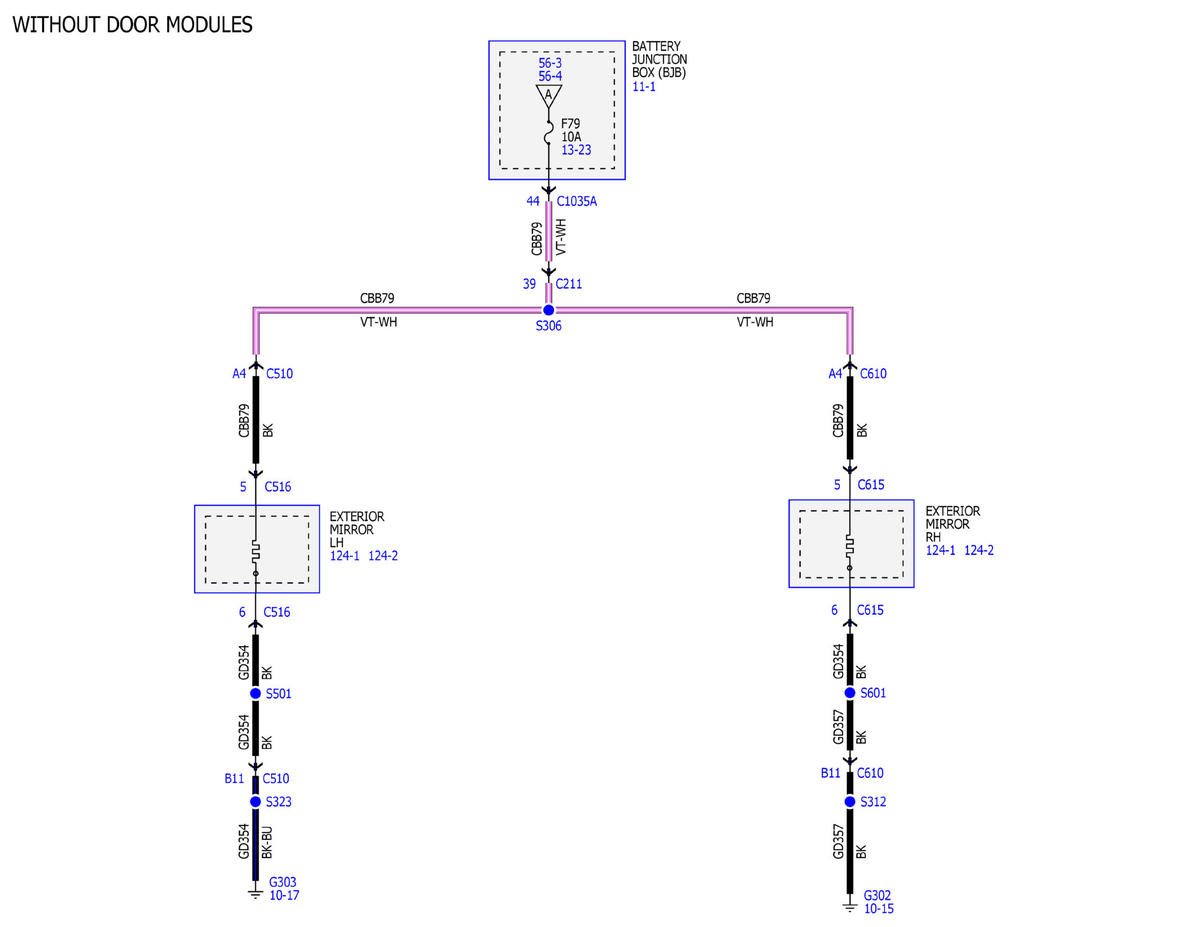

Fig 5: Identifying Heated Window Wiring Diagram (5 Of 6)
GFDWR130197Courtesy of FORD MOTOR COMPANY
Fig 6: Identifying Heated Window Wiring Diagram (6 Of 6)
GFDWR130198Courtesy of FORD MOTOR COMPANY
