Electronic Engine Controls - 2.5L

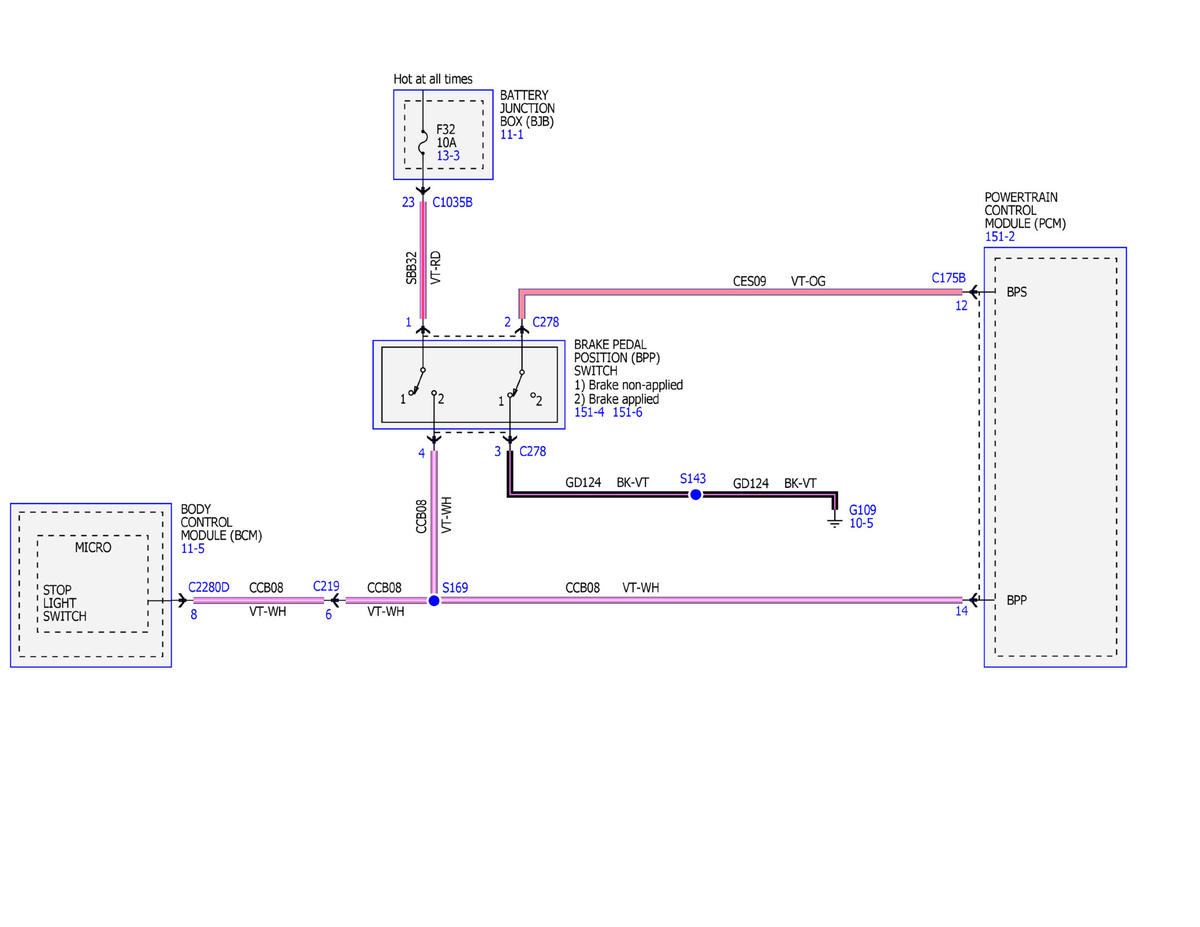

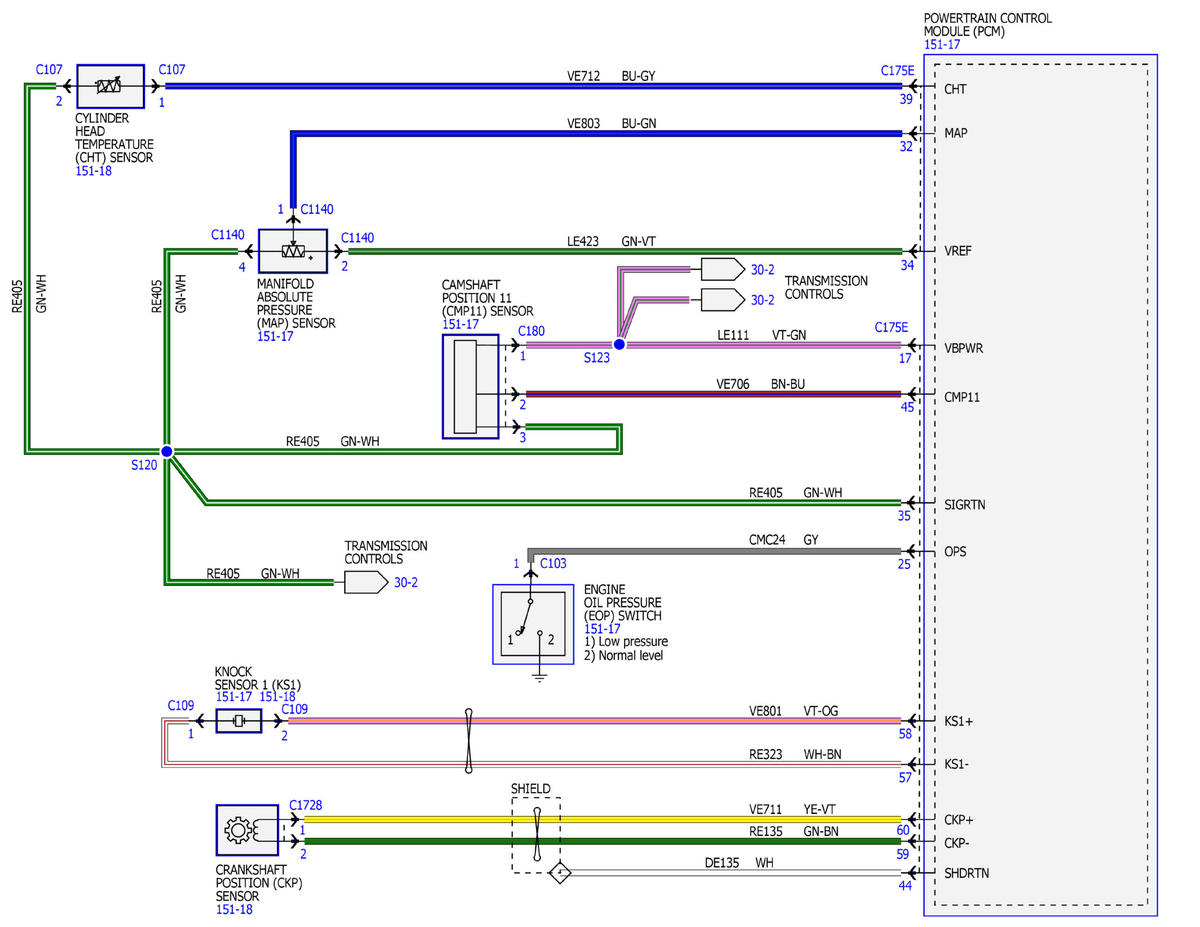

Fig 1: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (1 Of 11)

Courtesy of FORD MOTOR COMPANY

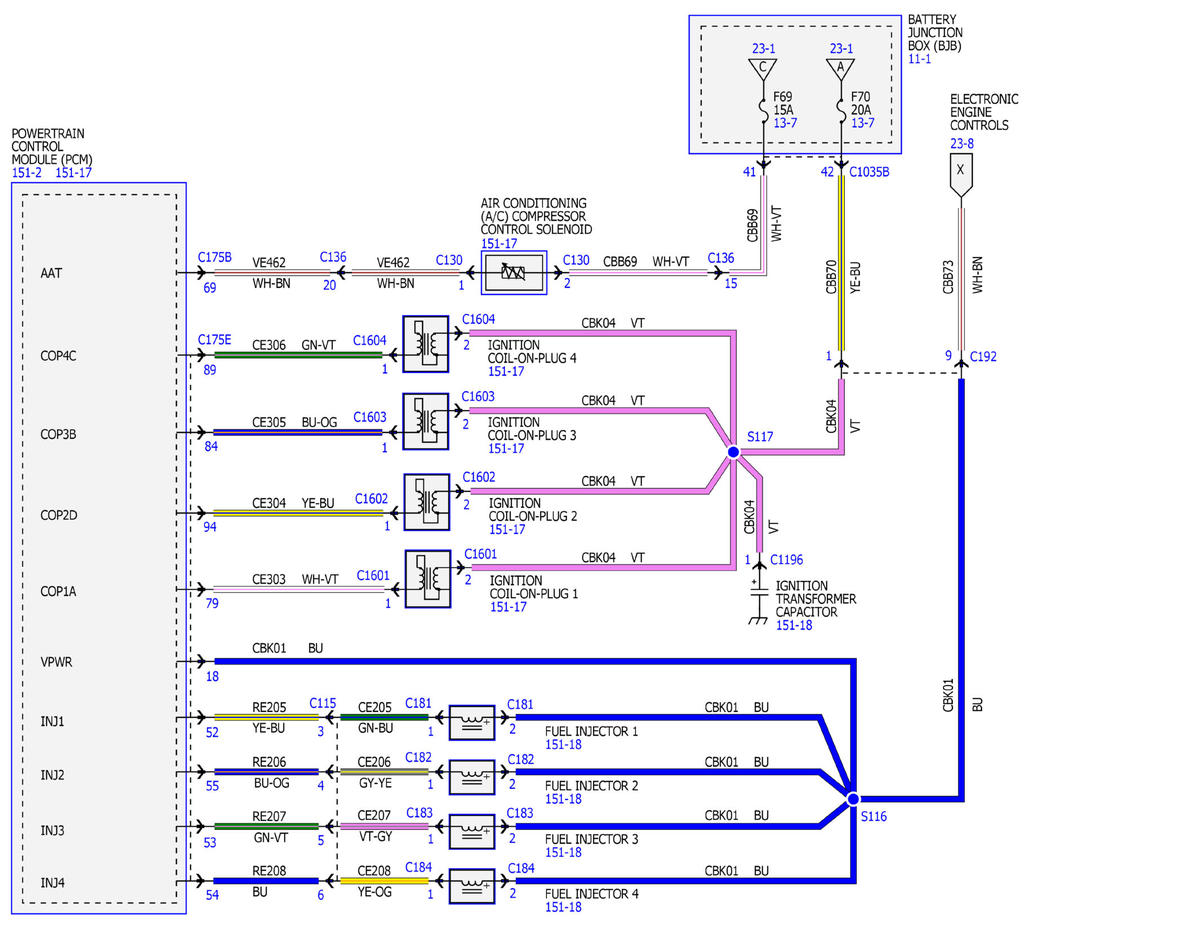

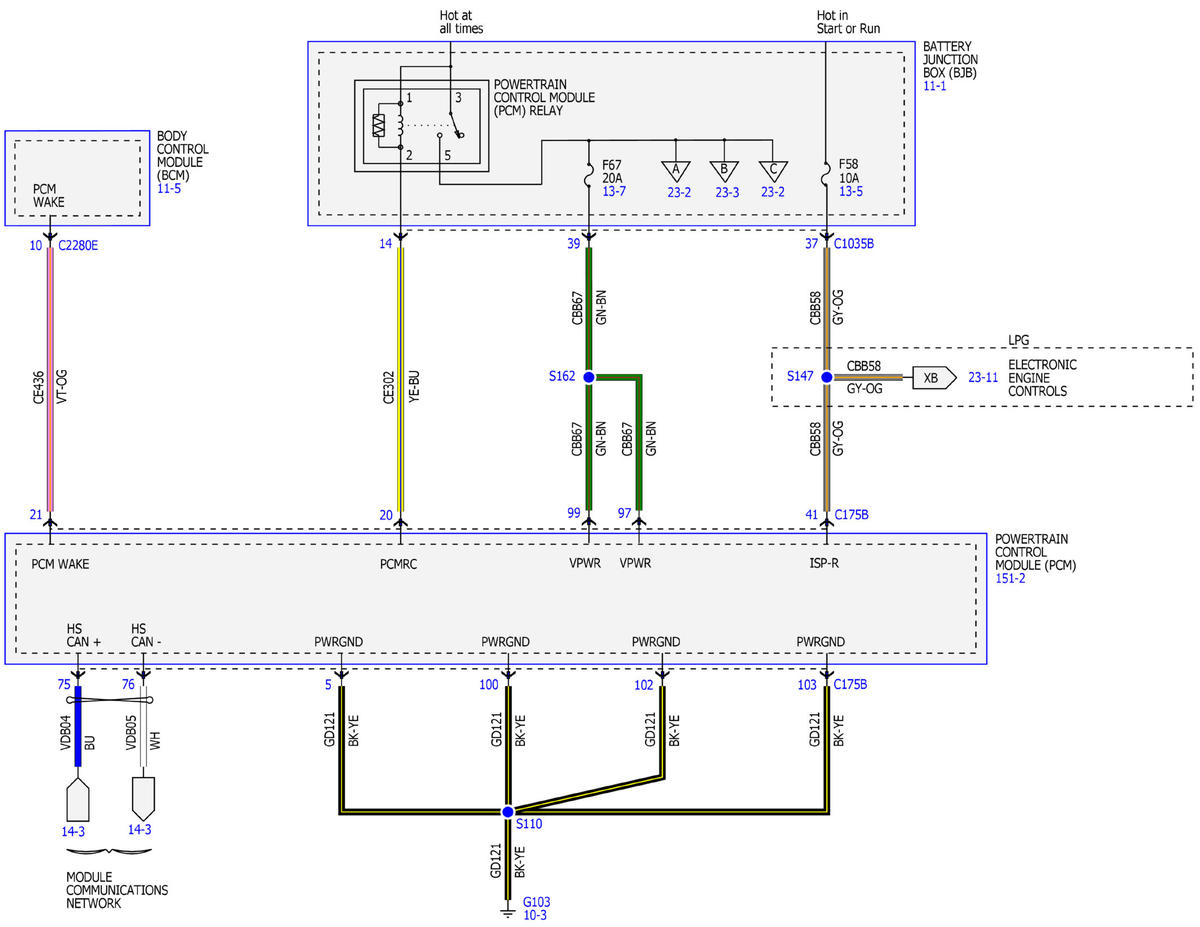

Fig 2: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (2 Of 11)

Courtesy of FORD MOTOR COMPANY

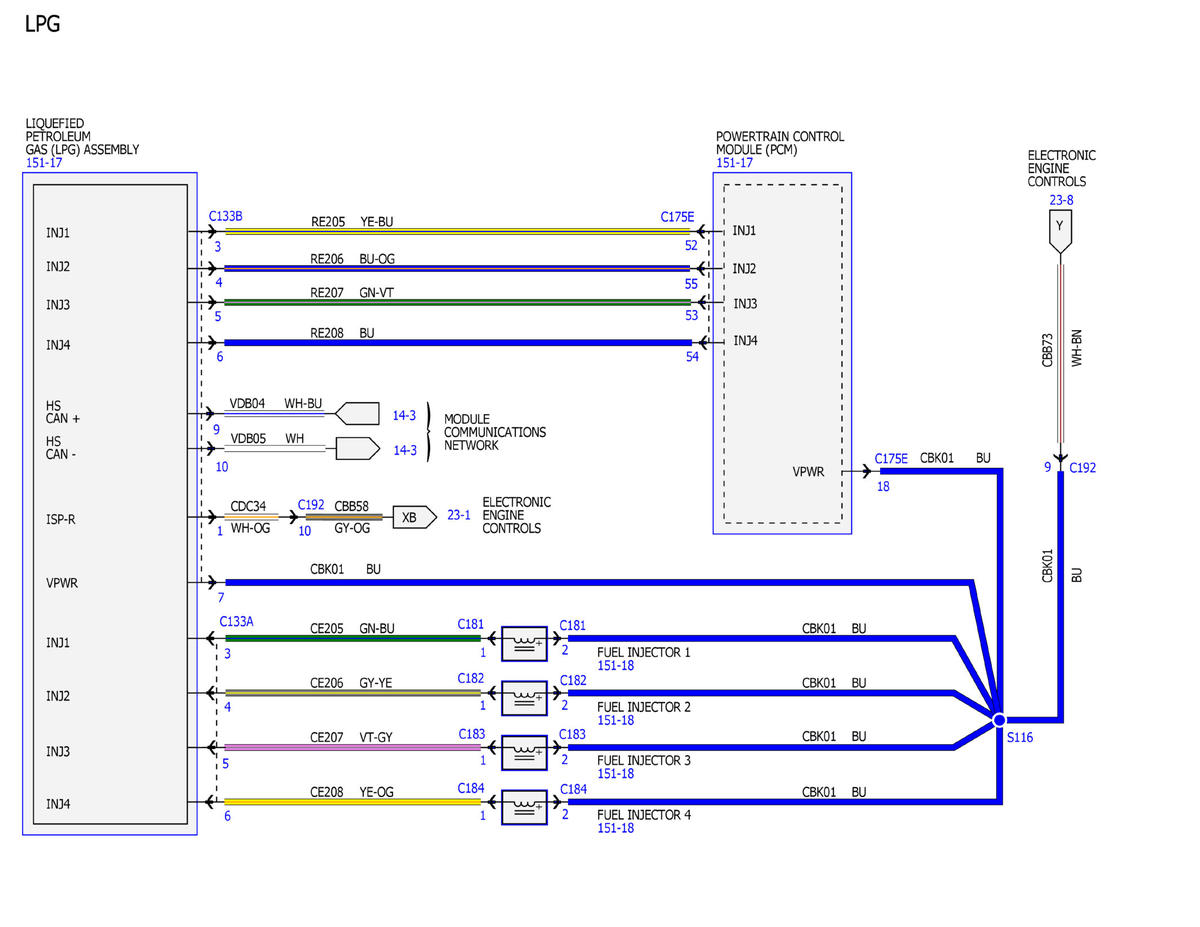

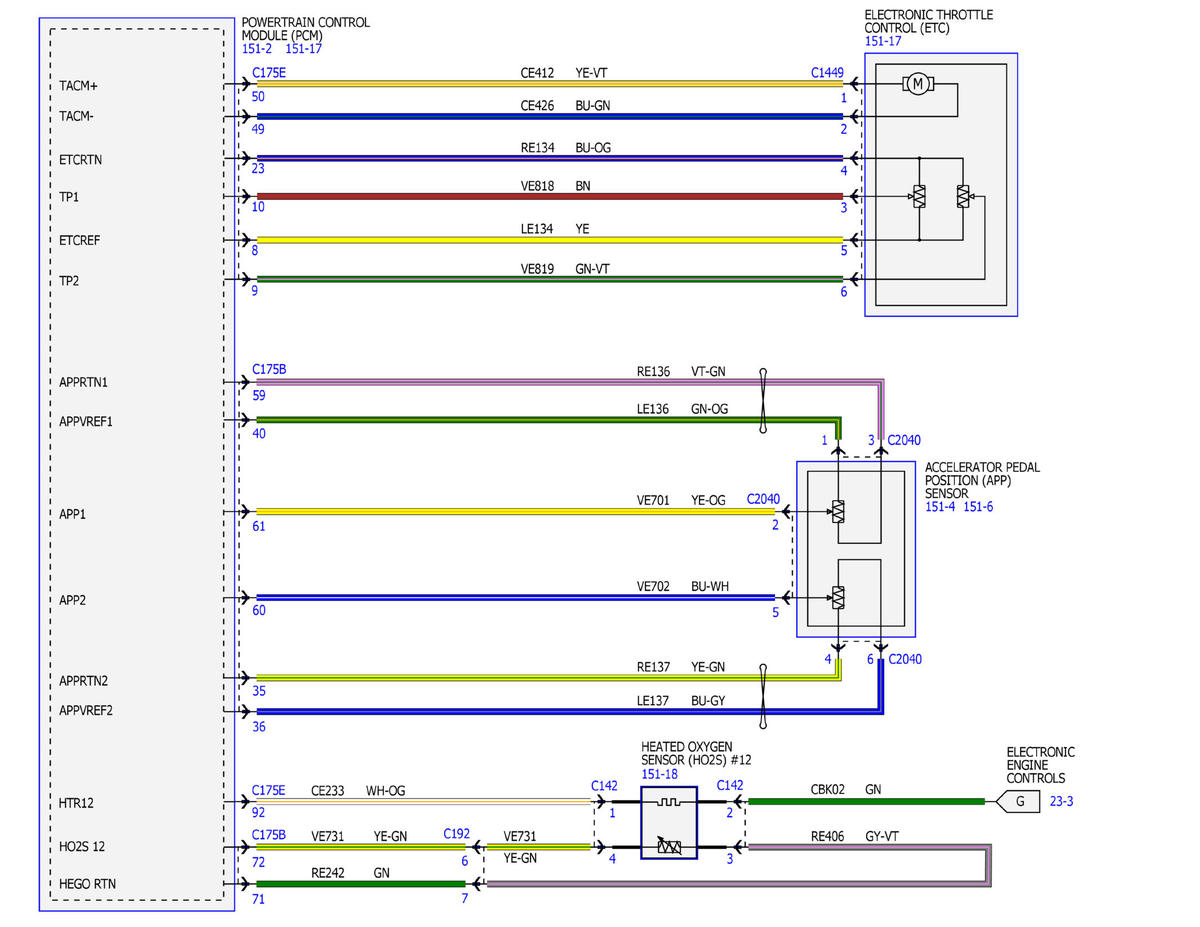

Fig 3: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (3 Of 11)

Courtesy of FORD MOTOR COMPANY

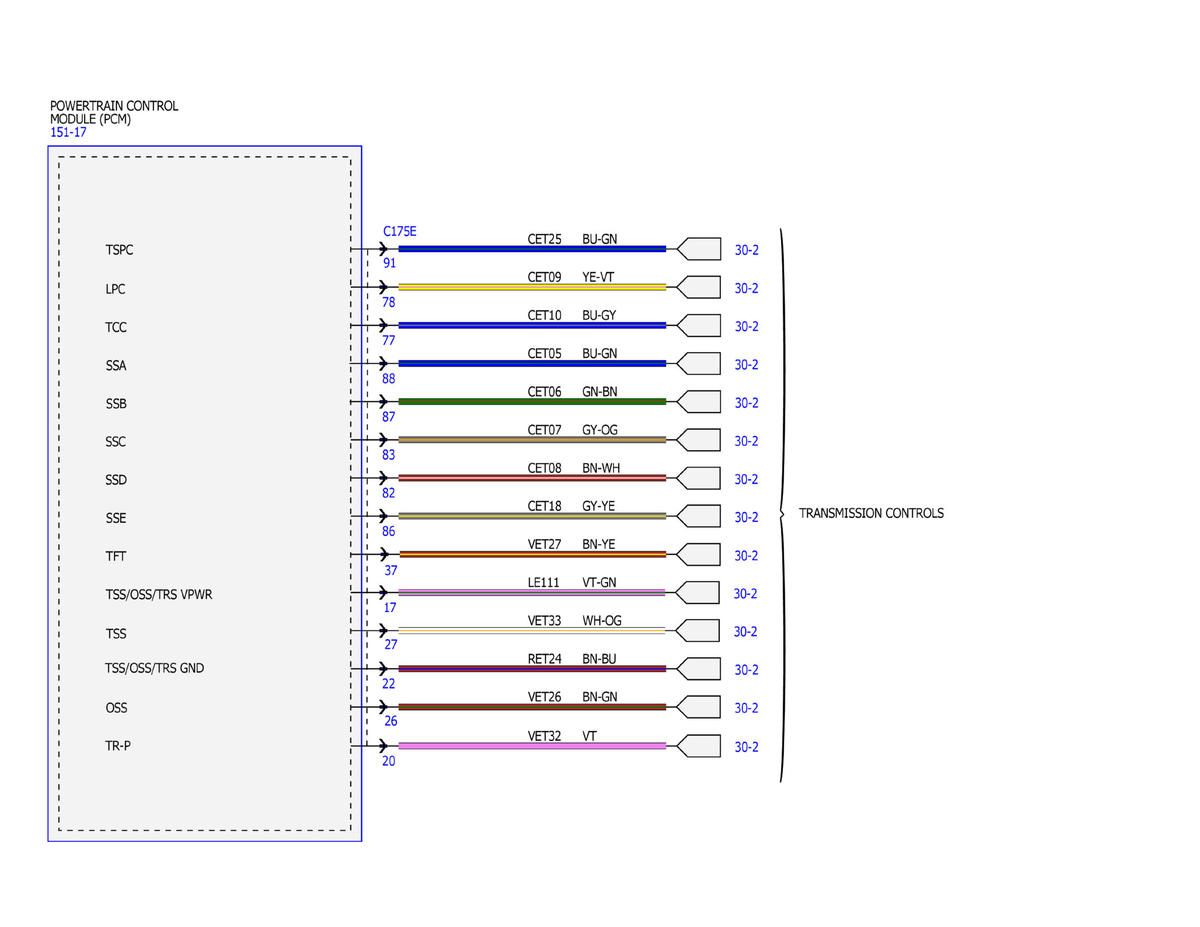

Fig 4: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (4 Of 11)

Courtesy of FORD MOTOR COMPANY

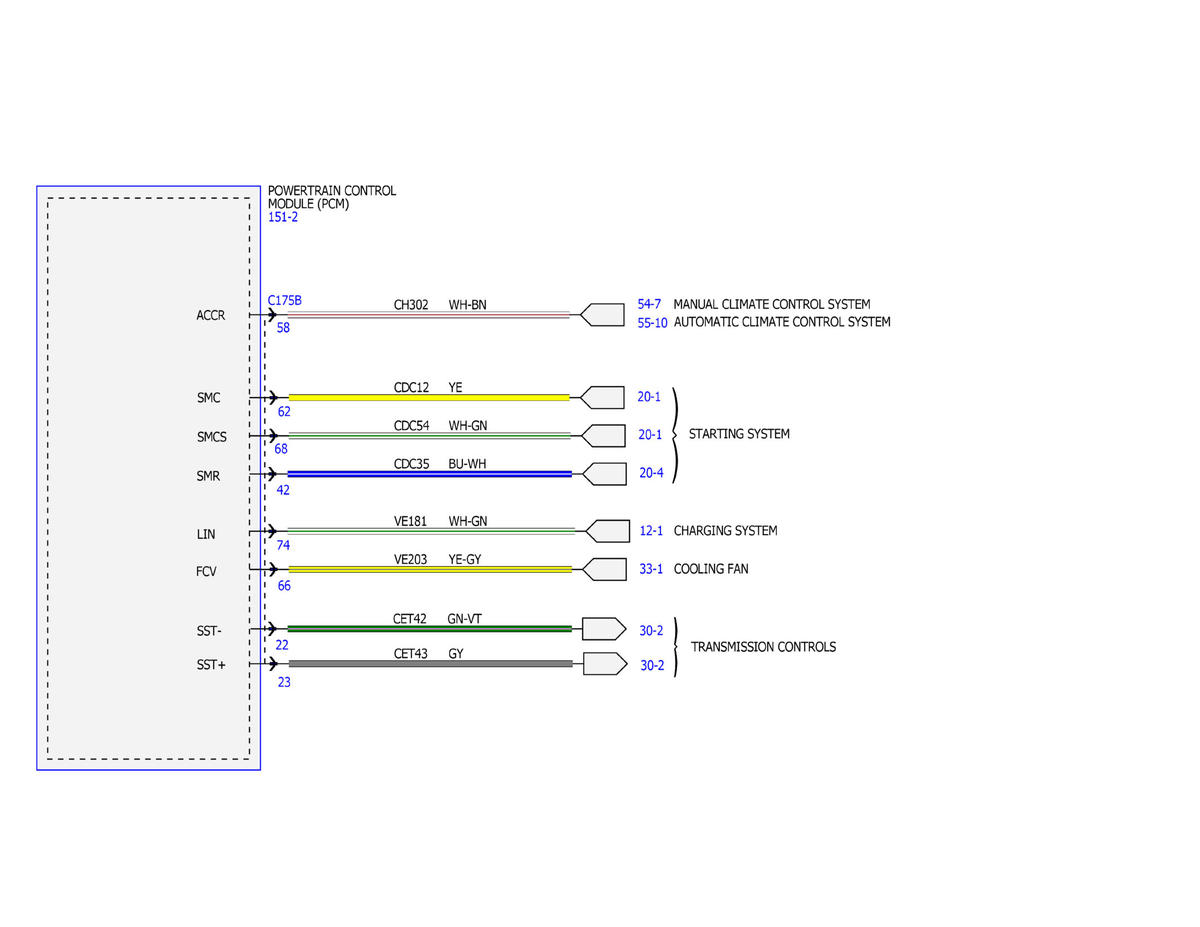

Fig 5: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (5 Of 11)

Courtesy of FORD MOTOR COMPANY

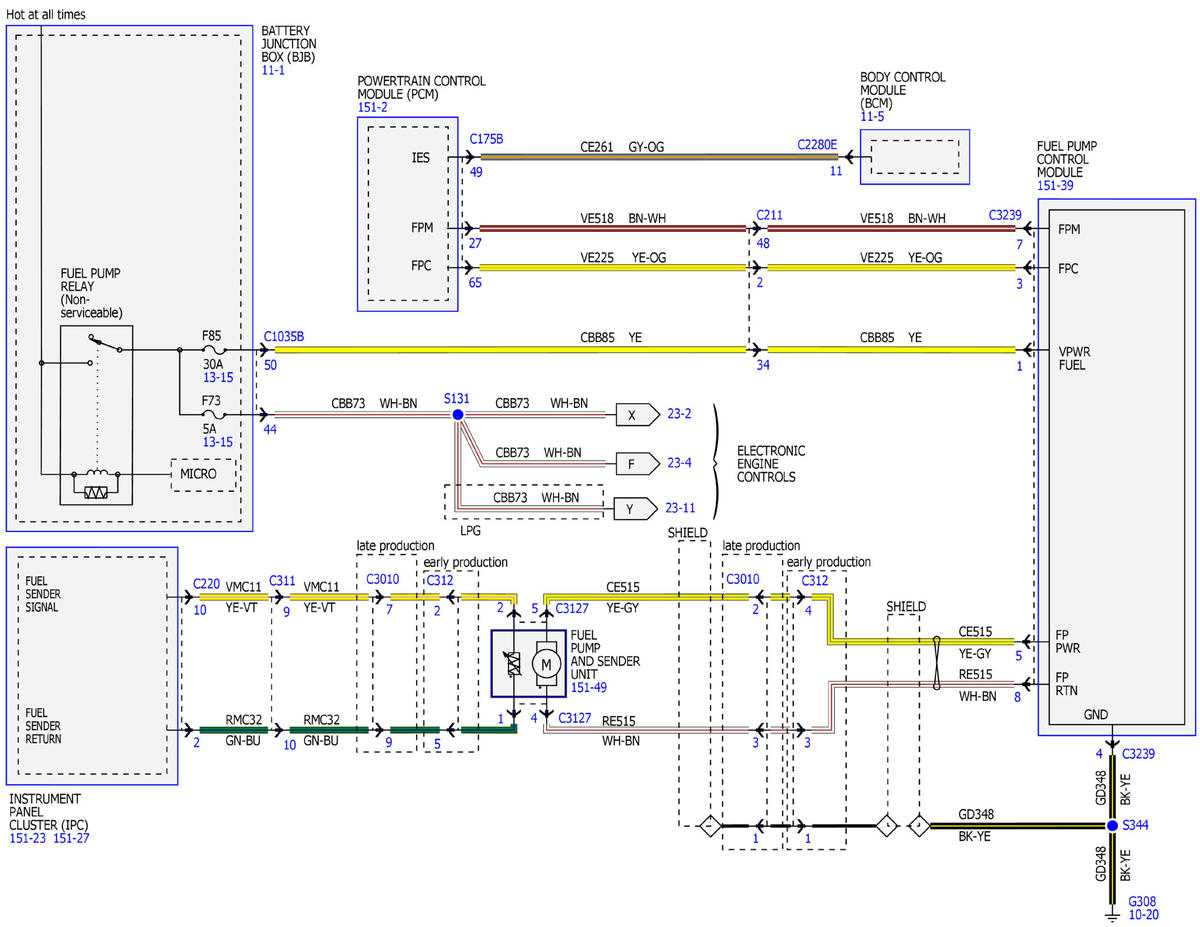

Fig 6: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (6 Of 11)

Courtesy of FORD MOTOR COMPANY

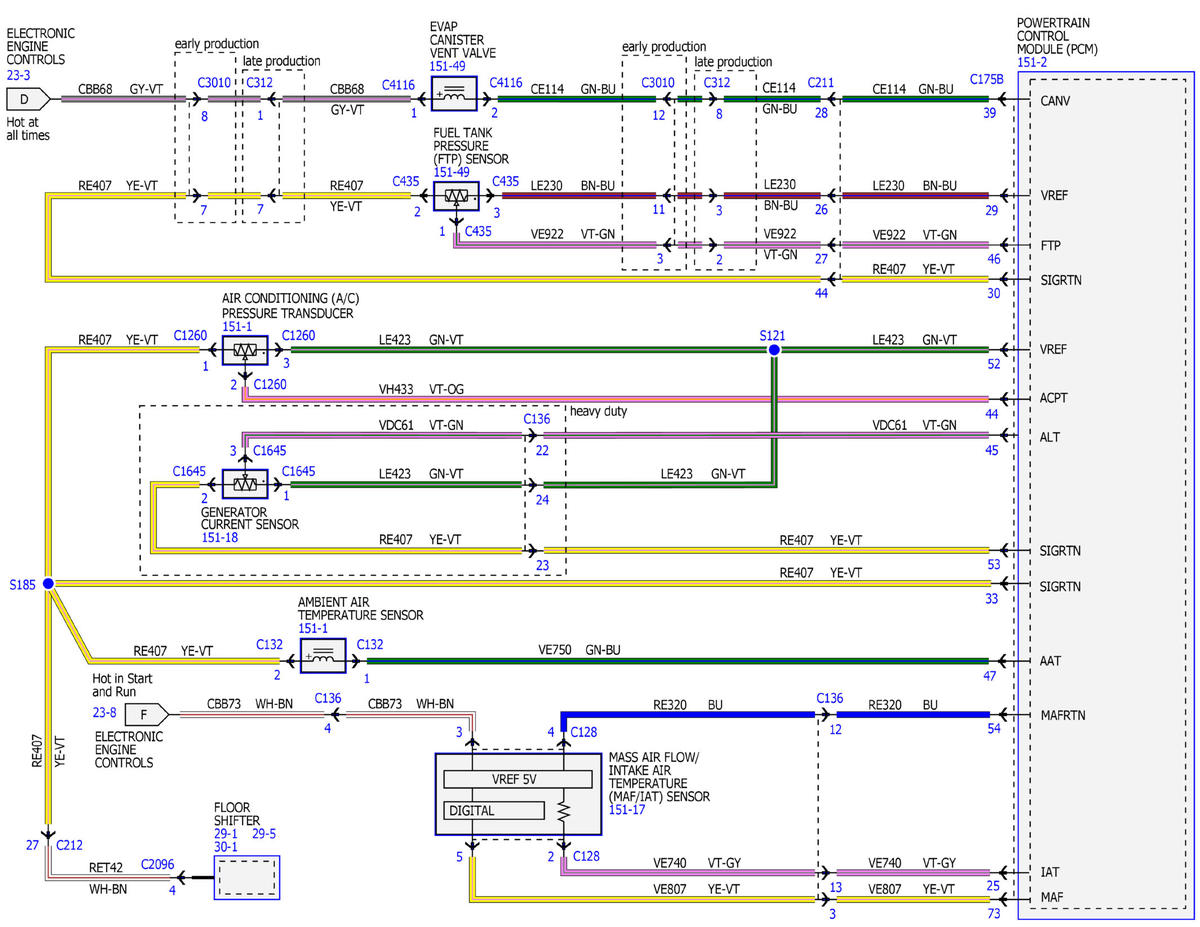

Fig 7: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (7 Of 11)

Courtesy of FORD MOTOR COMPANY

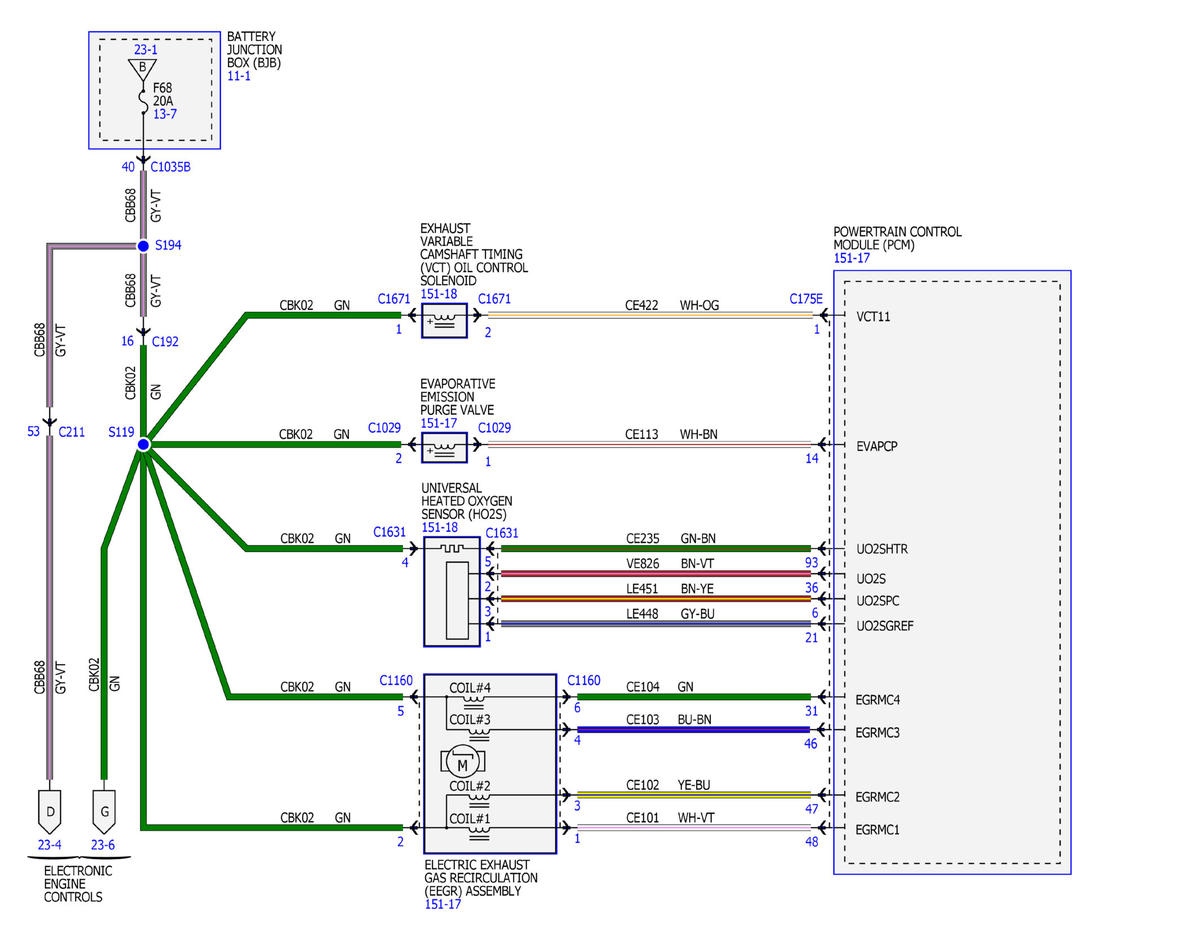

Fig 8: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (8 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (9 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (10 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Identifying Electronic Engine Controls - 2.5L Wiring Diagram (11 Of 11)

Courtesy of FORD MOTOR COMPANY
