Electronic Engine Controls - 1.5L Diesel

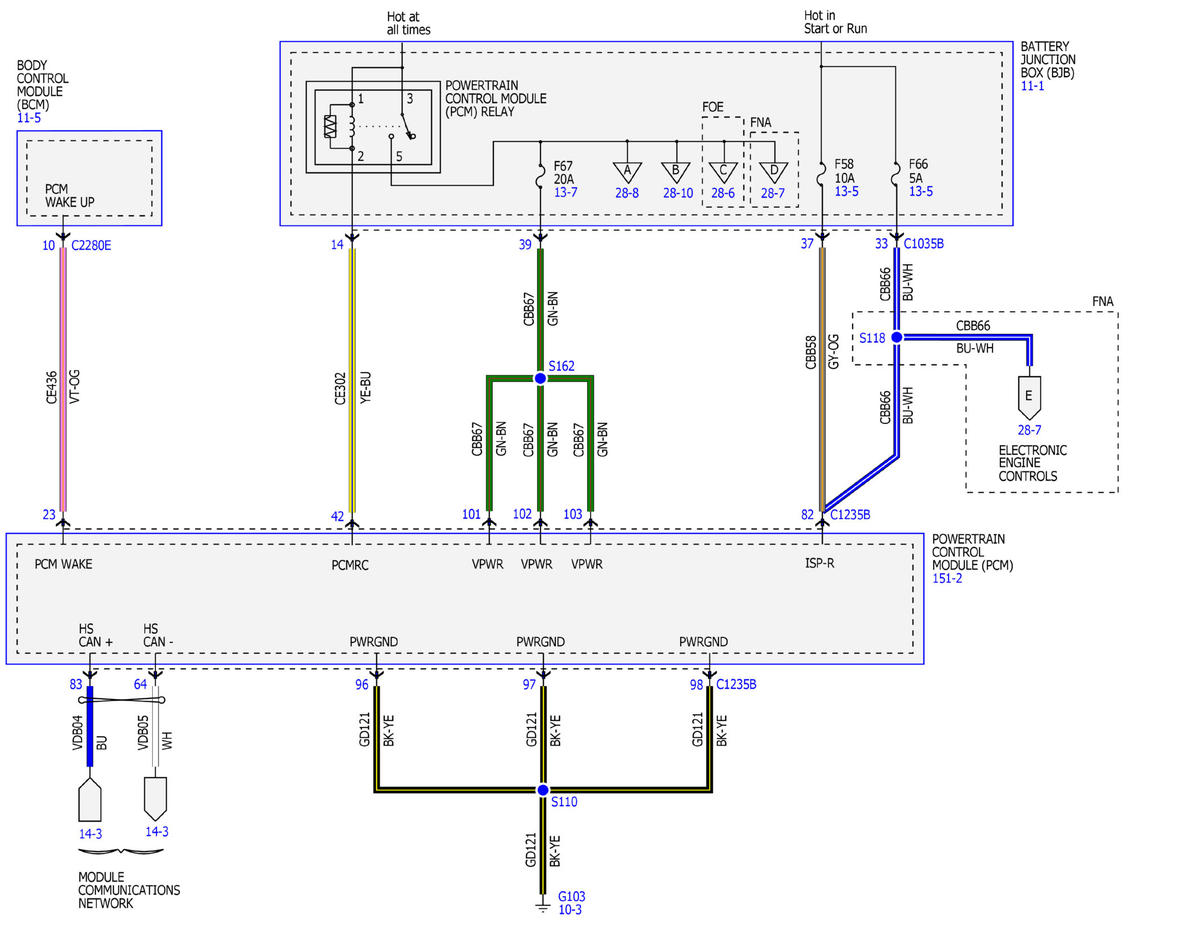

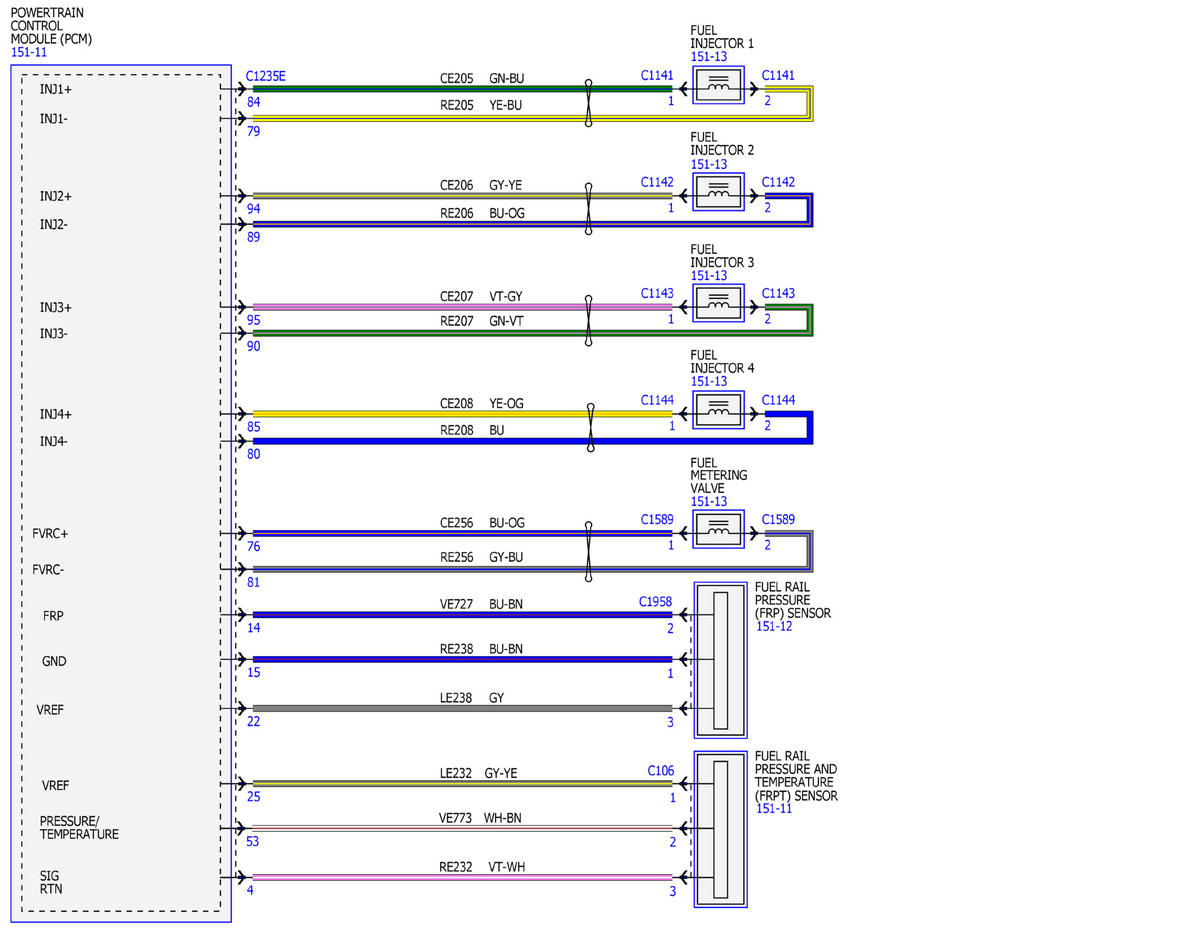

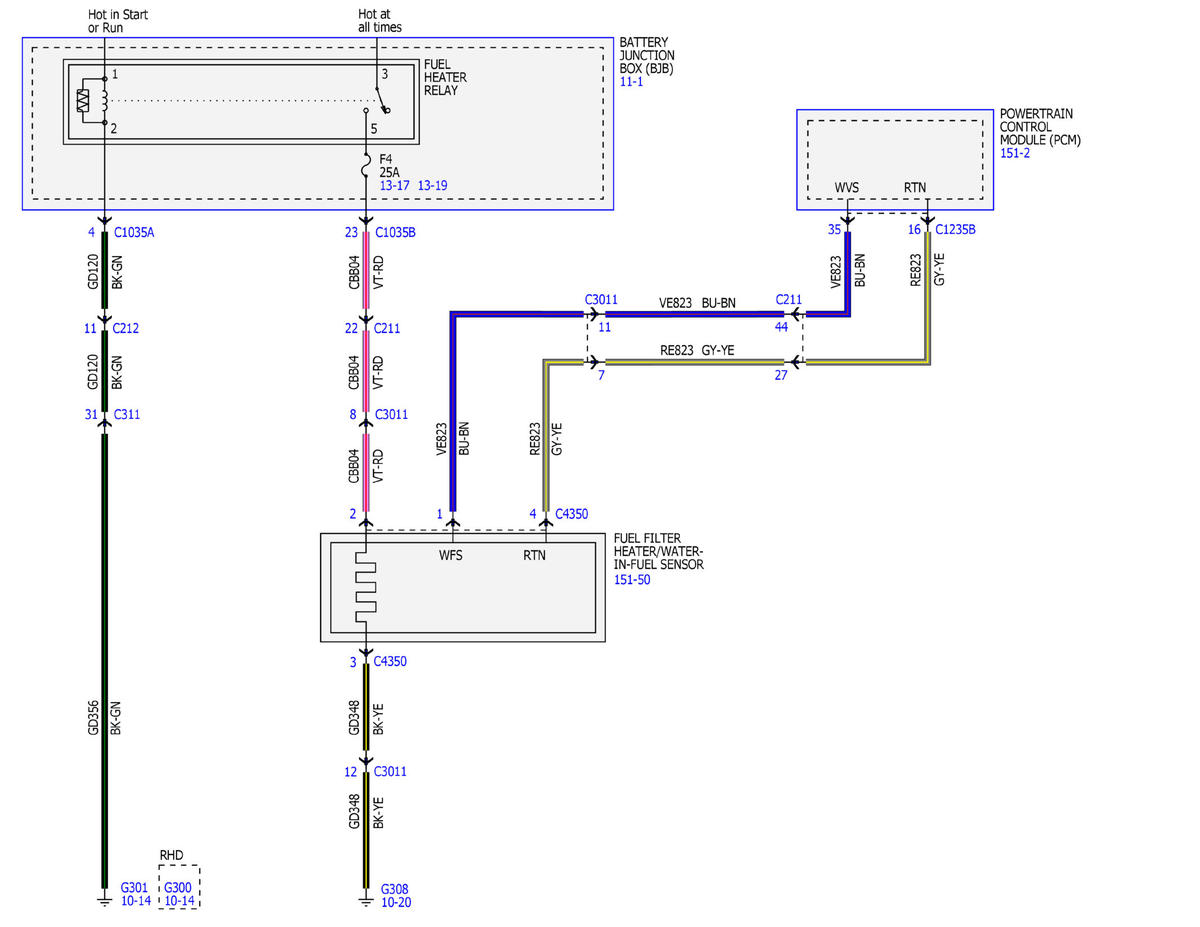

Fig 1: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (1 Of 19)

Courtesy of FORD MOTOR COMPANY

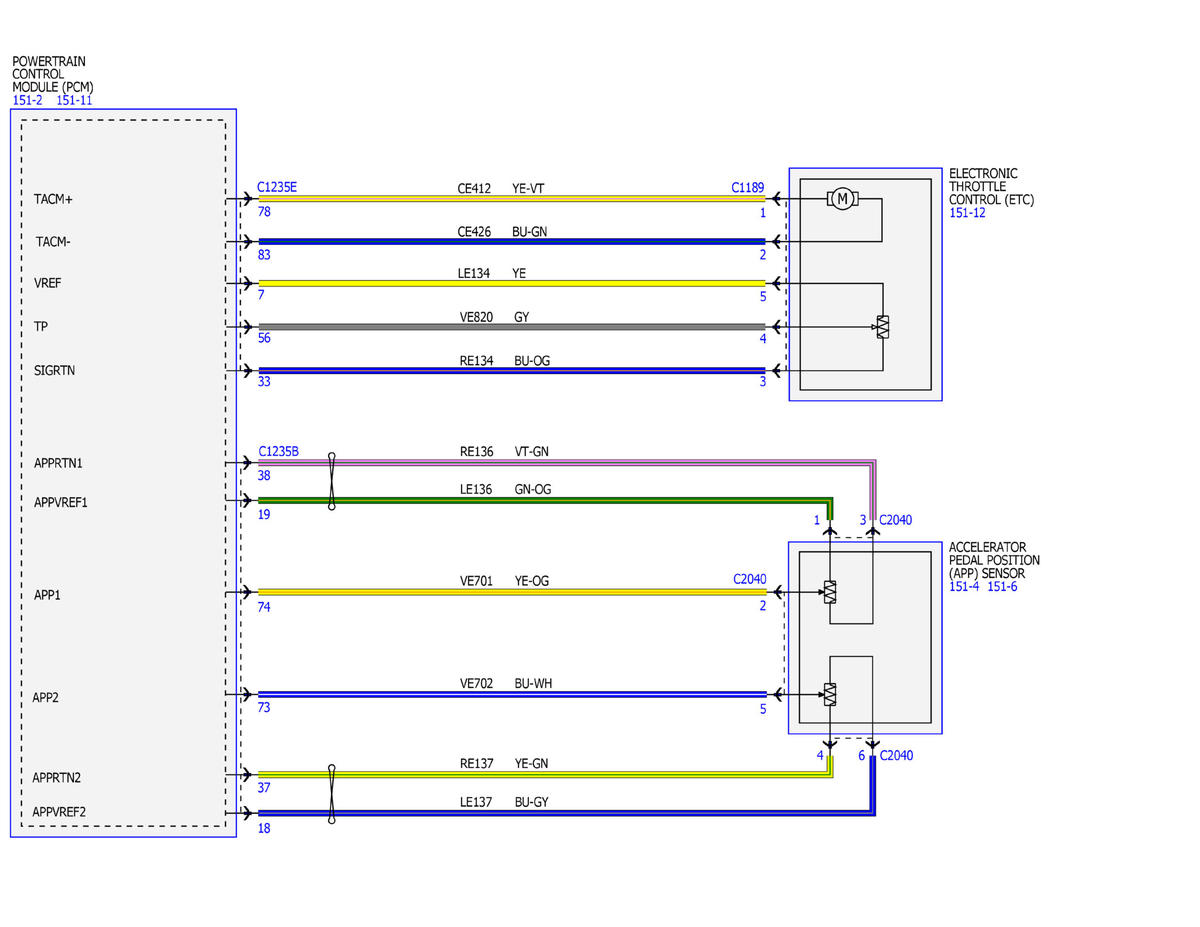

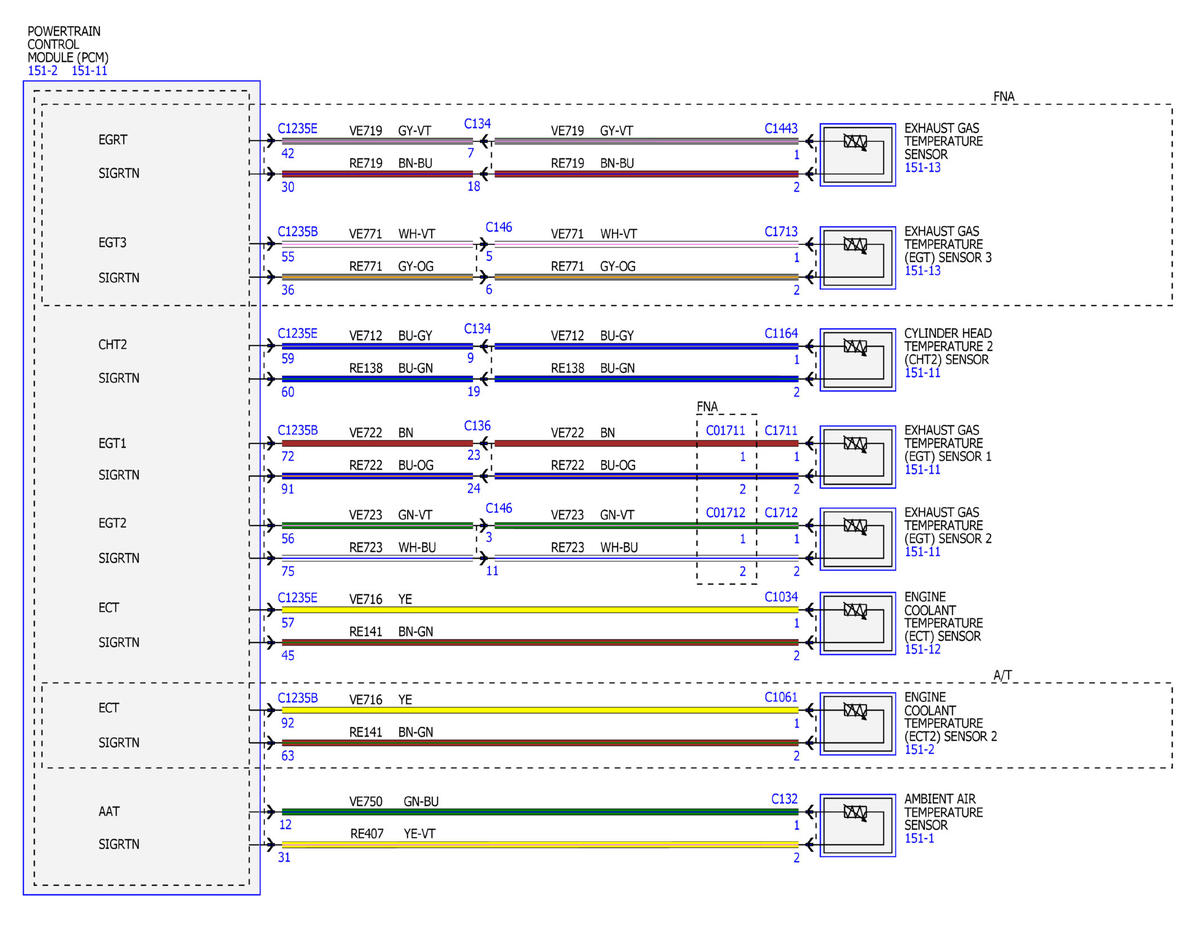

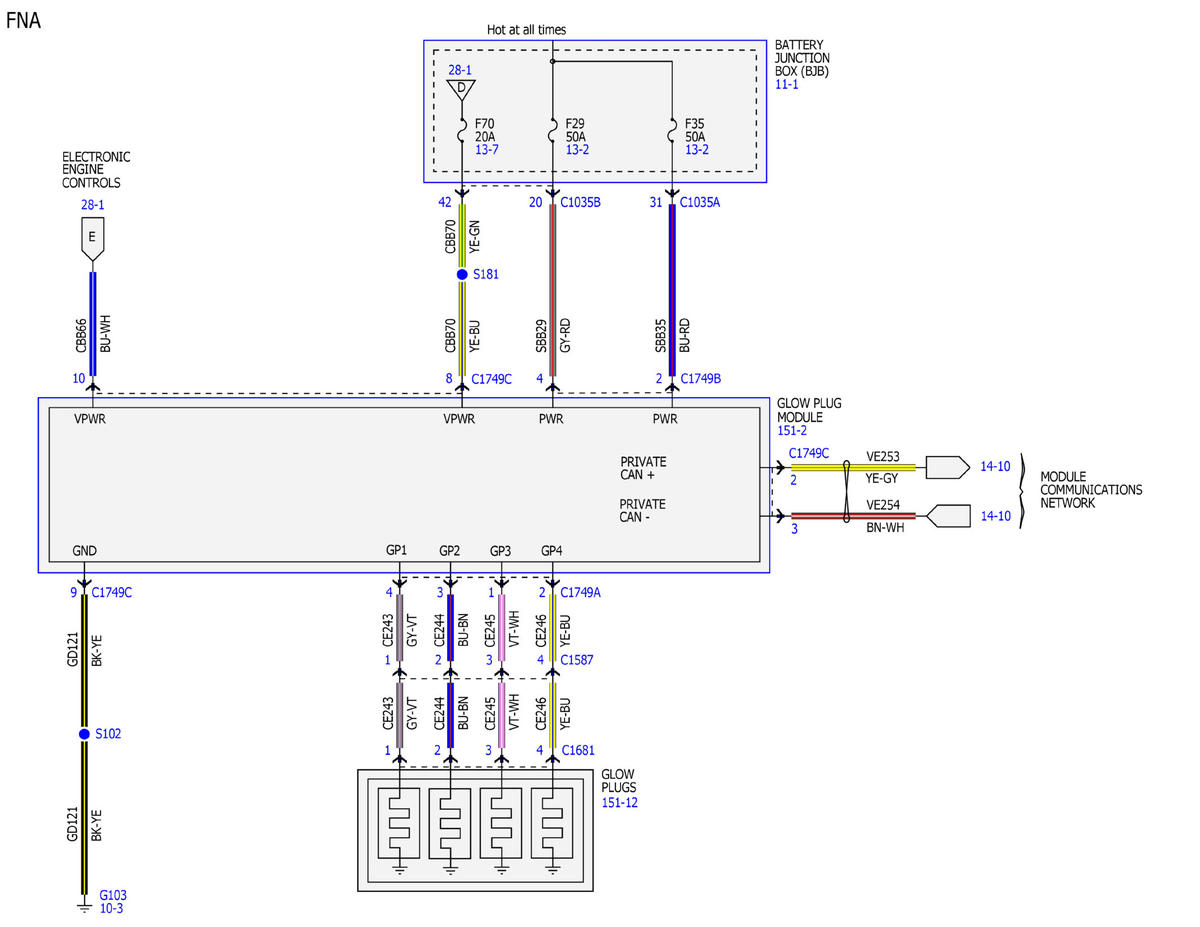

Fig 2: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (2 Of 19)

Courtesy of FORD MOTOR COMPANY

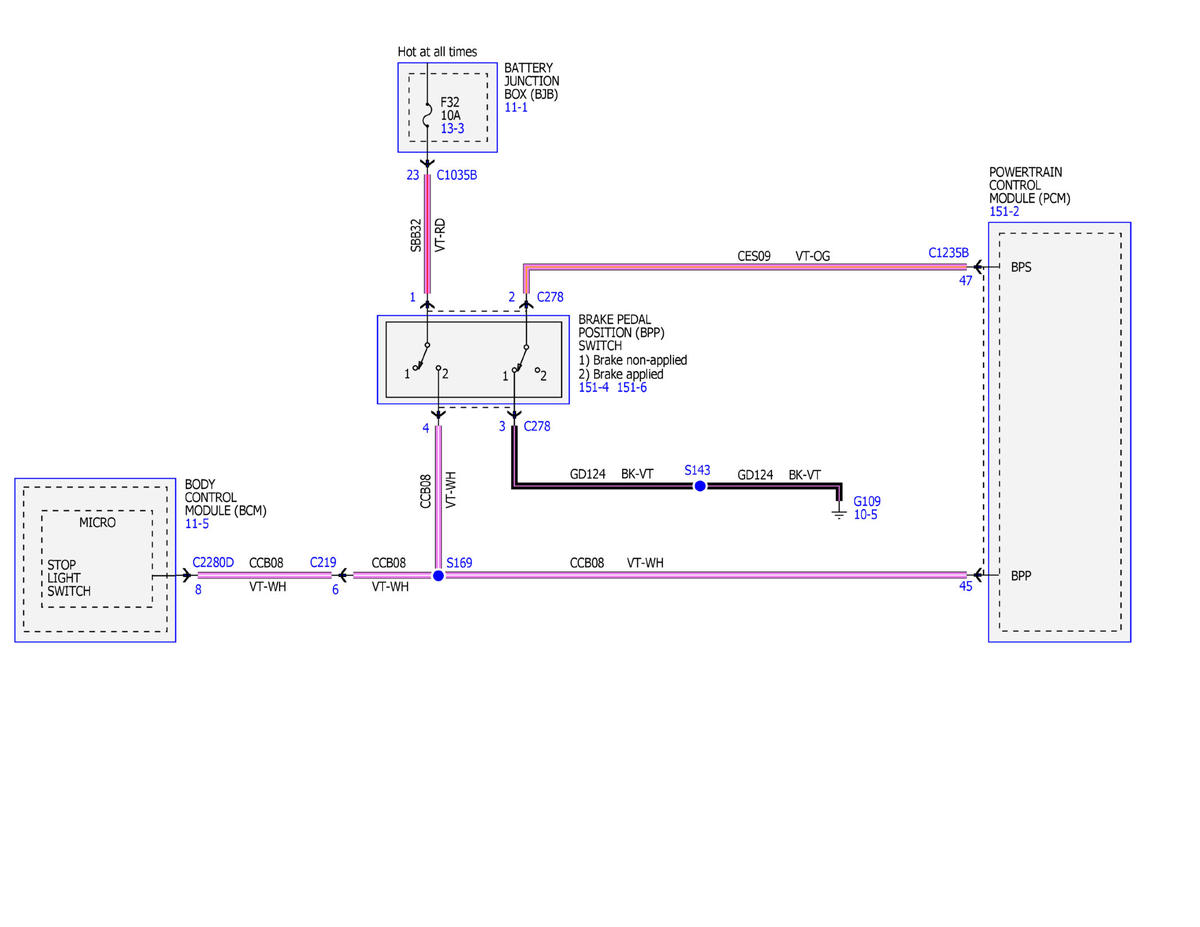

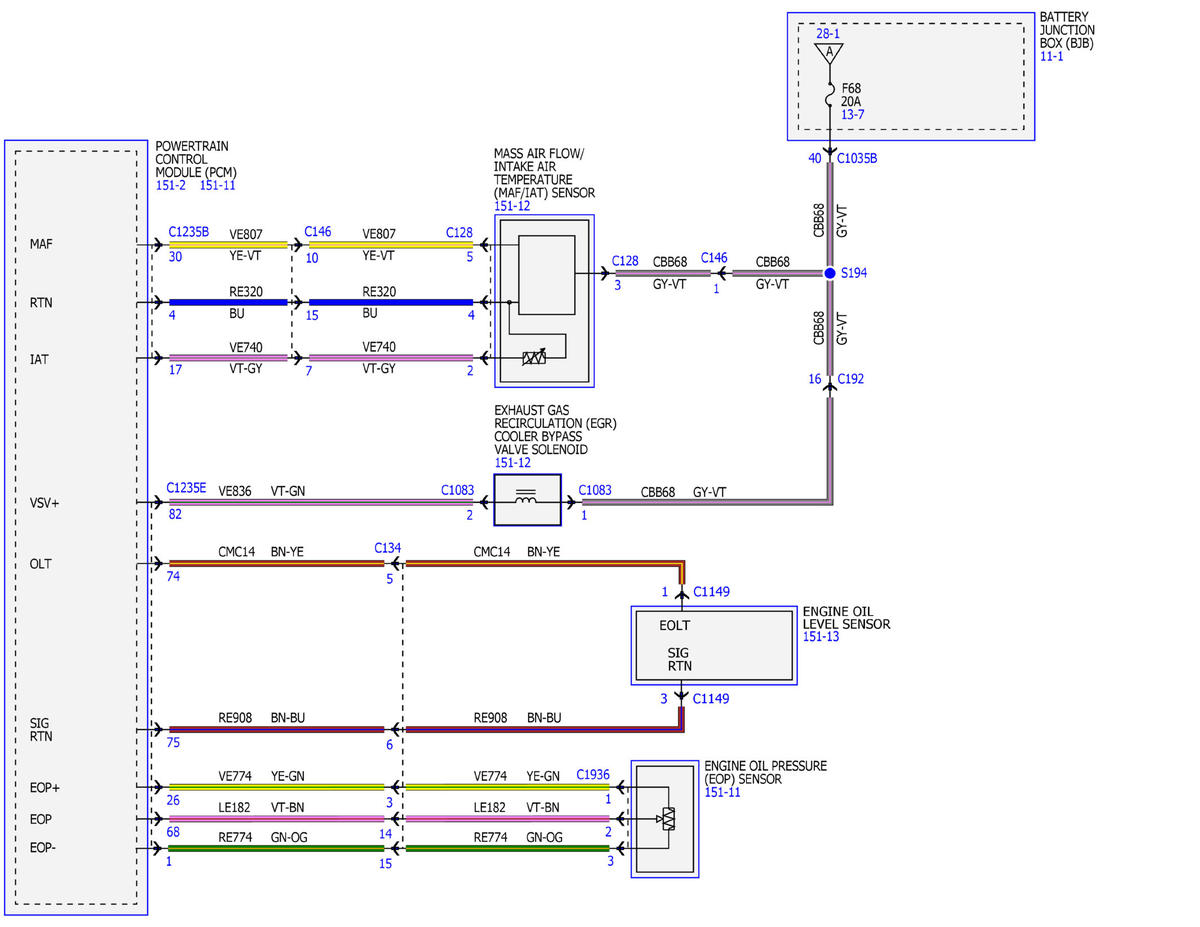

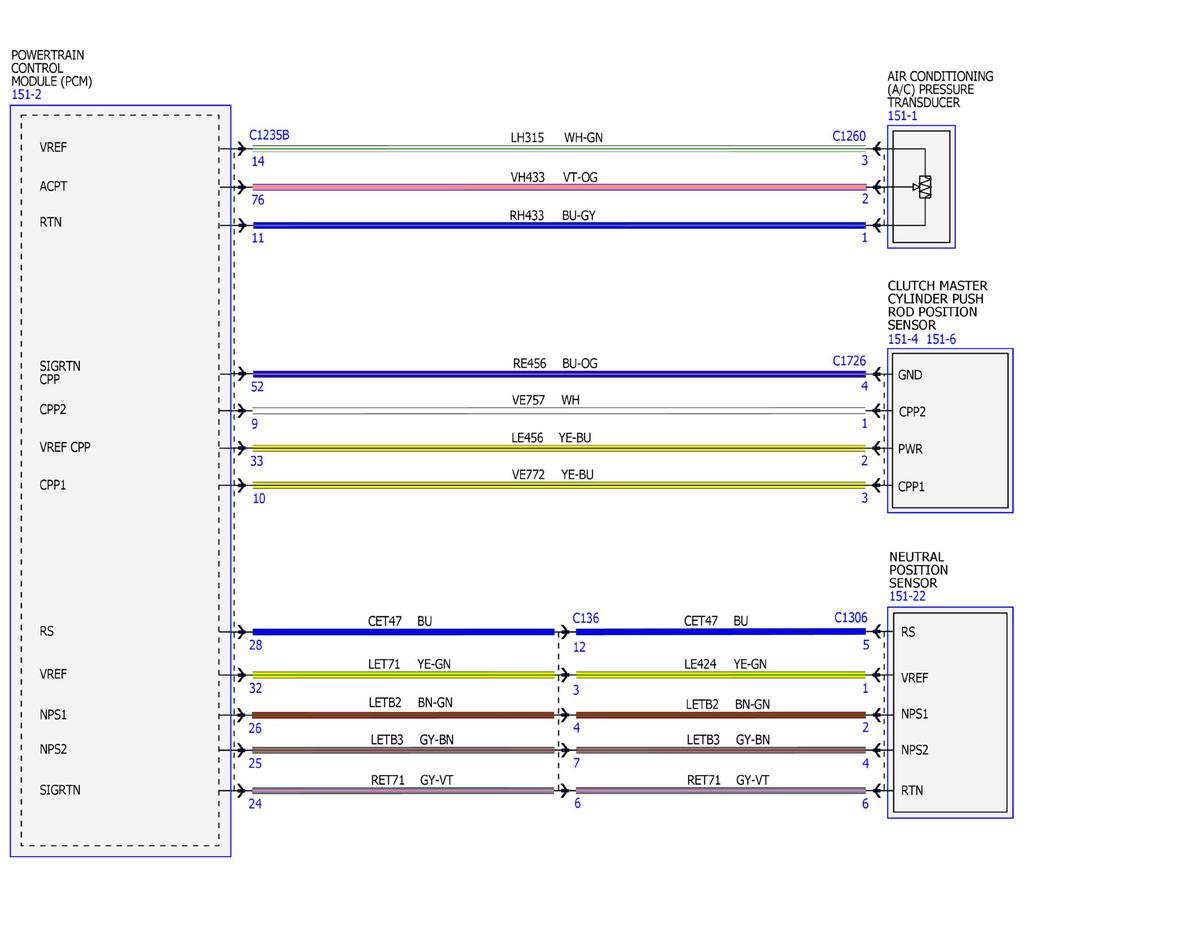

Fig 3: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (3 Of 19)

Courtesy of FORD MOTOR COMPANY

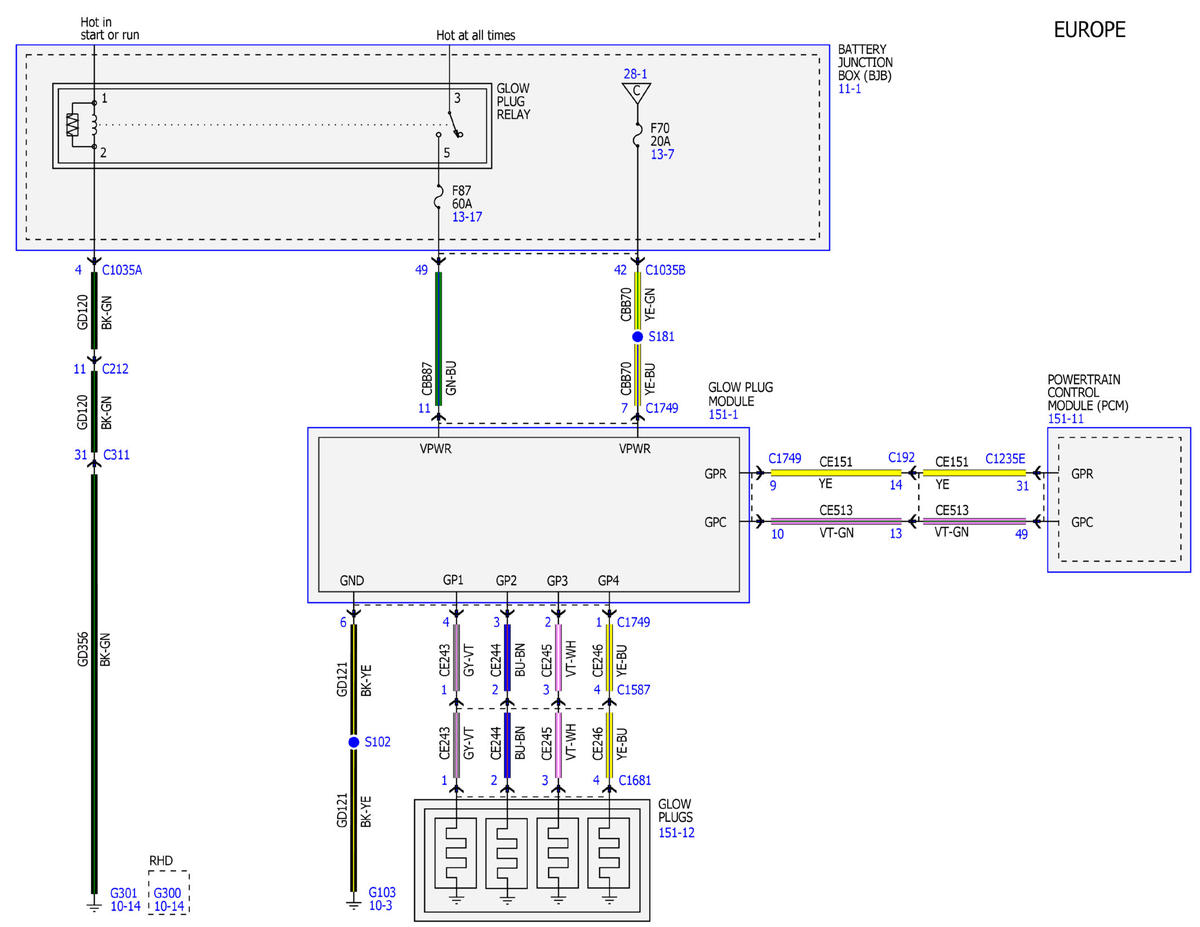

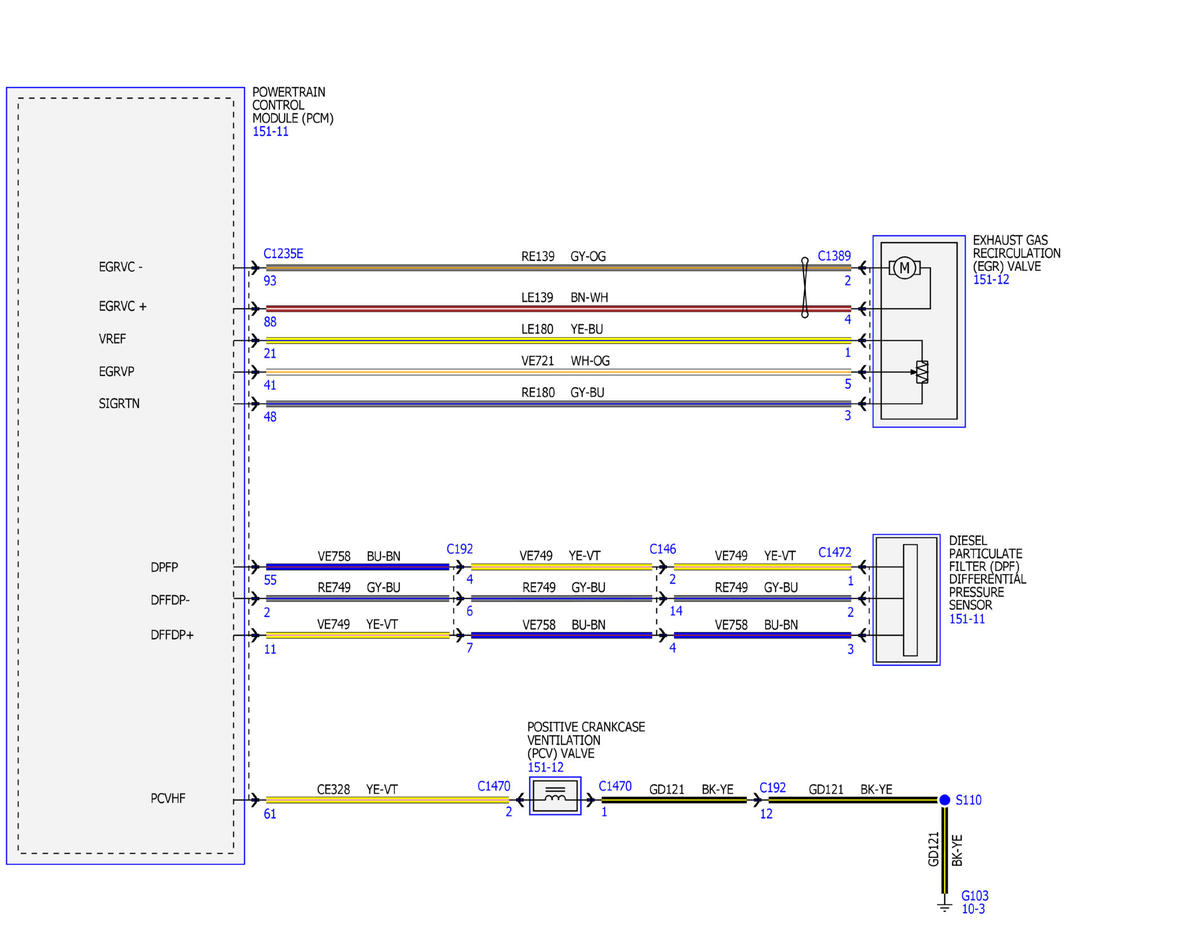

Fig 4: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (4 Of 19)

Courtesy of FORD MOTOR COMPANY

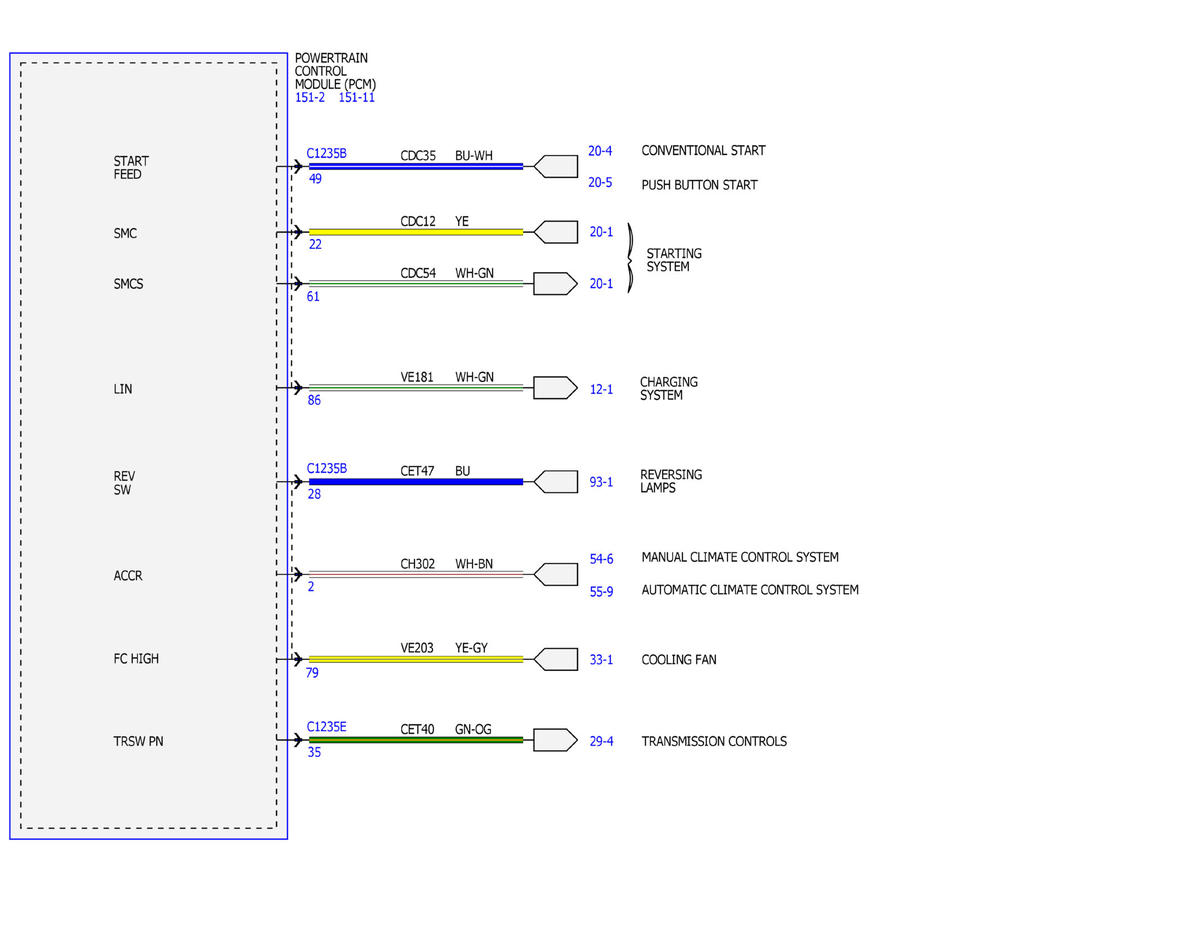

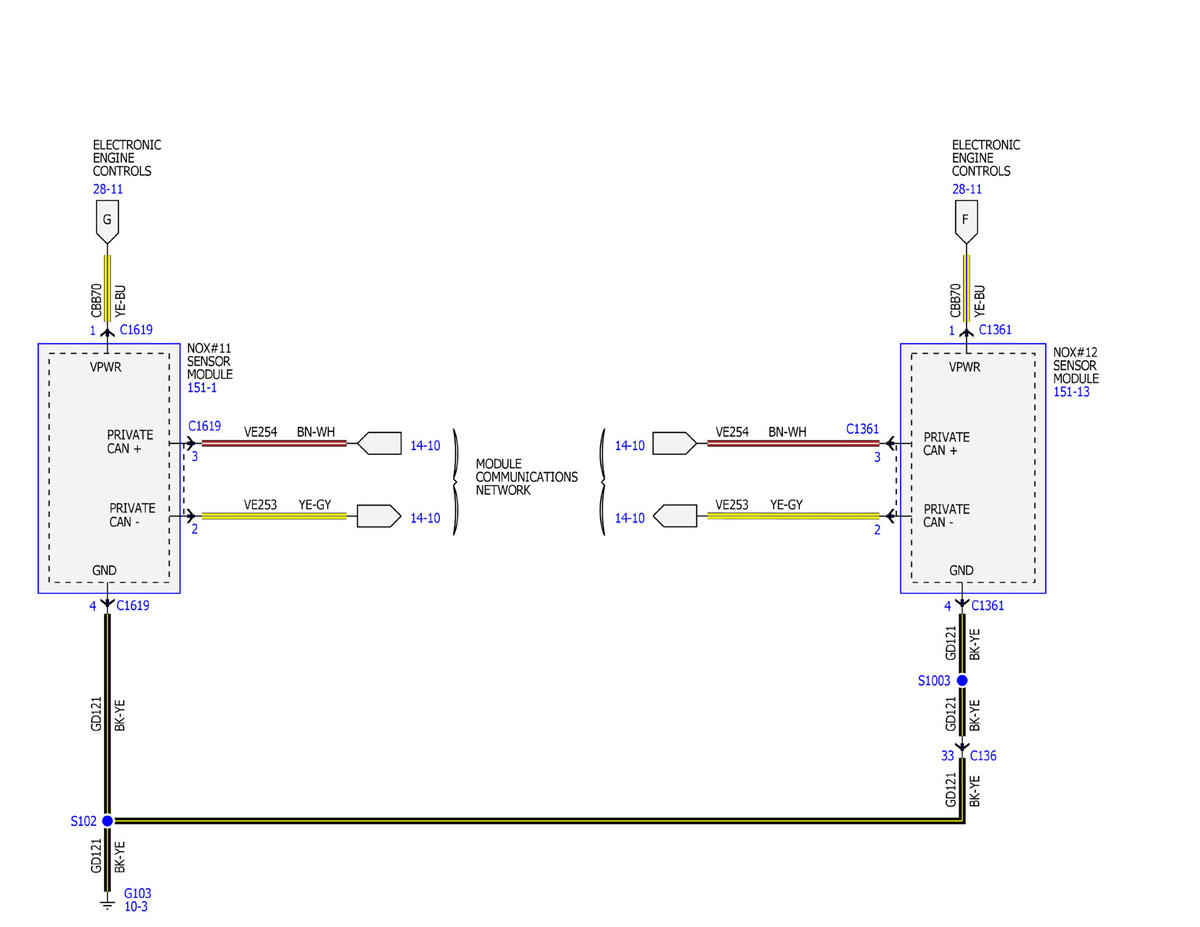

Fig 5: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (5 Of 19)

Courtesy of FORD MOTOR COMPANY

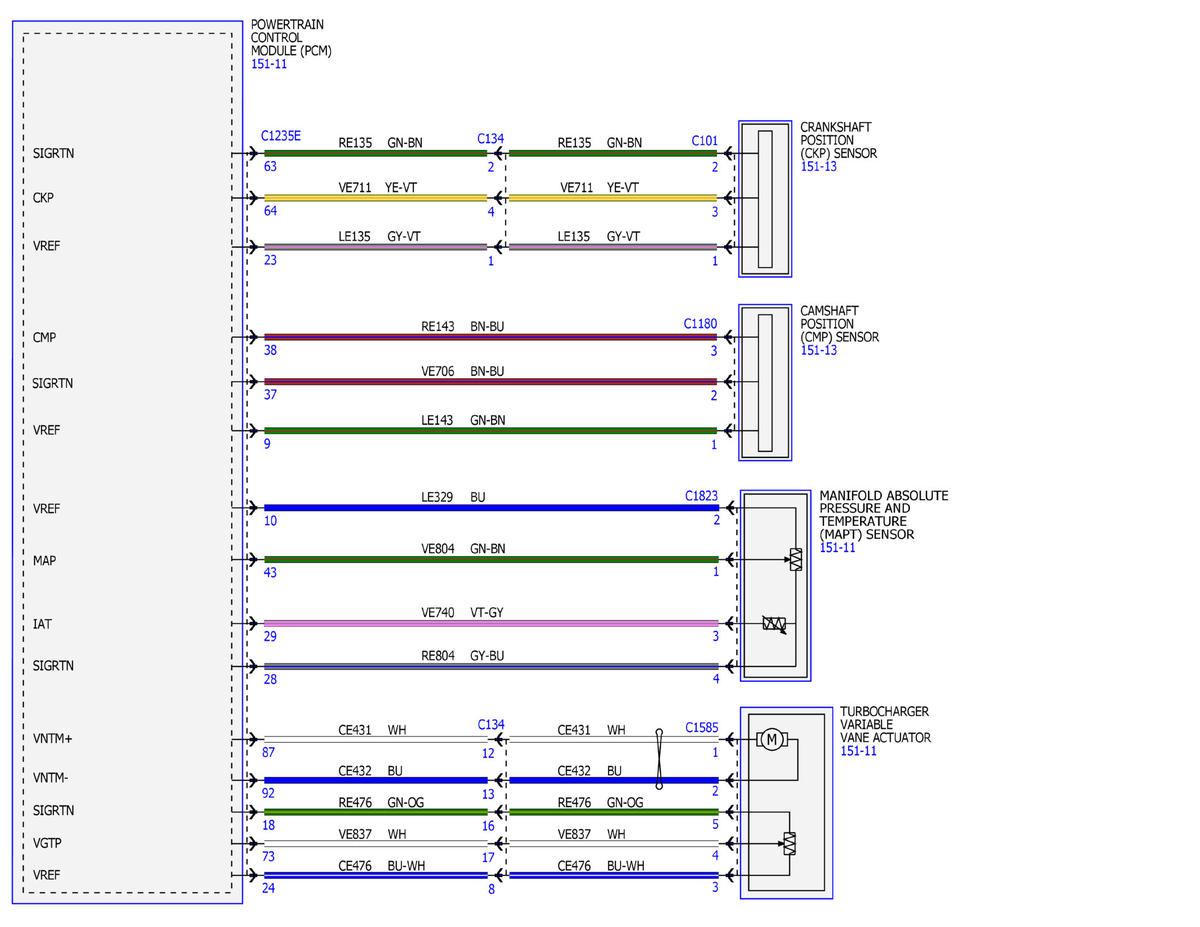

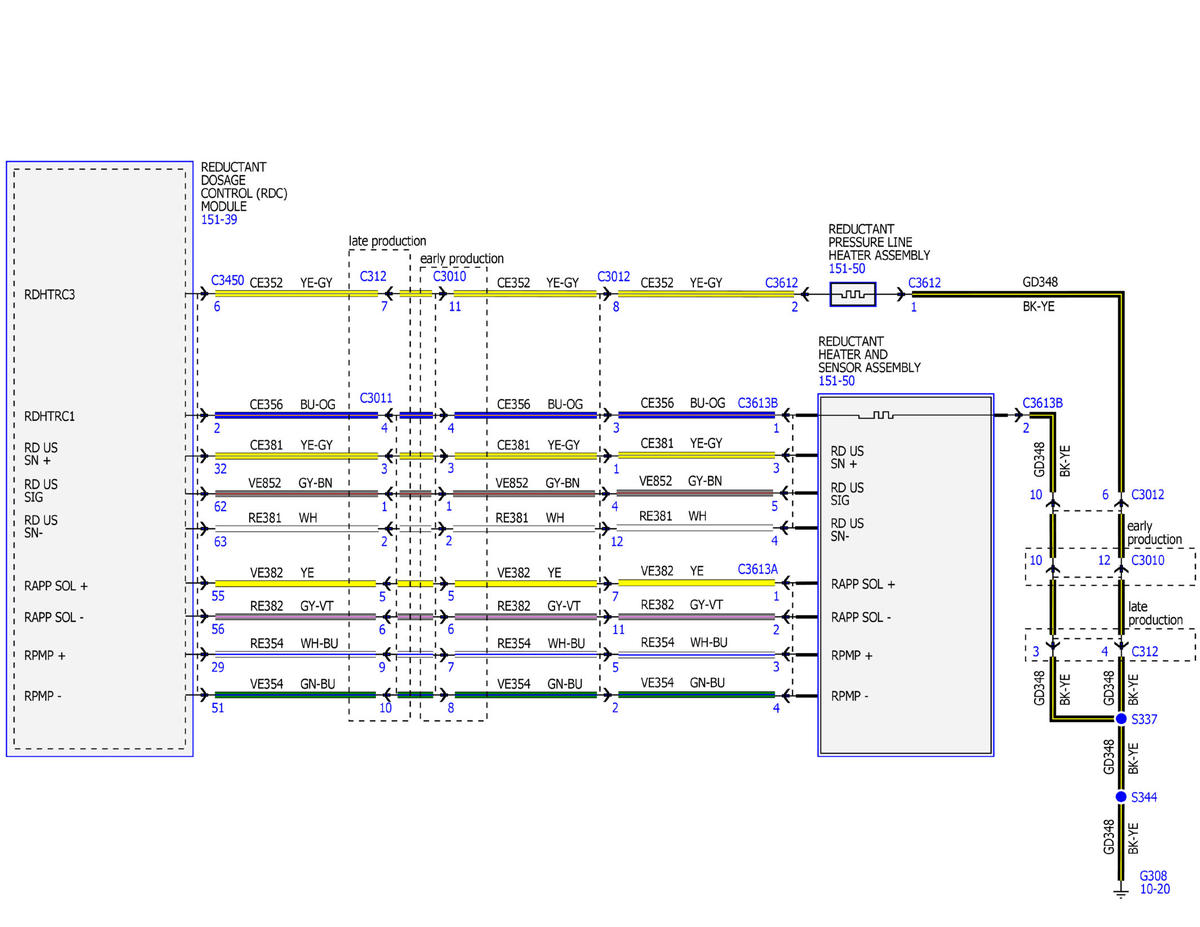

Fig 6: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (6 Of 19)

Courtesy of FORD MOTOR COMPANY

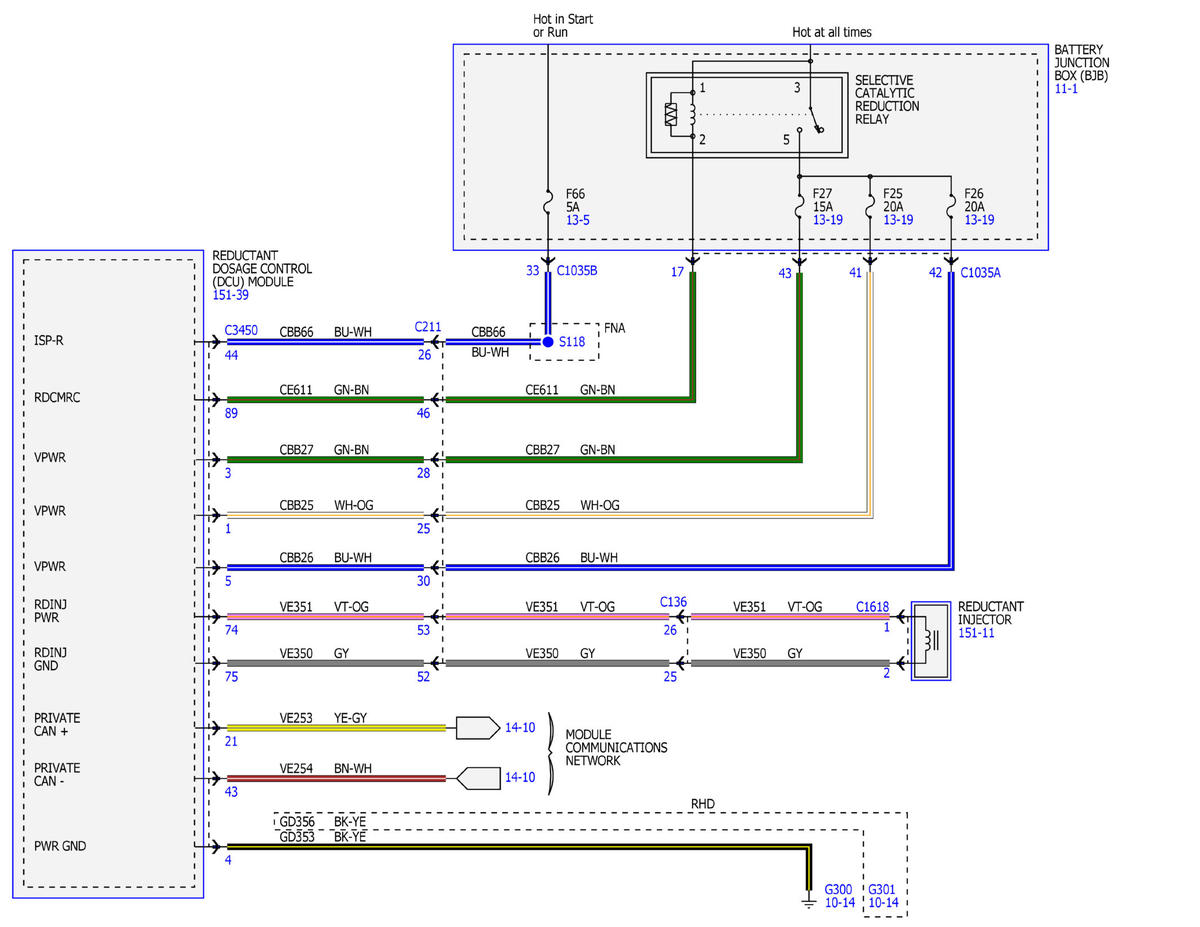

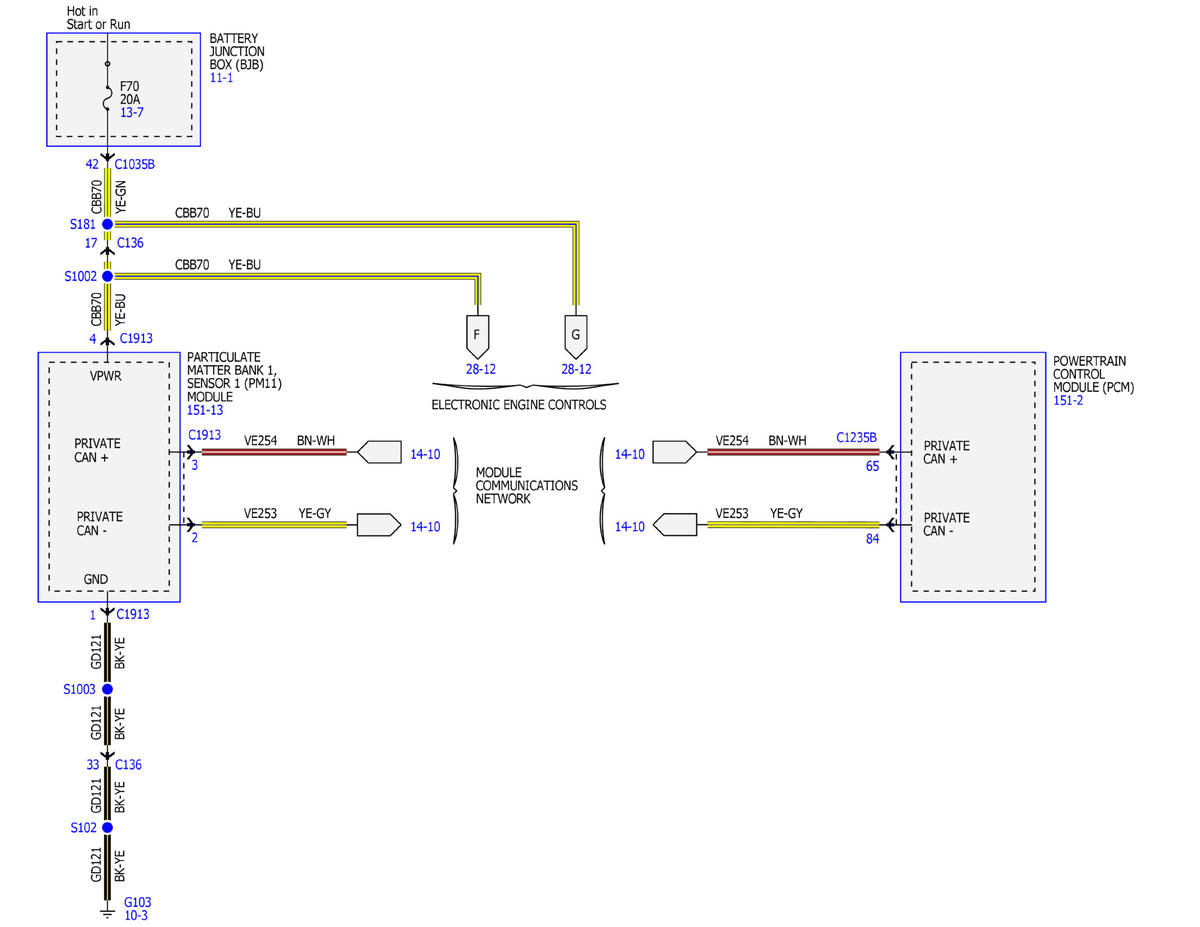

Fig 7: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (7 Of 19)

Courtesy of FORD MOTOR COMPANY

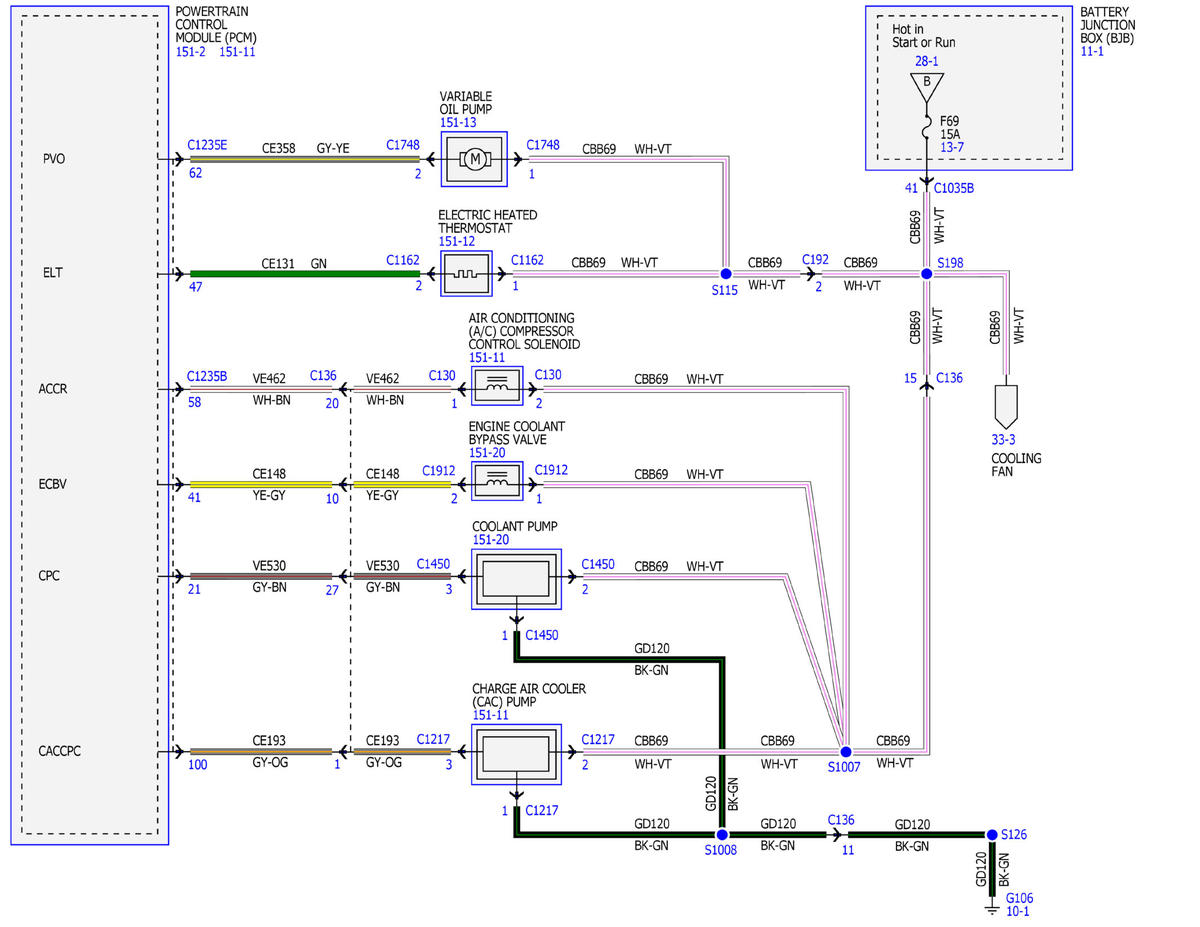

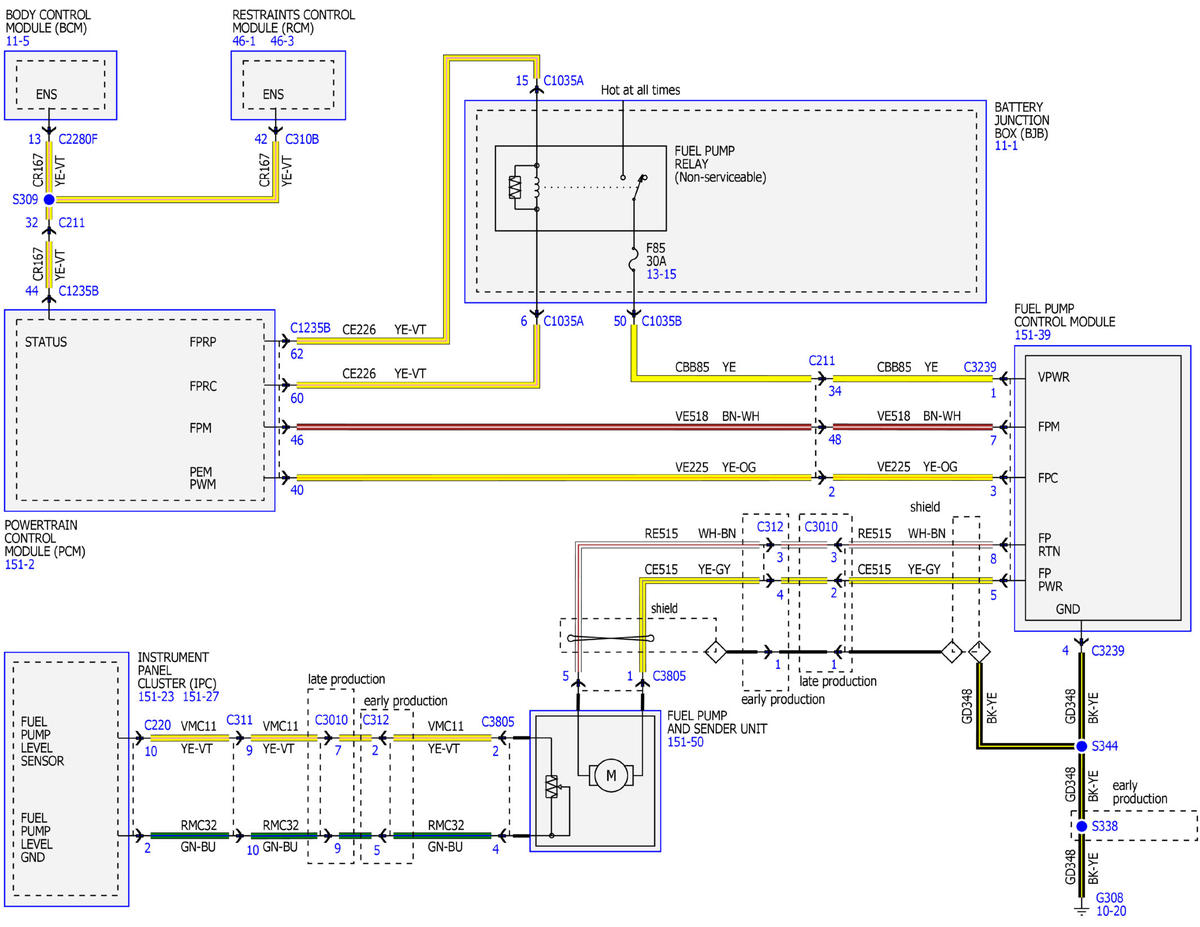

Fig 8: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (8 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 9: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (9 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 10: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (10 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 11: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (11 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 12: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (12 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 13: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (13 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 14: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (14 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 15: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (15 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 16: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (16 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 17: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (17 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 18: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (18 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 19: Identifying Electronic Engine Controls - 1.5L Diesel Wiring Diagram (19 Of 19)

Courtesy of FORD MOTOR COMPANY
