Electronic Engine Controls - 1.0L EcoBoost

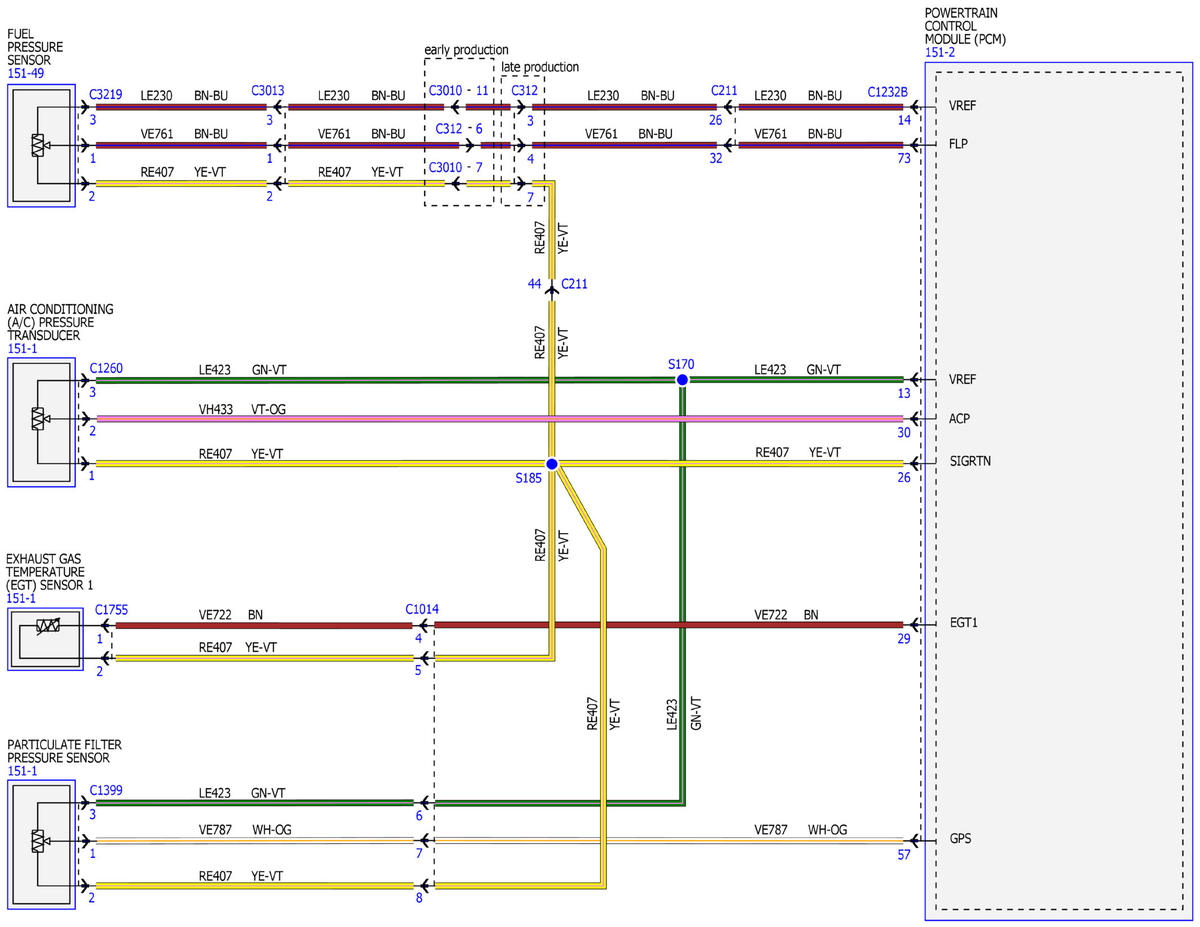

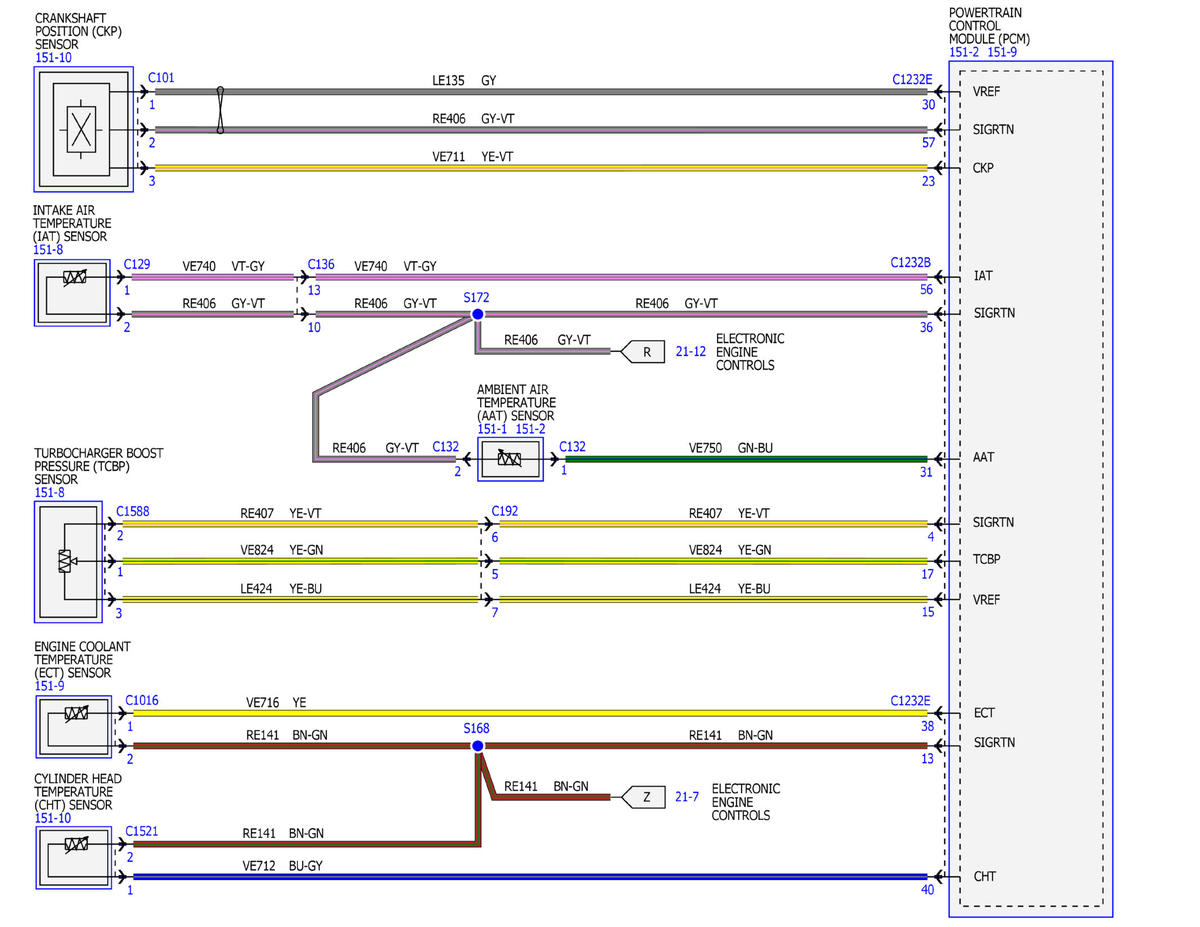

Fig 1: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (1 Of 13)

Courtesy of FORD MOTOR COMPANY

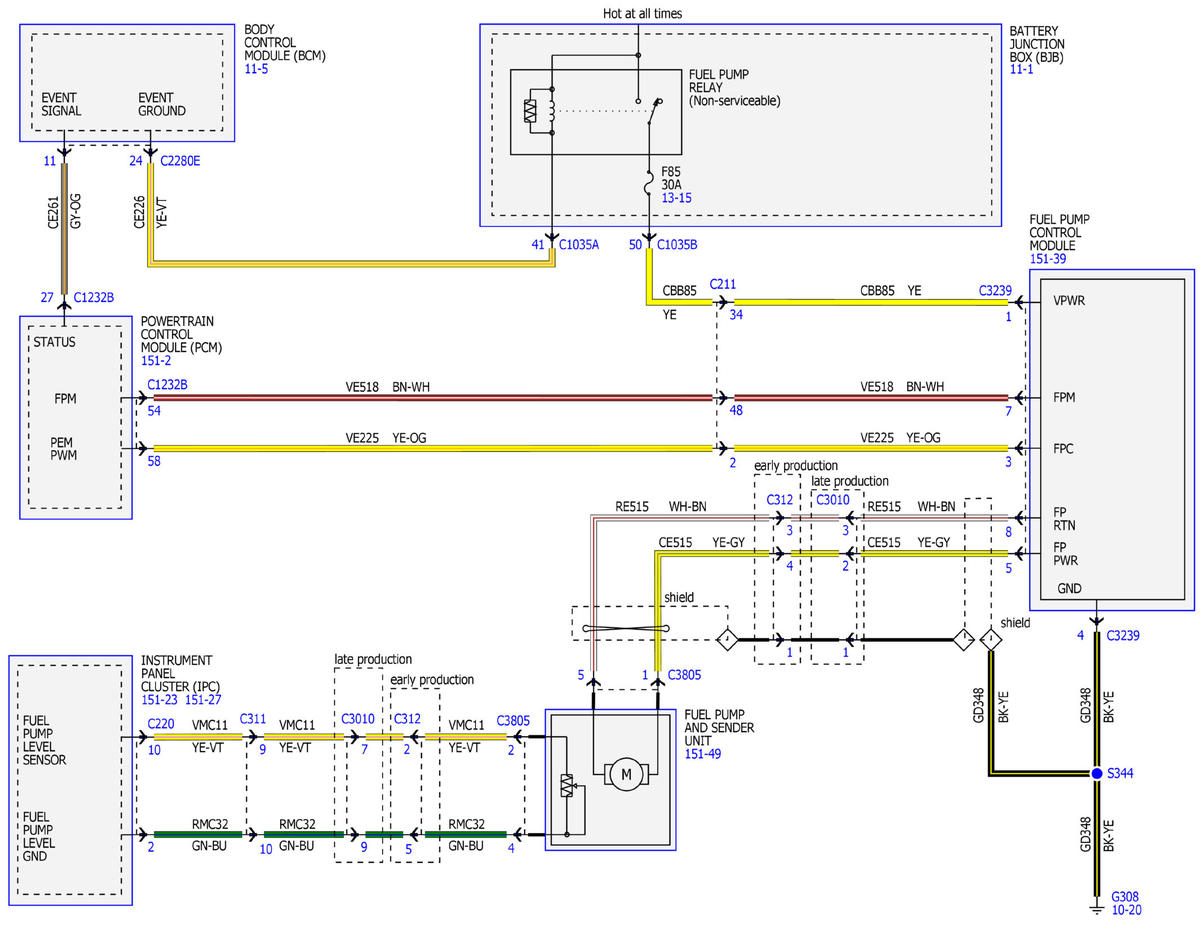

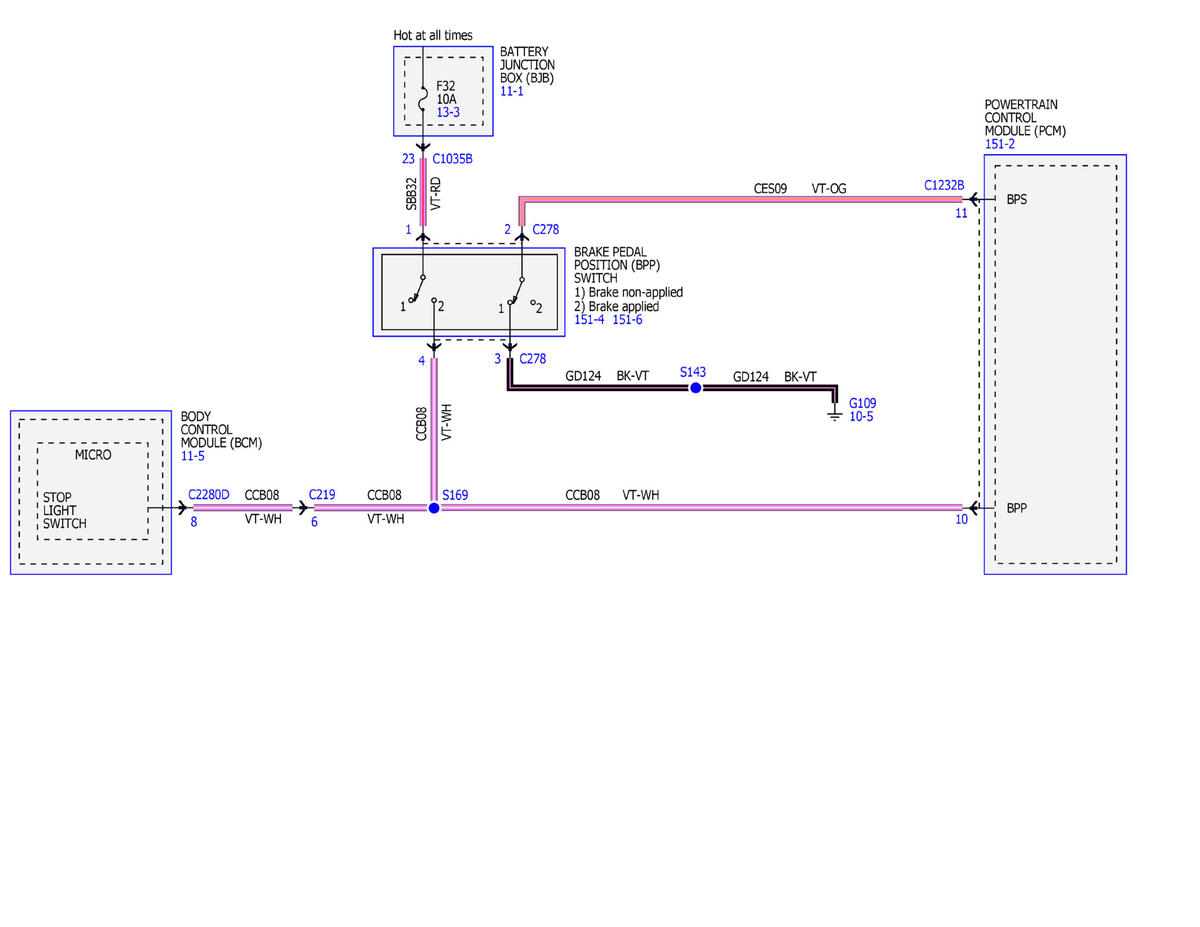

Fig 2: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (2 Of 13)

Courtesy of FORD MOTOR COMPANY

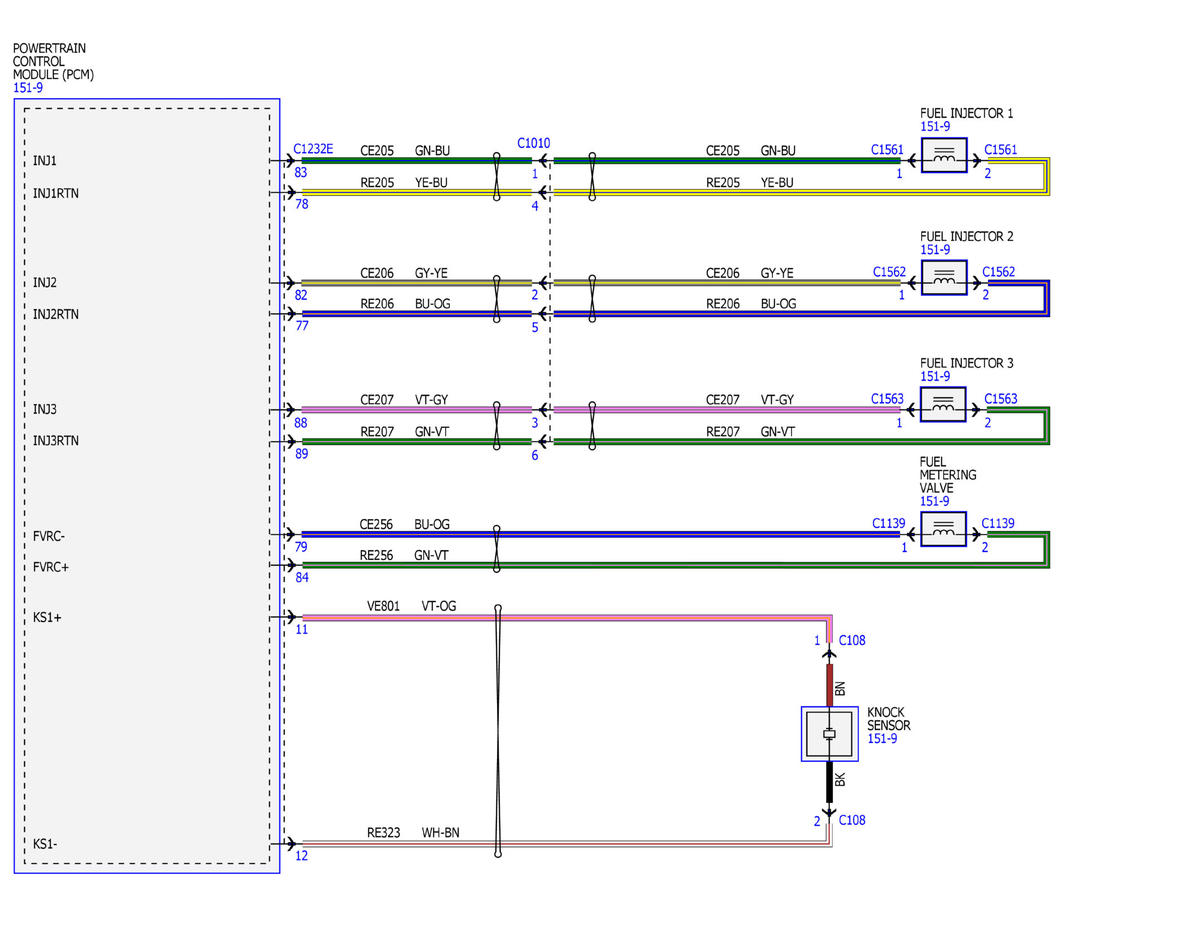

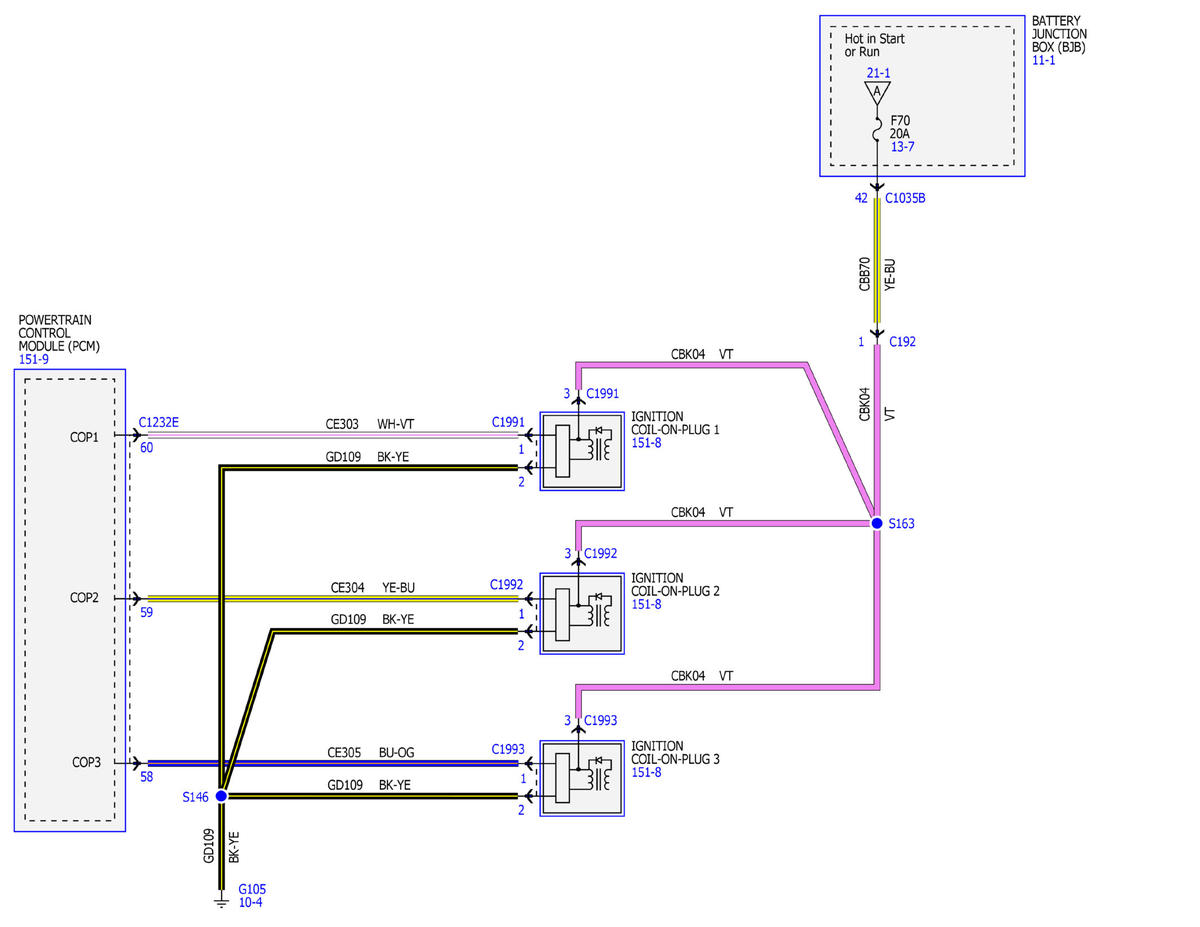

Fig 3: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (3 Of 13)

Courtesy of FORD MOTOR COMPANY

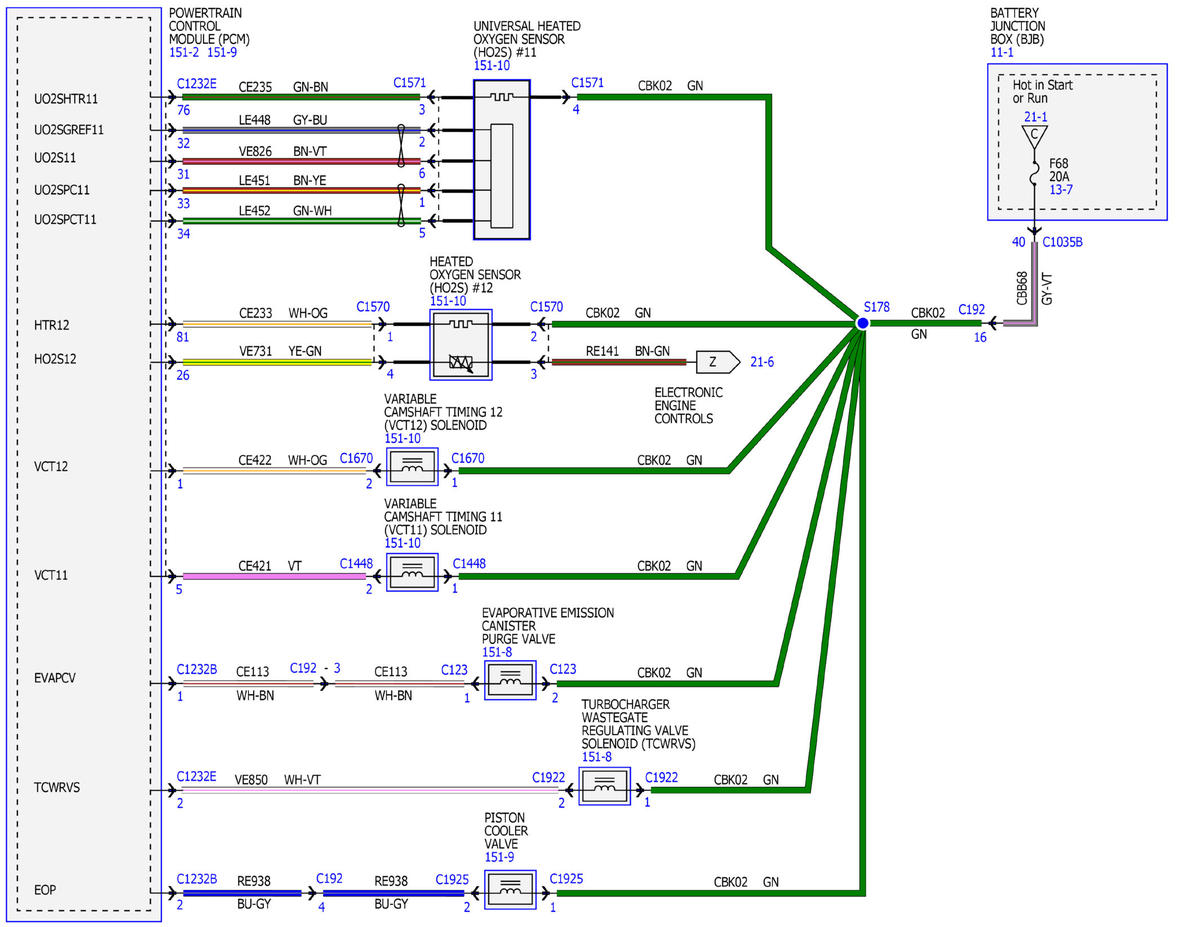

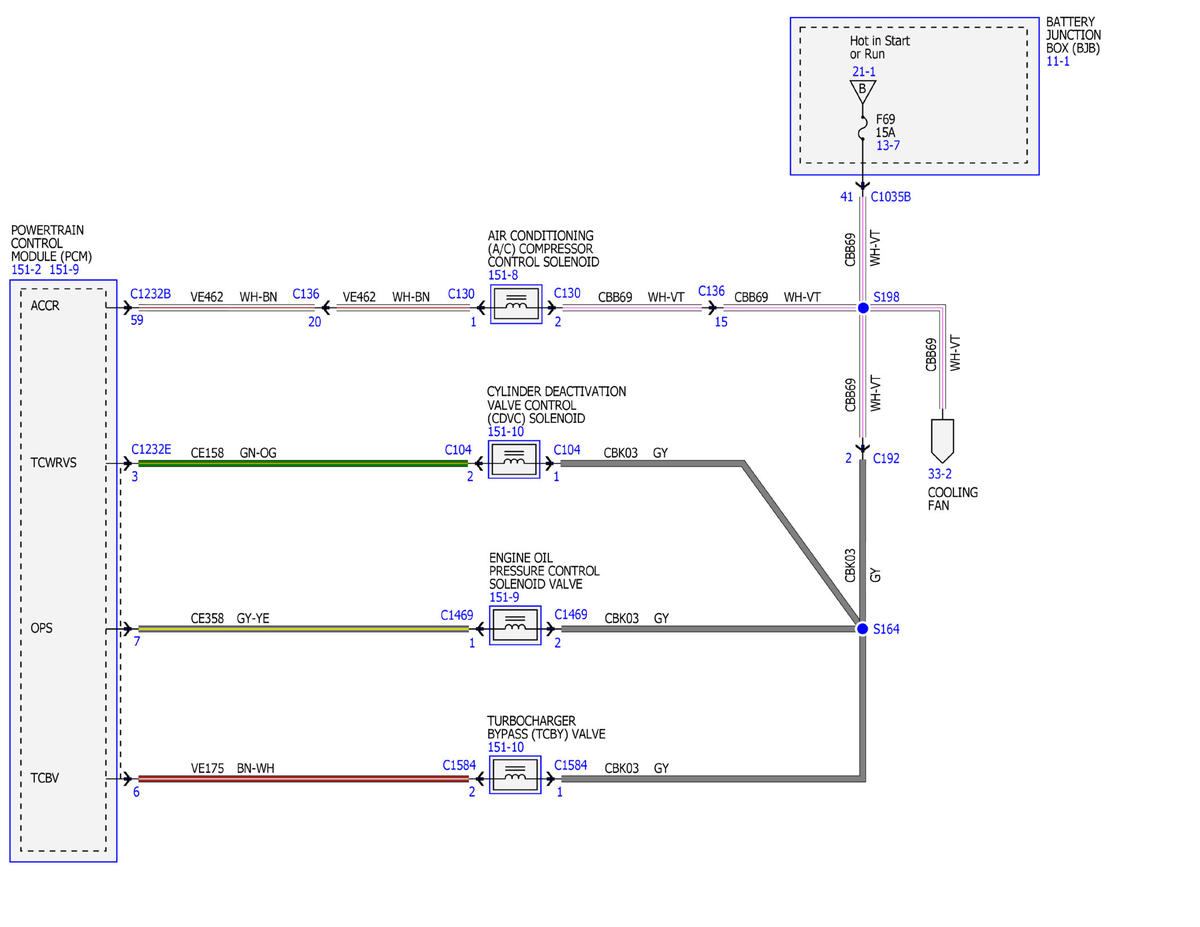

Fig 4: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (4 Of 13)

Courtesy of FORD MOTOR COMPANY

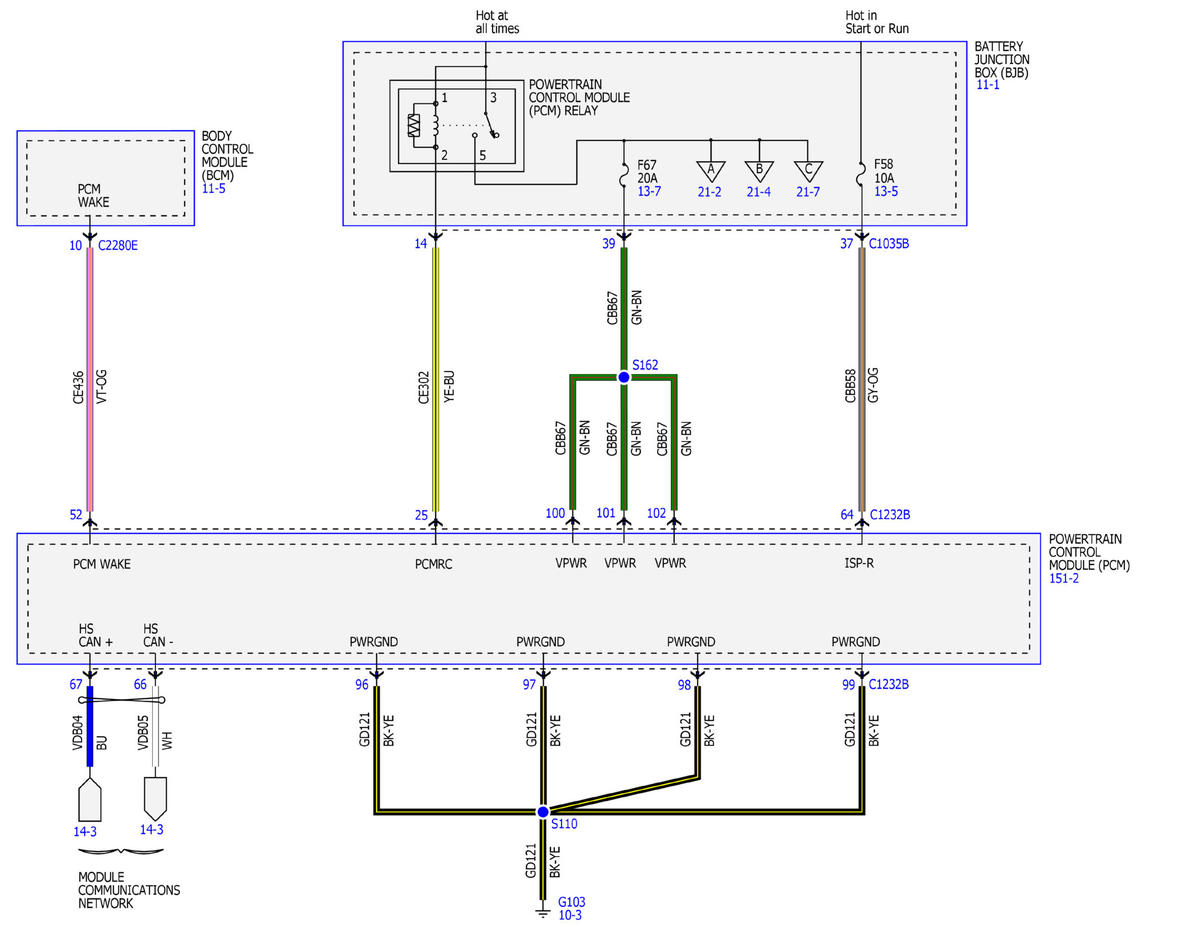

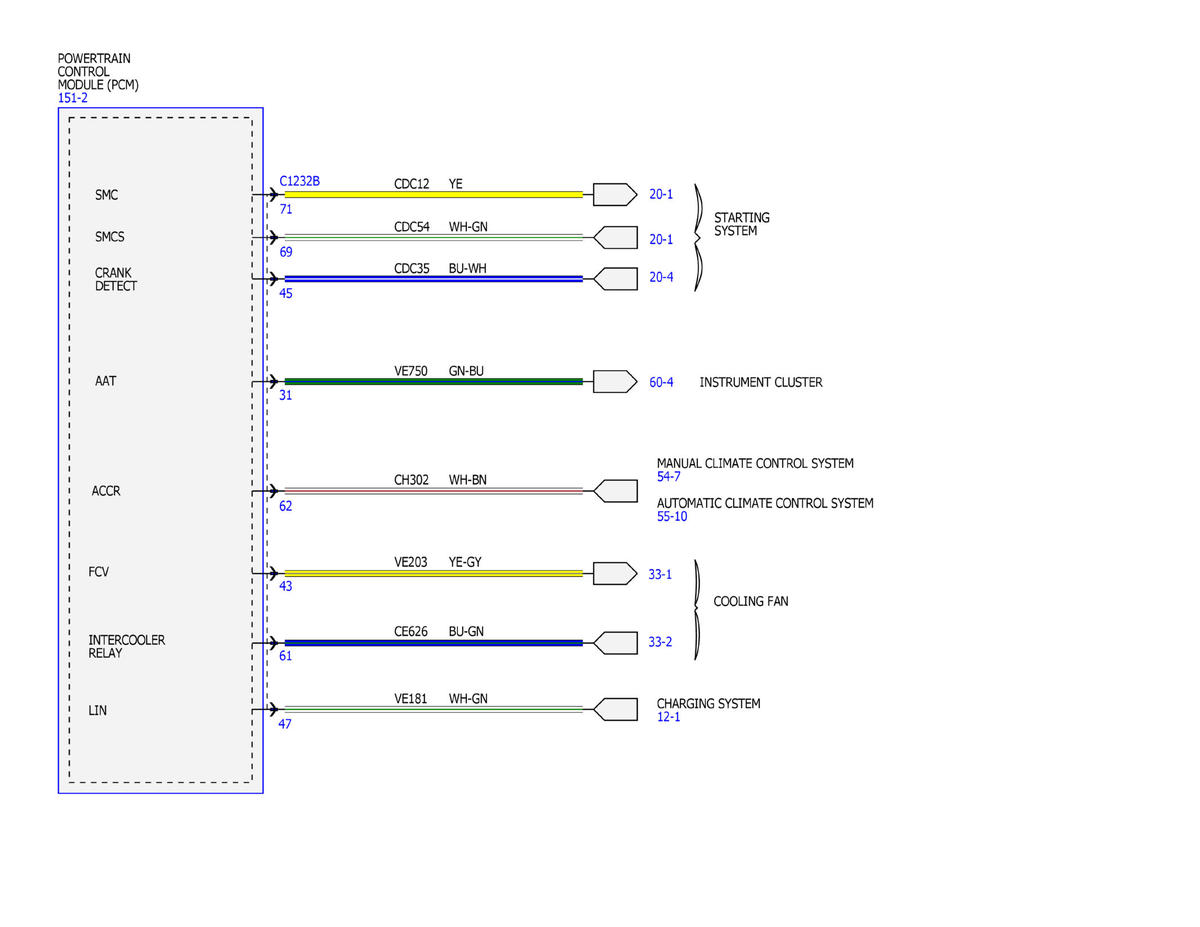

Fig 5: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (5 Of 13)

Courtesy of FORD MOTOR COMPANY

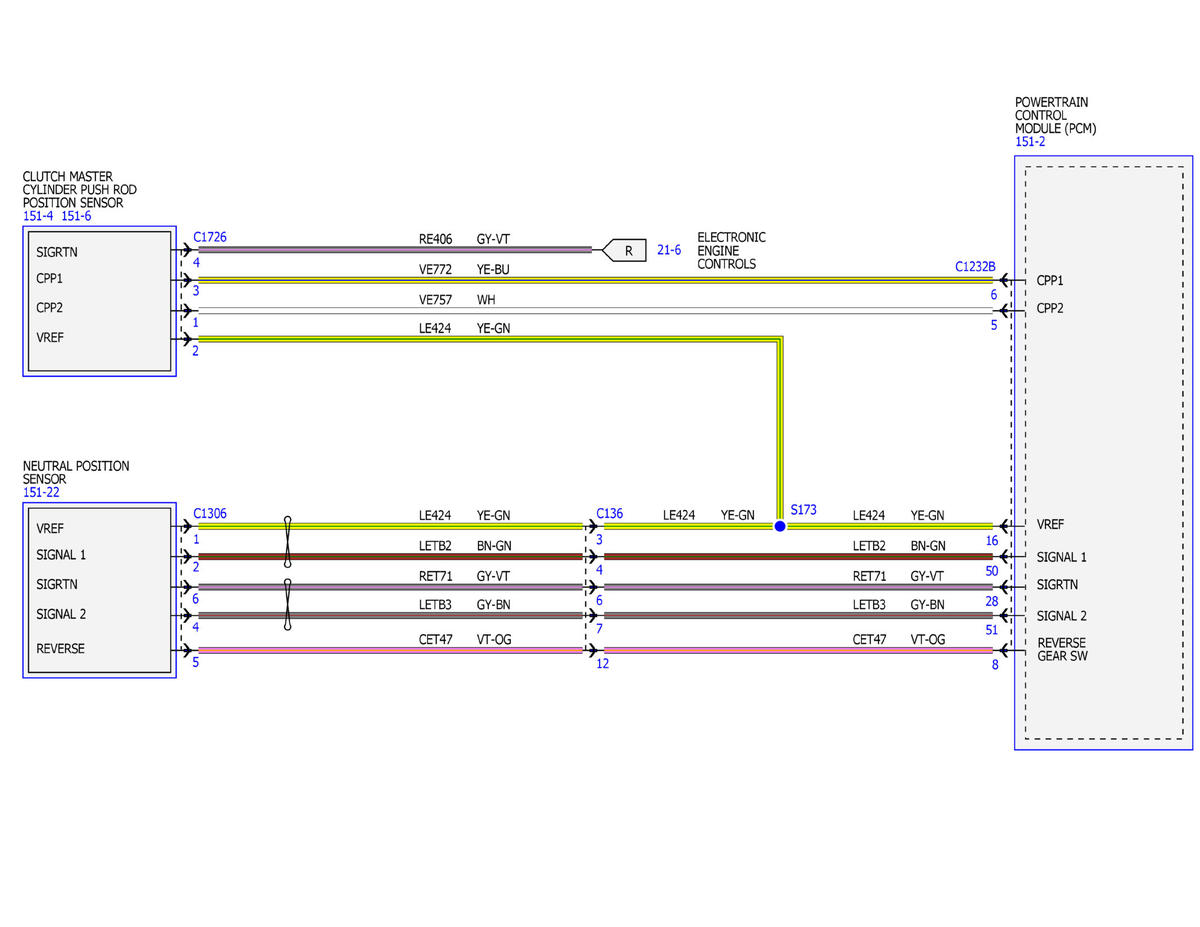

Fig 6: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (6 Of 13)

Courtesy of FORD MOTOR COMPANY

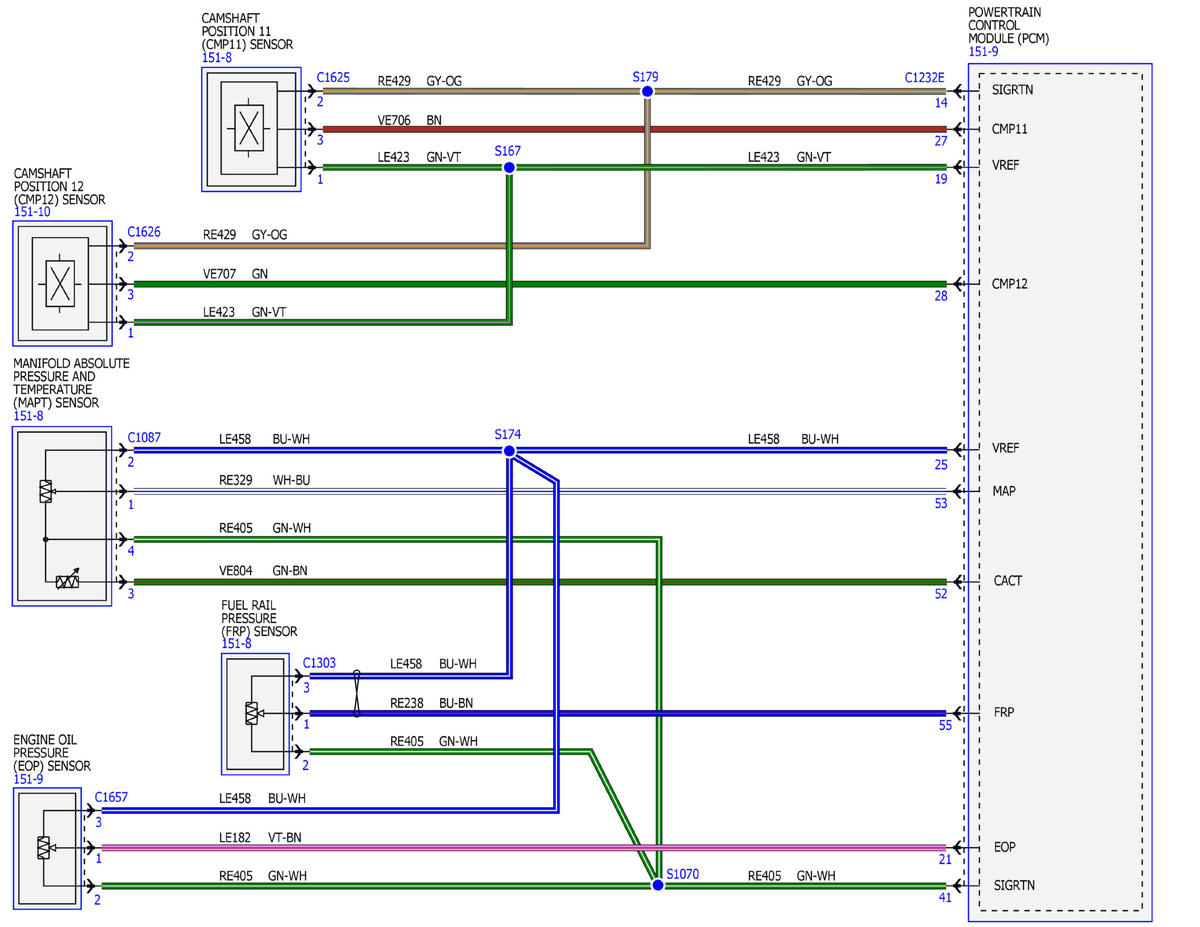

Fig 7: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (7 Of 13)

Courtesy of FORD MOTOR COMPANY

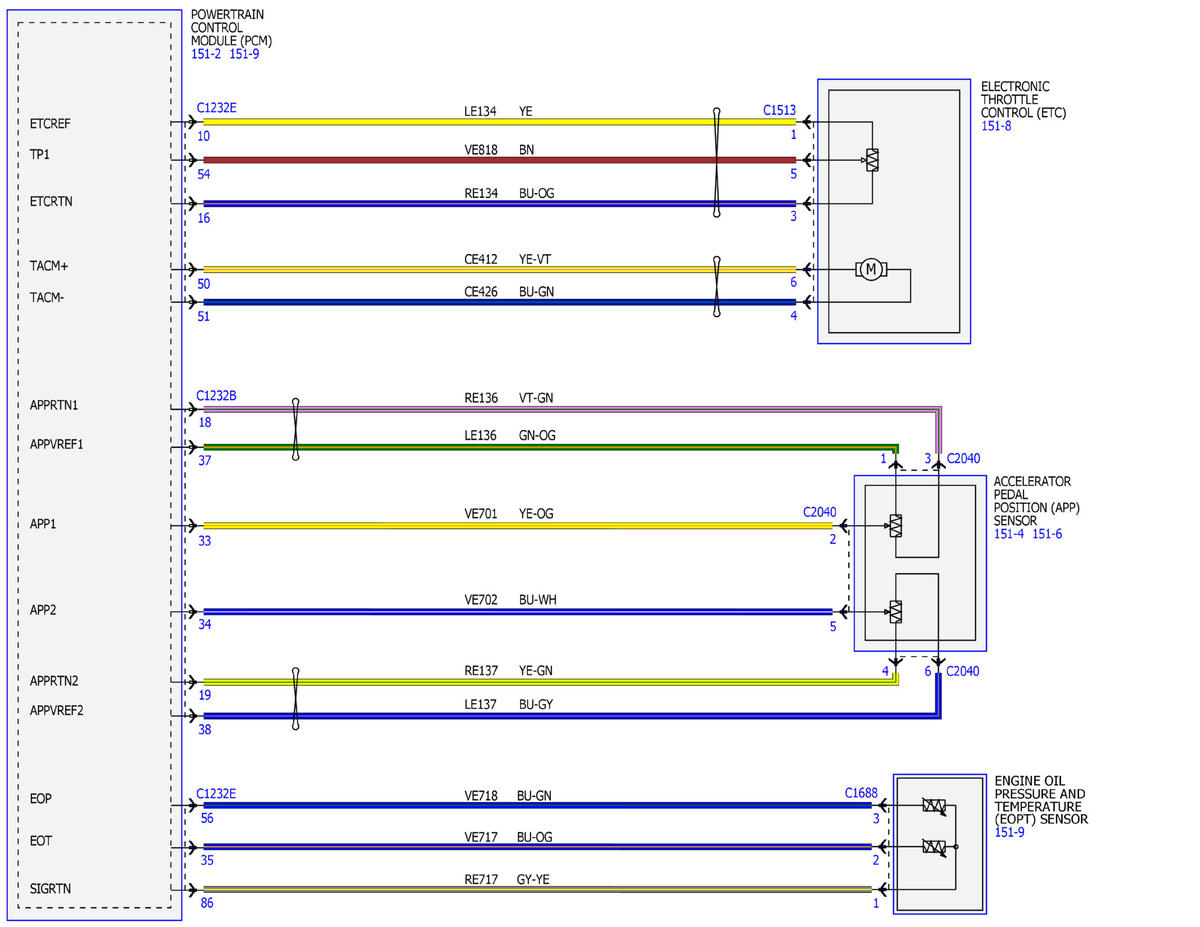

Fig 8: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (8 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 9: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (9 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 10: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (10 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 11: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (11 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 12: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (12 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 13: Identifying Electronic Engine Controls - 1.0L EcoBoost Wiring Diagram (13 Of 13)

Courtesy of FORD MOTOR COMPANY
