Customer Access

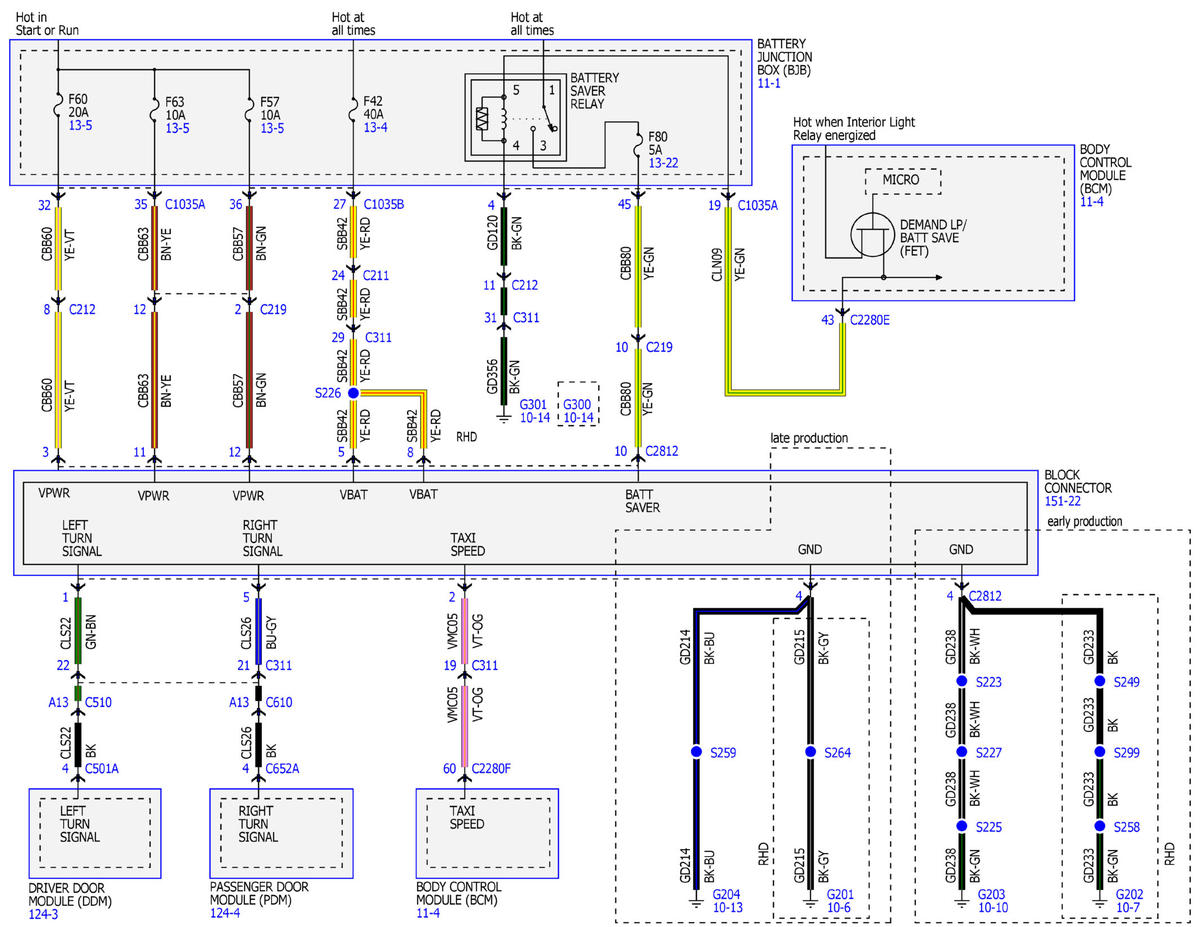

Fig 1: Identifying Customer Access Wiring Diagram (1 Of 5)
GFDWR130122Courtesy of FORD MOTOR COMPANY

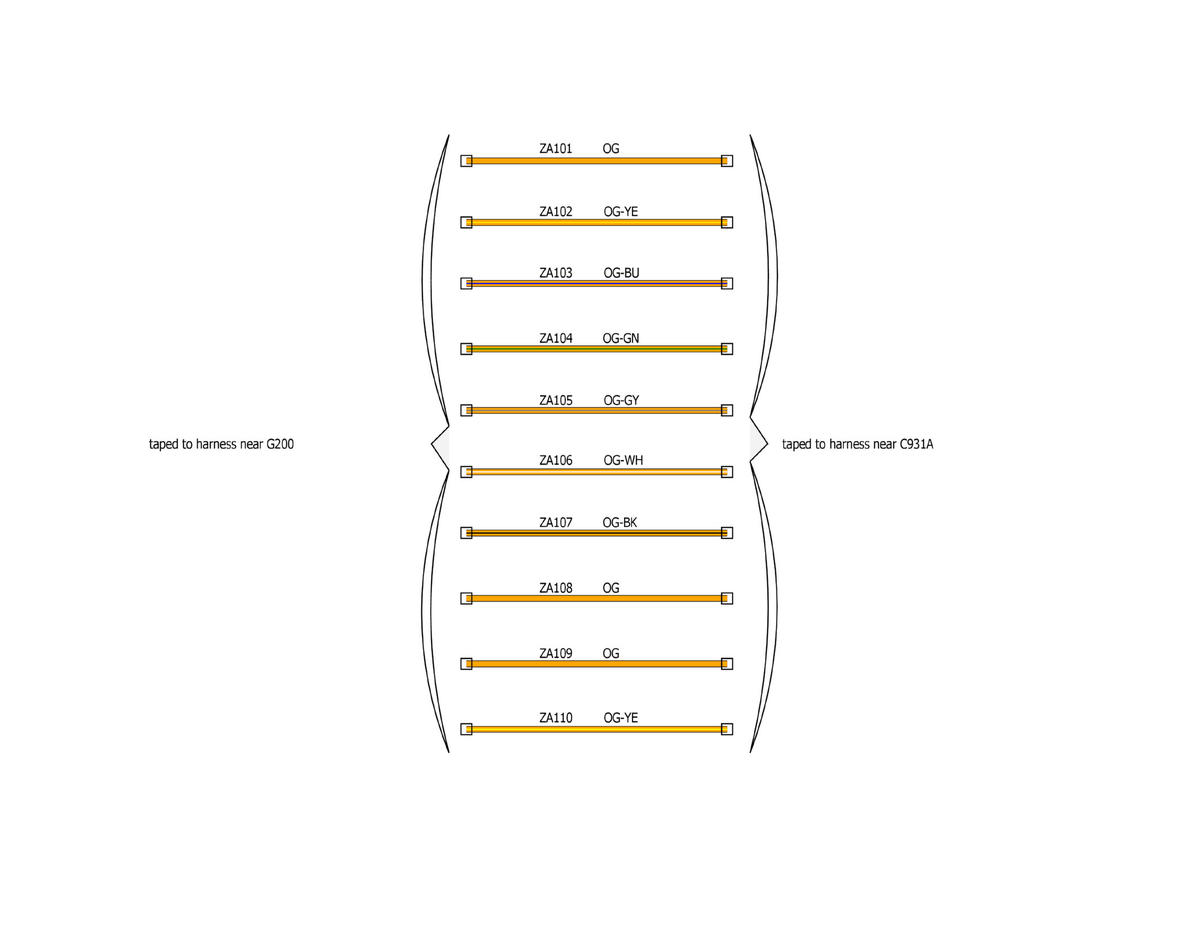

Fig 2: Identifying Customer Access Wiring Diagram (2 Of 5)
GFDWR130123Courtesy of FORD MOTOR COMPANY
Fig 3: Identifying Customer Access Wiring Diagram (3 Of 5)
GFDWR130124Courtesy of FORD MOTOR COMPANY

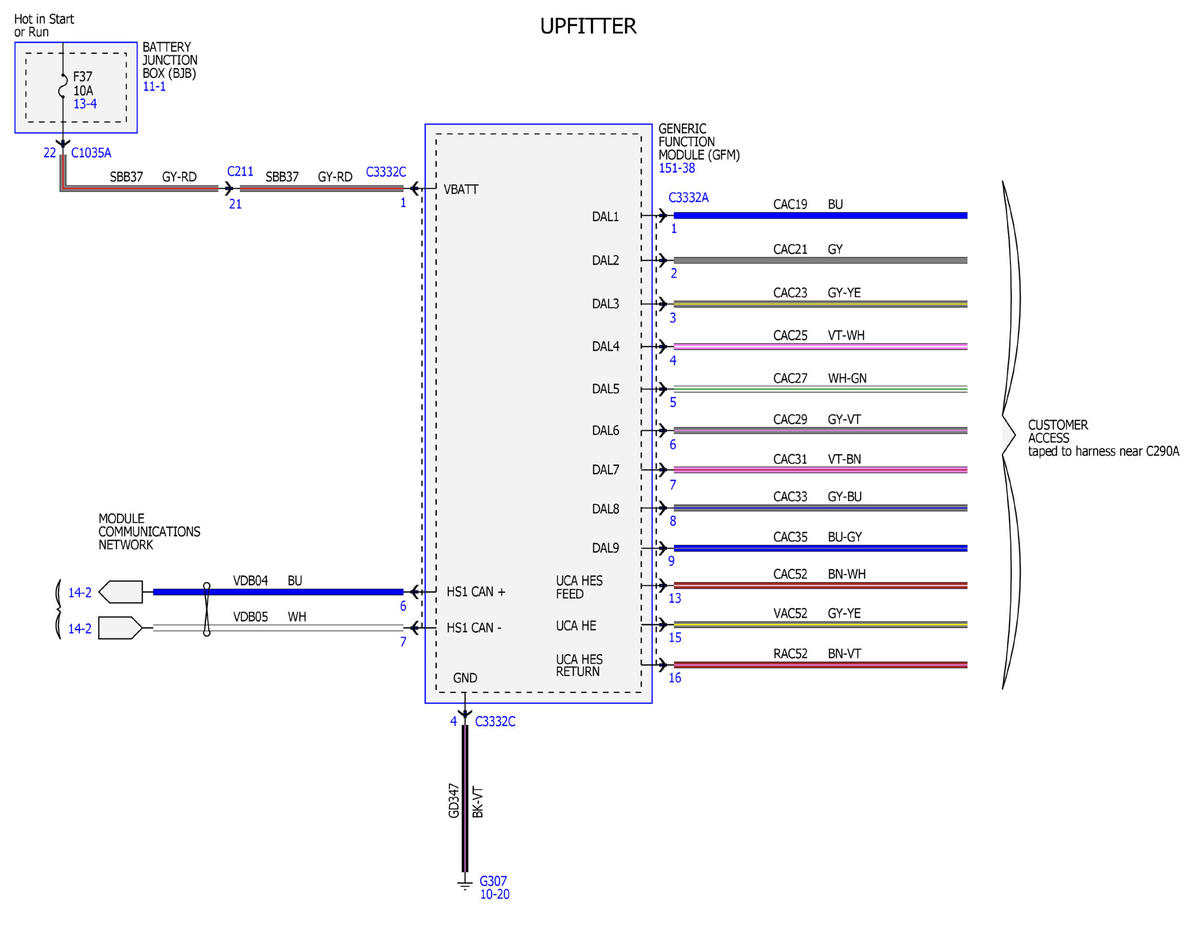

Fig 4: Identifying Customer Access Wiring Diagram (4 Of 5)
GFDWR130125Courtesy of FORD MOTOR COMPANY

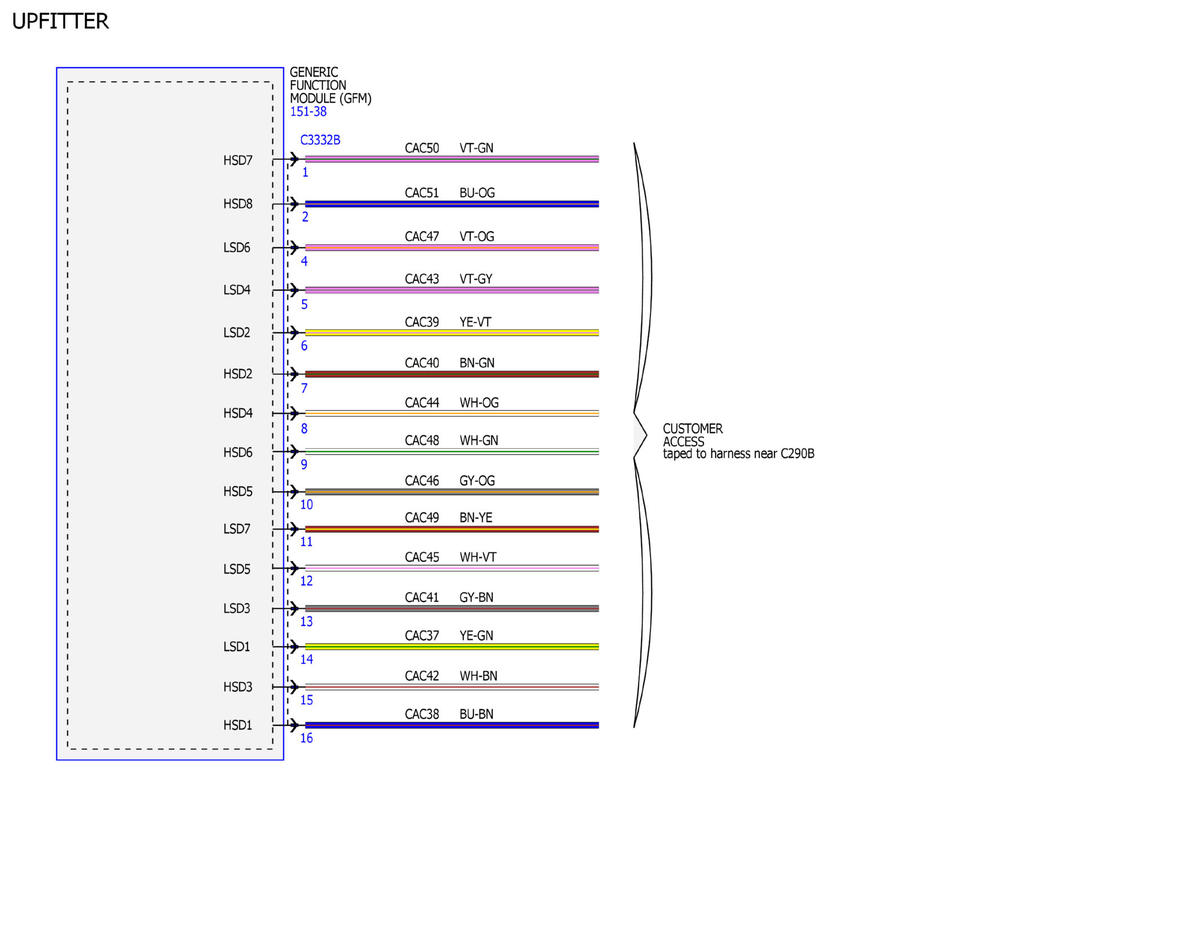

Fig 5: Identifying Customer Access Wiring Diagram (5 Of 5)
GFDWR130126Courtesy of FORD MOTOR COMPANY
