Cruise Control

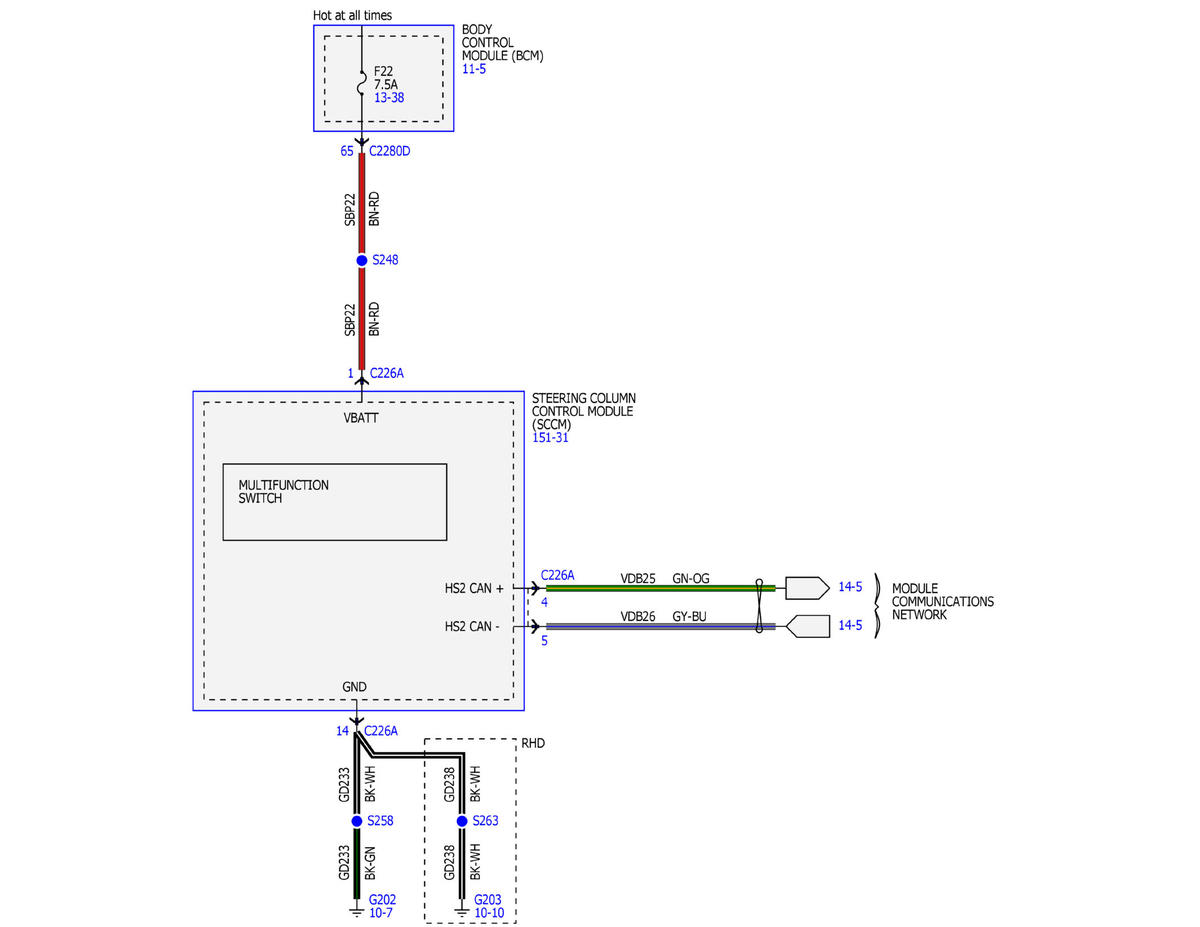

Fig 1: Identifying Cruise Control Wiring Diagram (1 Of 10)
GFDWR130112Courtesy of FORD MOTOR COMPANY

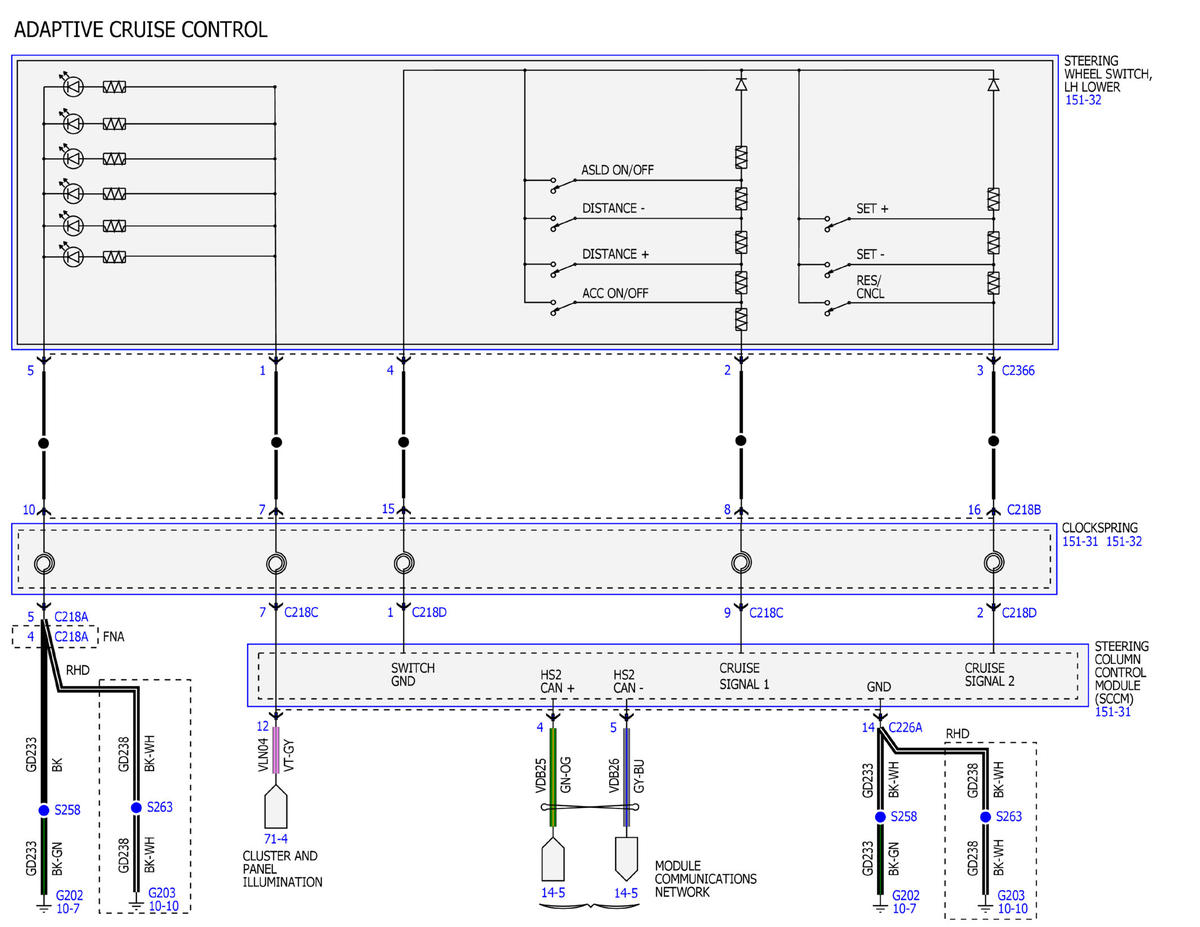

Fig 2: Identifying Cruise Control Wiring Diagram (2 Of 10)
GFDWR130114Courtesy of FORD MOTOR COMPANY

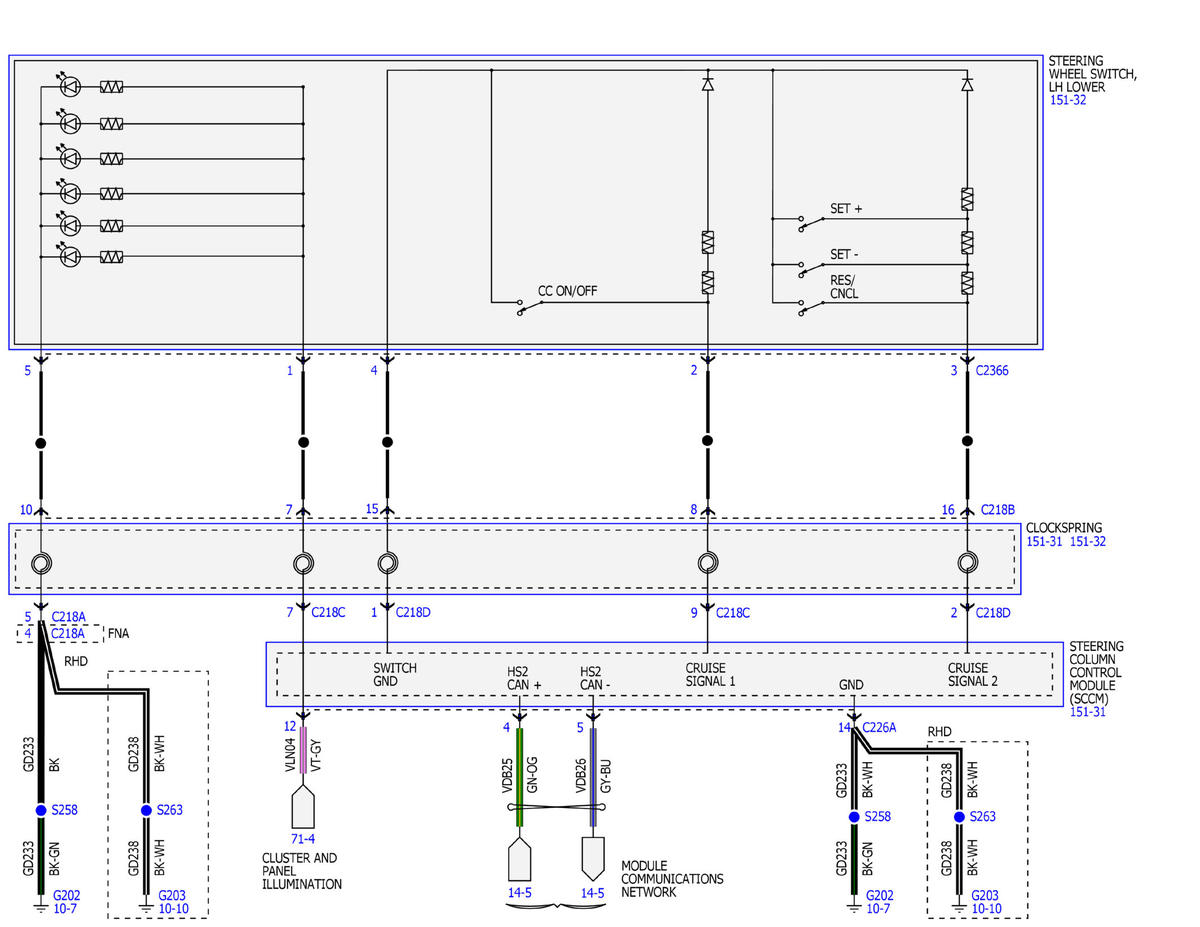

Fig 3: Identifying Cruise Control Wiring Diagram (3 Of 10)
GFDWR130115Courtesy of FORD MOTOR COMPANY

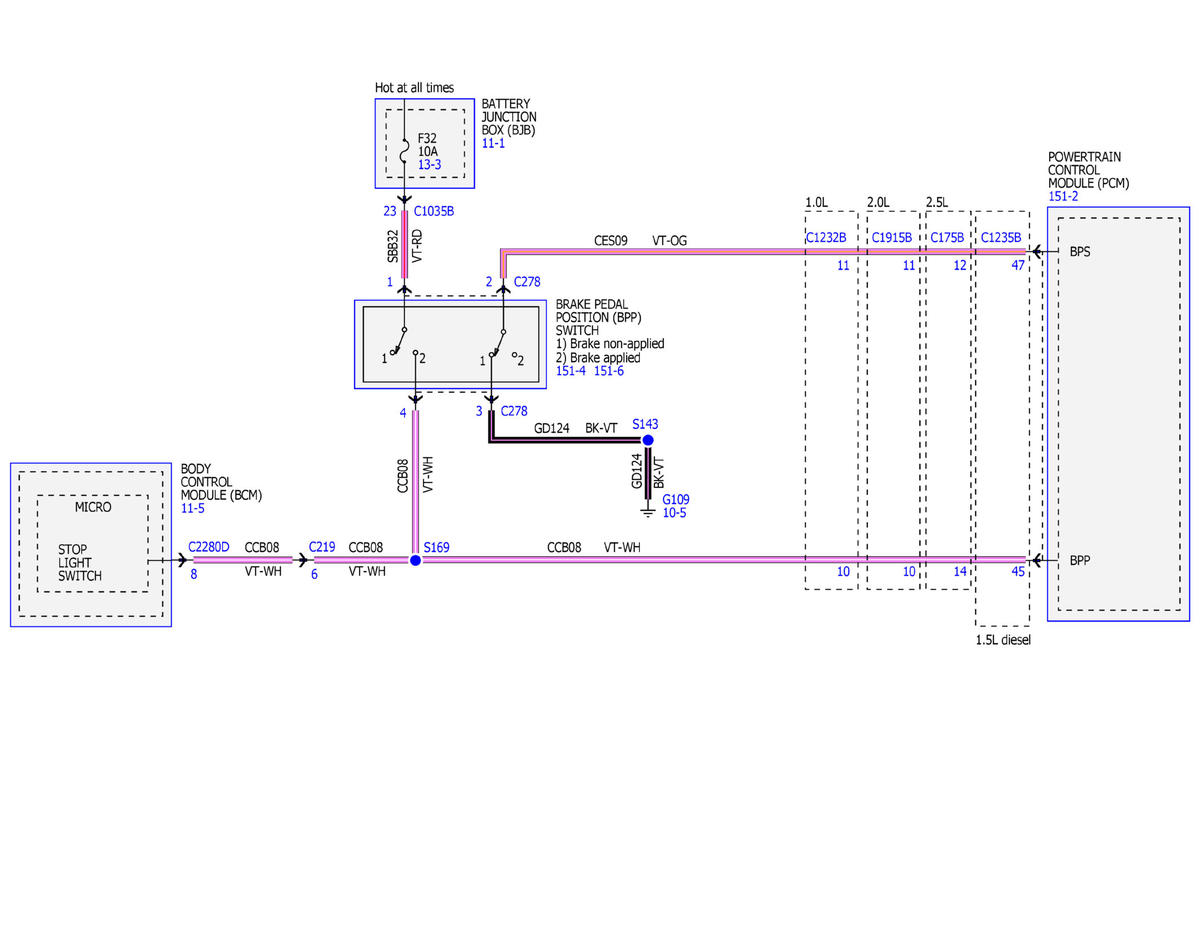

Fig 4: Identifying Cruise Control Wiring Diagram (4 Of 10)
GFDWR130116Courtesy of FORD MOTOR COMPANY

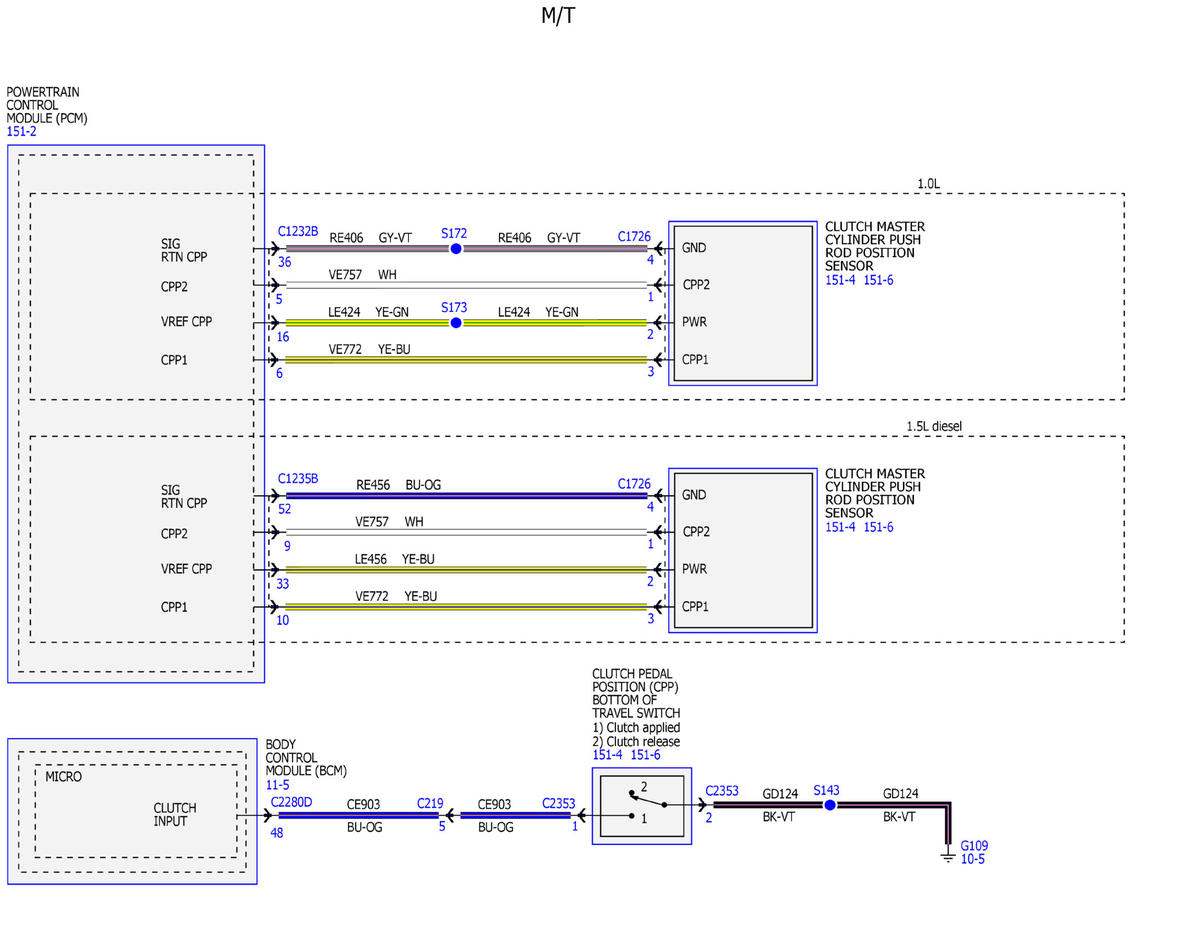

Fig 5: Identifying Cruise Control Wiring Diagram (5 Of 10)
GFDWR130117Courtesy of FORD MOTOR COMPANY

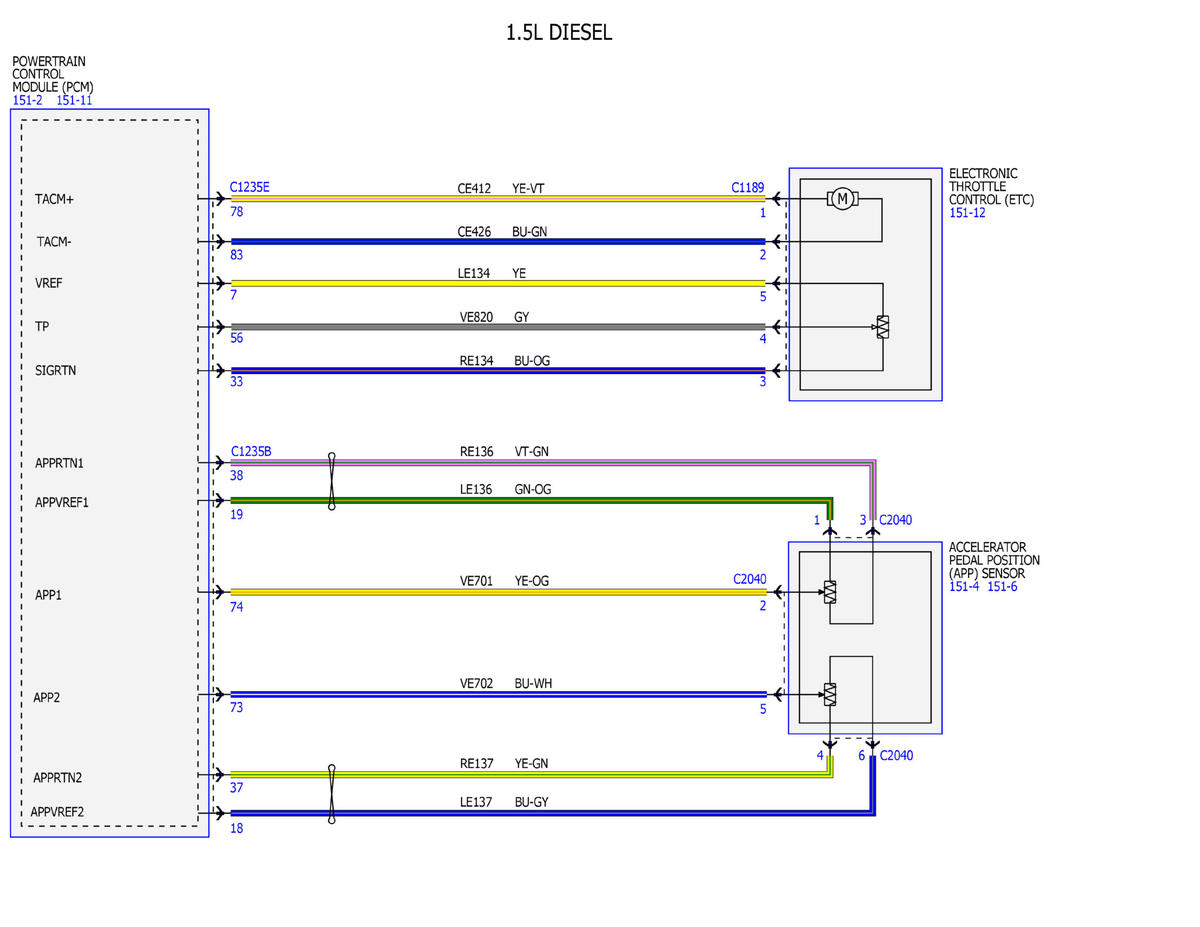

Fig 6: Identifying Cruise Control Wiring Diagram (6 Of 10)
GFDWR130118Courtesy of FORD MOTOR COMPANY

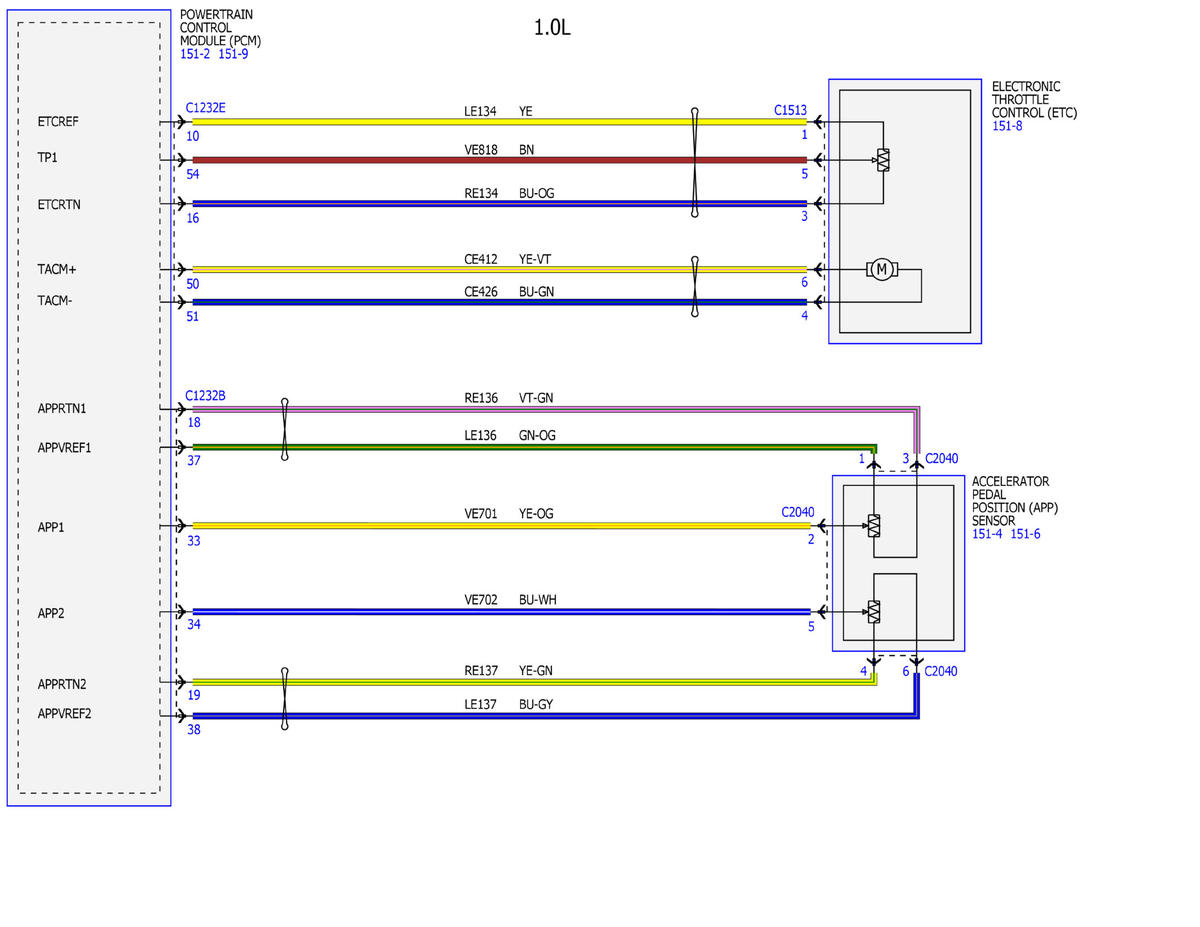

Fig 7: Identifying Cruise Control Wiring Diagram (7 Of 10)
GFDWR130119Courtesy of FORD MOTOR COMPANY

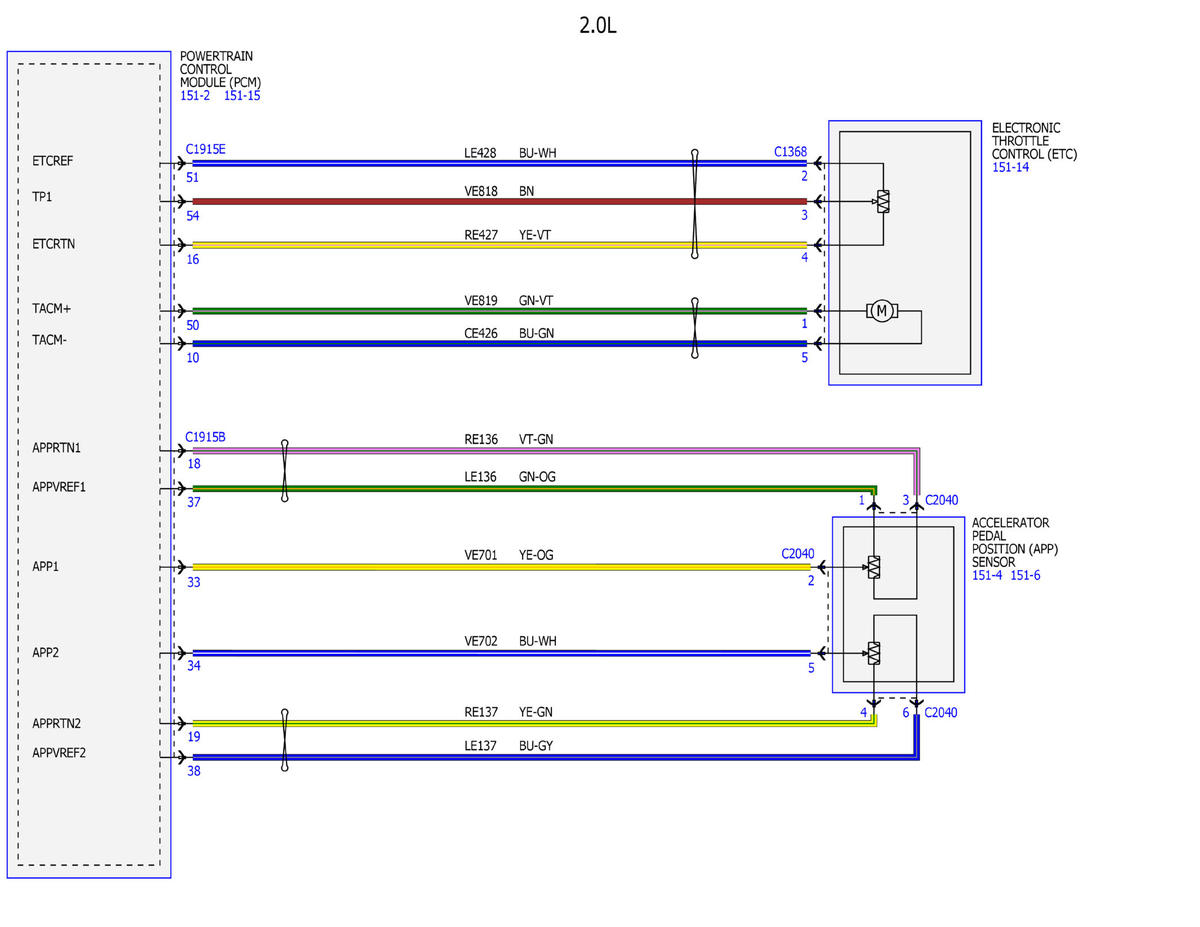

Fig 8: Identifying Cruise Control Wiring Diagram (8 Of 10)
GFDWR130120Courtesy of FORD MOTOR COMPANY

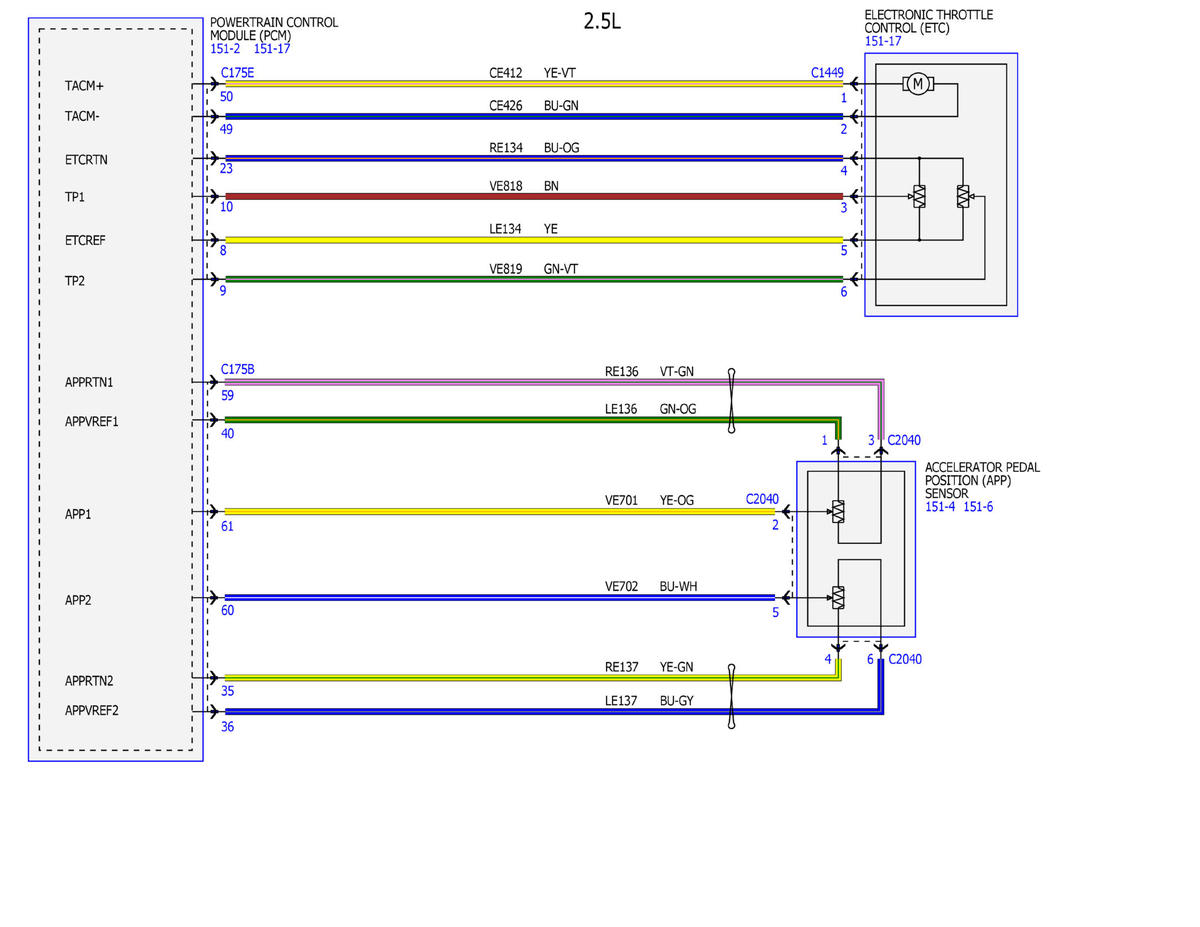

Fig 9: Identifying Cruise Control Wiring Diagram (9 Of 10)
GFDWR130121Courtesy of FORD MOTOR COMPANY

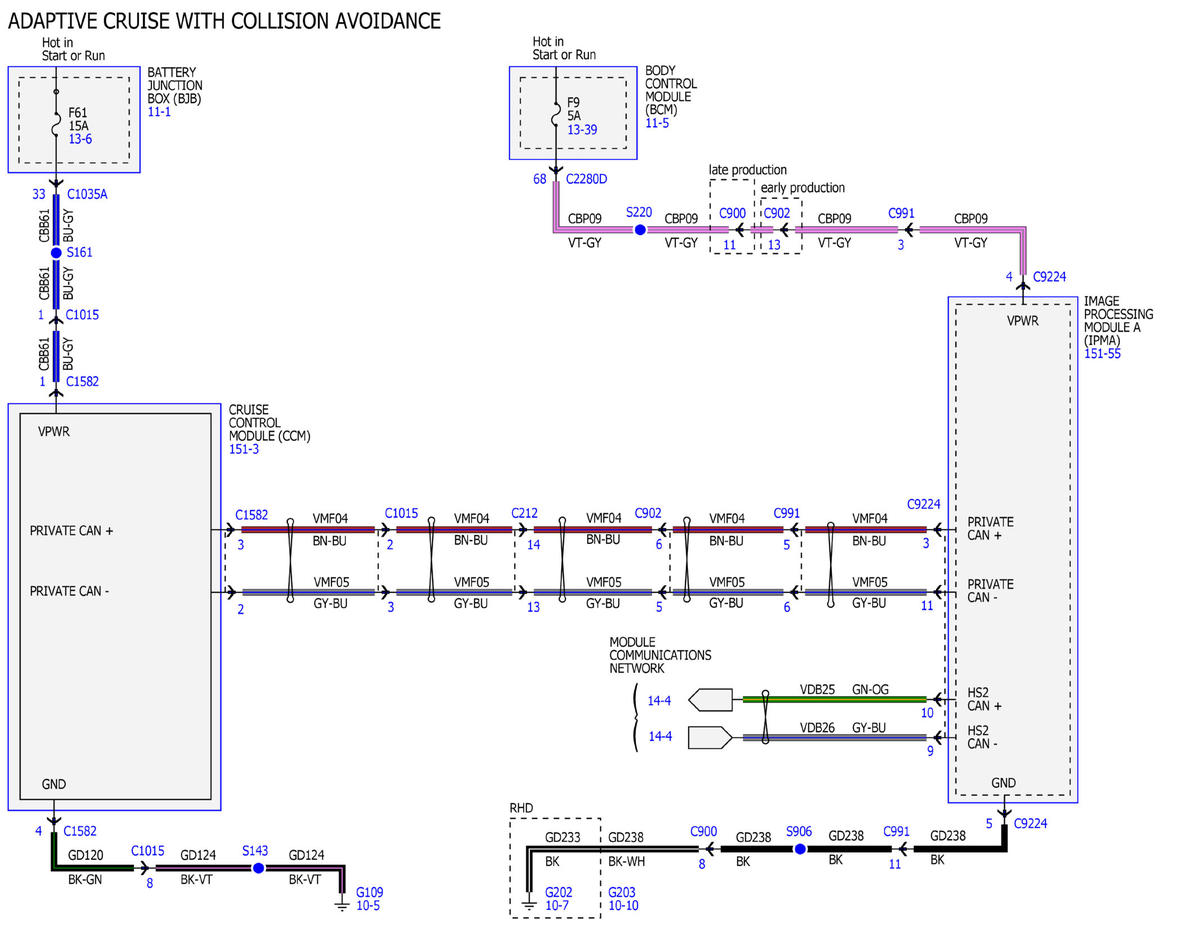

Fig 10: Identifying Cruise Control Wiring Diagram (10 Of 10)
GFDWR130113Courtesy of FORD MOTOR COMPANY
