Cooling Fan
Cooling Fan
Fig 1: Identifying Cooling Fan Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR COMPANY

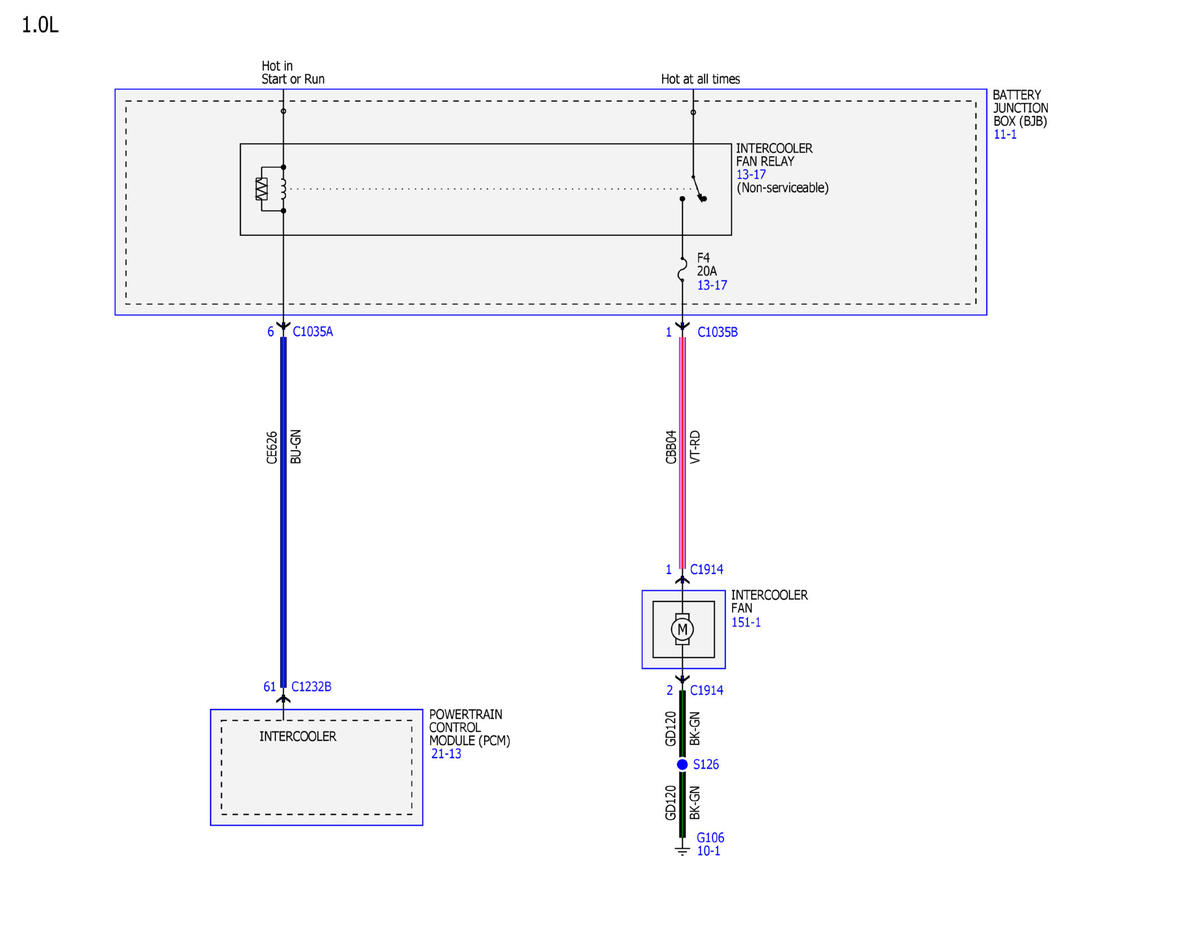

Fig 2: Identifying Cooling Fan Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR COMPANY

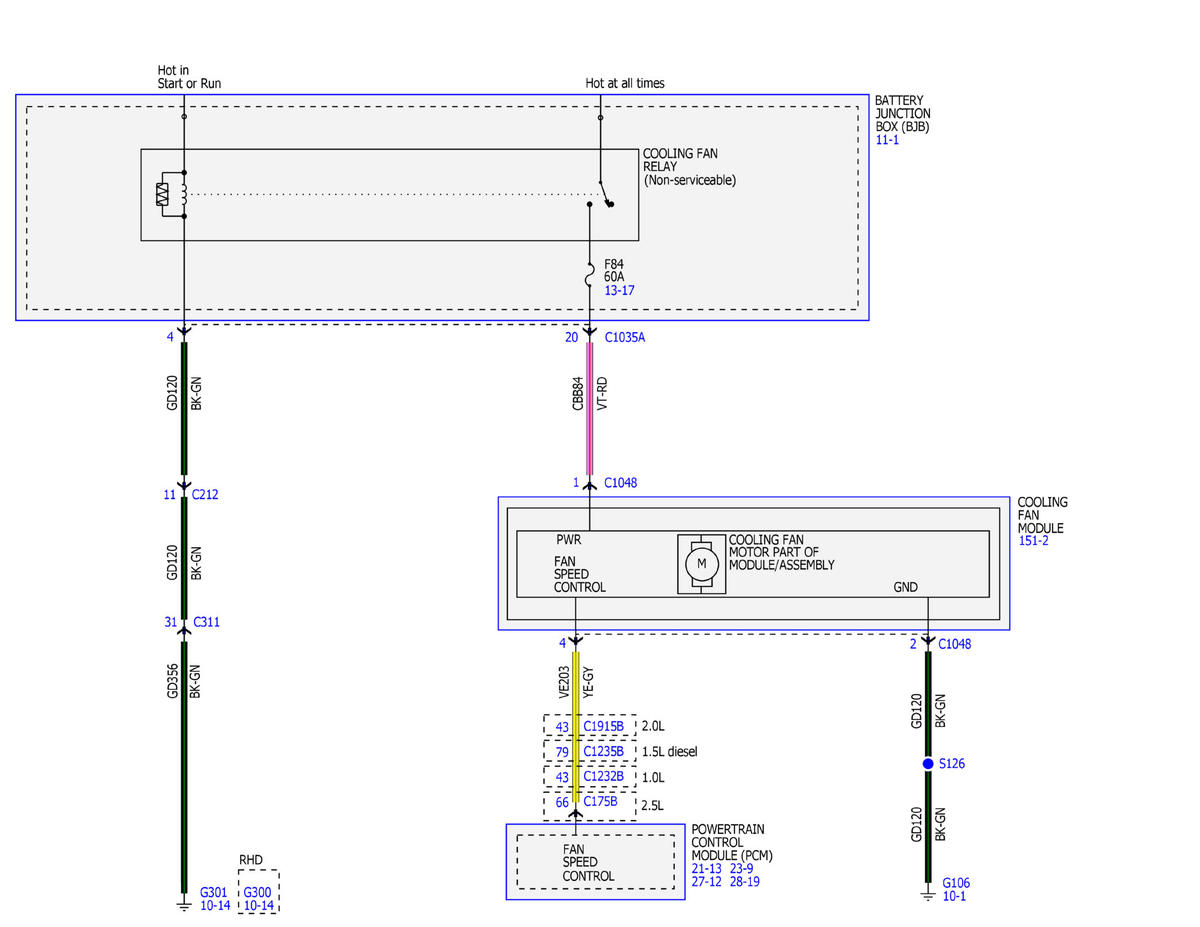

Fig 3: Identifying Cooling Fan Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR COMPANY
Fig 4: Identifying Cooling Fan Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
