Cluster and Panel Illumination

Fig 1: Identifying Cluster and Panel Illumination Wiring Diagram (1 Of 5)
GFDWR130102Courtesy of FORD MOTOR COMPANY
Fig 2: Identifying Cluster and Panel Illumination Wiring Diagram (2 Of 5)
GFDWR130103Courtesy of FORD MOTOR COMPANY
Fig 3: Identifying Cluster and Panel Illumination Wiring Diagram (3 Of 5)
GFDWR130104Courtesy of FORD MOTOR COMPANY

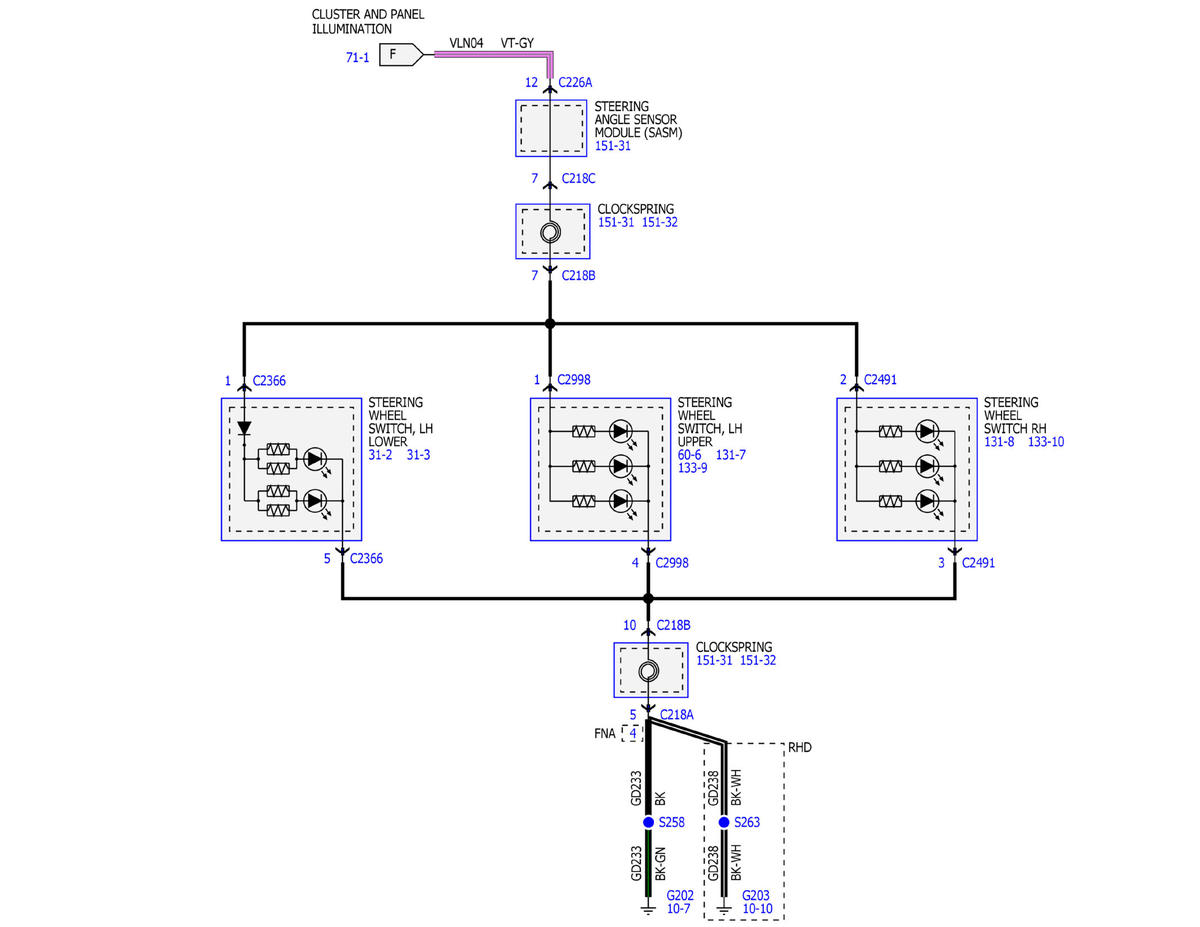

Fig 4: Identifying Cluster and Panel Illumination Wiring Diagram (4 Of 5)
GFDWR130105Courtesy of FORD MOTOR COMPANY
Fig 5: Identifying Cluster and Panel Illumination Wiring Diagram (5 Of 5)
GFDWR130106Courtesy of FORD MOTOR COMPANY
