Climate Controlled Seats

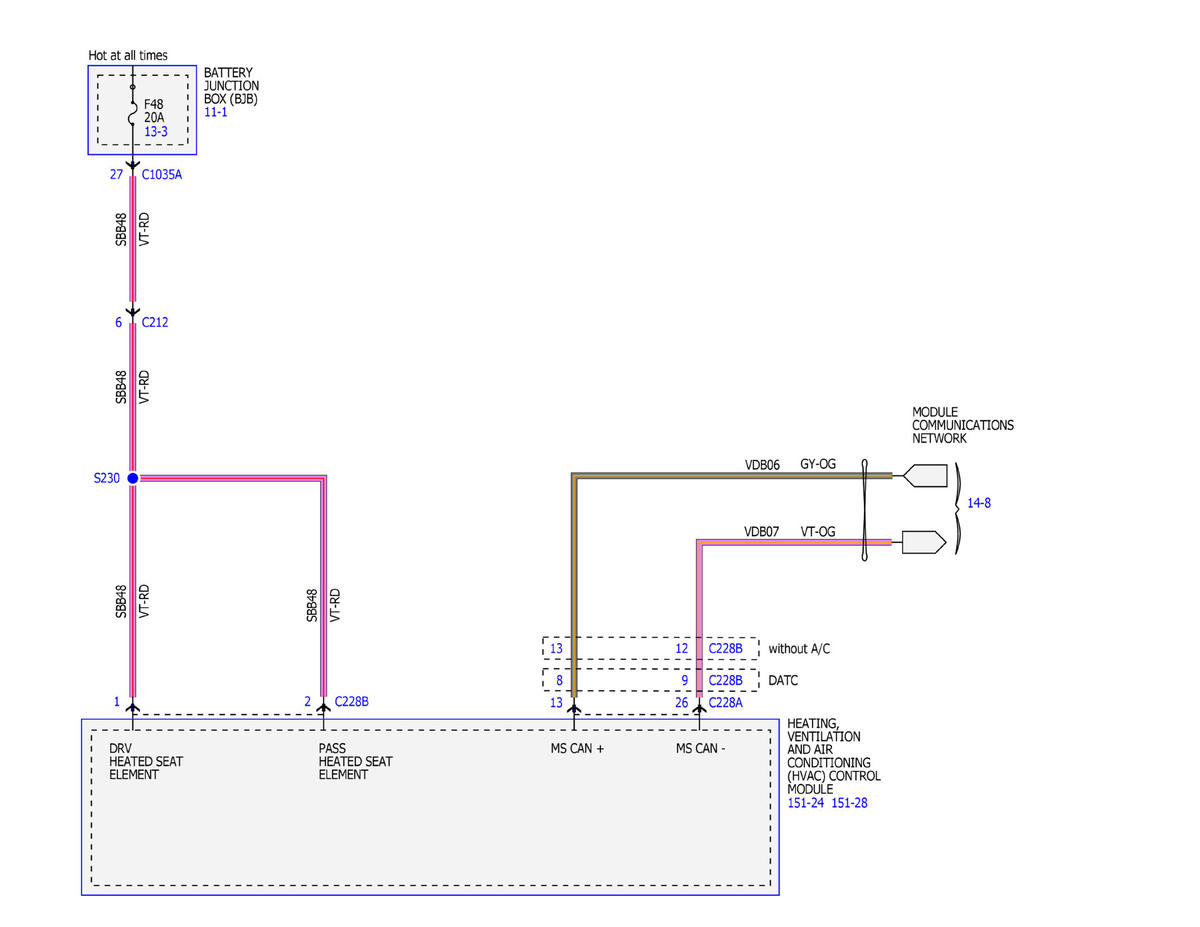

Fig 1: Identifying Climate Controlled Seats Wiring Diagram (1 Of 5)
GFDWR130097Courtesy of FORD MOTOR COMPANY
Fig 2: Identifying Climate Controlled Seats Wiring Diagram (2 Of 5)
GFDWR130098Courtesy of FORD MOTOR COMPANY

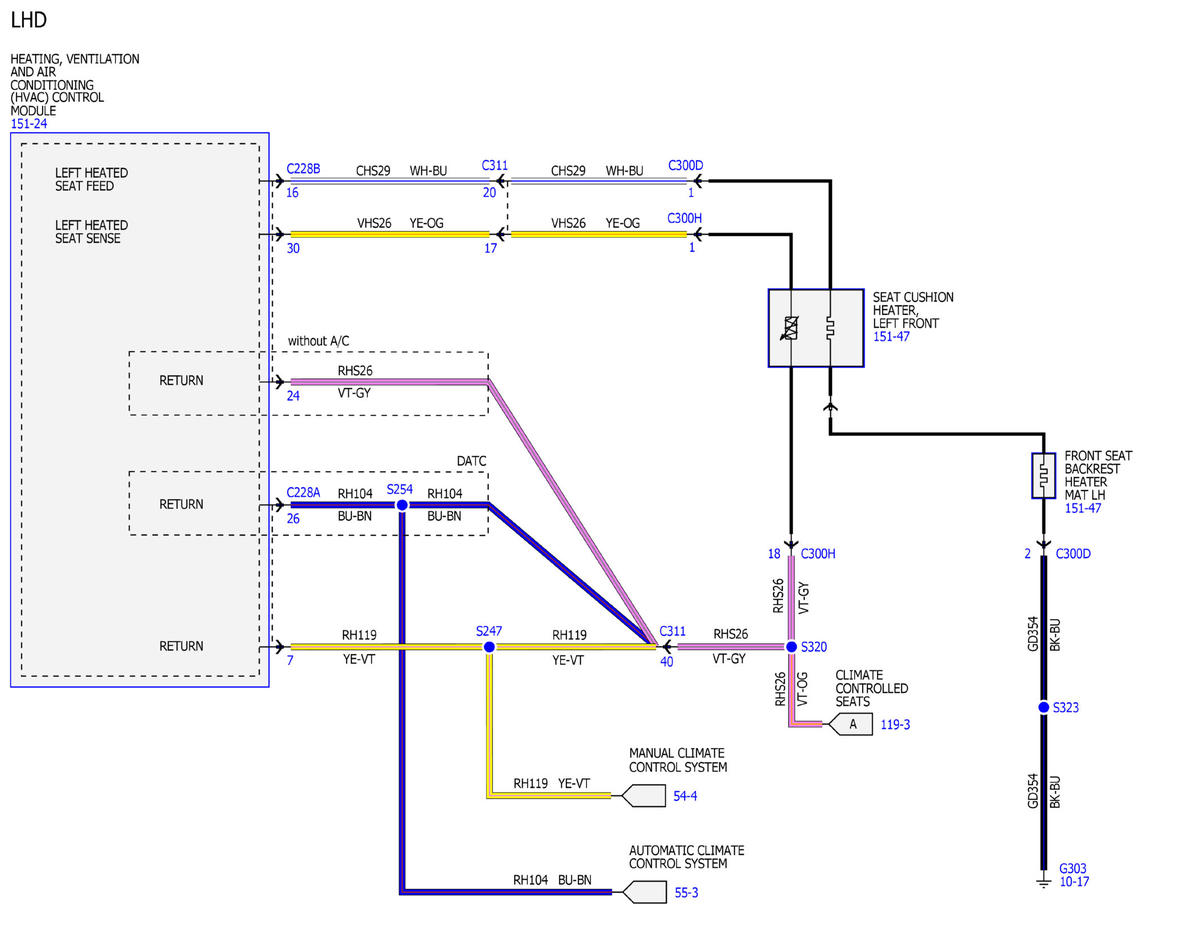

Fig 3: Identifying Climate Controlled Seats Wiring Diagram (3 Of 5)
GFDWR130099Courtesy of FORD MOTOR COMPANY

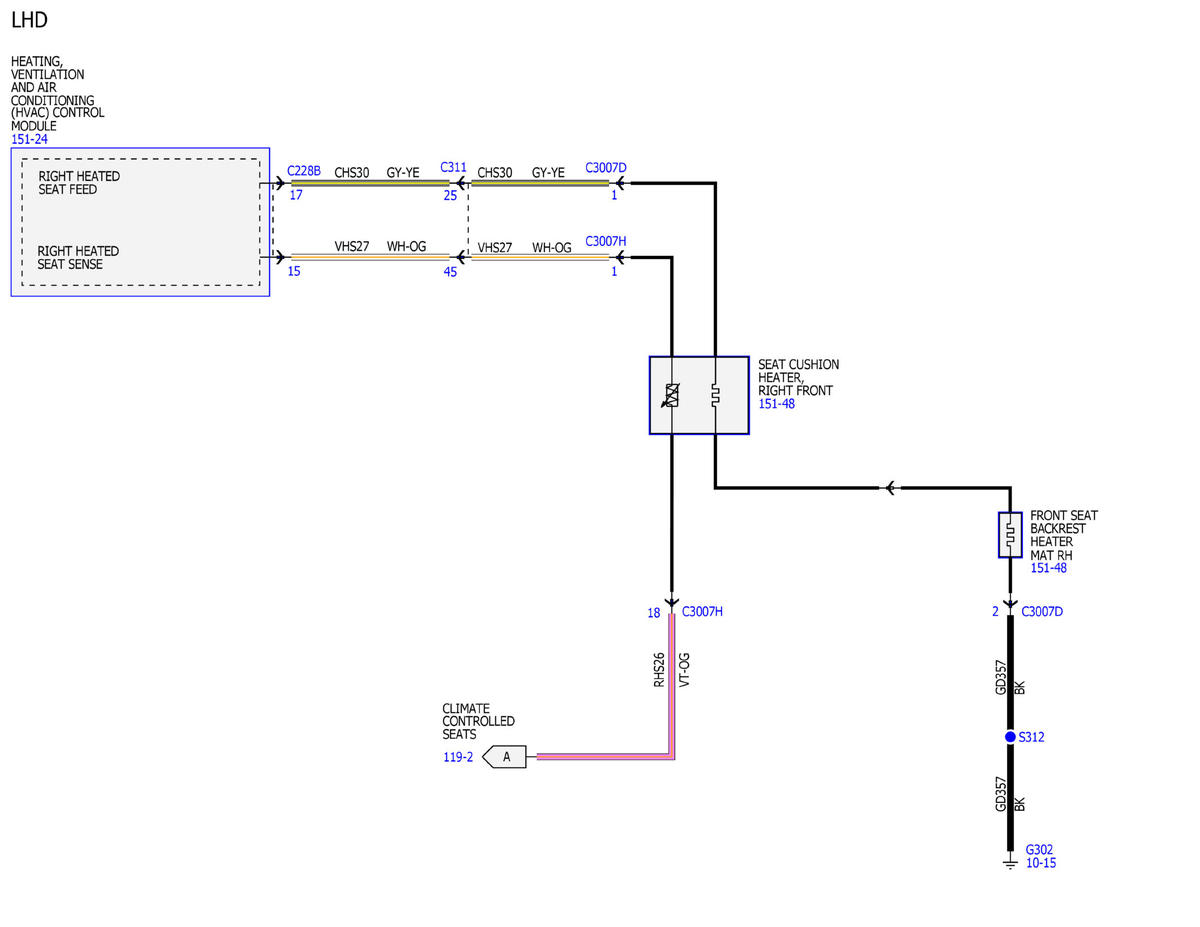

Fig 4: Identifying Climate Controlled Seats Wiring Diagram (4 Of 5)
GFDWR130100Courtesy of FORD MOTOR COMPANY

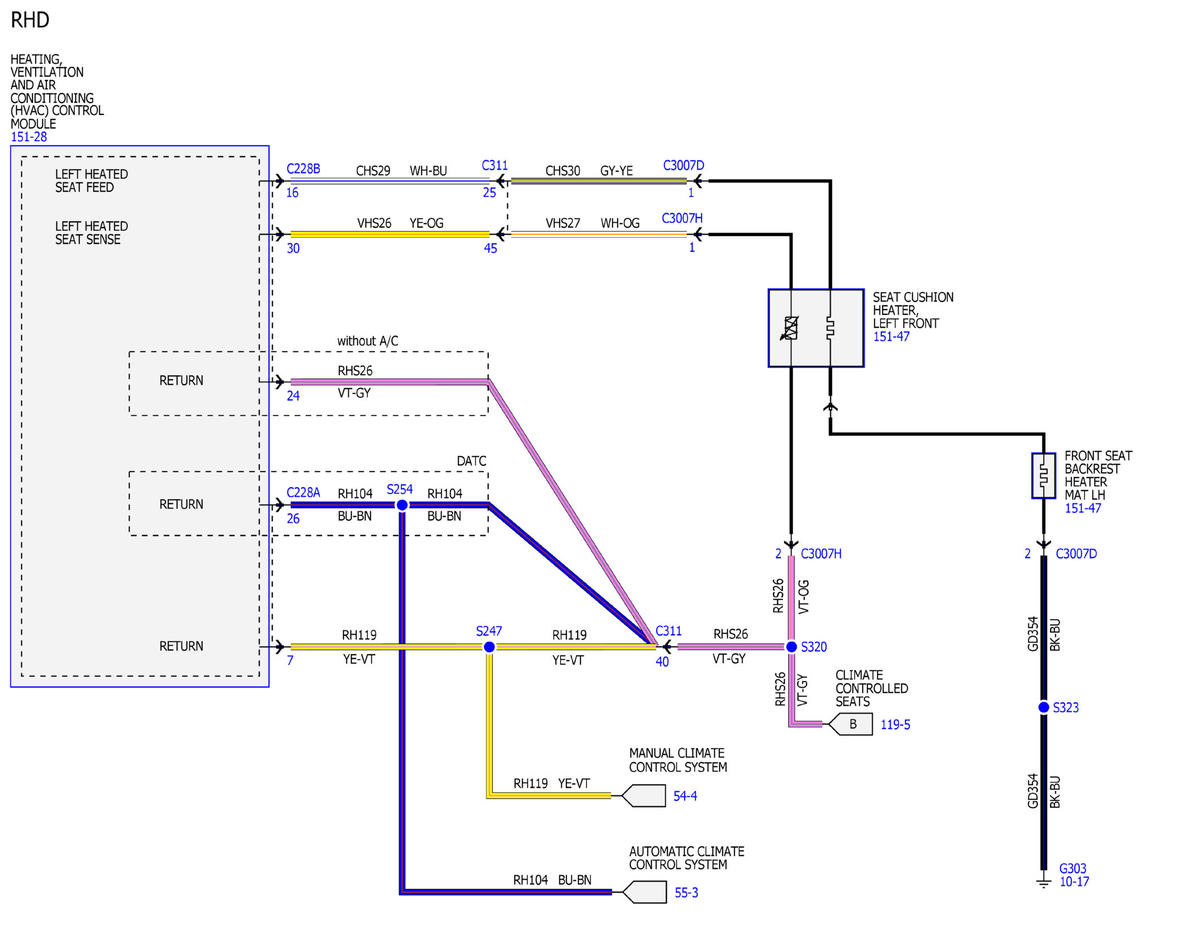

Fig 5: Identifying Climate Controlled Seats Wiring Diagram (5 Of 5)
GFDWR130101Courtesy of FORD MOTOR COMPANY
