Automatic Climate Control System

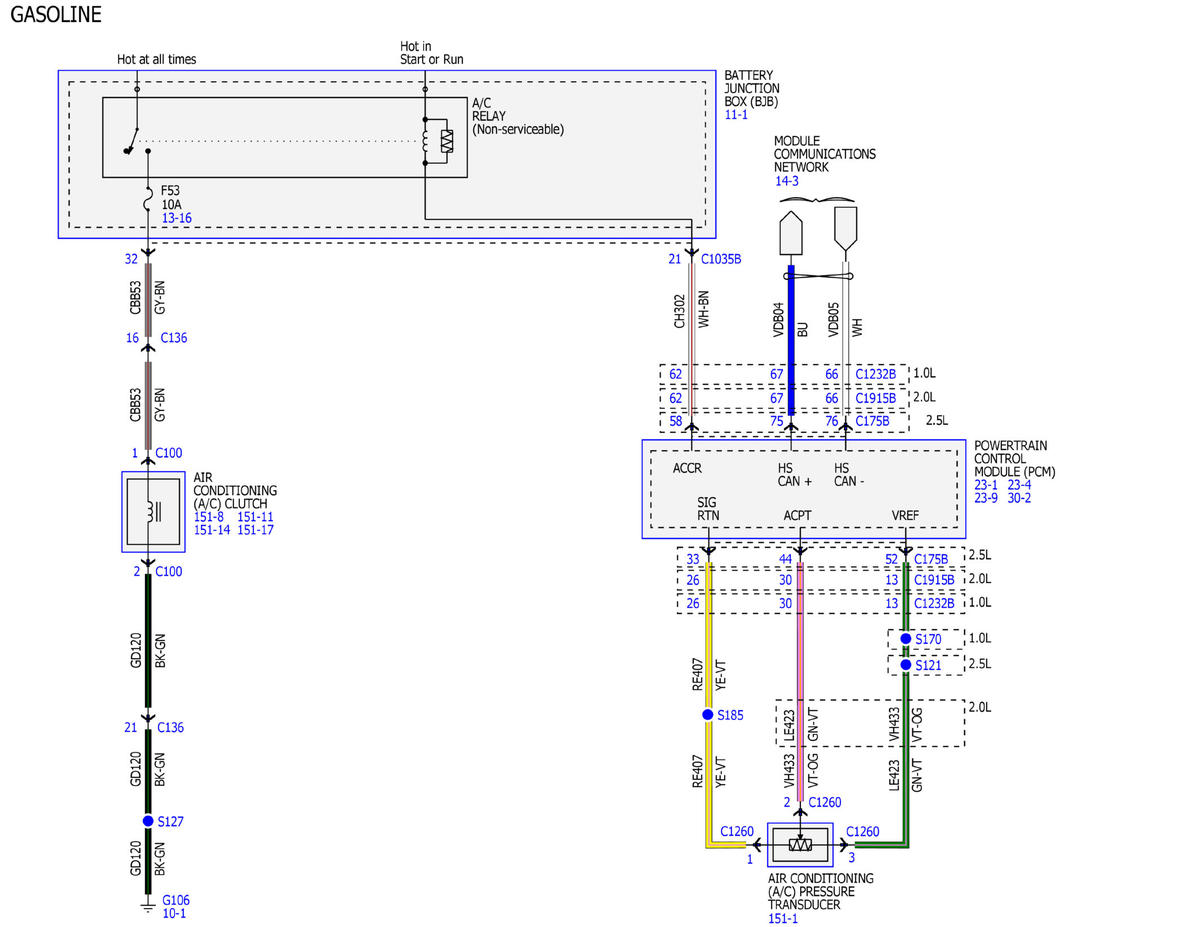

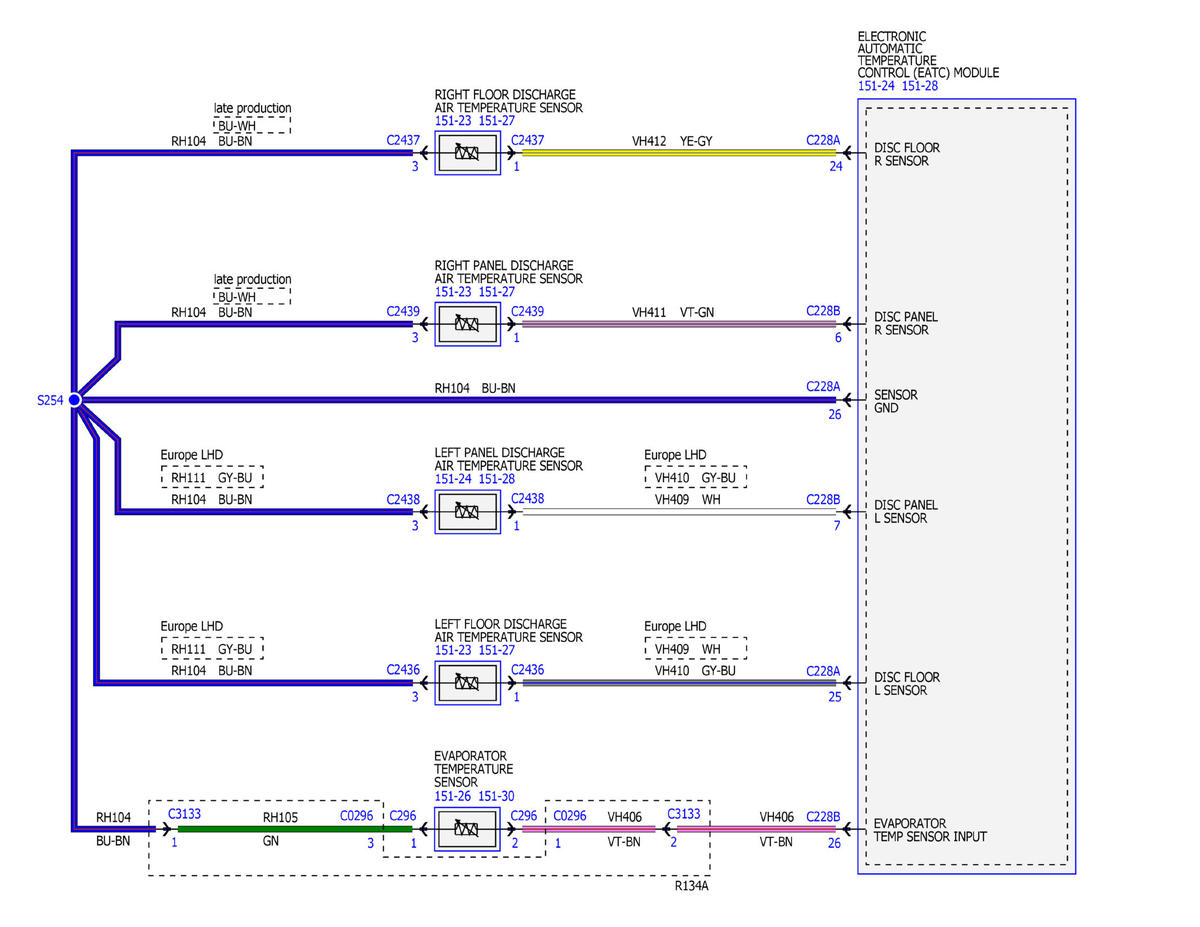

Fig 1: Identifying Automatic Climate Control System Wiring Diagram (1 Of 12)

Courtesy of FORD MOTOR COMPANY

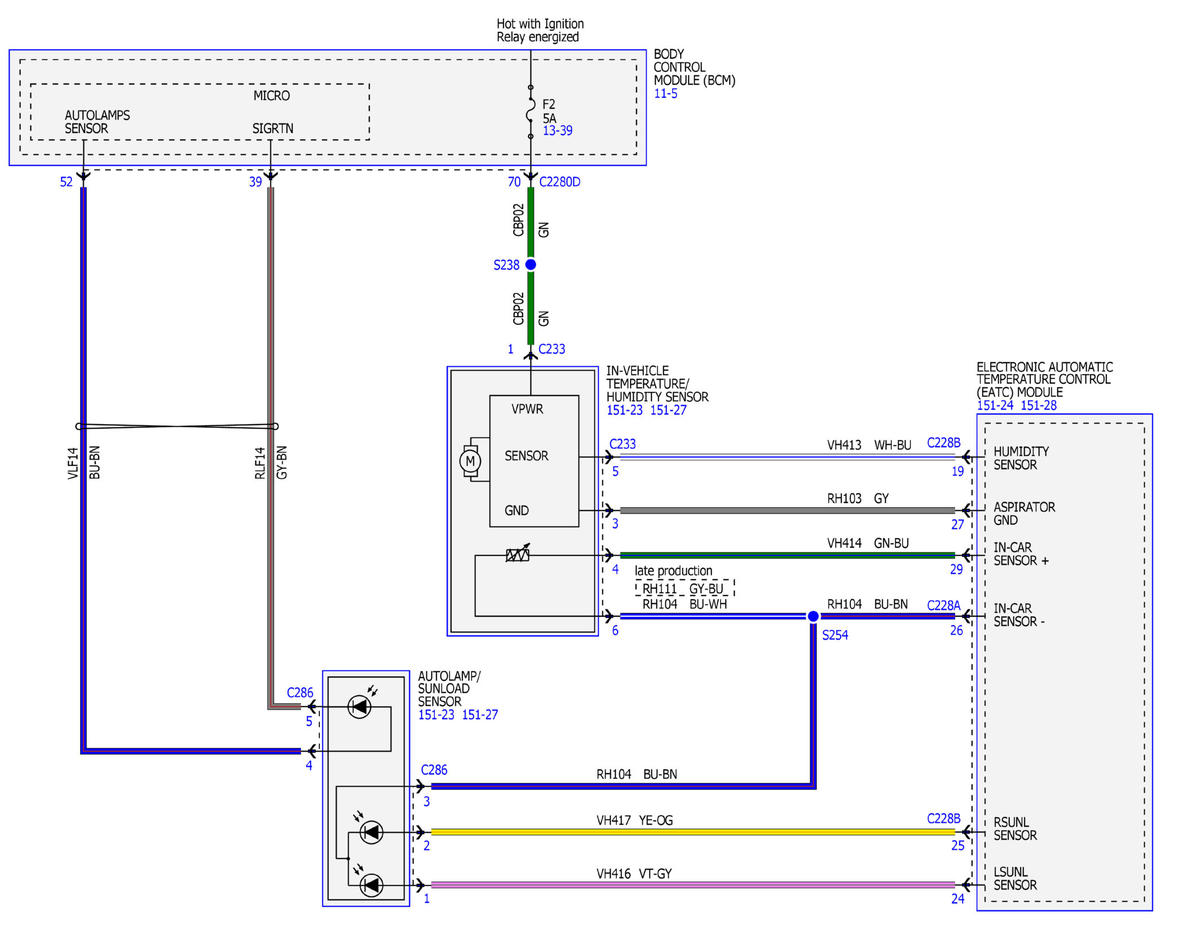

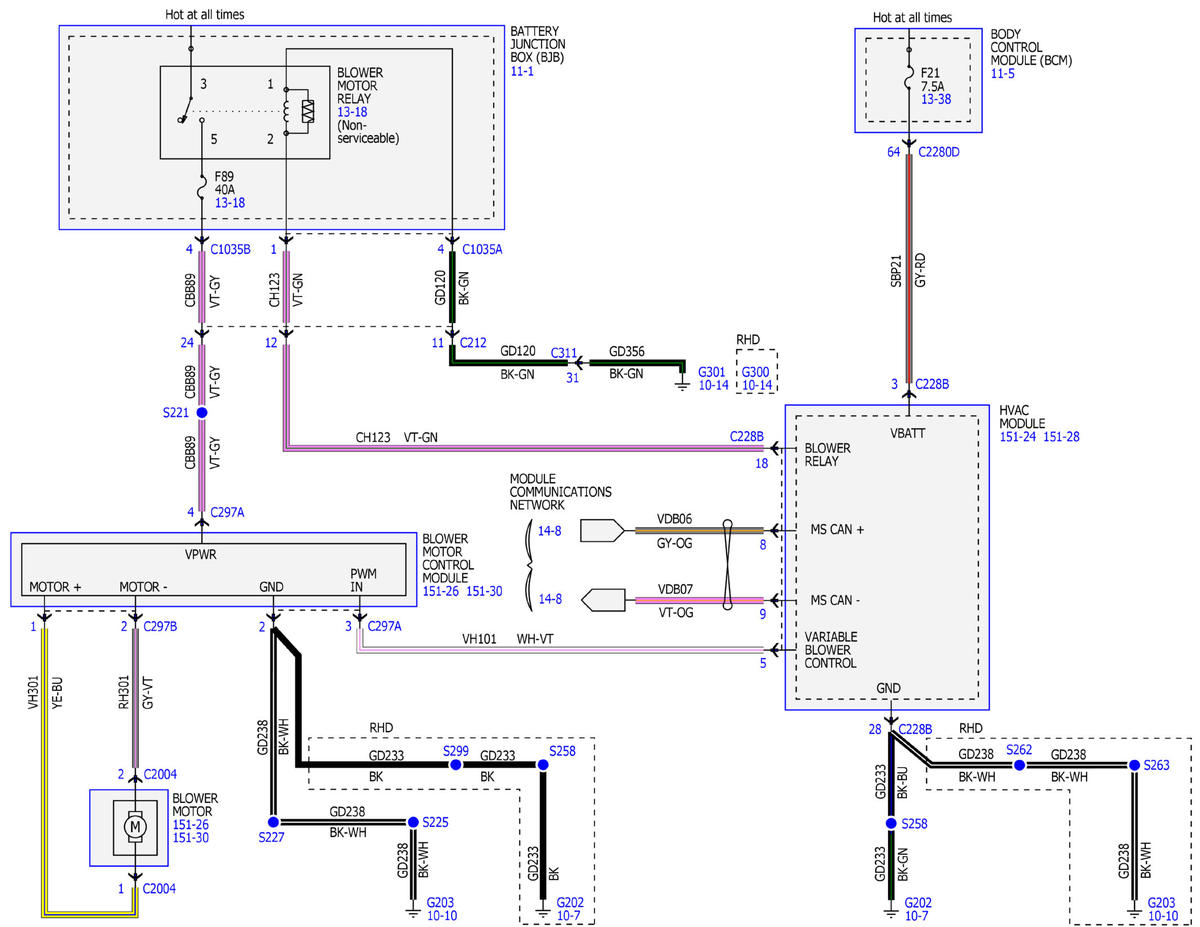

Fig 2: Identifying Automatic Climate Control System Wiring Diagram (2 Of 12)

Courtesy of FORD MOTOR COMPANY

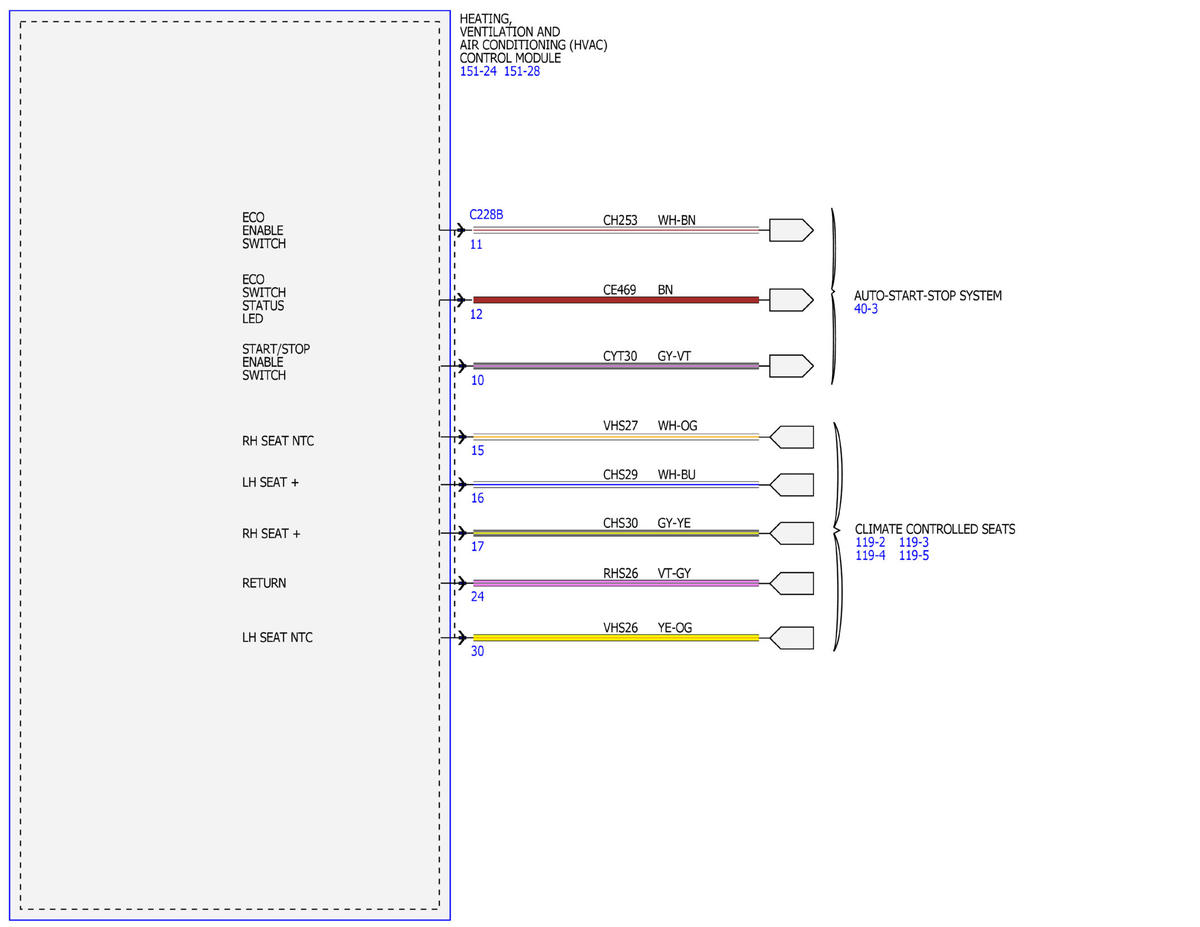

Fig 3: Identifying Automatic Climate Control System Wiring Diagram (3 Of 12)

Courtesy of FORD MOTOR COMPANY

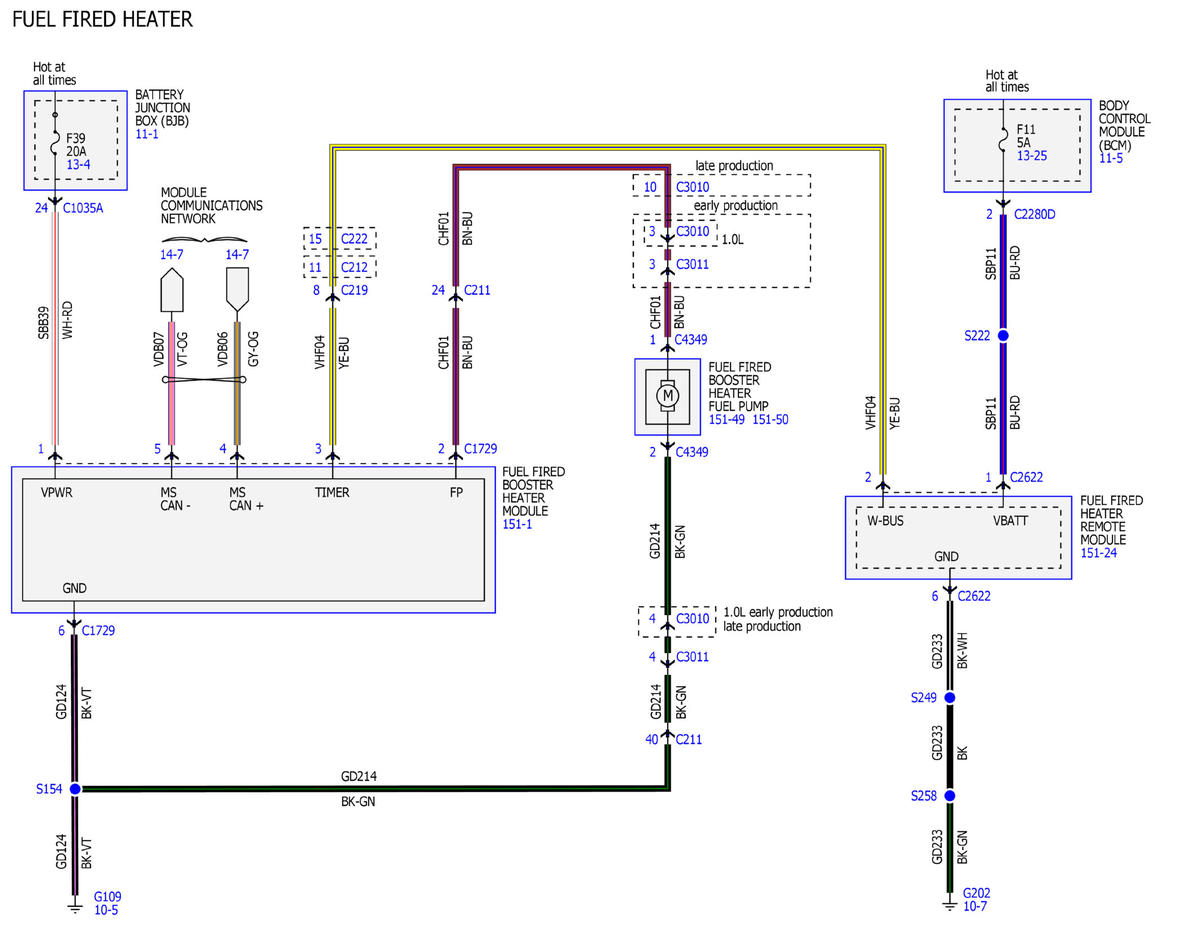

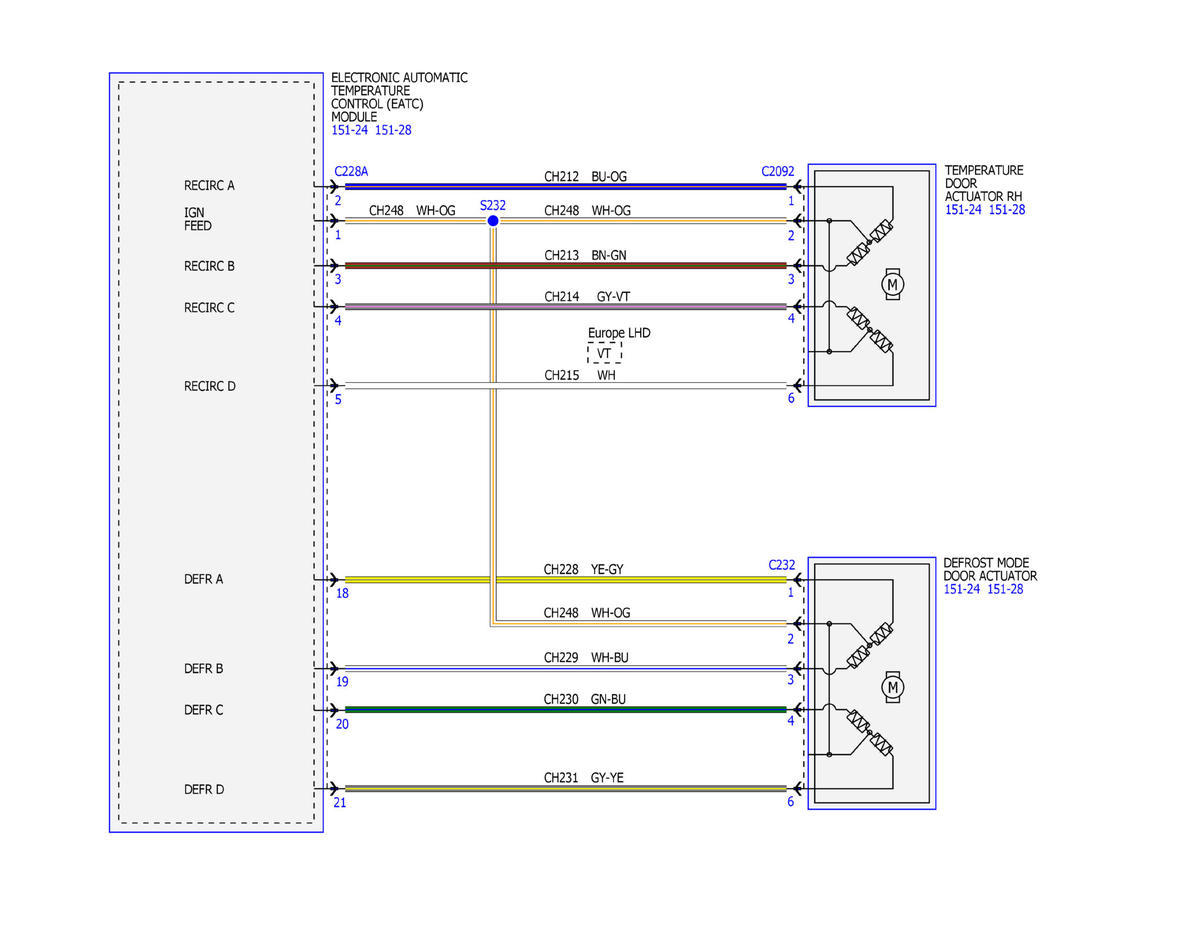

Fig 4: Identifying Automatic Climate Control System Wiring Diagram (4 Of 12)

Courtesy of FORD MOTOR COMPANY

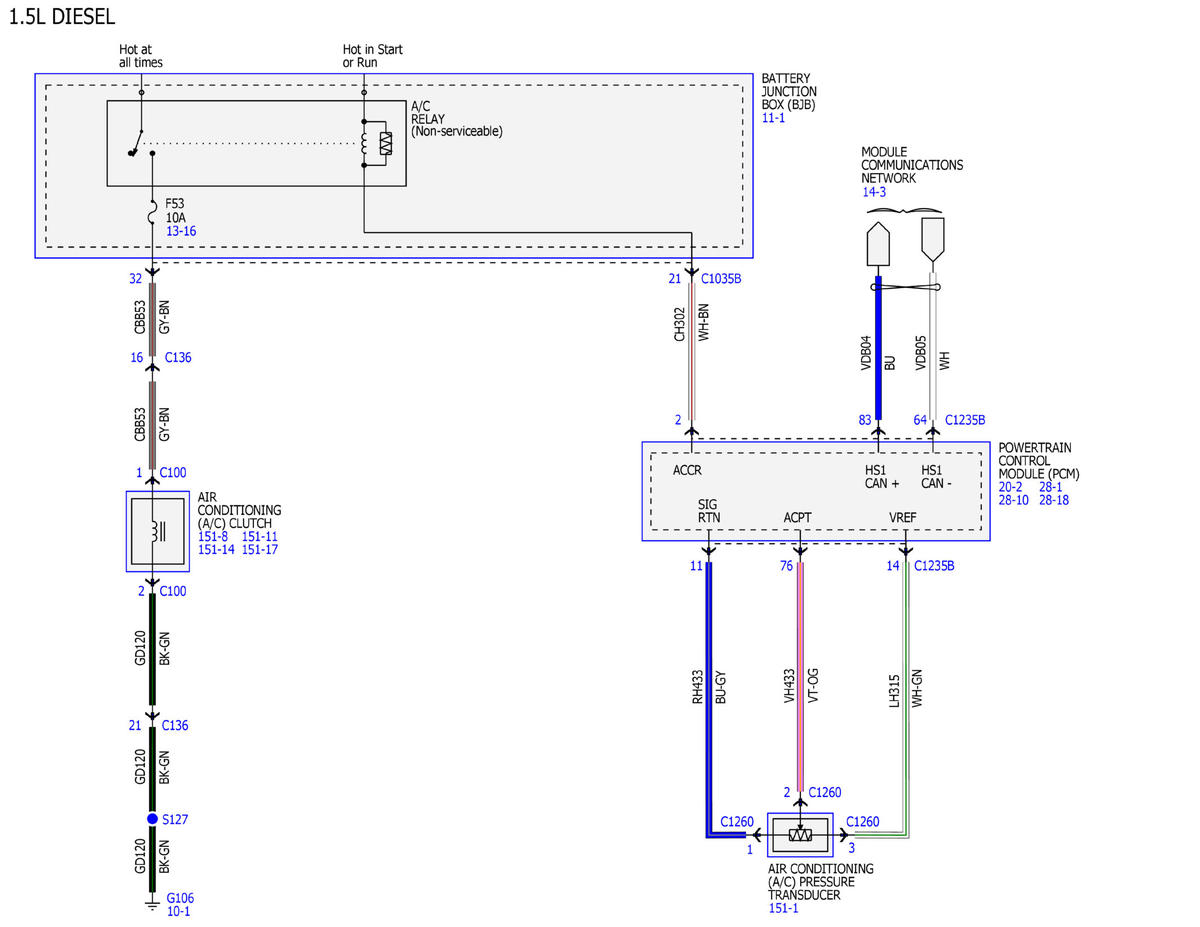

Fig 5: Identifying Automatic Climate Control System Wiring Diagram (5 Of 12)

Courtesy of FORD MOTOR COMPANY

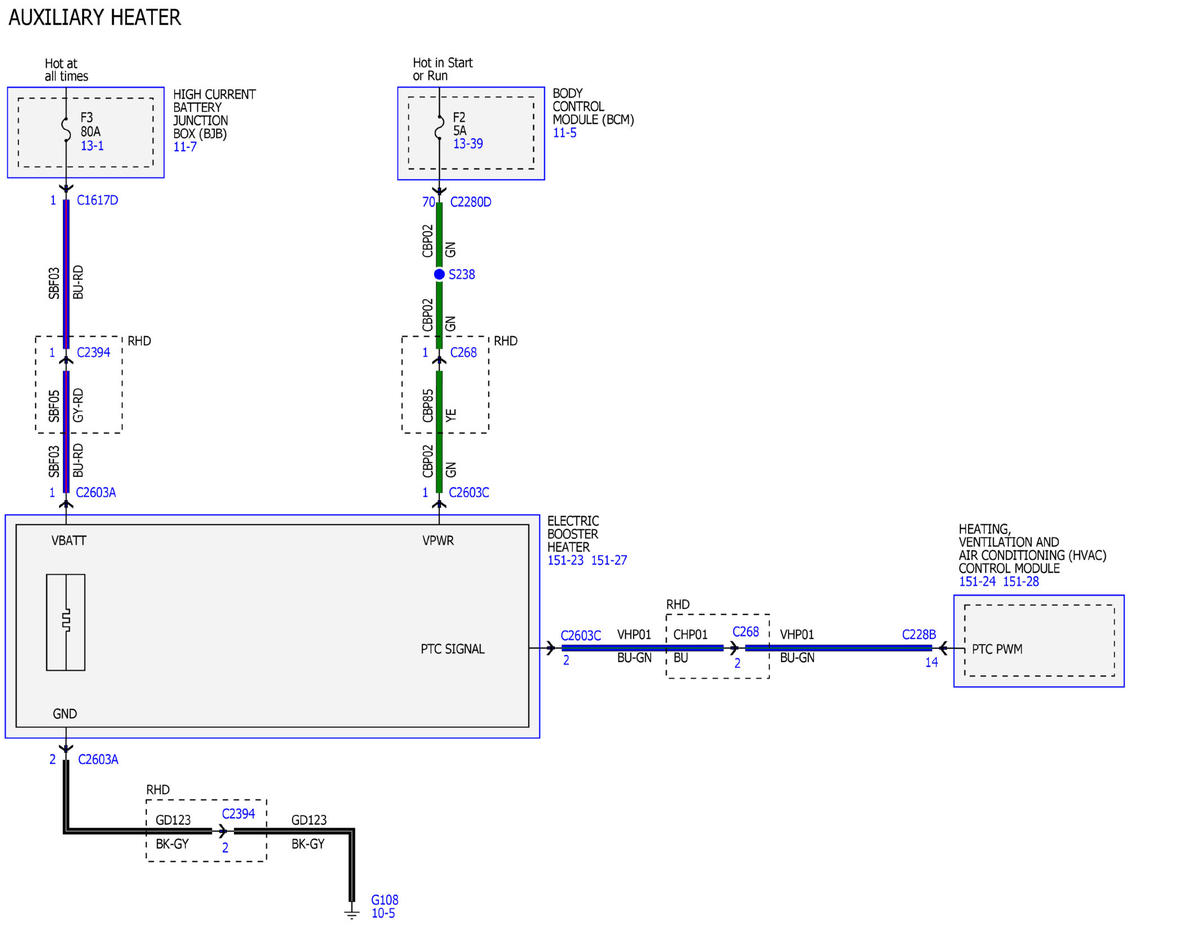

Fig 6: Identifying Automatic Climate Control System Wiring Diagram (6 Of 12)

Courtesy of FORD MOTOR COMPANY

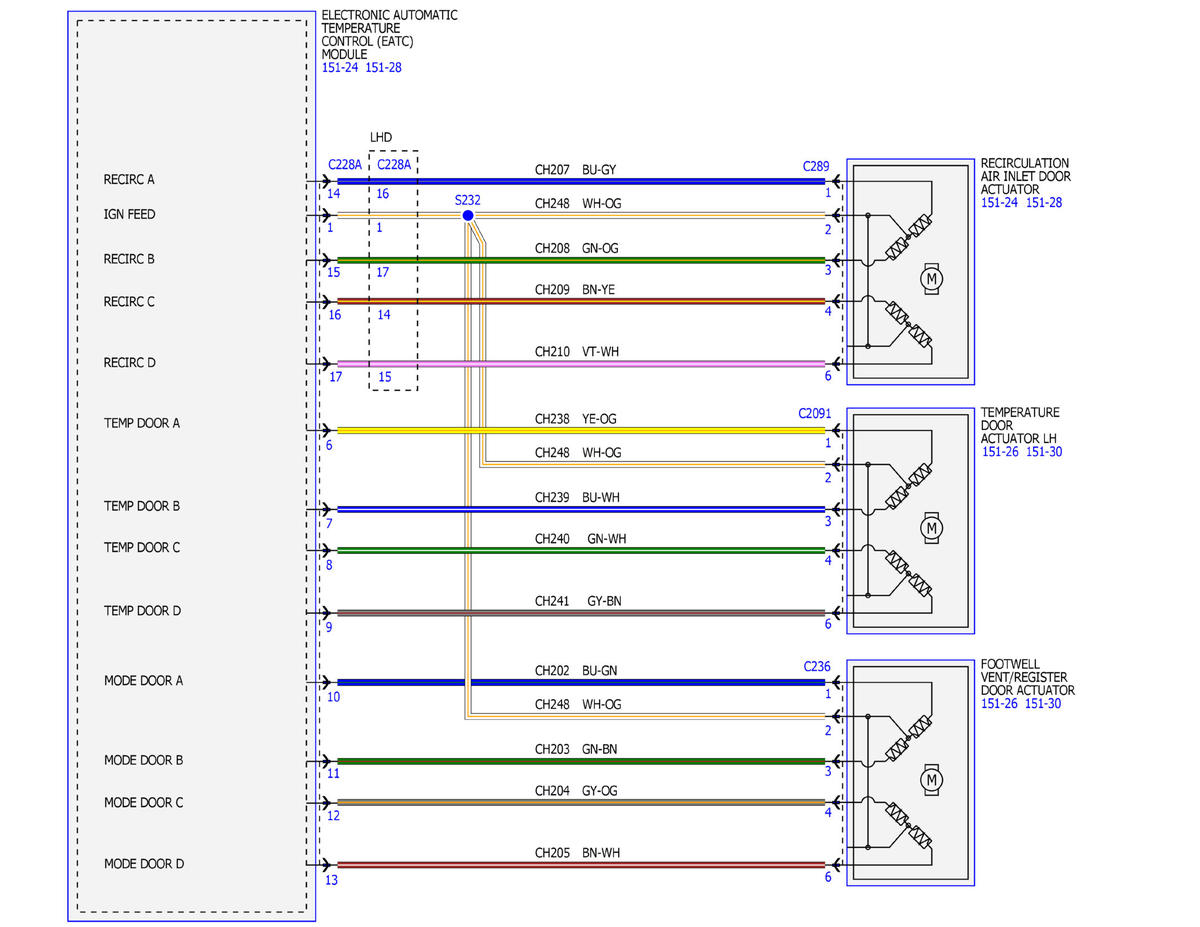

Fig 7: Identifying Automatic Climate Control System Wiring Diagram (7 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 8: Identifying Automatic Climate Control System Wiring Diagram (8 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Identifying Automatic Climate Control System Wiring Diagram (9 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Identifying Automatic Climate Control System Wiring Diagram (10 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Identifying Automatic Climate Control System Wiring Diagram (11 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Identifying Automatic Climate Control System Wiring Diagram (12 Of 12)

Courtesy of FORD MOTOR COMPANY
