Audio System/Navigation - AM/FM/SYNC/Touchscreen Display

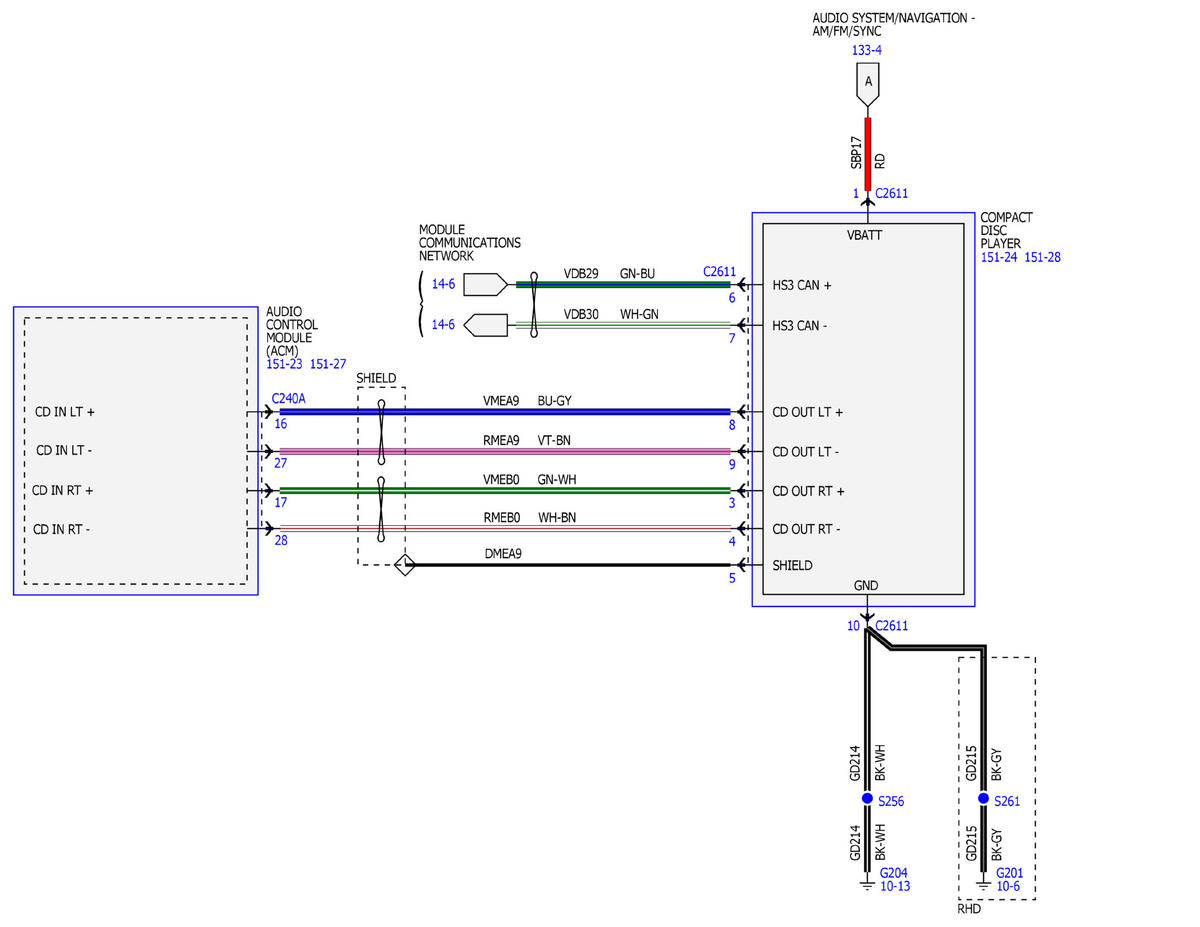

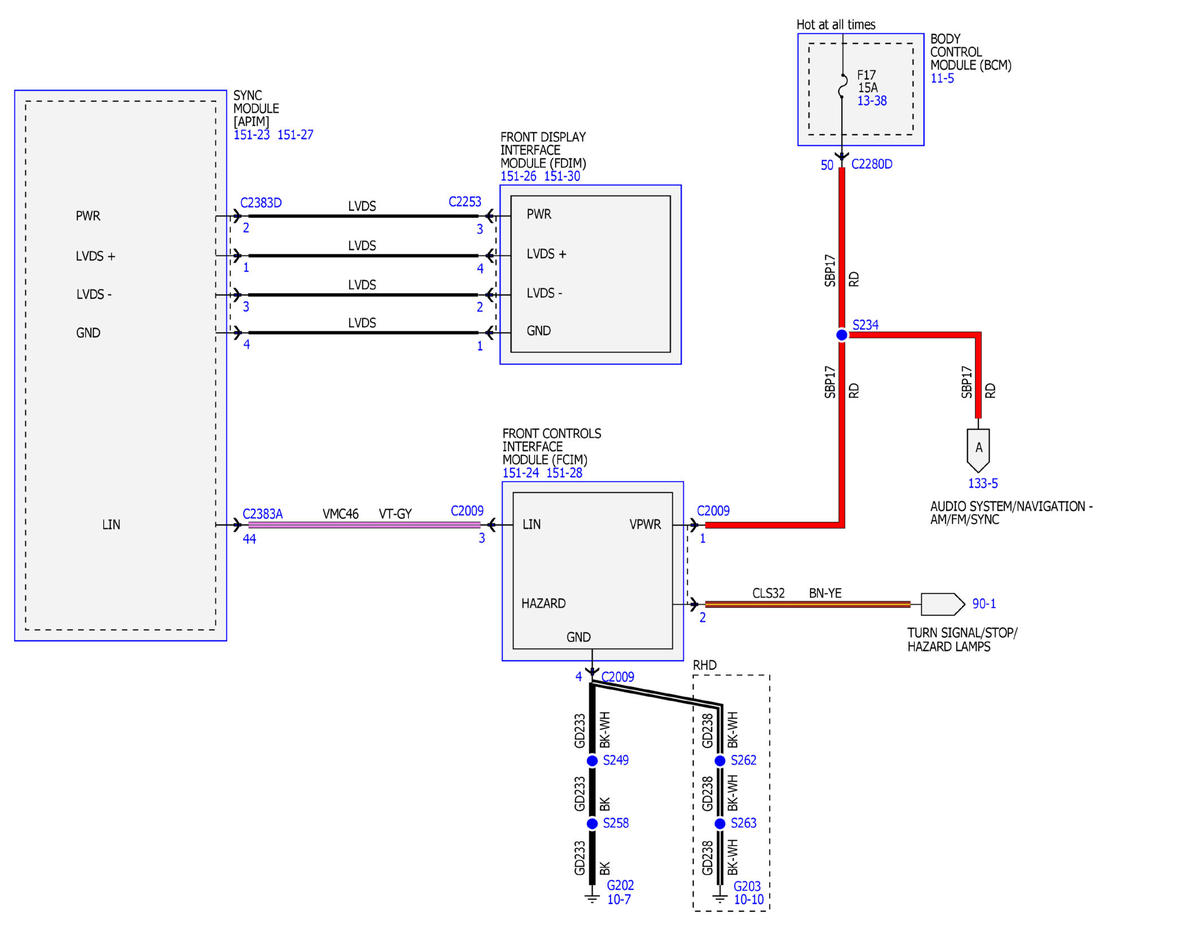

Fig 1: Identifying Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (1 Of 10)

Courtesy of FORD MOTOR COMPANY

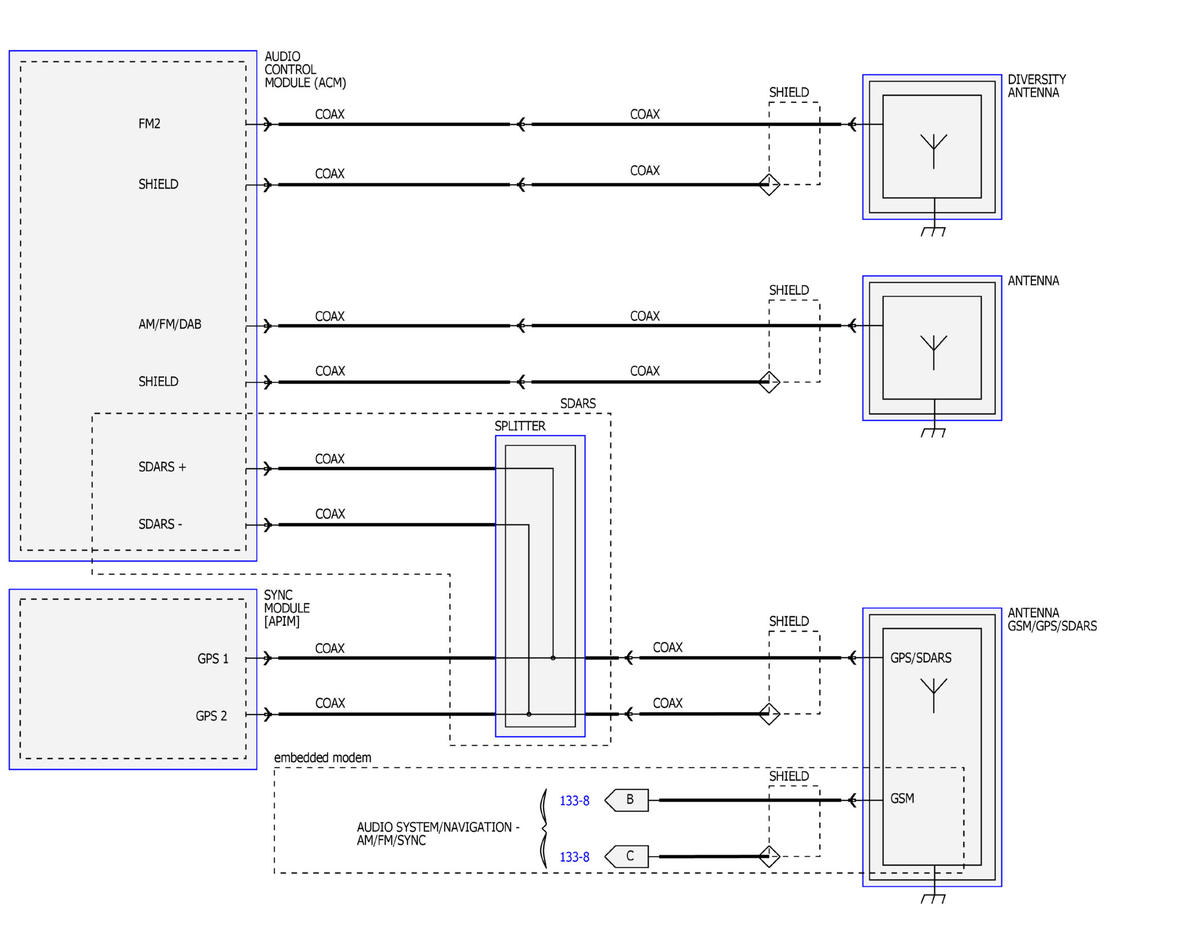

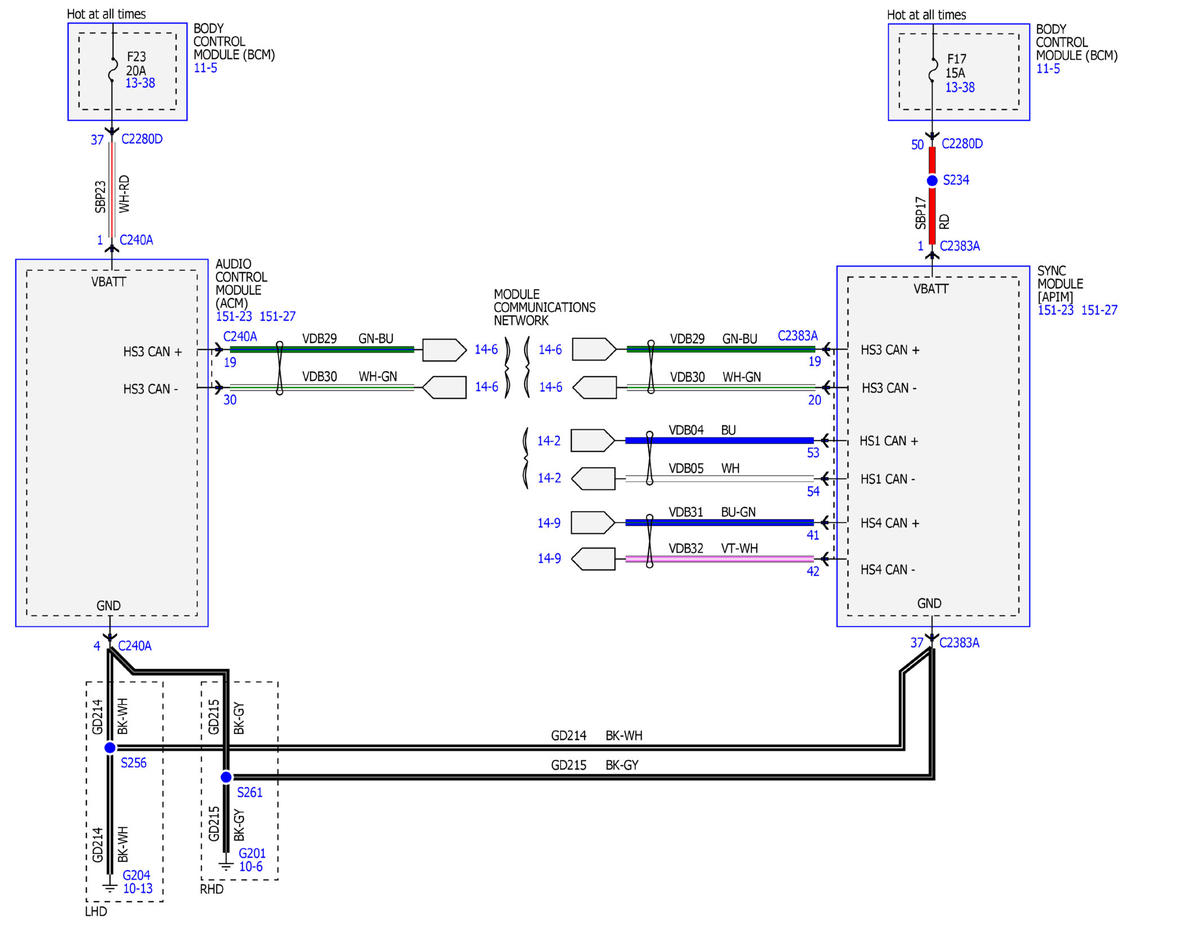

Fig 2: Identifying Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (2 Of 10)

Courtesy of FORD MOTOR COMPANY

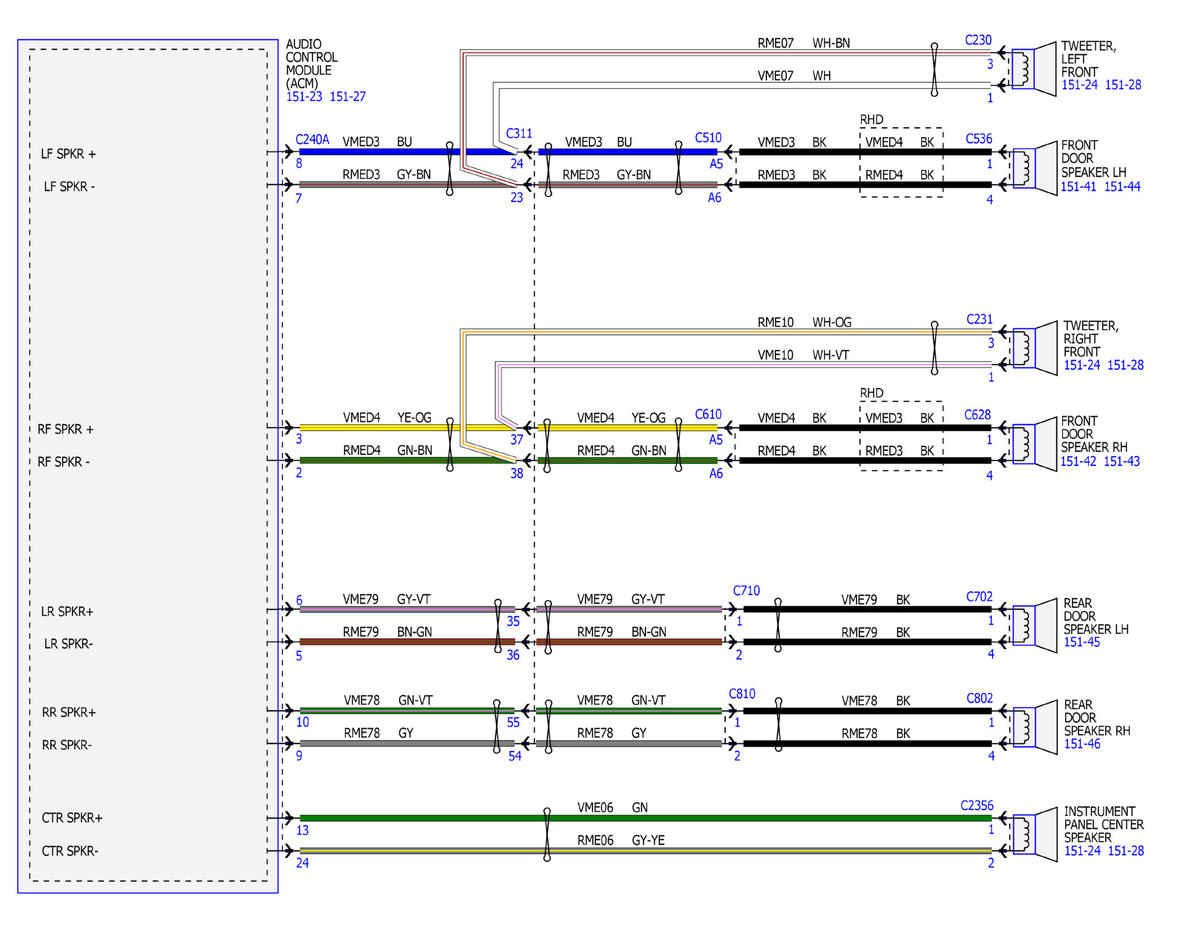

Fig 3: Identifying Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (3 Of 10)

Courtesy of FORD MOTOR COMPANY

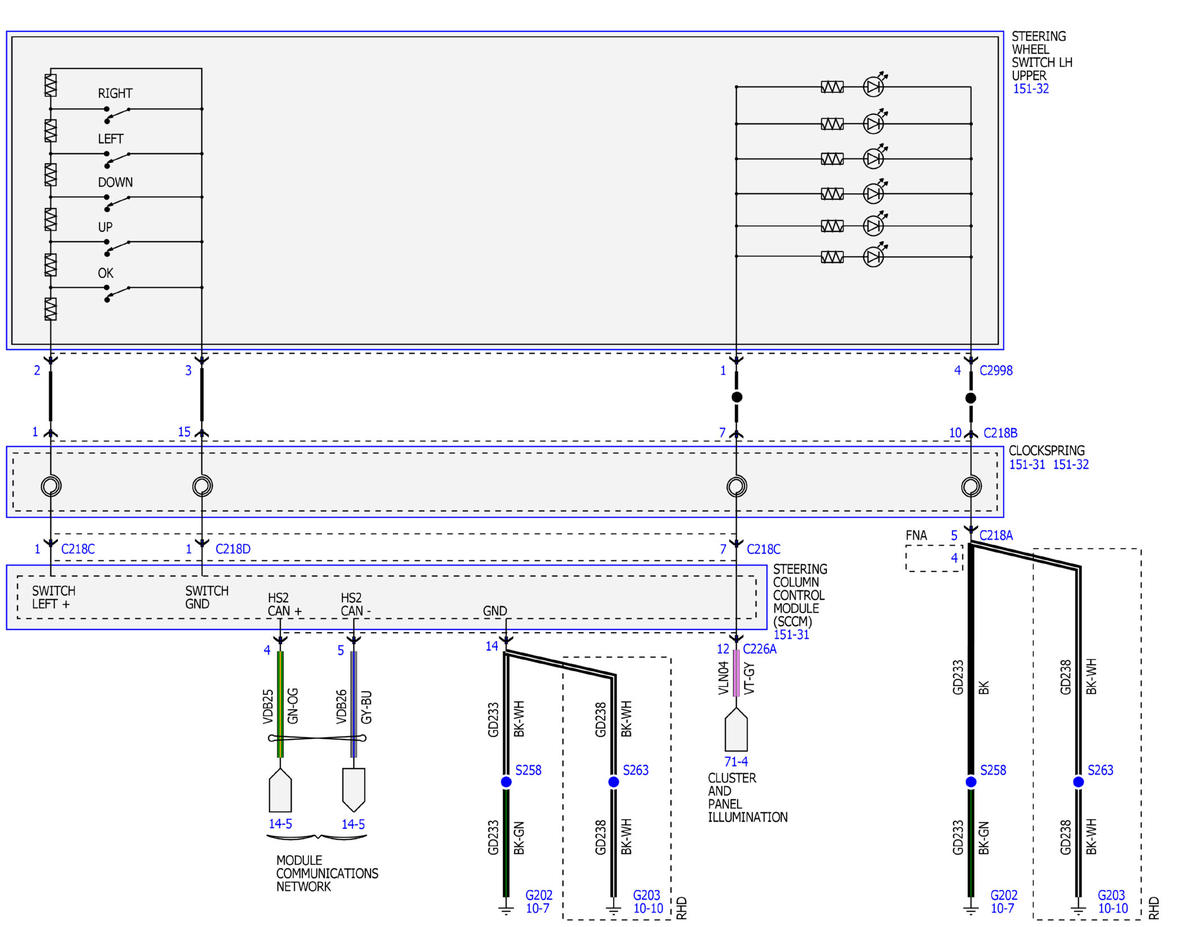

Fig 4: Identifying Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (4 Of 10)

Courtesy of FORD MOTOR COMPANY

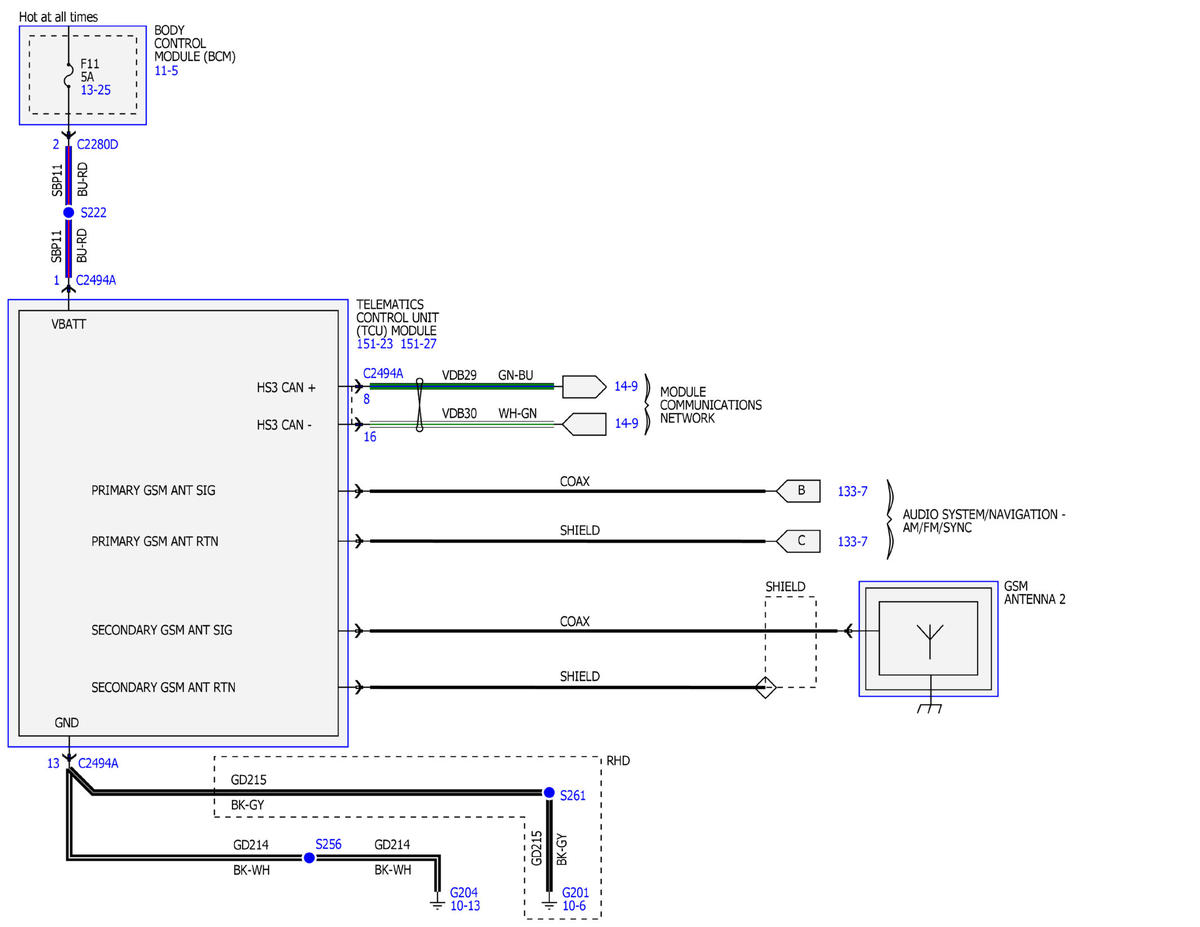

Fig 5: Identifying Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (5 Of 10)

Courtesy of FORD MOTOR COMPANY

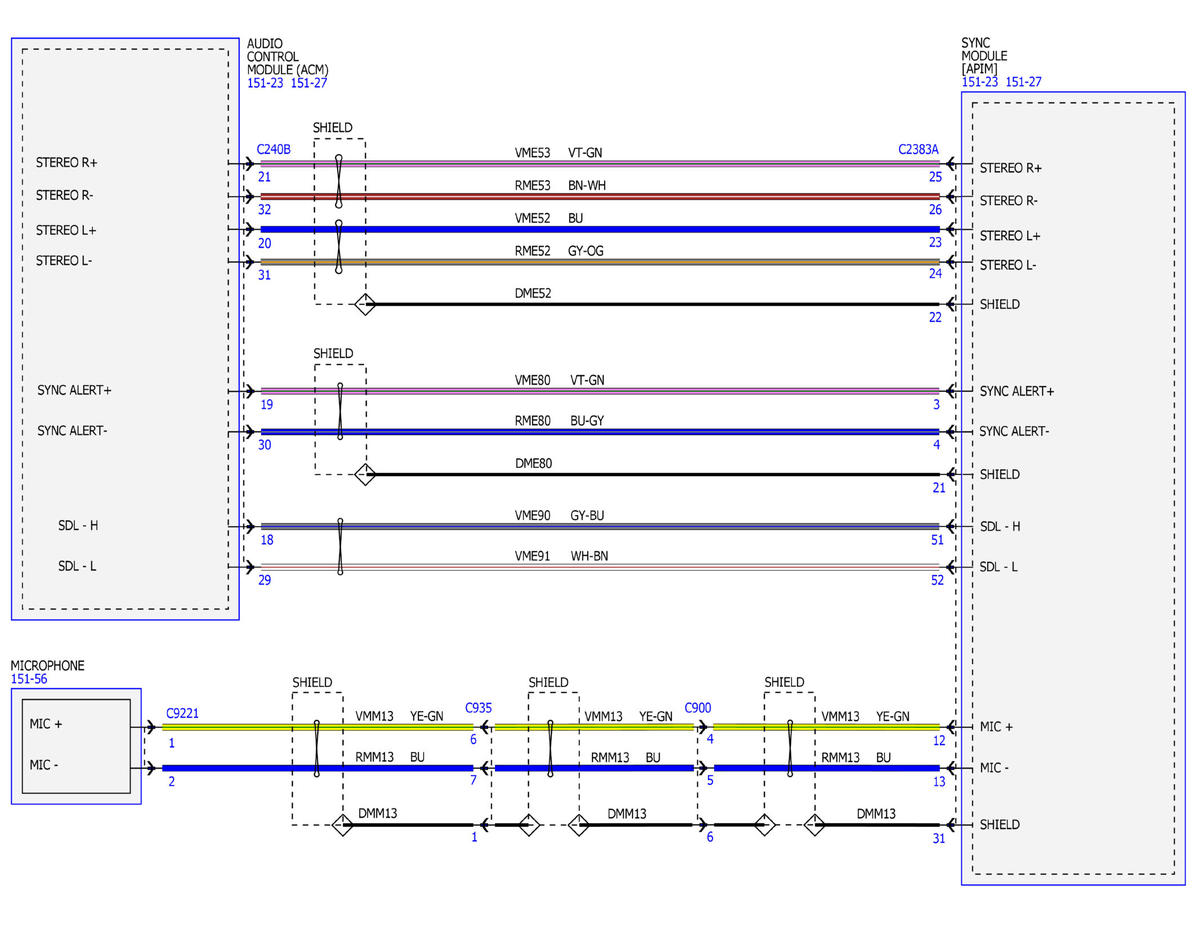

Fig 6: Identifying Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (6 Of 10)

Courtesy of FORD MOTOR COMPANY

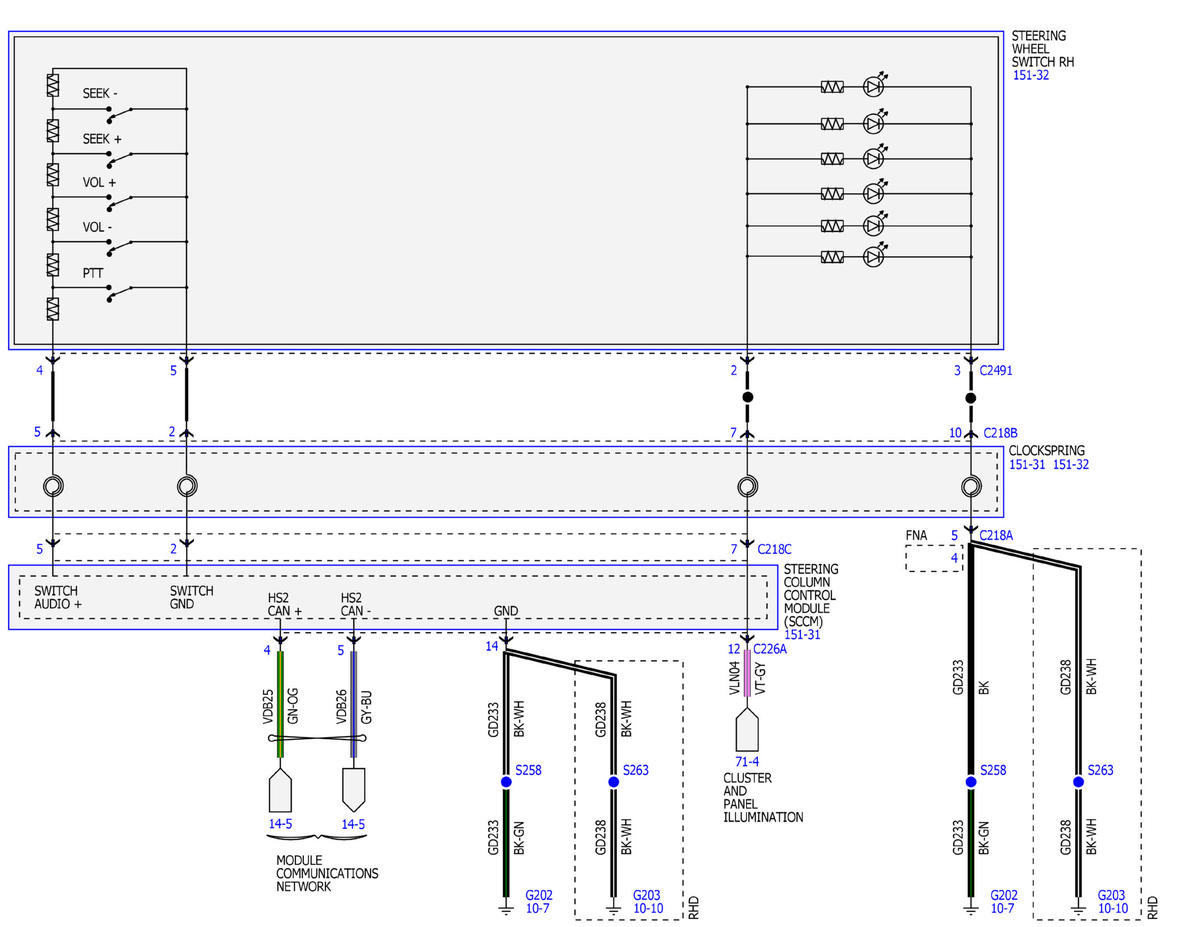

Fig 7: Identifying Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (7 Of 10)

Courtesy of FORD MOTOR COMPANY

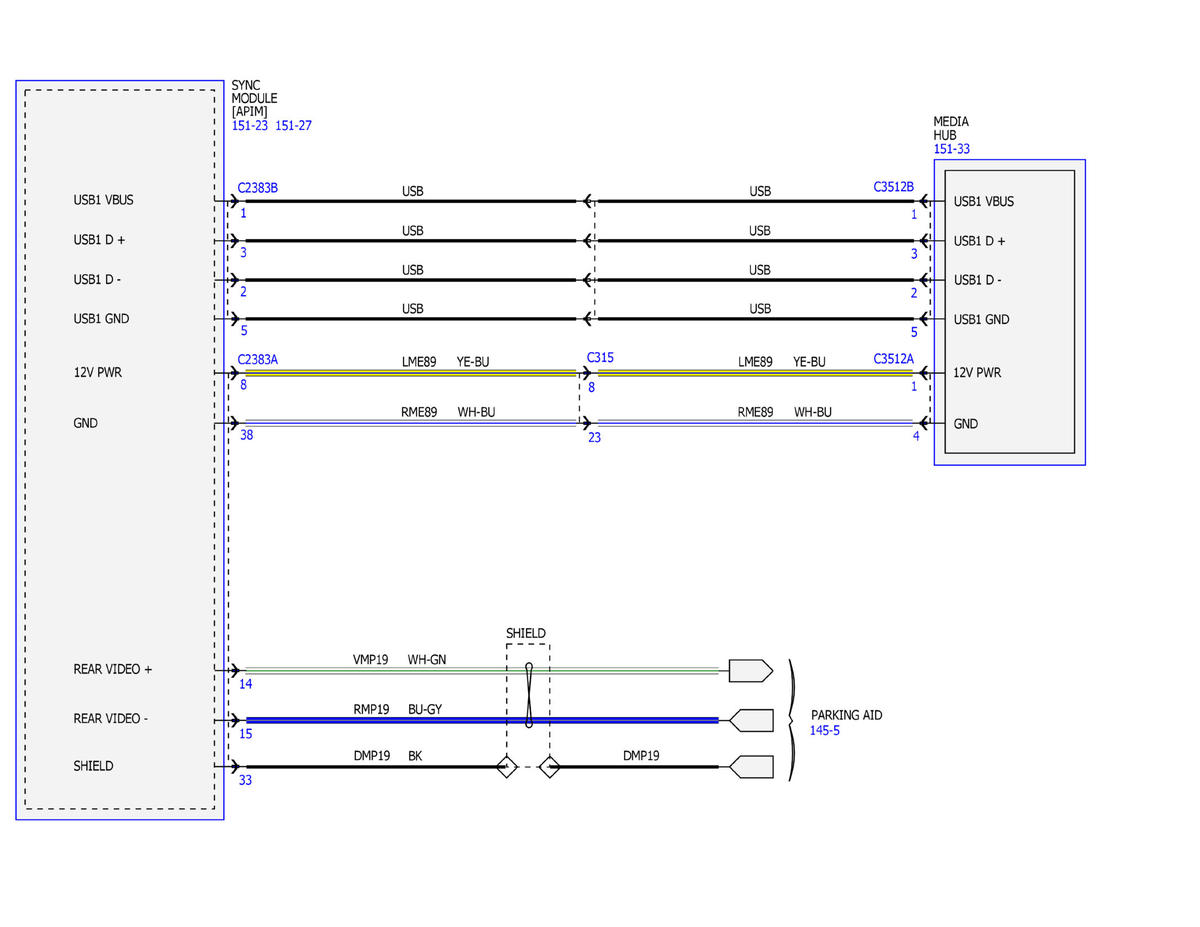

Fig 8: Identifying Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (8 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 9: Identifying Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (9 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 10: Identifying Audio System/Navigation - AM/FM/SYNC/Touchscreen Display Wiring Diagram (10 Of 10)

Courtesy of FORD MOTOR COMPANY
