Audio System/Navigation - AM/FM/CD

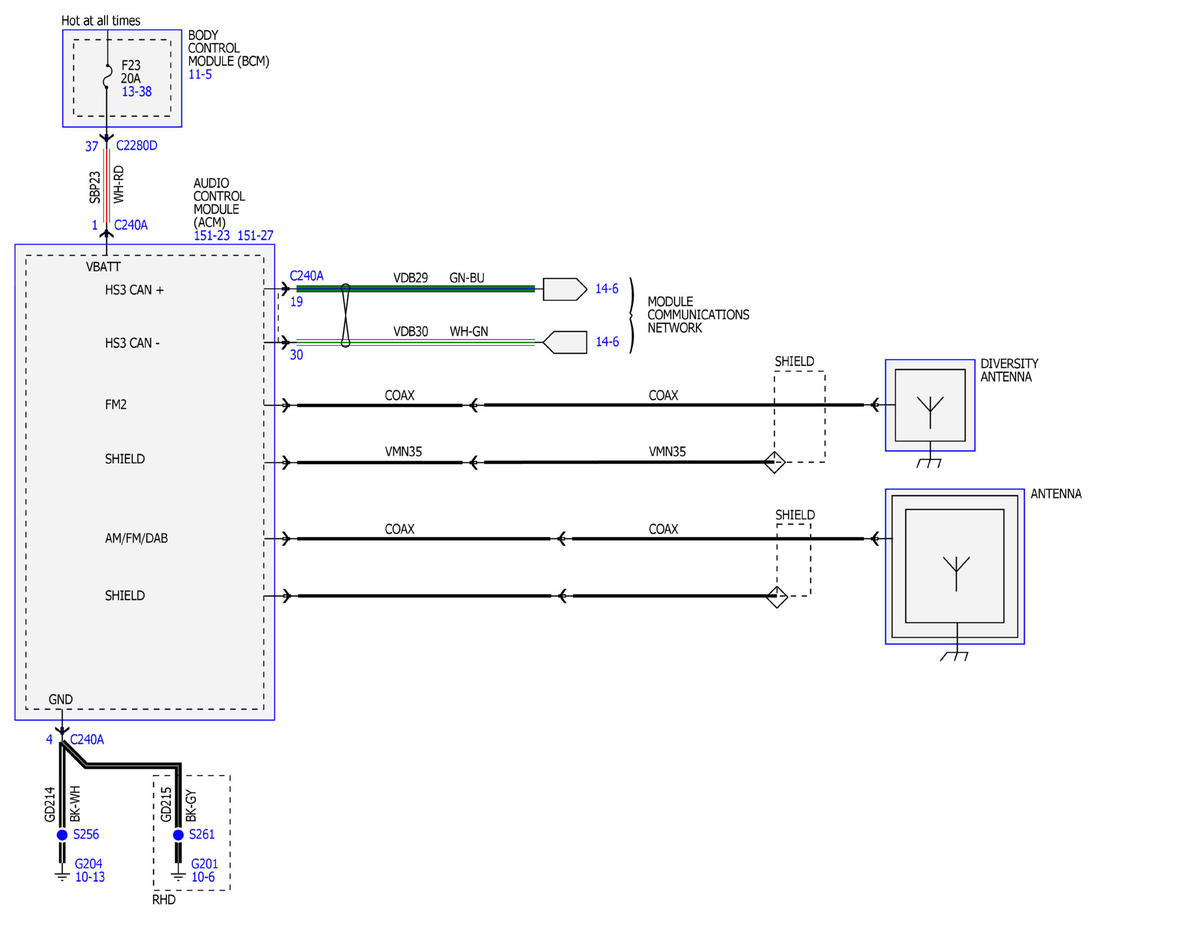

Fig 1: Identifying Audio System/Navigation - AM/FM/CD Wiring Diagram (1 Of 8)
GFDWR130053Courtesy of FORD MOTOR COMPANY

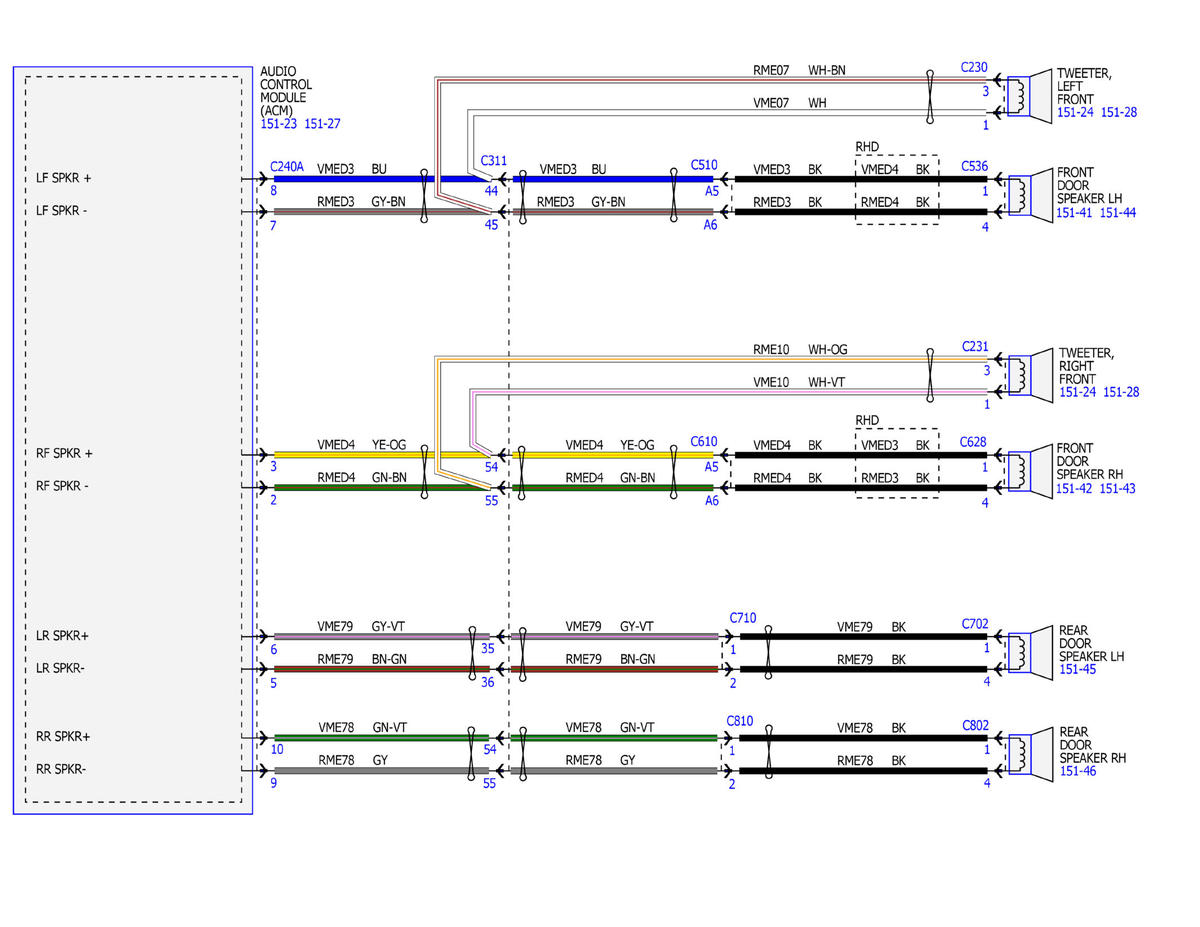

Fig 2: Identifying Audio System/Navigation - AM/FM/CD Wiring Diagram (2 Of 8)
GFDWR130054Courtesy of FORD MOTOR COMPANY

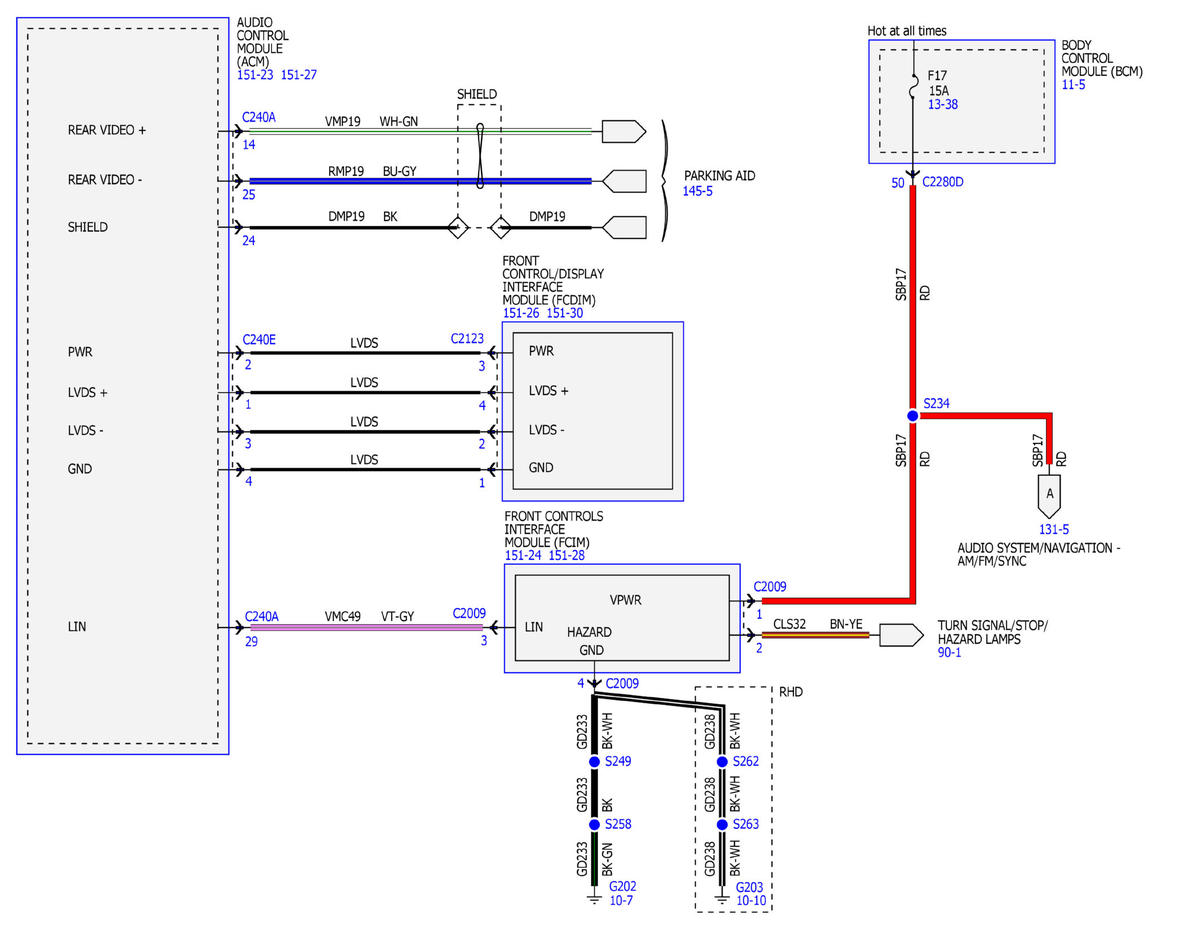

Fig 3: Identifying Audio System/Navigation - AM/FM/CD Wiring Diagram (3 Of 8)
GFDWR130055Courtesy of FORD MOTOR COMPANY

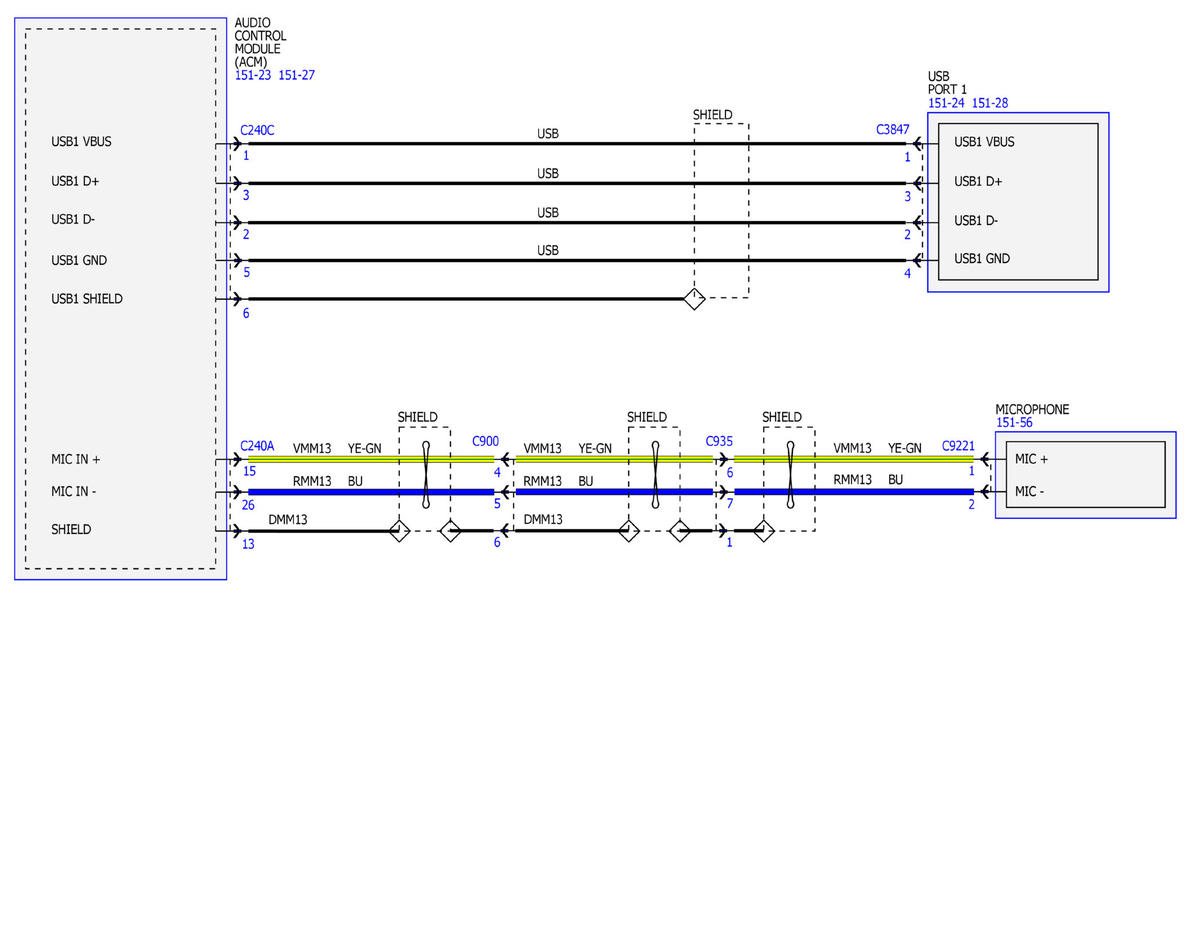

Fig 4: Identifying Audio System/Navigation - AM/FM/CD Wiring Diagram (4 Of 8)
GFDWR130056Courtesy of FORD MOTOR COMPANY

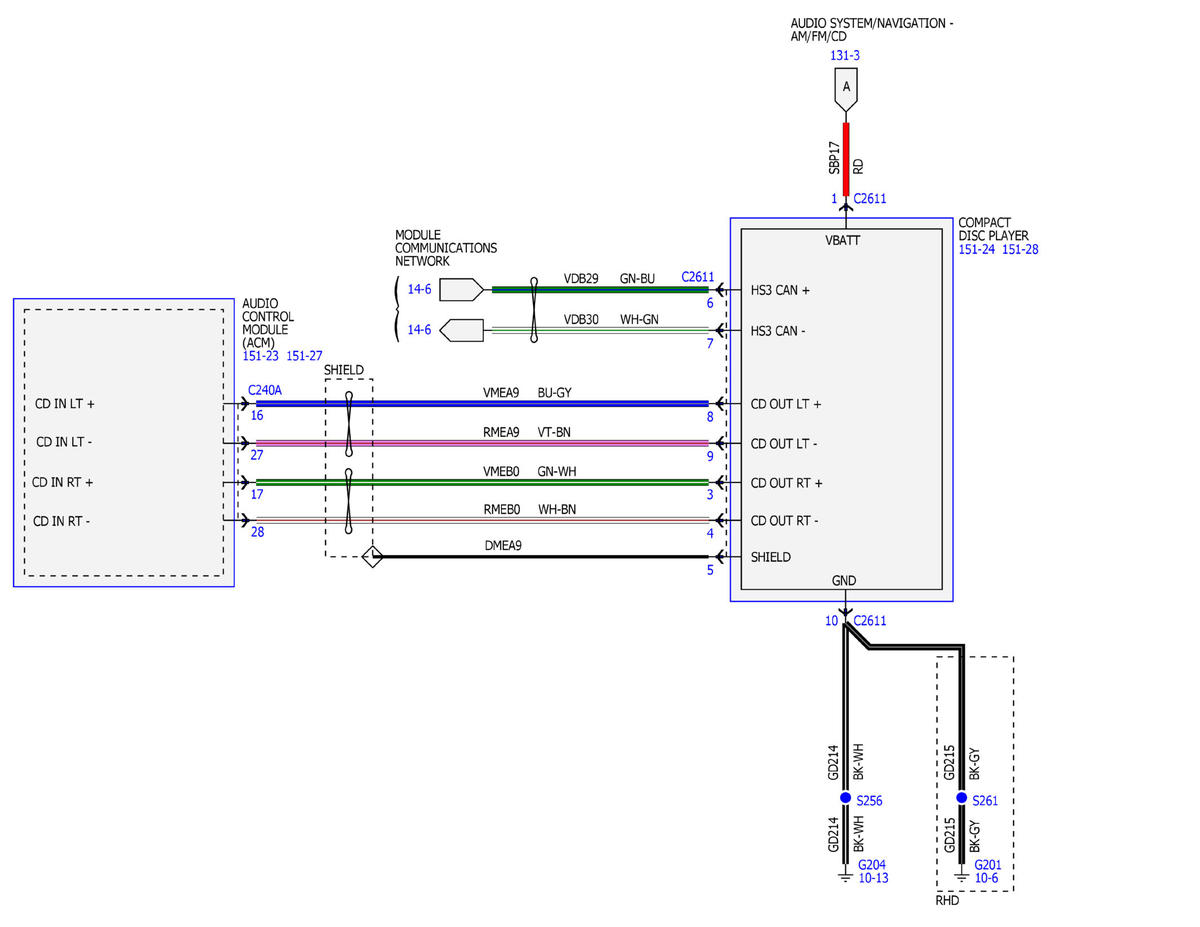

Fig 5: Identifying Audio System/Navigation - AM/FM/CD Wiring Diagram (5 Of 8)
GFDWR130057Courtesy of FORD MOTOR COMPANY

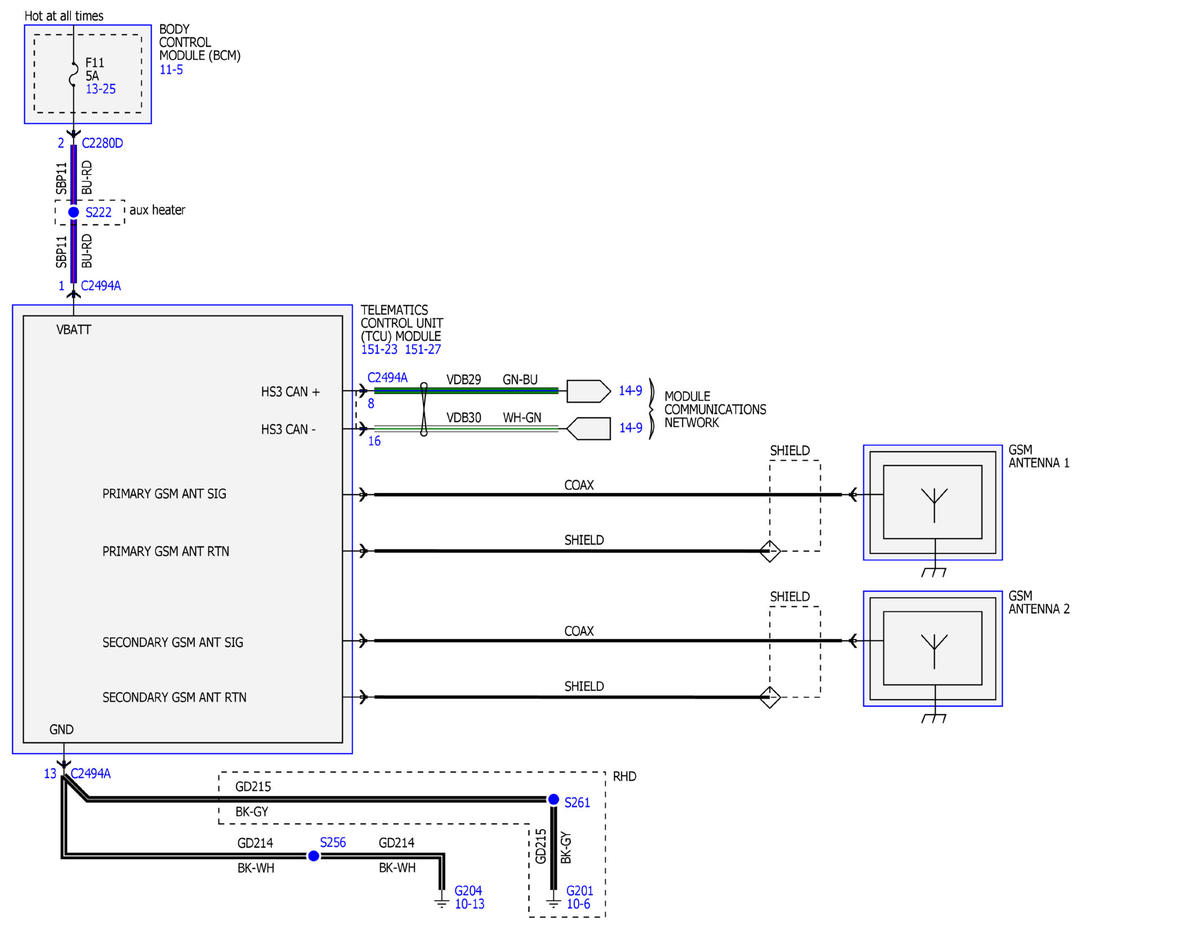

Fig 6: Identifying Audio System/Navigation - AM/FM/CD Wiring Diagram (6 Of 8)
GFDWR130058Courtesy of FORD MOTOR COMPANY

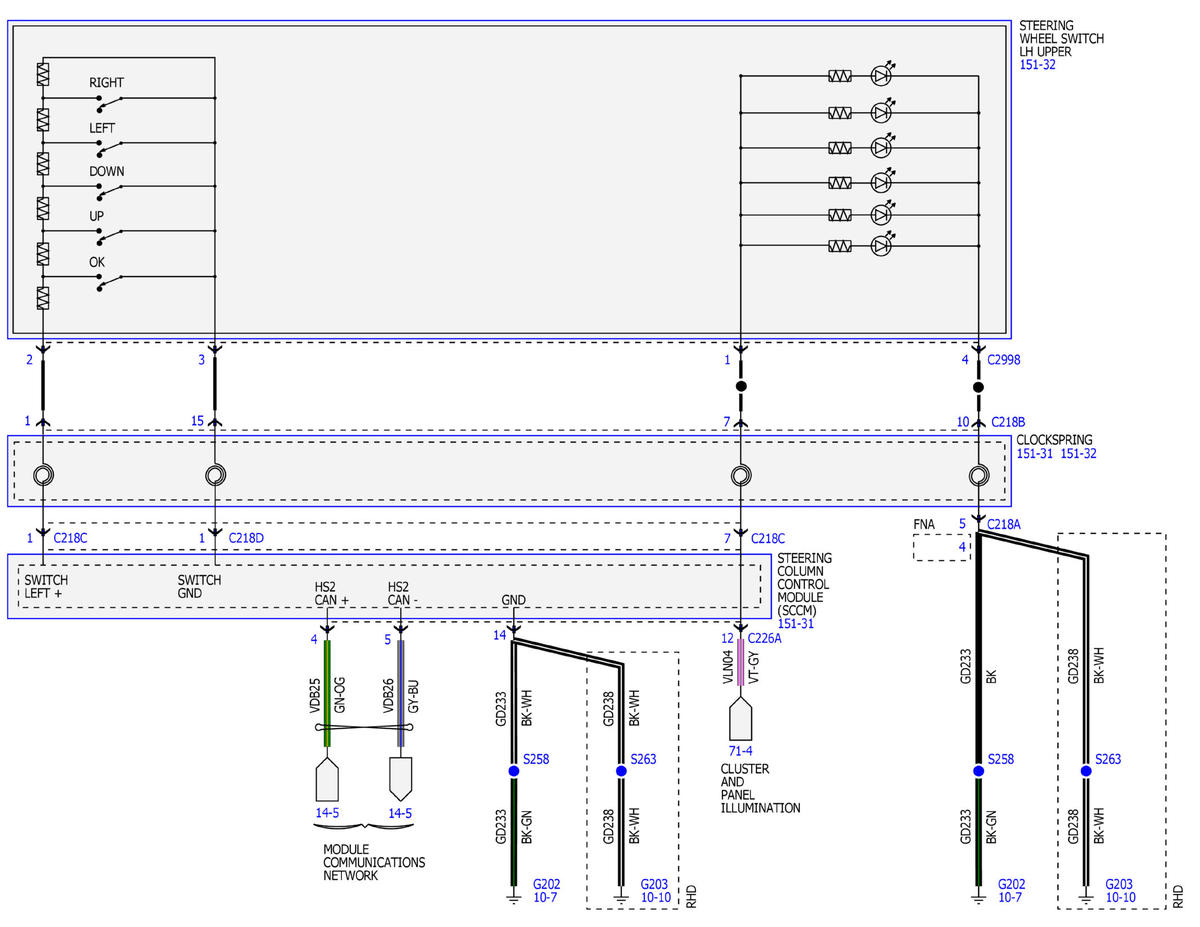

Fig 7: Identifying Audio System/Navigation - AM/FM/CD Wiring Diagram (7 Of 8)
GFDWR130059Courtesy of FORD MOTOR COMPANY

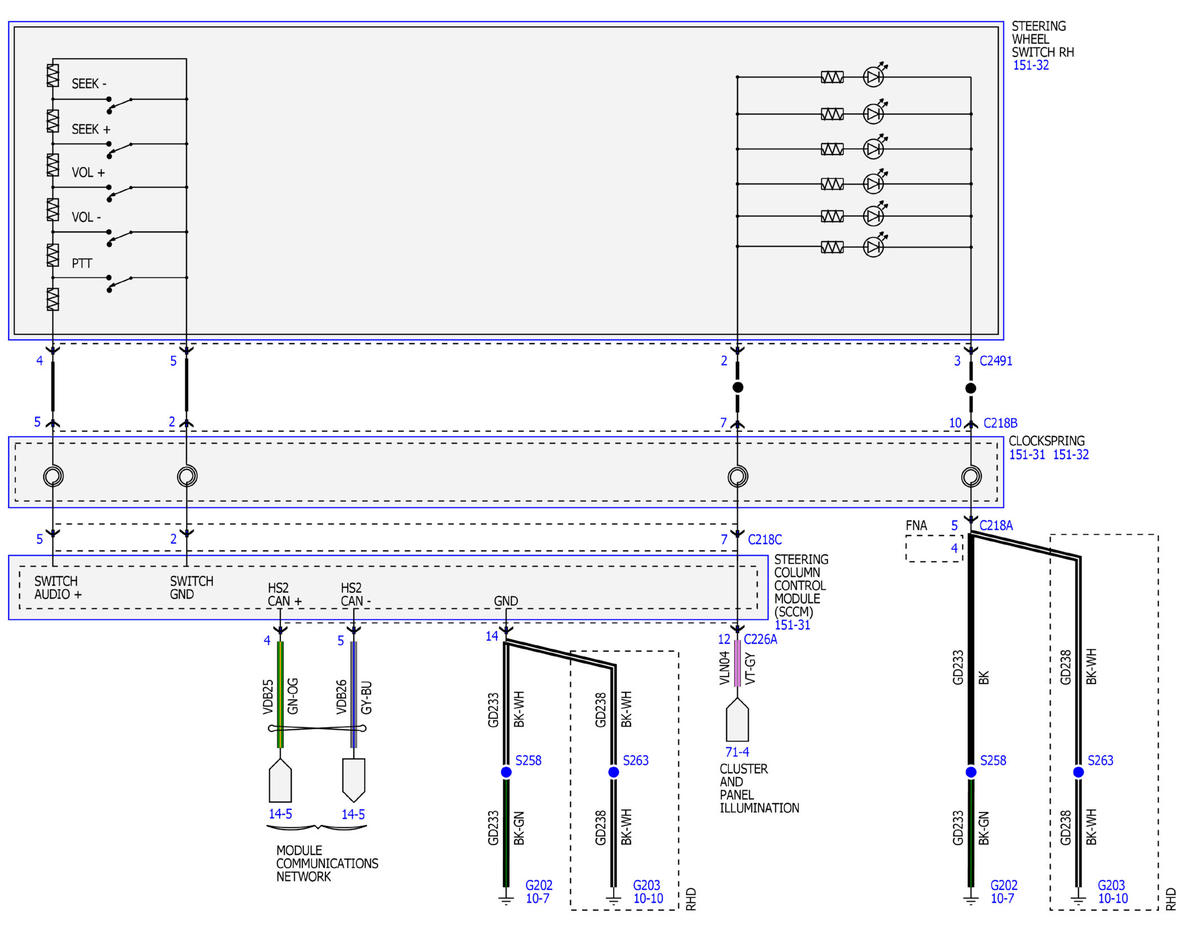

Fig 8: Identifying Audio System/Navigation - AM/FM/CD Wiring Diagram (8 Of 8)
GFDWR130060Courtesy of FORD MOTOR COMPANY
