Fuse And Relay Location

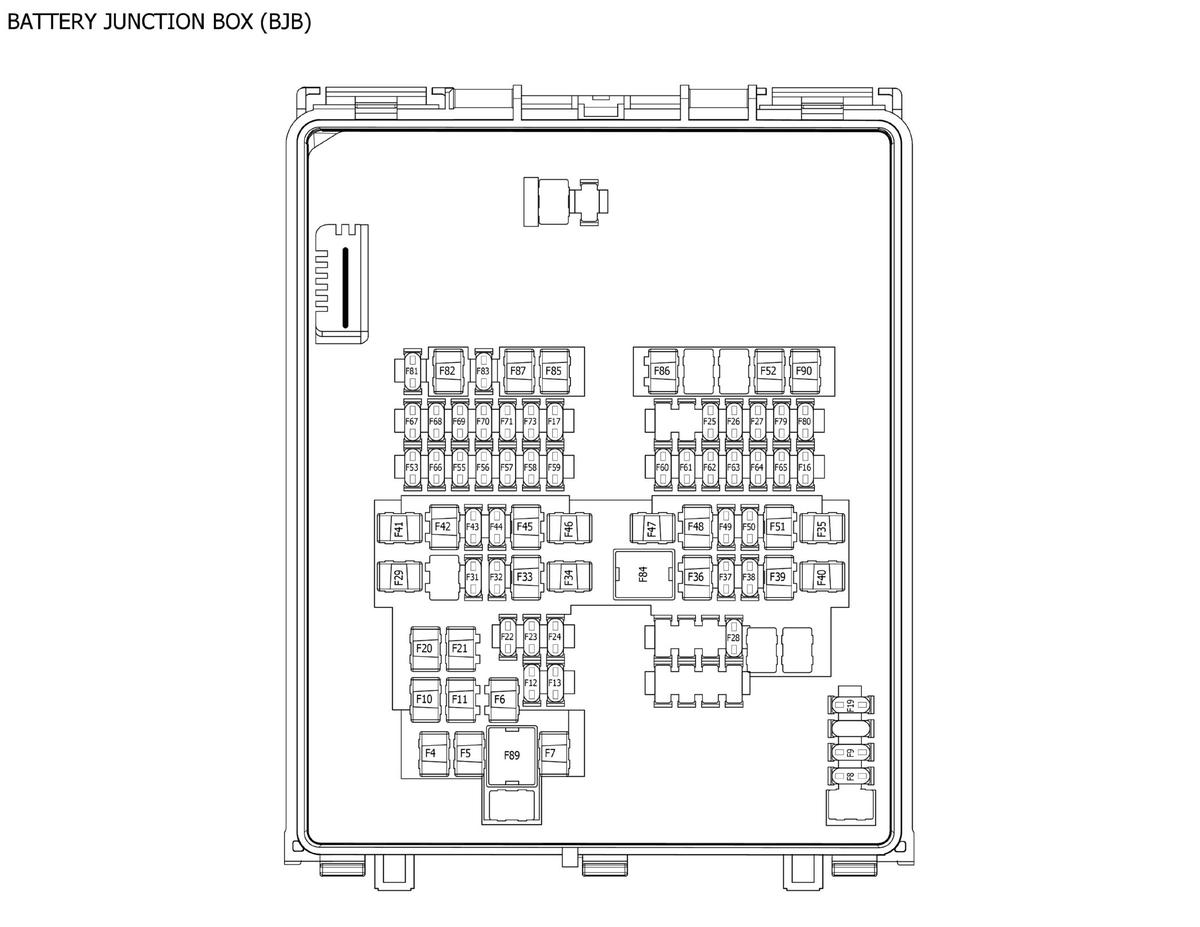

Fig 1: Battery Junction Box (BJB) Components Location
GFDWR130023Courtesy of FORD MOTOR COMPANY

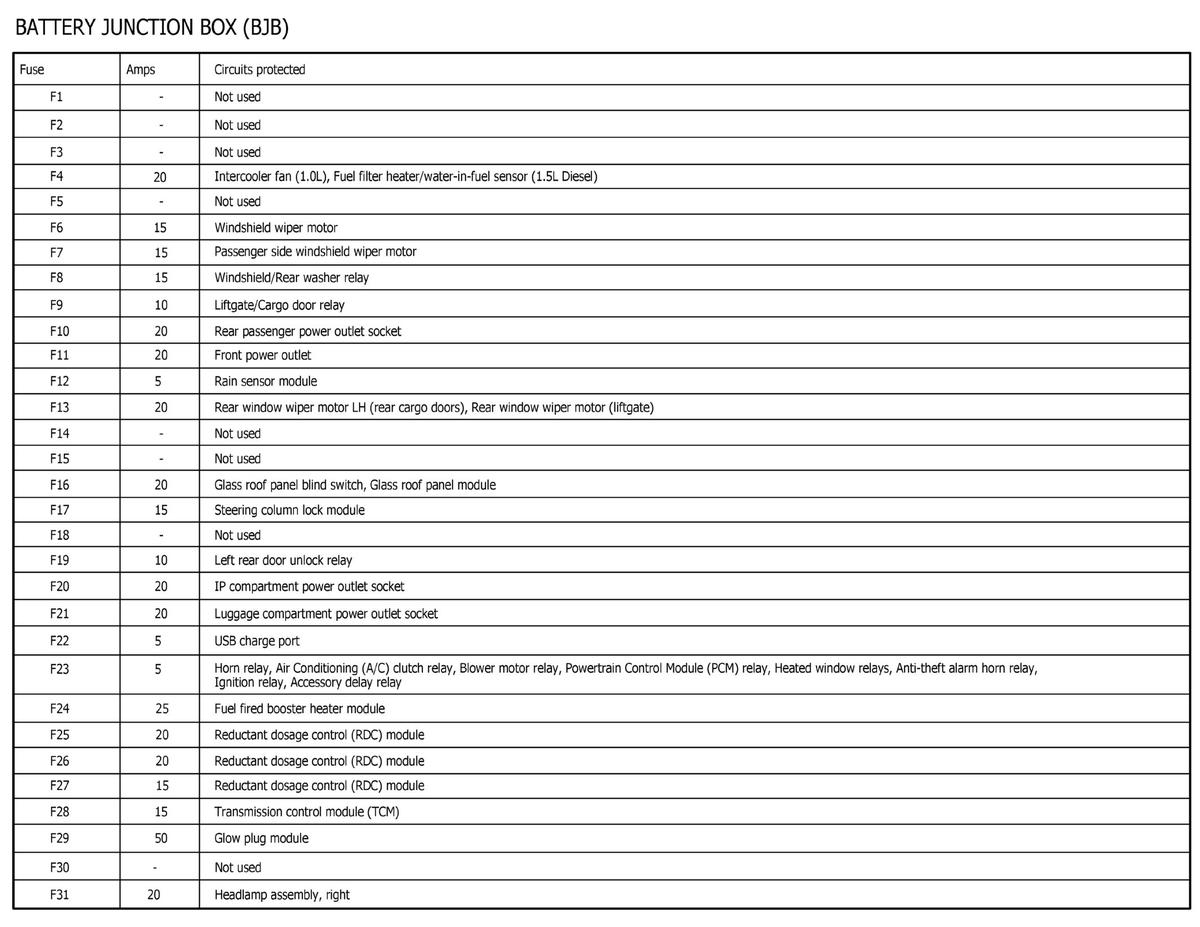

Fig 2: Battery Junction Box (BJB) Components Location Legend (F1-F31)
GFDWR130024Courtesy of FORD MOTOR COMPANY

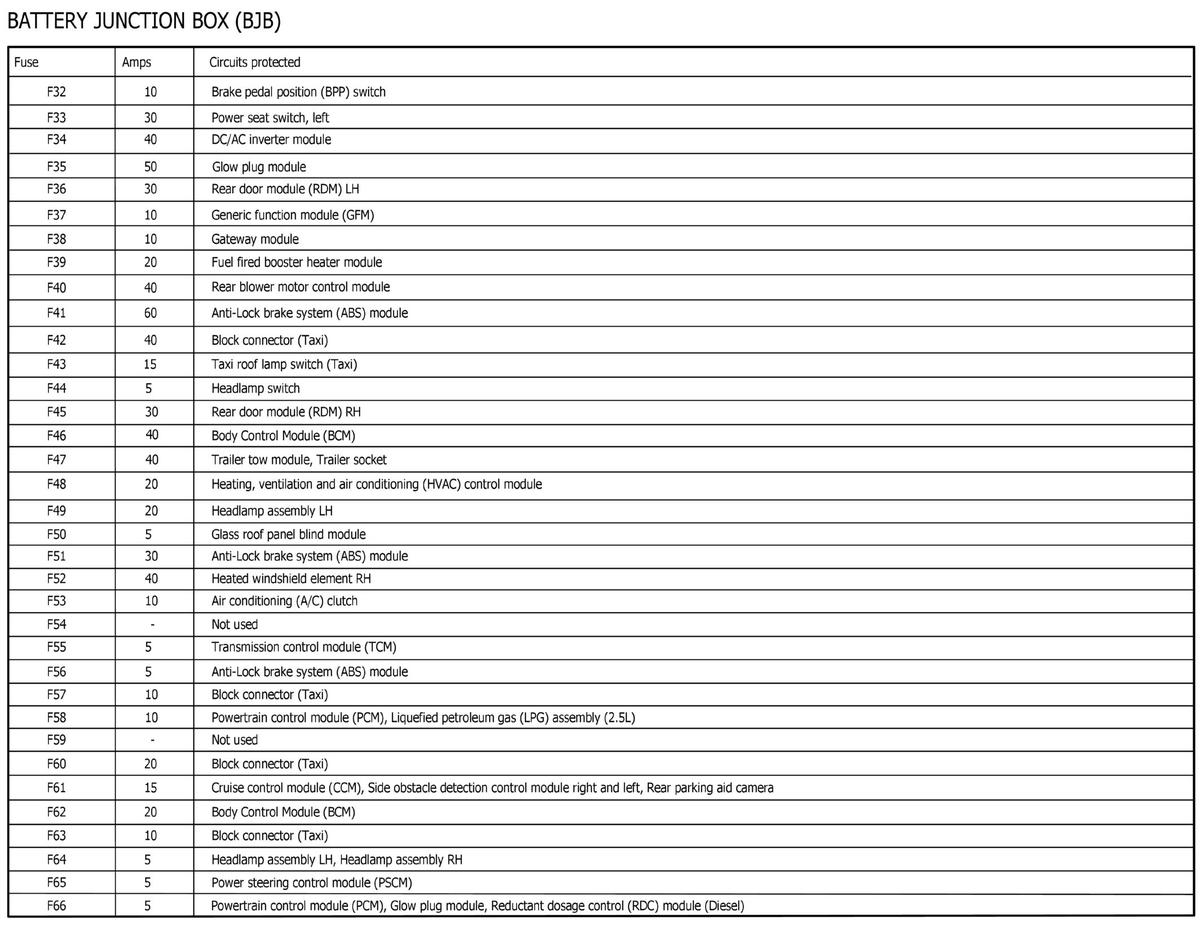

Fig 3: Battery Junction Box (BJB) Components Location Legend (F32-F66)
GFDWR130025Courtesy of FORD MOTOR COMPANY

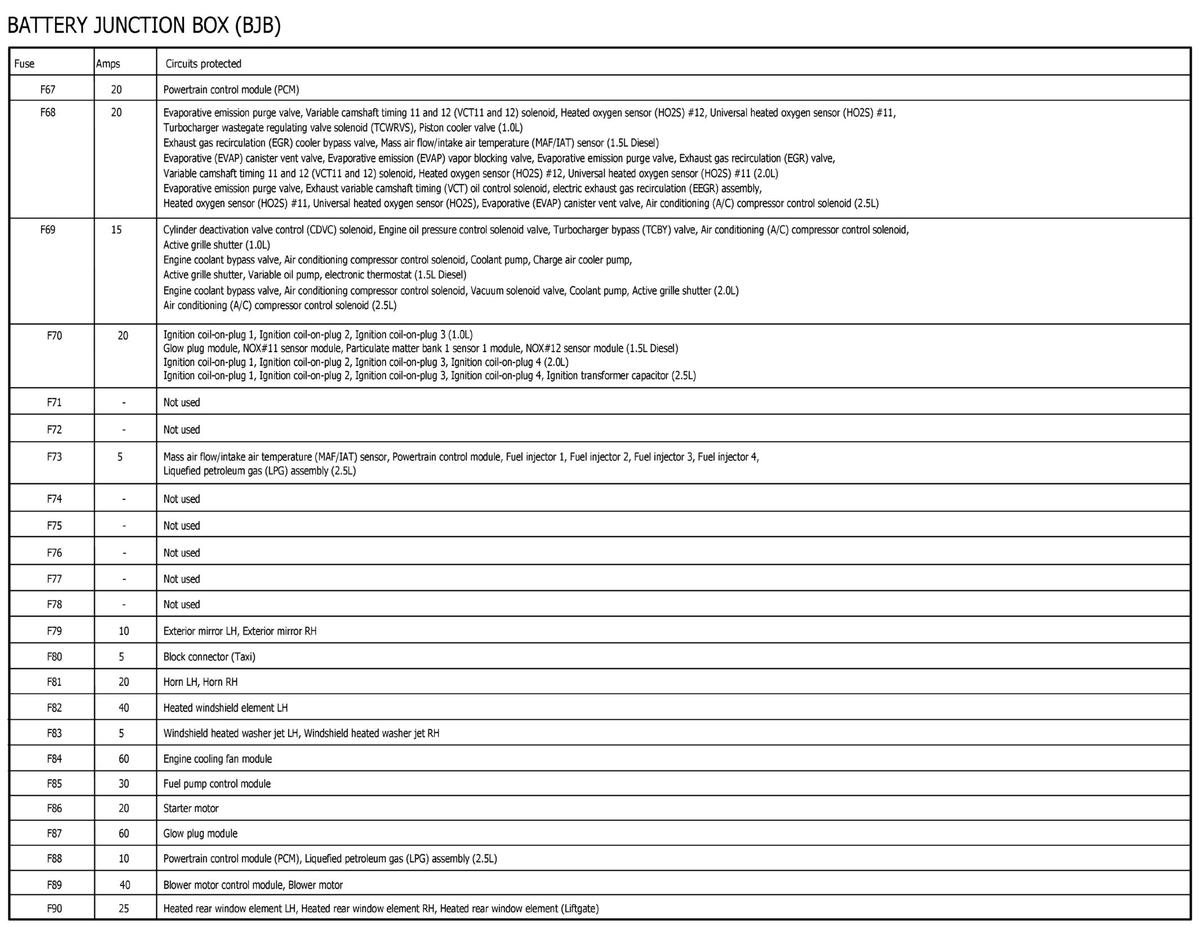

Fig 4: Battery Junction Box (BJB) Components Location Legend (F67-F90)
GFDWR130026Courtesy of FORD MOTOR COMPANY

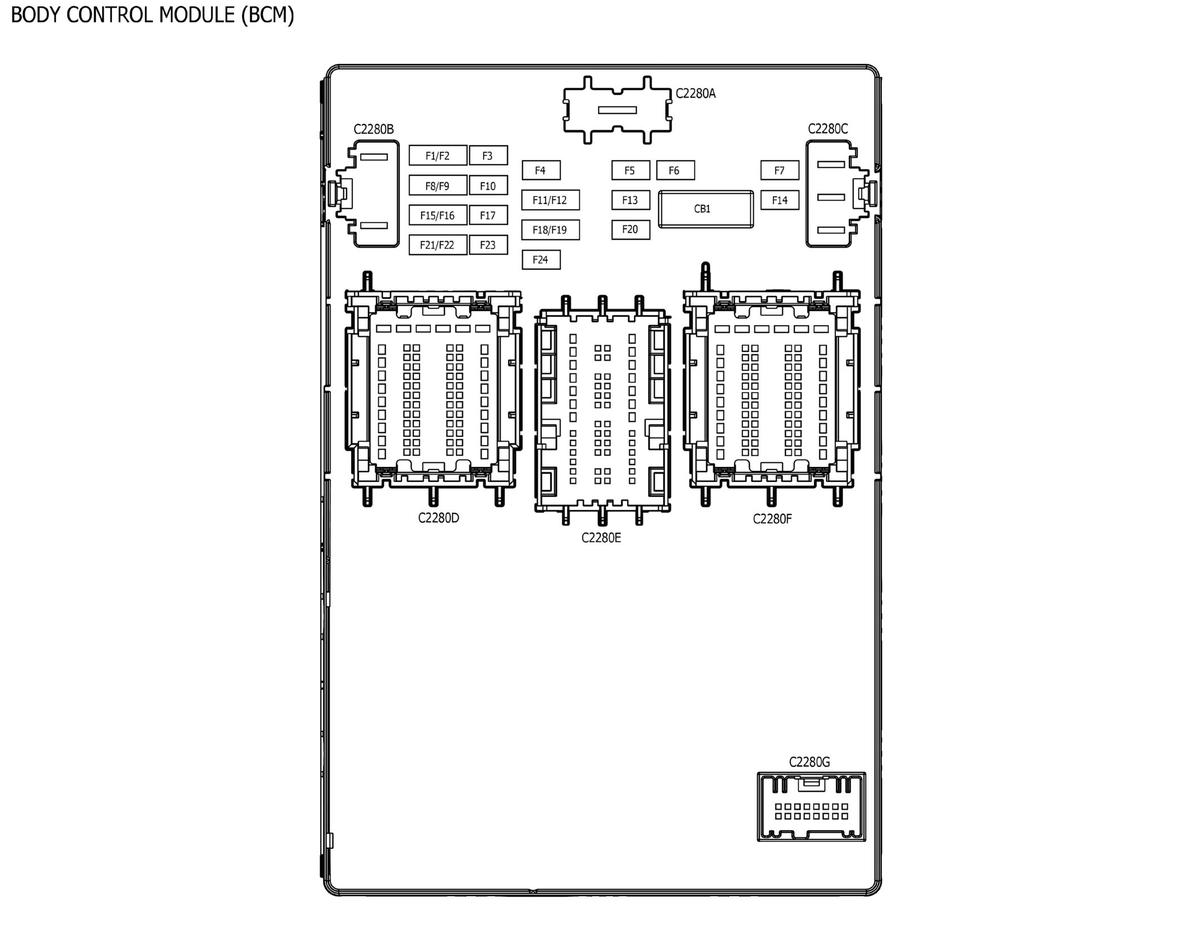

Fig 5: Body Control Module (BCM) Components Location
GFDWR130027Courtesy of FORD MOTOR COMPANY

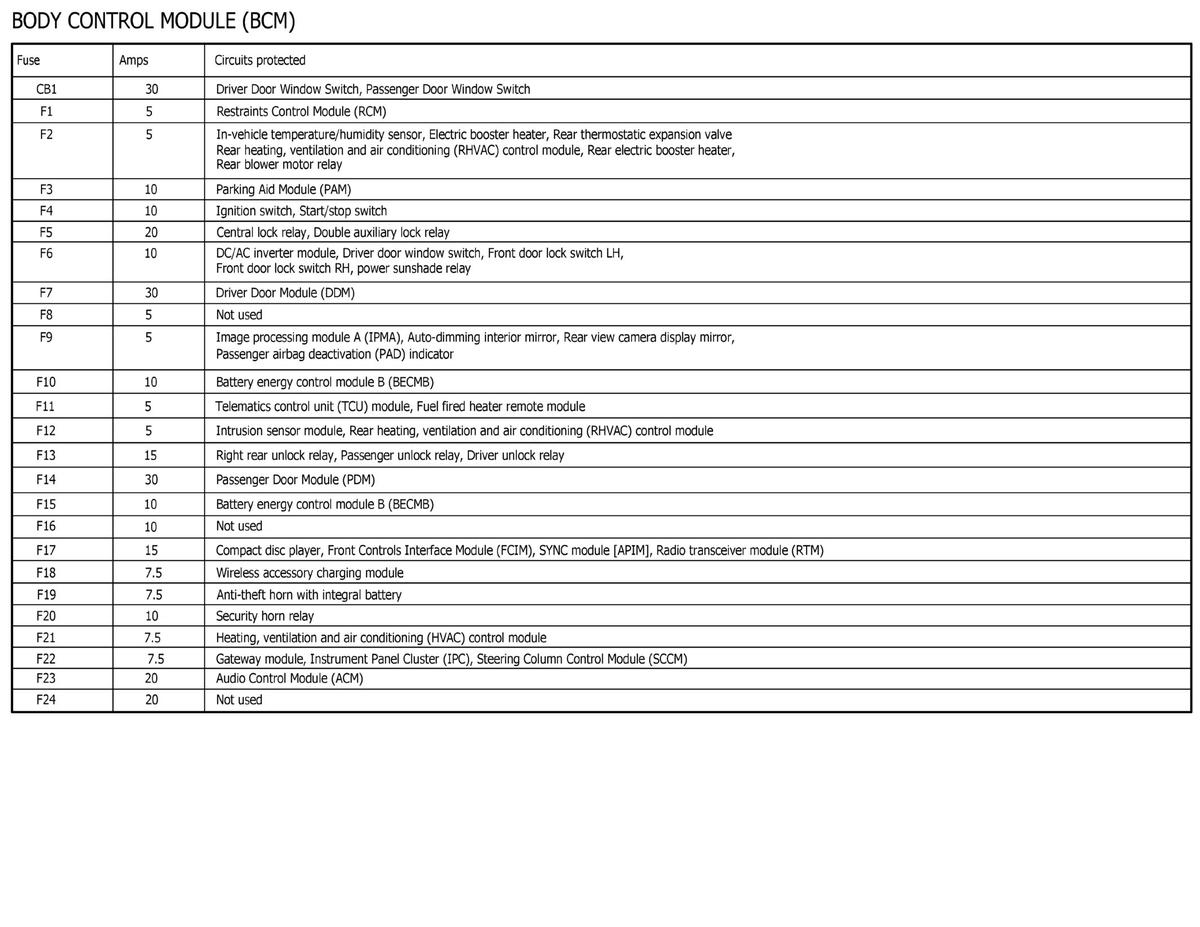

Fig 6: Body Control Module (BCM) Components Location Legend
GFDWR130028Courtesy of FORD MOTOR COMPANY

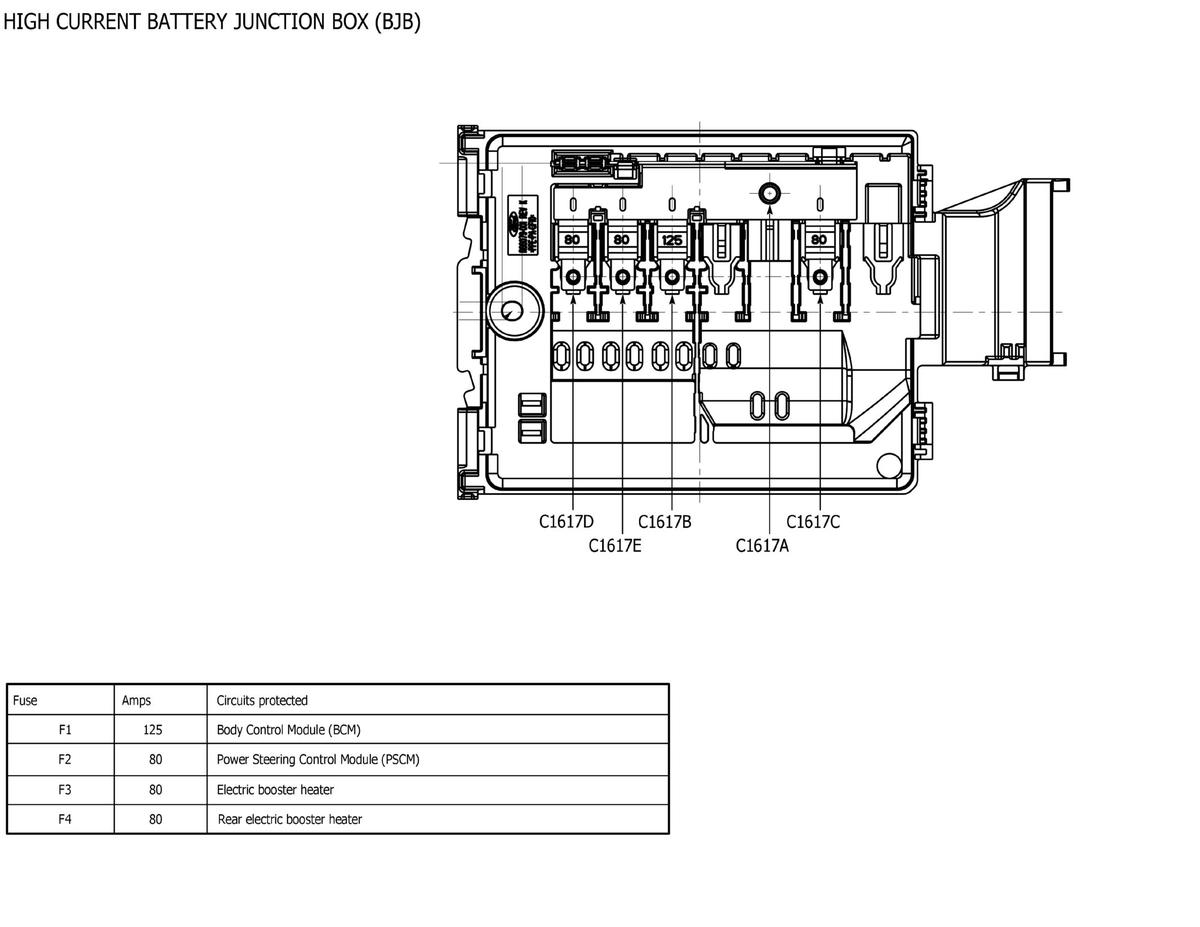

Fig 7: High Current Battery Junction Box (BJB) Components Location & Legend
GFDWR130029Courtesy of FORD MOTOR COMPANY
