Connector End View (C936) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C936	INLINE	LT GY	14405/1433414335	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

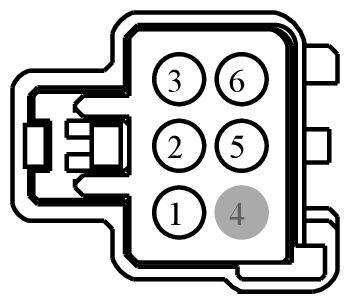

MALE

Harness

14405/14334

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CLN09 (YE-GN)	20	N/A
2	VLN33 (GY-VT)	18	N/A
2	VLN33 (GY-VT)	20	N/A
3	VPK06 (GY-VT)	22	N/A
4	*	*	N/A
5	GD238 (BK-WH)	18	N/A
5	GD238 (BK-WH)	20	N/A
	6	RPK06 (BU-WH)	22	N/A

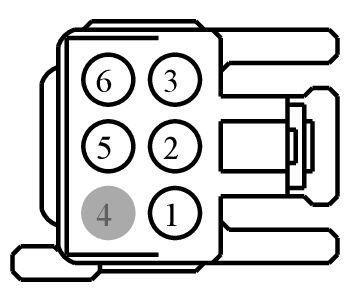

FEMALE

Harness

14335

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CLN09 (YE-GN)	20	N/A
2	VLN33 (GY-VT)	20	N/A
3	VPK06 (GY-VT)	22	N/A
4	*	*	N/A
5	GD238 (BK-WH)	20	N/A
	6	RPK06 (BU-WH)	22	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1299

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-NBB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Inverter - DC to AC
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Courtesy - Footwell
• Lamp - License
• Lamp - Park/Turn/Stop
• Lamp - Top Finish Panel
• Mating Connector WPT-962
• Motor - Adjustable Pedal
• Switch - Gear Shift Select/Neutral Safety
• Switch - Multifunction

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
