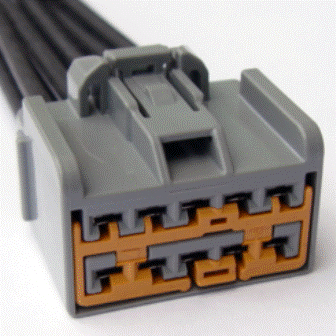

Connector End View (C935) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C935	INLINE	LT GY	1433514B599	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

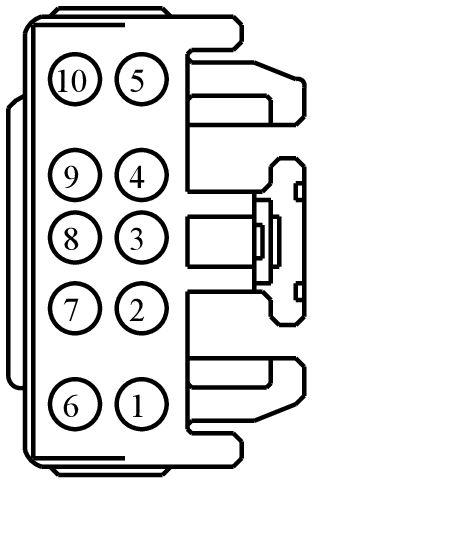

MALE

Harness

14335

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	DMM13 (BARE)	22	N/A
2	CBB16 (BU-GN)	17	N/A
3	GD238 (BK-WH)	22	N/A
4	CPR40 (YE-OG)	20	N/A
5	SBP12 (GN-RD)	22	N/A
6	VMM13 (YE-GN)	22	N/A
7	RMM13 (BU)	22	N/A
8	CPR31 (VT-BN)	20	N/A
9	VDN02 (GN-OG)	22	N/A
	10	GD238 (BK-WH)	17	N/A

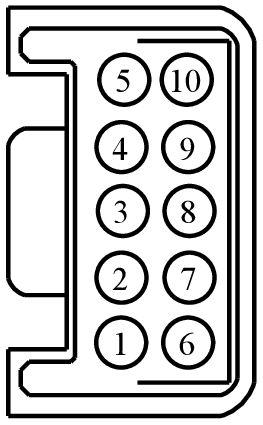

FEMALE

Harness

14B599

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	DMM13 (BARE)	22	N/A
2	CBB16 (BU-GN)	18	N/A
3	GD238 (BK-WH)	22	N/A
4	CPR40 (YE-OG)	20	N/A
5	SBP12 (GN-RD)	22	N/A
6	VMM13 (YE-GN)	22	N/A
7	RMM13 (BU)	22	N/A
8	CPR31 (VT-BN)	20	N/A
9	VDN02 (GN-OG)	22	N/A
	10	GD238 (BK-WH)	18	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-516

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-TJA

Gauge:

12

Pin material:

Tin

Cavities:

9

Vehicle Uses:

• Switch - Headlamp
• Switch - Ignition
• Switch - Multifunction
• Switch - Seat (driver)
• Switch - Seat (passenger)
• Switch - Windshield Wiper / Washer
