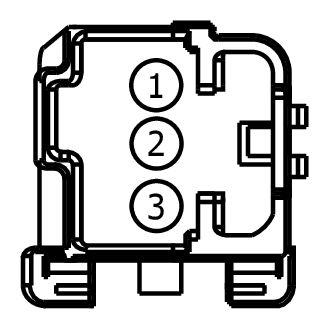

Connector End View (C933) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C933	INLINE	BK	14A00515A657/14401	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

MALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	DMP19 (BARE)	22	N/A
2	RMP19 (BU-GY)	22	N/A
	3	VMP19 (WH-GN)	22	N/A

FEMALE

Harness

15A657/14401

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	DMP19 (BARE)	22	N/A
1	DMP19 (BARE)	22	N/A
2	RMP19 (BU-GY)	22	N/A
2	RMP19 (BU-GY)	22	N/A
3	VMP19 (WH-GN)	22	N/A
	3	VMP19 (WH-GN)	22	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1182

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AFA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Microphone
