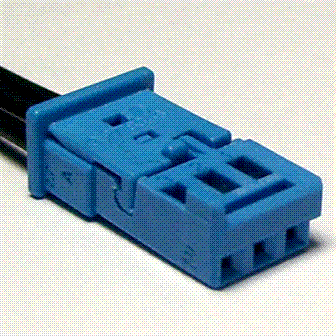

Connector End View (C911) - AUTO-DIMMING INTERIOR MIRROR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C911	AUTO-DIMMING INTERIOR MIRROR	LT BU	15A657	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LRD12 (BU-GY)	22	CTRL MOD. - ELECTROCHROMIC MIRROR +	N/A
2	GD238 (BK)	22	GROUND - COWL SIDE/PILLAR A RIGHT	N/A
3	CLS10 (GN-BN)	22	CTRL MOD. - REVERSE LEFT OR COMMON	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1430

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-SA

Gauge:

20

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Mirror - Rearview (electrochromatic)
