Connector End View (C902) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C902	INLINE	GY	1433514401	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

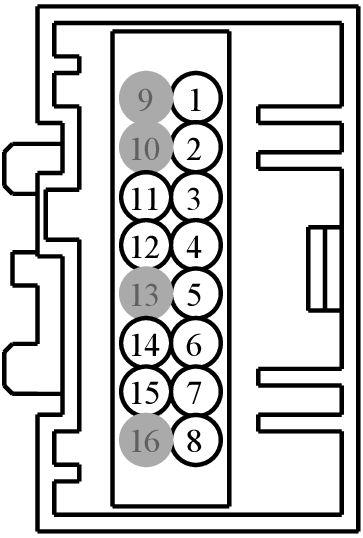

MALE

Harness

14335

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	RPK06 (BU-WH)	22	N/A
2	VPK06 (GY-VT)	22	N/A
3	CBB12 (GN-WH)	22	N/A
4	VDN02 (GN-OG)	22	N/A
5	VMF05 (GY-BU)	22	N/A
6	VMF04 (BN-BU)	22	N/A
7	VPL56 (BU-GY)	22	N/A
8	VLN33 (GY-VT)	20	N/A
9	*	*	N/A
10	*	*	N/A
11	SBP12 (GN-RD)	22	N/A
12	VX107 (YE-GY)	22	N/A
13	*	*	N/A
14	CLS10 (GN-BN)	22	N/A
15	CLN09 (YE-GN)	20	N/A
	16	*	*	N/A

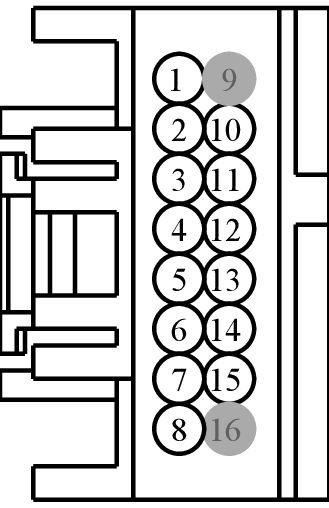

FEMALE

Harness

14401

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	RPK06 (BU-WH)	22	N/A
2	VPK06 (GY-VT)	22	N/A
3	CBB12 (GN-WH)	22	N/A
3	VRW06 (GN-WH)	22	N/A
4	VDN02 (GN-OG)	22	N/A
5	VMF05 (GY-BU)	22	N/A
6	VMF04 (BN-BU)	22	N/A
7	VPL56 (BU-GY)	22	N/A
8	VLN33 (GY-VT)	20	N/A
9	*	*	N/A
10	VLN04 (WH-BN)	22	N/A
11	SBP12 (GN-RD)	22	N/A
12	VX107 (YE-GY)	22	N/A
13	CBP09 (VT-GY)	22	N/A
14	CLS10 (GN-BN)	22	N/A
15	CLN09 (YE-GN)	20	N/A
	16	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-968

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DPB

Gauge:

18

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Module - Reverse Park Aid (RPA)
• Radio
• Switch - Power Window - Driver
• Switch - Reverse Park Aid

Pigtail Kit Part Number WPT-1582

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DPC

Gauge:

20

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• Control - Navigation Display
• Module - Body Control
• Module - Reverse Park Aid (RPA)
• Radio
• Switch - Power Window - Driver
• Switch - Reverse Park Aid
