Connector End View (C900) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C900	INLINE	DK GY	1433514401	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

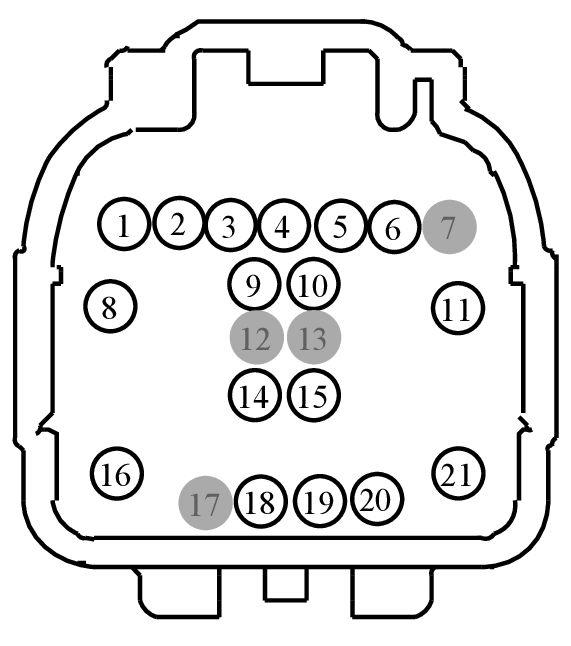

MALE

Harness

14335

Courtesy of FORD MOTOR COMPANY

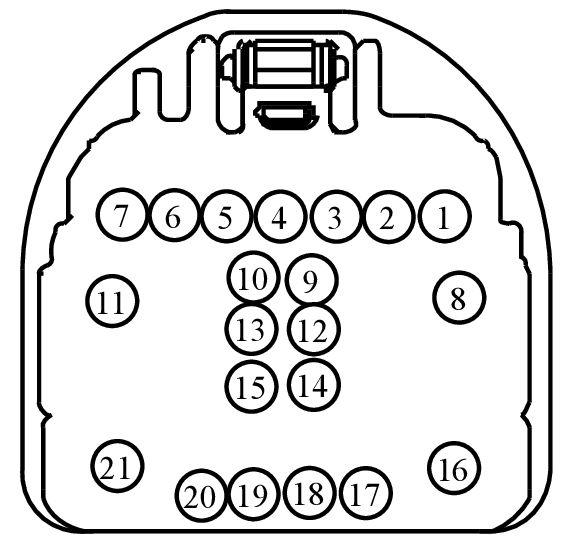

FEMALE

Harness

14401

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	SBP17 (RD)	20	N/A
2	VDB25 (GN-OG)	22	N/A
3	VDB26 (GY-BU)	22	N/A
4	VMM13 (YE-GN)	22	N/A
5	RMM13 (BU)	22	N/A
6	DMM13 (BARE)	22	N/A
7	*	*	N/A
8	GD238 (BK)	20	N/A
8	GD238 (BK-WH)	20	N/A
8	GD238 (BK-WH)	22	N/A
9	VDB07 (VT-OG)	22	N/A
10	VDB06 (GY-OG)	22	N/A
11	CBP09 (VT-GY)	22	N/A
12	*	*	N/A
13	*	*	N/A
14	VDB07 (VT-OG)	22	N/A
15	VDB06 (GY-OG)	22	N/A
16	GD238 (BK-WH)	16	N/A
16	GD238 (BK-WH)	20	N/A
17	*	*	N/A
18	VDB25 (GN-OG)	22	N/A
19	VDB26 (GY-BU)	22	N/A
20	SBB50 (YE-RD)	22	N/A
	21	CBB16 (BU-GN)	17	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	SBP17 (RD)	20	N/A
2	VDB25 (GN-OG)	22	N/A
3	VDB26 (GY-BU)	22	N/A
4	VMM13 (YE-GN)	22	N/A
5	RMM13 (BU)	22	N/A
6	DMM13 (BARE)	22	N/A
7	CLN09 (YE-GN)	20	N/A
7	VPL56 (BU-GY)	22	N/A
8	CBB16 (BU-GN)	17	N/A
8	GD233 (BK)	17	N/A
8	GD238 (BK-WH)	17	N/A
9	VDB07 (VT-OG)	22	N/A
10	VDB06 (GY-OG)	22	N/A
11	CBP09 (VT-GY)	22	N/A
11	GD238 (BK-WH)	16	N/A
12	CLN09 (YE-GN)	20	N/A
13	VLN33 (GY-VT)	20	N/A
14	VDB07 (VT-OG)	22	N/A
15	VDB06 (GY-OG)	22	N/A
16	GD233 (BK)	16	N/A
17	GD238 (BK-WH)	20	N/A
17	VPL56 (BU-GY)	22	N/A
18	VDB25 (GN-OG)	22	N/A
19	VDB26 (GY-BU)	22	N/A
20	SBB50 (YE-RD)	22	N/A
	21	CBB16 (BU-GN)	17	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1561

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ARA

Gauge:

14 16 20

Pin material:

Tin

Cavities:

21

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-1425

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-RA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

21

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-1559

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-RB

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

21

Vehicle Uses:

• Connector - Inline
