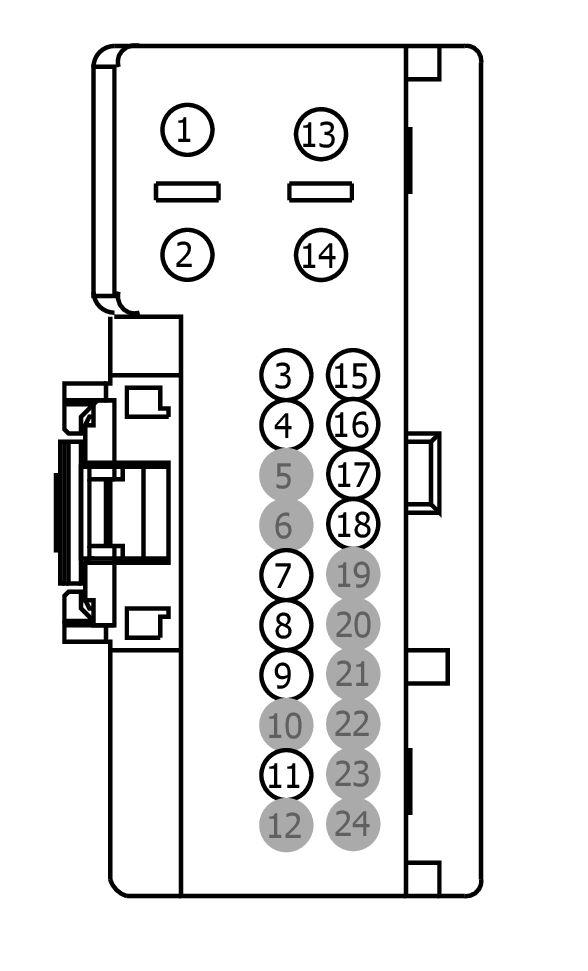

Connector End View (C832) - REAR DOOR MODULE (RDM) RH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C832	REAR DOOR MODULE (RDM) RH	GY	14632	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB45 (BK)	14	FUSE - 45 OR CIRCUIT BREAKER	N/A
2	GD357 (BK)	14	GROUND - ROCKER PANEL FRONT RIGHT # 2ND POINT	N/A
3	CPW08 (BK)	20	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION	N/A
4	LPW54 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS +	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VPW56 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR RIGHT # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	N/A
8	VPW57 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR RIGHT # HALL EFFECT SENSOR 2 (UP IF LEAD)	N/A
9	CPW23 (BK)	20	SWITCH - POWER WINDOW REAR RIGHT # DOWN	N/A
10	*	*	Not Used	N/A
11	CPW24 (BK)	20	SWITCH - POWER WINDOW REAR RIGHT # UP	N/A
12	*	*	Not Used	N/A
13	CPW53 (BK)	17	CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN (IF POSITIVE)	N/A
14	CPW52 (BK)	17	CTRL MOD. - WINDOW MOTOR REAR RIGHT # UP (IF POSITIVE)	N/A
15	RPL72 (BK)	20	CTRL MOD. - DOOR LOCK # LATCH REAR PASSENGER SIDE	N/A
16	VPLA6 (BK)	20	CTRL MOD. - LIN BUS # PASSENGER OR RIGHT HAND DOOR MODULE	N/A
17	RPW55 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS -	N/A
18	RPW09 (BK)	20	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1617

Service Part Number:

KU2Z-14S411-ZA

Gauge:

14 20

Pin material:

Tin (Greased) & Silver

Cavities:

Vehicle Uses:
