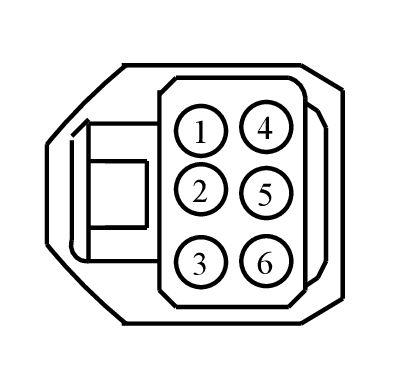

Connector End View (C828) - POWER WINDOW MOTOR, RIGHT REAR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C828	POWER WINDOW MOTOR, RIGHT REAR	BK	14632	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW52 (BK)	17	CTRL MOD. - WINDOW MOTOR REAR RIGHT # UP (IF POSITIVE)	N/A
2	VPW56 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR RIGHT # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	N/A
3	LPW54 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS +	N/A
4	CPW53 (BK)	17	CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN (IF POSITIVE)	N/A
5	VPW57 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR RIGHT # HALL EFFECT SENSOR 2 (UP IF LEAD)	N/A
6	RPW55 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1344

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AEA

Gauge:

16

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
