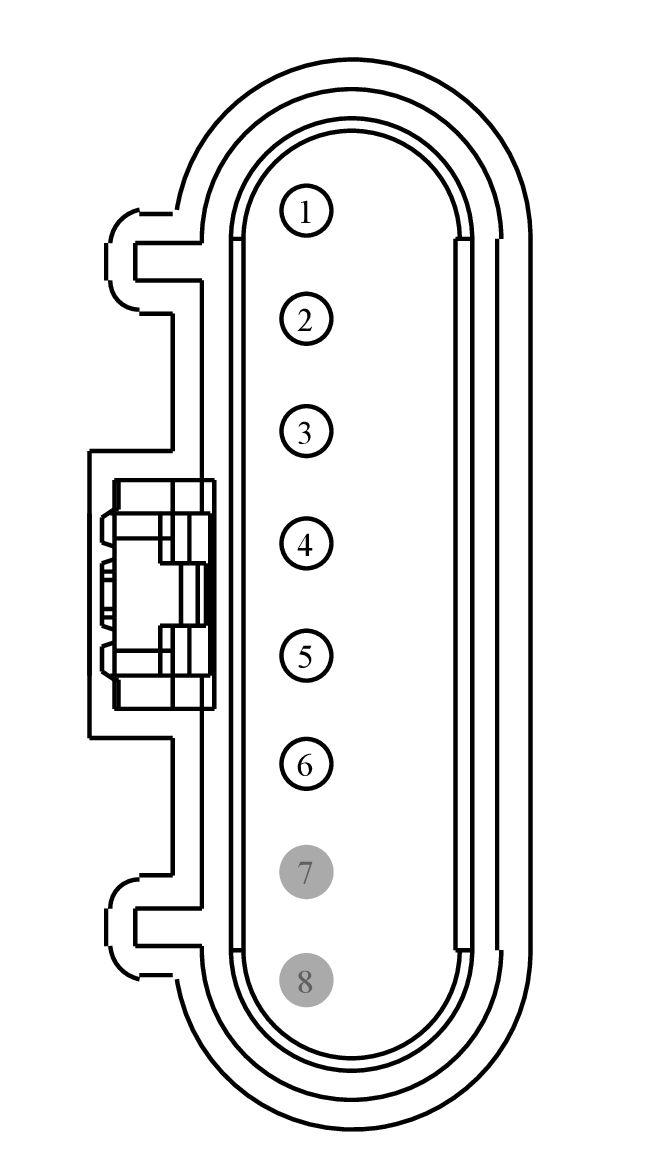

Connector End View (C808) - SLIDING DOOR LATCH RH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C808	SLIDING DOOR LATCH RH	BK	14632	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL67 (BK)	17	CTRL MOD. - DOOR LOCK # REAR DRIVER SIDE CHILD LOCK	N/A
2	CPL11 (BK)	17	CTRL MOD. - DOOR LOCK # ALL LOCK	N/A
3	CPL12 (BK)	17	CTRL MOD. - DOOR LOCK # DOUBLE LOCK ALL LOCK	N/A
4	RPL72 (BK)	20	CTRL MOD. - DOOR LOCK # LATCH REAR PASSENGER SIDE	N/A
4	GD357 (BK)	20	GROUND - ROCKER PANEL FRONT RIGHT # 2ND POINT	N/A
5	CPL41 (BK)	20	SWITCH - LATCH REAR PASSENGER SIDE # UNLOCK	N/A
6	CPL39 (BK)	20	SWITCH - LATCH REAR PASSENGER SIDE OR RIGHT REAR # AJAR (INCL.SLIDING DOOR)	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1366

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MBB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Actuator - Door Lock - LH - Front
• Actuator - Door Lock - LH - Rear
• Actuator - Door Lock - RH - Front
• Actuator - Door Lock - RH - Rear
• Module - Liftgate
• Switch - Door Ajar / Interior Lamp
• Switch - Door Lock (LH)
• Switch - Door Lock (RH)
• Switch - Sliding Door Contact
