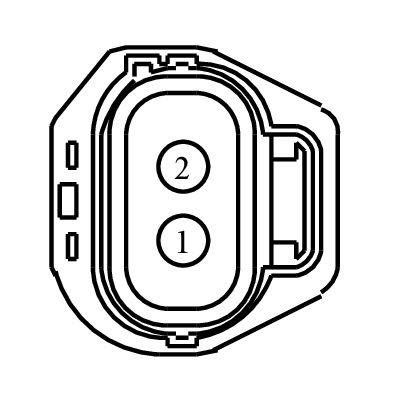

Connector End View (C803) - POWER WINDOW MOTOR, RIGHT REAR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C803	POWER WINDOW MOTOR, RIGHT REAR	BK	14632	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW24 (BK)	16	SWITCH - POWER WINDOW REAR RIGHT # UP	N/A
2	CPW23 (BK)	16	SWITCH - POWER WINDOW REAR RIGHT # DOWN	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1245

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BLA

Gauge:

12

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Motor - Power Window - LH - Front
• Motor - Power Window - RH - Front
