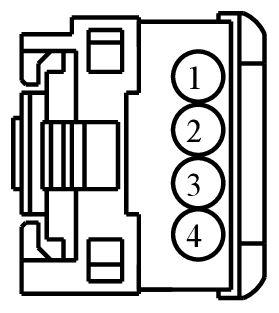

Connector End View (C801) - REAR DOOR WINDOW SWITCH RH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C801 |
REAR DOOR WINDOW SWITCH RH |
BK |
14632 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CPW08 (BK) |
20 |
CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION |
N/A |
| 2 |
CPW24 (BK) |
20 |
SWITCH - POWER WINDOW REAR RIGHT # UP |
N/A |
| 3 |
CPW23 (BK) |
20 |
SWITCH - POWER WINDOW REAR RIGHT # DOWN |
N/A |
| 4 |
RPW09 (BK) |
20 |
CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN |
N/A |
