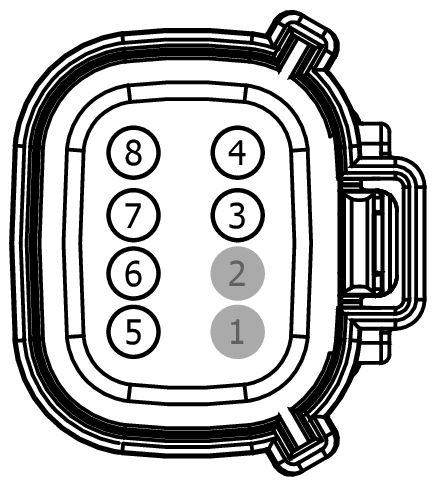

Connector End View (C740) - SLIDING DOOR LATCH LH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C740	SLIDING DOOR LATCH LH	14633			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	CPL36 (BK)	20	SWITCH - LATCH REAR DRIVER SIDE OR LEFT REAR # AJAR (INCL.SLIDING DOOR)	N/A
4	CPL38 (BK)	20	SWITCH - LATCH REAR DRIVER SIDE # UNLOCK	N/A
5	GD354 (BK)	22	GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT	without door modules	N/A
5	RPL71 (BK)	20	CTRL MOD. - DOOR LOCK # LATCH REAR DRIVER SIDE	door modules	N/A
6	CPL12 (BK)	17	CTRL MOD. - DOOR LOCK # DOUBLE LOCK ALL LOCK	N/A
7	CPL11 (BK)	17	CTRL MOD. - DOOR LOCK # ALL LOCK	N/A
8	CPL53 (BK)	17	CTRL MOD. - DOOR LOCK # REAR DRIVER SIDE OR LEFT REAR UNLOCK (INCL.SLIDING DOOR)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1524

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ALB

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Actuator - Door Lock - Decklid/Liftgate
• Actuator - Door Lock - LH - Sliding Door
• Actuator - Door Lock - RH - Sliding Door
• Connector - Inline
• Inflator - Safety Belt
