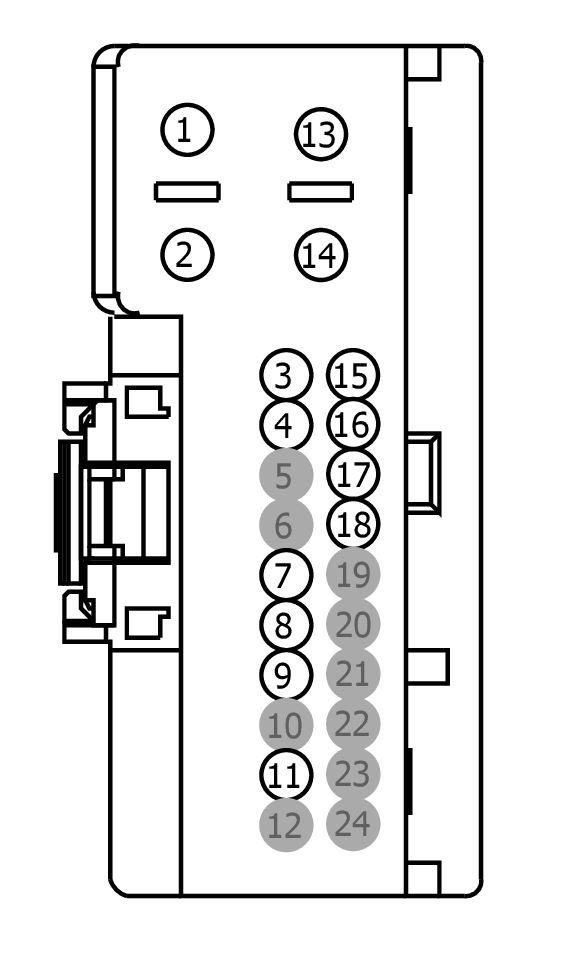

Connector End View (C728) - REAR DOOR MODULE (RDM) LH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C728	REAR DOOR MODULE (RDM) LH	GY	14633	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB36 (BK)	14	FUSE - 36 OR CIRCUIT BREAKER	N/A
2	GD354 (BK)	14	GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT	N/A
3	CPW06 (BK)	20	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT ILLUMINATION	N/A
4	LPW48 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS +	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VPW50 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR LEFT # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	N/A
8	VPW51 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR LEFT # HALL EFFECT SENSOR 2 (UP IF LEAD)	N/A
9	CPW21 (BK)	20	SWITCH - POWER WINDOW REAR LEFT # DOWN	N/A
10	*	*	Not Used	N/A
11	CPW22 (BK)	20	SWITCH - POWER WINDOW REAR LEFT # UP	N/A
12	*	*	Not Used	N/A
13	CPW47 (BK)	17	CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN (IF POSITIVE)	N/A
14	CPW46 (BK)	17	CTRL MOD. - WINDOW MOTOR REAR LEFT # UP (IF POSITIVE)	N/A
15	RPL71 (BK)	20	CTRL MOD. - DOOR LOCK # LATCH REAR DRIVER SIDE	N/A
16	VPLA4 (BK)	20	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE	N/A
17	RPW49 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS -	N/A
18	RPW07 (BK)	20	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1617

Service Part Number:

KU2Z-14S411-ZA

Gauge:

14 20

Pin material:

Tin (Greased) & Silver

Cavities:

Vehicle Uses:
