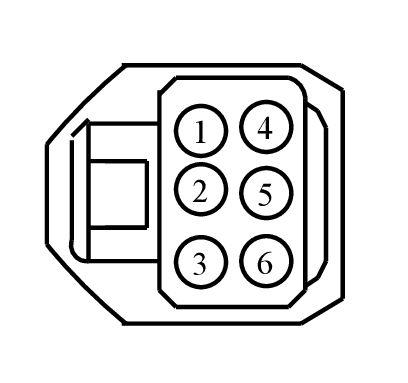

Connector End View (C726) - POWER WINDOW MOTOR, LEFT REAR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C726	POWER WINDOW MOTOR, LEFT REAR	BK	14633	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW46 (BK)	17	CTRL MOD. - WINDOW MOTOR REAR LEFT # UP (IF POSITIVE)	N/A
2	VPW50 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR LEFT # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	N/A
3	LPW48 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS +	N/A
4	CPW47 (BK)	17	CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN (IF POSITIVE)	N/A
5	VPW51 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR LEFT # HALL EFFECT SENSOR 2 (UP IF LEAD)	N/A
6	RPW49 (BK)	20	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1344

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AEA

Gauge:

16

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
