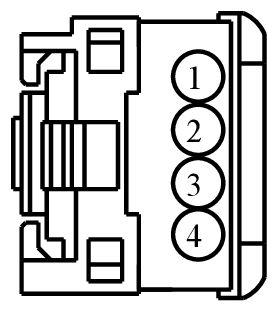

Connector End View (C701) - REAR DOOR WINDOW SWITCH LH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C701 |
REAR DOOR WINDOW SWITCH LH |
BK |
14633 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CPW06 (BK) |
20 |
CTRL MOD. - POWER WINDOW SWITCH REAR LEFT ILLUMINATION |
N/A |
| 2 |
CPW22 (BK) |
20 |
SWITCH - POWER WINDOW REAR LEFT # UP |
N/A |
| 3 |
CPW21 (BK) |
20 |
SWITCH - POWER WINDOW REAR LEFT # DOWN |
N/A |
| 4 |
RPW07 (BK) |
20 |
CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN |
N/A |
