Connector End View (C660) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C660	INLINE	BK	14630/1463114D559	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

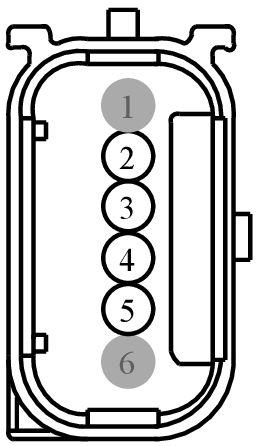

MALE

Harness

14630/14631

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	VPK01 (BK)	22	N/A
2	VPK02 (BK)	22	N/A
3	RPK01 (BK)	22	N/A
3	RPK02 (BK)	22	N/A
4	RPK39 (BK)	22	N/A
5	VPK39 (BK)	22	N/A
5	VPK40 (BK)	22	N/A
	6	*	*	N/A

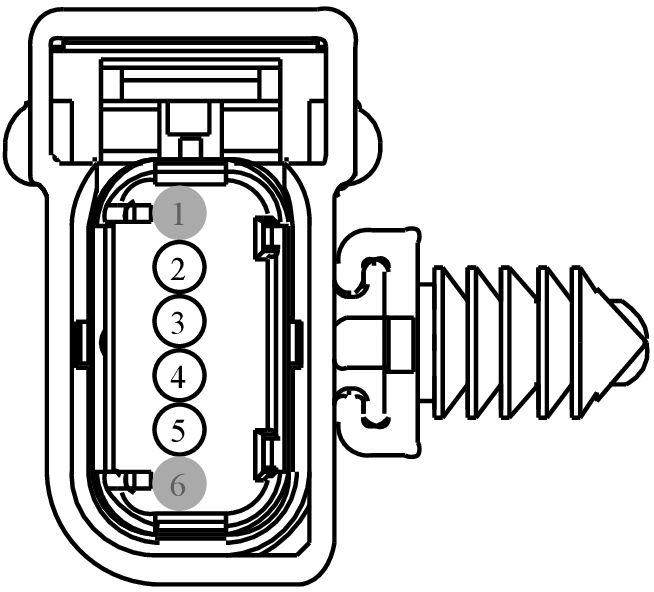

FEMALE

Harness

14D559

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	VPK01 (BN-YE)	22	N/A
3	RPK01 (WH-GN)	22	N/A
4	RPK39 (VT-OG)	22	N/A
5	VPK39 (GN-VT)	22	N/A
	6	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1329

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-EA

Gauge:

20

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Antenna - Keyless Entry
• Handle - Decklid
• Switch - Keyless Entry
• Switch - Seatbelt
