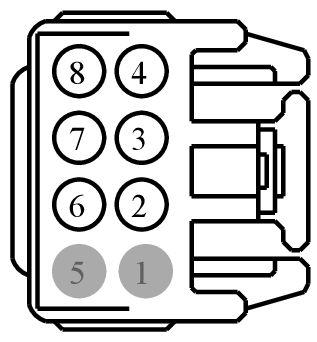

Connector End View (C659B) - DRIVER DOOR WINDOW CONTROL SWITCH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C659B |
DRIVER DOOR WINDOW CONTROL SWITCH |
LT GY |
14631 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
GD354 (BK) |
14 |
GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT |
N/A |
| 3 |
CPW11 (BK) |
16 |
SWITCH - POWER WINDOW DRIVER # DRIVER UP |
without door modules |
N/A |
| 3 |
CPW34 (BK) |
16 |
CTRL MOD. - WINDOW MOTOR DRIVER # UP (IF POSITIVE) |
door modules |
N/A |
| 4 |
CPW10 (BK) |
16 |
SWITCH - POWER WINDOW DRIVER # DRIVER DOWN |
without door modules |
N/A |
| 4 |
CPW35 (BK) |
16 |
CTRL MOD. - WINDOW MOTOR DRIVER # DOWN (IF POSITIVE) |
door modules |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
CBP25 (BK) |
14 |
FUSE - 25 OR CIRCUIT BREAKER |
N/A |
| 7 |
CPW12 (BK) |
14 |
SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN |
N/A |
| 8 |
CPW13 (BK) |
14 |
SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP |
N/A |
