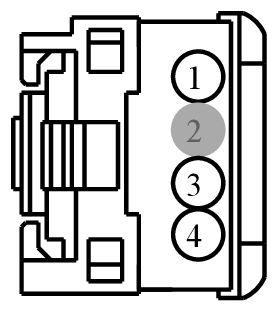

Connector End View (C659) - DRIVER DOOR WINDOW CONTROL SWITCH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C659 |
DRIVER DOOR WINDOW CONTROL SWITCH |
BK |
14631 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBP06 (BK) |
22 |
FUSE - 6 OR CIRCUIT BREAKER |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VPLA4 (BK) |
20 |
CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE |
N/A |
| 4 |
RPW03 (BK) |
22 |
CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN |
N/A |
