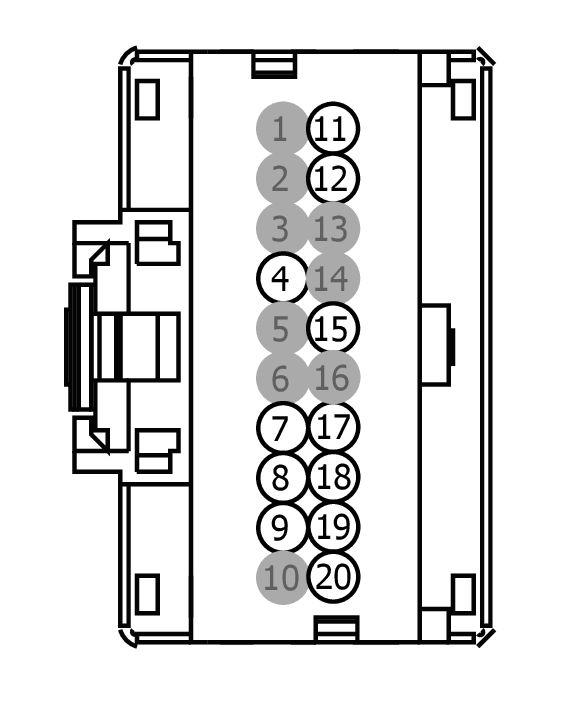

Connector End View (C653B) - DRIVER DOOR MODULE (DDM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C653B |
DRIVER DOOR MODULE (DDM) |
GY |
14631 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
CPL28 (BK) |
20 |
SWITCH - LATCH DRIVER OR LEFT FRONT # RESET |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CPM29 (BK) |
22 |
CTRL MOD. - LEFT MIRROR UP |
N/A |
| 8 |
CPM27 (BK) |
22 |
CTRL MOD. - LEFT MIRROR LEFT |
N/A |
| 9 |
CPM40 (BK) |
22 |
CTRL MOD. - RIGHT MIRROR FOLD OUT (DRV) |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
CPL29 (BK) |
20 |
SWITCH - LATCH DRIVER OR LEFT FRONT # SET |
N/A |
| 12 |
RPL61 (BK) |
20 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
RRB06 (BK) |
22 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER - |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
RPM08 (BK) |
22 |
CTRL MOD. - RIGHT MIRROR RETURN |
N/A |
| 18 |
CPM04 (BK) |
22 |
CTRL MOD. - LEFT MIRROR FOLD IN |
N/A |
| 19 |
CRB06 (BK) |
22 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + |
N/A |
| 20 |
CRD13 (BK) |
22 |
CTRL MOD. - HEATER MIRROR LEFT |
N/A |
