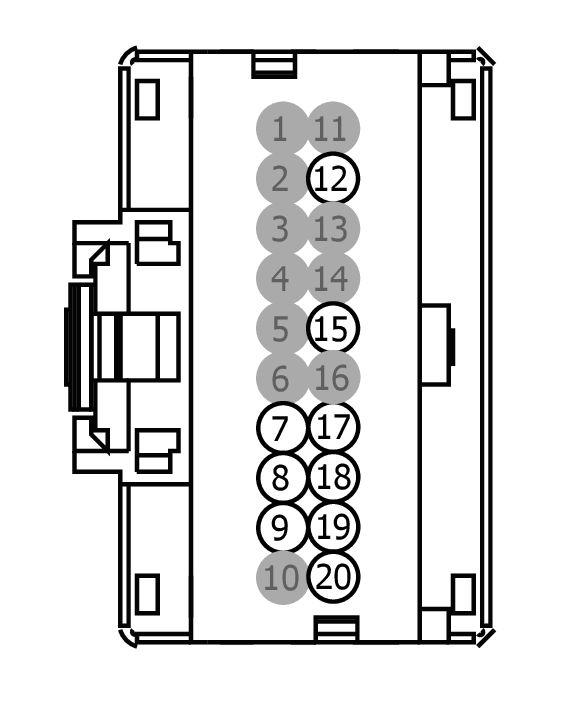

Connector End View (C652B) - PASSENGER DOOR MODULE (PDM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C652B |
PASSENGER DOOR MODULE (PDM) |
GY |
14630 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CPM34 (BK) |
22 |
CTRL MOD. - RIGHT MIRROR UP |
N/A |
| 8 |
CPM28 (BK) |
22 |
CTRL MOD. - LEFT MIRROR RIGHT |
N/A |
| 9 |
CPM39 (BK) |
22 |
CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
RPL62 (BK) |
20 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
RRB07 (BK) |
22 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER - |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
RPM05 (BK) |
22 |
CTRL MOD. - LEFT MIRROR RETURN |
N/A |
| 18 |
CPM07 (BK) |
22 |
CTRL MOD. - RIGHT MIRROR FOLD IN |
N/A |
| 19 |
CRB07 (BK) |
22 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER + |
N/A |
| 20 |
CRD14 (BK) |
22 |
CTRL MOD. - HEATER MIRROR RIGHT |
N/A |
