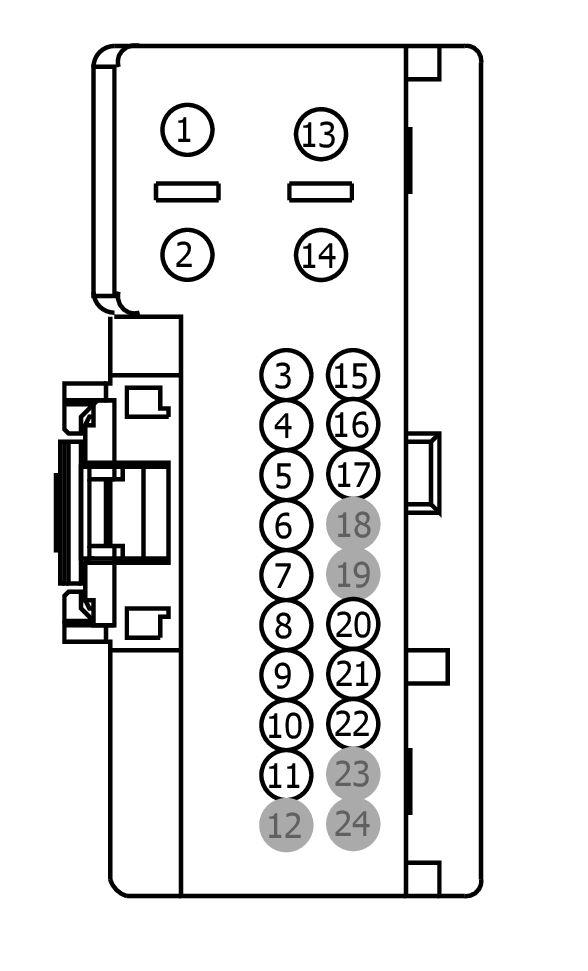

Connector End View (C652A) - PASSENGER DOOR MODULE (PDM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C652A	PASSENGER DOOR MODULE (PDM)	GY	14630	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP14 (BK)	14	FUSE - 14 OR CIRCUIT BREAKER	N/A
2	GD357 (BK)	14	GROUND - ROCKER PANEL FRONT RIGHT # 2ND POINT	N/A
3	CPL87 (BK)	20	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	N/A
4	CLS26 (BK)	20	CTRL MOD. - TURN LAMP RIGHT MIRROR +	N/A
5	VPLA6 (BK)	20	CTRL MOD. - LIN BUS # PASSENGER OR RIGHT HAND DOOR MODULE	N/A
6	VDB07 (BK)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	N/A
7	VDB06 (BK)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
8	CPW20 (BK)	22	SWITCH - POWER WINDOW FRONT PASSENGER # UP	N/A
9	CPW19 (BK)	22	SWITCH - POWER WINDOW FRONT PASSENGER # DOWN	N/A
10	CPL16 (BK)	20	SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK	N/A
11	VPW45 (BK)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 2 (UP IF LEAD)	N/A
12	*	*	Not Used	N/A
13	CPW41 (BK)	14	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN (IF POSITIVE)	N/A
14	CPW40 (BK)	14	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # UP (IF POSITIVE)	N/A
15	VLN04 (BK)	20	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
16	LPW42 (BK)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS	N/A
17	RPW05 (BK)	22	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	CPL15 (BK)	20	SWITCH - TRIM DOOR LOCK PASSENGER # LOCK	N/A
21	VPW44 (BK)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	N/A
22	RPW43 (BK)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1617

Service Part Number:

KU2Z-14S411-ZA

Gauge:

14 20

Pin material:

Tin (Greased) & Silver
