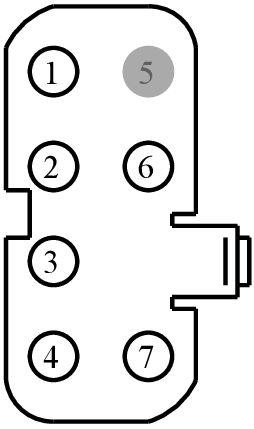

Connector End View (C643) - PASSENGER DOOR WINDOW CONTROL SWITCH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C643	PASSENGER DOOR WINDOW CONTROL SWITCH	BK	14630	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW20 (BK)	16	SWITCH - POWER WINDOW FRONT PASSENGER # UP	N/A
2	CBP25 (BK)	14	FUSE - 25 OR CIRCUIT BREAKER	N/A
3	CPW13 (BK)	14	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP	N/A
4	GD357 (BK)	20	GROUND - ROCKER PANEL FRONT RIGHT # 2ND POINT	N/A
5	*	*	Not Used	N/A
6	CPW12 (BK)	14	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN	N/A
7	CPW19 (BK)	16	SWITCH - POWER WINDOW FRONT PASSENGER # DOWN	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1267

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-PKB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

7

Vehicle Uses:

• Switch - Adjustable Pedal
• Switch - Door Lock (LH)
• Switch - Door Lock (RH)
• Switch - Heated Back Light (Rear Defrost)
• Switch - Power Sliding Rear Window
• Switch - Power Window - Driver
• Switch - Power Window - LH - Rear
• Switch - Power Window - Passenger (Front)
• Switch - Power Window - RH - Rear
• Switch - Seat (driver)
• Switch - Traction Control
