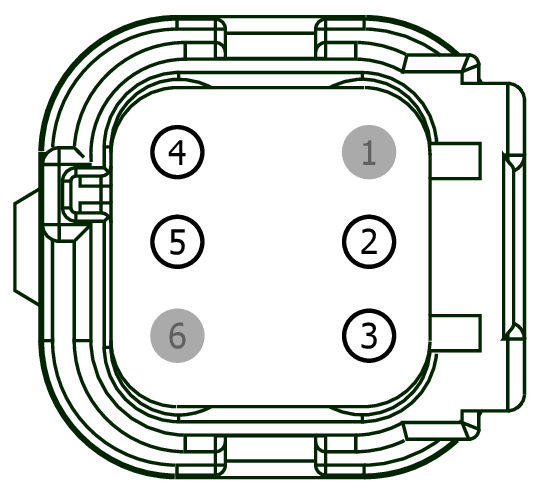

Connector End View (C634) - EXTERIOR FRONT DOOR HANDLE RH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C634 |
EXTERIOR FRONT DOOR HANDLE RH |
14D559 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
VPK01 (BN-YE) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER + |
N/A |
| 3 |
VPK39 (GN-VT) |
22 |
SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA |
N/A |
| 4 |
RPK39 (VT-OG) |
22 |
SENSOR - KEYLESS VEHICLE HANDLE |
N/A |
| 5 |
RPK01 (WH-GN) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER - |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
