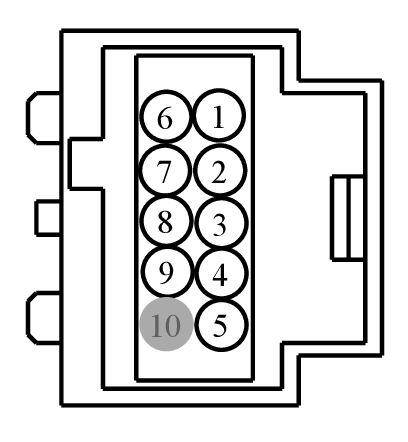

Connector End View (C615) - EXTERIOR MIRROR RH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C615 |
EXTERIOR MIRROR RH |
GY |
14630/14631 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CPM33 (BK) |
20 |
CTRL MOD. - RIGHT MIRROR RIGHT |
LHD without door modules |
N/A |
| 1 |
CPM28 (BK) |
22 |
CTRL MOD. - LEFT MIRROR RIGHT |
RHD without door modules/LHD with door modules |
N/A |
| 1 |
CPM27 (BK) |
22 |
CTRL MOD. - LEFT MIRROR LEFT |
RHD with door modules |
N/A |
| 2 |
RPM05 (BK) |
22 |
CTRL MOD. - LEFT MIRROR RETURN |
RHD without door modules/LHD with door modules |
N/A |
| 2 |
RPM08 (BK) |
20 |
CTRL MOD. - RIGHT MIRROR RETURN |
LHD without door modules/RHD with door modules |
N/A |
| 3 |
CPM34 (BK) |
20 |
CTRL MOD. - RIGHT MIRROR UP |
LHD |
N/A |
| 3 |
CPM29 (BK) |
22 |
CTRL MOD. - LEFT MIRROR UP |
RHD |
N/A |
| 4 |
CPM07 (BK) |
22 |
CTRL MOD. - RIGHT MIRROR FOLD IN |
LHD |
N/A |
| 4 |
CPM04 (BK) |
22 |
CTRL MOD. - LEFT MIRROR FOLD IN |
RHD |
N/A |
| 5 |
CRD13 (BK) |
22 |
CTRL MOD. - HEATER MIRROR LEFT |
RHD |
N/A |
| 5 |
CBB79 (BK) |
20 |
FUSE - 79 OR CIRCUIT BREAKER |
without door modules |
N/A |
| 5 |
CRD14 (BK) |
22 |
CTRL MOD. - HEATER MIRROR RIGHT |
LHD |
N/A |
| 6 |
GD357 (BK) |
20 |
GROUND - ROCKER PANEL FRONT RIGHT # 2ND POINT |
LHD |
N/A |
| 6 |
GD354 (BK) |
18 |
GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT |
RHD |
N/A |
| 7 |
CRB07 (BK) |
22 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER + |
LHD |
N/A |
| 7 |
CRB06 (BK) |
22 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + |
RHD |
N/A |
| 8 |
RRB06 (BK) |
22 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER - |
RHD |
N/A |
| 8 |
RRB07 (BK) |
22 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER - |
LHD |
N/A |
| 9 |
CPM39 (BK) |
22 |
CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) |
LHD |
N/A |
| 9 |
CPM40 (BK) |
22 |
CTRL MOD. - RIGHT MIRROR FOLD OUT (DRV) |
RHD |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
